OWNER’S MANUAL
AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
RAS-B10, 13, 16N4KVRG-E
Outdoor unit
RAS-10, 13, 16J2AVSG-E1
ENGLISHENGLISH
R32 or R410A

PRECAUTIONS FOR SAFETY
Read the precautions in
this manual carefully before
operating the unit.
This appliance is lled with R32.
●Keep this manual where the operator can easily nd it.
●Read the precautions in this manual carefully before operating the unit.
●This appliance is intended to be used by expert or trained users in shops, in light
industry and on farms, or for commercial use by lay persons.
●The precautions described herein are classied as DANGER, WARNING and
CAUTION. They both contain important information regarding safety. Be sure to
observe all precautions without fail.
DANGER
●Do not install, repair, open or remove the cover. It may expose you to
dangerous voltages. Ask the dealer or the specialist to do this.
●Turning off the power supply will not prevent potential electric shock.
●The appliance shall be installed in accordance with national wiring regulation.
●Means for disconnection from the supply having a contact separation of at least
3 mm in all poles must be incorporated in the xed wiring.
●The appliance must be stored in a room without continuously operating ignition
sources (for example, open ames, an operating gas appliance or an operating
electric heater).
●In order to avoid re, explosion or injury, do not operate the unit when harmful
gases (e.g. ammable or corrosive) are detected near the unit.
WARNING
●Do not expose your body directly to cool or warm air for a long time.
●Do not insert your nger or any article into the air inlet/outlet.
●When an abnormality (burning smell, etc.) occurs, stop the air conditioner and
disconnect the power supply or turn off the breaker.
●This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●The air conditioner must be installed, maintained, repaired and removed by a
qualied installer or qualied service person. When any of these jobs is to be
done, ask a qualied installer or qualied service person to do them for you.
●Children should be supervised to ensure that they do not play with the
appliance.

PRECAUTIONS FOR SAFETY
●Do not use any refrigerant different from the one specied (R32) for
complement or replacement. Otherwise, abnormally high pressure may be
generated in the refrigeration cycle, which may result in a failure or explosion of
the product or an injury to your body.
●Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
●The appliance shall be stored in a room without continuously operating ignition
sources (for example: open ames, an operating gas appliance or an operating
electric heater).
●Be aware that refrigerants may not contain an odour.
●Do not pierce or burn as the appliance is pressurized. Do not expose the
appliance to heat, ames, sparks, or other sources or ignition. Else, it may
explode and cause injury or death.
CAUTION
●Do not wash the unit with water. It may cause an electric shock.
●Do not use this air conditioner for other purposes such as preserving food,
breeding animal, etc.
●Do not step or put anything on the indoor/outdoor unit. It may cause an injury or
damage the unit.
●Do not touch aluminium n because it may cause an injury.
●Before cleaning the unit, turn off the main switch or the circuit breaker.
●When the unit won’t be used for a long time, turn off the main switch or the
circuit breaker.
●It is recommended that maintenance be performed by a specialist when the unit
has been operated for a long time.
●The manufacturer shall not assume any liability for the damage caused by not
observing the description of this manual.
●Remote controller and Holder are contained with magnet please keep far from
product that effect with magnet (such as electronics appliance magnetic strip
card and etc.)
●High temperature, high magnet eld and direct force collisions may effect to
magnet force down.

INDOOR UNIT DISPLAY
1
AIR FLOW DIRECTION
3
AUTOMATIC OPERATION
6
To automatically select cooling, heating, or fan only operation
1. Press
MODE
: Select Auto A.
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
3. Press FAN : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet
1. Press
MODE
: Select Cool , or Fan only .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Fan Only: No temperature indication
3. Press FAN : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet
DRY OPERATION
8
For dehumidication, a moderate cooling performance is controlled
automatically.
1. Press
MODE
: Select Dry .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Note: DRY mode fan speed is set to Auto only.
HEATING and 8°C OPERATION
7
1. Press
MODE
: Select Heat .
2. Press
: Set the desired temperature. Min = 5°C, Max = 30°C.
* Temperature range 5-16°C is Heat mode with 8°C operation with less of
energy usage
3. Press FAN : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet
Note: During 8 °C mode active (temperature range 5-16°C), some operation
such as QUIET, HI-POWER, TIMER OFF cannot use.
1
Press FIX : Move the
louver in the desired vertical
direction.
2
Press FIX : Move the
louver in the desired horizontal
direction.
3
V
V
H
H
H.DA
Swing off
Vertical
(Up-Down)
Swing
Vertical and
Horizontal
Swing
Horizontal
(Left-Right)
Swing
HADA CARE
FLOW
SWING operation can be
selected from MENU button
MENU
●Vertical (Up-Down) swing
●Horizontal (Left-Right) swing
●HADA Care ow
Note:
● Do not move the louver manually by hands or others.
● The louver may automation positioning by some operation mode.
● Display brightness can be adjusted, follow procedure on ".
1ECO (White)
2Wi-Fi access (White)
3PURE (White)
4Timer (White)
5Operation Mode
- Cool (Blue)
- Heat (Orange)
Preparing Filters
1. Open the air inlet grille and remove the air lters.
2. Attach the lters. (see detail in the Installation Manual).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Remote Control Reset
1. Remove the batteries.
2. Press .
3. Insert the batteries.
PREPARATION BEFORE USE
2
REMOTE CONTROL
4
1Infrared signal emitter
2Start/Stop button
3Mode select button
4Temperature button
5Fan speed button
6Menu select button
7Set louver Up-Down button
8
Set louver Left-Right button
9Check button*
*Check button under battery cover
FIX
MODE
FAN MENU
FIX
2
1
4
6
8
3
5
7
9
COOLING / FAN ONLY / OPERATION
5

MENU SETUP
9
For select more setting of Air conditioner such as Louver select MENU ,
Hi Power, OFF Timer and other use MENU button
FIX
MODE
FAN MENU
FIX
9.1 LOUVER SWING and HADA CARE FLOW OPERATION
Comfortable air ow can select from feature.
Louver swing opearation:
● To distribute air ow in both vertical and horizontal by swing the louver
automatically.
HADA care ow operation:
● Air ow upward to the ceiling, provide Indirect air ow to body and
homogenize room temperature.
Note:
● During HADA CARE FLOW mode, FIX button cannot active.
Louver Swing and HADA Care Flow Operation Setting
1. Press MENU button for enter menu selection
MENU
°C
Blink
During triangle mark blink can select menu by press TEMP. button.
2. Enter Louver set by press MENU button again.
triangle mark will stop blink and setting feature will be blink instead.
°C
Blink
MENU
3. Select Louver swing or HADA CARE FLOW by press TEMP. button.
°C
V
V
HH
H.DA
Swing
off
Vertical
(Up-Down)
Swing
Vertical and
Horizontal
Swing
Horizontal
(Left-Right)
Swing
HADA CARE FLOW
4. Conrm selected feature by press MENU button again.
MENU
°C
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by select exit and press menu button
MENU
°C
°C
Leave from menu setting to normal display (no triangle and feature blink).

9.2 SILENT OPERATION (Outdoor Unit)
Keep outdoor unit operating silently to ensure either yourself or neighborhood
will have a tight sleep in nighttime. By this feature, the heating capacity will
be optimized to deliver such silent experience. The silent operation can be
selected from one of two purposes (Silent 1 and Silent 2).
There are three setting parameters: Standard level > Silent 1 > Silent 2
Silent 1:
● Though operating silently, the Heating (or Cooling) capacity is still prioritized
to ensure having sufcient comfort inside the room.
● This setting is a perfect balance between the Heating (or Cooling) capacity
and the Sound level of outdoor unit.
Silent 2:
● Compromising the Heating (or Cooling) capacity to the Sound level in any
circumstance where the outdoor unit’s sound level is highly prioritized.
● This setting has a purpose to reduce the maximum sound level of outdoor
unit by 4 dB(A).
Note:
● While activating of Silent operation, inadequate heating (or cooling) capacity
may occur.
Silent Operation Setting
1. Press MENU button for enter menu selection
MENU
°C
Blink
During triangle mark blink can select menu by press TEMP. button.
°C
Blink both triangle and
feature mark Feature not
yet set
2. Enter SILENT set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
°C
MENU
3. Select SILENT operation by press TEMP. button.
°C
SILENT#1 SILENT#2 None
4. Conrm selected feature by press MENU button again.
MENU
°C
Blink only triangle
Feature already set
When feature had selected will return to menu selection display triangle mark
will blink
5. Leave from menu setting display by select EXIT.
MENU
°C
9.3 Hi POWER OPERATION Hi-P
To automatically control room temperature and airow for faster cooling or
heating operation (except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to
select Hi POWER
MENU
°C
Blink both triangle and
feature mark Feature not
yet set
2. Conrm selected feature by press MENU button again.
MENU
°C
Blink only triangle Feature
already set
3. Leave from menu setting display by select EXIT.
°C
9.4 ECO OPERATION
ECO
To automatically control room temperature to save energy
(except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to
select ECO
MENU
°C
Blink both triangle and
feature mark Feature not
yet set
2. Conrm selected feature by press MENU button again.
MENU
°C
Blink only triangle Feature
already set
3. Leave from menu setting display by select EXIT.
MENU
°C
Note:
● Cooling operation; the set temperture will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase).
For heating operation the set temperature will decrease.

9.5 FIREPLACE OPERATION
Keep indoor unit’s fan blowing continuously during thermo off, to circulate
heat from other sources over the room. There are three setting parameters:
Default setting > Fireplace 1 > Fireplace 2
Fireplace 1:
● During thermo off period, the indoor unit’s fan will continue to run by the
same speed, previously selected by end-user.
Fireplace 2:
● During thermo off period, the indoor unit’s fan will continue to run at
super-low speed, programmed from factory.
Fireplace Operation Setting
1. Press MENU button for enter menu setting and press TEMP. button to
select FIREPLACE
MENU
°C
Blink both triangle and
feature mark Feature not
yet set
2. Enter FIREPLACE set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
MENU
°C
3. Select FIREPLACE operation by press TEMP. button.
°C
FIREPLACE 1 FIREPLACE 2 None
4. Conrm selected feature by press MENU button again.
MENU
°C
Blink only triangle Feature
already set
When feature had selected will return to menu selection display triangle mark
will blink
5. Leave from menu setting display by select EXIT.
MENU
°C
Note:
● While Fireplace operation on heating mode, indoor unit fan always runs and
cold air breezing might be occurred.
● Fireplace will operate in Heating mode only.
9.6 TIMER OFF OPERATION
To set the timer OFF when the air conditioner is operating.
1. Press MENU button for enter menu setting and press TEMP. button to
select TIMER OFF.
MENU
°C
Blink both triangle and
feature mark Feature not
yet set
2. Enter TIMER set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
MENU
3. Select TIMER OFF by press TEMP. button.
Can select TIMER OFF from 0.5 - 12hrs.
4. Conrm TIMER OFF by press MENU button.
MENU
°C
Blink only triangle
Feature already set
5. Leave from menu setting display by select EXIT.
MENU
°C
Note:
● Keep the remote control in accessible transmission to the indoor unit;
otherwise, the time lag of up to 15 minutes will occur.
● The setting will be saved for the next same operation.
Cancel TIMER OFF
6. During TIMER OFF already set (no.5) press MENU button and press
TEMP. button to select TIMER OFF.
MENU
°C
Blink only triangle
Feature already set
7. Press MENU button again will cancel TIMER OFF.
MENU
°C
Blink both triangle and feature
mark Feature not yet set
8. Leave from menu setting display by select EXIT.
MENU
°C

9.7 PLASMA ION OPERATION
PURE
Capture efciency of oating impurities in the air is accelerated by plasma ion
contaminates such as bacteria, odor, smoke, dust and virus are caught and
deactivated by Plasma Ion.
1. Press MENU button for enter menu setting and press TEMP. button to
select PURE
MENU
°C
Blink both triangle and
feature mark Feature not
yet set
°C
2. Conrm selected feature by press MENU button again.
MENU
°C
Blink only triangle Feature
already set
°C
3. Leave from menu setting display by select EXIT.
MENU
°C
Note:
● Plasma Ion operation dose not remove harmful substances from cigarette
smoke (carbon monoxide etc.). Open a window occasionally for ventilation.
9.8 POWER-SELECTION OPERATION
To automatically control room temperature to save energy (except in DRY and
FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to select
POWER-SEL
Blink only triangle
MENU
°C
2. Enter POWER-SEL setting by press MENU button again.
MENU
°C
3. Select POWER-SEL level by press TEMP. button.
°C
100% 75% 50%
4. Conrm POWER-SEL level by press MENU button.
MENU
°C
5. Leave from menu setting display by select EXIT.
MENU
°C
MANUAL DEFORST OPERATION
10
To defrosting the heat exchanger of the outdoor unit during Heating operation
Press and hold MENU : for 5 seconds , then remote control display will
show as picture 1for 2seconds.
1
DISPLAY LAMP BRIGHTNESS ADJUSTMENT
11
To decrease the display lamp brightness or turn it off.
1. Press and hold FAN for 3 seconds until brightness level ( , ,
or ) is shown on remote control LCD then release the button.
2. Press Rise or
Decrease
to adjust brightness in 4 levels.
Remote control
LCD Operation display Brightness
Lamp illuminates full brightness.
100%
Lamp illuminates 50% brightness.
50%
Lamp illuminates 50% brightness and the
operation lamp is turned off.
50%
All lamps are turned off.
All turned off
●
In the examples of and , the lamp illuminates for 5 seconds before going off.
AUTO RESTART FUNCTION SETTING
12
This product is designed so that, after a power failure, it can restart automatically
in the same operating mode as before the power failure.
Information
The product was shipped with Auto Restart function in the OFF position.
Turn it ON as required.
How to turn ON the Auto Restart Function
● Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds and OPERATION lamp blink 5 time/sec for 5 seconds).
How to turn OFF the Auto Restart Function
● Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds but OPERATION lamp does not blink).
Notes :
● In case of ON timer or OFF timer are set, AUTO RESTART OPERATION
does not activate.
SELF CLEANING OPERATION
(COOL AND DRY OPERATION ONLY)
13
To protect bad smell caused by the humidity in the indoor unit.
1. If the button is pressed once during “Cool” or “Dry” mode,
the fan will continue to run for other 30 minutes, then it will turn off
automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within 30
seconds.

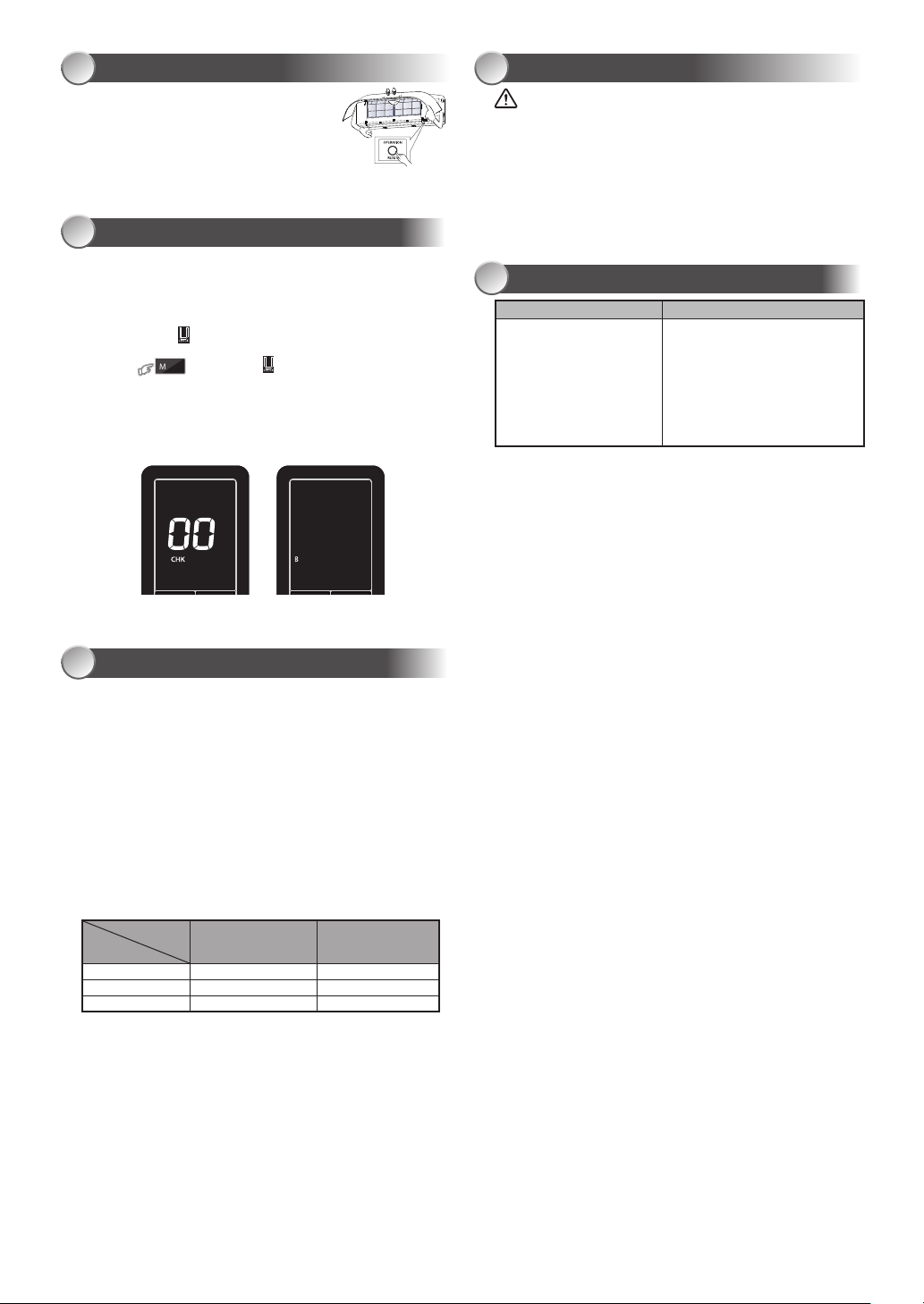

TEMPORARY OPERATION
14
In case of the misplaced or discharged remote control
● Pressing the RESET button, the unit can start
or stop without using the remote control.
● Operation mode is set on AUTOMATIC
operation, preset temperature is 24°C and fan
operation is automatic speed.
OPERATION / RESET Button
REMOTE CONTROL A-B SELECTION
15
To separate using of remote control for each indoor unit in case of 2 air
conditioners are installed nearly.
Remote Control B Setup.
1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.
3. Push and hold button on the Remote Control by the tip of the pencil.
“00” will be shown on the display. (Picture 1)
4. Press
MODE
during pushing . “B” will show on the display and
“00” will disappear and the air conditioner will turn OFF. The Remote
Control B is memorized. (Picture 2)
Note: 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
1 2
OPERATION AND PERFORMANCE
16
1. Three-minute protection feature: To prevent the unit from being activated
for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating
operation starts.
3. Warm air control: When the room temperature reaches the set temperature,
the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into
the room. When the outdoor temperature is too low, use another
recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit
where it will not be subjected to snow drifts, accumulation of leaves or
other seasonal debris.
7. Some minor cracking sound may occur when unit operating. This is normal
because the cracking sound may be caused by expansion/contraction of plastic.
Note: Item 2 to 6 for Heating model
Air conditioner operating conditions
Temp.
Operation
Outdoor Temperature Room Temperature
Heating –15°C ~ 24°C Less than 28°C
Cooling –15°C ~ 46°C 21°C ~ 32°C
Dry –15°C ~ 46°C 17°C ~ 32°C
Firstly, turn off the circuit breaker.
Indoor Unit and Remote Control
●
Clean the indoor unit and the remote control with a wet cloth when needed.
● No benzine, thinner, polishing powder or chemically-treated duster.
Air lters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air lters.
3. Vacuum or wash and then dry them.
4. Reinstall the air lters and close the air inlet grille.
MAINTENANCE
17
The unit does not operate. Cooling or Heating is abnormally low.
●The power main switch is
turned off.
●The circuit breaker is activated
to cut off the power supply.
●Stoppage of electric current
●ON timer is set.
●The lters are blocked with dust.
●
The temperature has been set improperly.
●The windows or doors are opened.
●The air inlet or outlet of the outdoor
unit is blocked.
●The fan speed is too low.
●The operation mode is FAN or DRY.
●POWER SELECTION function is
set 75% or 50% (This function is
depend on remote controller).
TROUBLESHOOTING (CHECK POINT)
18

WIRELESS LAN CONNECTION
19
Toshiba Home AC Control
Please visit the application store on your device to download and install
Toshiba Home AC Control application.
Register process
Open an application and follow register for User registration.
1Tab Register
5 Enter password by 6-10
characters, combination of
alphabet and number
2 Enter email address
6 Check for term and condition
3Select country
7 Conrm information
4 Enter user name
8 Information will be submitted
to email, click link to conrm
Application
Keyword : Toshiba Home AC Control Android : Version 5.0 or later.
iOS : 9.0 or later.
About Toshiba Home AC Control
1. Toshiba Home AC Control can control AC operation by Smartphone or
tablet (mobile device) via internet connection.
2. Everywhere control, control software run on Cloud system and mobile
device can set and monitor AC operation via internet connection.
3.
Everyone can control, 1 Wireless adapter maximum 5 User
(use 1 email register).
4. Multi AC system control, 1 user can control 10 AC.
5. Group control.
5.1 Can create and control 3 groups of AC.
5.2 Can control max 10 AC per group.
Note:
1. Adapter can register only 1 email address, if register with new email, current email will be invalid.
2.1 email address can use for register 5 devices for control same AC.
Toshiba Home AC Control application support
