Toshiba RAV-SM402MUT-E User manual

R410A
PRINTED IN JAPAN, Jun, 2008 ToMo
FILE NO. A06-005
Revised: Jun, 2008
SERVICE MANUAL
AIR-CONDITIONER
SPLIT TYPE
<DIGITAL INVERTER>
INDOOR UNIT
RAV-SM402MUT-E
RAV-SM452MUT-E
RAV-SM562MUT-E
This Service Manual describes contents of the new indoor unit.
For the outdoor unit, refer to the Service Manual with FILE NO. A05-001 and A07-003.

– 2 –
Adoption of New Refrigerant
This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A) instead of the conventional
refrigerant R22 in order to prevent destruction of the ozone layer.
WARNING
Cleaning of the air filter and other parts of the air filter involves dangerous work in high places, so be sure to
have a service person do it.Do not attempt it yourself.
The cleaning diagram for the air filter is there for the service person, and not for the customer.
CONTENTS
1. SPECIFICATIONS ...................................................................................... 4
1-1. Indoor Unit........................................................................................................... 4
1-2. Outdoor Unit........................................................................................................ 9
1-3. Operation Characteristic Curve....................................................................... 11
1-4. CapacityVariation Ratio According toTemperature ...................................... 13
2. CONSTRUCTION VIEWS (EXTERNAL VIEWS) ...................................... 14
2-1. Indoor Unit......................................................................................................... 14
3. SYSTEMATIC REFRIGERATING CYCLE DIAGRAM .............................. 17
3-1. Indoor Unit......................................................................................................... 17
3-2. Outdoor Unit...................................................................................................... 18
4. WIRING DIAGRAM................................................................................... 21
4-1. Indoor Unit......................................................................................................... 21
5. SPECIFICATIONS OF ELECTRICAL PARTS .......................................... 23
5-1. Indoor Unit......................................................................................................... 23
6. REFRIGERANT R410A............................................................................ 24
6-1. Safety During Installation/Servicing ............................................................... 24
6-2. Refrigerant Piping Installation....................................................................... 24
6-3. Tools .................................................................................................................. 28
6-4. Recharging of Refrigerant................................................................................ 29
6-5. Brazing of Pipes................................................................................................ 30
6-6. Tolerance of Pipe Length and Pipe Head........................................................ 32
6-7. Additional Refrigerant Amount........................................................................ 34
6-8. Piping Materials and Sizes............................................................................... 36
6-9. Branch Pipe....................................................................................................... 37
6-10. Distributor ......................................................................................................... 37

–3 –
7. CONTROL BLOCK DIAGRAM................................................................. 38
7-1. Indoor Control Circuit....................................................................................... 38
7-2. Control Specifications...................................................................................... 39
7-3. Indoor Print Circuit Board................................................................................ 46
8. CIRCUIT CONFIGURATION AND CONTROL SPECIFICATIONS........... 47
8-1. Indoor Control Circuit....................................................................................... 47
9. TROUBLESHOOTING.............................................................................. 49
9-1. Summary ofTroubleshooting........................................................................... 49
9-2. Check Code List................................................................................................ 51
9-3. Error Mode Detected by LED on Outdoor P.C. Board .................................... 54
9-4. Troubleshooting Procedure for Each Check Code......................................... 55
10. REPLACEMENT OF SERVICE INDOOR P.C. BOARD............................ 71
11. SETUP AT LOCAL SITE AND OTHERS.................................................. 75
11-1. Indoor Unit......................................................................................................... 75
11-2. Setup at Local Site / Others ............................................................................. 82
11-3. How to Set up Central Control Address Number ........................................... 86
12. ADDRESS SETUP.................................................................................... 87
12-1. Address Setup Procedure................................................................................ 87
12-2. Address Setup & Group Control...................................................................... 88
12-3. Address Setup (Manual Setting from Remote Controller)............................. 91
12-4. Confirmation of Indoor Unit No. Position ....................................................... 92
13. DETACHMENTS ....................................................................................... 93
13-1. Indoor Unit......................................................................................................... 93
14. EXPLODEDVIEWS AND PARTS LIST .................................................. 101
14-1. Ceiling Panel ................................................................................................... 101
14-2. Compact 4-way Air Discharge CassetteType............................................... 102

– 4 –
1. SPECIFICATIONS
1-1. Indoor Unit
1-1-1. 4-Way Air Discharge CassetteType
<Single type>
Model Indoor unit RAV-
Outdoor unit RAV-
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
characteristics Running current (A)
Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
SM402MUT-E SM452MUT-E SM562MUT-E
SP404AT(Z, ZG)-E SP454AT(Z, ZG)-E SP562AT(Z, ZG)-E
3.6 4.0 5.0
4.0 4.5 5.6
1 phase 230V (220 – 240V) 50Hz
5.05 – 4.63 5.82 – 5.33 6.6 – 7.15
1.00 1.19 1.53
90 93 97
3.60 3.36 3.27
AAA
5.0 4.5 4.5
4.79 – 4.39 5.67 – 5.20 6.62 – 7.21
0.97 1.16 1.54
92 93 97
4.12 3.88 3.64
AAA
5.5 5.0 4.5
Zinc hot dipping steel plate
RBC-UM11PG (W)-E
Moon-white (Muncel 2.5GY 9.0/0.5)
268
575
575
27
700
700
17
3
Finned tube
Turbo fan
11.0 / 9.2 / 7.8 13.3 / 11.2 / 9.1
60
Long life filter
Remote controller
12.7
6.4
VP25
40 / 36 / 31 43 / 39 / 34
55 / 51 / 46 58 / 54 / 49
∗: IEC standard, ∗∗ : AS standard

–5 –
∗: IEC standard, ∗∗ : AS standard
Model Indoor unit RAV-
Outdoor unit RAV-
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
SM562MUT-E SM562MUT-E
SM562AT-E SM563AT-E
5.0 5.0
5.6 5.6
1 phase 230V (220 –240V) 50Hz
7.02 –7.75 7.02 –7.75
1.61 1.61
95 95
3.11 3.11
BB
4.0 4.0
7.04 –7.72 7.04 –7.72
1.61 1.61
95 95
3.48 3.48
BB
4.5 4.5
Zinc hot dipping steel plate
RBC-UM11PG (W)-E
Moon-white
(Muncel 2.5GY 9.0/0.5)
268
575
575
27
700
700
17
3
Finned tube
Turbo fan
13.3 / 11.2 / 9.1
60
Long life filter
Remote controller
12.7
6.4
VP25
43 / 39 / 34
58 / 54 / 49
<Single type>

–6 –
∗: EC standard, ∗∗ : AS standard
Indoor unit 1 RAV- SM562MUT-E SM562MUT-E
Model Indoor unit 2 RAV- SM562MUT-E SM562MUT-E
Outdoor unit RAV- SP1102AT(Z, ZG)-E SP1104AT(Z, ZG)-E
Cooling capacity (kW) 10.0 10.0
Heating capacity (kW) 11.2 11.2
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 10.31 –11.24 12.51 –11.47
Power consumption (kW) 2.4 2.67
Cooling Power factor (%) 97 97
EER 4.17 3.75
Energy efficiency class ∗AA
Electrical Energy rating ∗∗ ——
characteristics Running current (A) 10.95 –11.95 12.51 –11.47
Power consumption (kW) 2.55 2.67
Heating Power factor (%) 97 97
COP 4.39 4.19
Energy efficiency class ∗AA
Energy rating ∗∗ ——
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 13.3 / 11.2 / 9.1
Motor (W) 60
Sound pressure level H/M/L (dB•A) 43 / 39 / 34
Sound power level H/M/L (dB•A) 58 / 54 / 49
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5
Outer Min. length (m) 5 3
Max. total length (m) 50
dimension Height Outdoor lower (m) 30
difference Outdoor higher (m) 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 125 101
Motor (W) 63 + 63 100 + 100
Gas side Main (mm) 15.9
Connecting Sub (mm) 12.7
pipe Liquid side Main (mm) 9.5
Sub (mm) 6.4
Sound pressure level Cooling/Heating (dB•A) 49 / 51 49 / 50
Sound power level Cooling/Heating (dB•A) 66 / 68 66 / 67
<Twin type>

–7 –
<Twin type>
Indoor unit 1 RAV- SM562MUT-E SM562MUT-E
Model Indoor unit 2 RAV- SM562MUT-E SM562MUT-E
Outdoor unit RAV- SM1102AT-E SM1103AT-E
Cooling capacity (kW) 10.0 10.0
Heating capacity (kW) 11.2 11.2
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 14.96 –16.32 14.96 –16.32
Power consumption (kW) 3.52 3.52
Cooling Power factor (%) 98 98
EER 2.84 2.84
Energy efficiency class ∗CC
Electrical Energy rating ∗∗ ——
characteristics Running current (A) 13.35 –14.56 13.35 –14.56
Power consumption (kW) 3.14 3.14
Heating Power factor (%) 98 98
COP 3.57 3.57
Energy efficiency class ∗BB
Energy rating ∗∗ ——
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 13.3 / 11.2 / 9.1
Motor (W) 60
Sound pressure level H/M/L (dB•A) 43 / 39 / 34
Sound power level H/M/L (dB•A) 58 / 54 / 49
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5
Outer Min. length (m) 5.0
Max. total length (m) 50
dimension Height Outdoor lower (m) 30
difference Outdoor higher (m) 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 75
Motor (W) 100 63
Gas side Main (mm) 15.9
Connecting Sub (mm) 12.7
pipe Liquid side Main (mm) 9.5
Sub (mm) 6.4
Sound pressure level Cooling/Heating (dB•A) 53 / 54
Sound power level Cooling/Heating (dB•A) 70 / 71
∗: IEC standard, ∗∗ : AS standard

–8 –
<Triple type>
Indoor unit 1 RAV-SM562MUT-E
Model Indoor unit 2 RAV-SM562MUT-E
Indoor unit 3 RAV-SM562MUT-E
Outdoor unit RAV-SM1603AT-E
Cooling capacity (kW) 14.0
Heating capacity (kW) 16.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 23.88 –21.89
Power consumption (kW) 4.99
Cooling Power factor (%) 95
EER 2.81
Electrical Energy efficiency class ∗C
characteristics Running current (A) 22.44 –20.57
Power consumption (kW) 4.69
Heating Power factor (%) 95
COP 3.41
Energy efficiency class ∗B
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 13.3 / 11.2 / 9.1
Motor (W) 60
Sound pressure level H/M/L (dB•A) 43 / 39 / 34
Sound power level H/M/L (dB•A) 58 / 54 / 49
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5
Min. length (m) 5.0
Outer dimension Max. total length (m) 50
Height Outdoor lower (m) 30
difference Outdoor higher (m) 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 103
Motor (W) 100 + 100
Gas side Main (mm) 15.9
Connecting pipe Sub (mm) 12.7
Liquid side Main (mm) 9.5
Sub (mm) 6.4
Sound pressure level Cooling/Heating (dB•A) 51 / 53
Sound power level Cooling/Heating (dB•A) 68 / 70
∗: IEC standard

–9 –
1-2. Outdoor Unit
<Super Digital Inverter>
Model name Outdoor unit RAV-SP
Power supply
Type
Compressor Motor (kW)
Pole
Refrigerant charged (kg)
Refrigerant control
Standard length (m)
Max. total length (m)
Inter Additional refrigerant charge
connecting pipe under long piping connector
Height Outdoor lower (m)
difference Outdoor higher (m)
Height (mm)
Outer dimension Width (mm)
Depth (mm)
Appearance
Total weight (kg)
Heat exchanger
Fan
Fan unit Standard air flow (m³/h)
Motor (W)
Connecting pipe Gas side (mm)
Liquid side (mm)
Sound pressure level Cooling/Heating (dB•A)
Sound power level Cooling/Heating (dB•A)
Outside air temperature, Cooling (°C)
Outside air temperature, Heating (°C)
562AT(Z)(ZG)-E 802AT(Z)(ZG)-E 1104AT(Z)(ZG)-E 1404AT(Z)(ZG)-E
1 phase 230V (220 –240V) 50Hz
(Power exclusive to outdoor is required.)
Hermetic compressor
2 2 3.75 3.75
4444
1.5 2.1 3.1 3.1
Pulse motor valve
7.5 7.5 7.5 7.5
50 50 75 75
20g/m 40g/m 40g/m 40g/m
(21m to 50m) (31m to 50m) (31m to 75m) (31m to 75m)
30 30 30 30
30 30 30 30
795 795 1340 1340
900 900 900 900
320 320 320 320
Silky shade (Muncel 1Y8.5/0.5)
55 62 93 93
Finned tube
Propeller fan
57 57 101 103
63 63 100 + 100 100 + 100
12.7 15.9 15.9 15.9
6.4 9.5 9.5 9.5
46 / 47 47 / 49 49 / 50 51 / 52
63 / 64 64 / 66 66 / 67 68 / 69
43 to –15°C
15 to –15°C 15 to –20°C

–10 –
Model name Outdoor unit
Power supply
Type
Compressor Motor (kW)
Pole
Refrigerant charged (kg)
Refrigerant control
Standard length (m)
Max. total length (m)
Inter Additional refrigerant charge
connecting pipe under long piping connector
Height Outdoor lower (m)
difference Outdoor higher (m)
Height (mm)
Outer dimension Width (mm)
Depth (mm)
Appearance
Total weight (kg)
Heat exchanger
Fan
Fan unit Standard air flow (m³/h)
Motor (W)
Connecting pipe Gas side (mm)
Liquid side (mm)
Sound pressure level Cooling/Heating (dB•A)
Sound power level Cooling/Heating (dB•A)
Outside air temperature, Cooling (°C)
Outside air temperature, Heating (°C)
RAV-SP404AT(Z)(ZG)-E RAV-SP454AT(Z)(ZG)-E
1 phase 230V (220 –240V) 50Hz
(Power exclusive to outdoor is required.)
Hermetic compressor
1.1 1.1
44
1.0 1.0
Pulse motor valve
7.5 7.5
30 30
20g/m (21m to 30m)
30 30
30 30
550 550
780 780
290 290
Silky shade (Muncel 1Y8.5/0.5)
40 40
Finned tube
Propeller fan
40 40
43 43
12.7 12.7
6.4 6.4
45 / 47 45 / 47
62 / 64 62 / 64
43 to –15°C
15 to –15°C

–11 –

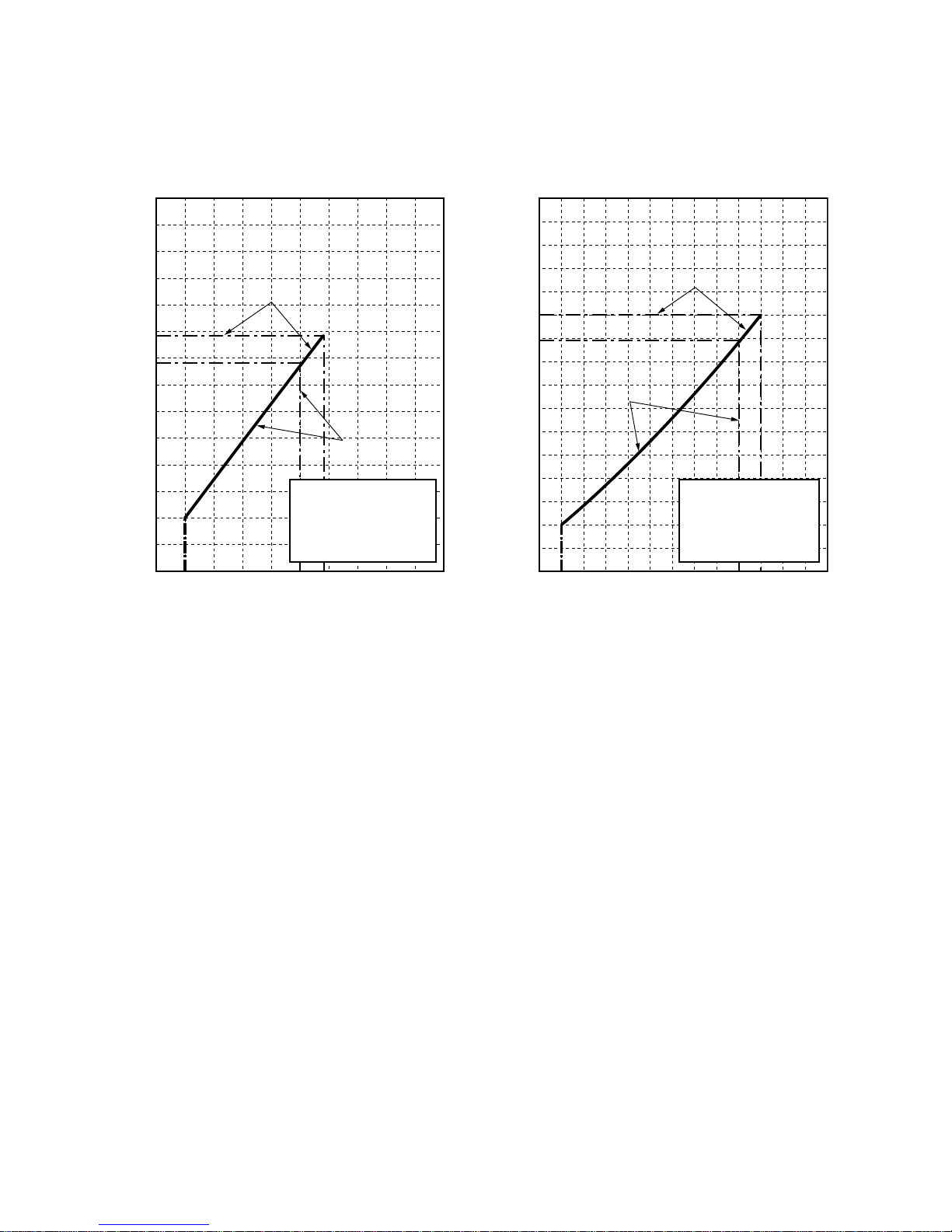

1-3. Operation Characteristic Curve
<Digital Inverter>
RAV-SM562MUT-E / RAV-SM562AT-E
<Cooling> <Heating>
<Super Digital Inverter>
RAV-SM562MUT-E / RAV-SP562AT-E
<Cooling> <Heating>
0020 40 60 70 80 100
2
4
6
8
10
Compressor speed (rps)
Current (A)
• Conditions
Indoor : DB27˚C/WB19˚C
Outdoor : DB35˚C
Air flow : High
Pipe length : 7.5m
230V 00 2040608090100
2
4
6
8
10
Compressor speed (rps)
Current (A)
• Conditions
Indoor : DB20˚C
Outdoor : DB7˚C/WB6˚C
Air flow : High
Pipe length : 7.5m
230V
00 20406050 70 80 100
2
4
6
8
10
Compressor speed (rps) Compressor speed (rps)
Current (A)
00 204060 908070 100
2
4
6
8
10
12
Current (A)
• Conditions
Indoor : DB27˚C/WB19˚C
Outdoor : DB35˚C
Air flow : High
Pipe length : 7.5m
230V
• Conditions
Indoor : DB20˚C
Outdoor : DB7˚C/WB6˚C
Air flow : High
Pipe length : 7.5m
230V

–12 –
<Super Digital Inverter>
RAV-SP404AT-E, RAV-SP404ATZ-E, RAV-SP404ATZG-E
RAV-SP454AT-E, RAV-SP454ATZ-E, RAV-SP454ATZG-E
<Cooling> <Heating>
00 20 405060708090100
2
4
6
8
10
12
14
Compressor speed (rps)
Current (A)
00 2040608090100120
2
4
6
8
10
12
16
14
Compressor speed (rps)
Current (A)
•Conditions
Indoor : DB27˚C/WB19˚C
Outdoor : DB35˚C
Air flow : High
Pipe length : 7.5m
230V
•Conditions
Indoor : DB20˚C
Outdoor : DB7˚C/WB6˚C
Air flow : High
Pipe length : 7.5m
230V
SP40
SP40
SP40
SP40
SP45
SP45
SP45
SP45
SP40
SP40
SP45 SP45

–13 –
50
55
60
65
70
75
80
85
90
95
100
105
32 33 34 35 36 37 38 39 40 41 42 43
Outdoor temp. (˚C)
0
10
20
30
40
50
60
70
80
90
100
110
120
-14-16-18-20 -12-10 -8 -6 -4 -2 0 2 4 6 8 10
Outdoor temp. (˚C)
Capacity ratio (%) Capacity ratio (%)
•Conditions
Indoor : DB20˚C
Indoor air flow : High
Pipe length : 7.5m
•Conditions
Indoor : DB27˚C/WB19˚C
Indoor air flow : High
Pipe length : 7.5m
50
55
60
65
70
75
80
85
90
95
100
105
32 33 34 35 36 37 38 39 40 41 42 43
Outdoor temp. (˚C)
Capacity ratio (%)
0
10
20
30
40
50
60
70
80
90
100
110
120
-14-16-18-20 -12-10 -8 -6 -4 -2 0 2 4 6 8 10
Outdoor temp. (˚C)
Capacity ratio (%)
•Conditions
Indoor : DB20˚C
Indoor air flow : High
Pipe length : 7.5m
•Conditions
Indoor : DB27˚C/WB19˚C
Indoor air flow : High
Pipe length : 7.5m
1-4. CapacityVariation Ratio According toTemperature
RAV-SP404AT-E, RAV-SP404ATZ-E, RAV-SP404ATZG-E
RAV-SP454AT-E, RAV-SP454ATZ-E, RAV-SP454ATZG-E
<Cooling> <Heating>
RAV-SP562AT-E, RAV-SM563AT-E
<Cooling> <Heating>

– 14 –
2. CONSTRUCTIONVIEWS (EXTERNALVIEWS)
2-1. Indoor Unit
595 to 660 Ceiling open dimension
Space required for
installation and servicing
200
525 Hanging bolt pitch
595 to 660 Ceiling open dimension
700 Panel external dimension
142 64 368.5
145.5
93
105
70
575 Unit external dimension
320.5
595 to 660 Ceiling open dimension
Check port
(450)
Bottom face
of ceiling
Ceiling panel
Drain discharge port
Hanging bolt
M10 or W3/8
local arrange
Wiring
connection
port
For branch ductt
knockout square
hole Ø150
Knockout for flesh
air intake Ø100
Electric parts box
Ø162
For branch duct knockout
square hole Ø150
Bottom face
of ceiling
Bottom face of ceiling
Refrigerant pipe
(Gas) Ø12.7
Refrigerant pipe
(Liquid) Ø6.4
268 27
63
134
145.5
220.5
1000 or more
1000 or more
Obustacle
1000 or more
15 or more15 or more
Drain-up standing-up size
Note)
As ABS is used for the drain discharge port of the main unit,
the vinyl chlor paste cannot be used.
Use the flexible hose (Band fix) included in the package.
Stand-up
627.5
or less
Bottom face
of ceiling
Indoor unit
Stand-up
850 or less
55
9310570 139.5
190.5
21
158
214 105
177
207
575 Unit external dimension
105235 235
175
149
64 29
510 Hanging bolt pitch
595 to 660 Ceiling open dimension
700 Panel external dimension
256
Ø162
142 120
97.5 42 148
200
200
Check port
( 450)
Check port
( 450)
• Wired remote controller
(RBC-AMT32E)
16
120
120

–15 –

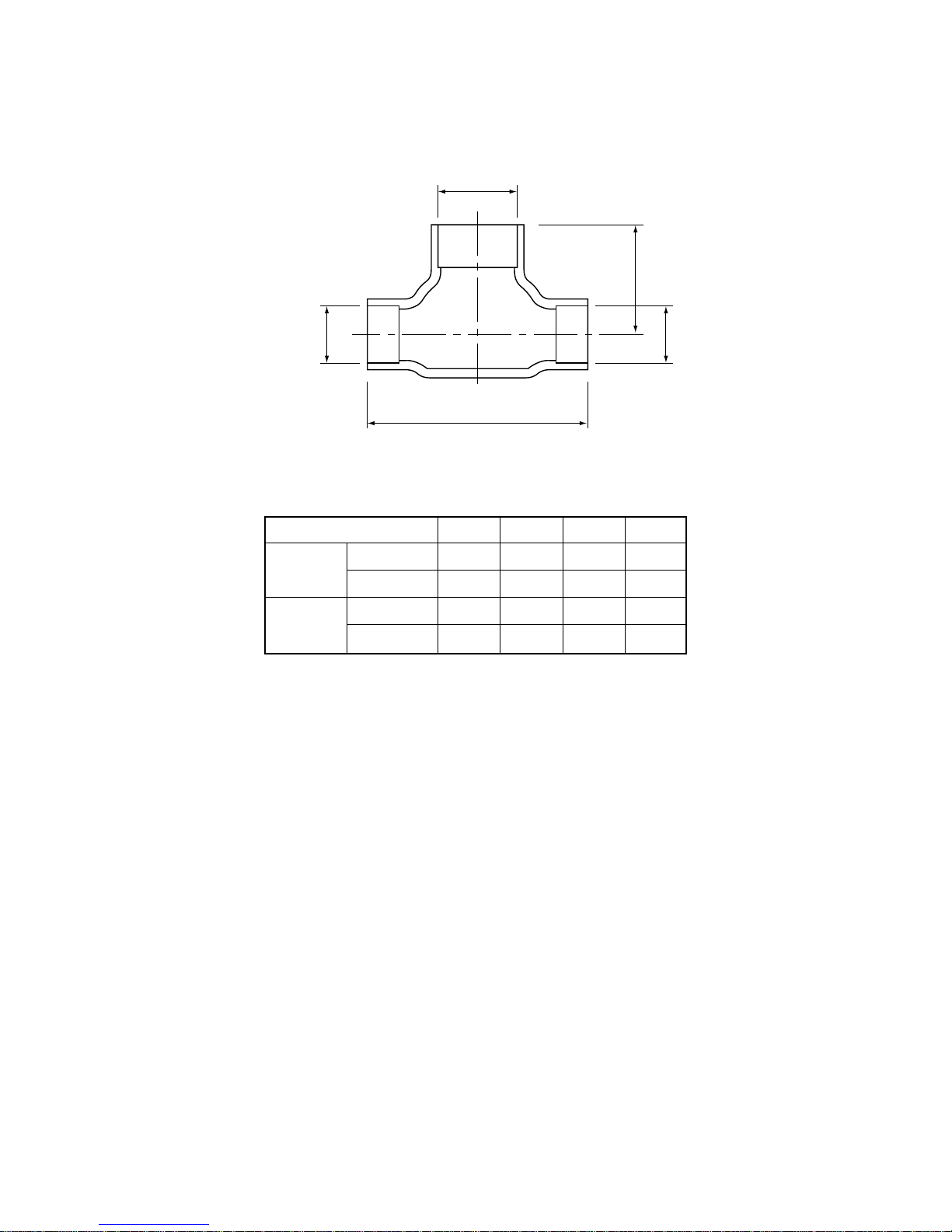

RBC-TWP30E2, RBC-TWP50E2 (SimultaneousTwin)
Inner diameter Ø C
Inner
diameter Ø D Inner diameter Ø D
A
B
Model (RBC-)
TWP30E2 Liquid side
Gas side
TWP50E2 Liquid side
Gas side
ABCD
36 14 Ø9.5 Ø6.4
43 23 Ø15.9 Ø12.7
34 14 Ø9.5 Ø9.5
44 21 Ø15.9 Ø15.9

–16 –
Ø15.9
(External
diameter)
Ø25.4
(External
diameter)
Ø9.5
(External
diameter)
Ø12.7
(External
diameter)
Inner diameter Ø25.4Inner diameter Ø12.7
Inner diameter
Ø15.9
Inner diameter
Ø9.52
Insulator
300
80 80100
80 80100
Ø12.7 Ø15.9
Ø6.4 Ø9.5
100
28
10
46 12
246
269
100
35
3 pcs. 3 pcs.1 pc. 1 pc.
RBC-TRP100E (SimultaneousTriple)
<Gas side>
Header assembly
<Liquid side>
Branch pipe assembly
Gas side socket Liquid side socket

–17 –
Indoor unit
TCJ sensor
Air heat
exchanger
TC sensor
Distributor
(Strainer
incorporated)
Refrigerant pipe
at liquid side
Outer diameter Ø6.4
Refrigerant pipe
at gas side
Outer diameter Ø12.7
To outdoor unitTo outdoor unit
Heating time
Cooling time
Heating time
Cooling time
Heating time
Cooling time
Distributor
(Strainer
incorporated)
Distributor
(Strainer
incorporated)
Distributor
(Strainer
incorporated)
RAV-SM562MUT-E RAV-SM562MUT-E RAV-SM562MUT-E
Indoor A unit
TCJ sensor
TC sensor
Refrigerant pipe
at liquid side
Outer diameter
Ø6.4
Refrigerant pipe
at gas side
Outer diameter
Ø12.7
Refrigerant pipe
at liquid side
Outer diameter
Ø6.4
Refrigerant pipe
at gas side
Outer diameter
Ø12.7
Refrigerant pipe
at liquid side
Outer diameter
Ø6.4
Refrigerant pipe
at gas side
Outer diameter
Ø12.7
Air heat
exchanger Air heat exchanger Air heat exchanger
Indoor B unit
TCJ sensor
TC sensor
Refrigerant
pipeat gas side
Outer diameter Ø15.9
Distributor
To outdoor unit
Refrigerant
pipeat liquid side
Outer diameter Ø9.5
Distributor
To outdoor unit
Indoor C unit
TCJ sensor
TC sensor
Indoor B unit
TCJ sensor
Air heat
exchanger
TC sensor
Distributor
(Strainer
incorporated)
Branch pipe
To outdoor unit
Indoor A unit
TCJ sensor
Air heat
exchanger
TC sensor
Distributor
(Strainer
incorporated)
RAV-SM562MUT-E RAV-SM562MUT-E
Refrigerant pipe
at liquid side
Outer diameter Ø6.4
Refrigerant pipe
at gas side
Outer diameter Ø12.7
Refrigerant pipe
at liquid side
Outer diameter Ø6.4
Refrigerant pipe
at gas side
Outer diameter Ø12.7
Refrigerant pipeat liquid side
Outer diameter Ø9.5 Refrigerant pipeat gas side Outer diameter Ø15.9
Branch pipe
To outdoor unit

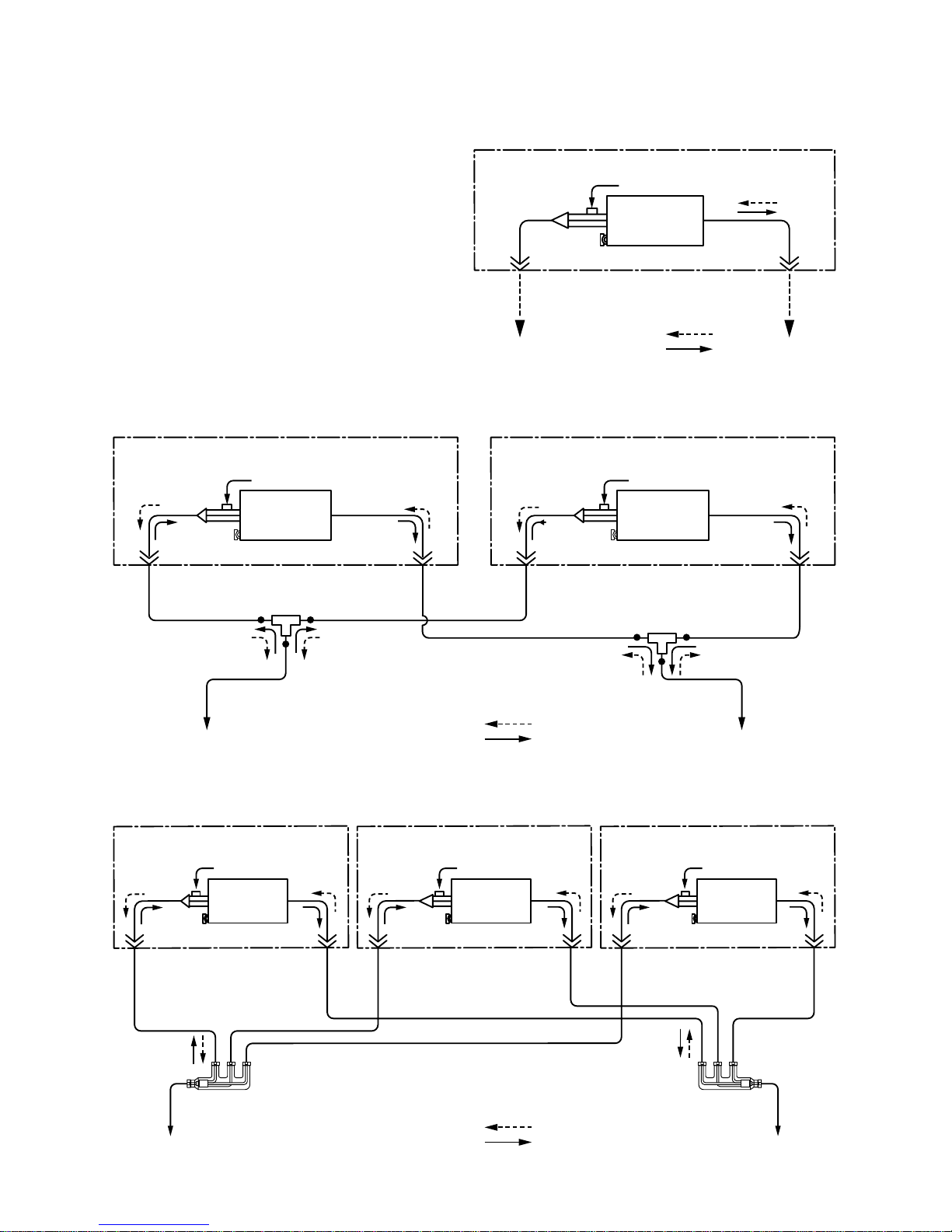

3. SYSTEMATIC REFRIGERATING CYCLE DIAGRAM
3-1. Indoor Unit
• Single type
(Combination of one indoor unit and
one outdoor unit)
• Triple type (Combination of three indoor units and one outdoor unit)
• Twin type (Combination of two indoor units and one outdoor unit)

–18 –
3-2. Outdoor Unit
RAV-SM562MUT-E / RAV-SP562AT-E
∗This compressor has 4-pole motor.The value when compressor frequency (Hz) is measured by a clamp
meter becomes 2 times of No. of compressor revolutions (rps).
Outdoor unit
Strainer
Strainer
Packed valve
Outer dia. Ø12.7
Packed valve
Outer dia. Ø6.4
TS sensor
Accumulator
(1500cc)
TD sensor
TO sensor
TE
sensor
4-way valve
(STF-0213Z)
Ø25 × L160
Rotary compressor
(DA220A2F-20L)
Heat exchangerØ8
1 row 30 stages
FP1.3 flat fin
Capillary
Ø3×Ø2×
L530
Ø25 × L210
Muffler
R410A 1.5 kg
Cooling
Heating
PsPd
Modulating
(PMV)
(SKV-18D26)
Standard
Cooling Overload
Low load
Standard
Heating Overload
Low load
Pressure
(MPa)
Pd Ps
2.71 1.03
3.48 1.16
1.92 0.74
2.22 0.72
3.47 1.16
1.79 0.25
Pipe surface temperature (°C)
Discharge Suction Indoor heat Outdoor heat
exchanger exchanger
(TD) (TS) (TC) (TE)
75 15 10 38
81 20 16 51
34 5 2 11
62 6 38 2
81 20 55 15
71 –16 30 –18
Compressor
revolutions per
second (rps)
∗∗
∗∗
∗
43
44
24
41
41
70
Indoor
fan
HIGH
HIGH
LOW
HIGH
LOW
HIGH
Indoor/Outdoor
temp. conditions
(DB/WB) (°C)
Indoor Outdoor
27/19 35/–
32/24 43/–
18/15.5 –5/–
20/–7/6
30/–24/18
15/– –20/(70%)

–19 –
RAV-SM562MUT-E / RAV-SM562AT-E
∗This compressor has 4-pole motor.The value when compressor frequency (Hz) is measured by a clamp
meter becomes 2 times of No. of compressor revolutions (rps).
Outdoor unit
Strainer
Packed valve
Outer dia. Ø12.7
Packed valve
Outer dia. Ø6.4
TS sensor
TD sensor
TO sensor
TE
sensor
Distributor
4-way valve
(STF-0108Z)
Muffler
Ø19 × L160
2-step muffler
Ø19 .05 × 200L
Rotary compressor
(DA150A1F-20F)
Heat exchanger Ø8 ripple,
2 rows, 14 steps
FP1.3 flat fin
PMV
(Pulse Motor Valve)
(CAM-B30YGTF-1)
R410A 1.0 kg
Cooling
Heating
Standard
Cooling Overload
Low load
Standard
Heating Overload
Low load
Pressure
(MPa) (kg/cm²G)
Pd Ps Pd Ps
3.50 0.97 35.7 9.9
3.90 1.08 39.8 11.0
1.90 0.70 19.4 7.1
2.31 0.61 13.6 6.2
2.86 0.89 29.2 9.1
1.86 0.25 19.0 2.6
Pipe surface temperature (°C)
Discharge Suction Indoor heat Outdoor heat
exchanger exchanger
(TD) (TS) (TC) (TE)
85 14 12 48
93 26 17 54
48 7 5 30
87 5 40 1
86 17 47 11
69 –14 31 –15
Compressor
revolutions per
second (rps)
∗∗
∗∗
∗
70
70
50
97
95
98
Indoor
fan
HIGH
HIGH
LOW
HIGH
LOW
HIGH
Indoor/Outdoor
temp. conditions
(DB/WB) (°C)
Indoor Outdoor
27/19 35/–
32/24 43/–
18/15.5 –5/–
20/–7/6
28/–24/18
15/– –10/(70%)

–20 –
Standard
Cooling Overload
Low load
Standard
Heating Overload
Low load
Pressure
(MPa) (kg/cm²g)
Pd Ps Pd Ps
2.68 0.94 27.3 9.6
3.23 1.16 32.9 11.8
1.34 0.70 13.7 7.1
2.38 0.70 24.3 7.1
3.39 1.03 34.6 10.5
1.95 0.26 19.9 2.7
Pipe surface temperature (°C)
Discharge Suction Indoor heat Outdoor heat
exchanger exchanger
(TD) (TS) (TC) (TE)
61 12 11 43
77 14 15 50
36 4 2 8
65 7 39 4
83 20 54 16
90 –17 32 –19
Compressor
drive revolution
frequency
(rps)
47
50
44
49
49
90
Indoor
fan
HIGH
HIGH
LOW
HIGH
LOW
HIGH
Indoor/Outdoor
temp. conditions
(DB/WB) (°C)
Indoor Outdoor
27/19 35/–
32/24 43/–
18/15.5 –5/–
20/–7/6
30/–24/18
15/––15/–
Standard
Cooling Overload
Low load
Standard
Heating Overload
Low load
Pressure
(MPa) (kg/cm²g)
Pd Ps Pd Ps
2.81 0.89 28.7 9.1
3.24 1.16 33.0 11.8
1.34 0.70 13.7 7.1
2.53 0.68 25.8 6.9
3.39 1.03 34.6 10.5
2.00 0.25 20.4 2.6
Pipe surface temperature (°C)
Discharge Suction Indoor heat Outdoor heat
exchanger exchanger
(TD) (TS) (TC) (TE)
68 11 10 41
78 14 15 51
36 4 2 8
70 7 41 4
83 20 54 16
92 –17 33 –19
Compressor
drive revolution
frequency
(rps)
53
53
44
56
49
98
Indoor
fan
HIGH
HIGH
LOW
HIGH
LOW
HIGH
Indoor/Outdoor
temp. conditions
(DB/WB) (°C)
Indoor Outdoor
27/19 35/–
32/24 43/–
18/15.5 –5/–
20/–7/6
30/–24/18
15/––15/–
RAV-SP404AT-E
∗This compressor has 4-pole motor.The value when compressor frequency (Hz) is measured by a clamp
meter becomes 2 times of No. of compressor revolutions (rps).
RAV-SP454AT-E
∗This compressor has 4-pole motor.The value when compressor frequency (Hz) is measured by a clamp
meter becomes 2 times of No. of compressor revolutions (rps).
Strainer
Packed valve
Outer dia. Ø12.7
Packed valve
Outer dia. Ø6.4
TS sensor
TD sensor
TO sensor
TE
sensor
Distributor
4-way valve
(STF-0108Z)
Muffler
Ø19 × L160
2-step muffler
Ø19.05 × 200L
Rotary compressor
(DA150A1F-20F)
Heat exchanger Ø8 ripple,
2 rows, 14 steps
FP1.3 flat fin
PMV
(Pulse Motor Valve)
(CAM-B30YGTF-2)
R410A 1.0 kg
Cooling
Heating
RAV-SM402MUT-E / RAV-SP404AT-E
RAV-SM454MUT-E / RAV-SP454AT-E
