Introduction
Precautions
Please read these instructions carefully before starting the installation.
This equipment should only be installed by suitably trained operatives.
In all cases ensure safe working practice: Observe precautions for persons in the vicinity of the works.
Ensure that all local, national and international regulations are satisfied.
Check that the electrical specifications of the unit meet the requirements of the site.
Carefully unpack the equipment, check for damage or shortages. Please report any damage immediately.
These units comply with EU Directives:
73/23/EEC (Low Voltage Directive), 89/336/EEC (Electromagnetic Compatibility) and 97/23/EC (Pressure Equipment
Directive). Accordingly, they are designated for use in commercial and industrial environments*.
Avoid installation in the following locations:
Where there is danger of flammable gas leakages.
Where there are high concentrations of oil.
Where the atmosphere contains an excess of salt (as in coastal areas). The air conditioner is prone to failure when
used under this condition unless special maintenance is provided.
Where the airflow from the outdoor unit may cause annoyance.
Where the operating noise of the outdoor unit may cause annoyance.
Where the foundation is not strong enough to fully withstand the weight of the outdoor unit.
Where the water drainage may cause a nuisance or a hazard when frozen.
Where strong winds may blow against the air outlet of the outdoor unit.
Precautions for R407C outdoor units
R407C outdoor units use synthetic oils which are extremely hygroscopic. Therefore ensure that the refrigerant system
is NEVER exposed to air or any form of moisture.
Mineral oils are unsuitable for use in these units and may lead to premature system failure.
Use only equipment which is suitable for use with R407C. Never use equipment which has been used with R22.
R407C should only be charged from the service cylinder in the liquid phase. It is advisable to use a gauge manifold set
equipped with a liquid sight glass fitted in the centre (entry) port.
* 97/23/EC Pressure Equipment Directive information
Conformity assessment procedure: Module D1
Pressure equipment:
Compressor, category II, Module A1
Accumulator, category I
Liquid receiver, category II
High pressure switch, category II, Module A1
Notified body for inspection and quality assurance systems: BSI, Maylands Avenue, Hemel Hempstead, WP2 4SQ, UK.
1

6
Introduction
Precautions
Precautions for R-407C outdoor units
Liquid receiver fusible plug
In the event of the system being subjected to abnormal conditions it is protected by a fusible plug, positioned on the liquid
receiver, within the outdoor unit. It is rated to fail at 70°C.
Position of
fusible plug
System pressure measurement
To measure the system’s high and low pressures, connect a gauge manifold to the corresponding access port as indicated
below.
Low pressure
access port
High pressure
access port
Explanation of Toshiba serial number
A serial label is attached to all Toshiba air conditioning units. Located on the label is an 8-digit number, which represents the
month, year and batch number of the manufactured unit. A breakdown of the 8-digit number is defined below.
24480001
}
 
Year of
manufacture
2001 = 1
2002 = 2
2003 = 3
Site of
manufacture
8 = Plymouth
Month of
manufacture
41 = Jan.
42 = Feb.
43 = Mar.
44 = Apr.
45 = May
46 = Jun.
47 = Jul.
48 = Aug.
49 = Sep.
50 = Oct.
51 = Nov.
52 = Dec.
Model batch serial number
1

7
Introduction
Components
1
1. Outdoor unit
Corresponding HP Inverter unit Fixed-speed unit
8 HP 10 HP 6 HP 8 HP 10 HP
Model name MM-A0224HT MM-A0280HT MM-A0160HX MM-A0224HX MM-A0280HX
Cooling capacity (kW) 22.4 28.0 16.0 22.4 28.0
Heating capacity (kW) 25.0 31.5 18.0 25.0 31.5
Corresponding HP Inverter unit Fixed-speed unit
8 HP 10 HP 6 HP 8 HP 10 HP
Model name MM-A0224CT MM-A0280CT MM-A0160CX MM-A0224CX MM-A0280CX
Cooling capacity (kW) 22.4 28.0 16.0 22.4 28.0
2. Outdoor units (combination of outdoor units)
Corresponding HP 8HP 10HP 14HP 16HP 18HP 20HP 22HP 24HP 26HP 28HP 30HP 32HP 34HP 36HP 38HP 40HP 42HP 44HP 46HP
Combined model
MM-A-HT/MM-A-CT 0224 0280 0384 0440 0504 0560 0608 0672 0728 0784 0840 0896 0952 1008 1064 1120 1176 1232 1288
Cooling capacity (kW) 22.4 28.0 38.4 44.8 50.4 56.0 60.8 67.2 72.8 78.4 84.0 89.6 95.2 100.8 106.4 112.0 117.6 123.2 128.8
Inverter unit 8HP 10HP 8HP 8HP 10HP 10HP 8HP 8HP 10HP 10HP 10HP 8HP 10HP 10HP 10HP 10HP 10HP 10HP 10HP
Combined Fixed-speed - - 6HP 8HP 8HP 10HP 8HP 8HP 8HP 10HP 10HP 8HP 8HP 10HP 10HP 10HP 8HP 10HP 10HP
outdoor units unit - -----6HP8HP8HP8HP10HP 8HP 8HP 8HP 10HP 10HP 8HP 8HP 10HP
-----------8HP8HP8HP8HP10HP 8HP 8HP 8HP
----------------8HP8HP8HP
No. of connectable
indoor units 13 16 16 18 18 20 22 24 26 28 30 32 34 36 38 40 40 40 40
Min. HP connected 4 57891011121314151617181920212223
Max. HP connected 10.8 13.5 18.9 21.6 24.3 27 29.7 32.4 35.1 37.8 40.5 43.2 45.9 48.6 51.3 54 56.7 59.4 62.1
3. Branching joints/headers
Model name Usage Appearance
Y-shape branching joint RBM-Y018-SK Indoor unit capacity code (*1): Total < 6.4
RBM-Y037-SK Indoor unit capacity code (*1): 6.4 = Total < 13.2 (*2)
RBM-Y071-SK Indoor unit capacity code (*1): 13.2 = Total < 25.2 (*2)
RBM-Y129-SK Indoor unit capacity code (*1): 25.2 = Total (*2)
4-branching header (*3) RBM-H4037-SK Indoor unit capacity code (*1): Total < 6.4 Max. 4
RBM-H4071-SK Indoor unit capacity code (*1): 6.4 = Total < 13.2 branches
8-branching header (*3) RBM-H8037-SK Indoor unit capacity code (*1): Total < 6.4 Max. 8
RBM-H8071-SK Indoor unit capacity code (*1): 6.4 = Total < 13.2 branches
T-shape branching joint 1 set of 3 types of T-shape joint pipes as described below.
(For connection of The required quantity is arranged and they are combined at the site.
outdoor unit) RBM-T129-SK
Connecting pipe Corresponding dia. (mm) Quantity
Balancing pipe 9.52 1
Piping at liquid side 12.7 to 22.2 1
Piping at gas side 22.2 to 54.1 1
(*1) Code is determined according to the capacity code of the Indoor units connected.
(*2) If the total capacity code value of Indoor units exceeds that of Outdoor units, apply the capacity code of Outdoor units.
(*3) When using a branch header, Indoor units with a maximum of 6.0 capacity code in total can be connected to each
branch.
NOTE: If the length of the gas pipe exceeds 30m from the 1st branching to an Indoor unit, increase the gas pipe size by
1 size, i.e. MM-U140 = Gas Ø22.2, Liquid Ø9.5

8
Summary
Operating conditions
• The units referred to within this manual conform with the protection requirements of Directives 89/336/EEC
Electromagnetic Compatibility and 73/23/EEC Low voltage.
• Operating conditions of the unit are as follows:
Outdoor temperature -5 ~ 43°C Cooling
-15 ~ 21°C Heating
Room temperature 18 ~ 32°C Cooling
15 ~ 29°C Heating
Room humidity <80% Cooling
Note 1: Cooling capacity is rated at the following temperature conditions:
Indoor air inlet temperature 27°C DB, 19°C WB.
Outdoor air inlet temperature 35°C DB.
Note 2: Heating capacity is rated at the following temperature conditions:
Indoor air inlet temperature 20°C DB.
Outdoor air inlet temperature 7°C DB, 6°C WB.
Note 3: For details about the Outdoor unit, Indoor units or Remote Controller installation refer to the relevant literature, i.e.
Installation Instructions supplied with the units.
Note 4: Operatives handling refrigerants must be suitably qualified in accordance with local and national codes of practice
and statutory requirements.
Note 5: Legislation may regulate the removal of waste refrigerant from the systems. We advise awareness of any
regulations and duty of care. Waste refrigerant must NEVER be discharged to atmosphere.
Note 6: Electrical work should be in accordance with all relevant codes of practice and should be carried out by suitably
qualified personnel.
Note 7: Metric/Imperial pipe conversion.
Diameter (mm) 6.4 9.5 12.7 15.9 19.0 2.0 28.6 34.9 41.3 54.1
Nominal diameter (inch) 1/4 3/8 1/2 5/8 3/4 7/8 1-1/8 1-3/8 1-5/8 2-1/8
Note 8: Within this manual:
ODU = Outdoor Unit IDU = Indoor Unit
R/C = Remote Controller D.O.L. = Direct On-Line compressor
INV = Inverter ODU FIX = Fixed-speed ODU
DB = Dry Bulb WB = Wet Bulb
Mg-Sw = Magnetic Contactor IOL = Inner Overload Relay
OCR = Over Current Relay IGBT = Inverter Gate Bi-Polar Transistor
Note 9: MPaG ⇒kgf/cm2G conversion multiplier
1.0 MPaG = 10.2 kgf/cm2G
2

9
2
Summary
Operating conditions
1. Model name
OUTDOOR
MM-A0280HT
A – Outdoor 0280 – 28 kW (10 HP) C - Cooling T – Inverter
0224 – 22.4 kW (8 HP H - Heating X – Fixed-speed
0160 – 16.0 kW (6 HP)
INDOOR
MM-TU056
B - Built-In Duct Type
C (CR) - Ceiling Type (IR Remote) 028 – 2.8 kW (1 HP)
K (KR) - High Wall Type (IR Remote) 042 – 4.2 kW (1.5 HP)
N - Chassis Type 056 – 5.6 kW (2 HP)
S (SR) - Low Wall Type (IR Remote) 080 – 8.0 kW (3 HP)
SB - Built-In Slim Duct Type 112 – 12.2 kW (4 HP)
TU - 2-way Cassette Type 140 – 14.0 kW (5 HP)
U - 4-way Cassette Type
Modular Multi
Modular Multi
2. Range of combined units
No. of combined units : 1 to 5 units
Capacity range : Equivalent to 38.4 kW type (14HP) to 128.8 kW (46HP)
3. Restriction for combination units
(1) The Inverter Unit should have the maximum capacity among all units in that combination.
(2) The 16.0 kW (6HP) fixed-speed unit is available only with the combination of 38.4 kW (14HP) and 60.8 kW
(22HP). (It cannot be used for any other combination.)
4. Mode priority
This Outdoor Unit is set to operate with the Heating mode taking precedence. This precedence can be switched
between Heat and Cool mode using the DIP switch 07 on the Outdoor Unit Interface PCB (MCC-1343-01) as follows:
Heat priority (factory set) Cool priority
ON
OFF
ON
OFF

10
Outline of MMS (Modular Multi System)

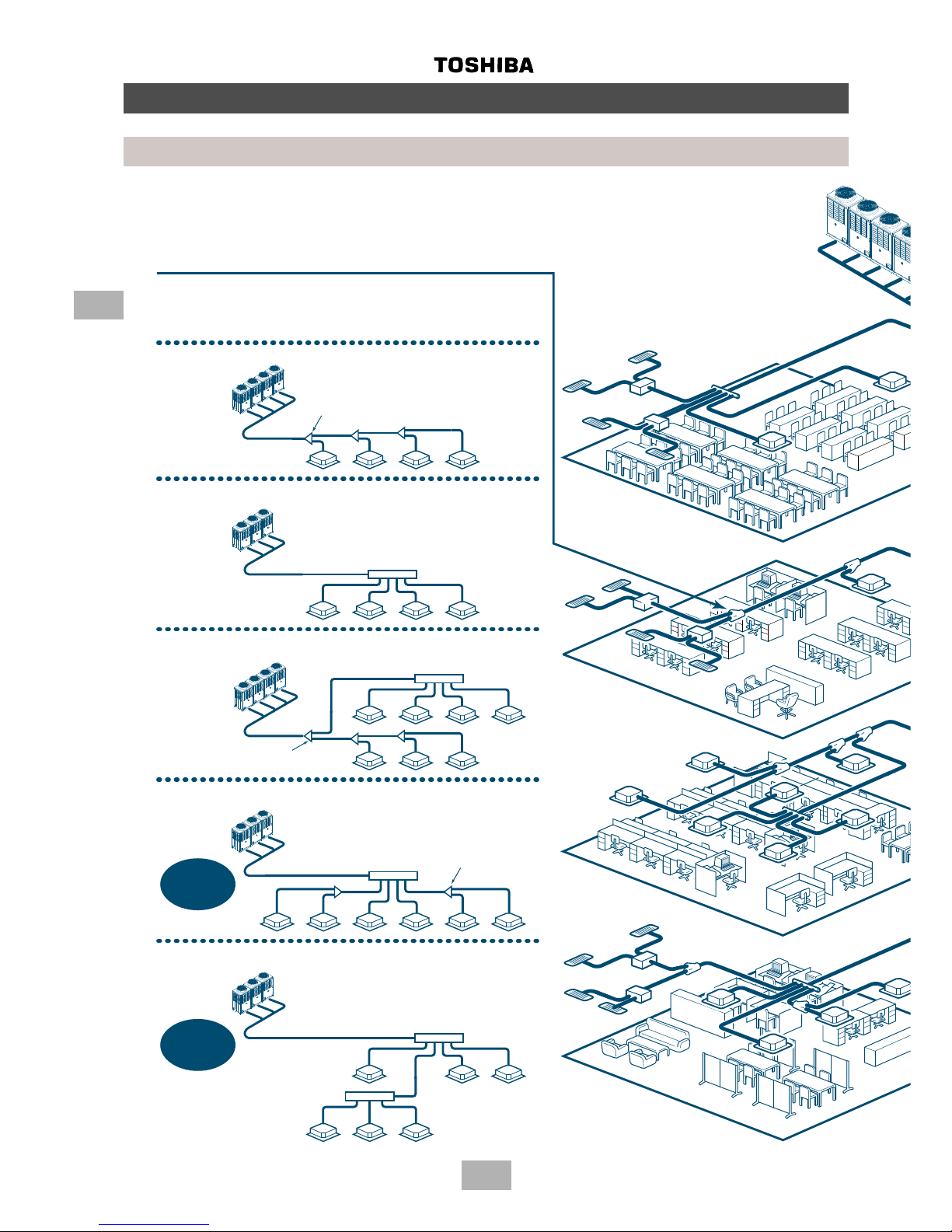

• Branching
Combination of line and header branching is highly flexible. This allows for the
shortest design route possible, thereby saving on installation time and cost.
Line/header branching after header branching is only available with Toshiba’s
Multi Modular System.
Linebranching
Outdoor unit
Branching joint
Indoor unit
Headerbranching
Outdoor unit
Branching
header
Indoor unit
Line and header branching
Outdoor unit
Branching joint
Indoor unit
Line branching after header branching
Outdoor unit
Branching joint
Indoor unit
MMS
ONLY
Outdoor unit
Header
Header
Indoor unit
MMS
ONLY
1F
7F
8F
2F
3
Header
Header

11
Outline of MMS (Modular Multi System)
• Non-polarized control wiring between outdoor and
indoor units
Outdoor unit
Indoor unit
• Wiring diagnosis system
[Example of wiring diagnosis]
Use the switches on the microcomputer PCB of the
outdoor unit.
• Detects wiring to the indoor unit b4 which should
not be in system A.
• b4 is missing in system B.
Outdoor
unit
Piping
Circuit A Outdoor
unit
Indoor unit
Piping
Circuit B
Outdoor unit
Allowable pipe length:
100 m real length
(Equivalent to 125 m)
Height difference between indoor
unit and outdoor unit: 50 m
Height difference between indoor
unit and outdoor unit: 30 m
From 1st branching to the
farthest indoor unit: 50 m
1st branching
section
•Compact design
The design of the Toshiba MMS outdoor unit allows for
easy unit maneuvering into any standard lift. Its size also
allows it to be easily installed in limited spaces.
•Largest system capacity
Toshiba’s Multi Modular System can be combined up to
128.8 kW (46 HP).
•Advanced bus communication system
Wiring between indoor and outdoor unit is a simple 2-
wire system.
Communication address is also automatically configured.
A default test mode operation is available.
•Self diagnostic system
Comprehensive troubleshooting code enables quick
identification of problems arising.
•High lift design
Real pipe length of 100m (equivalent length 125m) and
vertical lift of 50m is made possible with Toshiba’s Multi
Modular System.
Vertical lift between indoor units of 30m is the highest in
the market.
This allows for greater flexibility in the location of the
system.
•Multiple indoor units
Indoor units with different capacities and configurations
can be combined up to 135% of the outdoor unit capacity.
A maximum of 40 indoor units can be combined with the
46 HP outdoor module.
•Intelligent control
Toshiba’s MMS intelligent controls and modulating
valves deliver the required capacity, according to the
load variation from 50% to 100%.
The intelligent controls and modulating valves limit or
increase the cooling/heating capacity dynamically so
humidity and temperature are kept in the comfort zone.
3

12

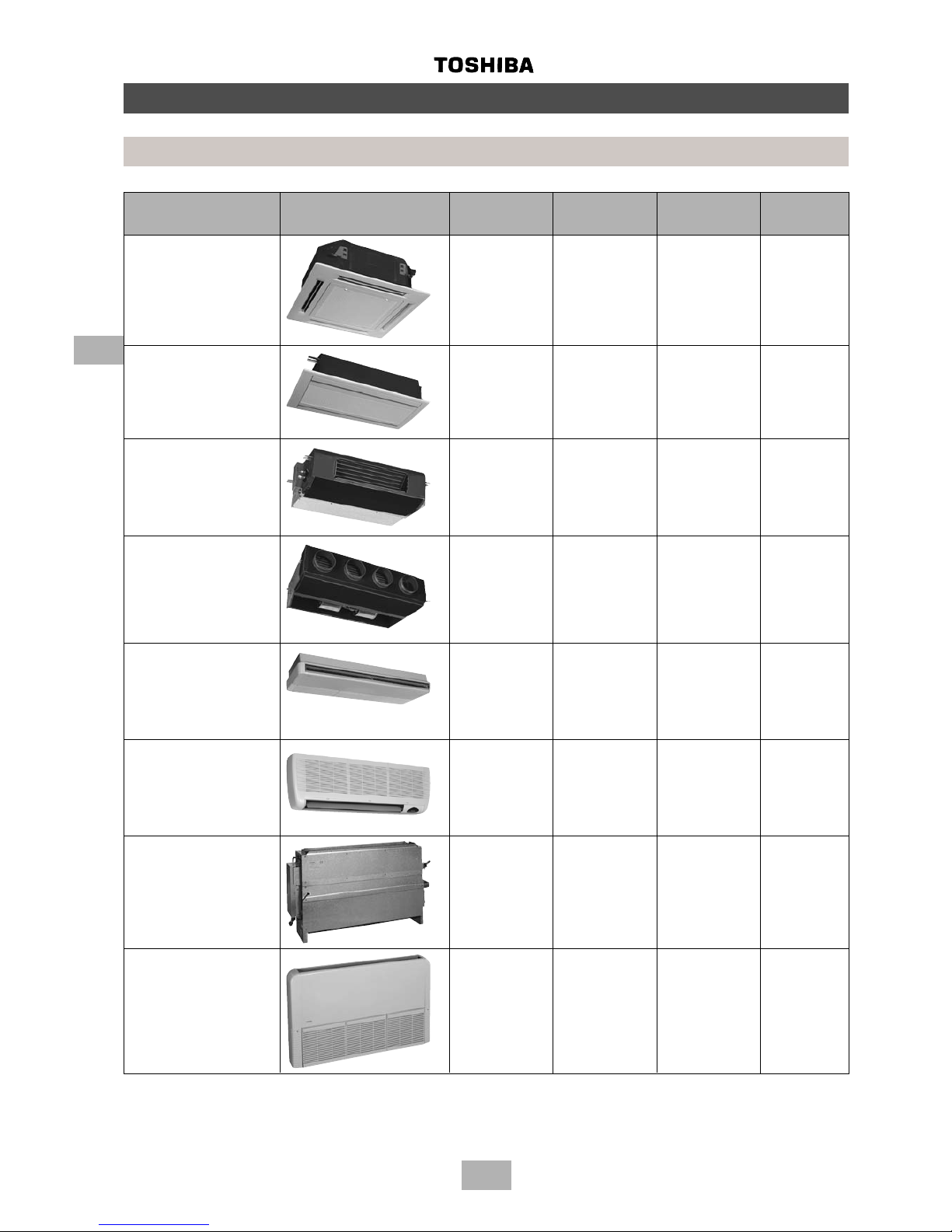

Parts specifications
Indoor units
Type Appearance Model name Capacity code Cooling Heating
capacity (kW) capacity (kW)
4-Way Cassette MM-U056 2 5.6 6.4
Type ‘U’ MM-U080 3 8.0 9.6
MM-U112 4 11.2 12.8
MM-U140 5 14.0 15.8
2-Way Cassette MM-TU028 1 2.8 3.2
Type ‘TU’ MM-TU042 1.5 4.2 4.8
MM-TU056 2 5.6 6.4
Built-In Slim Duct MM-SB028 1 2.8 3.2
Type ‘SB’
Built-In Duct MM-B056 2 5.6 6.4
Type ‘B’ MM-B080 3 8.0 9.6
MM-B112 4 11.2 12.8
MM-B140 5 14.0 15.8
Ceiling MM-C/CR042 1.5 4.2 4.8
Type ‘C’ MM-C/CR056 2 5.6 6.4
MM-C/CR080 3 8.0 9.6
MM-C/CR112 4 11.2 12.8
MM-C/CR140 5 14.0 15.8
High Wall MM-K/KR042 1.5 4.2 4.8
Type ‘K’ MM-K/KR056 2 5.6 6.4
MM-K/KR080 3 8.0 9.6
Chassis MM-N028 1 2.8 3.2
Type ‘N’ MM-N042 1.5 4.2 4.8
MM-N056 2 5.6 6.4
MM-N080 3 8.0 9.6
Low Wall MM-S/SR056 2 5.6 6.4
Type ‘S’ MM-S/SR080 3 8.0 9.6
4

13
Parts specifications
Outdoor units
COMPRESSOR MODEL
MM-A0280HT MM-A0224HT MM-A0280HX MM-A0224HX MM-A0160HX
MM-A0280CT MM-A0224CT MM-A0280CX MM-A0224CX MM-A0160CX
Model name MG1450CW-21B YG1800CW-B1 YG1700CW-B1 YG890C-B1
Motor type 3-phase induction motor
Power supply 380-415 V, 3 ph, 50 Hz
Output (kW) 7.5 7.5 7.5 6.0 4.1
Pole (P) 2/2 (INV./Fixed) 2/2 (Fixed/Fixed) 2
Coil resistance (Ω) 1.18/2.25 (INV./Fixed) 2.25/2.25 (Fixed/Fixed ) 2.250
Comp. oil name NISSEKI RB74AF VG 74
Amount of oil (ml) 7500 7500 7500 7500 2000
Inner overload relay Opens: 115±5°C Closes: 93±10°C
4-WAYVALVE MODEL
MM-A0280HT MM-A0224HT MM-A0280HX MM-A0224HX MM-A0160HX
Model name CHV-0712 CHV-0712 CHV-0712 CHV-0712 CHV-0401
Coil specification AC240V AC240V AC240V AC240V AC240V
MM-A0280HT, MM-A0224HT, MM-A0280HX, MM-A0224HX, MM-A0160HX
MM-A0280CT, MM-A0224CT, MM-A0280CX, MM-A0224CX, MM-A0160CX
PARTS NAME SPECIFICATION
Fan motor Model name STF-200-350A
Motor type 1-phase induction motor
Power supply AC 220 – 240 V. 1 phase, 50 Hz
Output (W) 400
Current (A) 4.81-5.89
Pole (P) 6
High pressure switch Model name INV = ACB-JB128 FIX = ACB-JA64
Operating pressure (mPa) Operation: 3.2 Reset: 2.55
High pressure sensor Model name 150NH4-H
Operating conditions (mPa) 0-3.33
Low pressure sensor Model name 150NH4-L
Operating conditions (mPa) 0-0.98
Compressor case heater (fixed-speed only) AC 240 V – 74 W
Accumulator case heater AC 240 V – 29 W
Discharge temperature sensor 18.1 kΩat 50 °C – 3.35 kΩat 100 °C
Suction temperature sensor 34.6 kΩat 0 °C – 10.0 kΩat 25 °C – 3.4 kΩat 50 °C
Pulse modulating valve (heat pump unit only) L12A-03, DC 12 V
Pulse modulating valve (for cooling bypass) A12A-15, DC 12 V
2-way valve NEV-603DXF, coil 240 V
2-way valve NEV-202DXF, coil 240 V
4

14
4
Parts specifications
Indoor units
Built-In Duct: MM-B140
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor STF-200-140-4F Output (rated) 140 W, 4 pole, 200 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EAG40M106UF AC 400 V, 10 μF
3 Pulse motor valve EDM-B60YPTF-7B-A Capacity: 60
Built-In Duct: MM-B112
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor STF-200-120-4B Output (rated) 120 W, 4 pole, 200 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EAG40M505UF AC 400 V, 5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Built-In Duct: MM-B080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor STF-200-100-4B Output (rated) 100 W, 4 pole, 200 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EAG40M505UF AC 400 V, 5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Built-In Duct: MM-B056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor STF-230-60-4A Output (rated) 60 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2G405HQA114 AC 400 V, 4 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Built-In Duct: MM-B140, MM-B112, MM-B080, M-B056
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C02 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V
Built-In Duct: MM-SB028
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4J Output (rated) 34 W, 4 pole, 220 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 400 V, 1 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C02 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V

15
Parts Specifications
Indoor units
Ceiling: MM-C140, MM-CR140
No. PARTS NAME TIPO SPECIFICATIONS
1 Fan motor SMF-230-75-4B Output (rated) 75 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2G405HQA114 AC 400 V, 4 μF
3 Pulse motor valve EDM-B60YPTF-7B-A Capacity: 60
Ceiling: MM-C112, MM-CR112
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-75-4U Output (rated) 75 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EVM45M305UF AC 450 V, 3 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Ceiling: MM-C080, MM-CR080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4D Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W255HQA113 AC 450 V, 2,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Ceiling: MM-C056, MM-CR056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4D Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W255HQA113 AC 450 V, 2,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Ceiling: MM-C042, MM-CR042
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-34-4H Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 500 V, 1,5 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
Ceiling: MM-C140, MM-C112, MM-C080, MM-C056, MM-C042
MM-CR140, MM-CR112, MM-CR080, MM-CR056, MM-CR042
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C03 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V
4

16
4
Parts specifications
Indoor units
High wall: MM-K080, MM-KR080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-27-4R Output (rated) 27 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W205HQA107 AC 400 V, 2 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
High wall: MM-K056, MM-KR056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-27-4P Output (rated) 27, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H155HQA107 AC 400 V, 1,5 μF
3 Pulse motor valve EDM-B40YTR-7B-A Capacity: 40
High wall: MM-K042, MM-KR0042
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-27-4P Output (rated) 27 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 400 V, 1 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
High wall: MM-K080, MM-KR080
MM-K056, MM-KR056
MM-K042, MM-KR042
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT - 03 - 1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C03 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V

17
Parts specifications
Indoor units
Chassis: MM-N080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4O Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H155HQA107 AC 500 V, 1,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Chassis: MM-N056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4D Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W205HQA107 AC 450 V, 2,0 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Chassis: MM-N042
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4H Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W205HQA107 AC 450 V, 2 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 25
Chassis: MM-N028
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4H Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H155HQA107 AC 500 V, 1,5 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
Chassis: MM-N080, NN-N056, MM-N042, MM-N028
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C02 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V
4

18
4
Parts specifications
Indoor units
Low wall: MM-S080, MM-SR080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4D Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W255HQA113 AC 450 V, 2,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Low wall: MM-S056, MM-SR056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor SMF-230-34-4D Output (rated) 34 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W255HQA113 AC 450 V, 2,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
Low wall: MM-S080, MM-SR080, MM-S056, MM-SR056
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C02 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V

19
4
Parts specifications
Indoor units
2-way cassette: MM-TU056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor PAF-230-7-4 Output (rated) 7 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 500 V, 1 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
2-way cassette: MM-TU042
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor PAF-230-7-4 Output (rated) 7 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EVM45M504UF AC 500 V, 1 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
2-way cassette: MM-TU028
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor PAF-230-7-4 Output (rated) 7 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 500 V, 1 μF
3 Pulse motor valve EDM-B25YPTF-7B-A Capacity: 25
2-way cassette: MM-TU056, MM-TU042, MM-TU028
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT - 03 - 1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C01 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V

20
4
Parts specifications
Indoor units
4-way cassette: MM-U140
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-36A Output (rated) 36 W, 6 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EVM45M305UF AC 450 V, 3 μF
3 Pulse motor valve EDM-B60YPTR-7B-A Capacity: 60
4-way cassette: MM-U112
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-36A Output (rated) 36 W, 4 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W255HQA113 AC 450 V, 2,5 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
4-way cassette: MM-U080
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-28A Output (rated) 28 W, 6 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2W205HQA107 AC 450 V, 2 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
4-way cassette: MM-U056
No. PARTS NAME TYPE SPECIFICATIONS
1 Fan motor MMF-230-28A Output (rated) 28 W, 6 pole, 230 V, 1 phase, 50 Hz
2 Running capacitor – Fan motor EEP2H105HQA105 AC 450 V, 1 μF
3 Pulse motor valve EDM-B40YPTR-7B-A Capacity: 40
4-way cassette: MM-U140, MM-U112, MM-U080, MM-U056
No. PARTS NAME TYPE SPECIFICATIONS
4 Transformer TT-03-1 DC 16.3 V – 0.5 A / AC 11.6 V – 0.15 A
5 Pulse motor EDM-MD12TF-3 DC 12 V
6 Pressure sensor 150/100NH6-D Power voltage DC 12 V
7 Sensor for room temperature TA Maximum input: °C 25 50
38 mA at 25 °C kΩ10 3.45
8 Sensor for heat exchanger Tc1 Maximum input: °C -12 0 25 50
34 mA at 25 °C kΩ62.3 32.8 10 3.6
9 Sensor for heat exchanger Tc2 Maximum input: °C 0 25 50
26 mA at 25 °C kΩ34.6 10 3.4
10 Control PCB CM**C02 AC 220 – 240 V
11 Power PCB P**RC01 AC 220 – 240 V
