AIR CONDITIONER (SPLIT TYPE)
Indoor Unit
Model name:
4-way Air Discharge Cassette Type
RAV-SM564UT-E
RAV-SM804UT-E
RAV-SM1104UT-E
RAV-SM1404UT-E
RAV-SM1604UT-E
Owner’s Manual
Owner’s Manual
Air conditioner (Split type) 1
English
Not accessible to the general public
Vente interdite au grand public
Kein öffentlicher Zugang
Non accessibile a clienti generici
No destinado al público en general
Não acessível ao público em geral
Niet geschikt voor huishoudelijk gebruik
Μη προσβάσιμο από το γενικό κοινό
Недоступен для посторонних
Genel erişime açık değildir
Manuel du proprietaire
Climatiseur (Type split) 25
Français
Betriebsanleitung
Klimagerät (Split-typ) 49
Deutsch
Manuale del proprietario
Condizionatore d’aria (Tipo split) 73
Italiano
Manual del propietario
Aire acondicionado (Tipo split) 97
Español
Manual do utilizador
Ar condicionado (Tipo split) 121
Português
Gebruiksaanwijzing
Airconditioner (Gesplitst type) 145
Nederlands
Εγχειρίδιο χρήσης
Κλιματιστικό (Τύπου Split) 169
Ελληνικά
Русский
Kullanım Kılavuzu
Klima (Split tip) 217
Türkçe
Руководство пользователя
Кондиционер воздуха
(Сплит-система)193
+00EH99930901-2_10L_4-way_OM.book Page 1 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–1–
4-way Air Discharge Cassette Type Owner’s Manual
Contents
1 PRECAUTIONS FOR SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 PARTS NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 PARTS NAME OF REMOTE CONTROLLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

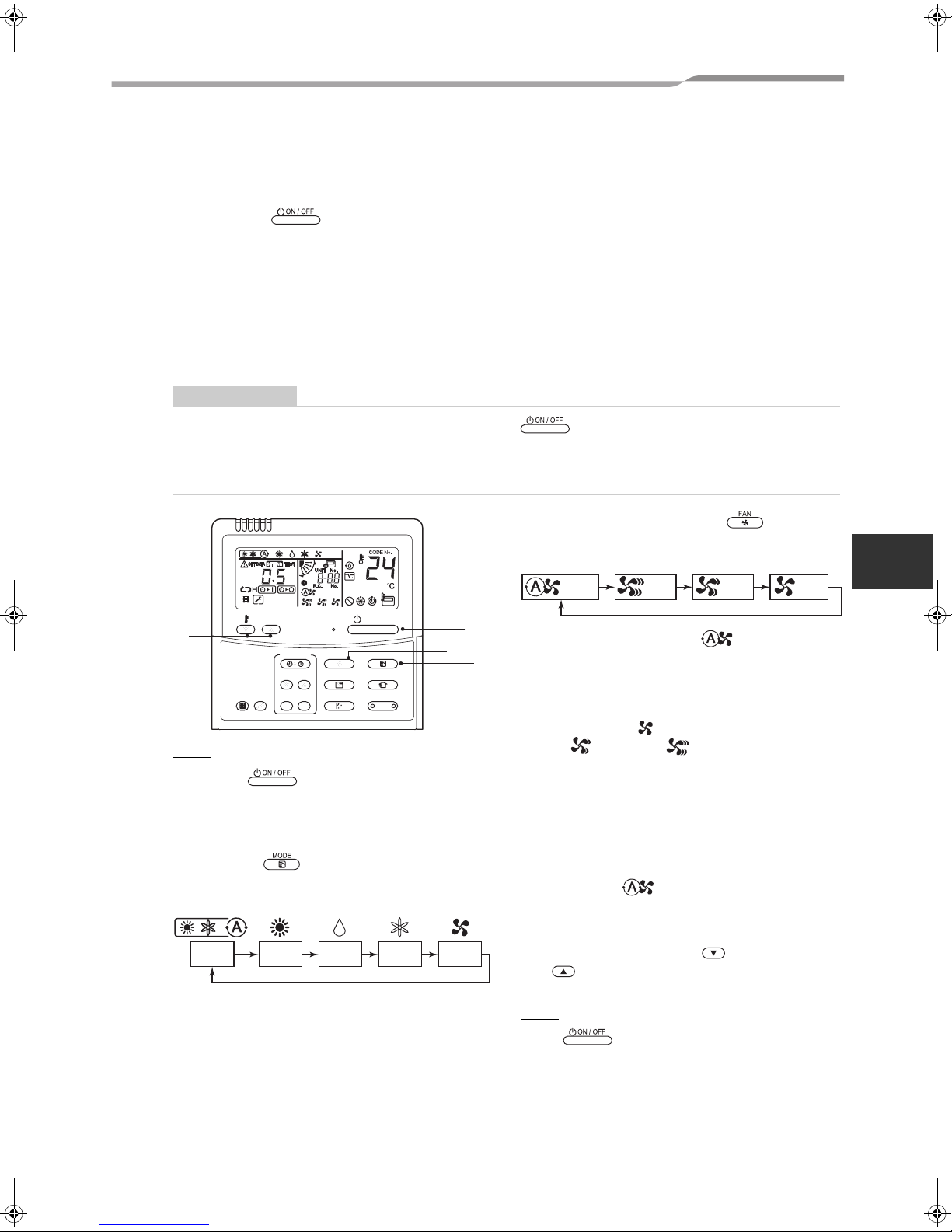

4 CORRECT USAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 TIMER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

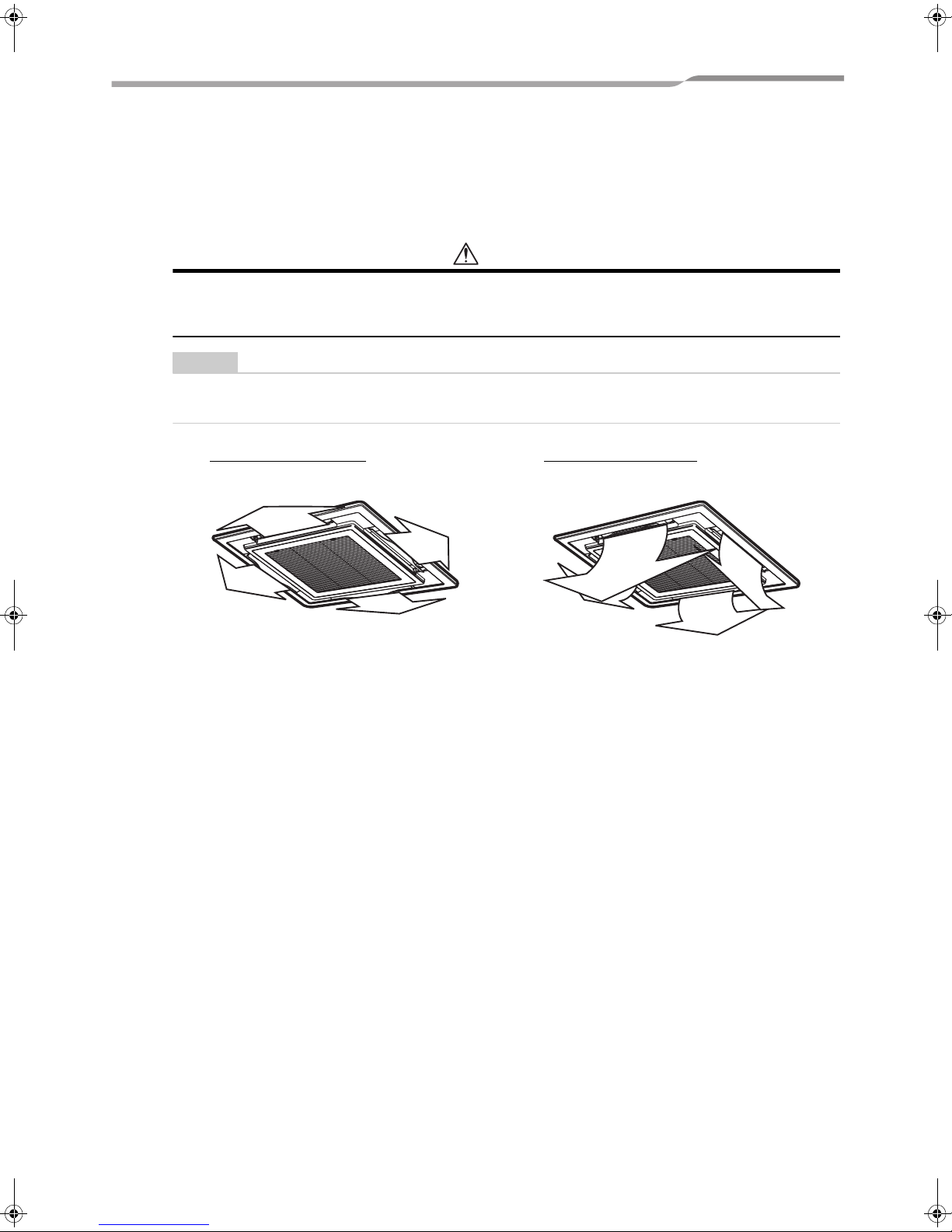

6 ADJUSTMENT OF WIND DIRECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 HOW TO ENABLE POWER SAVING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 SELF CLEANING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 ADVANCED SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

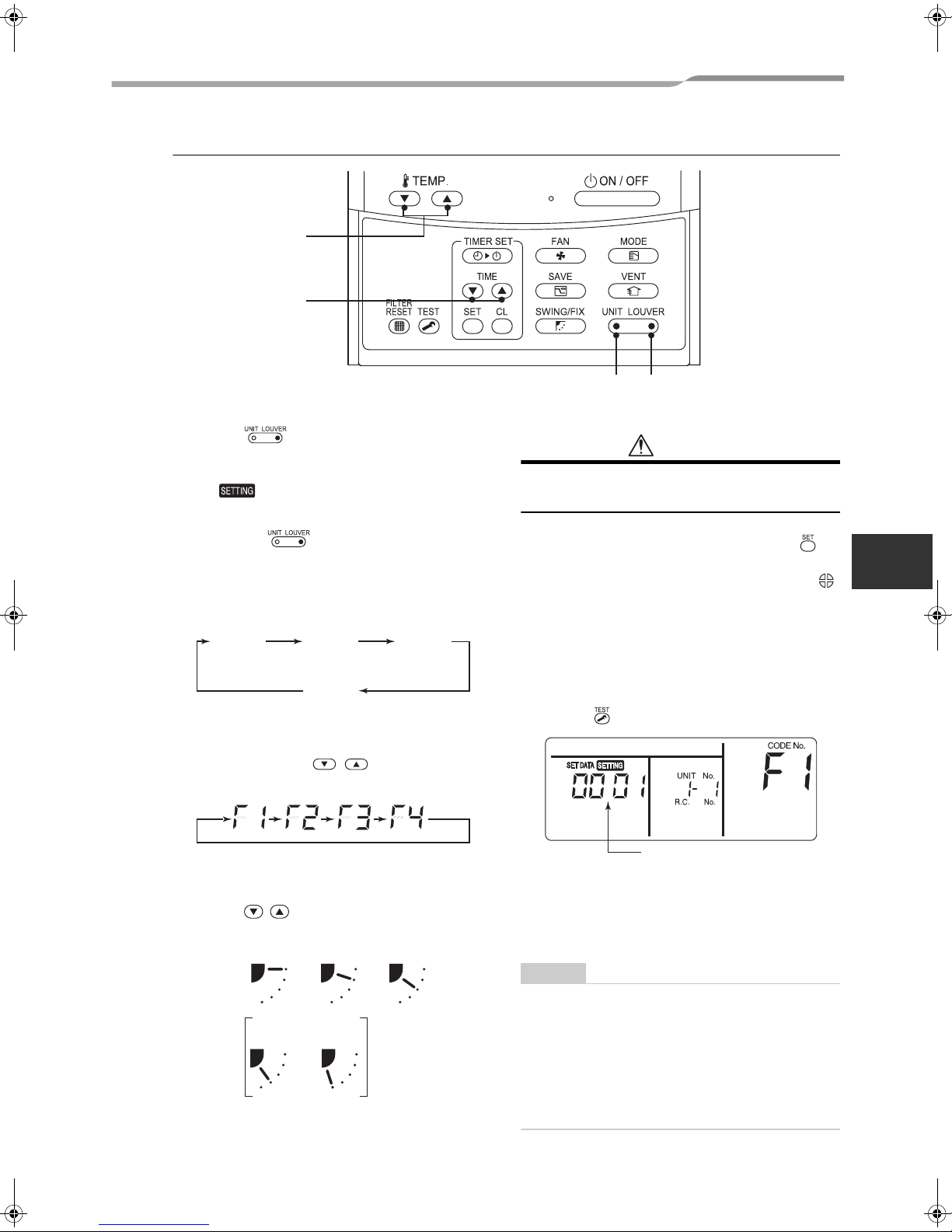

How to set up swing type

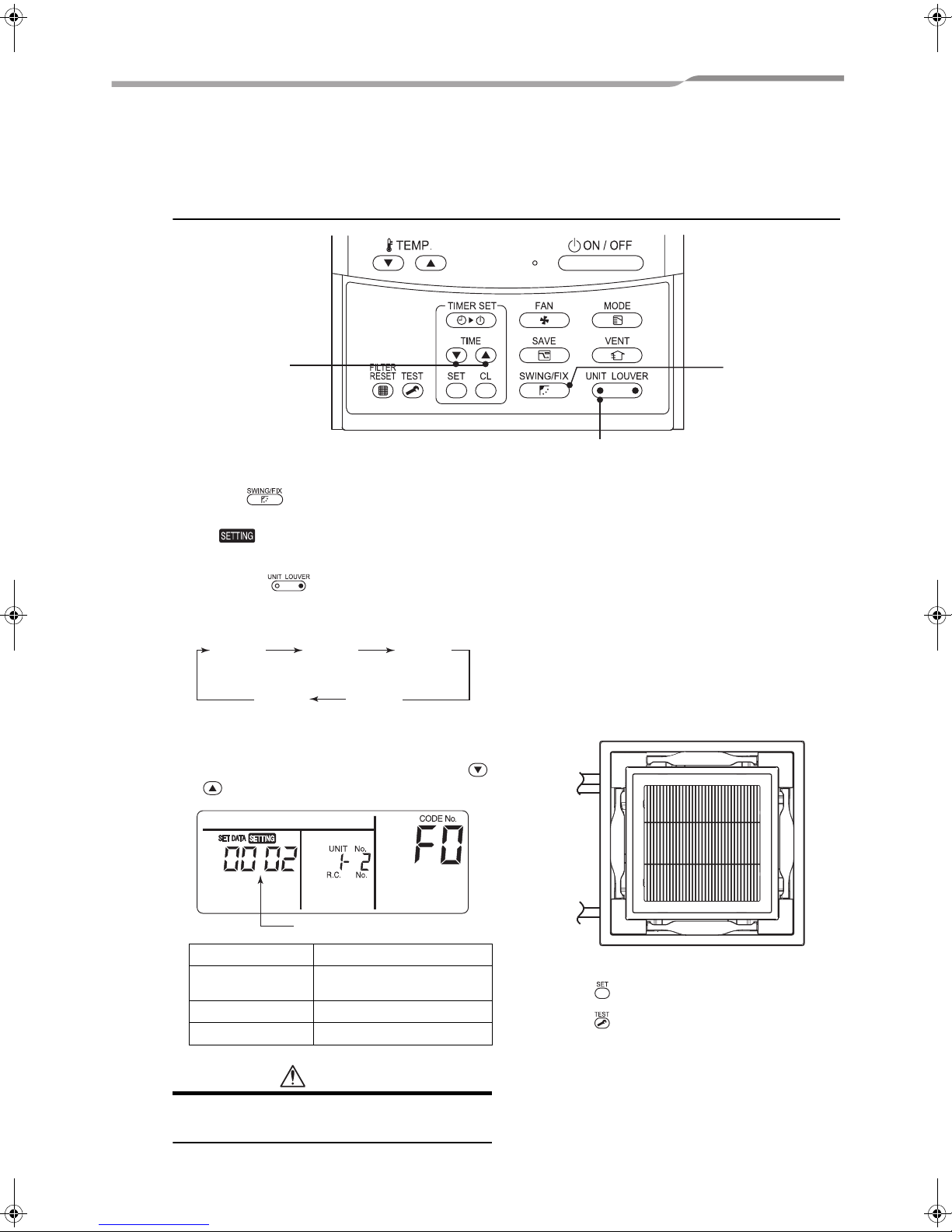

How to set up louver lock (No swing)
How to set up power saving mode

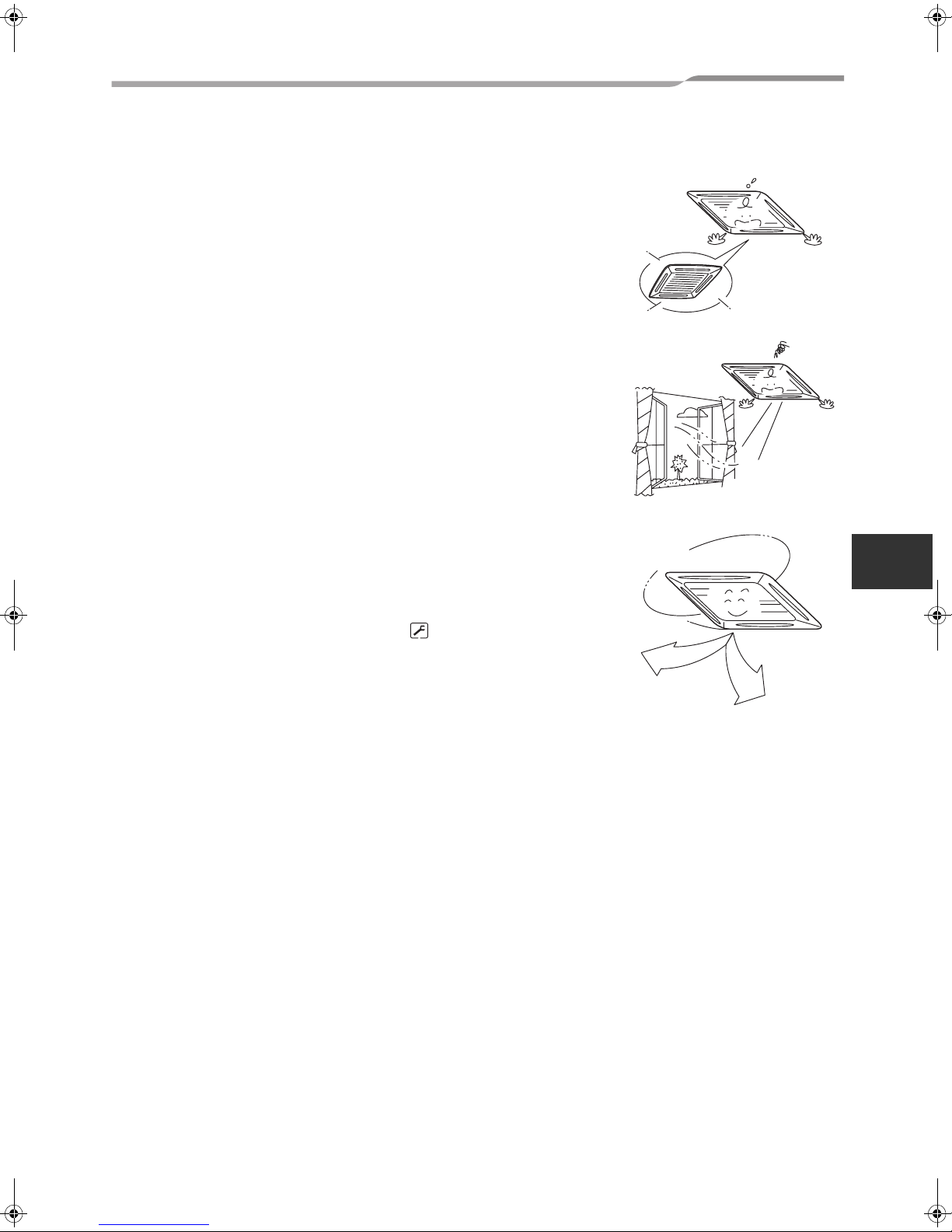

10 HINTS FOR ECONOMICAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

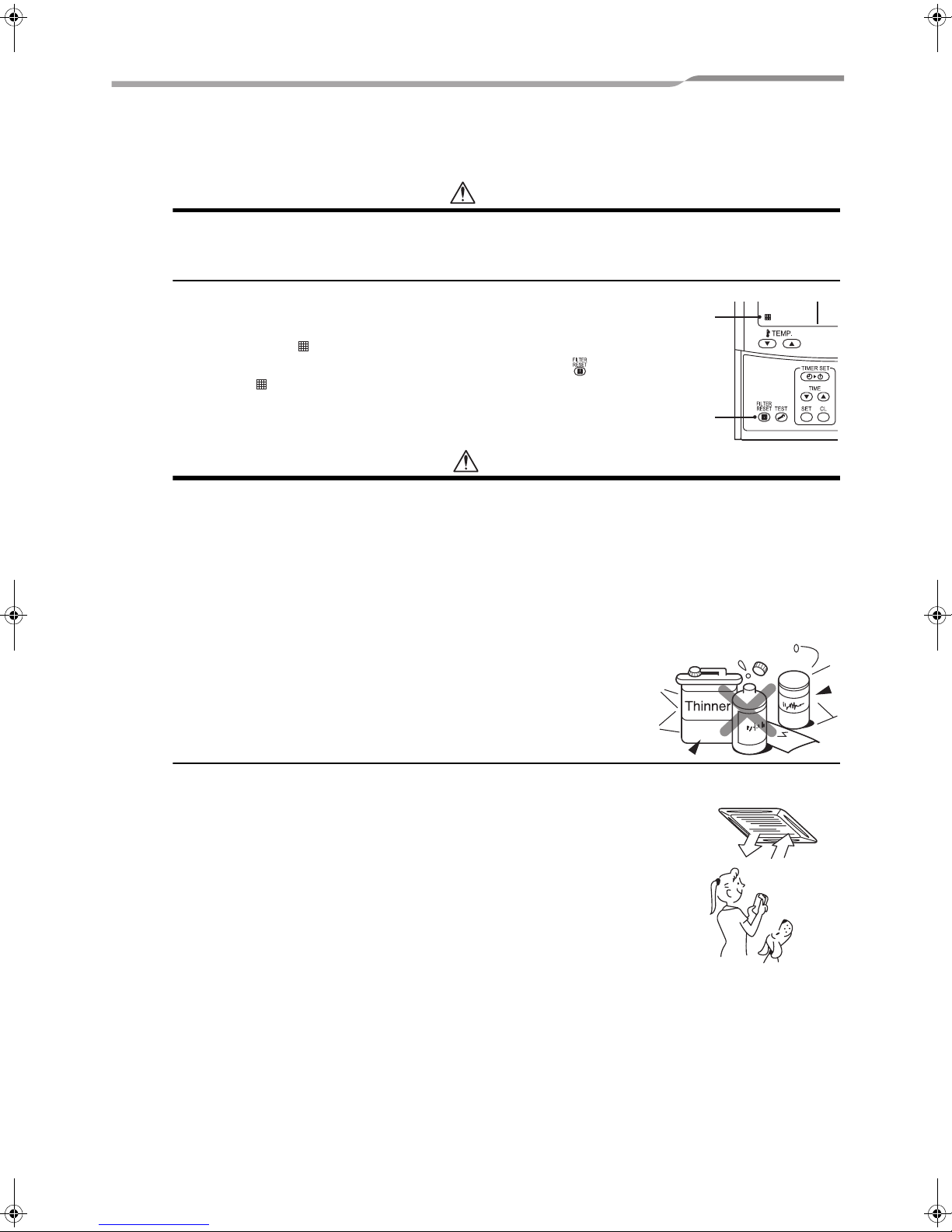

11 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
12 AIR CONDITIONER OPERATIONS AND PERFORMANCE . . . . . . . . . . . . . . . . . . . . 21
13 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
14 TROUBLES AND CAUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Thank you very much for purchasing TOSHIBA Air Conditioner.
Please read this owner’s manual carefully before using your Air Conditioner.
• Be sure to obtain the “Owner’s manual” and “Installation manual” from constructor (or dealer).
Request to constructor or dealer
• Please clearly explain the contents of the Owner’s manual and hand over it.
ADOPTION OF NEW REFRIGERANT
This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A) instead of the conventional
refrigerant R22 in order to prevent destruction of the ozone layer.
This appliance is not intended for use by person (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
1-EN
+00EH99930901-2_10L_4-way_OM.book Page 1 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–2–
4-way Air Discharge Cassette Type Owner’s Manual
EN
1PRECAUTIONS FOR SAFETY
WARNING
WARNINGS ABOUT INSTALLATION
• Make sure to ask the qualified installation professional in electric work to
install the air conditioner.
If the air conditioner is inappropriate installed by yourself, it may cause
water leak, electric shock, fire, and so on.
• Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water pipes, lightning rods or
ground wires for telephone wires.
• If you install the indoor unit in a small room, take appropriate measures to
prevent the refrigerant from exceeding the limit concentration even if it
leaks.
Consult the dealer from whom you purchased the air conditioner when you
implement the measures. Accumulation of highly-concentrated refrigerant
may cause an oxygen deficiency accident.
• Check whether the piping work has been properly completed.
When existing pipes are used and if they are not constructed properly, the
refrigerant gas may leak. Contact the installation company and confirm that
the piping work has been properly completed. For details of installation of
the air conditioner, refer to the Installation Manual. Use tools and piping
materials for R410 only. Failure to do so or improper installation may cause
a burst of pipe, resulting in injury.
WARNINGS ABOUT OPERATION
• Cleaning of the air filter and other parts of the air filter involves dangerous work in high places, so be sure to
have a service person do it.
The self cleaning function of the air conditioner causes the internal fan to run at a high speed in some modes
even while the air conditioner is not working, which may cause injury.
Do not attempt it yourself.
• Avoid cooling the room too strong or exposing the human body to cool breeze for a long time as it is bad
for the health.
• When you notice something abnormal with the air conditioner (smells like something scorching, poor
cooling, etc.), immediately turn off the main switch, the circuit breaker, from the mains to stop the air
conditioner, and contact the dealer.
If the air conditioner is continuously operated with something abnormal, it may cause machine failure,
electric shock, fire, and so on.
WARNINGS ABOUT MOVEMENT AND REPAIR
• When the air conditioner cannot cool or heat a room well, contact the dealer from whom you purchased the
air conditioner as refrigerant leakage is considered as the cause. In the case of repair that requires refill of
refrigerant, ask service personnel about details of the repair.
The refrigerant used in the air conditioner is harmless.
Generally, the refrigerant does not leak. However, if the refrigerant leaks in a room and a heater or stove
burner in the room catches fire, it may generate toxic gas.
When you ask service personnel for repairing refrigerant leakage, confirm that the leakage portion has
been completely repaired.
• Do not move or repair any unit by yourself.
Since there is high voltage inside the unit, you may get electric shock when removing the cover and main
unit.
• Whenever the air conditioner needs repair, make sure to ask the dealer to do it.
If it is repaired imperfectly, it may cause electric shock or fire.
• When moving the air conditioner for re-installing at another place, ask the dealer to do it. If it is imperfectly
installed, it may cause electric shock or fire.
2-EN
+00EH99930901-2_10L_4-way_OM.book Page 2 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–3–
4-way Air Discharge Cassette Type Owner’s Manual
CAUTION
TO DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY
• This appliance must be connected to the mains by means of a switch with a contact separation of at least
3 mm.
•The installation fuse 40A, 25A or 16A must be used for the power supply line of this air conditioner.
CAUTIONS ABOUT INSTALLATION (Be sure to confirm the following cautions.)
• Use an exclusive power circuit for the air conditioner. Use the rated voltage.
• Certainly lay the drain hose for perfect draining.
Bad drainage may cause flooding in the house and getting furniture wet.
• Make sure to connect the air conditioner to an exclusive power supply of the
rated voltage, otherwise the unit may break down or cause a fire.
• Do not install the unit in a place where inflammable gas may leak.
If inflammable gas accumulates around the unit, it may cause a fire.
CAUTIONS ABOUT OPERATION
• Carefully read this manual before starting the air conditioner.
There are many important things to keep in mind for daily operation.
• Do not use this air conditioner for special purpose such as preserving food,
precision instruments, art objects, breeding animals, car, vessel, etc.
• When the air conditioner is operated with a combustion appliance in the same
place, be careful of ventilation to let fresh air enter the room.
Poor ventilation causes oxygen shortage.
• Do not place any combustion appliance in a place where it is directly exposed
to the wind of air conditioner, otherwise it may cause imperfect combustion.
• When the air conditioner is used in a closed room, be careful of sufficient ventilation of the room.
Poor ventilation causes oxygen shortage.
• Do not touch any switches with wet finger, otherwise you may get an electric shock.
• If the air conditioner won’t be used for a considerably long time, turn off the main switch or the circuit
breaker, for safety.
• Do not put anything on the outdoor unit nor step onto it.
If you do so, it may not only topple over the unit but also injure yourself.
• To make the air conditioner operate in its original performance, operate it within the range of the operating
temperature specified in the instructions.
Otherwise it may cause a malfunction, or water leak from the unit.
• Prevent any liquid from falling into the remote controller.
Do not spill juice, water or any kind of liquid.
3-EN
+00EH99930901-2_10L_4-way_OM.book Page 3 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–4–
4-way Air Discharge Cassette Type Owner’s Manual
EN
2PARTS NAME
Indoor unit
Outdoor unit
Knob
Knob to open/close the
suction port. Provided in the electric parts box.
Earth screw
Air filter
Removes dust or trash.
(Provided on the suction port.)
Change the direction of the air
to be discharged according to
cool/heat mode.
Discharge louver
of discharge port
The air in the room is sucked in
from this port.
Suction air port
Projection
of air filter
SET
TIME
TIMER SET
TEST
FILTER
RESET CL
FAN
SAVE
SWING/FIX
VENT
MODE
UNIT LOUVER
Remote controller
Separate sold part
Air inlet (Side and rear)
Panel
There is an earth screw, valves,
and electric parts inside.
Air outlet
Piping panel
Wiring hole
Refrigerant pipe outlet
Fixing leg
4-EN
+00EH99930901-2_10L_4-way_OM.book Page 4 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–5–
4-way Air Discharge Cassette Type Owner’s Manual
3PARTS NAME OF REMOTE CONTROLLER
This remote controller can control the operation of up to 8 indoor units.
Display section
In the display example, all indicators are displayed for the
explanation.
In reality only, the selected contents are indicated.
• When turning on the leak breaker at the first time, flashes
on the display part of the remote controller.
• While this display is flashing, the model is being automatically
confirmed.
Accordingly, wait for a while after display has
disappeared, and then use the remote controller.
1SETTING display
Displayed during setup of the timer etc..
2Operation mode select display
The selected operation mode is displayed.
3CHECK display
Displayed while the protective device works
or a trouble occurs.
4Timer time display
Time of the timer is displayed.
(When a trouble occurs, the check code is
displayed.)
5Timer SET IN setup display
When pushing the Timer SET IN button, the
display of the timer is selected in order of
[OFF] →[OFF] repeat OFF timer
→[ON] →No display.
6Filter display
If “FILTER ” is displayed, clean the air filter.
7TEST run display
Displayed during a test run.
8Louver position display
Displays louver position.
9SWING display
Displayed during up/down movement of the
louver.
10 Set up temperature display
The selected set up temp. is displayed.
11 Remote controller sensor display
Displayed while the sensor of the remote
controller is used.
12 PRE-HEAT display
Displayed when the heating operation starts
or defrost operation is carried out.
While this indication is displayed, the indoor
fan stops.
13 No function display
Displayed if there is no function even if the
button is pushed.
SET
TIME
TIMER SET
TEST
FILTER
RESET
TEMP.
CL
FAN
SAVE
SWING/FIX
VENT
MODE
ON / OFF
UNIT LOUVER
Display
section
Operation
section
2
14
15
5
7
3
1
4
6
11
9
8
13 12
10
20 19
16 17
18
5-EN
+00EH99930901-2_10L_4-way_OM.book Page 5 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–6–
4-way Air Discharge Cassette Type Owner’s Manual
EN
14 Air volume select display
The selected air volume mode is displayed.
15 Louver Number display.
(exapmle:01, 02, 03, 04)
16 Dry operation in self cleaning function
Displayed during dry operation in self
cleaning function.
17 Power saving mode display
Displayed during capacity saving mode by
temporary peak-cut limiting the power current
level of the outdoor unit.
18 Louver lock display
Displayed when there is a louver-locked unit
in the group (including 1 indoor unit by
1 outdoor unit).
19 Unit Number display
Unit number of the indoor unit selected with
the unit select button or abnormal indicate the
indoor/outdoor unit.
20 Central control display
Displayed when the air conditioner is used
under the central control in combination with
a central control remote controller.
In case the remote controller is disabled by
the central control system, flashes.
The button operation is not accepted.
Even when you push ON/OFF, MODE, or
TEMP. button, and the button operation is not
accepted.
(Settings made by the remote controller vary
with the central control mode. For details,
refer to the Owner’s Manual of the central
control remote controller.)
2
15
5
7
3
1
4
6
11
9
8
13 12
10
20 19
16 17
18 14
(AUTO)
(HIGH)
(MED.)
(LOW)
6-EN
+00EH99930901-2_10L_4-way_OM.book Page 6 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–7–
4-way Air Discharge Cassette Type Owner’s Manual
Operation section
Push each button to select a desired operation.
• The details of the operation needs to be set up once, afterward, the air conditioner can be used by
pushing button only.
1button (Air volume select button)
Selects the desired air volume mode.
2button (Timer set button)
TIMER SET button is used when the timer is
set up.
3button (Check button)
The CHECK button is used for the check
operation. During normal operation, do not
use this button.
4button (Ventilation button)
Ventilation button is used when a fan which is
sold on the market is connected.
• If “No function ” is displayed on the
remote controller when pushing the
Ventilation button, a fan is not connected.
5button (Filter reset button)
Resets (Erases) “FILTER ” display.
6button (Power save operation)
SAVE button is used for power save
operation.
7button (Swing/Wind direction
button)
Selects automatic swing or setting the louver
direction.
8Operation lamp
Lamp is lit during the operation. Lamp is off
when stopped.
Although it flashes when operating the
protection device or abnormal time.
9button
When the button is pushed, the operation
starts, and it stops by pushing the button again.
When the operation has stopped, the
operation lamp and all the displays disappear.
10 button (Operation select button)
Selects desired operation mode.
11 button (Unit/Louver select button)
Selects a unit number (left) and louver
number (right).
UNIT:
Selects an indoor unit when adjusting wind
direction when multiple indoor units are
controlled with one remote controller.
LOUVER:
Selects a louver when setting louver lock or
wind direction adjustment independently.
12 button (Set up temperature button)
Adjusts the room temperature.
Set the desired set temperature by pushing
TEMP. or TEMP. .
OPTION :
Remote controller sensor
Usually the TEMP. sensor of the indoor unit
senses the temperature. The temperature on the
surrounding of the remote controller can also be
sensed.
For details, contact the dealer from which you
have purchased the air conditioner.
18
3
5
2
9
10
67
12
4
11
7-EN
+00EH99930901-2_10L_4-way_OM.book Page 7 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–8–
4-way Air Discharge Cassette Type Owner’s Manual
EN
4CORRECT USAGE
• When you use the air conditioner for the first time or when you change the SET DATA value, follow the
procedure below. From the next time, the operation displayed on the remote controller will start by
pushing the button only.
Preparation
Turn on the main power switch and/or the leakage breaker.
• When the power supply is turned on, a partition line is displayed on the display part of the remote
controller.
* After the power supply is turned on, the remote controller does not accept an operation for approx.
1 minute, but it is not a failure.
REQUIREMENT
• While using the air conditioner, operate it only with button without turning off the main power
switch and the leak breaker.
• When you use the air conditioner after it has not been used for a long period, turn on the leakage
breaker at least 12 hours before starting operation.
Start
1Push button.
The operation lamp goes on, and the
operation starts.
2Select an operation mode with the
“MODE ” button.
One push of the button, and the display
changes in the order shown as follows.
3Select air volume with “ ” button.
One push of the button, and the display
changes in the order shown as follows.
• When air volume is “ AUTO”, air
volume differs according to the room
temperature.
• In heating operation, if the room
temperature is not heated sufficiently with
VOLUME “ LOW” operation, select
“ MED.” or “ HIGH” operation.
• The temperature sensor senses
temperature near the suction air port of the
indoor unit, which differs from the room
temperature depending on the installation
condition.
A value of setting temperature is the
measure of room temperature.
(“AUTO ” is not selectable in the FAN
mode.)
4Determine the set up temperature by
pushing the “TEMP. ” or “TEMP.
” button.
Stop
Push button.
The operation lamp goes off, and the operation
stops.
In the COOL, DRY, or AUTO (cooling) mode, the
fan runs for 10 minutes (or more) for self cleaning.
SET
TIME
TIMER SET
TEST
FILTER
RESET
TEMP.
CL
FAN
SAVE
SWING/FIX
VENT
MODE
ON / OFF
UNIT LOUVER
1
3 2
4
AUTO HEAT DRY COOL FAN
LOWMED.HIGH AUTO
8-EN
+00EH99930901-2_10L_4-way_OM.book Page 8 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–9–
4-way Air Discharge Cassette Type Owner’s Manual
In case of autmatic operation (Auto Changeover)
• Because of some settings change, it will automatically select either cooling, heating, or fan only
operation depending on the indoor temperature.
• If the Auto mode is uncomfortable, you can select the desired conditions manually.
In case of cooling
• Start the cooling operation after approx. 1 minute.
In case of heating
• The heating operation mode is selected in accordance with the room temperature and operation starts
after approximately 3 to 5 minutes.
• After the heating operation has stopped, FAN operation may continue for approx. 30 seconds.
• When the room temperature reaches the set temperature and the outdoor unit stops, the super low
wind is discharged and the air volume decreases excessively.
During defrost operation, the fan stops so that cool air is not discharged. (“HEAT READY ” is displayed.)
• When the room temperature has reached the set temperature while the outdoor unit is stopping, the
indoor unit discharges wind with a very small air volume.
NOTE
When restarting the operation after stop
• When restarting the operation immediately after stop, the air conditioner does not operate for approx.
3 minutes to protect the machine.
 8°C OPERATION (For object pre-heating) (SM110 and SM140 types only)
The air conditioner can control the heating temperature to about 8°C in the heating mode.
The 8°C heating operation requires settings with the wired remote controller. Ask the installer or
dealer for the settings according to the installation manual of the indoor unit.
Start
Stop
CAUTION
Do not keep the louver position horizontally in the 8°C heating operation, since the heating performance
degrades.
NOTE
• The discharged air temperature is lower than that in the normal heating operation.
• The room temperature may not be heated evenly depending on the remote controller installation location.
• The room temperature may not reach 8°C depending on the room size or the installation conditions.
• Settings for air volume and wind direction (swing, etc.) are available during the 8°C heating operation.
The 8°C heating operation is cancelled in the following cases.
• When operation is stopped with button
• When another operation mode is selected with button
• When temperature setting or operation mode is changed or operation is started/stopped by the
wireless remote controller or the central control remote controller.
• If one or more models other than the 4-way air discharge cassette type (4 series) are connected in the
same control group, the 8°C heating operation is not available.
1. Set the displayed temperature to 18°C in the heating mode by pushing TEMP. button.
2. Set the displayed temperature to 8°C by pushing TEMP. button for at least four seconds.
1. Set the displayed temperature to 18°C by pushing TEMP. button.
• The air conditioner returns to the normal HEAT mode. Select a desired temperature and operation mode.
9-EN
+00EH99930901-2_10L_4-way_OM.book Page 9 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–10–
4-way Air Discharge Cassette Type Owner’s Manual
EN
5TIMER OPERATION
• A type of timer operation can be selected from the following three types. (Setting of up to 168 hours is enabled.)
Timer operation
Set
1Push TIMER SET button.
The timer display (type) changes for every
push of the button.
• and timer time displays flash.
2Push to select “SET TIME”.
• For every push of button, the set time
increases in the unit of 0.5 hr (30 minutes).
When setting a time more than 24 hours for
timer operation, timer time can be set in the
unit of 1 hr.
The maximum set time is 168hr (7 days).
The remote controller displays the set time
with time (between 0.5 and 23.5 hours) (*1)
or number of days and time (24 hours or
more) (*2) as shown below.
• For every push of button, the set time
decreases in the unit of 0.5 hr (30 minutes)
(0.5 to 23.5 hours) or 1 hr (24 to
168 hours).
Example of remote controller display
• In the case of 23.5 hours (*1)
• In the case of 34 hours (*2)
3Push SET button.
• display disappears and timer time
display goes on, and or
display flashes.
(When ON timer is activated, timer time,
ON timer are displayed and other
displays disappear.)
4Cancel of timer operation
Push button.
TIMER display disappears.
NOTE
• When the operation stops after the timer
reached the preset time, the Repeat OFF timer
resumes the operation by pushing
button and stops the operation after the time of
the timer has reached the set time.
• When you push while the OFF timer
function of the air conditioner is active, the
indication of the timer function disappears and
then appears again after about 5 seconds.
This is due to normal processing of the remote
controller.
OFF timer : The operation stops when the time of timer has reached the set time.
Repeat OFF timer : Every time, the operation stops after the set time has passed.
ON timer : The operation starts when the time of timer has reached the set time.
1
3
2
4
OFF OFF ON
(OFF timer) (ON timer)(Repeat OFF timer)
Not display
shows 1 day (24 hours).
shows 10 hours. (Total 34 hours)
Number of days Time
10-EN
+00EH99930901-2_10L_4-way_OM.book Page 10 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–11–
4-way Air Discharge Cassette Type Owner’s Manual
6ADJUSTMENT OF WIND DIRECTION
For best cooling and heating performance, adjust the louvers (adjustment plates of up/down wind
direction) appropriately. Cold air descends and warm air rises, so to heat a room tilt the louvers
downward, and to cool a room tilt them horizontally.
CAUTION
Direct the louvers horizontally for cooling.
If the louvers stay pointed downward when cooling, condensation may form on the discharge port and/then
drops from the louvers.
NOTE
If the louvers stay pointed straight out horizontally when heating, the room temperature may be unevenly
distributed.
• When the air conditioner is not working, the louvers are directed horizontally automatically.
• The louvers are directed horizontally when heating begins, during defrost operation, or during the
minimum operation after reaching the set temperature.
When you make a swing or air direction setting at this time, the remote controller display varies with
the setting, but the louvers stay pointed straight out horizontally.
When the air conditioner starts heating, the louvers are directed to the set direction.
For cooling (COOL)
Direct the louvers horizontally.
For heating (HEAT)
Direct the louvers downward.
11-EN
+00EH99930901-2_10L_4-way_OM.book Page 11 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–12–
4-way Air Discharge Cassette Type Owner’s Manual
EN
How to set up the wind direction
1Push during operation.
The wind direction changes for every push of
the button.
In HEAT operation
Direct the louver (adjustment plate of up/down
wind direction) downward. If directing at
horizontally, hot air may not come to the foot.
In COOL/DRY operation
Direct the louver (adjustment plate of up/down
wind direction) horizontally. If directing it
downward, the dew may form on the surface of the
air discharge port and may drop down.
In FAN operation
Select a desired wind direction.
How to start swinging
1Push , set the louver (adjustment
plate of up/down wind direction)
direction to the lowest position, and
then push again.
SWING is displayed and the up/down
wind direction is automatically selected.
Display during swinging
How to stop swinging
1Push at a desired position while
the louver is swinging.
• When is pushed after that, wind
direction can be set again from the
highest position.
Display when swinging is stopped
In this case, push again two seconds
later.
• In COOL/DRY operation, the louver does
not stop as it directs downward. If stopping
the louver as it directs downward during
swing operation, it stops after moving to the
third position from the highest position.
Display when stopping the swing
Unit select button
• When multiple indoor units are controlled with
one remote controller, wind direction can be set
for each indoor unit by selecting individually.
• To set wind direction individually, push
button to display an indoor unit number in the
control group. Then set the wind direction of the
displayed indoor unit.
• When no indoor unit number is displayed, all
indoor units in the control group can be
controlled simultaneously.
• Each time you push button, the display
changes as follows:
1
Unit select button
Initial setup
Initial setup
Initial setup
Repeat
* However, even if is pushed while
the louver is swinging, the louver position is
displayed as follows and highest position of
the louver may not be selected.
FAN/HEAT
operation COOL/DRY operation
FAN/HEAT
operation COOL/DRY operation
Not
display
UnitNo.
1-1 UnitNo. 1-2 UnitNo. 1-3
UnitNo.
1-4
12-EN
+00EH99930901-2_10L_4-way_OM.book Page 12 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–13–
4-way Air Discharge Cassette Type Owner’s Manual
How to set louver wind
direction individually
1Select an indoor unit to be set by
pushing (left side of the button)
during operation.
• The indoor unit number changes each time
you push the button.
* When no unit number is displayed, all indoor
units are selected.
2Select a louver you want to adjust
change by pushing (right side of
the button).
• Each time you push the button, the display
on the left of the remote controller changes
as follows:
* When no louver number is displayed, all four
louvers are selected.
3Determine wind direction of the selected
louver by pushing .
• Each time you push the button, the display
changes as follows:
* During COOL (DRY) mode, (4) and (5) are not
displayed.
3
12
Unit select button
Not
display
UnitNo.
1-1 UnitNo. 1-2 UnitNo. 1-3
UnitNo.
1-4
Not
display
Louver No.
04 02
03
01
Refrigerant
pipe
Drain
pipe
(1) (2) (3) (4)
(7) (6) (5)
13-EN
+00EH99930901-2_10L_4-way_OM.book Page 13 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–14–
4-way Air Discharge Cassette Type Owner’s Manual
EN
7HOW TO ENABLE POWER SAVING MODE
Push button during operation.
• The air conditioner enters power saving mode.
•appears on the display.
To cancel the power saving operation, push button again.
•disappears.
NOTE
• When other electric appliances are used at the same time, to avoid triggering the circuit breaker,
power saving mode is recommended. Of course you can use power saving mode to save energy as
well.
• Power saving mode consumes less energy, but may not heat/cool the room as much as normal mode.
(The maximum current is limited to approximately 75% (factory setting) of the normal mode.)
• To adjust the power-save settings, see “How to set up power saving mode” in ADVANCED
SETTINGS.
• Even when operation start/stop, operation mode change, or power reset is performed during the
power saving mode, the power saving mode is retained until the next operation.
• The SM160 type is operated in the “75%” power saving mode.
8SELF CLEANING MODE
This function is provided to dry the inside of the indoor unit by the FAN operation after running the
cooling/dry/AUTO (cooling) mode to keep the indoor unit clean.
• The self cleaning time varies with the cooling/dry/AUTO (cooling) operation time as follows.
• “ ” is displayed on the remote controller during self cleaning operation.
To stop self cleaning forcibly, push button twice in succession.
CAUTION
• The fan continues to run even after button is pushed to stop operation in some modes.
This is normal because the self cleaning mode is in progress.
• The louvers open slightly and are directed horizontally during self cleaning, and they close when the self
cleaning is completed.
• The operation lamp (LED) does not light during the self cleaning mode (function).
• The self cleaning mode (function) cannot clean the room or remove the already existing mold and dust
inside the indoor unit.
• To cancel the self cleaning function, consult the dealer.
Cooling/dry/AUTO (cooling) operation time self cleaning time
Less than 10 minutes No self cleaning operation
10 minutes to less than 1 hour 1 hour
More than 1 hour 2 hours
14-EN
+00EH99930901-2_10L_4-way_OM.book Page 14 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–15–
4-way Air Discharge Cassette Type Owner’s Manual
9ADVANCED SETTINGS
How to set up swing type
1Push for at least four seconds
when the air conditioner is not working.
• , symbol, and numbers flash.
2Select an indoor unit to be set by
pushing (left side of the button).
• Each time you push the button, unit
numbers change as follows:
The fan of the selected unit runs and the
louvers start swinging.
3Select a swing type by pushing TIME
buttons.
CAUTION
• Do not set the swing setup code to “0000”.
(This setting may cause a failure of the louvers.)
•Standard swing
The four louvers swing in the same direction.
•About “Dual swing”
“Dual swing” means that louvers 01 and 03 are
directed and swing in one direction,and/then
louvers 02 and 04 are directed and swing in the
opposite direction.
(When louver 01 is directed downward, louver
02 is directed horizontally.)
•About “Cycle swing”
The four louvers swing independently at
respective timings.
4Push button.
5Push button to complete the setting.
1
2
3
Swing setup code Swing of louvers
0001 Standard swing
(Factory shipping)
0002 Dual swing
0003 Cycle swing
Not
display
Unit No.
1-1 Unit No. 1-2 UnitNo. 1-3
UnitNo.
1-4
Swing setup code
04 02
03
01
Refrigerant
pipe
Drain
pipe
15-EN
+00EH99930901-2_10L_4-way_OM.book Page 15 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–16–
4-way Air Discharge Cassette Type Owner’s Manual
EN
How to set up louver lock (No swing)
1Push (right side of the button) for
at least four seconds when the air
conditioner is not working.
• , symbol, and numbers flash.
2Select an indoor unit to be set by
pushing (left side of the button).
• Each time you push the button, unit
numbers change as follows:
The fan of the selected unit runs and the
louvers start swinging.
3 Display the number of a louver you want to
lock on the temperature display section by
pushing TEMP. buttons.
• The selected louver starts swinging.
4Select the wind direction of the louver
you do not want to swing by pushing
TIME buttons.
CAUTION
• When (4) or (5) is selected, dew drop may occur
during cooling mode.
5Determine the setting by pushing
button.
• When the setting has been determined,
lights up.
(To continue louver lock settings for other
indoor units, repeat from step 2. To
continue louver lock settings for other
louvers on the same indoor unit, repeat
from step 3.)
6Push button to complete the setting.
• A louver number is displayed as F1, F2 on
the remote controller (Item Code), showing
that louver 01, 02 shown in the figure on the
previous page is selected.
NOTE
Even when louvers are locked, they move
temporarily in the following cases:
• While the air conditioner is stopping
• At the beginning of heating operation
• During defrosting operation
• When the room temperature reached the set
temperature
21
4
3
UnitNo.
1-1 UnitNo. 1-2 UnitNo. 1-3
UnitNo.
1-4
(1)
0001
(2)
0002
(3)
0003
(5)
0005
(4)
0004
CODE
0001-0005
(Louver lock position code)
16-EN
+00EH99930901-2_10L_4-way_OM.book Page 16 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–17–
4-way Air Discharge Cassette Type Owner’s Manual
How to cancel louver lock
Set the wind direction to “0000” in step 4 of the louver lock setup procedure above.
• When the setting is canceled, goes out.
Perform the same operations as steps 1, 2, 3, 5, and 6 above.
How to set up power saving mode
1Push button for at least four
seconds when the air conditioner is not
working.
• , symbol, and numbers flash.
2Select an indoor unit to be set by
pushing (left side of the button).
• Each time you push the button, unit
numbers change as follows:
The fan of the selected unit runs and the
louvers start swinging.
3Adjust the power-save setting by
pushing TIME buttons.
• Each push of the button changes the power
level by 1% within the range from 100% to
50%.
* The factory setting is 75%.
• When the air conditioner is connected to
the following outdoor unit, the display
section of the power saving mode of a
remote controller is replaced, but actual
power saving operation becomes 75%.
DI (RAV-SM***AT-E)
SDI 2 series (RAV-SP**2AT-E)
4Push button.
5Push button to complete the setting.
0000
CODE
4
3
1
52
UnitNo.
1-1 UnitNo. 1-2 UnitNo. 1-3
UnitNo.
1-4
Setting of power level in
power saving mode
17-EN
+00EH99930901-2_10L_4-way_OM.book Page 17 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–18–
4-way Air Discharge Cassette Type Owner’s Manual
EN
10HINTS FOR ECONOMICAL OPERATION
Maintain room temperature at comfortable level
Clean air filters
The clogged air filter impairs the performance of the air conditioner.
Never open doors and windows more often than
necessary
To keep cool or warm air in the room, never open doors and
windows more often than necessary.
Window curtains
In cooling, close the curtains to avoid direct sunlight.
In heating, close the curtains to keep the heat in.
Get uniform circulation of room air
Adjust the air flow direction for the even circulation of room air.
Checks before operating
• Check whether the ground wires are properly connected.
• Check whether the air filters are installed.
• Turn on the leakage breaker at least 12 hours before operating.
Protective device
• The protective device stops operation when the air conditioner is
overloaded.
• When the protective device is activated, the current operation
stops and the operation lamp and on the remote controller
flash.
When the protective device is activated
• When the protective device has been activated and stopped
operation, turn off the leakage breaker immediately, and ask the
installer to find the cause.
If the air conditioner is operated without fixing the problem, the air conditioner may malfunction.
• Check whether the air filters are installed.
If the air filters are not installed, the air heat exchanger may be clogged with dust, which may result in
water leakage.
For cooling (COOL)
• When the air inlet and/or outlet of the outdoor unit are blocked
• When the air outlet of the outdoor unit is continuously exposed to strong wind
For heating (HEAT)
• When the air filters are clogged with too much dust or dirt
• When the suction port and/or discharge port of the indoor unit are blocked
Do not turn off the leakage breaker
• Do not turn off the leakage breaker during a test run of the air conditioner. Use the ON/OFF button on
the air conditioner instead to control the power.
Please close
Cool and
dry air
Warm
air
Clean, please.
18-EN
+00EH99930901-2_10L_4-way_OM.book Page 18 Friday, April 17, 2009 2:39 PM

Toshiba XXXXXXX(X/X)
–19–
4-way Air Discharge Cassette Type Owner’s Manual
11MAINTENANCE
WARNING
Cleaning of the air filter and other parts of the air filter involves dangerous work in high
places, so be sure to have a service person do it.
Do not attempt it yourself.
Cleaning of air filters
Clogging of air filters will reduce the cooling and heating performance.
(1) When “FILTER ” appears on the remote controller, clean the air filters.
(2) When the cleaning of air filters has been completed, push button.
“FILTER ” disappears.
CAUTION
Cleaning of unit
Clean the unit with a soft dry cloth.
If dirt cannot be removed with the dry cloth, use a cloth slightly dampened with lukewarm (under 40 °C) water.
Cleaning of remote controller
• Use a dry cloth to wipe the remote controller.
• A cloth dampened with cold water may be used on the indoor unit if it is very dirty.
• Never use a damp cloth on the remote controller.
• Do not use a chemically-treated duster for wiping or leave such materials on the unit for long. It may
damage or fade the surface of the unit.
• Do not use benzine, thinner, polishing powder, or similar solvents for
cleaning. These may cause the plastic surface to crack or deform.
Periodic check
Long-period use of the air conditioner may cause deterioration or failure of
parts due to heat, humidity, dust, and operating conditions, or may cause poor
drainage of dehumidified water.
If you do not plan to use the unit for more than 1 month
(1) In addition to the self cleaning, operate the fan for 1 or 2 hours to dry inside
the unit.
• Operate “FAN” mode.
(2)
Stop the air conditioner and turn off the main power switch or the circuit breaker .
Checks before operation
(1) Check that the air filters are installed.
(2) Check that the air outlet or inlet is not blocked.
(3) Turn on the main power switch or the circuit breaker for the main power
supply to the air conditioner.
(1)
(2)
19-EN
+00EH99930901-2_10L_4-way_OM.book Page 19 Friday, April 17, 2009 2:39 PM
