AIR CONDITIONER (SPLIT TYPE)
Installation manual
Branch kit 1:3
Model name:
RBC-TRP100E

1EN
Branch Kit 1:3
Contents
1 PRECAUTIONS FOR SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 COMPONENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 REFRIGERANT PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 WIRING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 PIPING HEAT INSULATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 TEST RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 DELIVERY TO CUSTOMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Please read this Installation Manual carefully before installing the Air Conditioner.
• This Manual describes the installation method of the indoor unit.
• For installation of the outdoor unit, follow the Installation Manual attached to the
outdoor unit.
ADOPTION OF NEW REFRIGERANT
This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A)
instead of the conventional refrigerant R22 in order to prevent destruction of the ozone
layer.

Branch Kit 1:3
2
EN
EN
1PRECAUTIONS FOR SAFETY
The three indoor units of TOSHIBA simultaneous triple packaged air conditioning
system are the same units. Set and install the header and follower units taking the
installation site into consideration. (Be certain to use the new refrigerant R410A in the
indoor units.) The indoor unit connected to the remote controller will be the header
unit.
• Ensure that all Local, National and International regulations are satisfied.
• Read indoor, outdoor installation manual and this manual carefully before Installation.
• The precautions described below include the important items regarding safety. Observe
them without fail.
• After the installation work, perform a trial operation to check for any problem.
Follow the Owner’s Manual to explain how to use and maintain the unit to the customer.
• Turn off the main power supply switch (or breaker) before the unit maintenance.
• Ask the customer to keep the Installation Manual together with the Owner’s Manual.
WARNING
• Ask an authorized dealer or qualified installation professional to install/maintain
the air conditioner.
Inappropriate installation may result in water leakage, electric shock or fire.
• Turn off the main power supply switch or breaker before attempting any electrical
work.
Make sure all power switches are off. Failure to do so may cause electric shock.
• Connect the connecting cable correctly.
If the connecting cable is connected in a wrong way, electric parts may be damaged.
• When moving the air conditioner for the installation into another place, be very
careful not to enter any gaseous matter other than the specified refrigerant into
the refrigeration cycle.
If air or any other gas is mixed in the refrigerant, the gas pressure in the refrigeration
cycle becomes abnormally high and it resultantly causes pipe burst and injuries on
persons.
• Do not modify this unit by removing any of the safety guards or by by-passing any
of the safety interlock switches.
• Exposure of unit to water or other moisture before installation may cause a short-
circuit of electrical parts.
Do not store it in a wet basement or expose to rain or water.
• After unpacking the units, examine them carefully if there are possible damage.
• Do not install in a place that might increase the vibration of the unit.
• To avoid personal injury (with sharp edges), be careful when handling parts.
• Perform installation work properly according to the Installation Manual.
Inappropriate installation may result in water leakage, electric shock or fire.
• When the air conditioner is installed in a small room, provide appropriate
measures to ensure that the concentration of refrigerant leakage occur in the
room does not exceed the critical level.

3EN
Branch Kit 1:3
• Install the air conditioner securely in a location where the base can sustain the
weight adequately.
• Perform the specified installation work to guard against an earthquake.
If the air conditioner is not installed appropriately, accidents may occur due to the falling
unit.
• If refrigerant gas has leaked during the installation work, ventilate the room
immediately.
If the leaked refrigerant gas comes in contact with fire, noxious gas may generate.
• After the installation work, confirm that refrigerant gas does not leak.
If refrigerant gas leaks into the room and flows near a fire source, such as a cooking
range, noxious gas might generate.
• Electrical work must be performed by a qualified electrician in accordance with
the Installation Manual. Make sure the air conditioner uses an exclusive power
supply.
An insufficient power supply capacity or inappropriate installation may cause fire.
• Use the specified cables for wiring connect the terminals securely fix. To prevent
external forces applied to the terminals from affecting the terminals.
• Conform to the regulations of the local electric company when wiring the power
supply.
Inappropriate grounding may cause electric shock.
• Do not install the air conditioner in a location subject to a risk of exposure to a
combustible gas.
If a combustible gas leaks, and stays around the unit, a fire may occur.

Branch Kit 1:3
4
EN
EN
CAUTION
New Refrigerant Air conditioner Installation
• THIS AIR CONDITIONER ADOPTS THE NEW HFC REFRIGERANT (R410A) WHICH
DOES NOT DESTROY OZONE LAYER.
• The characteristics of R410A refrigerant are; easy to absorb water, oxidizing membrane
or oil, and its pressure is approx. 1.6 times higher than that of refrigerant R22.
Accompanied with the new refrigerant, refrigerating oil has also been changed.
Therefore, during installation work, be sure that water, dust, former refrigerant, or
refrigerating oil does not enter the refrigerating cycle.
• To prevent charging an incorrect refrigerant and refrigerating oil, the sizes of connecting
sections of charging port of the outdoor unit and installation tools are changed from
those for the conventional refrigerant.
• Accordingly the exclusive tools are required for the new refrigerant. (R410A)
• For connecting pipes, use new and clean piping designed for R410A, and please care
so that water or dust does not enter. Moreover, do not use the existing piping because
there are problems with pressure-resistance force and impurity in it.
• The three indoor units of TOSHIBA simultaneous triple packaged air conditioning
system are the same units.
• Set and install the header and follower units taking the installation site into
consideration.
(Be certain to use the new refrigerant R410A in the indoor units.)
The indoor unit connected to the remote controller will be the header unit.

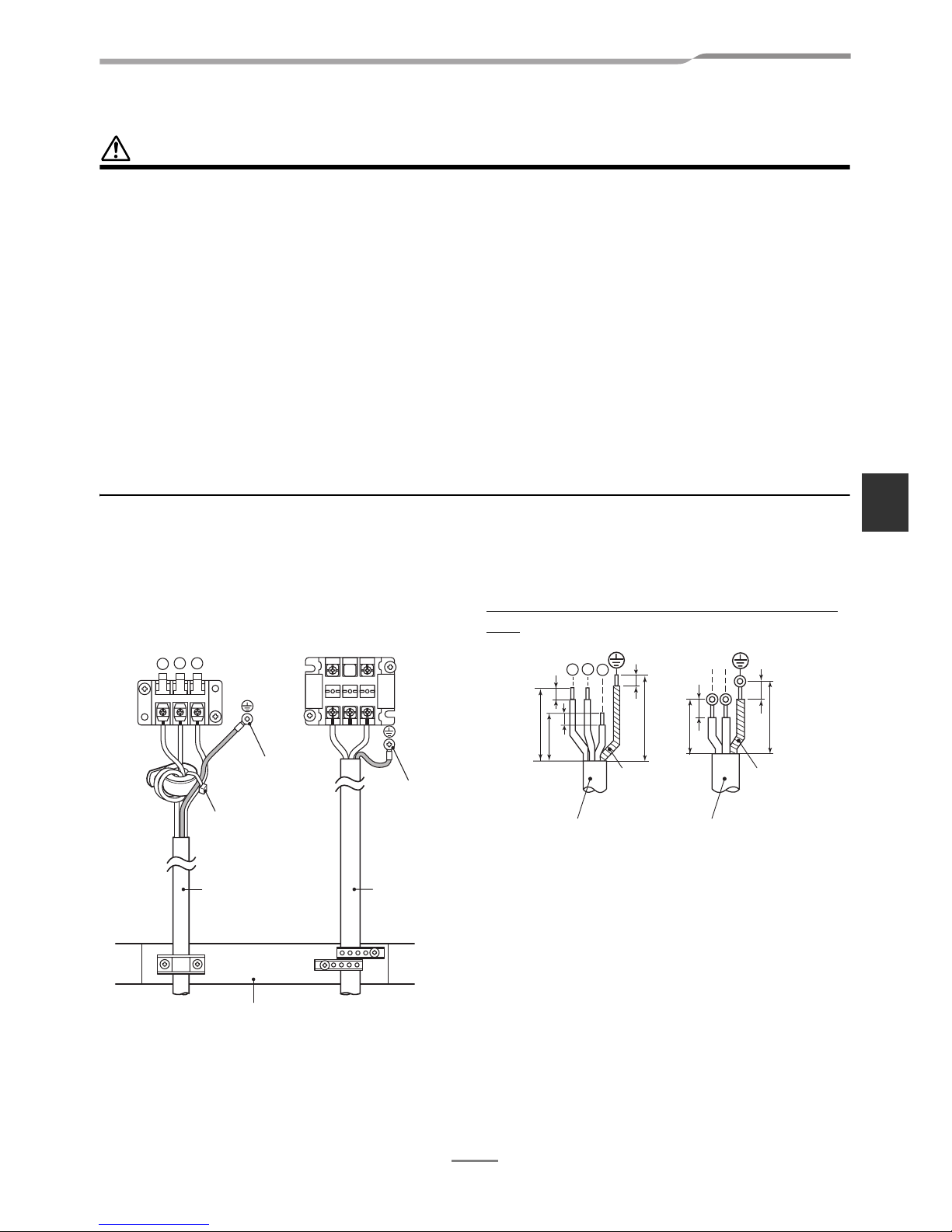

Wiring
• TO DISCONNECT THE APPLIANCE FROM MAIN POWER SUPPLY.
• This appliance must be connected to the main supply by means of a switch with a
contact separation of at least 3 mm.
• The remote controller cannot be connected to all the three indoor units (header and
follower units).
Connect it only to the indoor unit that will become the header indoor unit (Unit A).
Connecting the remote controller to the follower indoor unit will cause malfunction.
Refrigerant Piping (Branch piping system is used for refrigerant piping)
• Compared with R22, pressure of R410A is about 1.6 times. Unless the piping is installed
correctly, gas leak may be caused during operation such as pressure boosting. Conduct
a leak test of the pipe connecting parts correctly.
• In case the actual length of the piping exceeds the standard piping length, accurately
add the refrigerant referring to Additional Refrigerant Amount.
• Heat insulation materials for the branch pipes are not supplied as accessories. Provide
heat insulation correctly using fitting covers or other materials sold on the market. For
further information, read Refrigerant Piping and Piping heat Insulation on this manual.
Improper heat insulation work will result in a failure and a claim.

5EN
Branch Kit 1:3
2COMPONENT
The following parts are supplied as accessories of the branch pipes. Check them when
opening the carton box.
Distributor Part name Quantity
Liquid side Gas side Different-size joint
Liquid pipe Ø12.7 →Ø9.5 1
Ø9.5 →Ø6.4 3
Gas pipe
Ø25.4 →Ø28.6 1
Ø25.4 →Ø15.9 1
Ø15.9 →Ø12.7 3
Branch pipe heat insulator 2
Installation Manual 1
Ø9.5
Ø9.5
Ø9.5
Ø12.7
QTY:1
Ø15.9
Ø15.9
Ø15.9
Ø25.4
QTY:1

Branch Kit 1:3
6
EN
EN
3REFRIGERANT PIPING

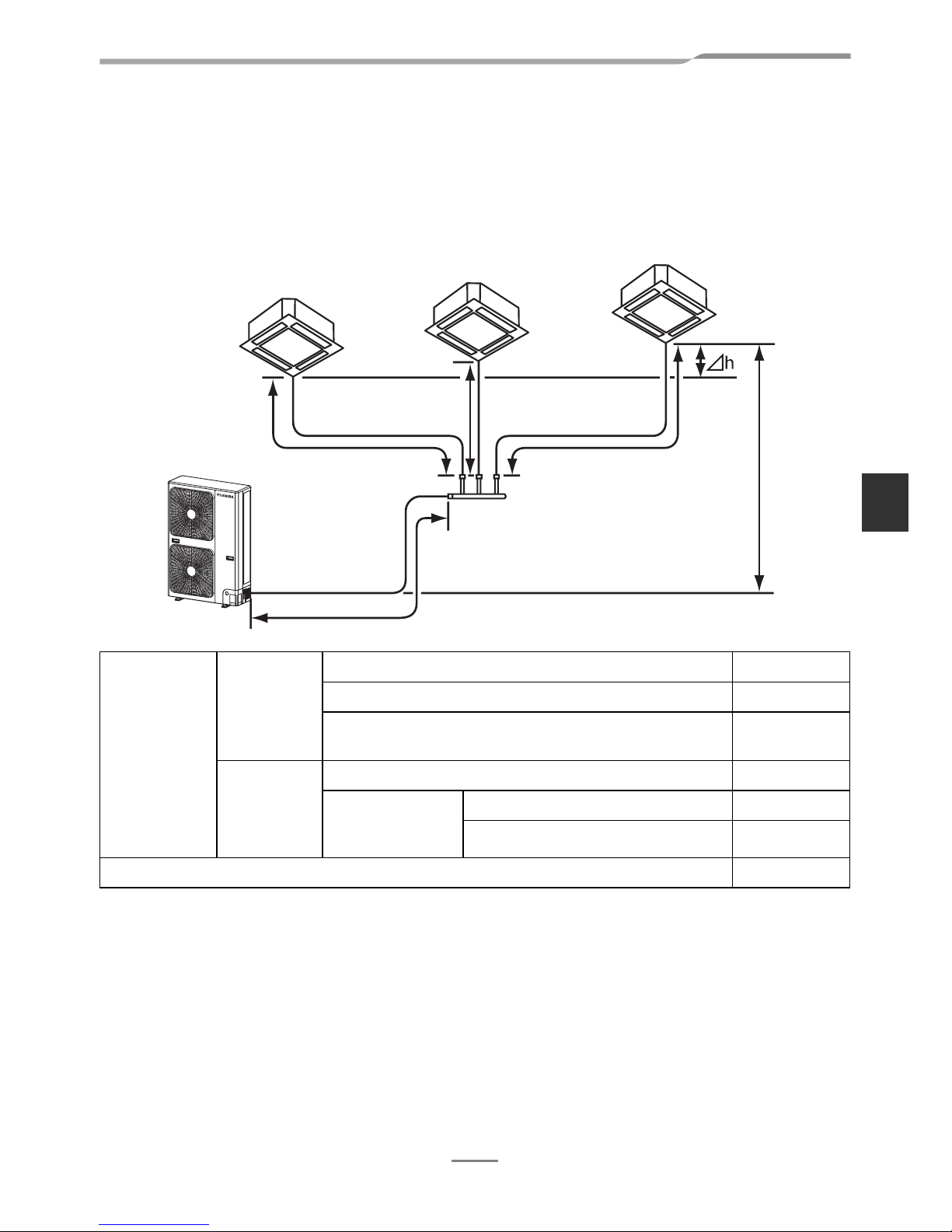

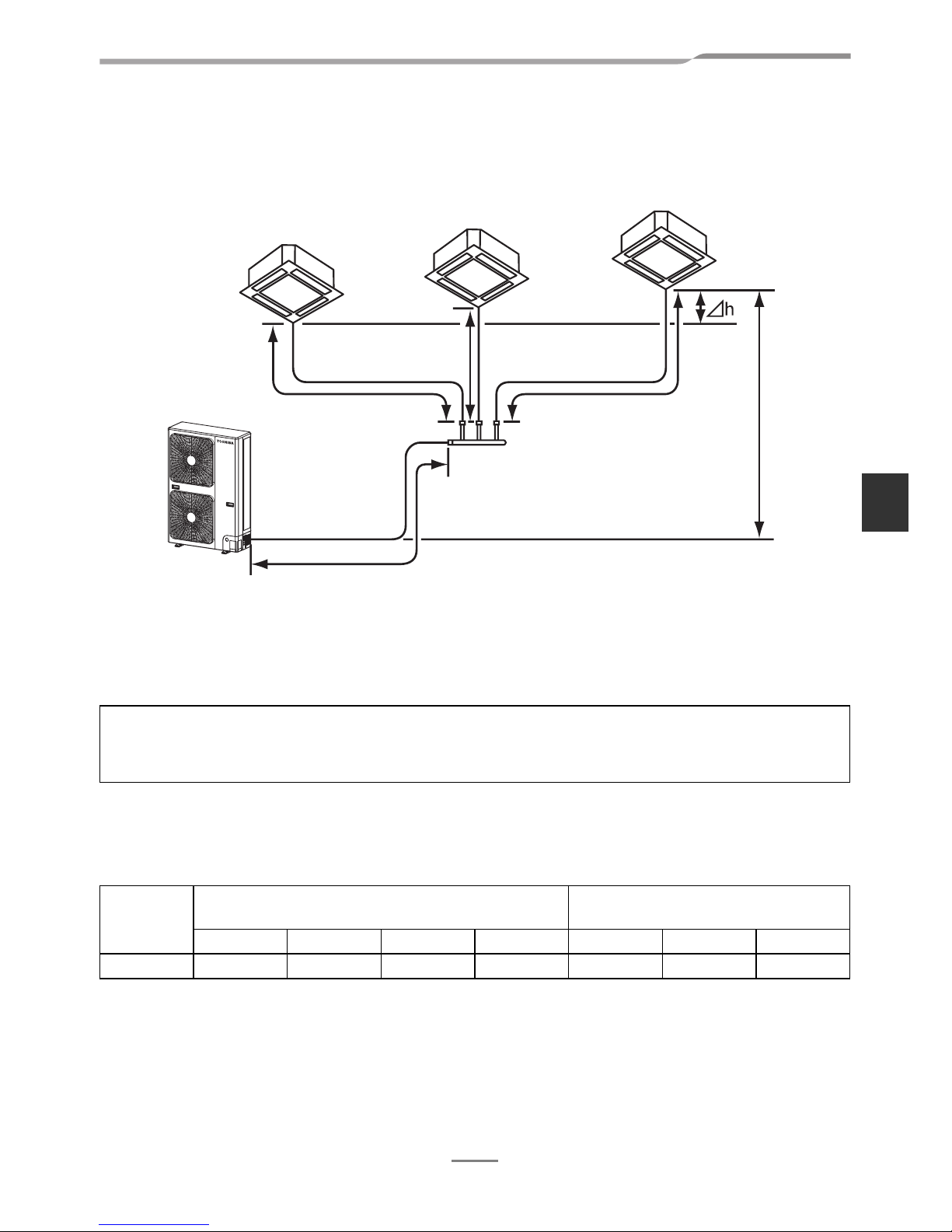

Tolerance of pipe length and Height difference
<RAV-SM1603AT(Z)(ZG)-E>
Refrigerant
pipe
specifications
Pipe length
(one way)
Total length (L + a, L + b, L + c) 50 m
Branch pipe length (a, b, c) 15 m
Maximum difference between indoor units
(|a - b|, |b - c|, |c - a|) 10 m
Height
difference
Between indoor units (Δh) 0.5 m
Between indoor
unit and outdoor
unit
When outdoor unit is higher (H) 30 m
When outdoor unit is lower (H) 30 m
Number of bent portions 10 or less
L
a
b
c
H
Indoor unit B Indoor unit A
Indoor unit C
Branch pipeBranch pipe
Main pipe
Branch pipe
Distributor

7EN
Branch Kit 1:3

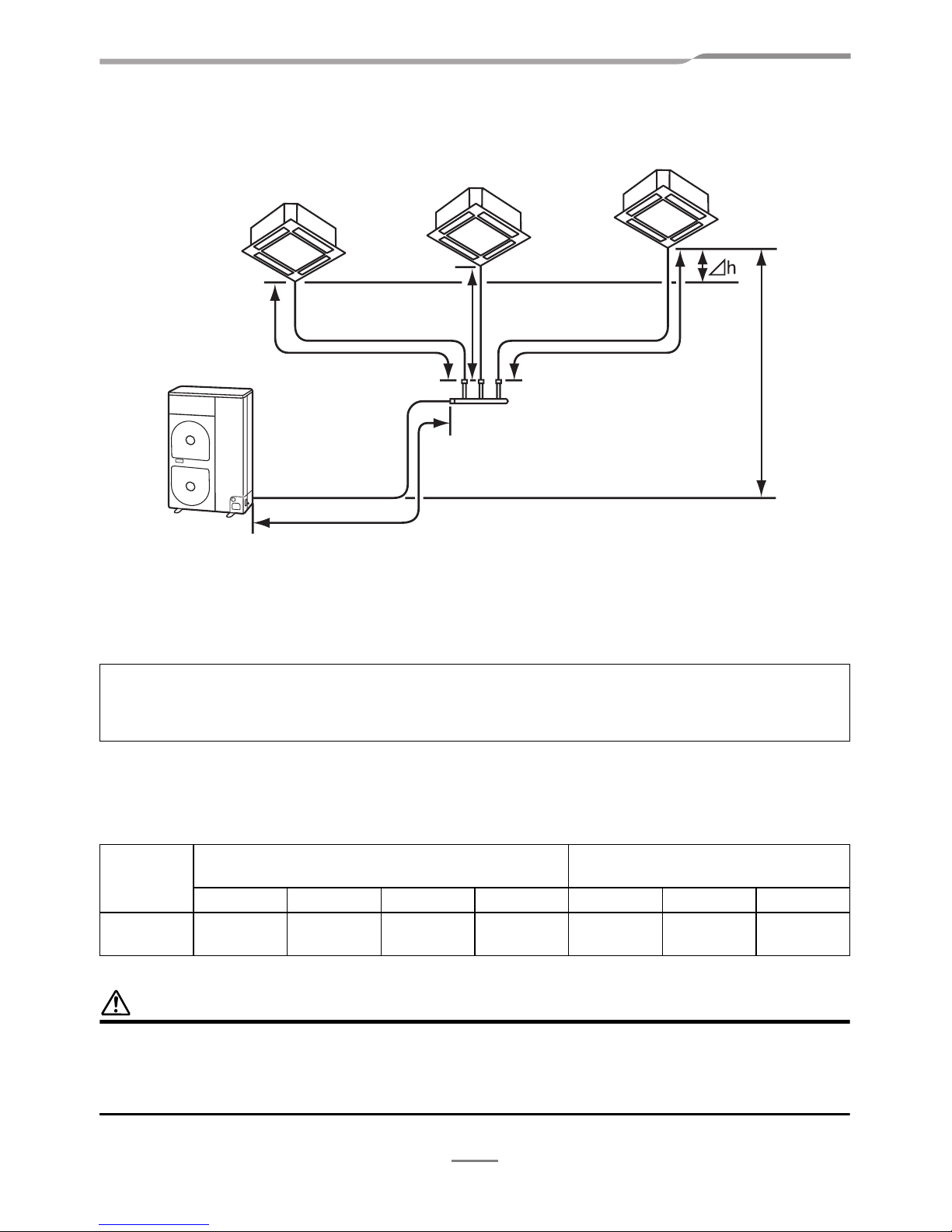

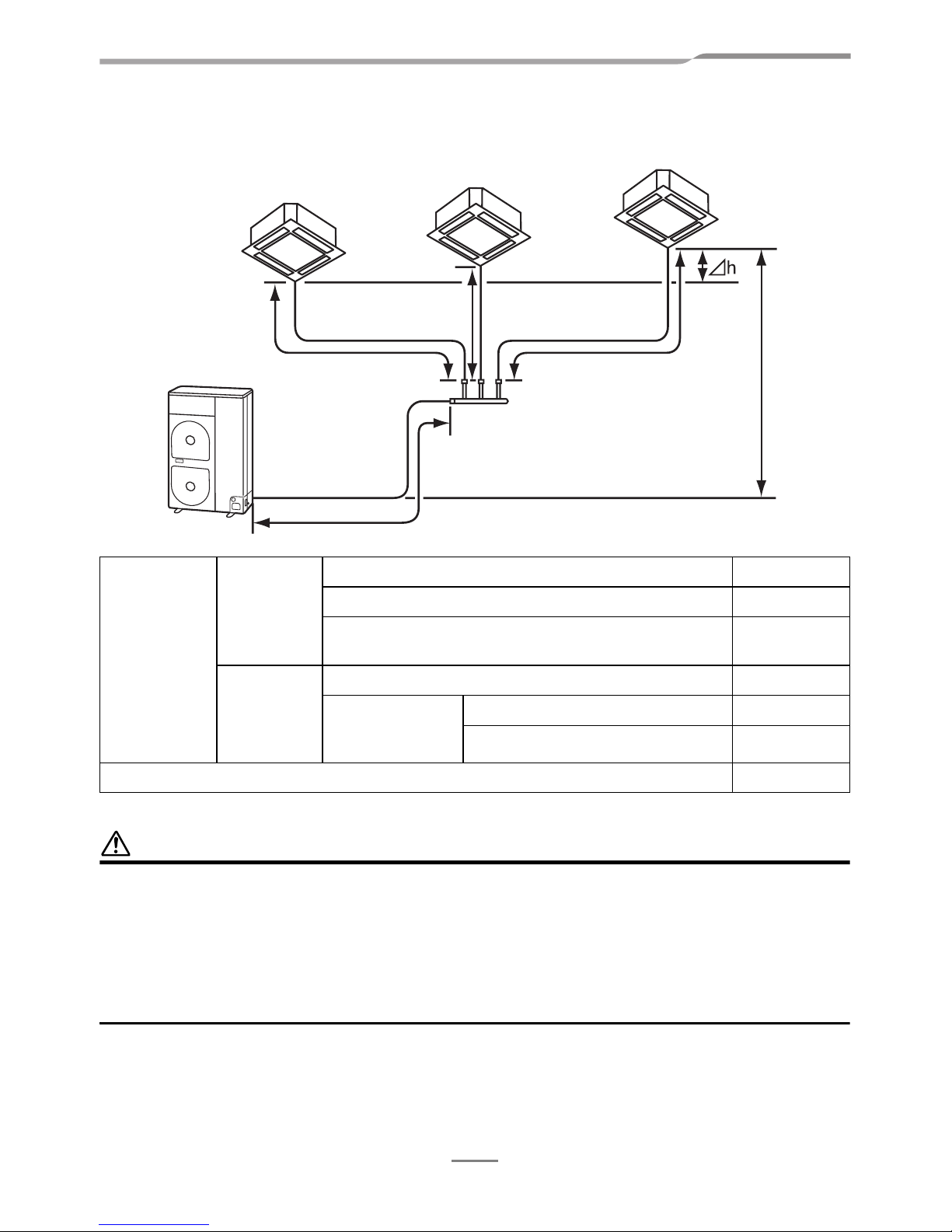

<RAV-SM2244AT, SM2804AT series>
CAUTION
When planning a layout for Units A, B and C, comply with the following:
1. The lengths after branching (“a” and “b”, “b” and “c”, “a” and “c”) should be equal if
feasible. Install Units A, B and C so that the difference of the branching lengths becomes
less than 10 m if the lengths cannot be equal due to the branch pipe position.
2. Install Units A, B and C on the same level. If Units A, B and C cannot be installed on the
same level, the difference in level should be limited to 0.5 m or less.
Refrigerant
pipe
specifications
Pipe length
(one way)
Total length (L + a, L + b, L + c) 70 m
Branch pipe length (a, b, c) 20 m
Maximum difference between indoor units
(|a - b|, |b - c|, |c - a|) 10 m
Height
difference
Between indoor units (Δh) 0.5 m
Between indoor
unit and outdoor
unit
When outdoor unit is higher (H) 30 m
When outdoor unit is lower (H) 30 m
Number of bent portions 10 or less
L
a
b
c
H
Indoor unit B Indoor unit A
Indoor unit C
Branch pipeBranch pipe
Main pipe
Branch pipe
Distributor

Branch Kit 1:3
8
EN
EN
Piping materials and sizes
<RAV-SM1603AT(Z)(ZG)-E>
Use copper tube of Copper and copper alloy seamless pipes and tubes, with 40 mg/10 m or
less in the amount of oil stuck on inner walls of pipe and 0.8 mm in pipe wall thickness for
diameters 6.4, 9.5 and 12.7 mm and 1.0 mm, for diameter 15.9 mm. Never use pipes of thin
wall thickness such as 0.7 mm.
Between outdoor unit and distributor
* ( ): Pipe wall thickness
Between distributor and indoor unit
* ( ): Pipe wall thickness
<RAV-SM2244AT, SM2804AT series>
Use general copper pipes with a wall thickness of 0.8 mm for Ø6.4 mm, Ø9.5 mm, and
Ø12.7 mm, with a wall thickness of 1.0 mm for Ø15.9 mm, with a wall thickness of 1.2 mm
for Ø19.1 mm, and with a wall thickness of 1.0 mm for Ø28.6 mm (half hard).
Do not use any copper pipes with a wall thickness less than these thicknesses.
Between outdoor unit and distributor
* ( ): Pipe wall thickness
Between distributor and indoor unit
* ( ): Pipe wall thickness
[Unit: mm]
Outdoor unit
Main pipe Gas side Ø15.9 (1.0)
Liquid side Ø9.5 (0.8)
[Unit: mm]
Indoor unit SM56 type
Branch pipe Gas side Ø12.7 (0.8)
Liquid side Ø6.4 (0.8)
[Unit: mm]
Outdoor unit
Main pipe Gas side Ø28.6 (half hard 1.0)
Liquid side Ø12.7 (0.8)
[Unit: mm]
Indoor unit SM80 type
Branch pipe Gas side Ø15.9 (1.0)
Liquid side Ø9.5 (0.8)

9EN
Branch Kit 1:3
Distributor
Now the refrigerant pipe is installed using distributor supplied as accessory.
• Bend and adjust the refrigerant piping so that the distributor and pipe after branching
become horizontal.
• Fix the distributor onto a wall in a ceiling or onto a column.
• Provide a straight pipe longer than 500 mm in length as the main piping of the branches.
How to install distributor
Restrictions in length of the straight area of the branch pipe (main pipe side)
Provide a straight area of 500 mm or more on the main pipe side of the branch pipe (for both
gas pipe and liquid pipe sides).
Air Purging
For the complete information, read the installation manual for outdoor units of air
conditioner.
Branch pipes are
horizontal and collective
pipes are vertical
Branch pipes and collective
pipes are horizontal
Branch pipe
Collective pipe
Branch pipes are
horizontal and collective
pipes are vertical
Branch pipes and collective
pipes are horizontal
Branch pipe
Collective pipe
<Gas pipe side> <Liquid pipe side>
500 mm
or more
Be sure to install the pipes
horizontally after branching.
Tilt
NO GOOD
500 mm
or more

Branch Kit 1:3
10
EN
EN
Additional Refrigerant Amount
<RAV-SM1603AT(Z)(ZG)-E>
Formula for Calculating Additional Refrigerant Amount
Do not remove the refrigerant even if the additional refrigerant amount becomes minus
result as a result of calculations by the following formula and operate the air conditioner as it
is.
α: Additional refrigerant amount per meter of actual main piping length (kg)
γ: Additional refrigerant amount per meter of actual branch piping length (kg)
L: Actual length of main piping (m)
a, b, c: Actual length of branch piping (m)
Additional refrigerant amount (kg) = Main piping additional refrigerant amount (kg) +
Branch piping additional refrigerant amount (kg)
={α× (L – 28)} + {γ× (a + b + c – 6)}
Connecting pipe diameter Additional refrigerant amount per
Meter (kg/m)
Labcαβγ
DI 6HP Ø9.5 Ø6.4 Ø6.4 Ø6.4 0.04 –0.02
L
a
b
c
H
Indoor unit B Indoor unit A
Indoor unit C
Branch pipeBranch pipe
Main pipe
Branch pipe
Distributor

11EN
Branch Kit 1:3
<RAV-SM2244AT, SM2804AT series>
Formula for Calculating Additional Refrigerant Amount
Do not remove the refrigerant even if the additional refrigerant amount becomes minus
result as a result of calculations by the following formula and operate the air conditioner as it
is.
α: Additional refrigerant amount per meter of actual main piping length (kg)
γ: Additional refrigerant amount per meter of actual branch piping length (kg)
L: Actual length of main piping (m)
a, b, c: Actual length of branch piping (m)
CAUTION
1. Be certain to write the additional refrigerant amount, pipe length (actual length), head
and other specification on the nameplate put on the outdoor unit for recording.
2. Seal the correct amount of additional refrigerant in the system.
Additional refrigerant amount (kg) = Main piping additional refrigerant amount (kg) +
Branch piping additional refrigerant amount (kg)
={α× (L – 28)} + {γ× (a + b + c – 6)}
Connecting pipe diameter Additional refrigerant amount per
Meter (kg/m)
Labcαβγ
SM2244
SM2804 Ø12.7 Ø9.5 Ø9.5 Ø9.5 0.08 –0.04
L
a
b
c
H
Indoor unit B Indoor unit A
Indoor unit C
Branch pipeBranch pipe
Main pipe
Branch pipe
Distributor

Branch Kit 1:3
12
EN
EN
Gas Leak Test
• Use a leak detector manufactured specially for the HFC refrigerant (R410A, R134a, etc.)
when testing R410A.
The sensitivity of leak detectors for previous HCFC refrigerants (such as R22) lowers to
about 1/40 when used with HFC refrigerants and these detectors cannot be used.
4WIRING
1. Using the specified cables, ensure to connect the wires, and fix wires securely so
that the external tension to the cables do not affect the connecting part of the
terminals.
Incomplete connection or fixation may cause a fire, etc.
Be certain to install wires by connecting them to terminals of the same numbers
according to the following wiring diagram.
2. Be sure to connect earth wire. (Grounding work)
Do not connect the earth wire to gas pipe, city water pipe, lightning rod, or the earth wire
of telephone.
Incomplete grounding causes an electrical shock.
3. For electric work, strictly follow the Local Regulation in each country, Indoor,
outdoor, and this Installation Manual, and use an exclusive circuit.
Capacity shortage of power circuit or incomplete installation may cause an electrical
shock or a fire.
Outdoor unit and Indoor unit Connection Wiring
1. Install wires from the outdoor unit to the header unit as in usual wiring.
(Wires (1), (2), (3) and ground wire.)
2. Install wires (1), (2) and ground wire only when installing connection wires from the
header unit to the follower unit.
Remote Controller wiring
1. Installing connection shield wires (MVVS 0.5 to 2.0 mm2) from the header unit to the
follower unit to conform to EMC standard.
2. Install shield wires between the header unit and follower unit. The shield wires of the
remote controller have no polarities.
The remote controller circuits are low voltage circuits. These circuits must not be made
to directly contact outdoor unit and indoor unit connection wires or contained in the same
conduit tubes that house outdoor unit and indoor unit connection wires.
(Otherwise malfunction will be caused by noise)

13EN
Branch Kit 1:3
Wiring Diagram
REQUIREMENT
• The remote controller wiring has no polarity. Connections to terminals A and B of an
indoor unit may be replaced with each other.
• The remote controller wires and power supply wire must not be in direct contact or in the
same conduit pipe. (Doing so may cause a malfunction of the control system due to
noise.)
Wiring Specification
Specification of Wires Between Units and Numbers of Wires.
Procure necessary parts and perform all connection work locally.
Outdoor unit - indoor unit
(header unit)
No. of wires 4 (Include ground wire)
Wire diameter H07RN-F or 60245IEC66 1.5 mm2or more
Indoor unit
(header unit)
- indoor unit
(follower unit)
No. of wires 2
Wire diameter H07RN-F or 60245IEC66 1.5 mm2or more
Remote controller wiring No. of wires 2 (Shield wire)
Wire diameter Between 0.5 mm2and 2 mm2(up to 200 m)
Grounding wire of indoor unit H07RN-F or 60245IEC66 1.5 mm2or more
123
AB
F
H
E
G
3
AB
32121
AB
123
LN
123
L1 L2 L3
N
HH
Remote
Controller
Header
Indoor
Unit
Outdoor
Unit
Follower
Indoor
Unit
Power supply
Follower
Indoor
Unit
<RAV-SM1603AT-E> <RAV-SM2244AT, SM2804AT series>
Power supply

Branch Kit 1:3
14
EN
EN
<RAV-SM1603AT(Z)(ZG)-E>
WARNING
For simultaneous triple systems, perform the following to conform to EMC standards.
1. Be sure to use shield wire for remote controller wiring.
2. Connect earth wire independently to each indoor unit.
3. Attach the ferrite core (white) supplied with the outdoor unit to indoor/outdoor connecting
wires.
• Pass indoor/outdoor connecting wires aand bthrough the supplied ferrite core
and wind them making a single turn, and then connect them to the terminals of the
outdoor unit. Connect the indoor/outdoor connecting wire cand earth wire directly
to the outdoor unit terminals.
4. Attach the clamp filter (gray) supplied with the outdoor unit to the outdoor fan motor lead
wire.
• Attach the supplied clamp filter securely to the fan motor lead wire (lower) in the
electric parts box of the outdoor unit.
• For details on how to install the indoor unit, refer to the Installation Manual supplied with
the indoor unit.
<1. Attaching the ferrite core>
* Clamp the indoor/outdoor connecting wire c
and the earth wire together with the ferrite core
with the supplied banding band.
Stripping length power cord and connecting
wire
LN
123
123
To Indoor unit
terminal block
Power supply
terminal block
Earth screw
Banding band
Connecting wire
Pipe valve fixing plate
Power
supply wire
Earth
screw
(mm)
10
170
10
110
LN
123
LN
10
50
10
40
160 10
Earth line Earth line
Connecting wire Power supply wire

15EN
Branch Kit 1:3

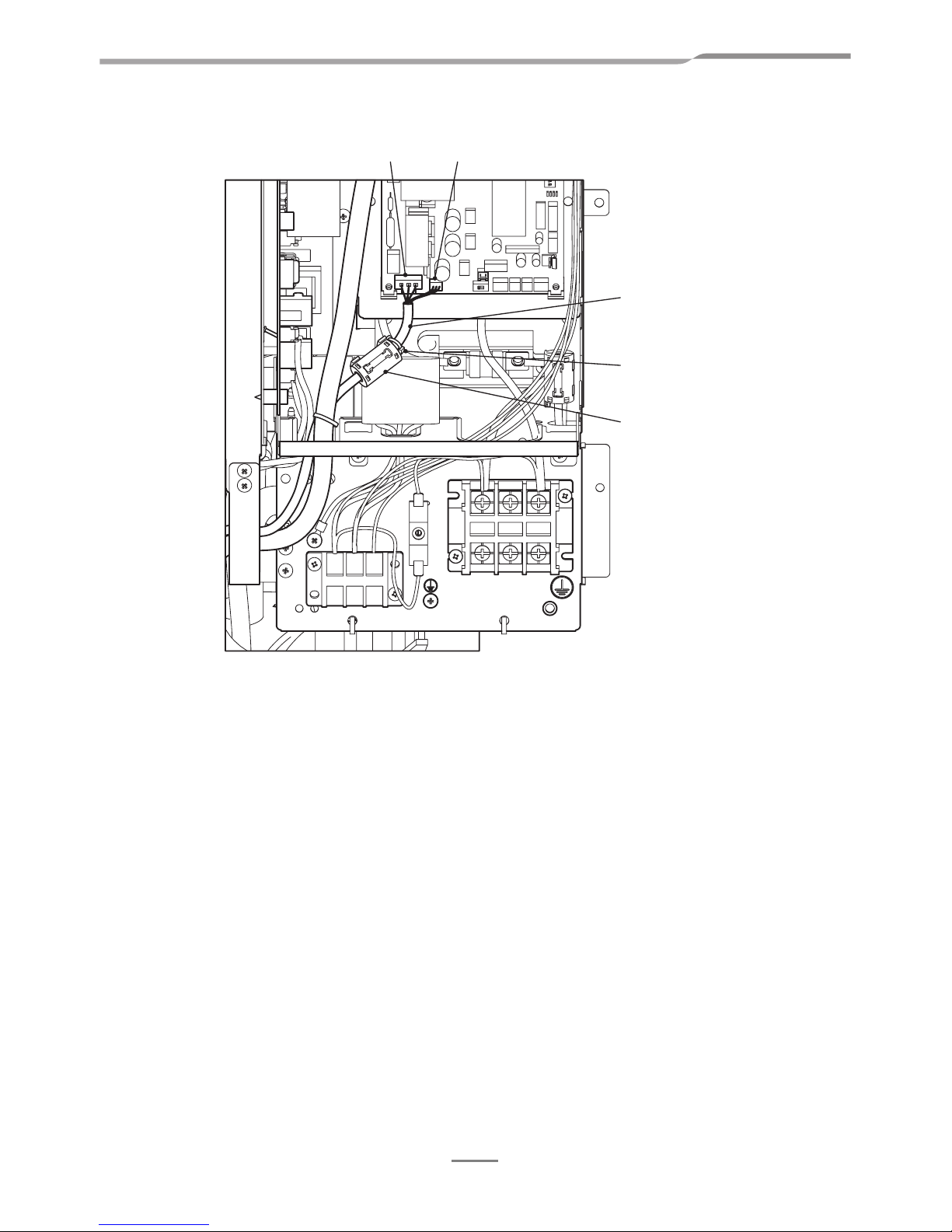

<2. Attaching the clamp filter>
Attach the clamp filter supplied with the outdoor unit to the lower outdoor fan motor lead
wire.
• Make sure that the claw of the clamp filter is securely locked.
• Pass the banding band supplied with the outdoor unit through the upper hole of the
clamp filter to clamp it together with the fan motor lead wire.
• The fan motor lead wires are connected to connectors CN301 and CN300 on the P.C.
board of the outdoor unit.
Fan motor lead wire
(Lower side)
Banding band
Clamp filter
CN300CN301

Branch Kit 1:3
16
EN
EN
<RAV-SM2244AT, SM2804AT series>
WARNING
Be sure to attach the provided clamp filter to the power supply wire in order to conform to
EMC standards.
Stripping length power cord and connecting wire
123 L1 L2 L3 N
Indoor/outdoor
connecting wire
Power supply wire
Earth screw Earth screw
Cord clamp Cord clamp
Cord clamp
Cord clamp Clamp filter
(accessory)
(mm)
10
30
50
110 2 3
10
40
50
10 L1 L2 L3 N
Earth line
Connecting wire
Earth line
Power supply wire

17EN
Branch Kit 1:3
NOTE
When using the equipment at the first time, it will take a lot of time that the remote controller
accepts an operation after power was on. However, it is not a trouble.
Automatic address
While automatic addressing, the operation can not be performed on the remote controller.
• For automatic addressing, Max. 10 minutes (generally, approx. 5 minutes) are required.
When power will be turned on after finish of automatic addressing;
• It will require Max. 10 minutes (generally, approx. 3 minutes) that outdoor unit starts
operation after power was on.
Indoor Unit operation when connected to multiple unit
Simultaneous triple system
A combination with an outdoor unit allows simultaneous ON/OFF operation of three indoor
units for the triple system.
Triple system
• For wiring procedure and wiring method, follow to the “Electric wiring” in this manual.
• When the power supply has been turned on, the automatic address setup starts and
which indicates that address is being set up flashes on the display part.
During setup of automatic address, the remote controller operation is not accepted.
Required time up to the finish of automatic addressing is approx. 5 minutes.
In case of group control for system of multiple units
One remote controller can control maximum 8 indoor units as a group.
Outdoor unit
Indoor unit
Remote
controller
Indoor unit Indoor unit
Finish of address setup by
power-ON

Branch Kit 1:3
18
EN
EN
In case of group control in single system
• For wiring procedure and wiring method of the individual line (Identical refrigerant line)
system, follow to “Electric wiring”.
• Wiring between lines is performed in the following procedure.
Connect the terminal block (A/B) of the indoor unit connected with a remote controller to
the terminal blocks (A/B) of the indoor units by wiring the inter-unit wire of the remote
controller.
• When the power supply has been turned on, the automatic address setup starts and
which indicates that address is being set up flashes on the display part. During
automatic address setup, the remote controller operation is not accepted.
Required time up to the finish of automatic addressing is approx. 5 minutes.
NOTE
In some cases, it is necessary to change the address manually after setup of the automatic
address according to the system configuration of the group control.
• A complex system in which a single system, twin system, and triple system are
controlled by one remote controller as a group requires address setup change.
Outdoor unit
Indoor unit
Remote
controller
Indoor unit Indoor unit
Finish of address setup by power-ON
Outdoor unit Outdoor unit
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
(Max. 8 units)

19EN
Branch Kit 1:3
(Example) Group control for complex system
The above address is set by the automatic address setup when the power is turned
on. However, line addresses and indoor addresses are set randomly. For this reason,
change the setting to match line addresses with indoor addresses.
Outdoor
unit Outdoor unit
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unitIndoor No.
Line
system
Outdoor
unit
<Single
system>
<Twin
system> <Triple system>
Procedure
example a
Indoor unit
(Example of
random
setup)
Address:
1-1-2
After
automatic
address
setup
Remote controller
Address:
2-1-2 Address: 3-3-1 Address: 3-1-2 Address: 2-2-2 Address: 3-2-2
Group address
Indoor address
Line address
(Example of
address setup
change)
After
address
change by
manual
address
setup
Address:
1-1-1 Address: 2-1-2 Address: 2-2-2 Address: 3-1-2 Address: 3-2-2 Address: 3-3-2
