Analog-Digital Converter Module Type AJ65VBTCU-68ADVN/ADIN
User,s Manual
Mitsubishi Programmable Controller

A - 1 A - 1
SAFETY PRECAUTIONS
(Always read these precautions before using this equipment.)
Before using this product, please read this manual and the relevant manuals introduced in this manual
carefully and pay full attention to safety to handle the product correctly.
The precautions given in this manual are concerned with this product. Refer to the user’s manual of the
CPU module to use for a description of the PLC system safety precautions.
In this manual, the safety instructions are ranked as "DANGER" and "CAUTION".
!DANGER
CAUTION
!
Indicates that incorrect handling may cause hazardous conditions,
resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous conditions,
resulting in medium or slight personal injury or physical damage.
Note that the !CAUTION level may lead to a serious consequence according to the circumstances.
Always follow the precautions of both levels because they are important to personal safety.
Please save this manual to make it accessible when required and always forward it to the end user.
[Design Precautions]
!DANGER
When there are communication problems with the data link, the data for the master module will
be held.
Configure an interlocking circuit in a sequence program so that the safety of the overall system
is always maintained.
!CAUTION
Do not bunch the control wires or communication cables with the main circuit or power wires, or
install them close to each other.
They should be installed 100mm (3.9inch) or more from each other.
Not doing so could result in noise that would cause erroneous operation.

A - 2 A - 2
[Installation Precautions]
!CAUTION
Use the PLC in the environment that meets the general specifications contained in this Manual.
Using the PLC outside the range of the general specifications may result in electric shock, fire or
malfunction, or may damage or degrade the module.
Securely fix the module to a DIN rail or securely fix it with the CC-Link connector type metal
installation fitting.
Not doing so can cause a drop or malfunction.
Do not touch the conducted area of the module.
Doing so may cause module malfunctioning or breakdowns.
[Wiring Precautions]
!CAUTION
Be sure to shut off all phases of the external power supply used by the system before installation
or wiring.
Not doing so can cause the product to be damaged or malfunction.
Always ground the FG pin and FG1 pin to the protective ground conductor.
Not doing so can cause a malfunction.
Wire the module correctly after confirming the rated voltage and pin layout of the product.
Not doing so can cause a fire or failure.
Ensure that no foreign matter such as chips and wire-offcuts enter the module.
Foreign matter can cause a fire, failure or malfunction.
Do not insert the one-touch connector plug for I/O of the one-touch connector type/connector
type compact remote I/O unit into the one-touch connector for analog I/O accidentally.
Doing so can cause the module to be damaged.
Always fit a non-wired, one-touch connector plug to the open one-touch connector for power
supply/FG.
Not doing so can cause a failure or malfunction.
When connecting the wires or cables to the module, always run them in conduits or clamp them.
Not doing so can damage the module and cables due to loose, moved or accidentally pulled
cables or can cause a malfunction due to a cable connection fault.
Do not install the control lines together with the communication cables, or bring them close to
each other. Failure to do so may cause malfunctions due to noise.
When disconnecting the communication and power supply cables from the module, do not hold
and pull the cable part.
Disconnect the cables after loosening the screws in the portions connected to the module.
Pulling the cables connected to the module can damage the module and cables or can cause a
malfunction due to a cable connection fault.

A - 3 A - 3
[Starting and Maintenance Precautions]
!CAUTION
Do not touch the pin while the power is on. Doing so may cause malfunction.
Be sure to shut off all phases of the external power supply used by the system before cleaning.
Not doing so can cause the module to fail or malfunction.
Never disassemble or modify the module.
This may cause breakdowns, malfunctioning, injury and/or fire.
Do not drop the module or give it hard impact since its case is made of resin. Doing so can
damage the module.
Be sure to shut off all phases of the external power supply used by the system before mounting
or dismounting the module to or from the panel.
Not doing so can cause the module to fail or malfunction.
Before handling the module, always touch grounded metal, etc. to discharge static electricity
from the human body.
Failure to do so can cause the module to fail or malfunction.
[Disposal Precautions]
!CAUTION
When disposing of this product, treat it as industrial waste.

A - 4 A - 4
REVISIONS
* The manual number is given on the bottom left of the back cover.
Print Date * Manual Number Revision
Apr., 2003 SH (NA)-080401E-A First Printing
Sep., 2004 SH (NA)-080401E-B Addition
Section 4.8.3, 4.10.1 to 4.10.3
Correction
About Manuals, Section 1.2, 2.3, 3.2, 4.8.2, 4.9.2
Jul., 2005 SH (NA)-080401E-C Correction
SAFETY PRECAUTIONS
Apr., 2007 SH (NA)-080401E-D Correction
Section 4.3, 4.9.2, Appendix 2
Japanese Manual Version SH-080396-D
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent
licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property
rights which may occur as a result of using the contents noted in this manual.
©2003 MITSUBISHI ELECTRIC CORPORATION

A - 5 A - 5
INTRODUCTION
Thank you for choosing a Mitsubishi MELSEC-A Series General Purpose Programmable Controller.
Before using your new PLC, please read this manual thoroughly to gain an understanding of its functions so
you can use it properly.
CONTENTS
SAFETY PRECAUTIONS..............................................................................................................................A- 1
REVISIONS ....................................................................................................................................................A- 4
INTRODUCTION............................................................................................................................................A- 5
About Manuals ...............................................................................................................................................A- 7
Conformation to the EMC Directive and Low Voltage Instruction ................................................................A- 7
About the Generic Terms and Abbreviations ................................................................................................A- 8
Product components ......................................................................................................................................A- 9
1 OVERVIEW 1- 1 to 1- 3
1.1 CC-Link Compatible Functions................................................................................................................ 1- 1
1.2 Features ................................................................................................................................................... 1- 2
2 SYSTEM CONFIGURATION 2- 1 to 2- 6

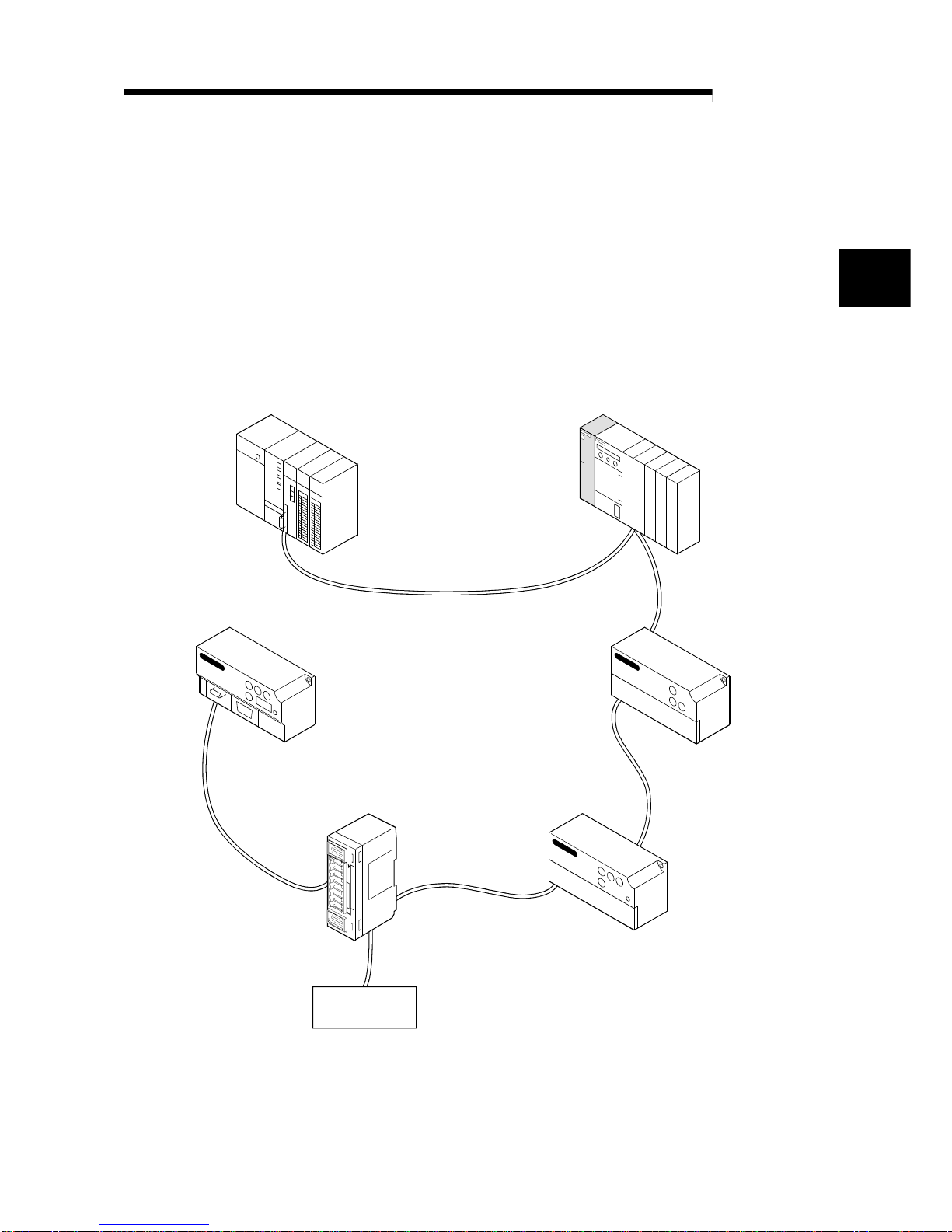

2.1 Overall Configuration ............................................................................................................................... 2- 1
2.2 Applicable System.................................................................................................................................... 2- 3
2.3 Parts Sold Separately .............................................................................................................................. 2- 5
3 SPECIFICATION 3- 1 to 3-20
3.1 General Specification............................................................................................................................... 3- 1
3.2 Performance Specification....................................................................................................................... 3- 2
3.3 I/O Conversion Characteristics................................................................................................................ 3- 3
3.3.1 Voltage input characteristics of the AJ68VBTCU-68ADVN............................................................. 3- 4
3.3.2 Current input characteristics of the AJ65VBTCU-68ADIN .............................................................. 3- 5
3.3.3 Relationship between the offset/gain setting and digital output value............................................. 3- 6
3.3.4 Accuracy............................................................................................................................................ 3- 6
3.3.5 Conversion speed ............................................................................................................................. 3- 7
3.4 Function List ............................................................................................................................................. 3- 8
3.4.1 Sampling processing......................................................................................................................... 3- 9
3.4.2 Average processing .......................................................................................................................... 3- 9
3.5 Remote I/O Signals.................................................................................................................................. 3-10
3.5.1 Remote I/O signal list ........................................................................................................................ 3-10
3.5.2 Functions of the remote I/O signals.................................................................................................. 3-13
3.6 Remote Register ...................................................................................................................................... 3-15
3.6.1 Remote register allocation ................................................................................................................ 3-15
3.6.2 A/D conversion enable/prohibit specification (Address RWwm+0H) ............................................... 3-17
3.6.3 CH. input range setting (Address RWwm+1H, RWwm+2H) ......................................................... 3-18
3.6.4 Average processing specification (Address RWwm+3H)................................................................. 3-19
3.6.5 CH. Average time/number of times setting (Address RWwm+4Hto RWwm+BH)....................... 3-19
3.6.6 CH. Digital output value (Address RWrn+0Hto RWrn+7H) .......................................................... 3-20
3.6.7 Error code (Address RWrn+8H) ........................................................................................................ 3-20

A - 6 A - 6
4 SETUP AND PREPARATION BEFORE OPERATION 4- 1 to 4-23
4.1 Pre-Operation Procedure......................................................................................................................... 4- 1
4.2 Precautions When Handling .................................................................................................................... 4- 1
4.3 Name of Each Part................................................................................................................................... 4- 3
4.4 Concept of Mode Select Switch Setting (Selection of Remote Device Station Compatible Version)... 4- 6
4.5 Offset/Gain Setting................................................................................................................................... 4- 8
4.6 Station Number Setting............................................................................................................................ 4-10
4.7 Facing Direction of the Module Installation ............................................................................................. 4-10
4.8 Data Link Cable Wiring ............................................................................................................................ 4-11
4.8.1 Instructions for handling the CC-Link dedicated cables .................................................................. 4-11
4.8.2 Connection of the CC-Link dedicated cables ................................................................................... 4-12
4.8.3 How to connect connectors .............................................................................................................. 4-13
4.9 Wiring........................................................................................................................................................ 4-14
4.9.1 Wiring precautions ............................................................................................................................ 4-14
4.9.2 Wiring of module with external equipment ....................................................................................... 4-14
4.10 How to Wire the One-Touch Connector Plug ....................................................................................... 4-16
4.10.1 Wiring procedures for the one-touch connector............................................................................. 4-16
4.10.2 Wiring procedures for the one-touch connector for communication ............................................. 4-19
4.10.3 Wiring procedures for the one-touch connector for power supply and FG ................................... 4-21
4.11 Maintenance and Inspection.................................................................................................................. 4-23
5 PROGRAMMING 5- 1 to 5-29
5.1 Programming Procedure.......................................................................................................................... 5- 1
5.2 When Remote Net Ver. 1 Mode Is Used................................................................................................. 5- 2
5.2.1 Conditions of Program Example....................................................................................................... 5- 2
5.2.2 Program Example for Use of the QCPU (Q mode).......................................................................... 5- 4
5.2.3 Program Example for Use of the QnACPU ...................................................................................... 5- 7
5.2.4 Program Example for Use of the ACPU/QCPU (A mode) (dedicated instructions) ....................... 5- 9
5.2.5 Program Example for Use of the ACPU/QCPU (A mode) (FROM/TO instructions) ...................... 5-12
5.3 When Remote Net Ver. 2 Mode Is Used................................................................................................. 5-14
5.3.1 Conditions of program examples...................................................................................................... 5-14
5.3.2 Setting of parameters and initialization procedure registration ....................................................... 5-17
5.3.3 Program example.............................................................................................................................. 5-20
5.4 When Remote Net Additional Mode Is Used .......................................................................................... 5-22
5.4.1 Conditions of program examples...................................................................................................... 5-22
5.4.2 Setting of parameters and initialization procedure registration ....................................................... 5-25
5.4.3 Program example.............................................................................................................................. 5-28
6 TROUBLESHOOTING 6- 1 to 6- 6
6.1 Error Code List ......................................................................................................................................... 6- 1
6.2 Using the LED Indications to Check Errors............................................................................................. 6- 2
6.3 When the digital output value cannot be read ........................................................................................ 6- 4
6.4 Troubleshooting for the Case where the "ERR." LED of the Master Station Flickers ........................... 6- 5
APPENDIX App- 1 to App- 3
Appendix 1 Comparison, Differences and Compatibility between New and Conventional Models ........App- 1
Appendix 2 External dimension diagram...................................................................................................App- 3
INDEX Index- 1 to Index- 2

A - 7 A - 7
About Manuals
The following manuals are also related to this product.
In necessary, order them by quoting the details in the tables below.
Related Manuals
Manual Name Manual Number
(Model Code)
CC-Link System Master/Local Module User's Manual type AJ61BT11/A1SJ61BT11
Describes the system configuration, performance specifications, functions, handling, wiring and
troubleshooting of the AJ61BT11 and A1SJ61BT11. (Optionally available)
IB-66721
(13J872)
CC-Link System Master/Local Module User's Manual type AJ61QBT11/A1SJ61QBT11
Describes the system configuration, performance specifications, functions, handling, wiring and
troubleshooting of the AJ61QBT11 and A1SJ61QBT11. (Optionally available)
IB-66722
(13J873)
CC-Link System Master/Local Module User's Manual type QJ61BT11N
Describes the system configuration, performance specifications, functions, handling, wiring and
troubleshooting of the QJ61BT11N. (Optionally available)
SH-080394E
(13JR64)
Programming Manual type AnSHCPU/AnACPU/AnUCPU/QCPU-A (A Mode) (Dedicated
Instructions)
Explains the instructions extended for the AnSHCPU/AnACPU/AnUCPU/QCPU-A (A Mode).
(Optionally available)
IB-66251
(13J742)
Conformation to the EMC Directive and Low Voltage Instruction
When complying with EMC Directives and Low-Voltage Directives by assembling a Mitsubishi PLC
compatible with EMC Directive and Low-Voltage Directives into the user product, refer to Chapter 3 "EMC
Directives and Low-Voltage Directives" in the User’s Manual (Hardware) for the CPU module being used.
The CE logo is printed on the rating plate on the main body of the PLC that conforms to the EMC directive
and low voltage instruction.
To conform this product to the EMC Directive and Low Voltage Directive, refer to the Section of "CC-Link
Modules" in Chapter 3 "EMC Directive and Low Voltage Directive" of the User's Manual (Hardware) of the
CPU module used.

A - 8 A - 8
About the Generic Terms and Abbreviations
Unless otherwise specified, the following generic terms and abbreviations are used in this manual to
describe Type AJ65VBTCU-68ADVN/ADIN analog-digital converter module.
Generic Term/Abbreviation Description
GX Developer
Generic product name of the product types SWnD5C-GPPW-E, SWnD5C-GPPW-EA
,SWnD5C-GPPW-EV and SWnD5C-GPPW-EVA
(n in the type indicates 4 or more.)
ACPU
Generic term for A0J2HCPU, A1SCPU, A1SCPUC24-R2, A1SHCPU, A1SJCPU,
A1SJCPU-S3, A1SJHCPU, A1NCPU, A2NCPU, A2NCPU-S1, A3NCPU, A2SCPU,
A2SHCPU, A2ACPU, A2ACPU-S1, A3ACPU, A2UCPU, A2UCPU-S1, A2USCPU,
A2USCHPU-S1, A2USHCPU-S1, A3UCPU and A4UCPU
QnACPU Generic term for Q2ACPU, Q2ACPU-S1, Q2ASCPU, Q2ASCPU-S1, Q2ASHCPU,
Q2ASHCPU-S1, Q3ACPU, Q4ACPU, Q4ARCPU
QCPU (A mode) Generic term for Q02CPU-A, Q02HCPU-A, Q06HCPU-A
QCPU (Q mode) Generic term for Q00JCPU, Q00CPU, Q01CPU, Q02CPU, Q02HCPU, Q06HCPU,
Q12HCPU, Q25HCPU, Q12PHCPU and Q25PHCPU
Master station Station that controls the data link system.
One master station is required for each system.
Local station Station having a PLC CPU and the ability to communicate with the master and other
local stations.
Remote I/O station Remote station that handles bit unit data only. (Performs input and output with
external devices.) (AJ65BTB1-16D, AJ65SBTB1-16D)
Remote device station Remote station that handles bit unit and word unit data only. (Performs input and
output with external devices, and analog data exchange.)
Remote station Generic term for remote I/O station and remote device station.
(Controlled by the master station)
Intelligent device station Station that can perform transient transmission, such as the AJ65BT-R2 (including
local stations).
Master module Generic term for QJ61BT11N, QJ61BT11, AJ61BT11, A1SJ61BT11, AJ61QBT11 and
A1SJ61QBT11 when they are used as master stations.
SB
Link special relay (for CC-Link)
Bit unit information that indicates the module operating status and data link status of
the master station/local station. (Expressed as SB for convenience)
SW
Link special register (for CC-Link)
16 bit unit information that indicates the module operating status and data link status
of the master station/local station. (Expressed as SW for convenience)
RX
Remote input (for CC-Link)
Information entered in bit units from the remote station to the master station.
(Expressed as RX for convenience)
RY
Remote output (for CC-Link)
Information output in bit units from the master station to the remote station.
(Expressed as RY for convenience)
RWw
Remote register (Write area for CC-Link)
Information output in 16-bit units from the master station to the remote device station.
(Expressed as RWw for convenience)
RWr
Remote register (Read area for CC-Link)
Information entered in 16-bit units from the remote device station to the master
station.
(Expressed as RWr for convenience)

A - 9 A - 9
Product components
This product consists of the following.
Model name Product Name Quantity
Type AJ65VBTCU-68ADVN analog-digital converter module 1
AJ65VBTCU-68ADVN Type AJ65VBTCU-68ADVN/ADIN analog-digital converter module
user's manual (hardware) 1
Type AJ65VBTCU-68ADIN analog-digital converter module 1
AJ65VBTCU-68ADIN Type AJ65VBTCU-68ADVN/ADIN analog-digital converter module
user's manual (hardware) 1

1 - 1 1 - 1
MELSEC-A
1 OVERVIEW
1 OVERVIEW
This user's manual explains the specifications, handling, programming methods and
others of Type AJ65VBTCU-68ADVN analog-digital converter module (hereafter
abbreviated to the " AJ65VBTCU-68ADVN") and Type AJ65VBTCU-68ADIN analog-
digital converter module (hereafter abbreviated to the “AJ65VBTCU-68ADIN”) which is
used as a remote device station of a CC-Link system.
In this manual, the AJ65VBTCU-68ADVN and AJ65VBTCU-68ADIN are generically
referred to as the AJ65VBTCU-68ADVN/ADIN.
The AJ65VBTCU-68ADVN/ADIN converts the analog signals (voltage or current input)
from the PLC's external source to a 16-bit encoded binary data digital value.
For the explanation of this product, the conventional AJ65VBTCU-68ADV analog-
digital converter module (hereafter abbreviated to the "AJ65VBTCU-68ADV") and
AJ65VBTCU-68ADI analog-digital converter module (hereafter abbreviated to the
"AJ65VBTCU-68ADI") are also described in some parts of this manual.
In this manual, the AJ65VBTCU-68ADV and AJ65VBTCU-68ADI are generically called
the AJ65VBTCU-68ADV/ADI.
1.1 CC-Link Compatible Functions
This product supports the following CC-Link functions.
• Cyclic transmission
• Expanded cyclic transmission
• Interstation cable length lessening
1

1 - 2 1 - 2
MELSEC-A
1 OVERVIEW
1.2 Features
This section gives the features of the AJ65VBTCU-68ADVN/ADIN.
(1) Selection of model according to application
AJ65VBTCU-68ADVN ...Voltage input on all eight channels.
AJ65VBTCU-68ADIN.....Current input on all eight channels.
(2) High accuracy
This module performs A/D conversion at the accuracy of ±0.3% relative to the
maximum value of the digital output value at the operating ambient temperature
of 0 to 55°C, or at ±0.2% relative to the maximum value of the digital output value
at the operating ambient temperature of 25±5°C.
(3) Input range selectable per channel
You can choose the analog input range per channel to change the I/O conversion
characteristics.
(4) High resolution of 1/±4000
By changing the input range, you can choose and set the digital value resolution
to either 1/4000 or 1/±4000 (Only AJ65VBTCU-68ADVN) to provide high-
resolution digital values.
(5) Designation of sampling processing or average processing
As a conversion method, you can specify sampling processing or average
processing per channel.
(6) Sharply reducible wiring man-hours
Wiring man-hours can be reduced sharply by adopting individual wire insulation
displacement termination type one-touch connectors (no need for soldering,
shield peeling and screwing) to connect the communication and power supply
cables.
Connector
Soldering, peeling of the shield
and screwing are unnecessary.
Push in Each of the individual wires
can be securely connected
simply by pressing the side
surface of the connector plug
after the wires are inserted
into the connector.
(7) Significant improvement of wiring performance
The above one-touch connectors for IN and OUT sides are plugged individually,
greatly improving the performance of jumper wiring especially in an enclosure.
(Mixed jumper wiring of the power supply cables with the I/O modules is not
allowed.)
1

1 - 3 1 - 3
MELSEC-A
1 OVERVIEW
(8) Replacement of module without stopping CC-Link system
The use of the online connectors (for communication, for power supply) allows
the module to be changed without the CC-Link system being stopped.
One-touch connector
plug for communication
(A6CON-L5P)
One-touch connector plug for power supply/FG
(A6CON-PW5P/A6CON-PW5P-SOD)
Online connector for power supply/FG
(A6CON-PWJ5P)
Online connector
for communication
(A6CON-LJ5P)
(9) Improved wiring workability
The connectors and setting switches are all front-mounted.
This enables connections to be made only by front wiring, improving wiring
workability. It also allows setting to be made after installation to an enclosure.
(10) Compatibility with conventional modules
Complete compatibility with the conventional AJ65VBTCU-68ADV/ADI module
has been achieved in the ver. 1 remote device station setting. (Refer to Section
4.4.)
(11) Selection of optimum mode for system
The optimum mode can be selected according to the system. (Refer to Section
4.4.)
Mode Outline
Remote net ver. 2 mode
Select this mode when configuring a new system.
The number of connected remote device stations can be
increased to up to 42 in combination with the applicable
master module.
Remote net additional mode This module can be newly added to the existing system
in combination with the applicable master module.
Remote net ver. 1 mode
Complete compatibility mode of the conventional remote
net mode.
Select this mode when system expansion is not
necessary or when this module replaces the
conventional one as a maintenance product.

2 - 1 2 - 1
MELSEC-A
2 SYSTEM CONFIGURATION
2 SYSTEM CONFIGURATION
This chapter describes the system configuration for use of the AJ65VBTCU-
68ADVN/ADIN.
2.1 Overall Configuration
The overall configuration for use of the AJ65VBTCU-68ADVN/ADIN is shown below.
(1) Remote net ver. 1 mode
CC-Link master/local module (master station)
(QJ61BT11(N), A(1S)J61BT11, A(1S)J61QBT11) CC-Link master/local module (local station) (QJ61BT11(N), A(1S)J61BT11, A(1S)J61QBT11)
Ver. 1.10 compatible CC-Link dedicated cable
(Intelligent device station) (Remote I/O station)
AJ65VBTCU-68ADVN/ADIN
(Remote device station) (Remote device station)
3 stations occupied
RX/RY: 32 points each
RWr/RWw: 12 points each
Object whose
voltage/current
will be detected
2

2 - 2 2 - 2
MELSEC-A
2 SYSTEM CONFIGURATION
(2) Remote net ver. 2 mode, remote net additional mode
CC-Link master/local module (master station)
QJ61BT11N CC-Link master/local module (local station) (QJ61BT11(N), A(1S)J61BT11, A(1S)J61QBT11)
Ver. 1.10 compatible CC-Link dedicated cable
(Intelligent device station) (Remote I/O station)
AJ65VBTCU-68ADVN/ADIN
(Remote device station) (Remote device station)
1 station occupied
RX/RY: 32 points each
RWr/RWw: 12 points each
Object whose
voltage/current
will be detected
2

2 - 3 2 - 3
MELSEC-A
2 SYSTEM CONFIGURATION
2.2 Applicable System
This section explains the applicable system.
(1) Applicable master modules
The following master modules can be used with the AJ65VBTCU-68ADVN/ADIN.
(a) For use in the remote net ver. 1 mode
QJ61BT11N
QJ61BT11
AJ61BT11
A1SJ61BT11
AJ61QBT11
A1SJ61QBT11
(b) For use in the remote net ver. 2 mode or remote net additional
mode
QJ61BT11N
(2) Applicable combinations
The following table indicates usability according to the combinations of the
master modules, the mode setting and station information (station type) of the GX
Developer network parameters, and the mode select switch setting of the
module. : Usable, : Unusable
Network Parameter Setting Model Select Switch Setting 1of AJ65VBTCU-
68ADVN/ADIN
Master Module Mode setting Station
information
(station type)
Ver. 1 remote device
station (Ver. 1 compatible
slave station)
Ver. 2 remote device
station (Ver. 2 compatible
slave station)
Remote net ver. 1
mode Remote device station
Ver. 1 remote
device station
Remote net ver. 2
mode Ver. 2 remote
device station
Ver. 1 remote
device station
QJ61BT11
AJ61BT11
A1SJ61BT11
AJ61QBT11
A1SJ61QBT11 Remote net
additional mode Ver. 2 remote
device station
Remote net ver. 1
mode Remote device station
Ver. 1 remote
device station
Remote net ver. 2
mode Ver. 2 remote
device station
Ver. 1 remote
device station 2
QJ61BT11N
Remote net
additional mode Ver. 2 remote
device station 3
1 For details, refer to Section 4.3 and Section 4.4.
2 When there is a station number used as the ver. 2 remote device station in the existing system, set the
station number of the ver. 1 remote device station to be added before that station.
3 Set the station number of the ver. 2 remote device station to be added after the station numbers used in
the existing system.

2 - 4 2 - 4
MELSEC-A
2 SYSTEM CONFIGURATION
POINT
For use in the remote net ver. 2 mode or remote net additional mode, the master
module of QJ61BT11N and the peripheral software package of GX Developer
Version 8.03D or later are required.
For more information on the applicable modules (CPU modules, network modules)
and applicable software packages, refer to the CC-Link System Master/Local
Module User's Manual (Details) QJ61BT11N.
(3) Restrictions on use of CC-Link dedicated instructions (RLPA,
RRPA)
The CC-Link dedicated instructions may not be used depending on the PLC CPU
and master module used.
For details of the restrictions, refer to the A series master module user's manual,
and the Programing Manual type AnSHCPU/AnACPU/AnUCPU/QCPU (A mode)
(Dedicated Instructions).
This module does not allow the use of the dedicated instructions other than
RLPA and RRPA.
Refer to Section 5.5 for a program example using the dedicated instructions
(RLPA, RRPA).

2 - 5 2 - 5
MELSEC-A
2 SYSTEM CONFIGURATION
2.3 Parts Sold Separately
The plugs for AJ65VBTCU-68ADVN/ADIN are sold separately.
Please purchase them as necessary.
Mitsubishi model
name Part model name (manufacturer) Specifications Color of the cover
Applicable cable core size
(mm2)
Applicable cable
outer diameter
(mm)
Maximum
rated
current (A)
A6CON-P214 33104-6000FL
5 1.0 to 1.4 Transparent
A6CON-P220 33104-6100FL
5
0.14 to 0.2
(AWG#26 to 24) 1.4 to 2.0 2 Yellow
A6CON-P514 33104-6200FL
5 1.0 to 1.4 Red
Plug for one-touch
connector 1, 4
A6CON-P520 33104-6300FL
5
0.3 to 0.5
(AWG#22 to 20) 1.4 to 2.0 3 Blue
communication line
0.5 (AWG#20) 2.2 to 3.0
One-touch connector
plug for
communication
2, 4
A6CON-L5P 35505-6000-
BOM GF 5 shielded cable (drain wire)
0.5 (AWG#20) Red
A6CON-PW5P 35505-6080-A00
GF 5 2.2 to 3.0 Gray
One-touch connector
for power supply/FG
2, 4, 6 A6CON-PW5P-SOD 35505-6180-A00
GF 5
0.75 (0.66 to 0.98)
(AWG#18) wire diameter
0.16 mm or more
Outer insulation layer
material PVC
(Heat-resistant vinyl) 2.0 to 2.3
7
Blue
Online connector for
communication 3 A6CON-LJ5P 35720-L200-B00
AK 5 
Online connector for
power supply/FG 3 A6CON-PWJ5P 35720-L200-A00
AK 5 
One-touch connector
plug with terminating
resistor (including 1) A6CON-TR11 
One-touch connector plug
with terminating resister
attached for communication
(110Ω)

1 Mitsubishi's A6CON-P includes 20 plugs.
2 Mitsubishi's A6CON- 5P includes 10 plugs.
3 Mitsubishi's A6CON- J5P includes 5 plugs.
4 Once insulation-displaced, the one-touch connector plugs cannot be reused.
5 Sumitomo 3M Co., Ltd.
6 Confirm the outer sheath diameter of the applicable cable and select the
connector.

2 - 6 2 - 6
MELSEC-A
2 SYSTEM CONFIGURATION
REMARK
The following table indicates the connectors of this module with which the above
plugs/connectors are compatible.
Connector of This Module Compatible Optional Parts
One-touch connector for
communication
• One-touch connector plug for communication
• Online connector for communication
• One-touch connector plug with terminating resistor
One-touch connector for power
supply/FG • One-touch connector plug for power supply/FG • Online connector for power supply/FG
One-touch connector for analog I/O • Plug for one-touch connector
