Toshiba P9 ASD User manual

P9 ASD Install & Op Manual
TOSHIBA

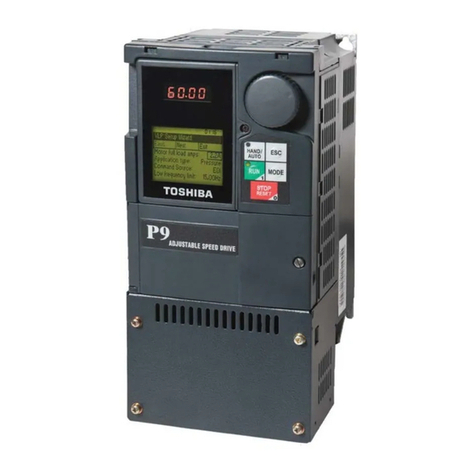

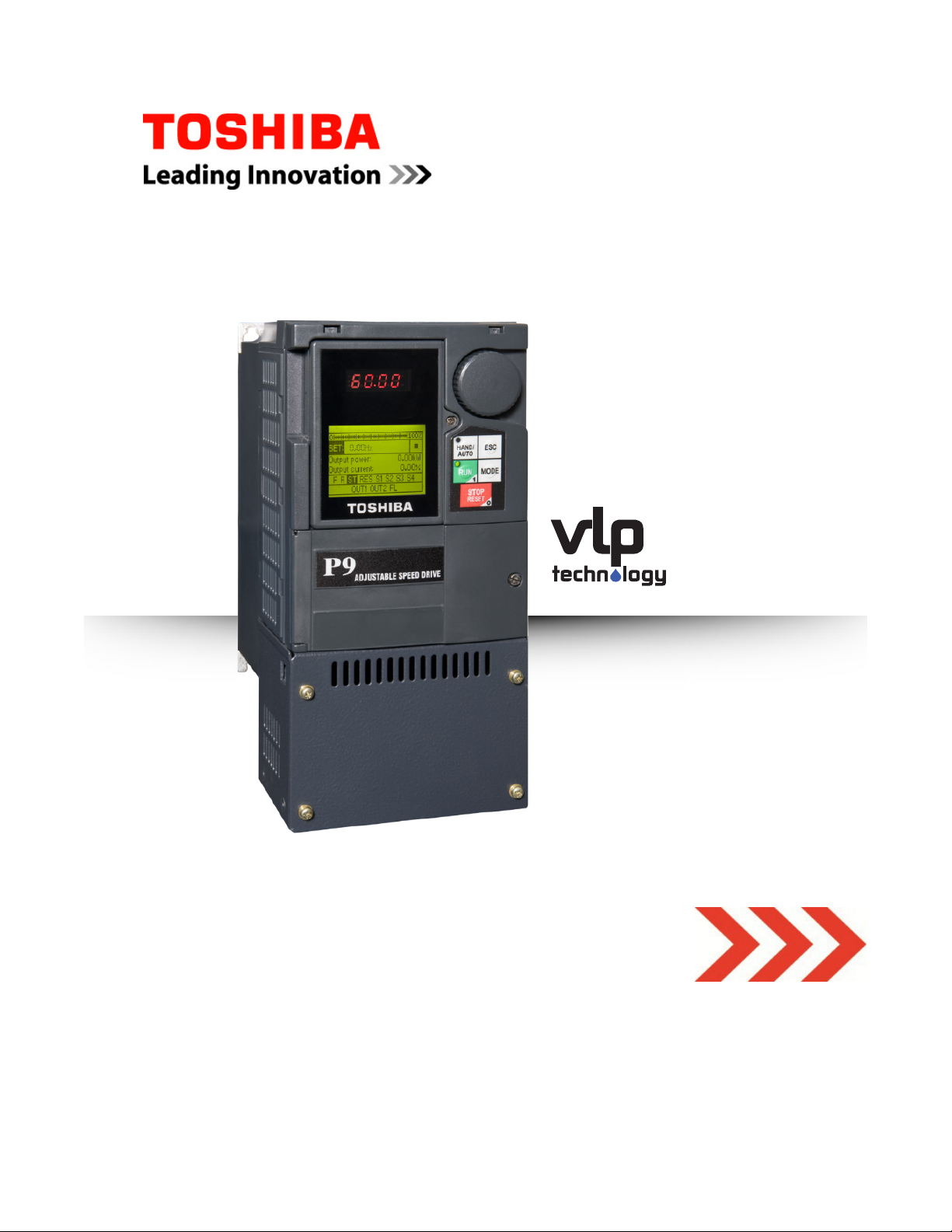

P9 ASD
I NSTALLATION & O PERATION M ANUAL
DN: 64054-005
October, 2014

DN: 64054-005
October, 2014
P9 ASD
Installation & Operation Manual

Introduction
Congratulations on the purchase of the new P9 Adjustable Speed Drive!
The P9 Adjustable Speed Drive (ASD) is a solid-state AC drive that features Toshiba International
Corporation’s (TIC) new Virtual Linear Pump function. The VLP algorithm was designed to remove
the guess work that is associated with the setup of pumping systems. The VLP algorithm allows for
precise, linear, and consistent pump curve responses at any flow or pressure setting!
The Virtual Linear Pump function allows for direct and precise pumping system control. This is
accomplished without the normal concerns of the adverse effects of conventional pumping system
control response curves.
Toshiba’s VLP algorithm is further enhanced by the introduction of the new Time-Based Alternation
(TBA) function! Time-Based Alternation optimizes load sharing and offers a significantly decreased
level of system down-time.
Time-Based Alternation provides a more evenly-spread machine wear pattern for all motors and
pumps of the system. Load sharing is optimized by allowing all pumps to alternate as the primary pump
while the remaining pump(s) operate in an ancillary mode for time intervals that are determined by the
user.
The decreased system down-time is realized in the event of a failure of one or more pumps, when
seamlessly, the system continues to operate, albeit with a diminished capacity.
Using VLP and Time-Based Alternation, the system seamlessly and easily adapts to peak load
demands while maintaining the same degree of high performance and reliability output across the entire
load range - without any user intervention!
The VLP and Time-Based Alternation algorithms coupled with Toshiba International Corporation’s
Vector Control Algorithm provides setup ease, enhanced reliability, and precise control under the most
demanding conditions. All while enabling the motors of the system to develop high starting torque and
provide compensation for motor slip, which results in smooth, quick starts, and highly efficient
operation.
The programmable functions may be accessed via the easy-to-use menu or via the Direct Access
Numbers (see pg. 81). This feature, combined with Toshiba International Corporation’s high-
performance software, delivers unparalleled motor control, reliability, and ease of use.
The P9 is a very powerful tool, yet surprisingly simple to operate. The user-friendly Electronic
Operator Interface (EOI) of the P9 has an easy-to-read LCD screen. There is also a high-visibility
LED screen that can be read from a greater distance. The EOI provides easy access to the many
monitoring and programming features of the P9.
To maximize the abilities of your new P9, a working familiarity with this manual is required. This
manual has been prepared for the ASD installer, user, and maintenance personnel. This manual may
also be used as a reference guide or for training. With this in mind, use this manual to develop a
familiarity with the P9 before attempting to install, operate, or perform maintenance on the device.

Important Notice
The instructions contained in this manual are not intended to cover all details or variations in equipment
types, nor may it provide for every possible contingency concerning the installation, operations, or
maintenance of this equipment. Should additional information be required, contact your TIC Sales
Representative.
The contents of this manual shall not become a part of or modify any prior or existing agreement,
commitment, or relationship. The sales contract contains the entire obligation of Toshiba International
Corporation. The warranty contained in the contract between the parties is the sole warranty of Toshiba
International Corporation and any statements contained herein do not create new warranties or modify
the existing warranty.
Any electrical or mechanical modifications to this equipment without prior written consent of
Toshiba International Corporation may void all warranties and may void the UL/CSA listing or
other safety certifications. Unauthorized modifications may also result in a safety hazard or
equipment damage.
Misuse of this equipment could result in injury and equipment damage. In no event will Toshiba
International Corporation be responsible or liable for direct, indirect, special, or consequential
damage or injury that may result from the misuse of this equipment.

About This Manual
This manual was written by the Toshiba International Corporation Technical Publications Group. This
group is tasked with providing technical documentation for the P9 Adjustable Speed Drive. Every
effort has been made to provide accurate and concise information to you, our customer.
At Toshiba International Corporation we are continuously striving for better ways to meet the constantly
changing needs of our customers. E-mail your comments, questions, or concerns about this publication
to T[email protected].
Manual’s Purpose and Scope
This manual provides information on how to safely install, operate, maintain, and dispose of your
P9 Adjustable Speed Drive. The information provided in this manual is applicable to the
P9 Adjustable Speed Drive only.
This manual provides information on the various features and functions of this powerful cost-saving
device, including
• Installation,
• System operation,
• Configuration and menu options, and
• Mechanical and electrical specifications.
Included is a section on general safety instructions that describe the warning labels and symbols that are
used on the device and throughout the manual. Read the manual completely before installing, operating,
performing maintenance, or disposing of this equipment.
This manual and the accompanying drawings should be considered a permanent part of the equipment
and should be readily available for reference and review. Dimensions shown in the manual are in
English and/or the metric equivalent.
Because of our commitment to continuous improvement, Toshiba International Corporation reserves the
right, without prior notice, to update information, make product changes, or to discontinue any product
or service identified in this publication.
Toshiba International Corporation (TIC) shall not be liable for direct, indirect, special, or
consequential damages resulting from the use of the information contained within this manual.
This manual is copyrighted. No part of this manual may be photocopied or reproduced in any form
without the prior written consent of Toshiba International Corporation.
© Copyright 2014 Toshiba International Corporation.
TOSHIBA®is a registered trademark of Toshiba Corporation. All other product or trade references
appearing in this manual are registered trademarks of their respective owners.
All rights reserved.
Printed in the U.S.A.

Contacting TIC’s Customer Support
Center
Toshiba International Corporation’s Customer Support Center can be contacted to obtain help in
resolving any Adjustable Speed Drive system problem that you may experience or to provide
application information.
The Support Center is open from 8 a.m. to 5 p.m. (CST), Monday through Friday. The Center’s toll free
number is US [phone]/Fax [phone] CAN [phone] MEX 01 [phone].
For after-hours support follow the directions in the outgoing message when calling.
You may also contact Toshiba International Corporation by writing to:
Toshiba International Corporation
13131 West Little York Road
Houston, Texas 77041-9990
Attn: ASD Product Manager.
For further information on Toshiba International Corporation’s products and services, please visit our
website at www.toshiba.com/tic/.
TOSHIBA INTERNATIONAL CORPORATION
P9 Adjustable Speed Drive
Please complete the Warranty Card supplied with the P9 ASD and return it to Toshiba International Corporation
by prepaid mail. This will activate the 12-month warranty from the date of installation; but, shall not exceed 18
months from the shipping date.
Complete the following information and retain for your records.
Model Number: ______________________________________________________________________
Serial Number: ______________________________________________________________________
Project Number (if applicable):_________________________________________________________
Date of Installation: __________________________________________________________________
Inspected By: _______________________________________________________________________
Name of Application: ________________________________________________________________

P9 ASD Installation and Operation Manual i
