Toshiba RD-XS30SB User manual

HDD/DVD VIDEO RECORDER
SERVICE MANUAL
May, 2003
S
FILE NO. 810-200314
RD-XS30SB
DIGITAL VIDEO

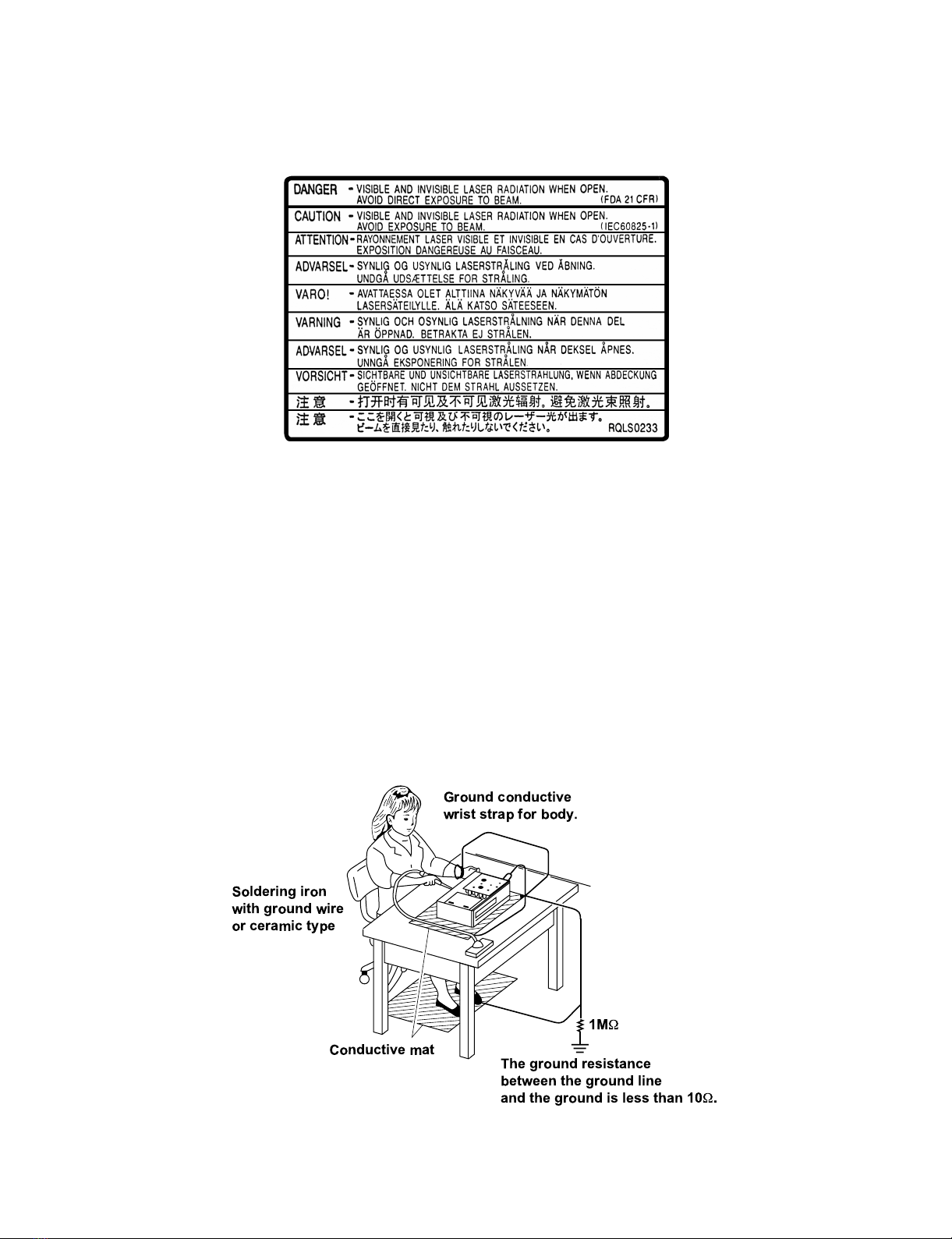

LASER BEAM CAUTION LABEL
When the power supply is being turned on, you may not remove this laser beam caution label. If it removes, radiation of a
laser may be received.
PREPARATION OF SERVICING
Pickup Head consists of a laser diode that is very susceptible to external static electricity.
Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement,
its life might be shortened. When replacing, use a conductive mat, soldering iron with ground wire, etc. to
protect the laser diode from damage by static electricity.
And also, the SI and IC are same as above.
1M W
Ground conductive
wrist strap for body.
Soldering iron
with ground wire
or ceramic type
Conductive mat The ground resistance
between the ground line
and the ground is less than 10 W .

SECTION 2
PART REPLACEMENT AND ADJUSTMENT PROCEDURES
SECTION 3
SERVICING DIAGRAMS

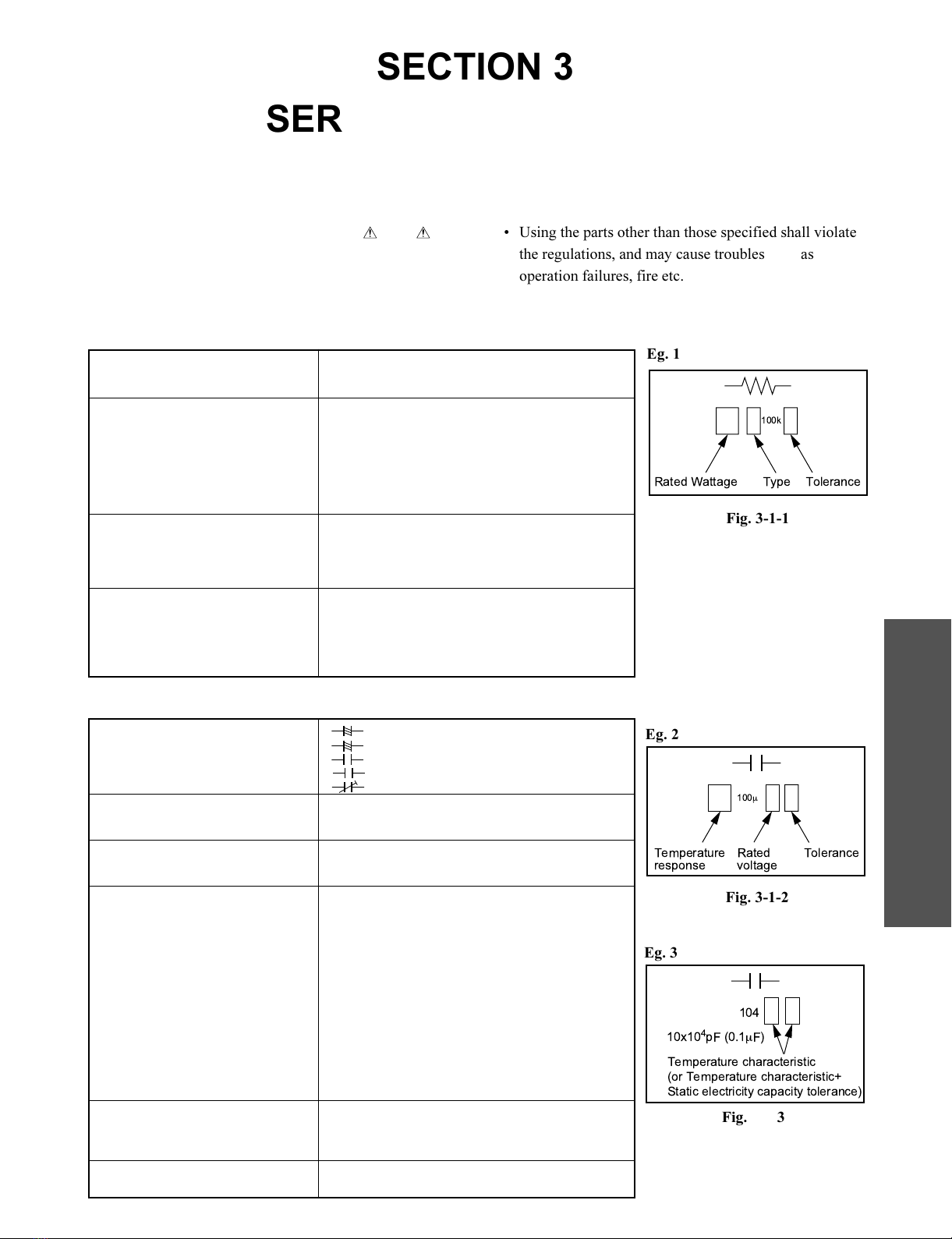

1. CIRCUIT SYMBOLS AND
SUPPLEMENTARY EXPLANATION
1-1. Precau ions for Par Replacemen
1-2. Solid Resis or Indica ion
1-3. Capaci ance Indica ion

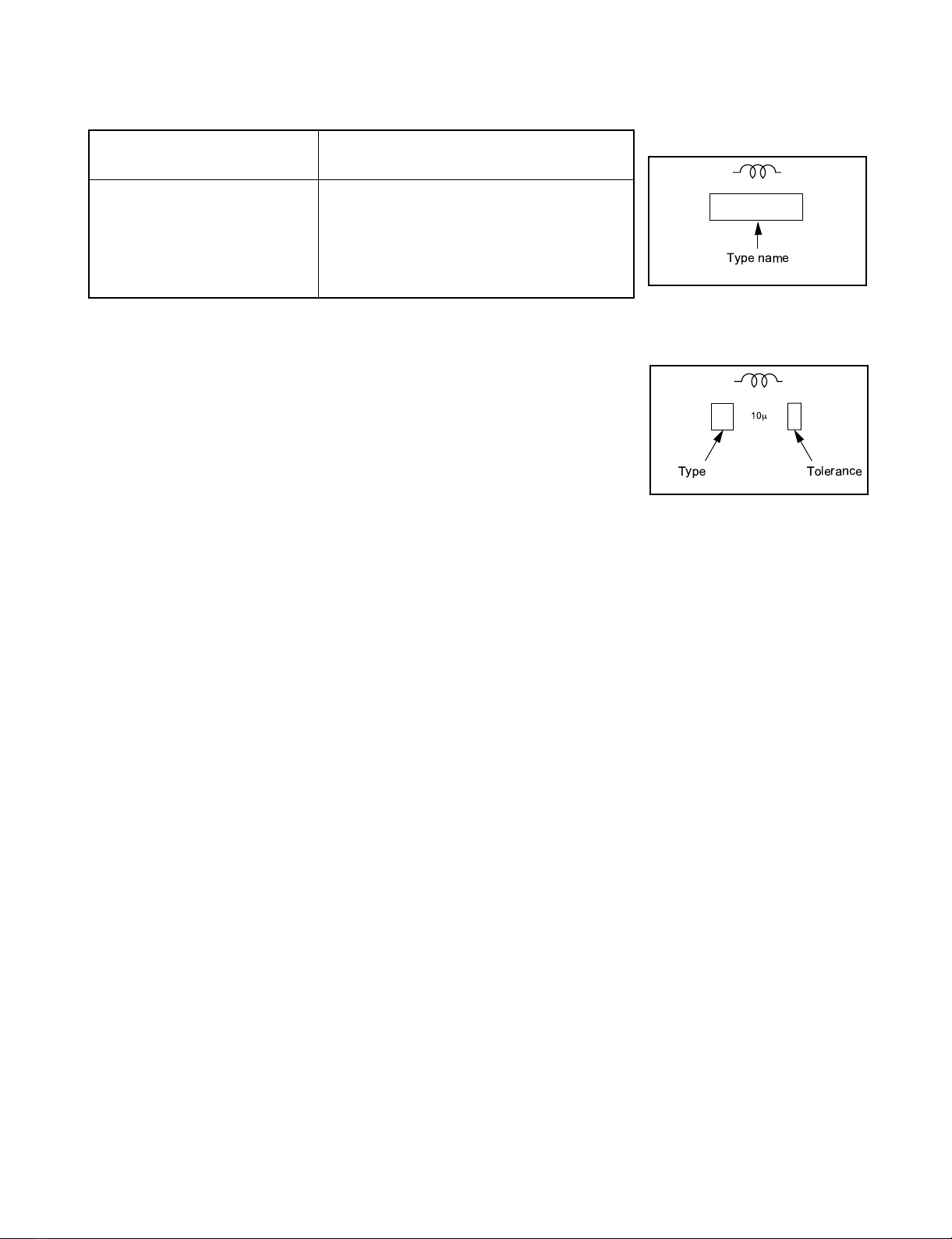

1-4. Induc or Indica ion
1-5. Waveform and Vol age Measuremen
1-6. O hers
2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM

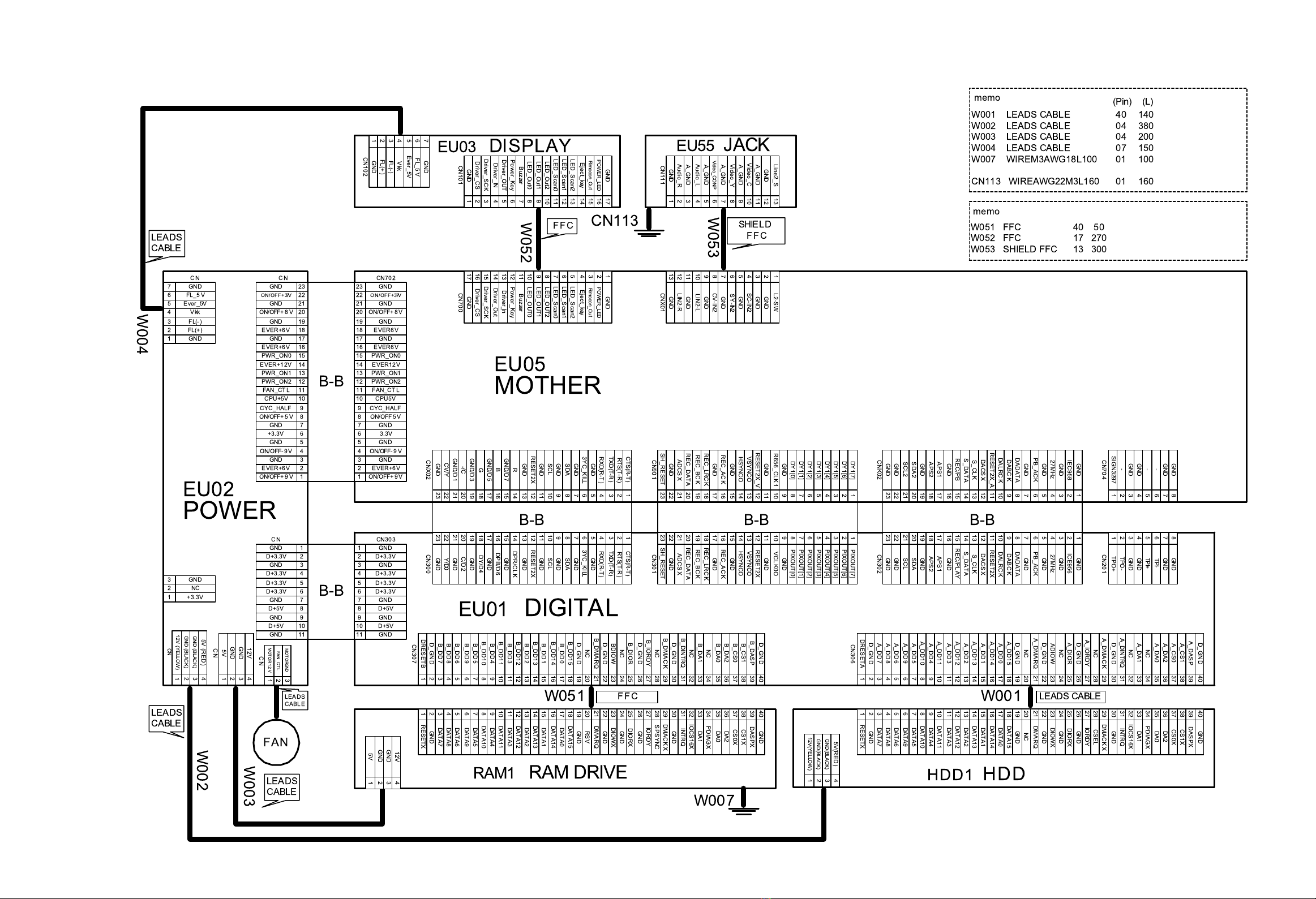

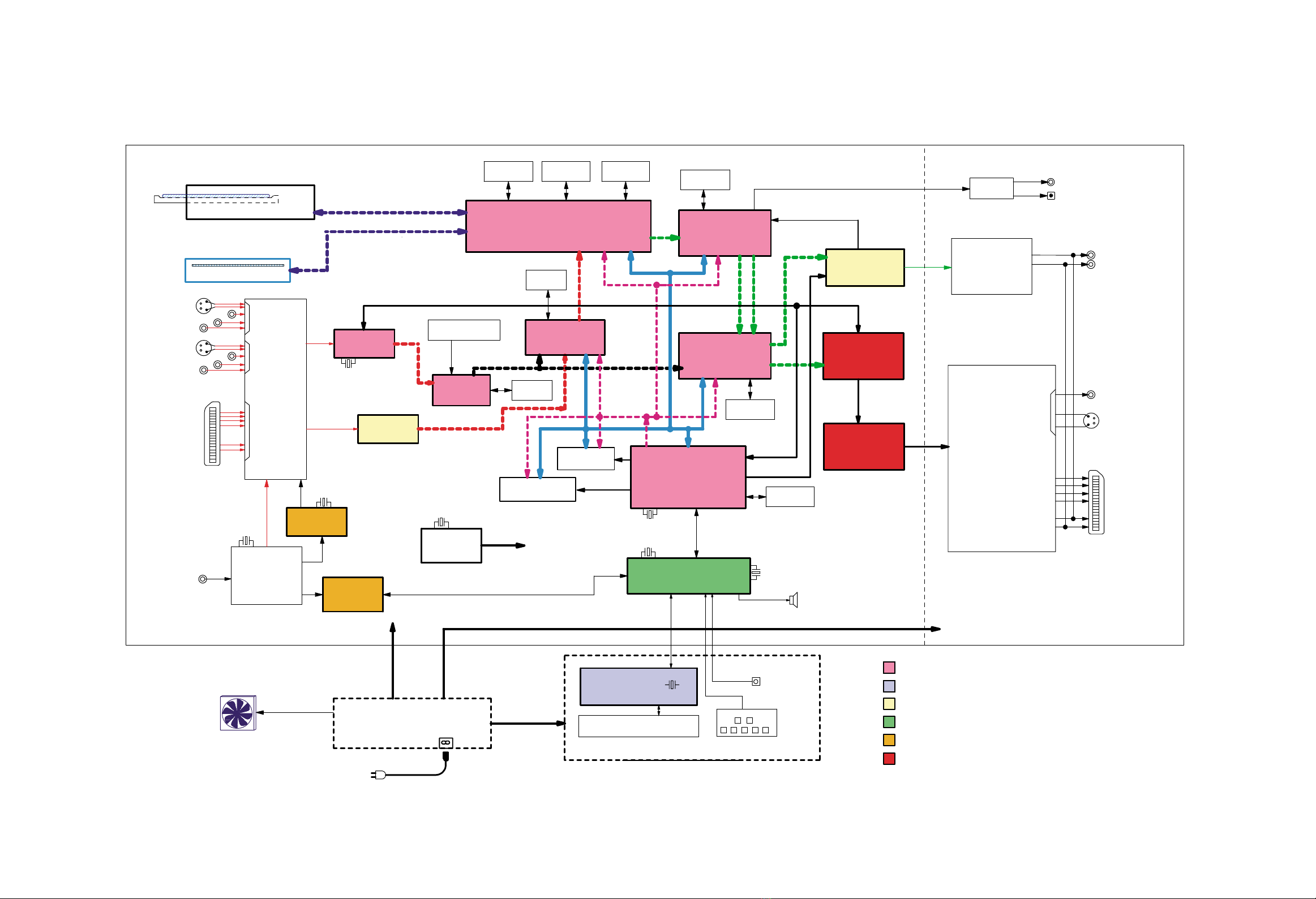

3. BLOCK DIAGRAMS
3-1. Overall Block Diagram
4. CIRCUIT DIAGRAMS

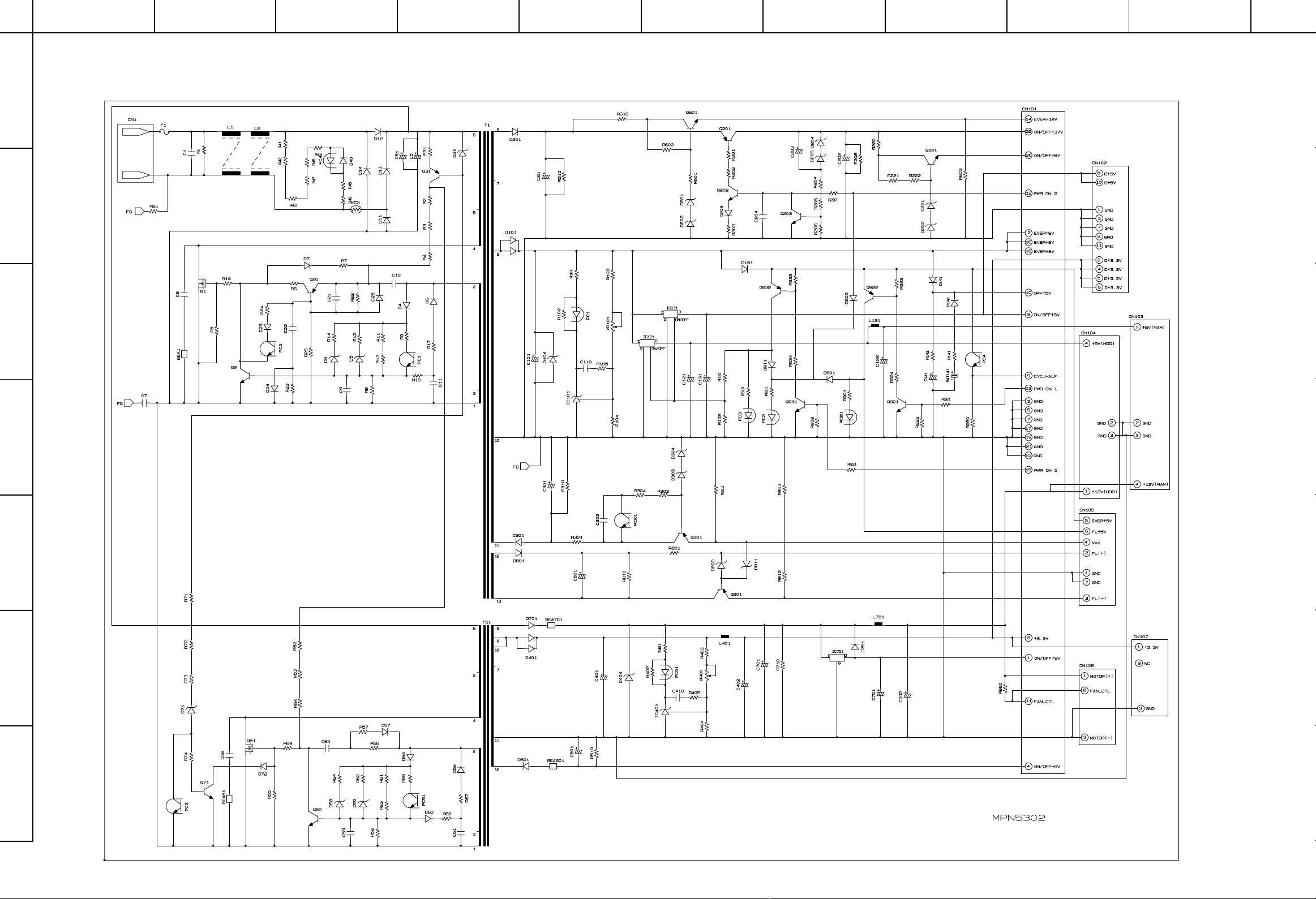

4-1. Power Supply Circui Diagram

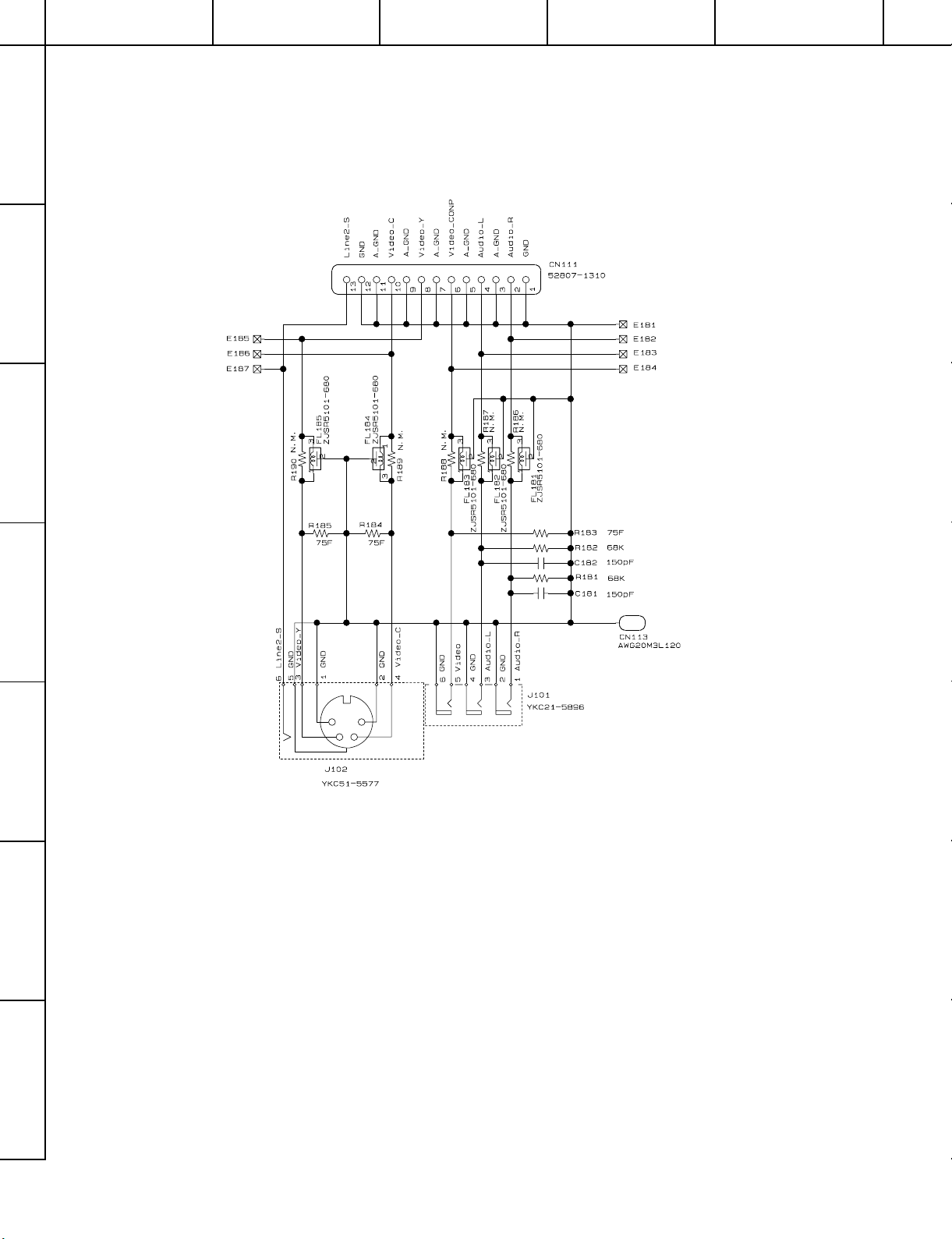

4-2. Jack Circui Diagram

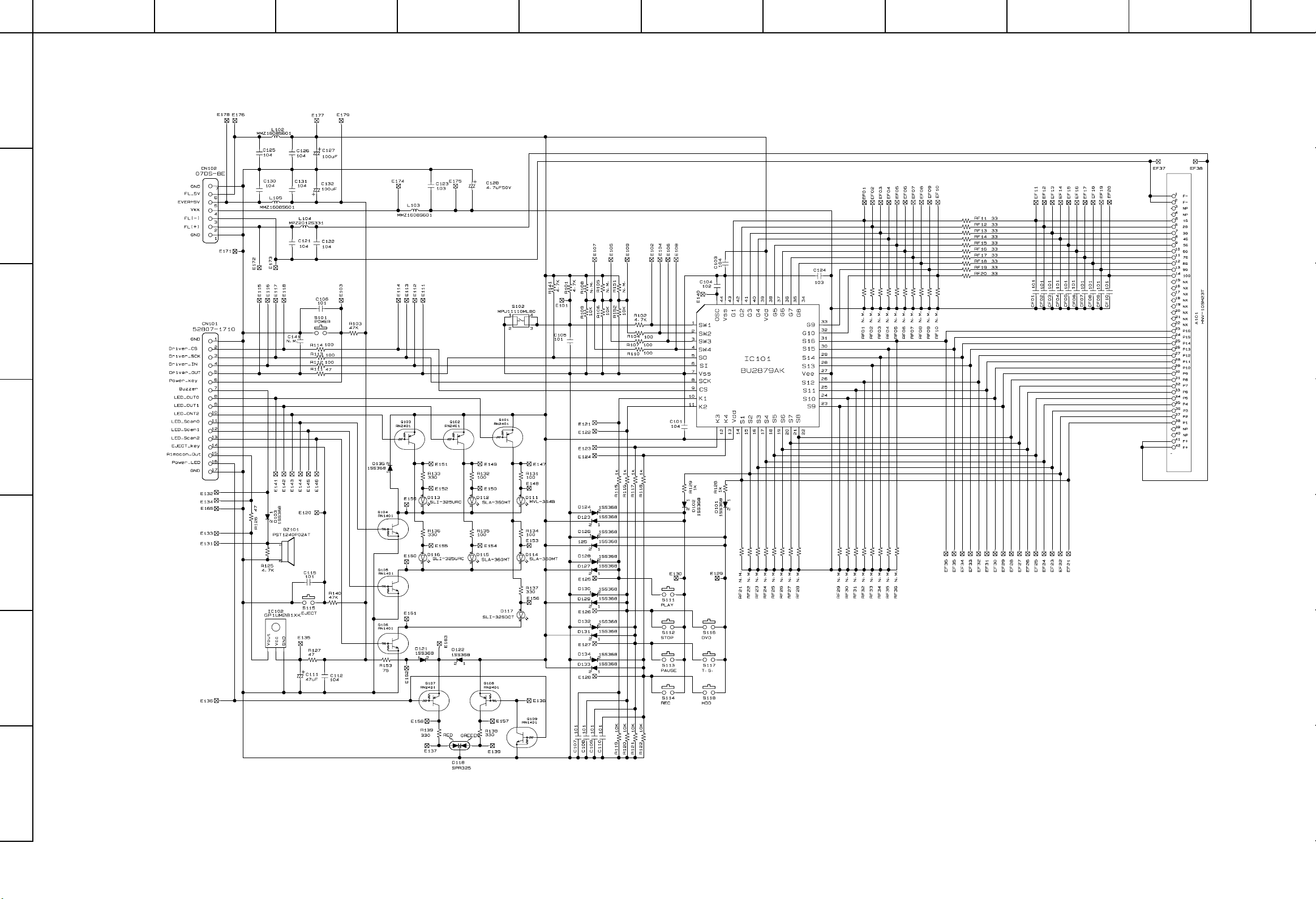

4-3. Fron Circui Diagram
4-4. Mo her Circui Diagram

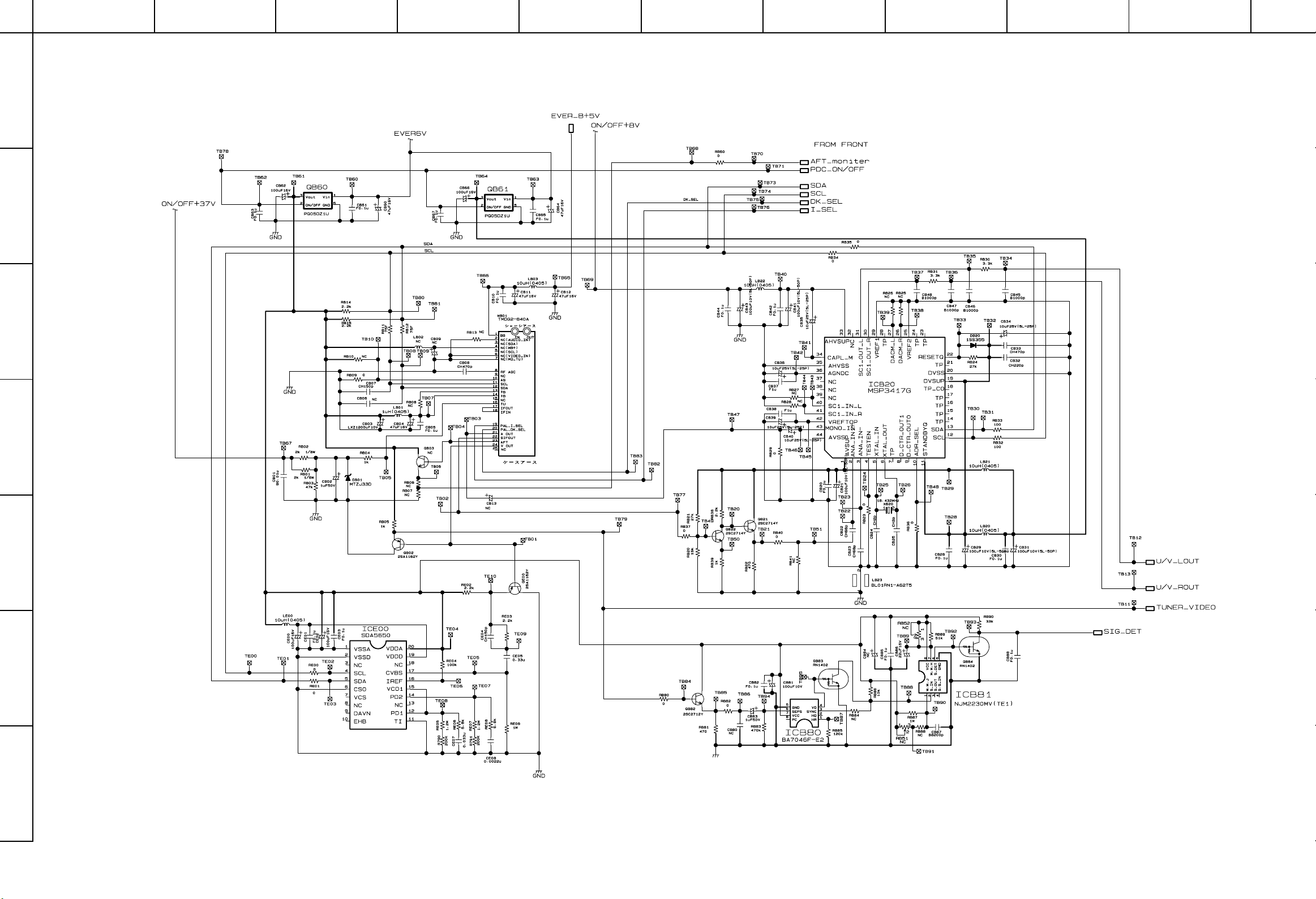

4-4-1. Tuner Circui Diagram

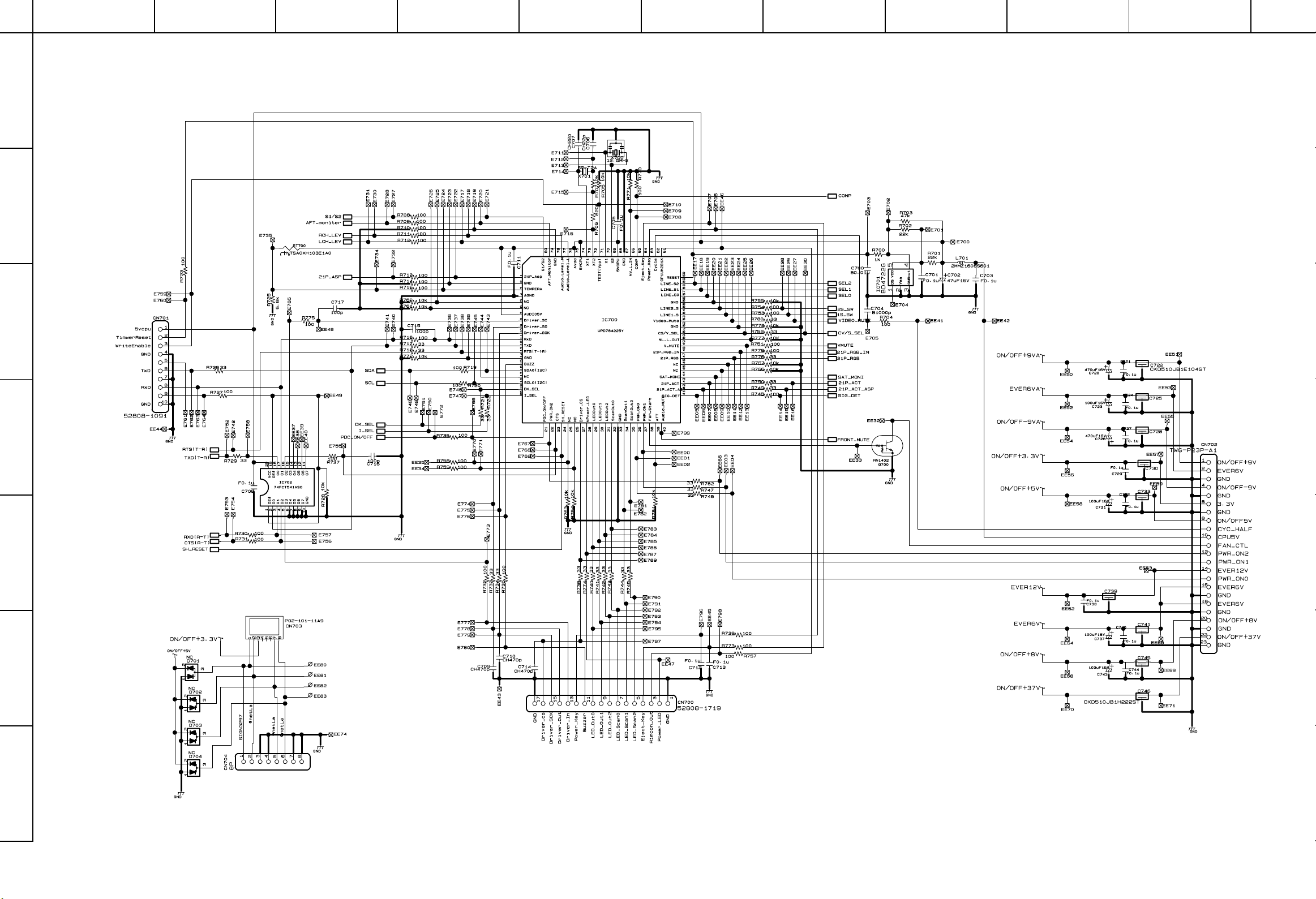

4-4-2. Timer Circui Diagram

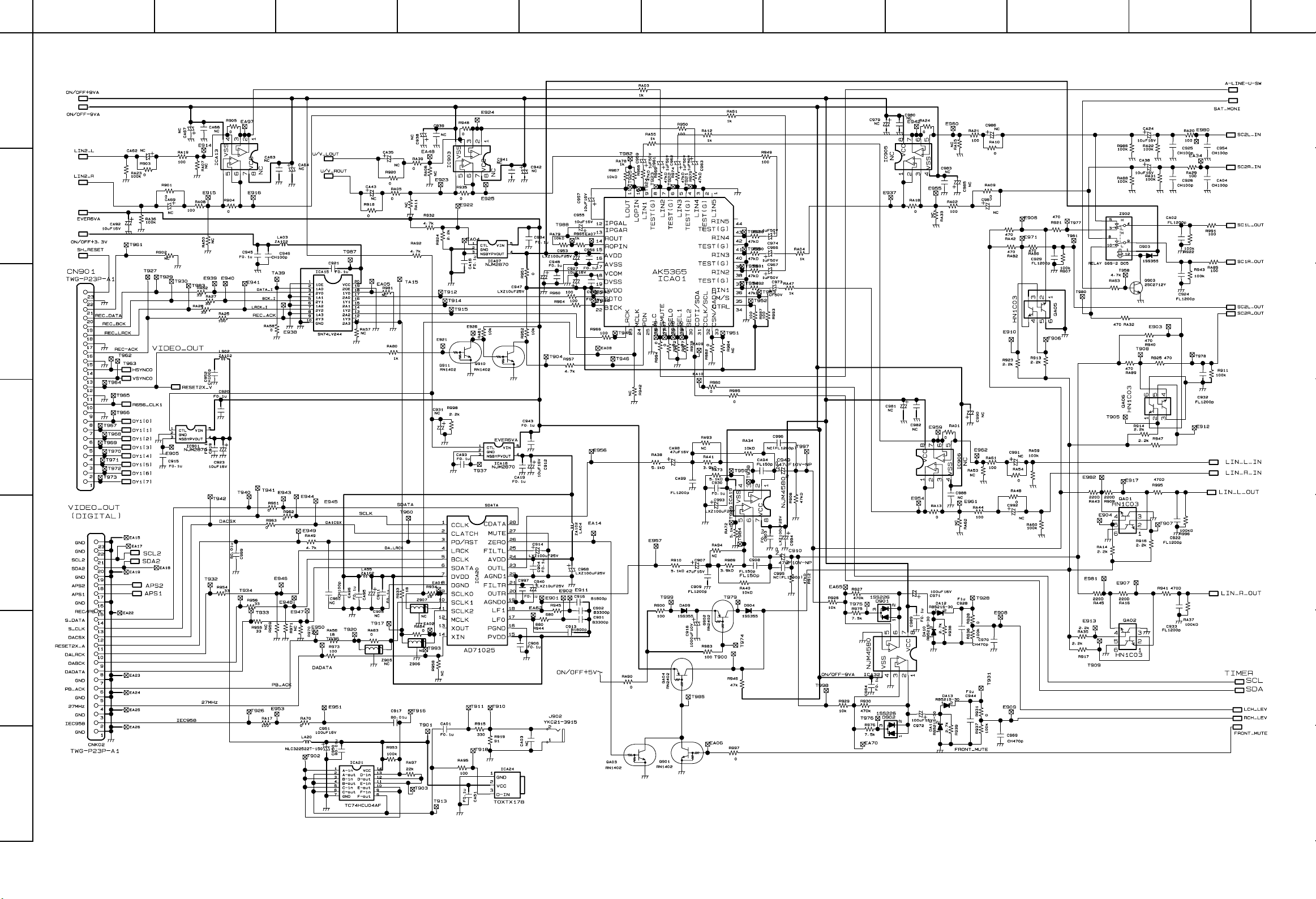

4-4-3. Audio Circui Diagram
4-4-4. Video Circui Diagram
4-5. Digi al Circui Diagram
5. PC BOARDS
5-1. Jack PC Board
5-2. Fron PC Board
5-3. Mo her PC Board
5-4. Digi al PC Board
CONTENTS
SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
Specifica ions
1. REPLACEMENT OF MECHANICAL PARTS
1-1. Cabine Replacemen
1-1-1. Top Cover
1-1-2. HDD
1-1-3. Fron Panel
1-1-4. Tray Door
1-1-5. Opera ion Panel Door
1-1-6. RAM Drive
1-1-7. Fan
1-1-8. Rear Panel
1-2. PC Board Replacemen
1-2-1. Digi al PC Board
1-2-2. Mo her PC Board
1-2-3. Power PC Board
1-2-4. Fron and Jack PC Board
2. LOCATION OF MAIN PARTS
2-1. Loca ion of Main Par s
2-2. Loca ion of PC Boards
SECTION 4
PARTS LIST
SAFETY PRECAUTION
NOTICE
ABBREVIATIONS
1. In egra ed Circui (IC)
2. Capaci or (Cap)
3. Resis or (Res)
4. EXPLODED VIEWS
4-1. Packing Assembly
4-2. Chassis Assembly
5. PARTS LIST

SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
Please refer to the owner's manual about the contents.
SECTION 1
GENERAL DESCRIPTIONS

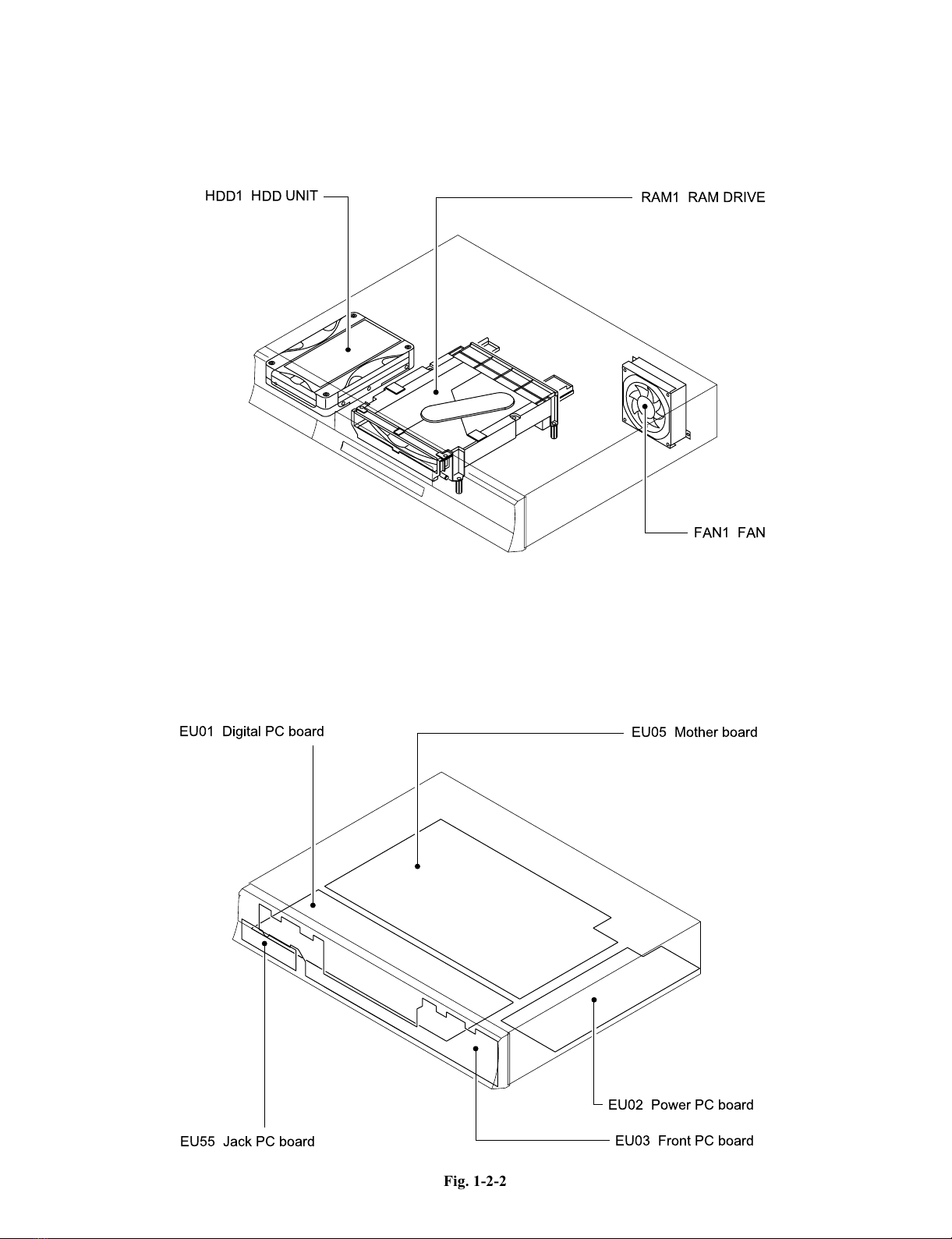

2. LOCATION OF MAIN PARTS
2-1. Location of Main Parts
Fig. 1-2-1
2-2. Location of PC Boards
FAN1 FAN
RAM1 RAM DRIVE
HDD1 HDD UNIT
Fig. 1-2-2
EU05 Mother board
EU01 Digital PC board
EU02 Power PC board
EU03 Front PC board
EU55 Jack PC board

SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
CAUTIONS BEFORE STARTING PART REPLACEMENT
Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to ground as required.
Many screws are used inside the unit. To prevent the screws from missing or dropping, etc. always use a magnetized
screwdriver in servicing. Several kinds of screws are used and some of them need special cautions. That is, take care of
the tapping screws securing molded parts and fine pitch screws used to secure metal parts. f they are used improperly,
the screw holes will be easily damaged and the parts can not be fixed.
1. REPLACEMENT OF MECHANICAL PARTS
1-1. Cabinet Replacement

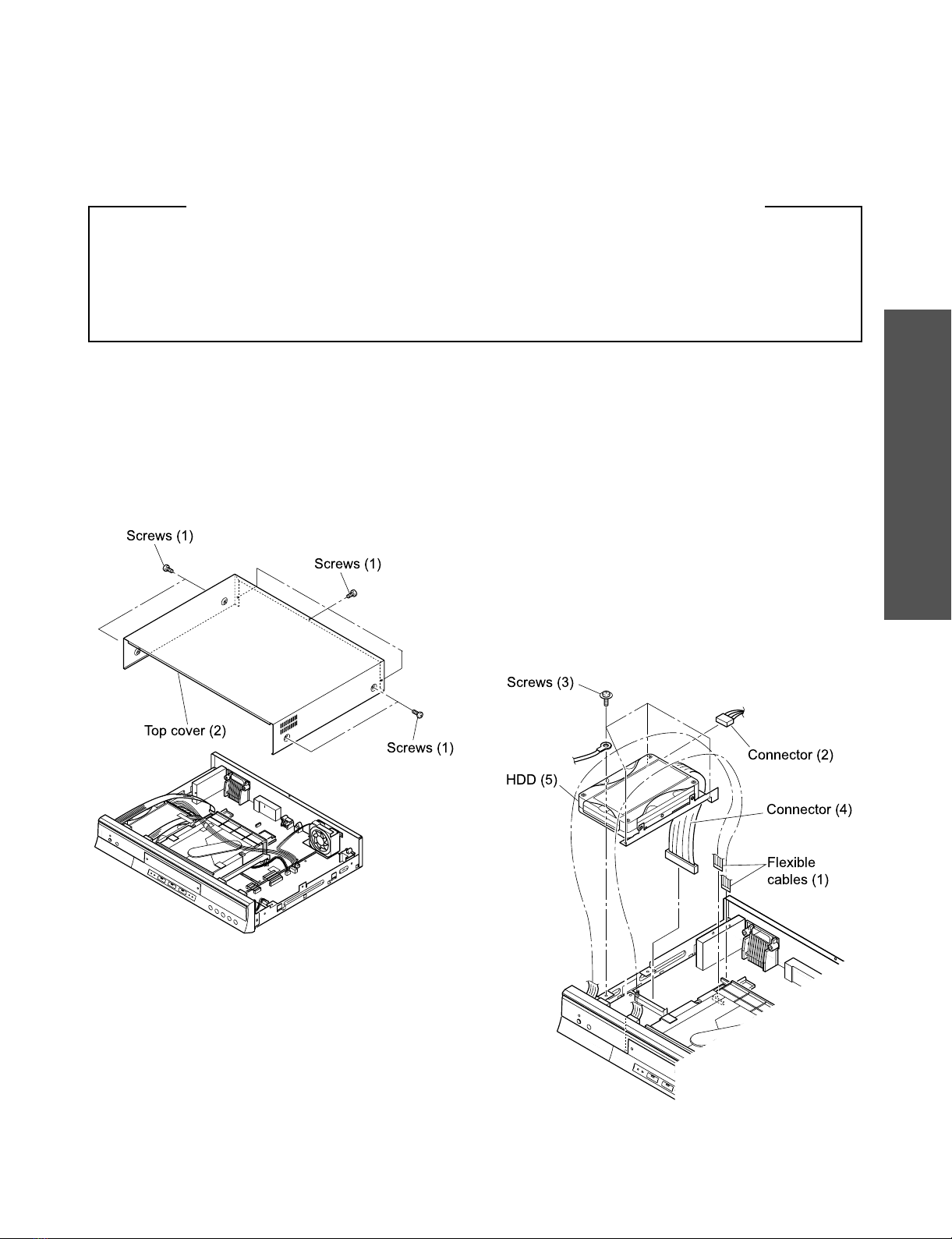

1-1-1. Top Cover
1. Remove seven screws (1), then remove the top cover
(2).
Fig. 2-1-1
1-1-2. HDD
1. Disconnect two flexible cables (1).
2. Disconnect a connector (2).
3. Remove four screws (3) and a connector (4), then
remove the HDD (5).
Note:
• After replacing the HDD (5), make sure the connectors
(2), (4) and the flexible cables (1) are connected
securely.
Fig. 2-1-2
SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
Screws (1)
Screws (1)
Screws (1)
Top cover (2)
Connector (2)
Connector (4)
Flexible
cables (1)
Screws (3)
HDD (5)

Connector (1)
Screw (2)
Screws(3)
Front panel (4)
Claw
Claw
Claws
Claw
Hinge
Front panel
Hinge
Claw
Operation panel door (1)
Spring (1)
Tray door (2)

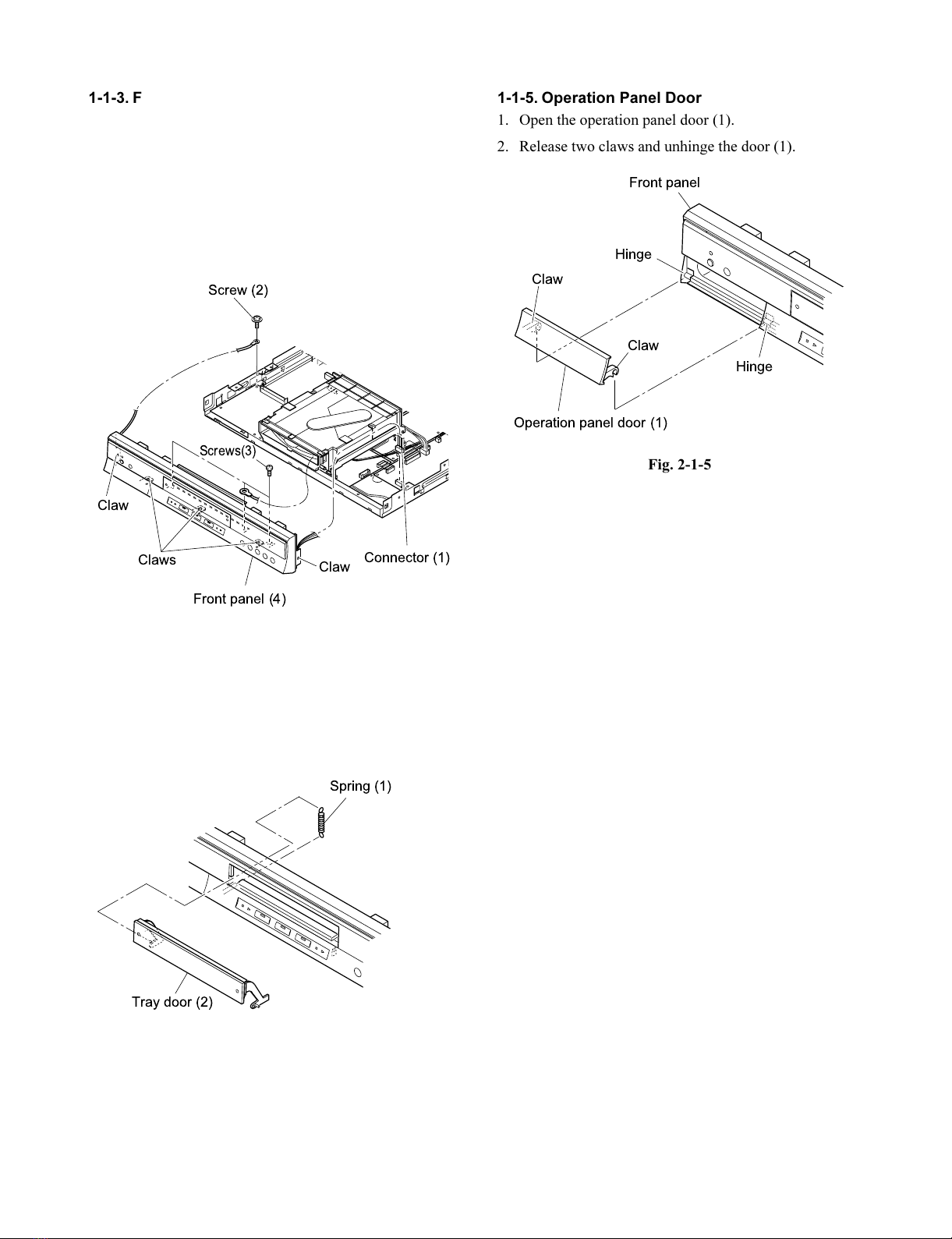

1-1-5. Operation Panel Door
1. Open the operation panel door (1).
2. Release two claws and unhinge the door (1).
Fig. 2-1-5
1-1-3. Front Panel
1. Remove the top cover. (Refer to item 1-1-1.)
2. Remove the HDD. (Refer to item 1-1-2.)
3. Remove a connector (1).
. Remove a screw (2).
5. Remove three screws (3).
6. Release five claws, then remove the front panel ( ).
Fig. 2-1-3
1-1-4. Tray Door
1. Remove a spring (1).
2. Remove the tray door (2) while slightly bending it.
Fig. 2-1-4

Screws (1)
Rear panel (2)
Claw
Claw

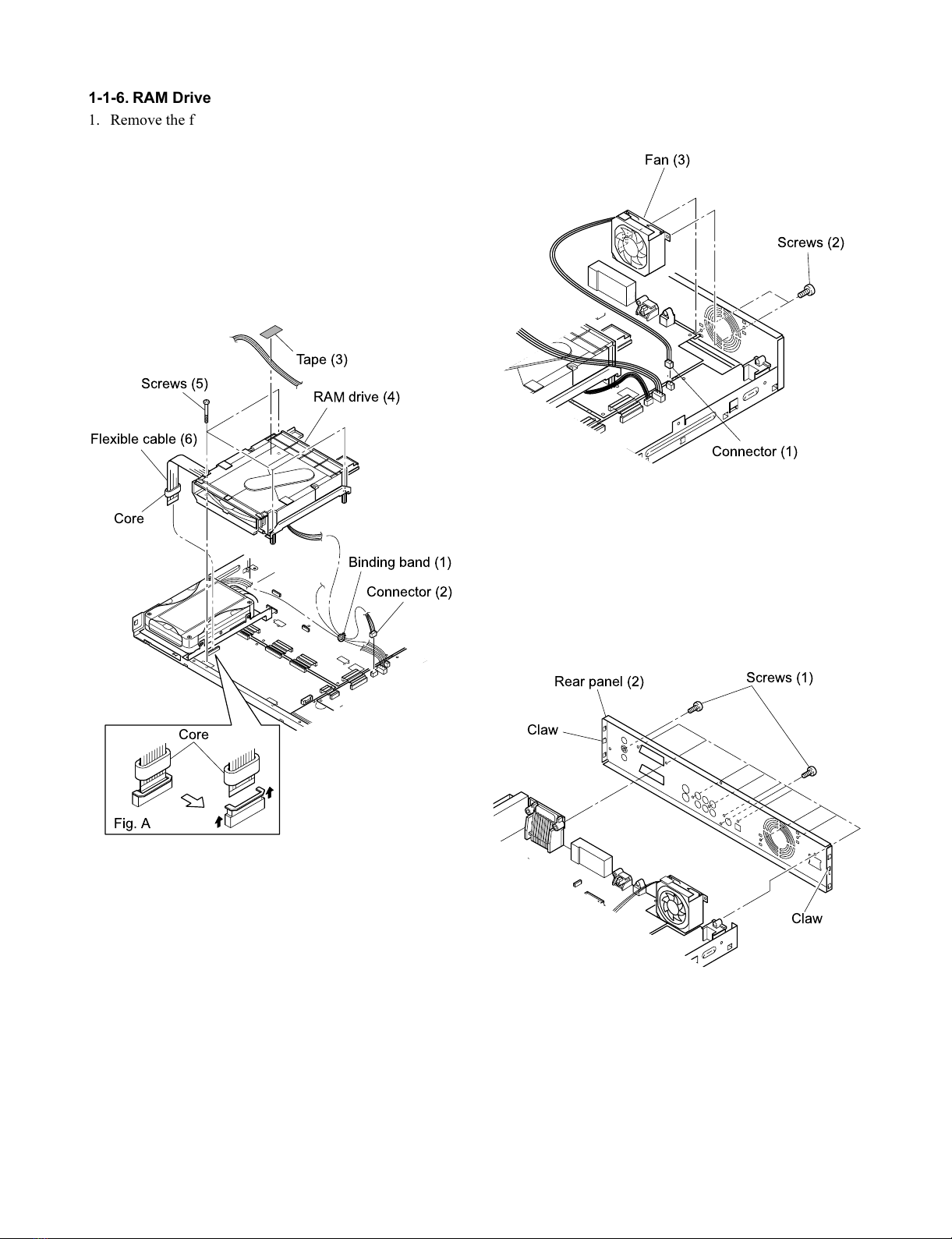

1-1-6. RAM Drive
1. Remove the front panel. (Refer to item 1-1-3.)
2. Loosen the binding band (1) and disconnect a connec-
tor (2).
3. Peel off the tape (3) from the RAM drive (4).
4. Remove four screws (5).
5. Remove the flexible cable (6) by lifting up in the
arrow direction (refer to Fig. A) and remove the RAM
drive (4).
Fig. 2-1-6
1-1-7. Fa
1. Remove a connector (1), two screws (2) and the fan (3).
Fig. 2-1-7
1-1-8. Rear Pa el
1. Remove eleven screws (1).
2. Loosen two claws and remove the rear panel (2).
Fig. 2-1-8
Screws (5) RAM drive (4)
Connector (2)
Binding band (1)
Flexible cable (6)
Core
Core
Fig. A
Tape (3)
Fan (3)
Screws (2)
Connector (1)

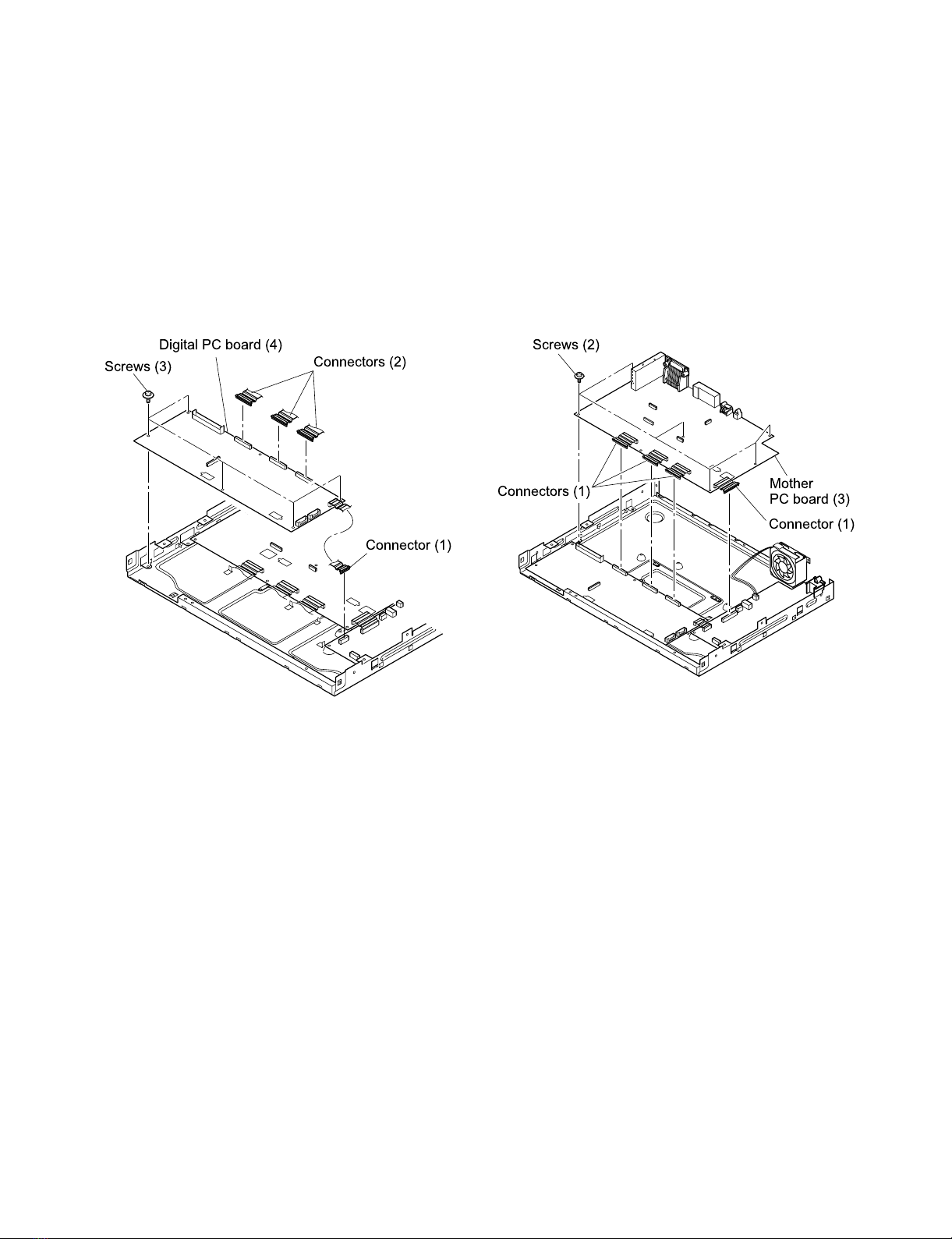

1-2. PC Board Replacement
1-2-1. Digital PC Board
1. Remove the HDD. (Refer to 1-1-2.)
2. Remove the front panel. (Refer to 1-1-3.)
3. Remove the RAM drive. (Refer to 1-1-6.)
4. Remove a connector (1).
5. Remove three connectors (2).
6. Remove five screws (3) and the digital PC board (4).
Fig. 2-1-9
1-2-2. Mother PC Board
1. Remove the HDD. (Refer to item 1-1-2.)
2. Remove the front panel. (Refer to item 1-1-3.)
3. Remove the RAM drive. (Refer to item 1-1-6.)
4. Remove the rear panel. (Refer to item 1-1-8.)
5. Remove four connectors (1).
6. Remove six screws (2), then remove the mother PC
board (3).
Fig. 2-1-10
Connectors (2)
Screws (3)
Digital PC board (4)
Connector (1)
Screws (2)
Mother
PC board (3)
Connector (1)
Connectors (1)

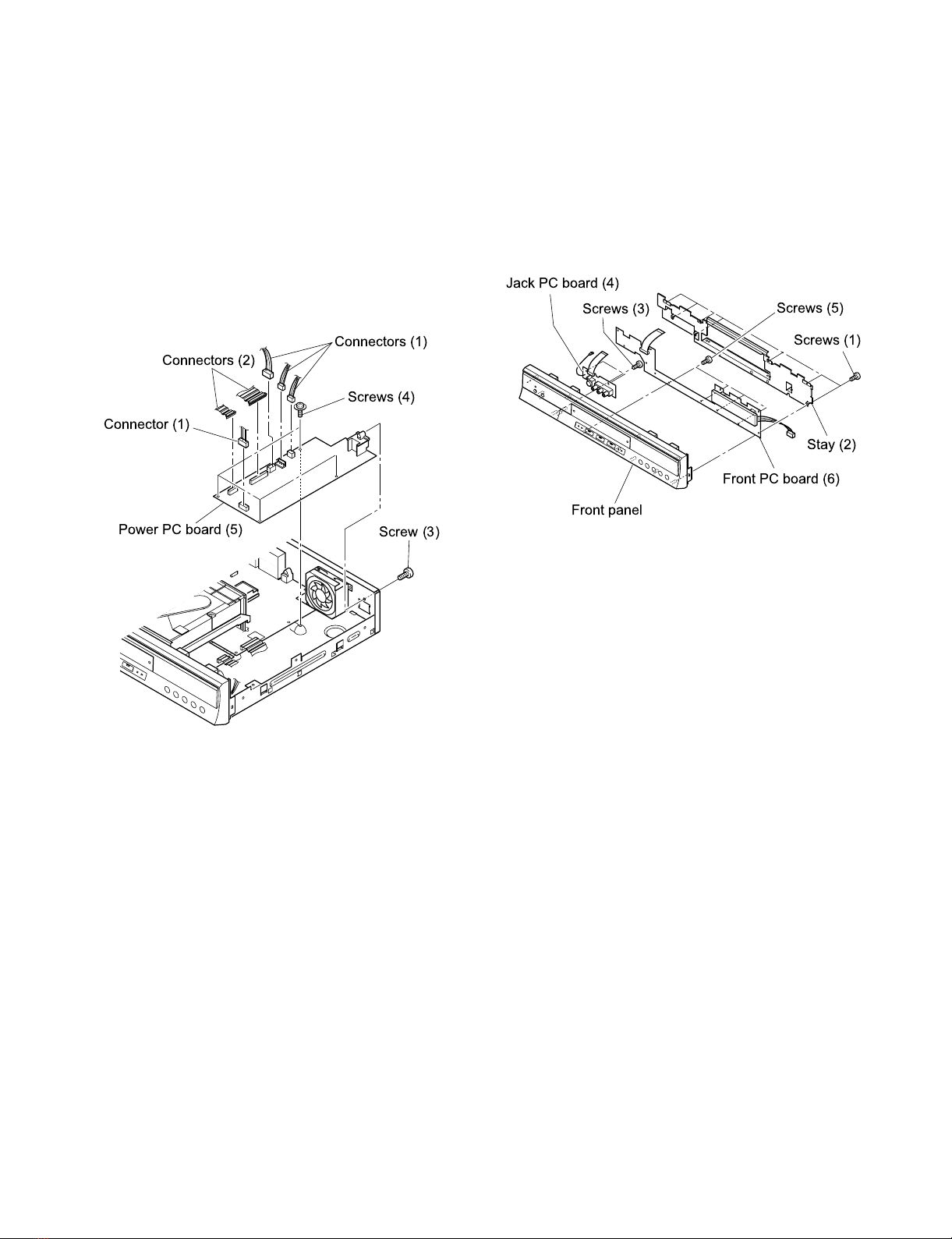

1-2-3. Power PC Board
Cautions :
•Danger of explosion if battery is incorrectly
replaced.
•Replace only with the same or equivalent type.
1. Disconnect four connectors (1).
2. Remove two connectors (2)
3. Remove a screw (3), four screws (4) and the power PC
oard (5).
Fig. 2-1-11
1-2-4. Front and Jack PC Board
1. Remove the front panel. (Refer to item 1-1-3.)
2. Remove seven screws (1), then remove the stay (2).
3. Remove three screws (3), then remove the jack PC
oard (4).
4. Remove four screws (5), then remove the front PC
oard (6).
Fig. 2-1-12
Connectors (1)
Connector (1)
Connectors (2)
Screws (4)
Screw (3)
Power PC board (5)
Screws (1)
Stay (2)
Front PC board (6)
Front panel
Screws (5)
Screws (3)
Jack PC board (4)
