Toshiba RD-XS32SB User manual

HDD/DVD VIDEO RECORDER
SERVICE MANUAL
May, 2004
S
FILE NO. 810-200423
RD-XS32SB
RD-XS32SF
RD-XS32SG
DIGITAL VIDEO

PREPARATION OF SERVICING
Pickup Head consists of a laser diode that is very susceptible to external static electricity.
Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement,
its life might be shortened. When replacing, use a conductive mat, soldering iron with ground wire, etc. to
protect the laser diode from damage by static electricity.
And also, the SI and IC are same as above.
1M W
Ground conductive
wrist strap for body.
Soldering iron
with ground wire
or ceramic type
Conductive mat The ground resistance
between the ground line
and the ground is less than 10 W .
LASER BEAM CAUTION LABEL
When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of a laser
may be received.

SECTION 2
PART REPLACEMENT AND ADJUSTMENT PROCEDURES
SECTION 3
SERVICING DIAGRAMS

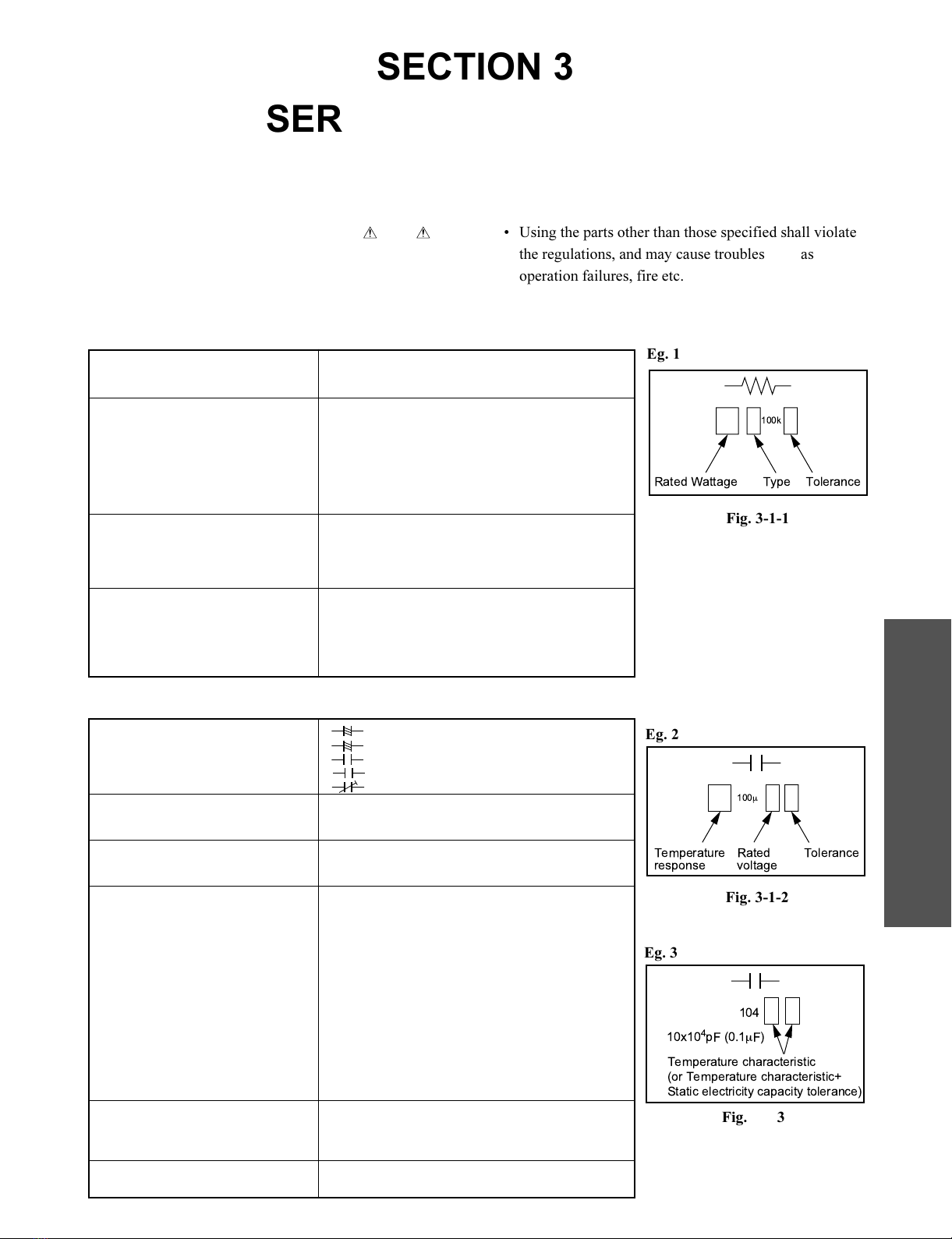

1. CIRCUIT SYMBOLS AND
SUPPLEMENTARY EXPLANATION
1-1. Precau ions for Par Replacemen
1-2. Solid Resis or Indica ion
1-3. Capaci ance Indica ion
1-4. Induc or Indica ion
1-5. Waveform and Vol age Measuremen
1-6. O hers
2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM
3. BLOCK DIAGRAMS
3-1. Overall Block Diagram
4. CIRCUIT DIAGRAMS
4-1. Power Supply Circui Diagram
4-2. Fron Circui Diagram
4-2-1. Fron Jack Circui Diagram
4-2-2. Fron Circui Diagram (L/R)
4-3. Digi al Circui Diagram
4-3-1. Digi al 1 Circui Diagram
4-3-2. Digi al 2 Circui Diagram
4-4. Mo her Circui Diagram
4-4-1. Tuner Circui Diagram
4-4-2. Timer Circui Diagram
4-4-3. Audio Circui Diagram
4-4-4. Video Circui Diagram
4-4-5. MSP Circui Diagram
5. PC BOARDS
5-1. Fron Jack PC Board
5-2. Fron (L) PC Board
5-3. Fron (R) PC Board
5-4. Digi al PC Board
5-5. Mo her PC Board
CONTENTS
SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
1. Replacemen of Mechanical Par s
1-1. Cabine Replacemen
1-1-1. Top Cover
1-1-2. HDD
1-1-3. Fron Panel
1-1-4. Tray Door
1-1-5. Opera ion Panel Door
1-1-6. RAM Diver
1-1-7. Fan
1-1-8. Rear Panel
1-2. PC Board Replacemen
1-2-1. Digi al PC Board
1-2-2. Mo her PC Board
1-2-3. Power PC Board
1-2-4. Fron (R), Fron (L), Fron (Jack) PC Board
2. LOCATION OF MAIN PARTS
2-1. Loca ion of Main Par s
2-2. Loca ion of PC Boards
SECTION 4
PARTS LIST
SAFETY PRECAUTION
NOTICE
ABBREVIATIONS
1. In egra ed Circui (IC)
2. Capaci or (Cap)
3. Resis or (Res)
4. EXPLODED VIEWS
4-1. Packing Assembly
4-2. Chassis Assembly
5. PARTS LIST

SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
Please refer to the owner's manual about the contents.
SECTION 1
GENERAL DESCRIPTIONS

2. LOCATION OF MAIN PARTS
2-1. Location of Main Parts
Fig. 1-2-1
2-2. Location of PC Boards
Fig. 1-2-2
ZG45 FAN
RAM1 RAM DRIVEHDD1 HDD UNIT
EU05 Mother PC board
EU01 Digita PC Board
EU02 Power PC board
EU03A Front (R) PC Board
EU55 Front (Jack) PC Board
EU03B Front (L)
PC Board

1-1. Cabinet Replacement
1-1-1. Top Cover
1. Remove seven screws (1), then remove the top cover (2).
Fig. 2-1-1
SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
Screws (1)
Screws (1)
Screws (1)
Top cover (2)
SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
CAUTIONS BEFORE STARTING PART REPLACEMENT
Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to ground as required.
any screws are used inside the unit. To prevent the screws from missing or dropping, etc. always use a magnetized
screwdriver in servicing. Several kinds of screws are used and some of them need special cautions. That is, take care of
the tapping screws securing molded parts and fine pitch screws used to secure metal parts. If they are used improperly,
the screw holes will be easily damaged and the parts can not be fixed.
1. REPLACEMENT OF MECHANICAL PARTS

1-1-2. HDD
1. Peel off two tapes (1).
2. Disconnect the flexible cable (2).
3. Disconnect the connector (3).
4. Remove two screws (4) and two screws (5), then remove the HDD (6).
Fig. 2-1-2
Tapes (1)
Screws (4)
Screws (5)
Flexible cable (2)
Connector (3)
HDD (6)
Connector
Claw
Flexible cable (2)
Remove the connector claw
in the direction indicated
by the arrows to release the
flexible cable.
A
A

1-1-3. Front Pane
1. Remove the top cover. (Refer to item 1-1-1.)
2. Remove the HDD. (Refer to item 1-1-2.)
3. Disconnect the flexible cable (1).
4. Disconnect the flexible cadle (2) and two connectors (3).
5. Remove two screws (4).
6. Release four claws, then remove the front panel (5).
Fig. 2-1-3
1-1-4. Tray Door
1. Remove the front (R) PC board and front (L) PC board. (Refer to item 1-2-4.)
2. Remove a spring (1).
3. Remove the tray door (2) while slightly bending it.
Fig. 2-1-4
Flexible cable (1)
Flexible
cable (2)
Connector (3)
Connector (3)
Screws (4)
Front panel (5)
Claw
Claw
Claws
Spring (1)
Tray door (2)

1-1-5. Operation Pane Door
1. Open the operation panel door (1).
2. Release two claws and unhinge the door (1).
Fig. 2-1-5
1-1-6. RAM Drive
1. Remove the HDD. (Refer to item 1-1-2.)
2. Peel off the tape (1).
3. Disconnect the flexible cables (2).
4. Disconnect the connector (3).
5. Remove two screws (4) and acrylic board (5).
6. Remove four screws (6), then remove the RA drive (7).
Fig. 2-1-6
Flexible
cable (2)
Connector (3)
Tape (1)
Acrylic
board (5)
Screws (6)
Screws (4)
RAM
drive (7)
Connector
Claw
Flexible cable (2)
A
A
Remove the connector claw
in the direction indicated
by the arrows to release the
flexible cable.
Lay the wire under
the RAM drive (7)
Front pane
Hinge
C aw
C aw
Hinge
Operation
pane door (1)

1-1-7. Fan
1. Peel off the tape (1).
2. Disconnnect the connector (2).
3. Remove four screws (3) and the fan (4).
Note:
• After replacing the fan (4), attatch the tape (1) as it was.
Fig. 2-1-7
1-1-8. Rear Pane
1. Remove twelve screws (1), then remove the rear panel (2).
Fig. 2-1-8
Wire (5)
Screws (3)
Connector (2)
Tape (1)
Fan (4)
Acrylic board
Pass the wire (5)
underneath the
folded part.
Wire (5)
Screws (1)
Rear panel (2)
