Toshiba RD-XS34SB User manual

HDD/DVD VIDEO RECORDER
SERVICE MANUAL
Feb., 2005
S
FILE NO. 810-200512
RD-XS34SB
RD-XS34SF
RD-XS34SG
DIGITAL VIDEO

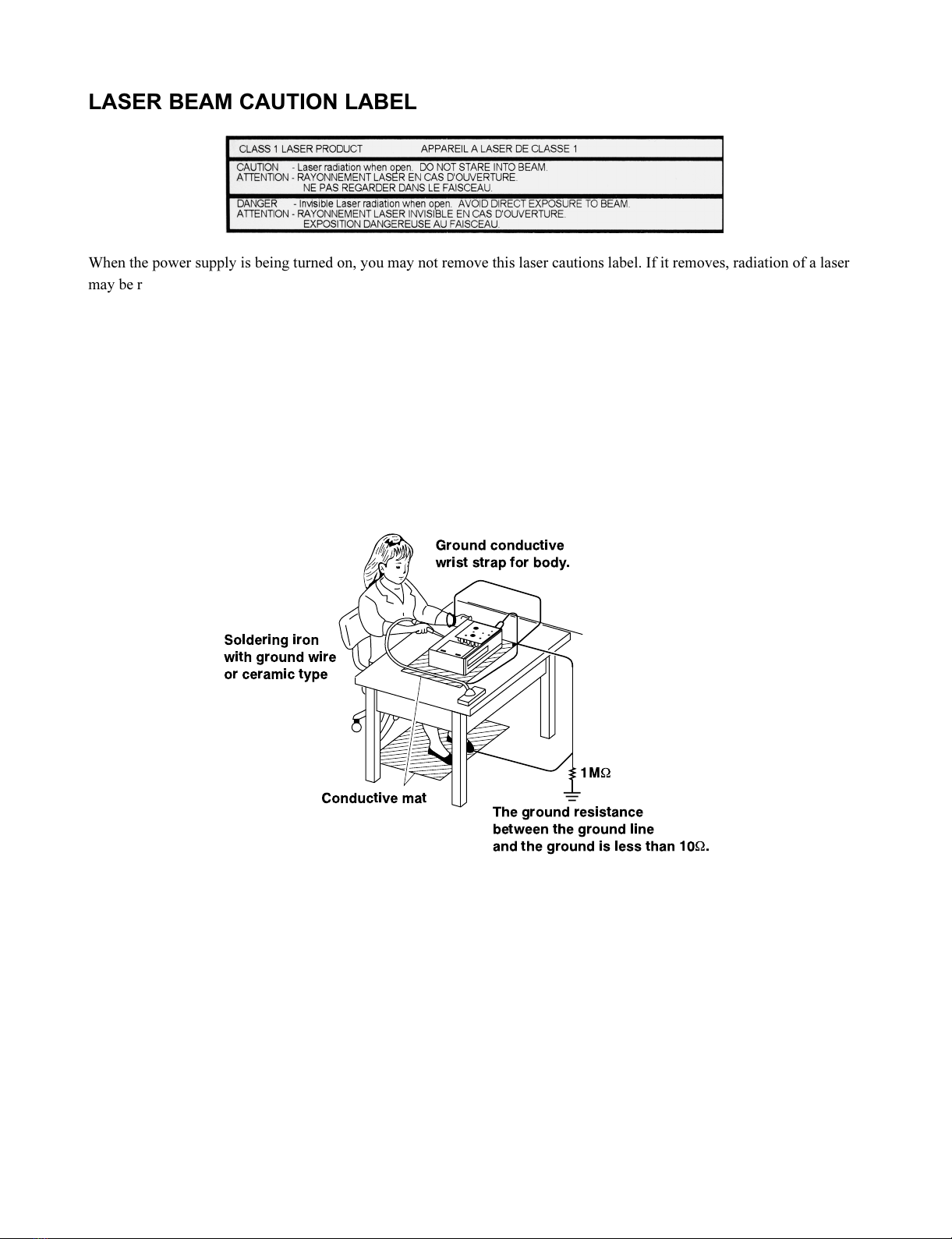

PREPARATION OF SERVICING
Pickup Head consists of a laser diode that is very susceptible to external static electricity.
Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement,
its life might be shortened. When replacing, use a conductive mat, soldering iron with ground wire, etc. to
protect the laser diode from damage by static electricity.
And also, the SI and IC are same as above.
1M W
Ground conductive
wrist strap for body.
Soldering iron
with ground wire
or ceramic type
Conductive mat The ground resistance
between the ground line
and the ground is less than 10 W .
LASER BEAM CAUTION LABEL
When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of a laser
may be received.
·Manufactured under license from Dolby Laboratories. “Dolby” and the double D symbol are trademarks of Dolby
Laboratories.
·“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
·Manufactured under license from QSound Labs, Inc. U.S. patent Nos. 5,105,462, 5,208,860 and 5,440,638 and various
foreign counterpart. Copyright QSound Labs, Inc. 1998 2002. QXpanderTM is a trademark of QSound Labs, Inc. All
rights reserved.
·VideoPlus and VideoPlus Deluxe are the trademarks of Gemstar Europe, Ltd.

SECTION 2
PART REPLACEMENT AND ADJUSTMENT PROCEDURES
SECTION 3
SERVICING DIAGRAMS
1. CIRCUIT SYMBOLS AND
SUPPLEMENTARY EXPLANATION
1-1. Precau ions for Par Replacemen
1-2. Solid Resis or Indica ion
1-3. Capaci ance Indica ion
1-4. Induc or Indica ion
1-5. Waveform and Vol age Measuremen
1-6. O hers
2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM
3. BLOCK DIAGRAMS
3-1. Overall Block Diagram
4. CIRCUIT DIAGRAMS
4-1. Power Supply Circui Diagram
4-2. Fron Circui Diagram
4-2-1. Fron Jack Circui Diagram
4-2-2. Fron Circui Diagram (L/R)
4-3. Digi al Circui Diagram
4-3-1. Digi al 1 Circui Diagram
4-3-2. Digi al 2 Circui Diagram
4-4. Mo her Circui Diagram
4-4-1. Tuner In erface Circui Diagram
4-4-2. Timer Circui Diagram
4-4-3. Audio Circui Diagram
4-4-4. Video Circui Diagram
4-4-5. MSP Circui Diagram
4-5. Tuner Uni Circui Diagram
5. PC BOARDS
5-1. Fron Jack PC Board
5-2. Fron (L) PC Board
5-3. Fron (R) PC Board
5-4. Tuner Uni PC Board
5-5. Digi al PC Board
5-6. Mo her PC Board
CONTENTS
SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
1. REPLACEMENT OF MECHANICAL PARTS
1-1. Cabine Replacemen
1-1-1. Top Cover
1-1-2. HDD
1-1-3. Fron Panel
1-1-4. RAM Drive
1-1-5. Rear Panel
1-1-6. Fan
1-2. PC Board Replacemen
1-2-1. Tuner Uni PC Board
1-2-2. Digi al PC Board
1-2-3. Mo her PC Board
1-2-4. Power PC Board
1-2-5. Fron (R), Fron (L) and Fron (Jack) PC Board
2. WIRING CONNECTION DIAGRAM
2. LOCATION OF MAIN PARTS
2-1. Loca ion of Main Par s
2-2. Loca ion of PC Boards
SECTION 4
PARTS LIST
SAFETY PRECAUTION
NOTICE
ABBREVIATIONS
1. EXPLODED VIEWS
1-1. Packing Assembly

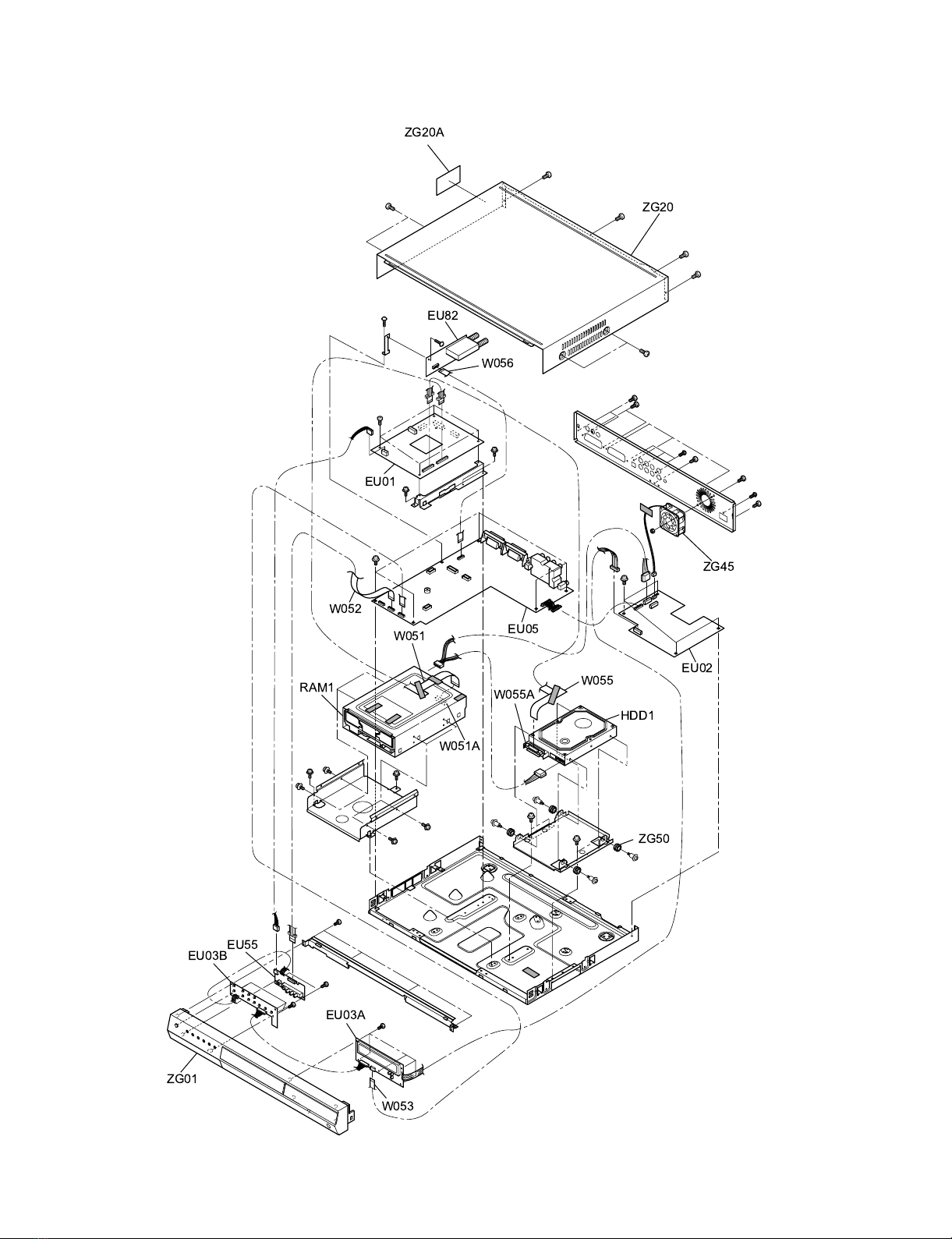

1-2. Chassis Assembly
2. PARTS LIST

SECTION 1
GENERAL DESCRIPTIONS
1. OPERATING INSTRUCTIONS
Please refer to the owner's manual about the contents.
SECTION 1
GENERAL DESCRIPTIONS

2. LOCATION OF MAIN PARTS
2-1. Location of Main Parts
Fig. 1-2-1
2-2. Location of PC Boards
Fig. 1-2-2
ZG45 FAN
RAM1 RAM DRIVE
HDD1 HDD UNIT
EU05 Mother PC board
EU02 Power PC board
EU01 Digital
PC board
EU82 Tuner Unit PC board
EU03A Front (R) PC board
EU03B Front (L)
PC board
EU55 Front (Jack)
PC board

1-1. Cabinet Replacement

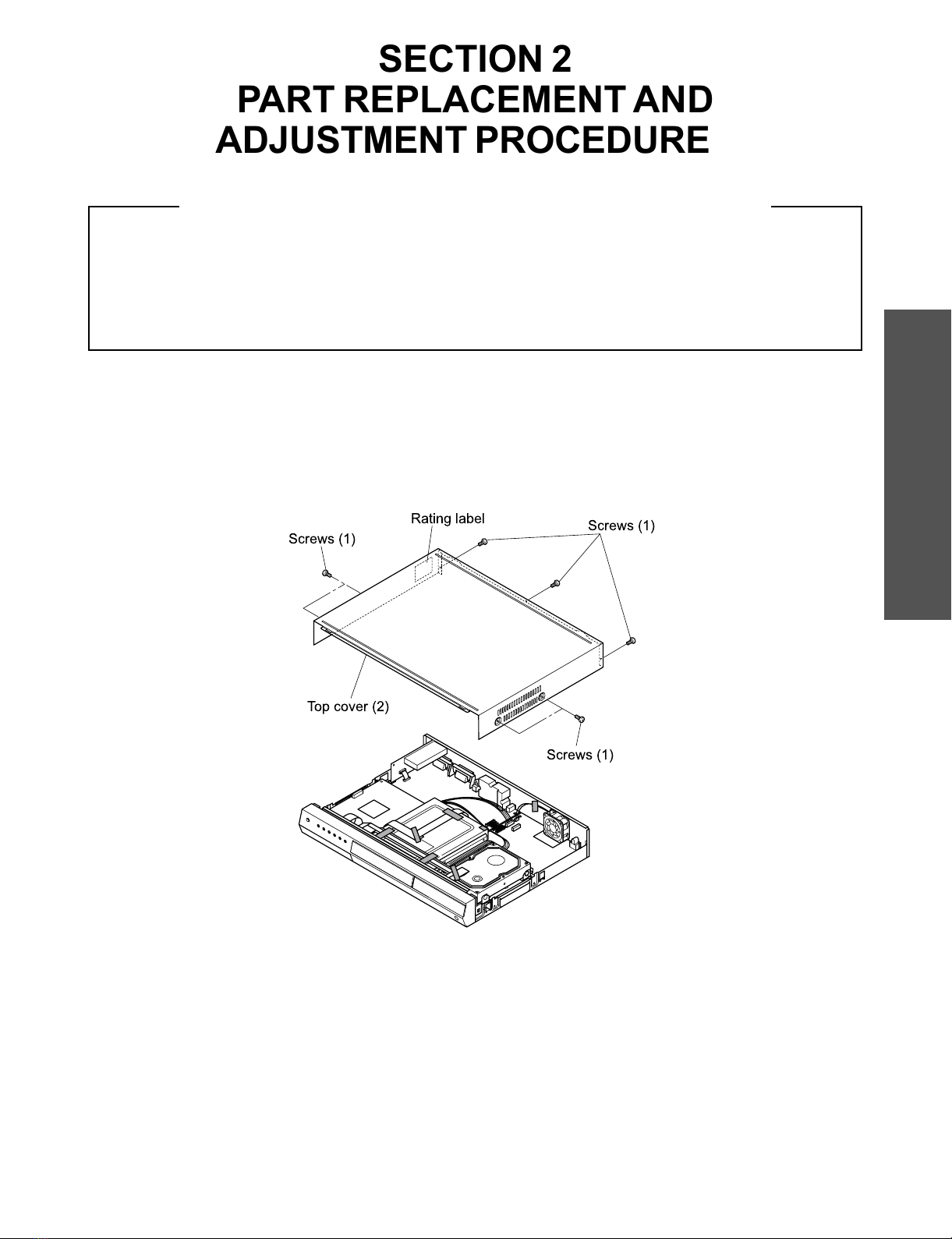

1-1-1. Top Cover
1. Remove seven screws (1), then remove the top cover (2).
Fig. 2-1-1
SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
Screws (1)
Screws (1)
Rating label
Screws (1)
Top cover (2)
SECTION 2
PART REPLACEMENT AND
ADJUSTMENT PROCEDURES
CAUTIONS BEFORE STARTING PART REPLACEMENT
Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to ground as required.
any screws are used inside the unit. To prevent the screws from missing or dropping, etc. always use a magnetized
screwdriver in servicing. Several kinds of screws are used and some of them need special cautions. That is, take care of
the tapping screws securing molded parts and fine pitch screws used to secure metal parts. If they are used improperly,
the screw holes will be easily damaged and the parts can not be fixed.
1. REPLACEMENT OF MECHANICAL PARTS
Note:
There is a rating label applied on the top cover.
When the top cover is replaced with a new one, put a new rating label on the new top cover.
Transcribe the following items ( odel No., serial No., power supply/power requirement etc.) described on the old rating
label to the new rating label by using a permanent marker.

1-1-2. HDD
1. Remove the top cover. (Refer to item 1-1-1.)
2. Peel off the tape (1).
3. Remove four screws (2).
4. Disconnect the flexible cable (3) and the connector (4).
5. Remove four screws (5) and four dampers (7), then remove the HDD (8).
Note:
• After replacing, attach the tape (1) to its original position.
Fig. 2-1-2
Dampers (7)
Dampers (7)
Damper (7)
Damper (7)
HDD (8)
Tape (1)
Screws (5)
Screws (5)
Screws (2) Screws (2)
Flexible
cable (3)
Connector (4)
HDD bracket (6)

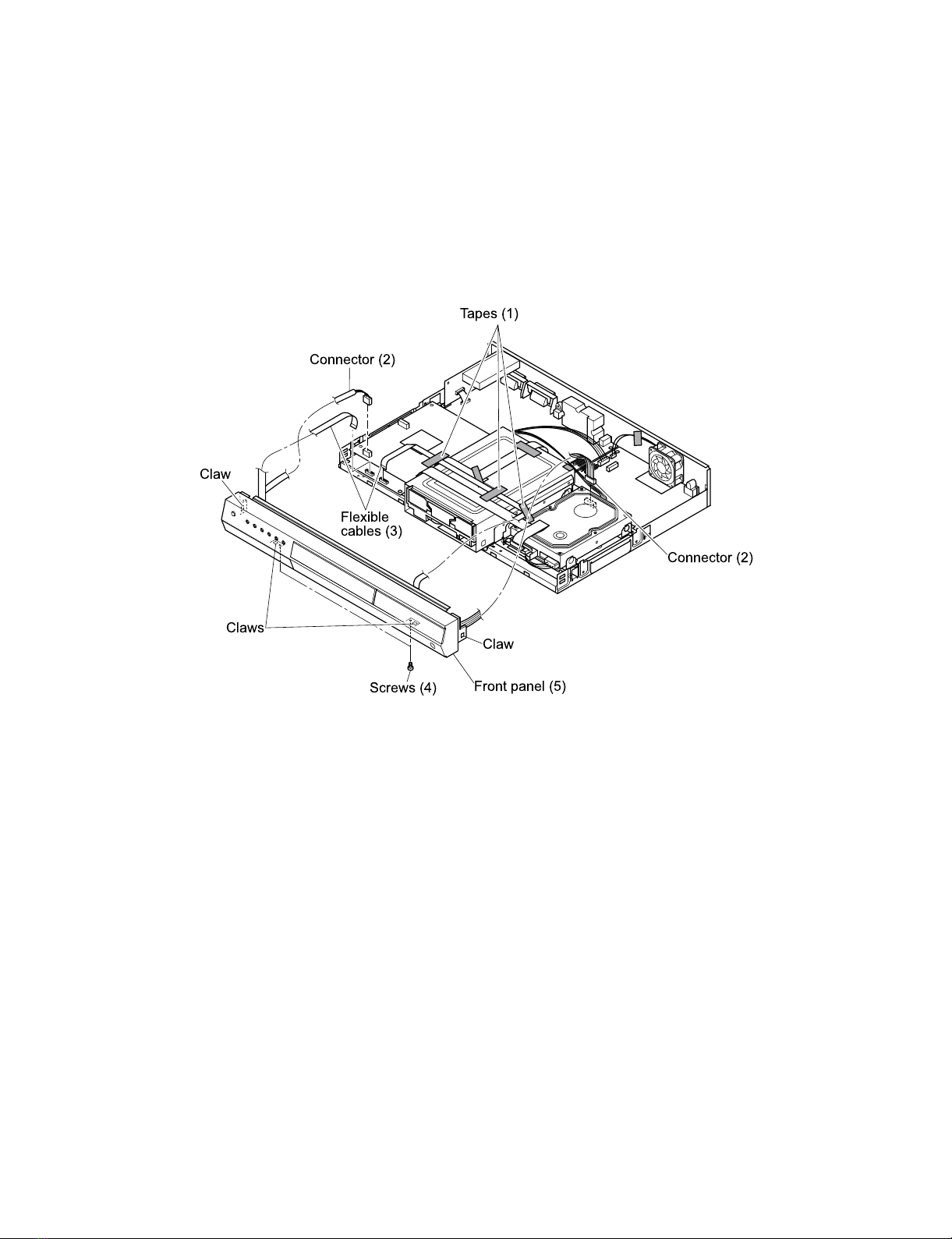

1-1-3. Front P nel
1. Remove the top cover. (Refer to item 1-1-1.)
2. Peel off three tapes (1).
3. Disconnect two connectors (2) and two flexible cables (3).
4. Remove two screws (4) and four claws, then remove the front panel (5).
Note:
• After replacing, attach the tape (1) to its original position.
Fig. 2-1-3
Flexible
cables (3)
Connector (2)
Connector (2)
Tapes (1)
Screws (4) Front panel (5)
Claws Claw
Claw

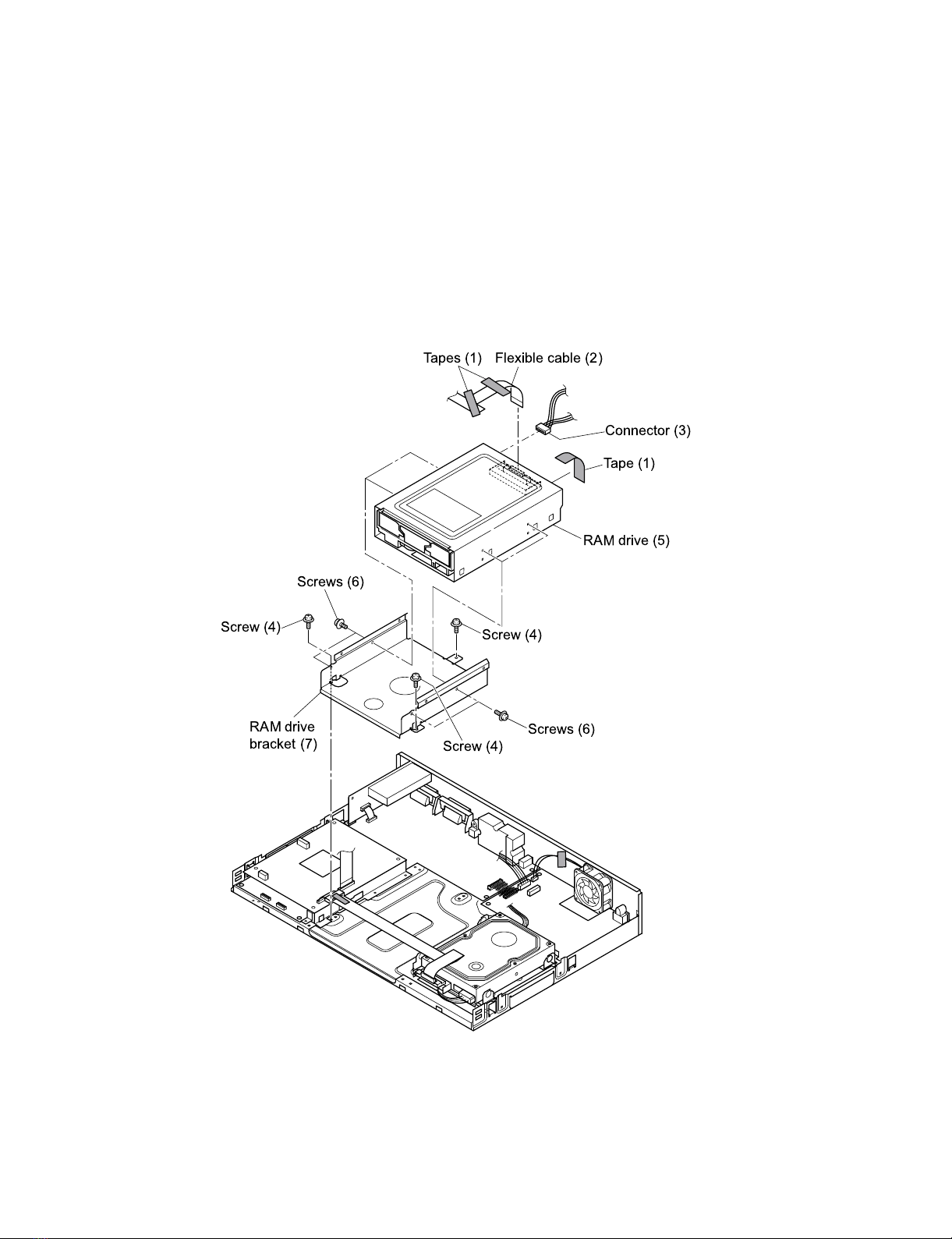

1-1-4. RAM Drive
1. Remove the front panel. (Refer to item 1-1-3.)
2. Peel off three tapes (1).
3. Disconnect the flexible cable (2) and the connector (3).
4. Remove three screws (4), then remove the RA drive (5).
5. Remove four screws (6), then remove the RA drive bracket (7).
Note:
• After replacing, attach the tape (1) to its original position.
Fig. 2-1-4
Flexible cable (2)
Connector (3)
Screw (4)
Screw (4)
Screw (4)
Tapes (1)
Tape (1)
RAM drive (5)
Screws (6)
Screws (6)
RAM drive
bracket (7)

1-1-5. Re r P nel
1. Remove the top cover. (Refer to item 1-1-1.)
2. Peel off the tape (1).
3. Remove the screw (2), four screws (3) and five screws (4).
4. Remove two claws, then remove the rear panel (5).
5. Remove two screws (6), them remove the fan (7).
Note:
• After replacing, attach the tape (1) to its original position.
Fig. 2-1-5
1-1-6. F n
1. Remove the top cover. (Refer to item 1-1-1.)
2. Peel off the tape (1).
3. Remove the connector (2).
4. Remove two screws (3), then remove the fan (4).
Note:
• After replacing, attach the tape (1) to its original position.
Screw (2)
Screws (4)
Screws (3)
Tape (1)
Screws (6)
Rear panel (5)
Fan (7)
Hexagonal nut
Claw
Claw
Screws (3)
Connector (2)
Fan (4)
Tape (1)
Hexagonal nut
Fig. 2-1-6

1-2. PC Board Replacement
1-2-1. Tuner Unit PC Bo rd
1. Remove the top cover. (Refer to item 1-1-1.)
2. Remove the screw (1) and the screw (2).
3. Remove the claw, then remove the Tuner Unit PC board (3).
4. Disconnect the flexible cable (4).
Tuner Unit PC board (3)
Screw (1)
Screw (2)
Flexible
cables (4)
Claw
1-2-2. Digit l PC Bo rd
1. Remove the top cover. (Refer to item 1-1-1.)
2. Disconnect two flexible cables (1) and the connector (2).
3. Remove four screws (3), then remove the Digital PC board (4).
Note:
• The Digital PC board (4) is connected to the other PC board (5) by three connectors (6). Take notice when removing.
Fig. 2-1-8
Connector (2)
Connector (6)
Screws (3)
Digital PC board (4)
Connectors (6)
Flexible
cables (1)
Mother PC board (5)
A
A
Flexible
cable (1)
Connector
Remove the connector claw
in the direction indicated
by the arrows to release the
flexible cable.
Claw
Fig. 2-1-7

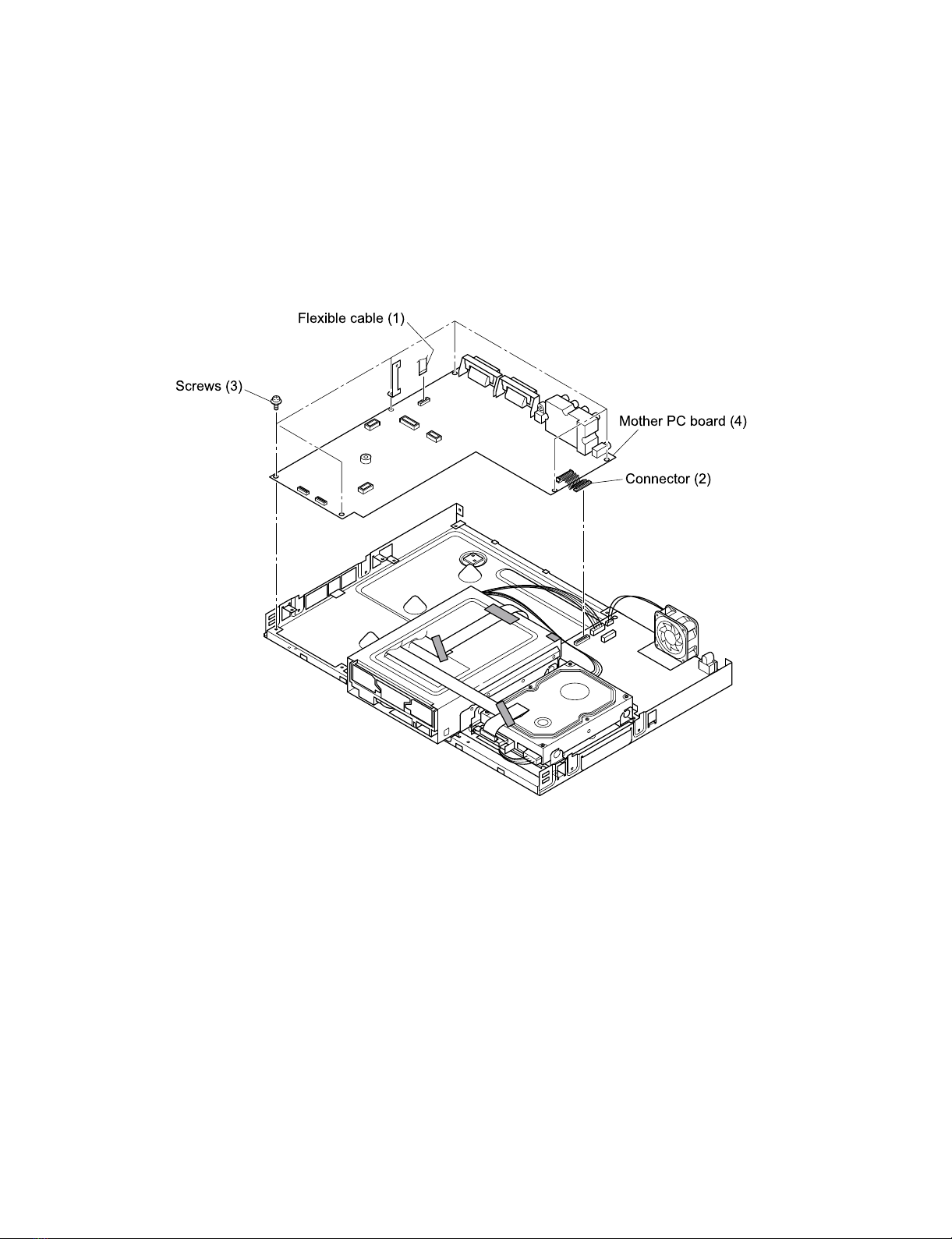

1-2-3. Mother PC Bo rd
1. Remove the Front panel. (Refer to item 1-1-3.)
2. Remove the Rear panel. (Refer to item 1-1-5.)
3. Remove the Tuner Unit PC board. (Refer to item 1-2-1.)
4. Remove the Digital PC board. (Refer to item 1-2-2.)
5. Disconnect the flexible cable (1) and the connector (2).
6. Remove six screws (3), then remove the other PC board (4).
Fig. 2-1-9
Screws (3)
Connector (2)
Flexible cable (1)
Mother PC board (4)

1-2-4. Power PC Bo rd
C utions :
• Danger of explosion if battery is incorrectly replace .
• Replace only with the same or equivalent type.
1. Remove the top cover. (Refer to item 1-1-1.)
2. Disconnect three connectors (1) and the connector (2).
3. Remove three screws (3) and the screw (4), then remove the Power PC board (5).
Fig. 2-1-10
Connector (1)
Connectors (1)
Connector (2)
Screws (3)
Power PC board (5)
Screw (4)

1-2-5. Front (R), Front (L) nd Front (J ck) PC Bo rds
1. Remove the front panel. (Refer to item 1-1-3.)
2. Peel off two tapes (1).
3. Remove four screws (2), then remove the stay (3).
4. Remove four screws (4), then remove the Front (R) PC board (5).
5. Remove two screws (6), then remove the Front (Jack) PC board (7).
6. Remove four screws (8), then remove the Front (L) PC board (9).
Note:
• After replacing, attach the tape (1) to its original position.
Fig. 2-1-11
Screws (2)
Screws (4)
Tapes (1)
Screws (8)
Screws (6)
Stay (3)
Front (L)
PC board (9)
Front (R)
PC board (5)
Front panel
Front (Jack)
PC board (7)
Stay Wire Tray door
Front (L)
PC board
Front (R)
PC board Front (Jack)
PC board
Fasten with the tape.
Fig. 2-1-12
Note:
• Fasten with the tape, taking care so that the wire does not hang over the tray door.

2. WIRING CONNECTION DIAGRAM
After the servicing is complete, return the wiring to its original state by using the diagram below as a reference.
Front panel
HDD
RAM drive
W056
W003
W100
W003
Power PC board
Mother PC boardTuner Unit PC board
Digital PC board
W004
W101
Fan
W051
W052
W055
: Tape
: Flexible cable
Fig. 2-2-1

SECTION 4
PARTS LIST
SAFETY PRECAUTION
The parts identified by ! ( ) mark are critical for safety. Replace only with part number specified.
The mounting position of replacement is to be identical with originals.
The substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create
shock, fire or other hazards.
NOTICE
The part number must be used when ordering parts in order to assist in processing, be sure to include the model number and
description.
ABBREVIATIONS
• Integrated Circuit (IC)
• Capacitor (Cap)
• Capacitance Tolerance (for Nominal Capacitance more than 10pF)
P
100
0
Symbol
Tolerance %
B
± 0.1
C
± 0.25
D
± 0.5
F
± 1
G
± 2 ± 5
K
± 10
M
± 20
N
± 30
V
20
– 10
W
100
– 10
U
75
– 10
Q
30
– 10
T
50
– 10
Symbol
Tolerance %
X
40
– 20
Y
150
– 10
Z
80
– 20
Ex. 10µF J = 10µF ± 5%
Symbol
Tolerance pF
B
± 0.1
C
± 0.25
D
± 0.5
F
± 1
G
± 2
Ex. 10pF G = 10pF ± 2pF
M
± 20
Symbol
Tolerance %
B
± 0.1
C
± 0.25
D
± 0.5
F
± 1
G
± 2 ± 5
K
± 10
Ex. 470WJ = 470W± 5%
Table 4-2-1
Table 4-2-2
Table 4-3-1
• Capacitance Tolerance (for Nominal Capacitance 10pF or less)
• Resistor (Res)
• Resistance tolerance
SECTION 4
PARTS LIST

1. EXPLODED VIEWS

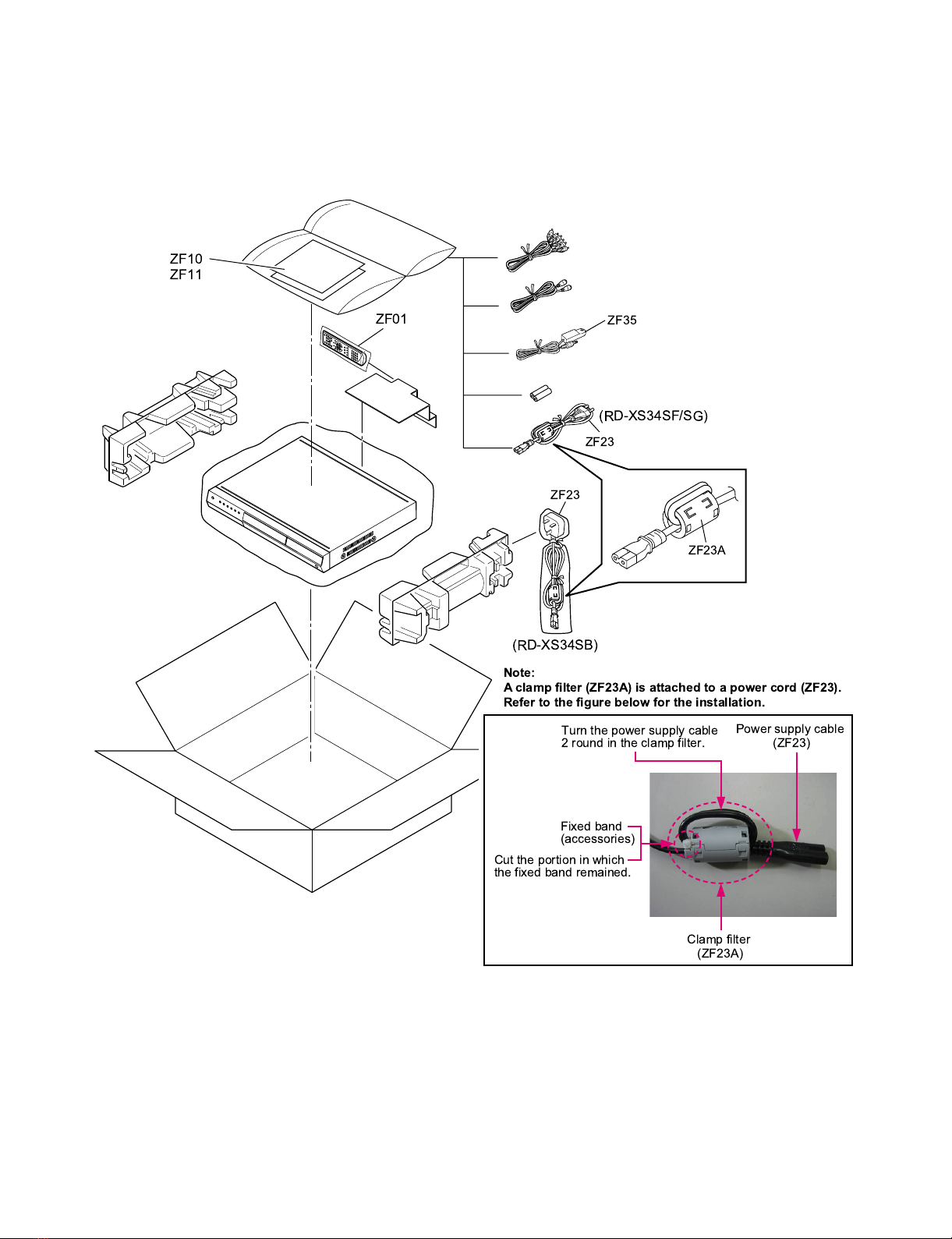

1-1. Packing Assembly
Fig. 4-4-1
ZF01
(RD-XS34SF/SG)
(RD-XS34SB)
ZF10
ZF11
ZF35
ZF23
ZF23A
ZF23
Power supply cable
(ZF23)
Clamp filter
(ZF23A)
Fixed band
(accessories)
Note:
A clamp filter (ZF23A) is attached to a power cord (ZF23).
Refer to the figure below for the installation.
Turn the power supply cable
2 round in the clamp filter.
Cut the portion in which
the fixed band remained.

1-2. Chassis Assembly
Fig. 4-4-2
EU05
EU01
EU82
EU02
EU03A
EU03B
ZG01
EU55
ZG20
ZG20A
ZG45
W056
W055
W055A
ZG50
HDD1
W051
W051A
W053
RAM1
W052

*a: for RD-XS34SB, b: for RD-XS34SF, c: for RD-XS34SG
Location
No. Part No. Description
- MECHANICAL PARTS -
HDD1 P000428190 HDD,ST3160022ACECS 160GB
! RAM1 P000432490 DVD-RAM SW-9573-ETS
W051 P000433820 Cable,Flexible FFC,40P,L280
W051A P000391300 CONV Unit,ATAPI-FFC
W052 P000435000 Cable,Flexible FFC,18P,L120
W053 P000434990 Cable,Flexible FFC,7P,L400
W055 P000387340 Cable,Flexible FFC,40P,L360
W055A P000391300 CONV Unit,ATAPI-FFC
W056 P000435030 Cable,Flexible FFC,13P,L70
a ZF01 P000405140 Remote Control UnitSE-R0132,RD-XS34SB
b,c ZF01 P000405350 Remote Control UnitSE-R0133,RD-XS34SG/F
a ! ZF10A P000422540 Owners Manual,ST English,RD-XS34SB
a ! ZF10B P000422550 Owners Manual,OP English,RD-XS34SB
a ! ZF10C P000422560 Owners Manual,Quick,English,RD-XS34SB
b ! ZF10D P000422860 Owners Manual,Quick,English,RD-XS34SF
b ! ZF10G P000422570 Owners Manual,ST English,RD-XS34SF
b ! ZF10I P000422580 Owners Manual,OP English,RD-XS34SF
b ! ZF10K P000422590 Owners Manual,ST French,RD-XS34SF
b ! ZF11A P000422600 Owners Manual,OP French,RD-XS34SF
c ! ZF10E P000422870 Owners Manual,Quick,English,RD-XS34SG
c ! ZF11B P000422610 Owners Manual,ST English,RD-XS34SG
c ! ZF11C P000422620 Owners Manual,OP English,RD-XS34SG
c ! ZF11D P000422630 Owners Manual,ST German,RD-XS34SG
c ! ZF11E P000422640 Owners Manual,OP German,RD-XS34SG
c ! ZF11G P000422650 Owners Manual,ST Spanish,RD-XS34SG
c ! ZF11I P000422660 Owners Manual,OP Spanish,RD-XS34SG
a ! ZF23 79088034 Power Cord,UK
b,c ! ZF23 79088010 Power Cord,TE
ZF23A P000440210 FILTER, ZCAT2132-1130
ZF35 P000401300 IR-Blaster RWS1000-0052L
a ZG01 P000435020 Panel Assy,Front RD-XS34SB
b,c ZG01 P000435090 Panel Assy,Front RD-XS34SG/F
ZG20 P000432500 Cover,Top
a ZG20A P000438110 Rating Label RD-XS34SB
b,c ZG20A P000438120 Rating Label RD-XS34SG/F
ZG45 P000401260 Fan,DC 5025LL12SND2
ZG50 P000438100 Damper
Note:
A clamp filter (ZF23A) is attached to a power cord (ZF23). When replacing the
power cord, install the clamp filter.
There is a rating label (ZG20A) applied on the top cover (ZG20).
When the top cover is replaced with a new one, put a new rating label on the new
top cover.
Transcribe the following items (Model No., serial No., power supply/power
requirement etc.) described on the old rating label to the new rating label by
using a permanent marker.
2. PARTS LIST

*a: for RD-XS34SB, b: for RD-XS34SF, c: for RD-XS34SG
Location
No. Part No. Description
- ELECTRICAL PARTS -
a EU01 P000435040 PC Board Assy Digital,RD-XS34SB
b EU01 P000435100 PC Board Assy Digital,RD-XS34SF
c EU01 P000435120 PC Board Assy Digital,RD-XS34SG
- INTEGRATED CIRCUITS -
IC302 P000377900 IC MM1563DFBE
IC303 79040399 IC MM1561JFBE
IC500 P000391280 IC PQ070XZ01ZPH
IC502 P000405070 IC UPD72893
IC503 79040163 IC MT48LC1M16A1TG
IC504 P000391230 IC UPD72852AGB-8EU
IC510 P000378050 IC SN74AHC1G04HDCKR
IC513 P000391280 IC PQ070XZ01ZPH
IC515 P000391210 IC K4H560838D-TCB000
IC516 P000391210 IC K4H560838D-TCB000
IC517 P000378040 IC SN74AHC1G08HDCKR
IC519 79040306 IC PST594JMT
IC520 P000391210 IC K4H560838D-TCB000
IC521 P000391210 IC K4H560838D-TCB000
IC523 P000377920 IC SN74LV244APWR
IC527 P000391290 IC PQ1X331M2ZPH
IC528 P000391240 IC NJM2125F
IC529 P000378050 IC SN74AHC1G04HDCKR
IC531 P000377900 IC MM1563DFBE
IC539 P000401220 IC BU3081FV-E2
- TRANSISTORS -
Q301 79050016 Transistor,Chip 2SC2712-Y
Q302 79050016 Transistor,Chip 2SC2712-Y
Q303 79050016 Transistor,Chip 2SC2712-Y
Q304 79050016 Transistor,Chip 2SC2712-Y
Q305 79050018 Transistor,Chip 2SA1162-Y
Q306 79050018 Transistor,Chip 2SA1162-Y
Q307 79050018 Transistor,Chip 2SA1162-Y
Q308 79050018 Transistor,Chip 2SA1162-Y
Q309 79050018 Transistor,Chip 2SA1162-Y
Q310 79050018 Transistor,Chip 2SA1162-Y
- DIODES -
D301 79060019 Diode,Chip 1SS355
D302 79060019 Diode,Chip 1SS355
- MISCELLANEOUS -
X301 79089168 Oscillator,Crystal
X500 79089168 Oscillator,Crystal
X501 P000377990 Crystal 27.0M
! EU02 P000435010 PC Board Assy Power
EU03A P000435050 PC Board Assy Front(R)
- INTEGRATED CIRCUITS -
IC101 P000377960 IC BU2879AK
IC102 P000434980 Module,IR GP1UM271RK0F
- DIODES -
D106 79060022 Diode,Chip 1SS368
D117 79060022 Diode,Chip 1SS368
- MISCELLANEOUS -
A100 P000416630 Display,FL HNV-10SM38T
EU03B P00043506 0 PC Board Assy Front(L)
- TRANSISTORS -
Q102 79050089 Transistor RN2401
Q103 79050089 Transistor RN2401
