Toshiba Stainless Steel Washdown Duty Motor Toshwash... User manual

LOW VOLTAGE MOTORS
TOSHWASH SS
NEMA Premium® Efciency
 Inverter Ready
 All Stainless Steel Construction
 TENV Designs 0.5 to 3 HP
 TEFC Designs 0.5 to 5 HP
 Increased Life Cycle
Washdown
Duty
PRODUCT SCOPE
Horsepower 0.5 to 5 HP
RPM 1800 or 1200 RPM
Voltage 230/460, 460, or 575 V
Enclosure Totally-Enclosed Non Vent or Totally-Enclosed Fan Cooled
Frames 56C through 184TC
Insulation Class-F Inverter Rated, Meeting NEMA MG 1 Part 31
Mounting C-Face Footed or C-Face Round Body
Three Year
Warranty

Designed for the Food and
Pharmaceutical Industries
MOTORS ADJUSTABLE SPEED DRIVES CONTROLS UPS INSTRUMENTATION PLC
INDUSTRIAL DIVISION
13131 West Little York Road, Houston, Texas 77041
Tel [phone] Fax [phone]
US 800/231-1412 Canada 800/872-2192 Mexico 01/800/527-1204
www.toshiba.com/ind
Copyright 2/2008
Available Through:
*LVMTosh080210*

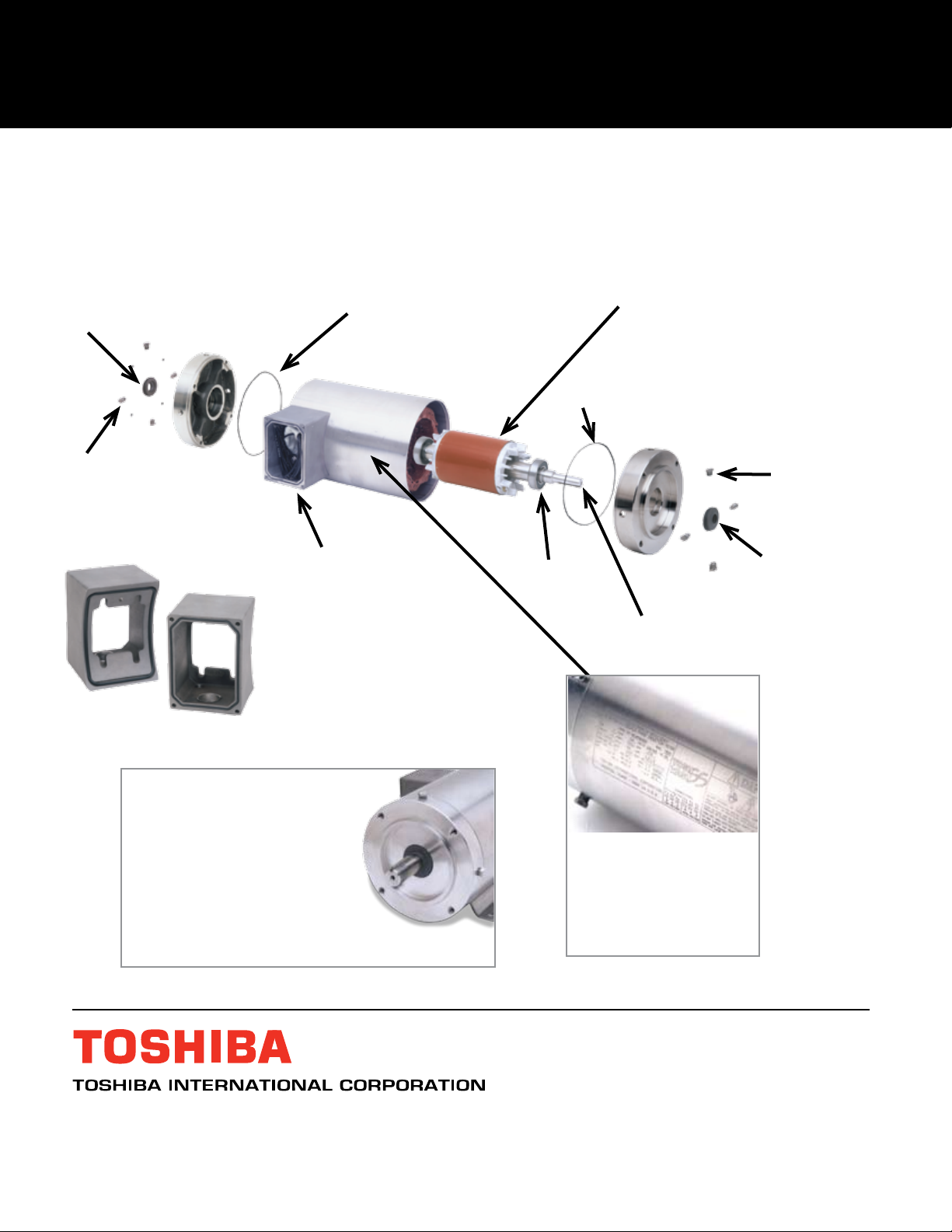

Construction
• All Stainless Steel Construction
Provides Maximum Corrosion
Resistance Against Chemicals
Commonly Found in Washdown
Environments
• Smooth Surface Facilitates
Easy Cleaning
• TENV Enclosure Eliminates
Potential for Continued Buildup
Precision-Sealed Terminal Box
• Terminal Box Double O-Ring
Sealed to Prevent the Intrusion
of Contaminants
• Can be Rotated 180° for
Ceiling Mount
• Top of Conduit Box Sloped
to Move Liquid Contaminants
Away from Motor
• Neoprene Lead Seperator
Gasket Between Frame and
Conduit Box
Double-Lip Teflon Seal
• Designed to
Prevent Intrusion of
Contaminants with
Low Mechanical Drag
on Shaft
• Seal Material Provides
Exceptional Resistance
to Cleaning Agents
Rugged Electrical Design
• Class-F Premium Efficiency Design
• Insulation System Suitable for Use with an
Adjustable Speed Drive per MG1 Part 31
• Multiple Layers of Non-Hydroxapic Varnish
Protect from Condensation and other Moisture
that may Become Trapped in the Motor
Universal Mounting
• Removable Drain Plugs
Every 90° on Each Bearing
Bracket
Sealed
Bearings
Double-Lip Teflon Seal O-Ring
• O-Ring Seal Between end
Bracket and Motor Frame
• Prevents Liquid Intrusion During
High Pressure Washdown
300 Series
Stainless Steel Shaft
Engraved Nameplate
• Eliminates Dangerous
Contaminant-Catching
Edges
• Stands Up to Extremely
High Pressure Washdowns
The Toshwash Stainless Steel Washdown Duty Motor, the Most Sanitary Motor in the Industry
The food and pharmaceutical industries are tough on motors. Even the best conventional motors fail quickly under the abuse of daily
pressure washes and hot cleaning solutions required in these industries. Toshiba responds with a specially-designed, completely different
type of motor.
Working with several major users in these industries,Toshiba developed one of the toughest motors available--the Toshwash Stainless Steel
Washdown Duty. This motor approaches five times the normal lifecycle of other commercial washdown duty motors and offers the widest
variety of TENV frame sizes available for food, pharmaceutical, and other applications requiring frequent washdowns.
Universal Mounting
O-Ring
