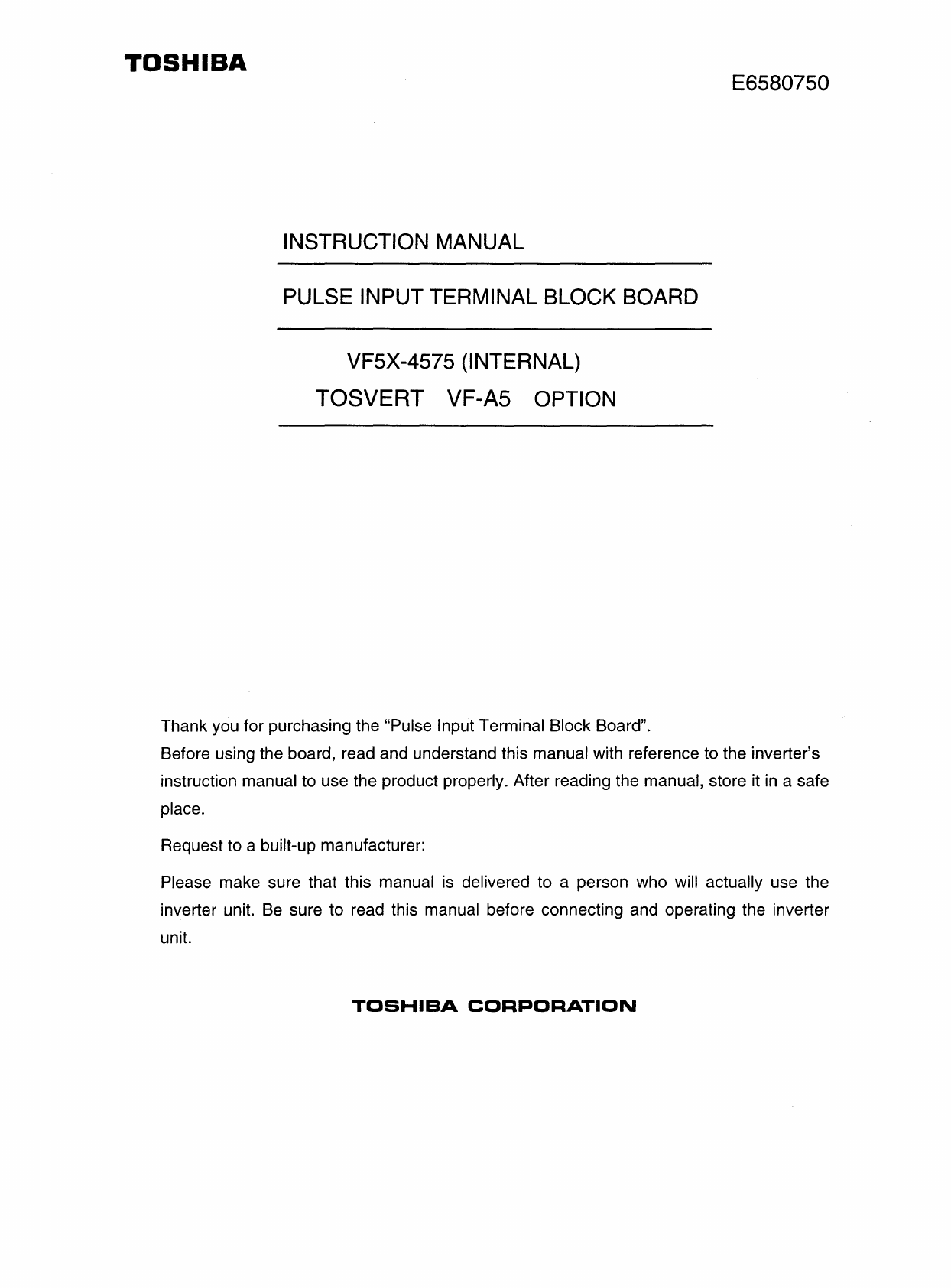

INSTRUCTION MANUAL
PULSE INPUT TERMINAL BLOCK BOARD
VF5X-4575 (INTERNAL)
TOSVERT VF-AS OPTION
Thank you for purchasing the "Pulse Input Terminal Block Board".
E6580750
Before using the board, read and understand this manual with reference to the inverter's
instruction manual to use the product properly. After reading the manual, store it
in a safe
place.
Request to a built-up manufacturer:
Please make sure that this manual is delivered to a person who will actually use the
inverter unit.
Be sure to read this manual before connecting and operating the inverter
unit.
TOSHIBA CORPORATION
Toshiba inverter VF5X-4575 input terminal manual

E6580750

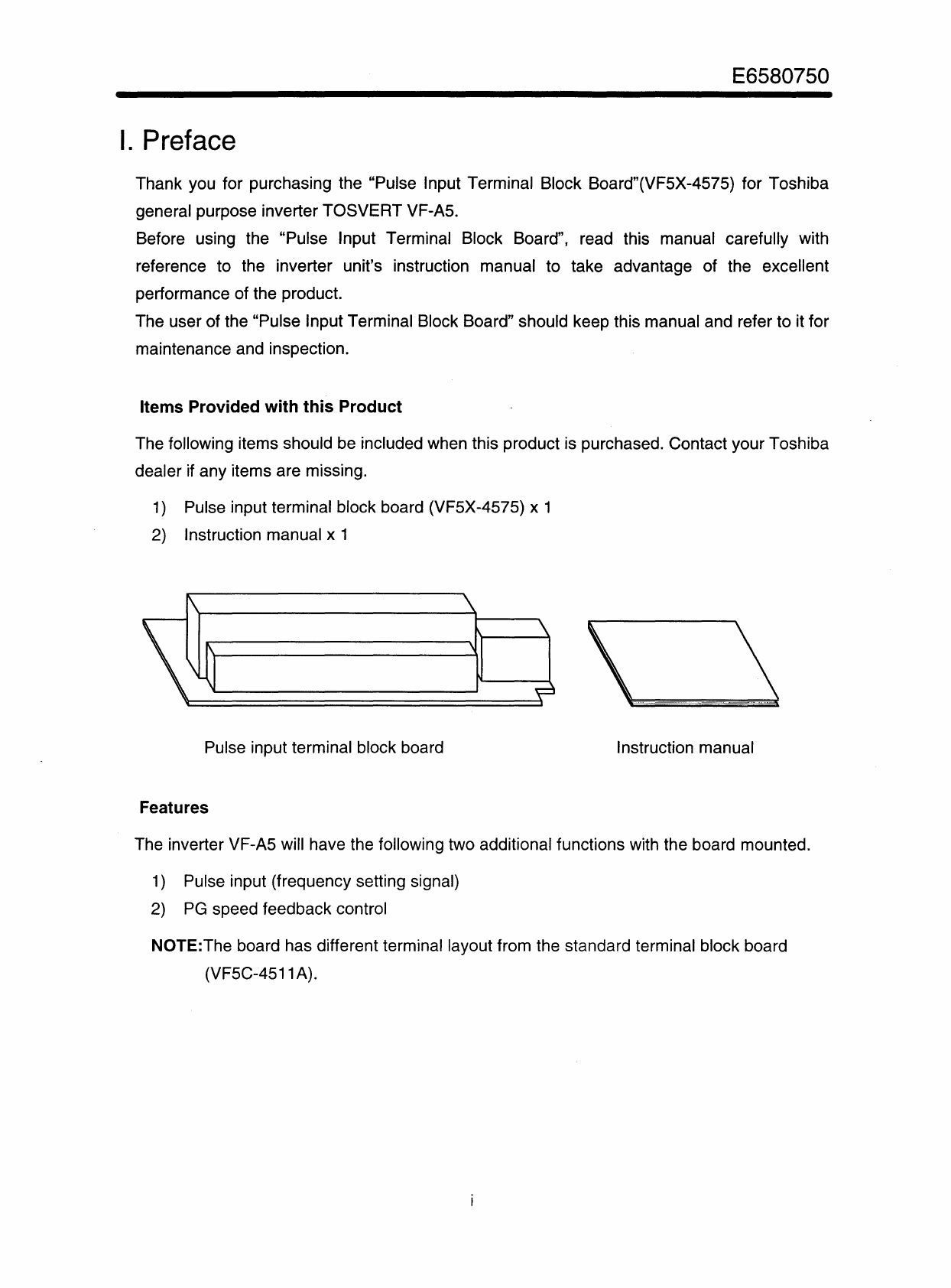

I. Preface
Thank you for purchasing the "Pulse Input Terminal Block Board"(VFSX-4S7S) for Toshiba
general purpose inverter TOSVERT VF-AS.
Before using the "Pulse Input Terminal Block Board", read this manual carefully with
reference to the inverter unit's instruction manual to take advantage of the excellent
performance of the product.
The user of the "Pulse Input Terminal Block Board" should keep this manual and refer to it for
maintenance and inspection.
Items Provided with this Product
The following items should be included when this product is purchased. Contact your Toshiba
dealer if any items are missing.
1) Pulse input terminal block board (VFSX-4S7S) x 1
2) Instruction manual x 1
Pulse input terminal block board Instruction manual
Features
The inverter VF-AS will have the following two additional functions with the board mounted.
1) Pulse input (frequency setting signal)
2) PG speed feedback control
NOTE:The board has different terminal layout from the standard terminal block board
(VFSC-4511 A).

E6580750

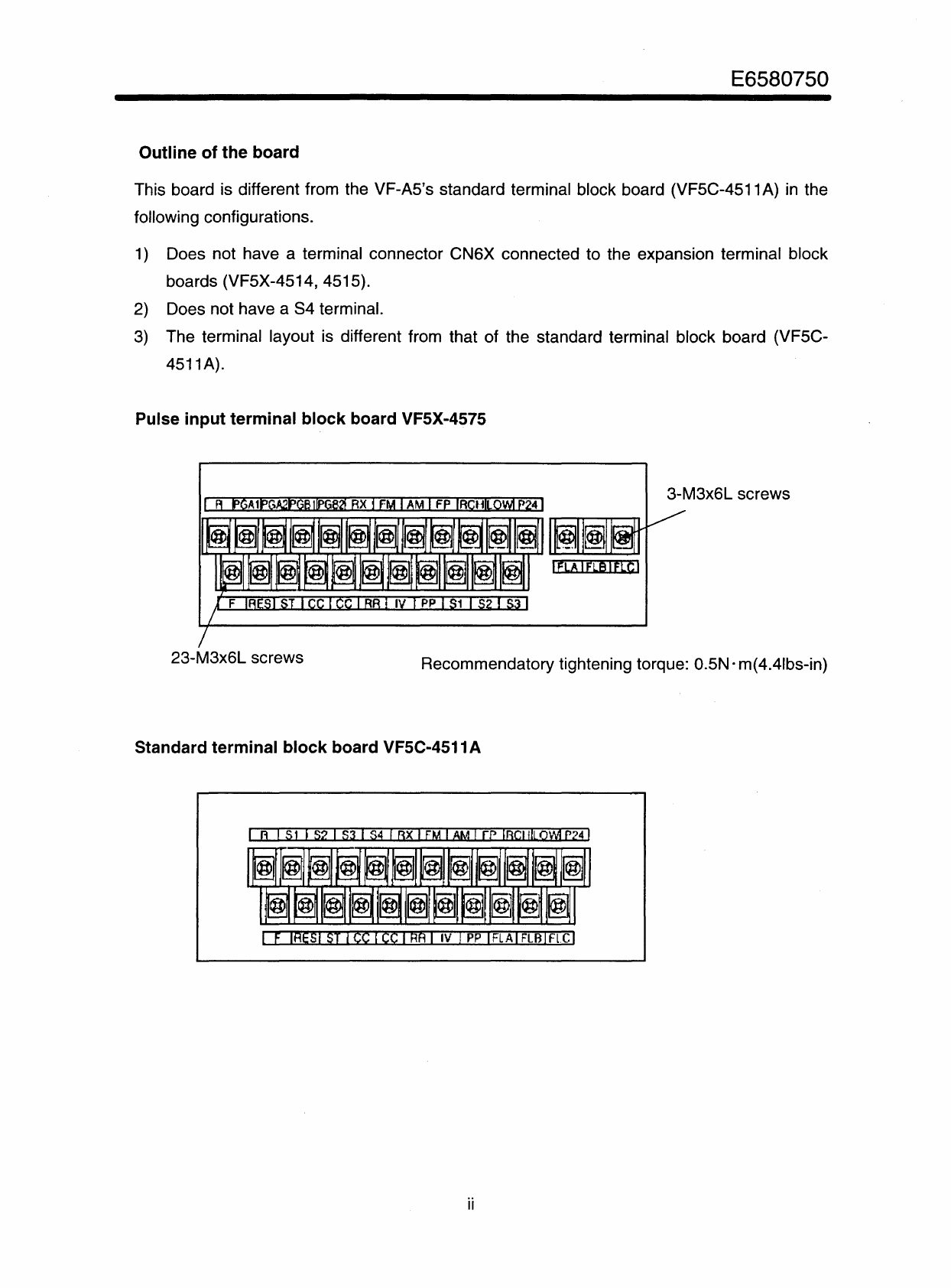

Outline of the board
This board is different from the VF-A5's standard terminal block board (VF5C-4511
A) in the
following configurations.
1) Does not have a terminal connector CN6X connected to the expansion terminal block
boards (VF5X-4514, 4515).
2) Does not have a S4 terminal.
3) The terminal layout is different from that of the standard terminal block board (VF5C-
4511 A).
Pulse input terminal block board VF5X-4575
3-M3x6L screws
23-M3x6L screws Recommendatory tightening torque: 0.5N·m(4.41bs-in)
Standard terminal block board VF5C-4511 A
ii

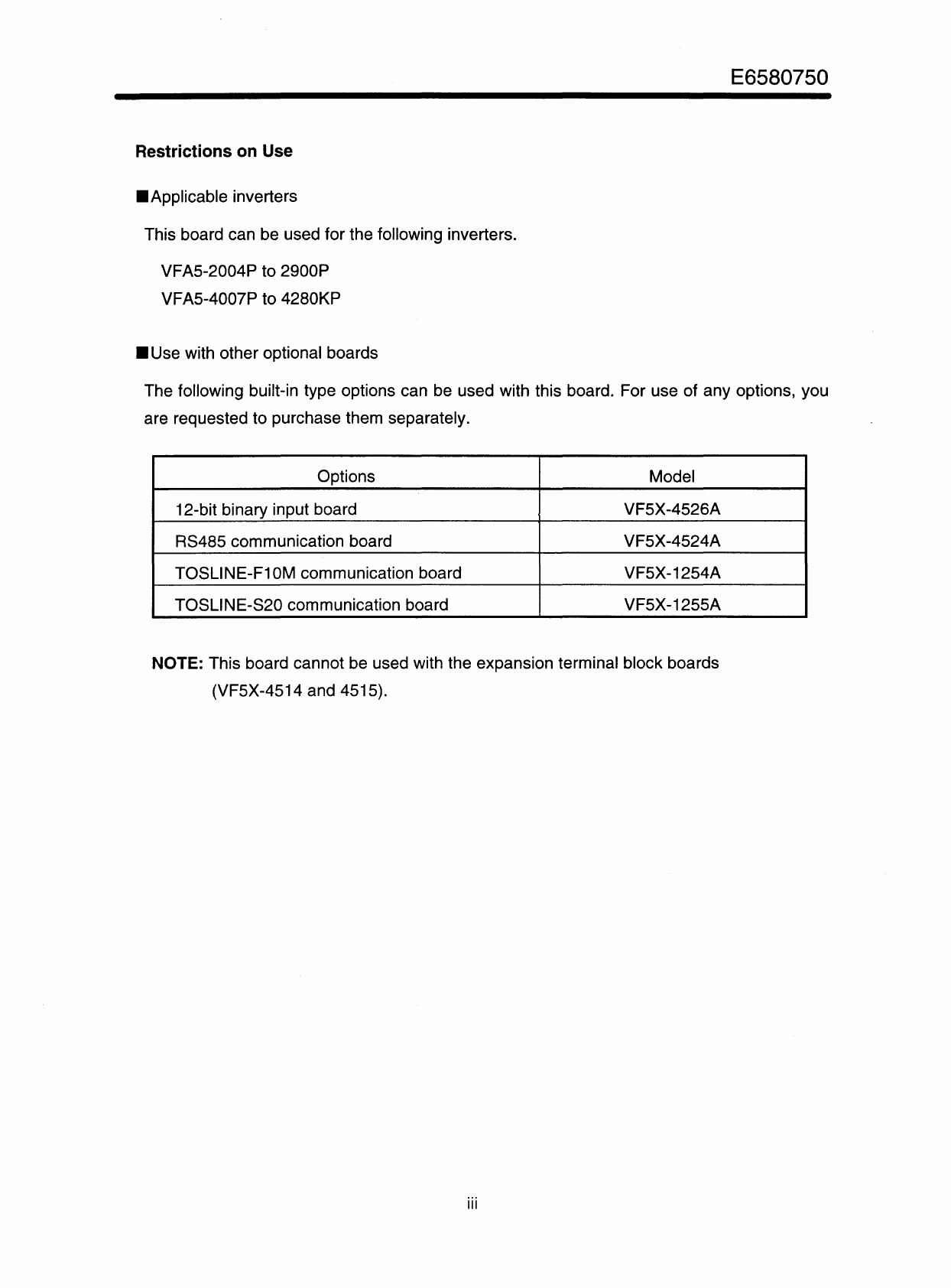

Restrictions on Use
•Applicable inverters
This board can be used for the following inverters.
VFA5-2004P to 2900P
VFA5-4007P to 4280KP
•Use with other optional boards
E6580750
The following built-in type options can be used with this board. For use of any options, you
are requested to purchase them separately.
Options Model
12-bit binary input board VF5X-4526A
RS485 communication board VF5X-4524A
TOSLINE-F1 OM communication board VF5X-1254A
TOSLINE-820 communication board VF5X-1255A
NOTE: This board cannot be used with the expansion terminal block boards
(VF5X-4514 and 4515).
iii

E6580750

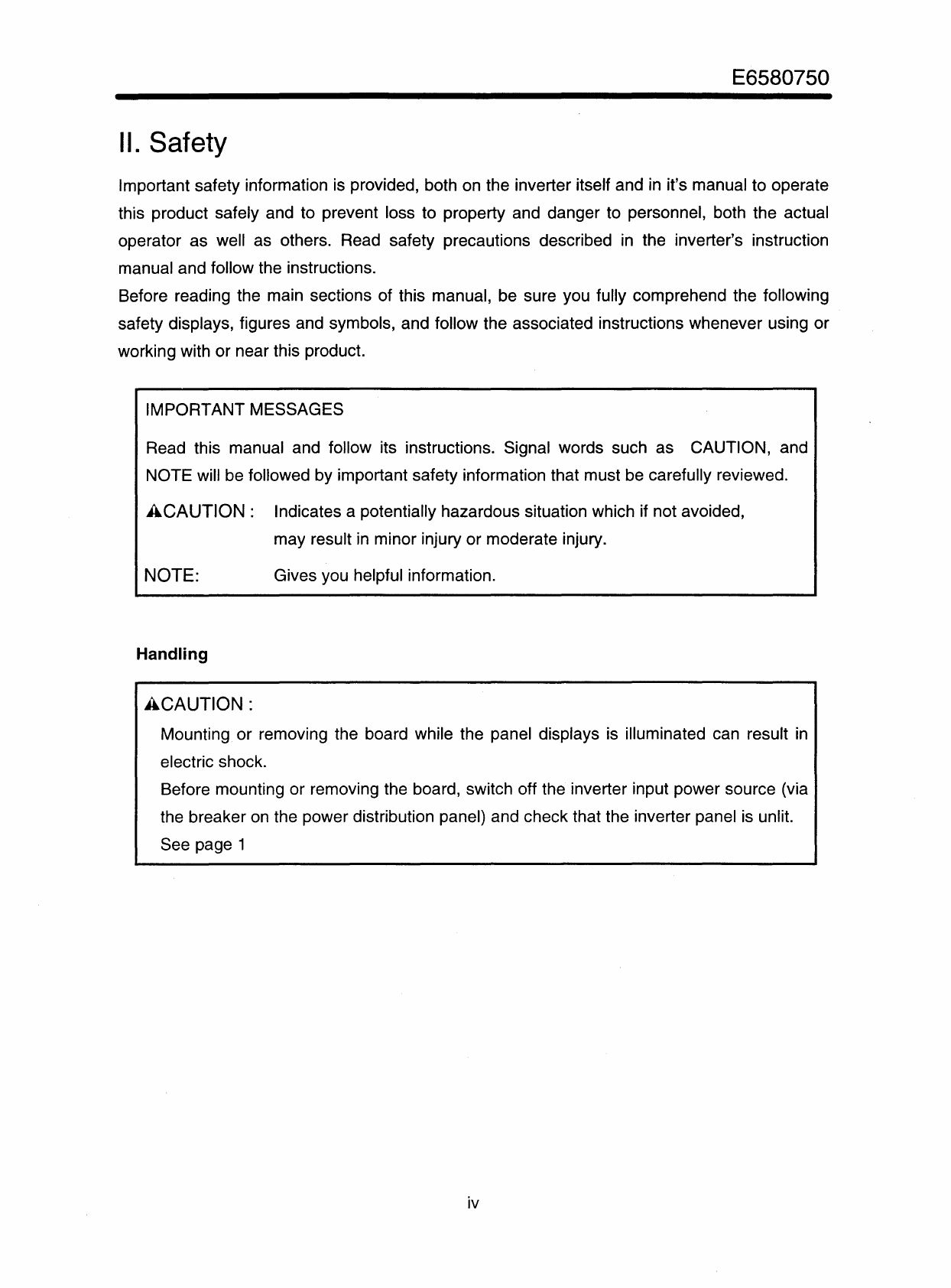

II. Safety
Important safety information is provided, both on the inverter itself and in it's manual to operate
this product safely and to prevent loss to property and danger to personnel, both the actual
operator as well as others. Read safety precautions described in the inverter's instruction
manual and follow the instructions.
Before reading the main sections of this manual,
be sure you fully comprehend the following
safety displays, figures and symbols, and follow the associated instructions whenever using or
working with or near this product.
IMPORTANT MESSAGES
Read this manual and follow its instructions. Signal words such as CAUTION, and
NOTE will be followed by important safety information that must be carefully reviewed.
ACAUTION: Indicates a potentially hazardous situation which if not avoided,
may result
in minor injury or moderate injury.
NOTE: Gives you helpful information.
Handling
ACAUTION:
Mounting or removing the board while the panel displays is illuminated can result in
electric shock.
Before mounting or removing the board, switch off the inverter input power source (via
the breaker
on the power distribution panel) and check that the inverter panel is unlit.
See page 1
iv

E6580750
Contents
I. Preface...................................................................................................................i
II. Safety..................................................................................................................iv
Contents...................................................................................................................v
1. Installation ............................................................................................................1
2. Functional Description ..........................................................................................
2
2.1 Pulse Input (Frequency setting) ...................................................................2
2.1.1. Pulse Input Specifications........................................................................2
2.1.2. Pulse Input Connection Procedure ..........................................................3
2.1.3. Pulse Input Setup Procedure...................................................................5
2.2.
PG Speed Feedback Control Using Pulse Input .........................................6
·2.2.1. PG Speed Feedback Control Specifications ............................................6
2.2.2. Procedures for
PG Speed Feedback Control Connections......................6
2.2.3. Setup Procedures for
PG Speed Feedback Control ..............................1O
2.2.4. Block diagram and calculations of PG speed feedback control.............. 11
v

E6580750

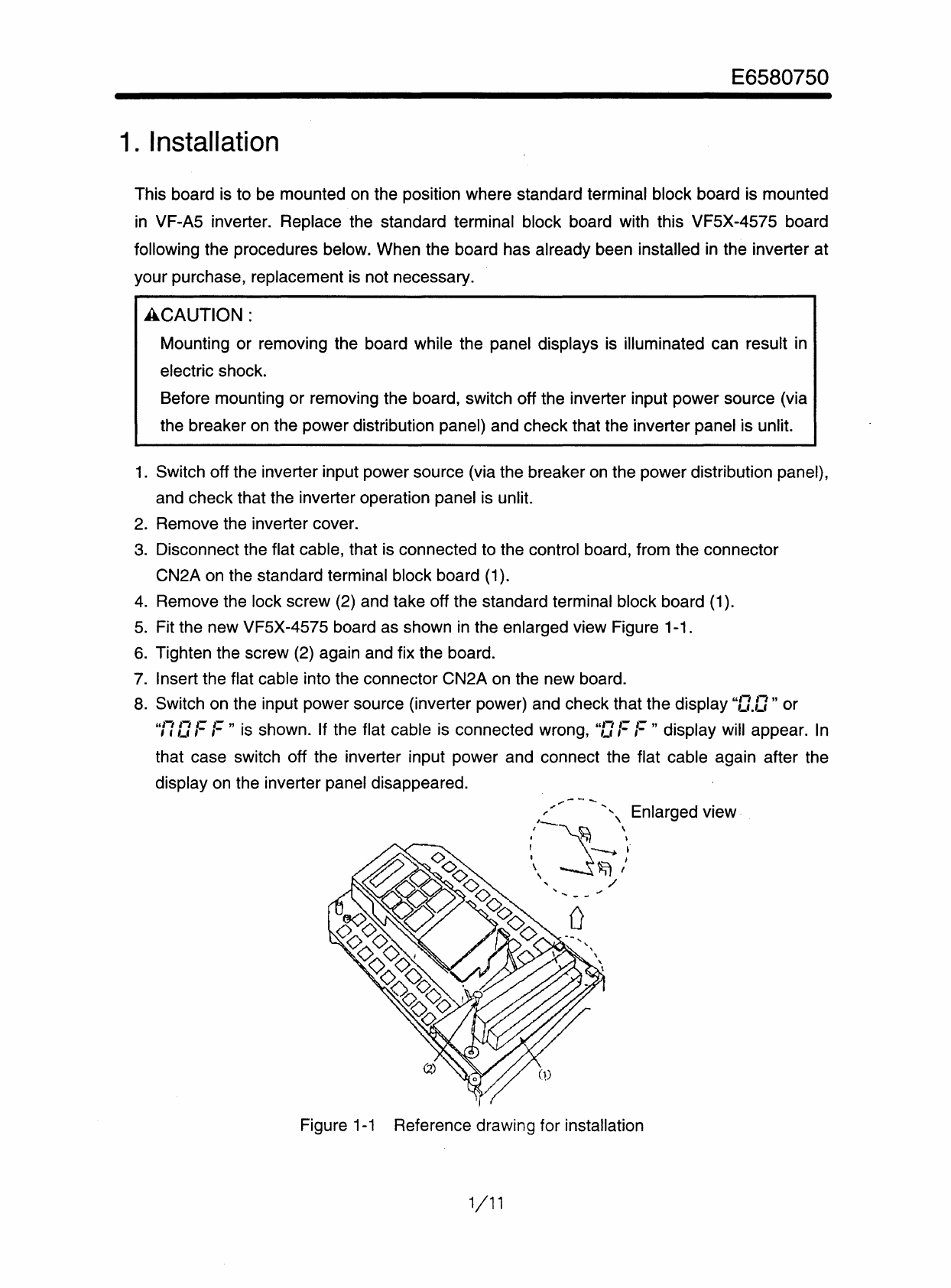

1. Installation
This board is to be mounted on the position where standard terminal block board is mounted
in VF-A5 inverter. Replace the standard terminal block board with this VF5X-4575 board
following the procedures below. When the board has already been installed
in the inverter at
your purchase, replacement is not necessary.
A.CAUTION:
Mounting or removing the board while the panel displays is illuminated can result in
electric shock.
Before mounting or removing the board, switch off the inverter input power source (via
the breaker on the power distribution panel) and check that the inverter panel is unlit.
1. Switch off the inverter input power source (via the breaker on the power distribution panel),
and check that the inverter operation panel is unlit.
2. Remove the inverter cover.
3. Disconnect the flat cable, that is connected to the control board, from the connector
CN2A on the standard terminal block board
(1 ).
4. Remove the lock screw (2) and take off the standard terminal block board (1 ).
5. Fit the new VF5X-4575 board as shown in the enlarged view Figure 1-1.
6. Tighten the screw (2) again and fix the board.
7. Insert the flat cable into the connector CN2A on the new board.
8. Switch on the input power source (inverter power) and check that the display "O./J" or
"lla FF" is shown. If the flat cable is connected wrong, "OFF" display will appear. In
that case switch off the inverter input power and connect the flat cable again after the
display on the inverter panel disappeared.
:.::_')- ~ - '\.Enlarged view
r ~·
t I
\ ~ I
\.' /
.... -- .,.
Figure 1-1 Reference drawing for installation
1/11

E6580750
2. Functional Description
This section describes the additional functions of the board VF5X-4575 besides those of the
standard functions of VF-A5.
2.1 Pulse Input (Frequency setting)
The inverter operating frequency command can be set from a pulse signal input.
•Application examples
(1) The inverter output frequency can be controlled to be proportional to the frequency of a
pulse output signal from a pulse generator.
(2) When using a pulse generator, forward and reverse operation is possible by inputting
the pulse of two phases (A and
8) that have 90-degree phase difference.
2.1.1. Pulse Input Specifications
Table 2-1 Pulse input specifications
Item Single-phase Two-phase
Maximum pulse input frequency 120kHz or less 60kHz or less
Pulse input voltage 12Vdc to 18Vdc (for VF5X-4575A)
Speed control
±0.1% or less
2

E6580750
2.1.2. Pulse Input Connection Procedure
• Use twisted shield wire for signal connection.
• Never bind the signal wire and the main circuit wire together.
• Recommendatory wire diameter is 0. 75mm2•
•For Single-Phase Pulse Input Signal Operation
(1) Connect the pulse input signal between the terminals PGA1 and PGA2 or between PGB1
and PGB2.
(2) The polarity of the pulse input signal should be:
+side ... PGA1 or PGB1
-side ...PGA2 or PG82
(3) Changeover of the forward and reverse operation is possible when the command mode is
valid for terminal input (parameter
[fl I] d of G ,- .LI t is I) among the terminals ST,
F, Rand CC.
MCCB
Free-run stops with OFF
-----.
Rotates forward with ON and-+
decelerates to stop with OFF
Reverses with ON and
~
decelerates to stop with OFF
Reverses when both F and Rare ON.
Figure 2-1
VF-AS
R u
s v
T w
RO
so
E
Pulse input
terminal block board
ST PGA1
F PGA2
R PGB1
cc PGB2
....
Pulse generator
Inverter can be controlled
even when the pulse
generator is connected
between
PGB1 and PGB2.
Connection diagram when using a pulse generator for controlling inverter's
operation frequency with a single-phase pulse signal
3

E6580750

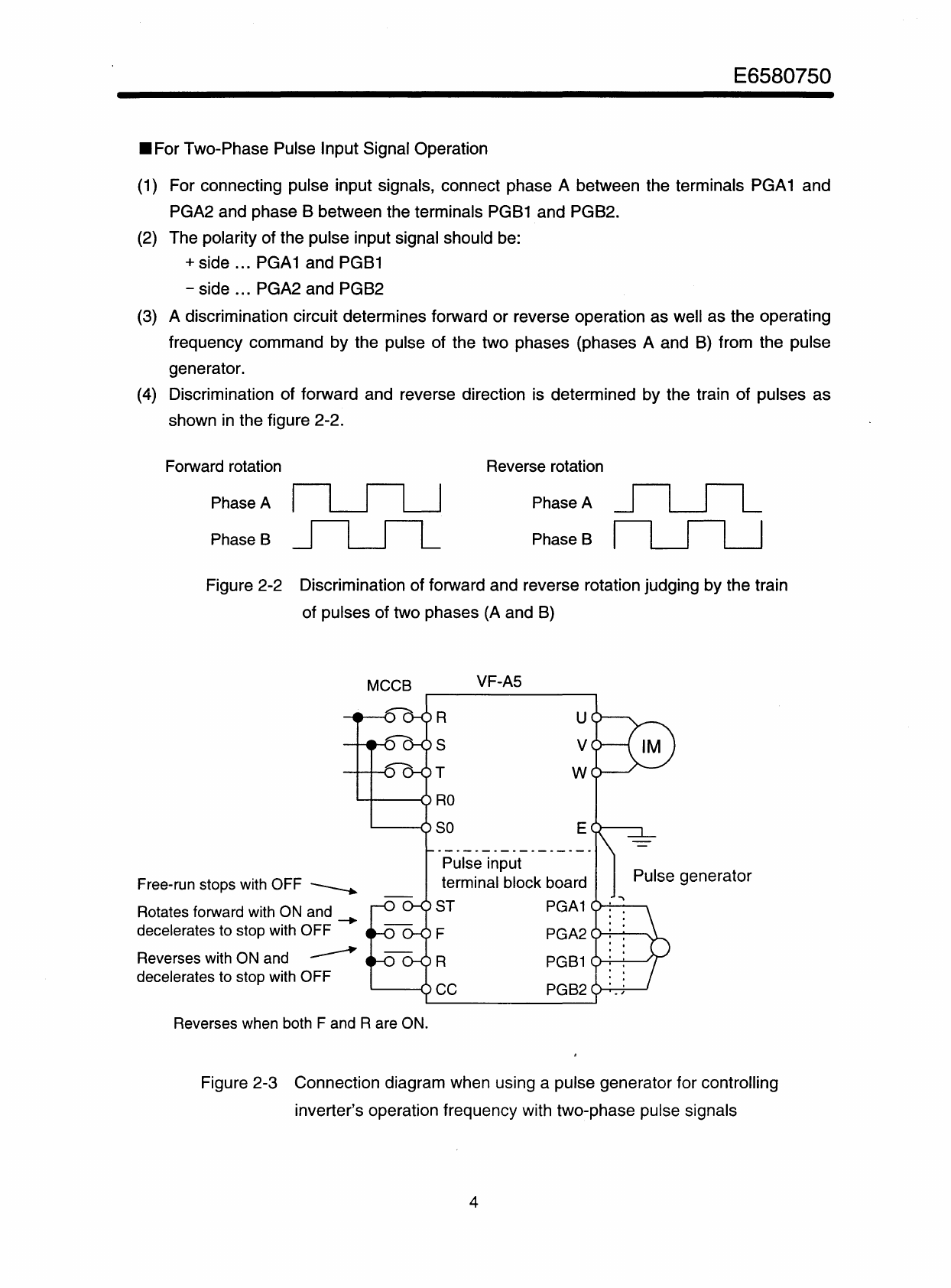

•For Two-Phase Pulse Input Signal Operation
(
1) For connecting pulse input signals, connect phase A between the terminals PGA1 and
PGA2 and phase B between the terminals
PGB1 and PGB2.
(2) The polarity of the pulse input signal should be:
+side ... PGA1 and PGB1
-side ... PGA2 and PGB2
(3) A discrimination circuit determines forward or reverse operation as well as the operating
frequency command by the pulse of the two phases (phases A and
B) from the pulse
generator.
(4) Discrimination of forward and reverse direction is determined by the train of pulses as
shown
in the figure 2-2.
Forward rotation
Phase A
ILJLJ
PhaseB nn
Reverse rotation
PhaseA
nn
Phase B ILJLJ
Figure 2-2 Discrimination of forward and reverse rotation judging by the train
of pulses of two phases
(A and B)
Free-run stops with OFF ----.
Rotates forward with ?N and __.
decelerates to stop with OFF
Reverses with ON and _____-.
decelerates to stop with OFF
MCCB VF-AS
R u
s v
T w
RO
so
E
Pulse input
terminal block board
ST PGA1
F
R
~--t
1
CC
PGA2
PGB1
PGB2
Reverses when both F and Rare ON.
Figure 2-3 Connection diagram when using a pulse generator for controlling
inverter's operation frequency with two-phase pulse signals
4

E6580750
2.1.3. Pulse Input Setup Procedure
Table 2-2 Parameters necessary for setting the pulse input
Parameter Parameter Function Set value Initial
group
value
PG
PG input pulse count *1 I to
'3 '3 '3 '3 saa c
G ,-.F b
PGPH
Selecting number of PG
I:Single-phase input 2
input phases 2 :Two-phase input
F[ I Frequency priority selection 1
'-I :PG pulse input setup I
c c
PG
I ,-,
PG input I:Adjustment *2 n
LI
Pl
PG point 1 set signal *3 -
inn
to 100
n
G ,-.s F c
LI l-C
,_,
F-Pl
PG point 1 frequency *3 -F
Hto FH
*4
n ,.,
'-'·'-'
lj lj
PG point 2 set signal *3 -
inn
to :aa
I tin
, ,_,
c ,_, ,_,
',_, ,_,
F-PB
PG point 2 frequency *3 -
FI-Ito FH
*4
onn
C.I l-1.l_I
G ,- .LI I=
FnOd Selecting frequency setting I : Terminal input is valid
LI
' I
mode
*1: The number of PG input pulses (PG )means the number of pulses per one revolution.
Operational frequency command value of the inverter is represented by the following
formula.
Pulse input frequency
Frequency command value =
,., ,-
,- ,_,
*2: By setting I for PG In , blinded parameters P l , F - P l , PB and F - PB will
be displayed.
*3: For adjustment of Gain and Bias relative to the pulse input frequency, see figure 2-4.
Frequency command
Upper limit frequency
rHzl
l I I
,_, ,_
F-PB
F-Pi
Pi
PB
100
Pulse input frequency
Figure 2-4 Pulse input frequency and frequency command value
*4: F 1-1 is the maximum frequency. (Parameter group: G ,- F )
5
(%]

E6580750
2.2. PG Speed Feedback Control Using Pulse Input
This application performs speed feedback control in which motor speed fluctuations due load
variations are corrected using a pulse train feedback signal from an encoder mounted on
either the motor shaft or a rotating shaft in the load.
The system can provide a motor speed control precision with respect to the set frequency of
better than
0.1 % (60Hz base).
2.2.1. PG Speed Feedback Control Specifications
Table 2-3 PG speed feedback control specifications
Specification Single-phase Two-phase
Maximum pulse input frequency 120 kHz or less 60kHz or less
Pulse input voltage 12Vdc
to 18Vdc (for VF5X-4575A)
Speed control
±0.1% or less
Output method • Open collector output
Applicable • Complimentary output
encoder Maximum output
pulse 120 kHz or less 60 kHz or less
Manufacturer: Sumtak Corporation
Type: LBJ series
Recommendatory encoder Power supply: 12V or 1
SV*
Output method: Complimentary output
*: Prepare external power source.
2.2.2. Procedures for PG Speed Feedback Control Connections
+ Use twisted shield wire for signal connection.
+ Never bind the signal wire and the main circuit wire together.
+ Recommendatory wire diameter is 0.75mm2·
•When the pulse input signal is a single-phase:
(1) Connect the pulse input signal between the terminals PGA1 and PGA2 or between PGB1
and PGB2.
(2) Connection terminals will differ depending on the method of the encoder output.
6

E6580750
Encoder output method Pulse input terminal block board
Vee
1 I
{5:
>-9
PGA1
Complimentary
~9
PGA2
I
or
~~
I
Open collector
a-<
>-9
PGB1
~9
PGB2
I
(3) Changeover of the forward and reverse rotation is possible when the command mode is
valid
for terminal input (parameter [ n I] d of G ,- .LI'= is I) among the terminals ST,
F, Rand CC.
Free-run stops
with OFF ----.
Rotates forward with ON and -+
decelerates to stop with OFF
Reverses with ON and _____.,,
decelerates to stop with OFF
MCCB
Reverses when both F and R are ON.
VF-A5
R u
s v
T w
RO
so
E
Pulse input
terminal block board
ST PGA1
F PGA2
R
PGB1
Inverter can be controlled
even when the encoder is
cc PGB2 connected between
PGB1
and PGB2.
Figure 2-5 Connection diagram when using an encoder for controlling speed
feedback with a single-phase pulse input signal
7

E6580750
•When the pulse input signal is a two-phase:
(1) For connecting pulse input signals, connect phase A between the terminals PGA1 and
PGA2 and phase B between the terminals
PGB1 and PGB2.
(2) Connection terminals will differ depending on the method of the encoder output.
Encoder output method Pulse input terminal block board
Phase A I
Vee
1 > 9PGA1
~=
ov
I
~
PGA2
-
Complimentary
Phase B
OPGB1
,.
I
*
I
~----------
PGB2
I
Vee
I
~~
>
PGA1
~Phase A I
G-< -QPGA2
Open collector
PGB1
Phase B I
I
~
OPGB2
-I
*: When OV is divided at phases A and B, remove the short-circuit between PGA2 and
PGB2 and connect
OV wire of phase B at the terminal shown with the dotted line.
(3) A discrimination circuit determines the rotating direction (forward or reverse) as well as
the operating frequency command by the pulse of the two phases (phases A and
B) from
the encoder.
(4) Discrimination of forward and reverse direction
is determined by the train of pulses as
shown
in the figure 2-6.
Forward rotation
Phase A n___r-u
.Phases nn
Reverse rotation
PhaseA nn
Phase B n___r-u
Figure 2-6 Discrimination of forward and reverse rotation judging by the train of
pulses of two phases (A and
B)
8

MCCB VF-AS
R u
s v
T w
RO
so
E
Pulse input
Free-run stops
with OFF ~
Rotates forward with ON and
decelerates to stop with OFF -........
terminal block board
ST
F
R
Reverses with ON and
decelerates to stop with OFF
'----<
1
CC
Reverses when both F and R are ON.
PGA1
PGA2
PGB1
PGB2
E6580750
Figure 2-7 Connection diagram when using an encoder for controlling speed
feedback with a two-phase pulse input signal
•Procedures for PG Speed Feedback Control Connections When replacing the SV-PACK
(1) For connecting pulse input signals, connect phase A between the terminals PGA 1 and
PGA2 and phase 8 between the terminals PGB1 and
PG82.
(2) Provide 12Vdc electricity to the encoder from the external power source.
(3) Be sure to connect the shield grounding
of the encoder output cable to the N line of the
power source.
Free-run stops
with OFF ~
Rotates forward with ON and
decelerates to stop with OFF -........
Reverses with ON and
decelerates to stop with OFF
MCCB
VF-AS
R
s
T
RO
so
VFSX-4S7SC
ST
F
R
cc
u
v
w
E
PGA1
PGA2
PGB1
PGB2
Reverses when both F and Rare ON.
N line of the 12Vdc power source
Figure 2-8 Connection diagram when replacing the
SV-PACK
9

E6580750

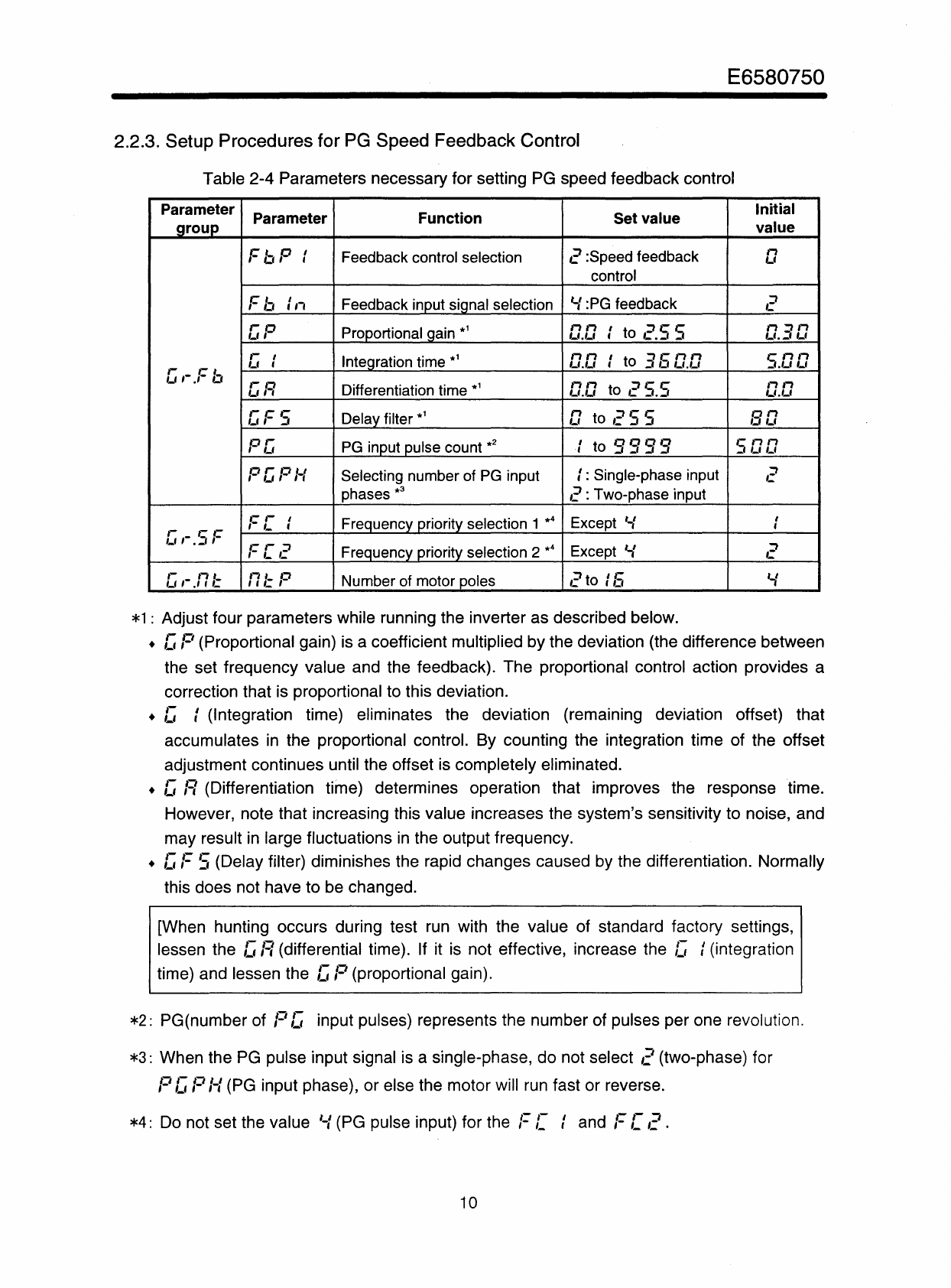

2.2.3. Setup Procedures for PG Speed Feedback Control
Table 2-4 Parameters necessary for setting PG speed feedback control
Parameter Parameter Function Set value Initial
group value
FbP I Feedback control selection 2 :Speed feedback n
'
,_,
control
Fb
I 1-1
Feedback input signal selection
L/ : PG feedback
;~
GP
Proportional gain *1
nn
I to 2.5 5
030
LI.LI '
r-
I lnteqration time *1 nn
I to
35 a.a
5.00
1_1
I
1_1,1_1
I
[; ,-.F b [;Fl Differentiation time *1 n ,., to 2 5.5
,., ,.,
LI.I_,
'-'·'-'
GFS
Delay filter *1 n to
1? 5 5
BO
LI
PG
PG input pulse count *2 I to
'3 '3 '3 '3
c ,., n
'
_,LI,_,
PGPl-1
Selecting number of PG input I:Single-phase input 2
phases *3 2 : Two-phase input
F[
I Frequency priority selection 1 *4 Except
'-I
I
' '
[;,-.SF
FC2 Frequency priority selection 2 *4 Except
'-I
2
[; ,-.n I=
lit p Number of motor poles
2to 15
'-I
*1 : Adjust four parameters while running the inverter as described below.
• [, P(Proportional gain) is a coefficient multiplied by the deviation (the difference between
the set frequency value and the feedback). The proportional control action provides a
correction that is proportional to this deviation.
• [, I (Integration time) eliminates the deviation (remaining deviation offset) that
accumulates in the proportional control. By counting the integration time of the offset
adjustment continues until the offset is completely eliminated.
• [, Fl (Differentiation time) determines operation that improves the response time.
However, note that increasing this value increases the system's sensitivity to noise, and
may result
in large fluctuations in the output frequency.
• [, F 5 (Delay filter) diminishes the rapid changes caused by the differentiation. Normally
this does not have to be changed.
[When hunting occurs during test
run with the value of standard factory settings,
lessen the [,Fl (differential time). If it is not effective, increase the C f (integration
time) and lessen the CP{proportional gain).
*2: PG(number of P
[; input pulses) represents the number of pulses per one revolution.
*3: When the PG pulse input signal is a single-phase, do not select ;~(two-phase) for
P [; P f-1 (PG input phase), or else the motor will run fast or reverse.
*4:
Do not set the value '-I (PG pulse input) for the F[ I and F[ ;~ .
10

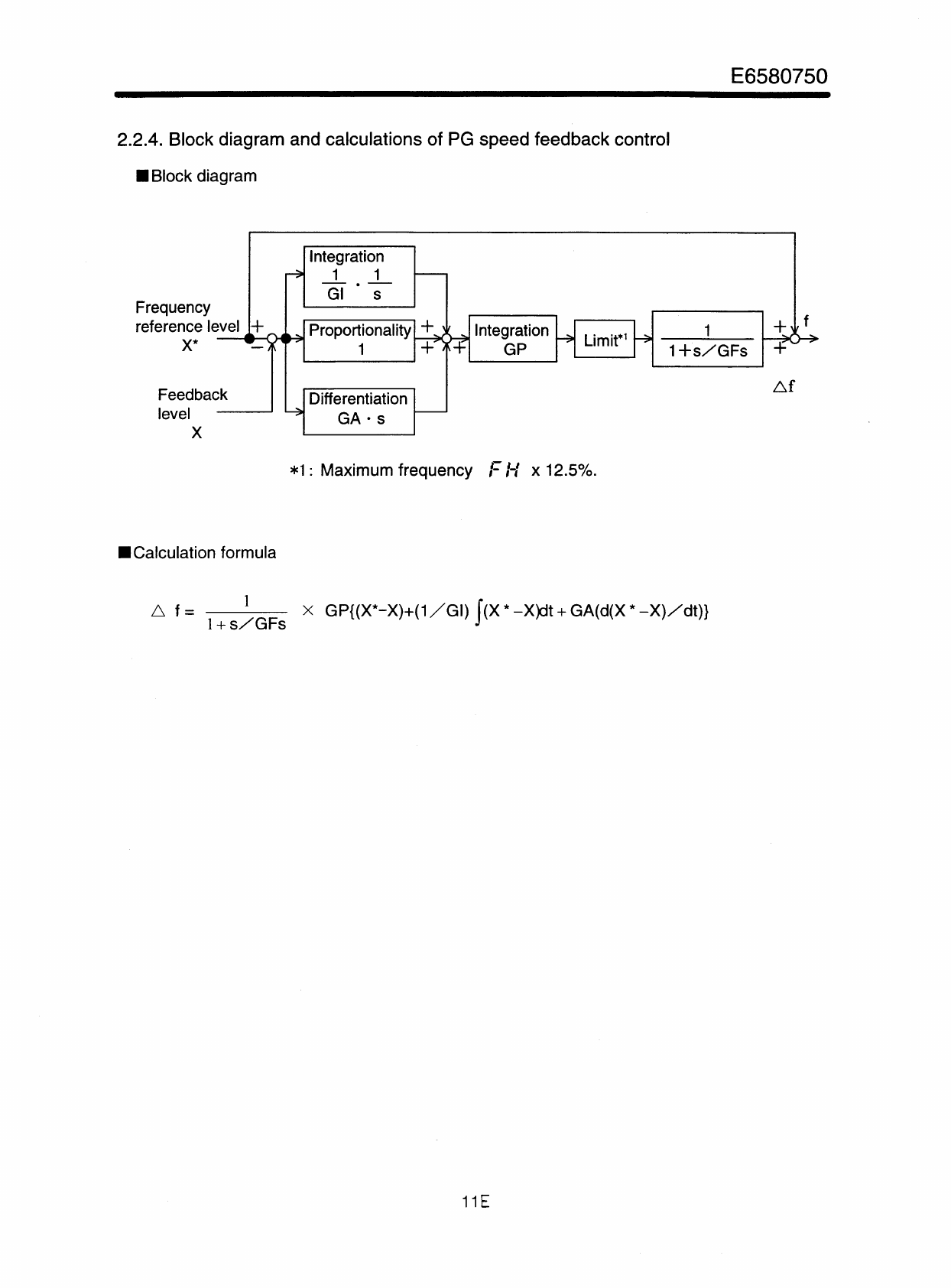

2.2.4. Block diagram and calculations of PG speed feedback control
•Block diagram
Frequency
reference level
X* ----1.
Feedback
levelx
•Calculation formula
Integration
1 1
GI"$
Differentiation
GA·s
Limit*1
*1 : Maximum frequency F 1-1 x 12.5%.
E6580750
1
1 +s/GFs
6 f = 1
+
s/GFs X GP{(X*-X)+(1 /GI) f(X * -X)dt + GA(d(X * -X)/dt)}
11 E
