Toshiba TDP-B1 User manual

i
TABLE OF CONTENTS
Safety Instructions iii
Introduction 1
Image Resolution 1
Compatibility 1
Unpacking the Projector 1
Usage Guidelines 3
If You Need Assistance 4
Warranty 4
Setting up the Projector 5
Connecting a Computer 7
Connecting a Video Player 9
Powering up the Projector and Adjusting the Image 11
Turning Off the Projector 12
Using the Projector 13
Basic Image Adjustment 13
Using the Remote Control 13
Adjusting the Projector 15
Using the Keypad and Remote Buttons 16
Using the On-Screen Menus 18
Display Menu 19
Audio Menu 20
Image Menu 21
Controls Menu 23
Language Menu 25
Status Menu 26
Maintenance & Troubleshooting 27
Cleaning the Lens 27
Replacing the Projection Lamp 27
Replacing the Batteries in the Remote Control 30
Using the Kensington Lock 30
Troubleshooting 31

ii
Ta b l e o f C o n t e n t s
Appendix 35
Specifications 35
Accessories 36
Portable Computer Activation Chart 38
Using Video Mirroring with a PowerBook Computer 43
Projected Image Size 44
Index 45

iii
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc-
tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.
Safety Definitions:
•Warning: Statements identify conditions or practices that
could result in personal injury.
•Caution: Statements identify conditions or practices that could
result in damage to your equipment.
Safety Symbols:
Attention: For information about usage of a feature, please
refer to the User’s Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.
Safety Terms:
•Warning: Don’t look directly into the lens when the lamp is
turned on.
•Warning: To replace the lamp, turn the projector off by
unplugging the power cord. To avoid burns, wait 30
minutes before opening the lamp door. Follow all instructions
provided in this User’s Guide.
•Warning: Please use the power cord provided. Connect
the power cord to a receptacle with a protective safety
(earth) ground terminal.
•Warning: Refer all service to qualified service personnel. Ser-
vicing your own projector will void the warranty. See the fol-
lowing page for the customer service contact information.
•Caution: Don’t block ventilation openings.

iv
Safety Instructions
•Caution: Don’t set liquids on the projector. Spilled liquids may
damage your projector.
•Caution: Don’t place the projector on a hot surface or in direct
sunlight.
•Caution: Do not drop the projector. Transport the projector in a
vendor-approved case; refer to your Toshiba dealer or
projectors.toshiba.com for more information.
Important Operating Considerations
Do not place the projector on a tablecloth or other soft covering
that may block the vents. In the unlikely event of the bulb ruptur-
ing, thoroughly clean the area behind the projector and discard
any edible items placed in that area.
Customer Service
If you need assistance, contact Toshiba Technical Support.
•In North America, call Toshiba’s toll-free customer service
& technical support at 800-457-7777 (available 24 hours a
day, 7 days a week).
•For web-based or other electronic technical support, please
visit Toshiba at support.toshiba.com.
Do not place objects in
this area behind the projector
2ft(.6m)

1
INTRODUCTION

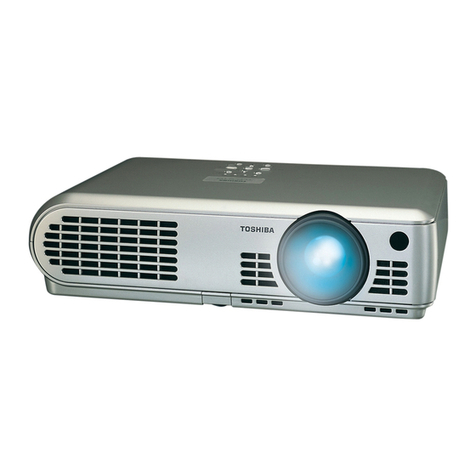

The Toshiba®TDP-B1™ is specifically designed for the mobile
presenter. It packs XGA 1024x768 graphics with 16.7 million col-
ors into a small, 4.8 pound package. It generates crisp, clear
images using Digital Light Processing™ (DLP) technology. The
TDP-B1 is easy to connect, easy to use, easy to transport, and easy
to maintain.
NOTE: The TDP-B1 automatically
expands 640x480 and 800x600
images to 1024x768. You can dis-
play these images at their native
resolutions by turning off the Auto
Resize feature. See “Auto Resize”
on page 21 for more information.
Image Resolution
The XGA resolution of the TDP-B1’s projected image is 1024x768.
The projector cannot compress screen resolutions above
1024x768. If your computer’s screen resolution is higher than
1024x768, reset it to a lower resolution before you connect the
projector.
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
•IBM-compatible computers, including portable computers, up
to 1024x768 resolution.
•Apple Macintosh and PowerBook computers up to 1024x768
resolution.
•Most standard VCRs, DVD players, camcorders and laser disc
players.
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your Toshiba dealer imme-
diately if anything is missing.
If you are experienced in setting up presentation systems, use the
Quick Start card that was included in the shipping box. For com-
plete details on connecting and operating the projector, refer to
this User’s Guide. User’s Guides are also available for download
from our website at projectors.toshiba.com.

2
Introduction
NOTE: The contents of your
shipping box may vary depending
on the projector configuration
you’ve ordered.
FIGURE 1
Shipping box contents
1. TDP-B1 projector + lens cap 6. Audio cable adapter
2. Remote control 7. Audio cable
3. Power cord 8. Composite video cable
4. User’s Guide and quick start
card
9. PS/2 mouse cable
5. VESA computer cable 10. USB mouse cable
1
23
4
5
67
8
10
9

3
FIGURE 2
Side view of projector
Usage Guidelines
•Do not look directly into the projection lens when the lamp is
turned on. The bright light may harm your eyes.
•Do not block the grills on the projector. Restricting the air flow
can cause it to overheat and turn off. If this happens, you must
wait a minute before attempting to turn it back on.
•Handle the projector as you would any product with glass
components. Be especially careful not to drop it.
•Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.
•Transport the projector in a vendor-approved hard or soft case.
Refer to your Toshiba dealer or projectors.toshiba.com for more
information.
connector panel
speaker
focus ring
zoom ring
power
cord
connector
keypad
Kensington Lock

4
Introduction
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 31. Or, check the
Service and Support section of our website at
support.toshiba.com.
If those sources don’t answer your question, call your Toshiba
dealer. You can also call Toshiba Technical Support directly.
•In North America, call Toshiba’s toll-free customer service
& technical support at 800-457-7777 (available 24 hours a
day, 7 days a week).
•For web-based or other electronic technical support, please
visit Toshiba at support.toshiba.com..
Warranty
This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your Toshiba dealer.
Refer to your Toshiba dealer or support.toshiba.com for more
information.

5
SETTING UP THE PROJECTOR
1Place the projector on a flat surface.
•The projector must be within 10 feet (3 m) of your power
source and within 6 feet (1.8 m) of your computer.
•If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 24 to reverse the image.
2Position the projector the desired distance from the screen.
•The distance from the lens of the projector to the screen and
the zoom setting determine the size of the projected image.
Figure 3 shows three projected image sizes. For more infor-
mation about image size, see “Projected Image Size” on
page 44.
FIGURE 3
Projected image size at minimum zoom
3Make sure the projector is unplugged and your computer is
turned off.
3.2ft.
13.0ft.
7.8ft.
5 ft.12 ft. 20 ft.

6
Setting up the Projector
NOTE: Before you continue,
make sure the projector is
unplugged and your equipment is
turned off. If you’re connecting a
computer, make sure the distance
between it and the projector is 6
feet or less.
FIGURE 4
Connector panel
S-video composite
video
Audio in input
VESA computer
mouse
