TotalPond 52766 User manual

Item/Artículo# 52766
LED anillo de luz
LED
LIGHT RING

TABLE OF CONTENTS
4-5.........Warnings and Cautions
6.............Package Contents
6.............Preparation
7-8.........Operation Instructions
9.............Light Performance
9.............Maintenance
9-10.......Troubleshooting / Replacement Parts
11-12......Limited Warranty
English
Thank you for choosing TotalPond®
BEFORE RETURNING TO STORE
Contact Customer Care:
1-888-412-6001

13-15.....Advertencias y precauciones
15..........Contenido del paquete
16..........Preparación
16-18....Instrucciones de funcionamiento
18...........Rendimiento de la luz
19...........Mantenimiento
19-20...Solución de problemas/piezas de repuesto
21-23.....Garantía limitada
Español
TABLA DE CONTENIDO
Gracias por elegir TotalPond®
ANTES DE DEVOLVER AL MINORISTA
Contacte Atención al Cliente:
1-888-412-6001

VISIT WWW.TOTALPOND.COM FOR INFORMATION AND TIPS. EN
4
Questions, problems, missing parts?
1-888-412-6001
customercare@totalpond.com
Monday - Friday
Visit totalpond.com for a step by step guide and videos
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully prior to starting up
the unit!
The water system on which the operation of this product
is based requires utmost care and maintenance, possibly
also the use of chemicals, in order to prevent and keep
the occurrence of micro-organisms and harmful bacteria,
especially legionellae that are responsible for legionnaire’s
disease, under control. Non-observance of this
information about correct maintenance and care can entail
the spreading of harmful bacteria. Due to the fact that for
decorative purposes, water nozzles distribute water in the
air, water droplets containing harmful bacteria can enter
your lungs and cause life-threatening diseases.
It is the responsibility of the owner of the water system
and its attendant units to ensure their maintenance
and care in compliance with the laws, directives and
instructions laid down for this purpose. In order to avert
harmful contamination, we urgently recommend the user
to ensure cleaning and care of the water system and
the water feature including the nozzle, and to take all
necessary measures to maintain the technical units, such
as pumps, tubing, connectors, underwater lighting, and
nozzles to keep them in functional order in line with safety
aspects. However, the maintenance and care obligation
WARNINGS AND CAUTIONS

EN
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO STORE: 1-888-412-6001
5
is not limited to the technical products supplied, but
encompasses the entire system.
We also recommend the owner to keep records of the
dates when maintenance and care was carried out,
and to document all water tests made in conjunction
with the water feature. The owner is solely responsible
for guaranteeing the safety of the water feature. Use or
maintenance of the units sold and the system are beyond
GeoGlobal Partner’s influence. GeoGlobal Partners can only
be held liable for manufacturing faults of TotalPond®units.
WARNING
• To reduce the risk of electrical shock, connect only to
a properly grounded, grounding type receptacle.
• Do not exceed the voltage shown on the transformer.
• Do not submerge the transformer and sensor.
• To reduce the risk of fire or injury, keep lamp away
from materials that may burn.
• Always disconnect light from the power source before
beginning any maintenance or work on the light.
• Inspect cord for damage before installation and / or
maintenance. Replace the entire light transformer
assembly if damage is found.
CAUTION
• Use a proper power source as indicated on the
transformer label.
• Keep the cord away from high temperatures or other
heat sources.
• Do not lift the light or the transformer by its power
cord.
• This light assembly is not intended for use in swimming
pools or hot tubs.

VISIT WWW.TOTALPOND.COM FOR INFORMATION AND TIPS. EN
6
PREPARATION
Before beginning assembly or operation of product, make
sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or
damaged, do not attempt to assemble, install or operate
the product. Contact Customer Care for replacement
parts.
• Estimated assembly time: 5 minutes.
• No tools required for assembly.

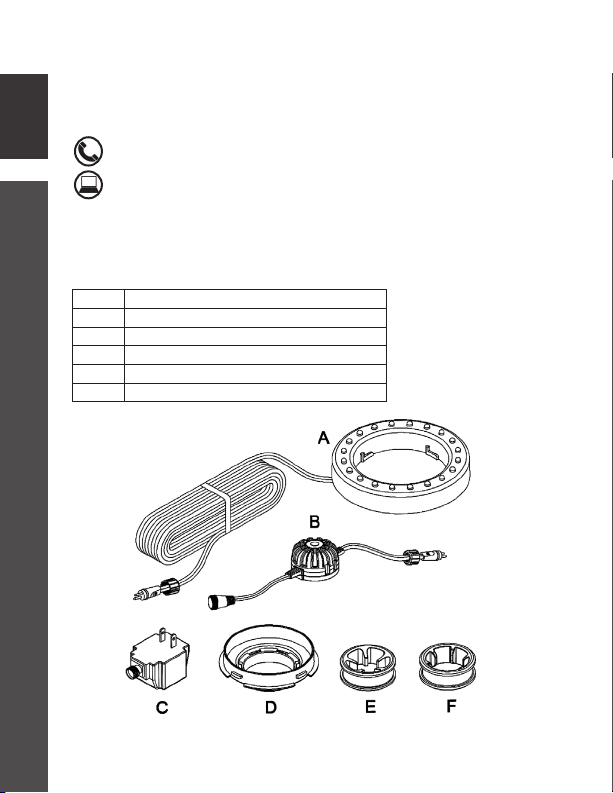

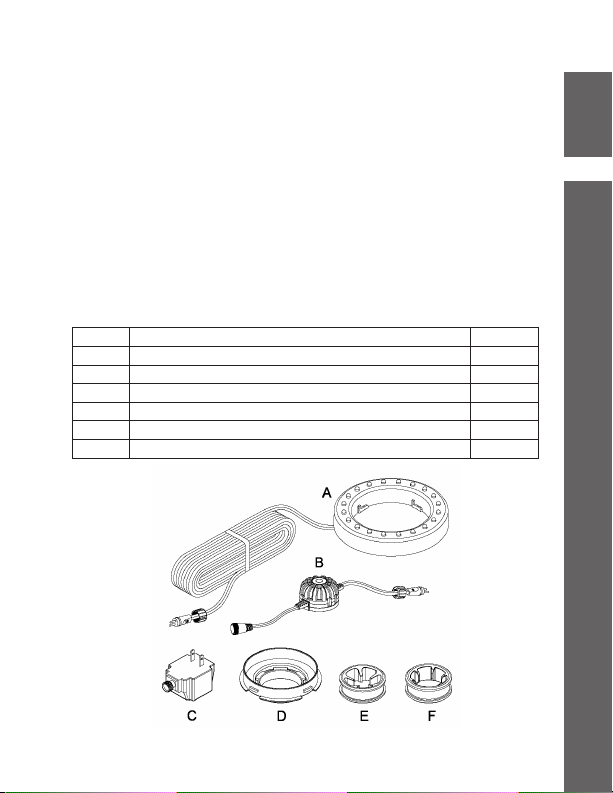

PACKAGE CONTENTS
Part Description Qty
ALED light ring 1
BSensor 1
CTransformer 1
DConnector 1
ENozzle tube adaptor 1
FExtra large nozzle tube adaptor 1

EN
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO STORE: 1-888-412-6001
7
OPERATION INSTRUCTIONS
1B
PACKAGE CONTENTS
2
3
4
The light ring can be used alone (Step
1A) or it can be attached to select
TotalPond® nozzle kits (Step 1B), kits
not included.
Step 1A. If using just the light ring,
place the light ring in or out of the water
then skip to step 7.

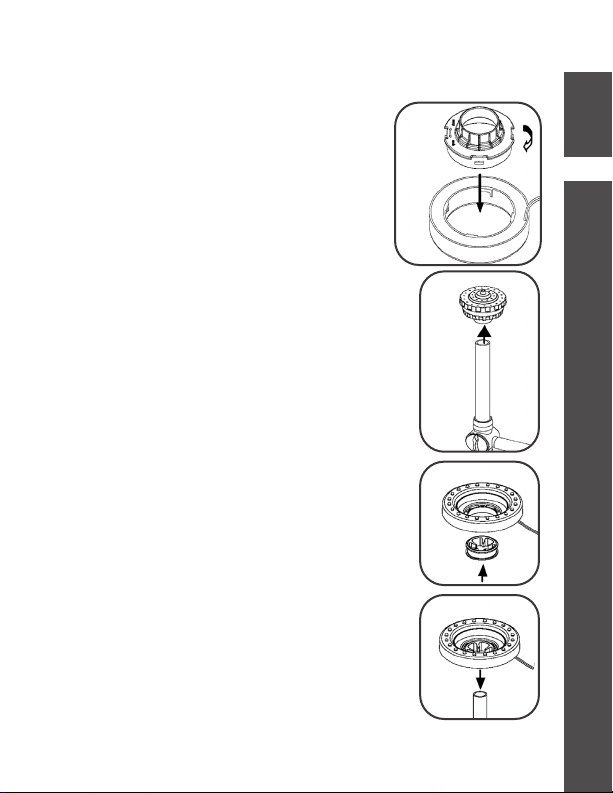

Step 1B. If connecting to a nozzle kit,
assemble connector to LED light ring
Step 2. Follow your nozzle kit instructions
to safely disconnect from power and
remove from pond. Disassemble the
nozzle head from nozzle kit.
NOTE: Nozzle head and nozzle kits are
NOT INCLUDED with light ring
Step 3. Assemble correct nozzle tube
adaptor to light ring assembly.
Use Nozzle tube adapter (E) for Large
Nozzle Kit (item# N16100/ 52235) or
Complete Filter Kit with Pump (item
#MF13015/ 52229).
Use Extra large nozzle tube adaptor (F)
for larger nozzle tubes
Step 4. Attach the light ring assembly to
extension tube of nozzle kit.
NOTE: Extension tube is NOT INCLUDED.

VISIT WWW.TOTALPOND.COM FOR INFORMATION AND TIPS. EN
8

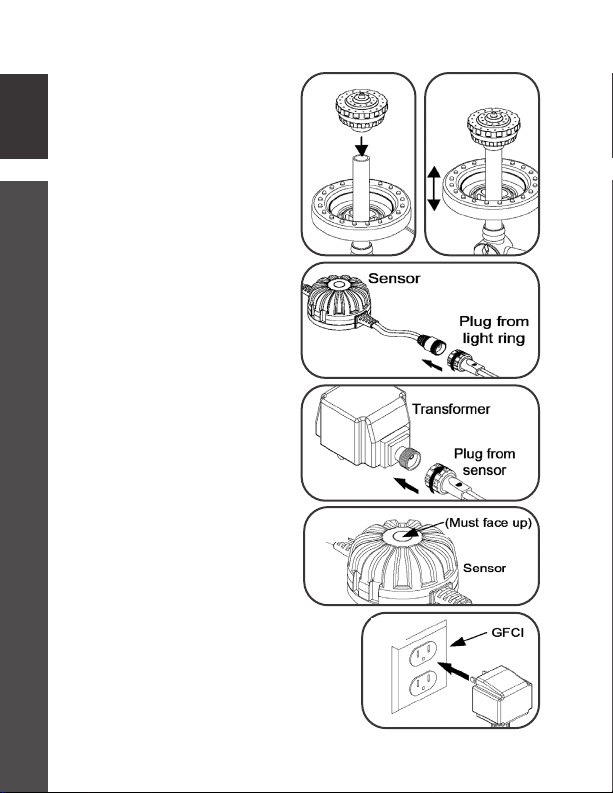

Step 5. Assemble the
nozzle head back to your
nozzle kit.
Step 6. Light ring can
use in or out of the water,
adjust the light ring up
and down to the desire
location.
Step 7. Connect the
light ring to the sensor by
pushing the plug into the
sensor socket until it is
firmly seated. Hand tighten
the nut from the plug to the
socket.

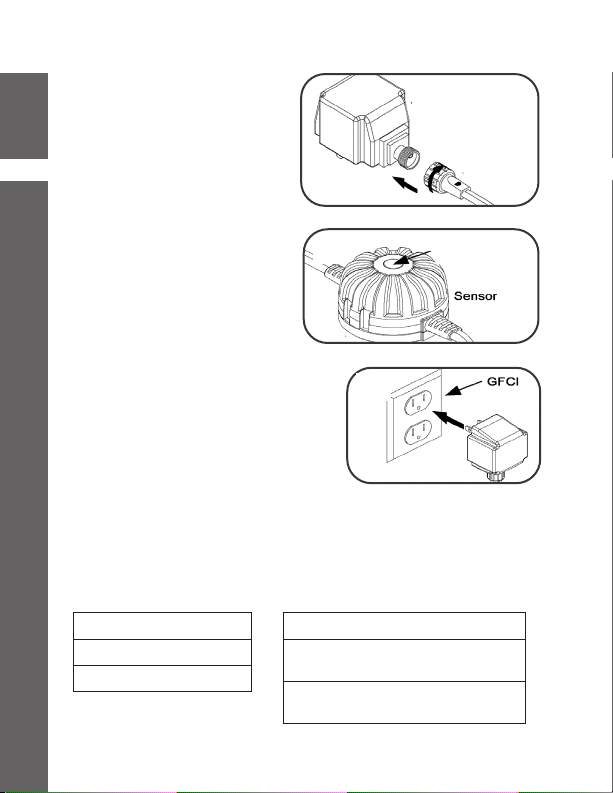

Step 8. Connect the
sensor to the transformer
by pushing the plug into the
transformer socket until it is
firmly seated. Hand tighten
the nut from the plug to the
socket.
Step 9. Make sure that the
transformer and sensor
are NOT submerged. Make
sure that the light sensor
faces up.
NOTE: At night, the lights
will automatically turn on.
At sunrise, they will automatically
turn off.
Step 10. Plug the transformer
into a properly grounded electrical
outlet
5 6
7
8
9
10

EN
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO STORE: 1-888-412-6001
9
MAINTENANCE
• The light ring may require cleaning from time to time for
optimal performance.
• Before cleaning, always disconnect from the power
source.
• Use a soft cloth or brush and warm water to clean the
parts.
• Reconnect to the power source when you are fnished.
LIGHT PERFORMANCE
TROUBLESHOOTING
• If light ring fail to illuminate, check that light ring are
getting power by testing another appliance in the same
power outlet.
• The light ring is designed to turn on when it gets dark,
and turn off when it gets light. To activate the light
during daylight hours, cover the sensor.
• If light ring do not turn off during daytime, check
sensor. Make sure the sensor faces up and is not
covered by dirt or debris.
For more information on product maintenance
and maintenance videos, visit www.totalpond.
com
Power Consumption
Power: 0.8 watt
Voltage: 12 volts
Cord length
1 ft. cord from outlet to sensor
10 ft. cord from sensor to light ring

VISIT WWW.TOTALPOND.COM FOR INFORMATION AND TIPS. EN
10
ALED light ring
BSensor
CTransformer
DConnector
ENozzle tube adaptor
FExtra large nozzle tube adaptor
For replacement parts, contact Customer Care,
Monday - Friday:
1-888-412-6001
customercare@totalpond.com
REPLACEMENT PARTS

EN
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO STORE: 1-888-412-6001
11
1 YEAR WARRANTY
www.totalpond.com/register
Questions? Call Customer Care at 1-888-412-6001
Date of purchase:
___/___/___
Item number
____________
LIMITED WARRANTY
All pumps and electrical products are warranted to the user
against defective material and workmanship, under normal
working conditions. This warranty period begins on the date of
purchase by the original purchaser.
APPLICATION
Warranty covers only properly installed and maintained units.
Any damage or modication to the cord or to the unit will
terminate the warranty. Pump warranty is limited to applications
pumping fresh water in a pond or fountain only. Other liquid
applications or extreme temperature uses must be approved in
writing by the manufacturer. Receipt and product date code are
required for warranty claims.
WARRANTY CLAIM
Warranty claims must be made by calling Customer Care (at
1-888-412-6001). If the item is determined to be defective, you
will be given authorization to return the defective part(s), freight
pre-paid, along with proof of purchase.
DISPOSITION
The manufacturer will make a good faith effort for prompt
disposition regarding all warranty claims. Returned product will
be inspected to determine cause of failure before warranty is

VISIT WWW.TOTALPOND.COM FOR INFORMATION AND TIPS. EN
12
applied. Warranty does not cover any costs associated with the
shipping, handling, installation or removal of products or parts
subject to this warranty. For products damaged in transit, a
claim should be led with the carrier.
DISCLAIMER
Any oral statements made about the product by the seller,
the manufacturer, the representatives, or any other parties do
not constitute warranties, should not be relied upon by the
user, and are not part of the contract for sale. The seller’s and
manufacturer’s only obligation, and buyer’s only remedy shall
be for the manufacturer to either replace and/or repair at the
manufacturer’s sole discretion, the product as described above.
Neither seller nor the manufacturer shall be liable for injury,
loss or damages for lost prots, lost sales, injury to person or
property, or any other incidental or consequential loss arising
from any cause whatsoever, no matter whether based upon
warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them.
Before using, the buyer and user shall determine the suitability
of the product for the intended use, and assume all risk and
liability whatsoever in connection therewith. The warranty
and remedy described in this limited warranty is an exclusive
warranty and remedy in lieu of any other warranty or remedy
expressed or implied. All other warranties and remedies are
hereby expressly excluded, including but not limited to any
implied warranty or merchantability of tness for any particular
purpose. This warranty gives the buyer and user specic legal
rights, and buyer and user may also have other rights which
vary from state to state. Some states do not allow exclusioinis
or limitations of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.

EN
POR FAVOR LLAME ATENCIÓN AL CLIENTE ANTES DE DEVOLVER EL ARTÍCULO A
MINORISTA: 1-888-412-6001 SP
13
¿Preguntas, problemas, piezas que faltan?
1-888-412-6001
customercare@totalpond.com
Lunes a viernes
Visite totalpond.com para obtener una guía paso a
paso y videos
ADVERTENCIAS Y PRECAUCIONES
INDICACIÓN DE SEGURIDAD IMPORTANTE
¡Antes de poner el equipo en funcionamiento lea
minuciosamente estas instrucciones! El sistema de
agua, que se toma como base para el funcionamiento
de este producto, requiere un cuidado y mantenimiento
minuciosos y posiblemente también el empleo de
productos químicos para limitar los microorganismos
y las bacterias patógenas, especialmente también las
legionellas, que provocan la legionelosis. En caso de
incumplimiento de esta indicación para un mantenimiento
y cuidado correctos se pueden propagar las bacterias
peligrosas para la salud. Dado que las toberas de agua
distribuyen para fines de decoración el agua en el aire,
las gotas de agua contaminadas con bacterias peligrosas
para la salud puede llegar a los pulmones y provocar
enfermedades que amenazan la vida. El propietario del
sistema de agua y de los equipos correspondientes
es responsable del mantenimiento y el cuidado de los
mismos conforme a las leyes, directivas e instrucciones
válidas. Para evitar suciedades peligrosas para la salud
recomendamos al propietario ocuparse necesariamente
de la limpieza y del cuidado del sistema de agua y de

VISITE WWW.TOTALPOND.COM PARA INFORMACIÓN Y CONSEJOS SP
14
los efectos de fuente inclusive de la tobera así como
tomar todas las medidas necesarias para mantener
los equipos técnicos, como bombas, tubos flexibles,
tubos, conectores de abrazaderas de cable, iluminación
bajo agua y toberas en razón del funcionamiento y la
seguridad. El deber de mantenimiento y cuidado no
sólo se limita a los productos técnicos suministrados
sino a todo el sistema. El propietario también
debe documentar todos los protocolos y datos del
mantenimiento y cuidado así como todas las pruebas
de agua que se ejecutaron en relación con los efectos
de fuente. Sólo el propietario es el único responsable
de la seguridad de los efectos de fuente. GeoGlobal
Partners no tiene ninguna influencia en el uso o el
mantenimiento de los equipos vendidos y el sistema.
De GeoGlobal Partners sólo se puede reclamar la
responsabilidad de los errores de fabricación en los
equipos de TotalPond®.
ADVERTENCIA
• Para reducir el riesgo de descarga eléctrica,
conéctelo únicamente a un receptáculo del tipo con
conexión a tierra debidamente conectado a tierra.
• No exceda el voltaje que se muestra en el
transformador.
• No sumerja el transformador y el sensor.
• Para reducir el riesgo de incendio o lesiones,
mantenga la lámpara alejada de materiales que
puedan quemarse.
• Siempre desconecte la luz de la fuente de energía
antes de comenzar cualquier mantenimiento o trabajo
en la luz.
• Inspeccione el cable en busca de daños antes de la
instalación y / o mantenimiento. Reemplace todo el
conjunto del transformador de luz si encuentra daños.

EN
POR FAVOR LLAME ATENCIÓN AL CLIENTE ANTES DE DEVOLVER EL ARTÍCULO A
MINORISTA: 1-888-412-6001 SP
15
CONTENIDOS DEL PAQUETE
Pieza Descripción ctdad
ALED Anillo de luz 1
BSensor 1
CTransformador 1
DConector 1
EAdaptador de tubo de boquilla 1
FAdaptador de tubo de boquilla extra grande 1
PRECAUCION
• Utilice una fuente de alimentación adecuada como se
indica en la etiqueta del transformador.
• Mantenga el cable alejado de altas temperaturas u
otras fuentes de calor.
• No levante la luz o el transformador por su cable de
alimentación.
• Este conjunto de luz no está diseñado para su uso en
piscinas o jacuzzis.

VISITE WWW.TOTALPOND.COM PARA INFORMACIÓN Y CONSEJOS SP
16
INSTRUCCIONES DE FUNCIONAMIENTO
1B
2
El anillo de luz se puede usar solo
(Paso 1A) o se puede conectar a
ciertos kits de boquillas TotalPond®
(Paso 1B), kits no incluidos.
Paso 1A. Si usa solo el anillo de luz,
colóquelo dentro o fuera del agua y
luego vaya al paso 7.
Paso 1B. Si se conecta a un kit de
boquillas, monte el conector en el
anillo de luz LED.
Paso 2. Siga las instrucciones del kit
de boquillas para desconectar de forma
segura la alimentación y retirar del
estanque. Desmonte el cabezal de la
boquilla del kit de boquillas.
NOTA: El cabezal de boquilla y los kits
de boquilla NO ESTÁN INCLUIDOS con el
anillo de luz.
PREPARACIÓN
Antes de comenzar a ensamblar y a hacer funcionar
el producto, asegúrese de que no falte ninguna pieza.
Compare las piezas con la lista de contenidos del
paquete y con el diagrama de arriba. Si alguna pieza
falta, o si hay piezas dañadas, no intente ensamblar ni
utilizar el producto. Póngase en contacto con el servicio
al cliente para obtener las piezas de reemplazo.
• Tiempo calculado para el ensamblaje: 5 minutos.
• No se necesitan herramientas para el ensamblaje.

EN
POR FAVOR LLAME ATENCIÓN AL CLIENTE ANTES DE DEVOLVER EL ARTÍCULO A
MINORISTA: 1-888-412-6001 SP
17
3
4
5 6
7
Paso 3. Monte el adaptador del tubo
de la boquilla correcto en el conjunto del
anillo de luz.
Utilice el adaptador de tubo de boquilla
(E) para el kit de boquilla grande (artículo#
N16100 / 52235) o el kit de filtro completo
con bomba (artículo# MF13015 / 52229).
Utilice un adaptador de tubo de boquilla
extragrande (F) para tubos de boquilla
más grandes.
Paso 4. Conecte el conjunto del anillo
de luz al tubo de extensión del juego de
boquillas.
NOTA: El tubo de extensión NO ESTÁ
INCLUIDO.
Paso 5. Vuelva a montar
el cabezal de la boquilla
en su kit de boquillas.
Paso 6. El anillo de luz
se puede usar dentro o
fuera del agua, ajuste el
anillo de luz hacia arriba y
hacia abajo a la ubicación
deseada.
Paso 7. Conecte el
anillo de luz al sensor
empujando el enchufe
en el enchufe del
sensor hasta que esté
firmemente asentado.
Apriete a mano la tuerca
del enchufe al enchufe.
enchufe del
anillo de luz

VISITE WWW.TOTALPOND.COM PARA INFORMACIÓN Y CONSEJOS SP
18
RENDIMIENTO DE LA LUZ
Consumo de fuerza
Poder: 0.8 vatio
Voltaje: 12 voltios
Longitud de cable
Cable de 0.3 m desde la
salida hasta el sensor
Cable de 3 m desde el sensor
hasta el anillo de luz
10
9
Paso 8. Conecte el
sensor al transformador
empujando el enchufe
en el enchufe del
transformador hasta que
esté firmemente asentado.
Apriete a mano la tuerca
del enchufe al enchufe.
Paso 9. Asegúrese de
que el transformador
y el sensor NO estén
sumergidos. Asegúrese de
que el sensor de luz esté
hacia arriba.
NOTA: Por la noche,
las luces se encenderán
automáticamente. Al amanecer,
se apagarán automáticamente.
Paso 10. Enchufe el
transformador en un
tomacorriente con conexión a
tierra adecuada.
8
enchufe del
sensor
transformador
debe mirar hacia
arriba

EN
POR FAVOR LLAME ATENCIÓN AL CLIENTE ANTES DE DEVOLVER EL ARTÍCULO A
MINORISTA: 1-888-412-6001 SP
19
MANTENIMIENTO
• Es posible que sea necesario limpiar el anillo de luz de
vez en cuando para un rendimiento óptimo.
• Antes de limpiar, siempre desconéctelo de la fuente de
alimentación.
• Utilice un paño suave o un cepillo y agua tibia para
limpiar las piezas.
• Vuelva a conectarlo a la fuente de alimentación cuando
haya terminado.
GUIA PARA LA SOLUCION DE
PROBLEMAS
• Si el anillo de luz no se ilumina, verifique que el anillo de
luz reciba energía probando otro aparato en la misma
toma de corriente.
• El anillo de luz está diseñado para encenderse cuando
oscurece y apagarse cuando hay luz. Para activar la luz
durante las horas del día, cubra el sensor.
• Si el anillo de luz no se apaga durante el día, revise el
sensor. Asegúrese de que el sensor mire hacia arriba y
no esté cubierto de suciedad o escombros.
Para obtener más información sobre los
videos de mantenimiento y mantenimiento del
producto, visite www.totalpond.com

VISITE WWW.TOTALPOND.COM PARA INFORMACIÓN Y CONSEJOS SP
20
Para piezas de repuesto, comuníquese con Atención
al cliente, Lunes a viernes
1-888-412-6001 customercare@totalpond.com
PIEZAS DE REEMPLAZO
ALED Anillo de luz
BSensor
CTransformador
DConector
EAdaptador de tubo de boquilla
FAdaptador de tubo de boquilla extra grande
Table of contents
Languages:
Other TotalPond Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

Sygonix
Sygonix 2335667 operating instructions

RSA Lighting
RSA Lighting C500 installation instructions

HYBRYD
HYBRYD CRYSTAL LED Installation and maintenance manual

thomann
thomann PAR64 10MM UV user manual

Lithonia Lighting
Lithonia Lighting LZ Series instructions

Light Plan
Light Plan LPL2-SS Suspended installation instructions
