Toto PJYD2200PWEE User manual

Installation Guide
FLOTATION TUB
PJYD2200PWEE
To service installers
Please explain the FLOTATION TUB functions and operation to the customers.
Keep the power turned off when there is time until handing over the product in a new home.
●Cautions and warnings 2
●Included parts 5
●Required tools 6
●Specications 7
●Dimension drawings 8
●Electrical construction 9
●Installation procedures 10
●Meaning of the indications 11
●Building a base for the bathtub 11
●Installing the bathtub 12
●Conduct a trial run 15
●Finishing 16

2
Cautions and warnings
Please read the installation manual and follow these cautions and warnings carefully
before beginning the construction.
Follow all safety precautions and warnings.
WARNING When this appears next to a topic, this indicates that misoperation
could result in death or serious injury.
CAUTION When this appears next to a topic, this indicates that misoperation
may result in injury or physical damage.
●The following symbols are used to classify and explain instructions that must be
followed.
Symbol example Meaning of symbol
This symbol indicates something that is "Prohibited".
This symbol indicates something that is "Required".
WARNING
Prohibited
Do not stand on bathtub while working.
●Doing so could cause a fall or injury or damage the components.
Only install the supplied parts or directed parts, and do not apply
any changes to them.
●Especially make sure not to change the dimensions of the product.
Do not bend, handle the power cords roughly or place heavy
objects on them.
●This could result in a re or electric shock.
Always observe
Make sure to follow the installation guide for installation.
●Incomplete installation can result in a re or electric shock. Otherwise,
there is a chance of leakage that could wet and cause damage to
household property.
Make sure to follow the procedures for the drainage piping
attachment.
●Defective construction can result in water leakage that could wet and
cause damage to household property.
After unpacking, swiftly dispose of any unnecessary packing
materials.
●The wood frame, nails, cardboard boxes, vinyl bags, or sealing straps may
cause an injury.
If children play with the packaging materials there is a risk of suffocation or
other accidents.
Have a specialized electrician conduct all electrical work.
●If the work is not conducted properly, it may result in an injury or physical
damage.

3
WARNING
Always observe
Protect the product with a wiring circuit breaker (I⊿n 0.03A and
25A differential switch, 20A magnetic thermal switch) and ground
fault circuit interrupter (GFCI).
Install both switches outside of the bathroom.
Attach the tap water supply equipment to the bathtub.
Make sure to connect the ground wire (ground).
Use the specied AC voltage for the voltage.
●This may result in damage or failure to the device or a re.
After completing the installation, make sure to check the
operation of the wiring circuit breaker and ground fault circuit
interrupter (GFCI).
●If the GFCI is not properly operating, it may result in a re or electric
shock.
Make sure to install the bathtub according to the installation
guide and in a stable location that can withstand its mass.
●Defective installation can result in an injury caused by the bathtub falling or
ipping over.
Turn the wiring circuit breaker off during operation.
●This may cause electric shock.
Ensure that you have an ergonomic working position during
transport and assembly.
●Take care at every stage that your move is safe. Ensure that you have
assistance to avoid risk of accident or injury.
Observe the current local prevention of accidents and building
regulations as well as sanitary and environmental protection
rules during installation.
Use a xed connection to supply power to the bathtub.
Do not extend or relay the power cord, connect it as 1 cord.
When installing the bathtub, do it within the protection area and
make sure that the person does not touch any electrical devices
from inside the bathtub.
Install the bathtub over 600 mm away from any electrical
appliances or power sockets.
Stabilise the bathtub with a xing plate.
●The bathtub may shake if it is not properly stabilised.
Secure enough space between the bathtub and tiles, and ll that
space with silicone that does not contain alcohol.
Check to see that the hole positions are not overlapping with the
cavity portions of the tile base.
●If there are cavities, use an adhesive anchor to stabilise.

4
CAUTION
Prohibited
Do not place a stepladder inside the bathtub or place heavy
objects on the edge the bathtub.
●This may cause damage.
Do not drop or bump anything hard or heavy onto the bathtub.
●This may cause the bathtub to crack and result in an injury, or leakage that
could wet and cause damage to household property.
Keep sources of heat at a distance.
Do not smoke.
●Doing so could cause damage.
Do not install the bathtub outdoors or in a location that is
regularly exposed to sunlight (such as a sun room).
●This may cause the bathtub to freeze and cause damage or discolouration.
When delivering the bathtub, do not hold the hose or piping or
bump anything hard against it.
Always observe
When opening the packaging, make sure that all of the supplied
parts and the bathtub itself are not damaged, and if they are, do
not use the damaged parts.
●Replace any damaged parts.
When installing the bathtub in a location that could result in
damage due to water leakage, make sure to apply waterproof
processing construction on the oor surface.
●If there is water leakage, it may cause damage to the oor below.
Remove the bathtub’s protective sheet after the construction is
completed.
Secure an area that enables proper space for the usage and
maintenance of the bathtub.
Before completing the installation, make sure to conrm the
sealability of each part.
●If water leakage is detected, remove the cause of the leakage.
Please conduct site operation directly on the drain.
When embedding a power cable for the bathtub on the
installation side, please use a sheath tube with an inner diameter
of 20 mm or more.

5
Included parts
Instruction
Manual
Installation
Guide
A-1 A-2
A-3 A-4
A-5
A-6
A-7 A-8
X 1 X 2
: Drain trap (PP) : Flathead screwdriver (small)
: Bathtub : Polyethylene foamed sheet
: Instruction manual
: Cleaning spatula for NECK BATH
: Bathtub xing plate set
: Installation guide
*Hand over A-3, 5 to the customer after the construction is completed.

6

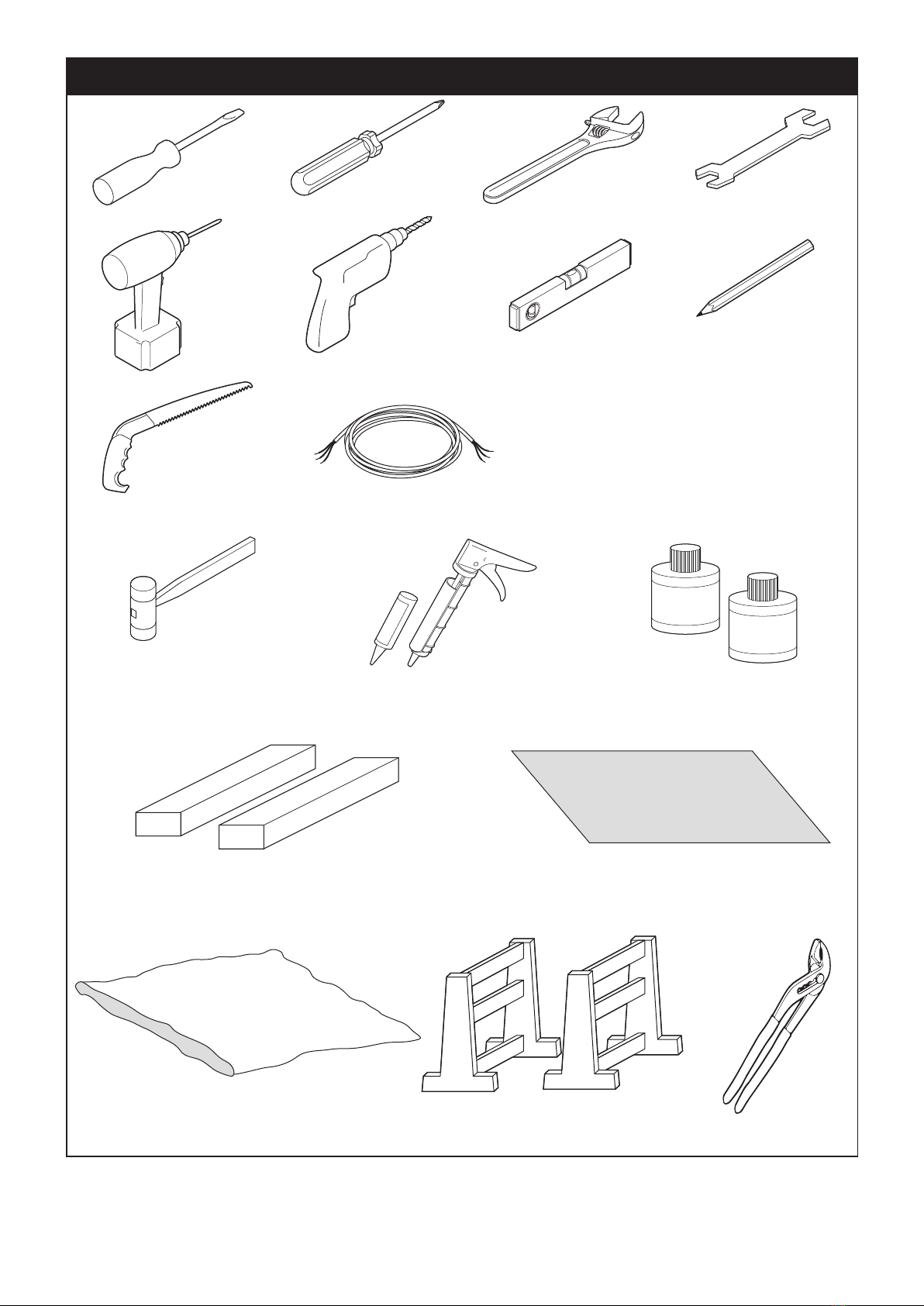

Required tools
B-2 B-3 B-4
B-5 B-6 B-7
M12
M10
B-8
B-9
B-15
B-17 B-18
B-16
B-11
B-12 B-13 B-14
B-1
B-19
PVC primer
φ8.5 mm
H05VVF
3 x 1.5 mm2
φ8~9 mm
PVC adhesive
Silicone
Soft cloth that will not
damage the bathtub
Water detection sheet

7
Specications
Item Specications
External dimensions 2200 mm (L) × 1050 mm (W) × 780 mm (H)
Bathtub depth 394 mm
Capacity 293 L
Weight 170 kg
Materials GALALINE
(GALALINE is an articial marble made of GFRP sandwich structure.)
Drainage method
Normal drainage (partial electrical valve automatic drainage)
+ Overow drainage
Drain plug Push-operated drain plug
Drainage rate (with trap) 48 L/min
Overow rate (with trap) 48 L/min
AIR-JET
Number of jet ports 8 locations
Ejection air amount Approx. 400L/min. (Strong mode)
Approx. 250L/min. (Weak mode)
NECK BATH
(Circulation)
Number of intake
parts 1 location
Number of water
outlets 1 location
Water discharge
ow rate Approx. 18 L/min
HYDROHANDS
(Circulation)
Number of intake
parts 1 location
Number of water
outlets 2 locations
Water discharge
ow rate Approx. 60 L/min
LED lighting
Irradiation part 1 location
Irradiated colour 1 colour
Controller Electrostatic capacitance-type touch panel
Rated voltage 220-240V AC
Rated frequency 50 Hz
Rated power consumption 850 W
Rated power consumption (LED) 45 W
Standby power consumption 2.8 W
Safety devices
Continuous operation preventing device
Overcurrent protection device
Overheating protection device (thermal protector)

8
Dimension drawings
[In case of attaching an option (oor standing bathtub ller)]
For an optional water faucet, ask the dealer,contractor from whom you purchased the product,or TOTO.

9

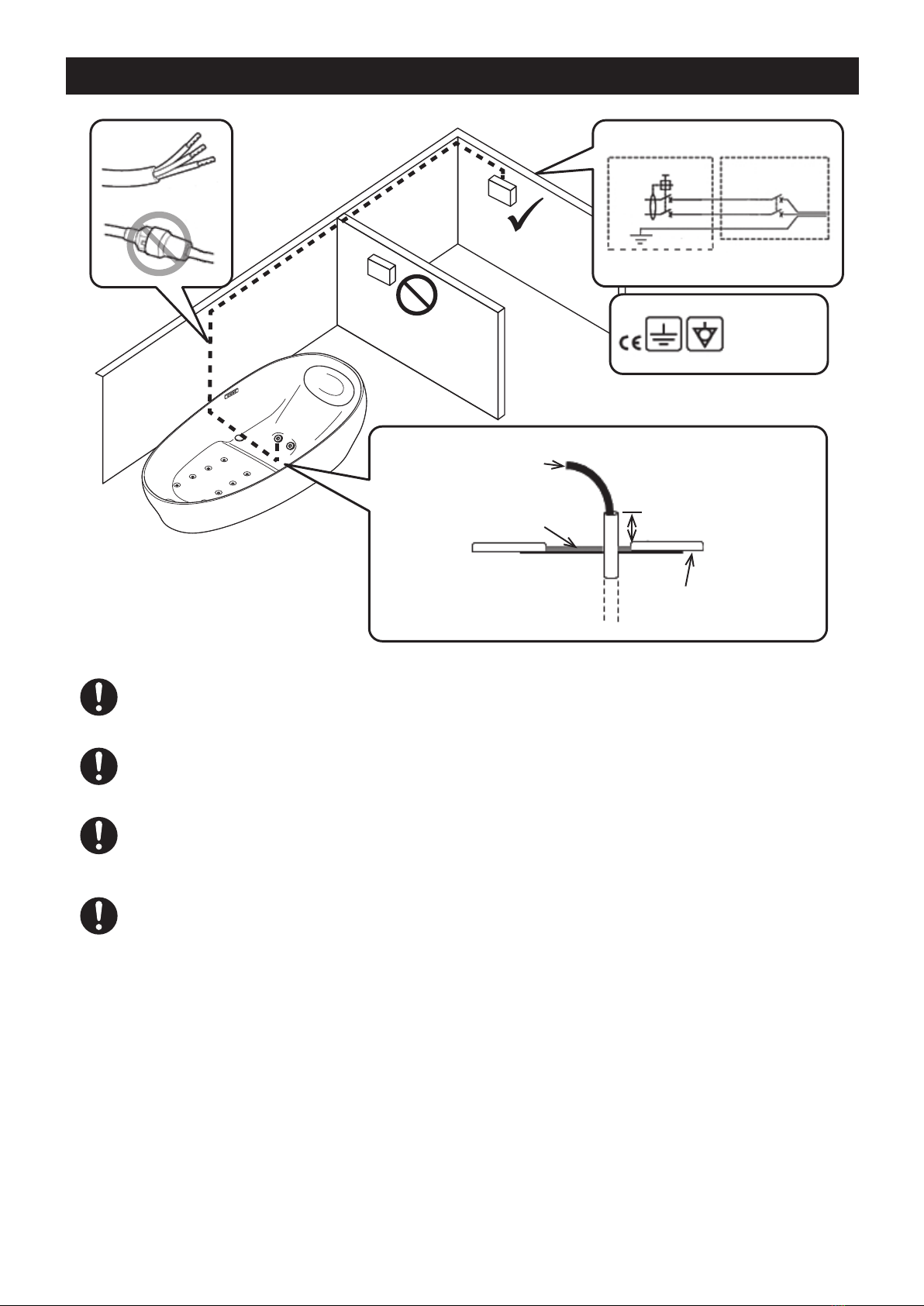

Electrical construction
20A
25A I∆n 0.03A
B-11
H05VVF
B-11
H=100~120 mm
220-240V
50Hz
850W
Waterproof
Tile
L=700~800 mm
Turn the wiring circuit breaker off during operation.
Protect the product with a wiring circuit breaker (I⊿n 0.03A and 25A differential
switch, 20A magnetic thermal switch) and ground fault circuit interrupter (GFCI).
Install both switches outside of the bathroom.
Use a xed connection to supply power to the bathtub.
Do not extend or relay the power cord, connect it as 1 cord.
When installing the bathtub, do it within the protection area and make sure that
the person does not touch any electrical devices from inside the bathtub.
Install the bathtub over 600 mm away from any electrical appliances or power
sockets.

10

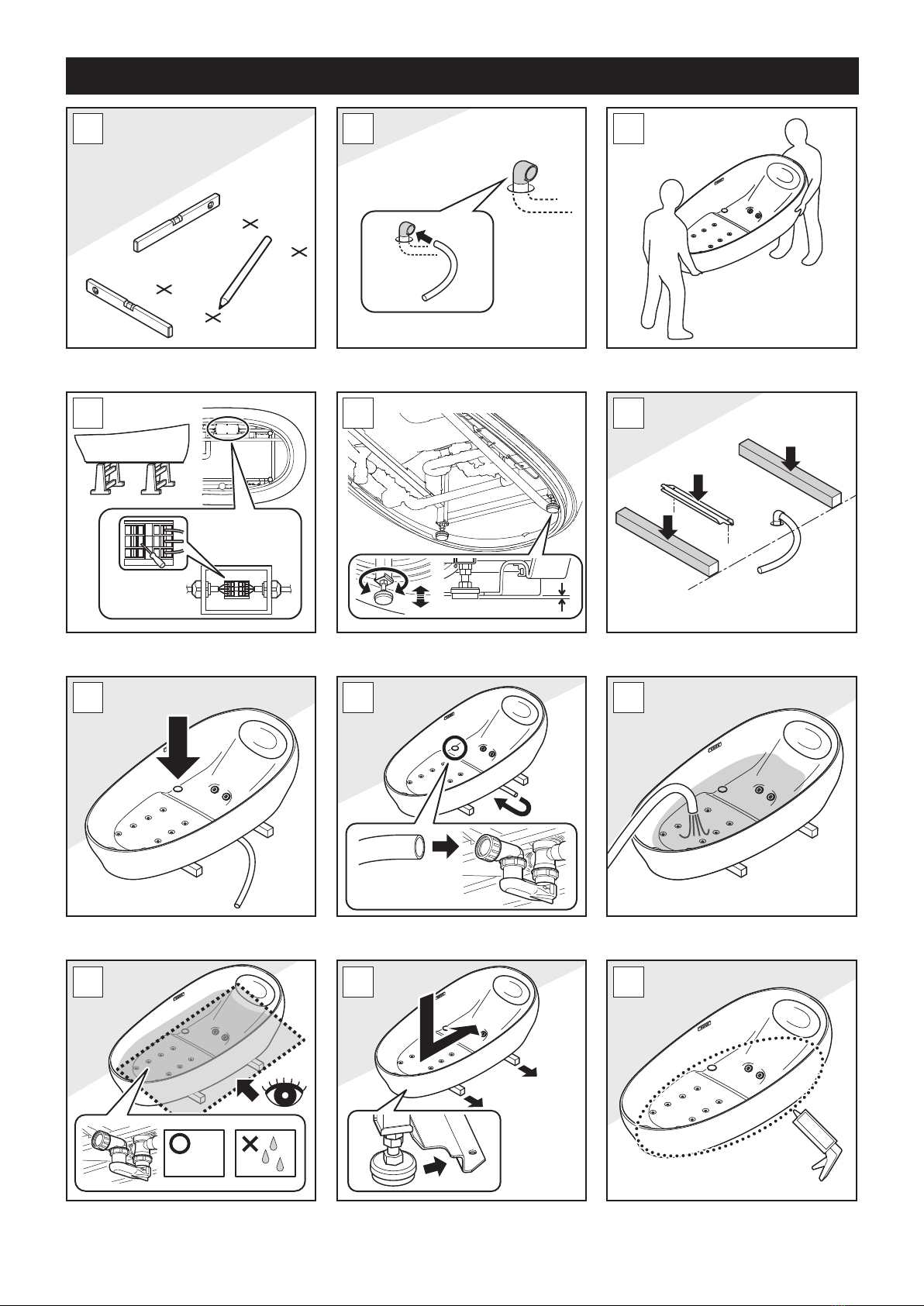

Installation procedures
1 2 3
>>P.11 >>P.12
4 5 6
>>P.12 >>P.14
7 8 9
>>P.15
10
①
②
11 12
>>P.16

11
Meaning of the indications
This operation must be conducted by a contractor.
Operation that must be checked.
Indicates the work ow.
Building a base for the bathtub
B-11
B-8
B-6
B-7
1
H=100~120 mm
Waterproof
Tile
L=700~800 mm
Please conduct site operation directly on the drain.
When embedding a power cable for the bathtub on the installation side, please
use a sheath tube with an inner diameter of 20 mm or more.

12
Installing the bathtub
2
1
B-14
2
Lift up
Lift up
3
B-18
B-17
B-2
Cardboard box, etc., for packaging the bathtub
Other Choices
41
2

13
A-8
B-11
4 5
Power supply
Brown
Blue
Green/
Yellow
3
B-2
IPX5
6
B-4 M12
51
5mm
A-2
2
5mm

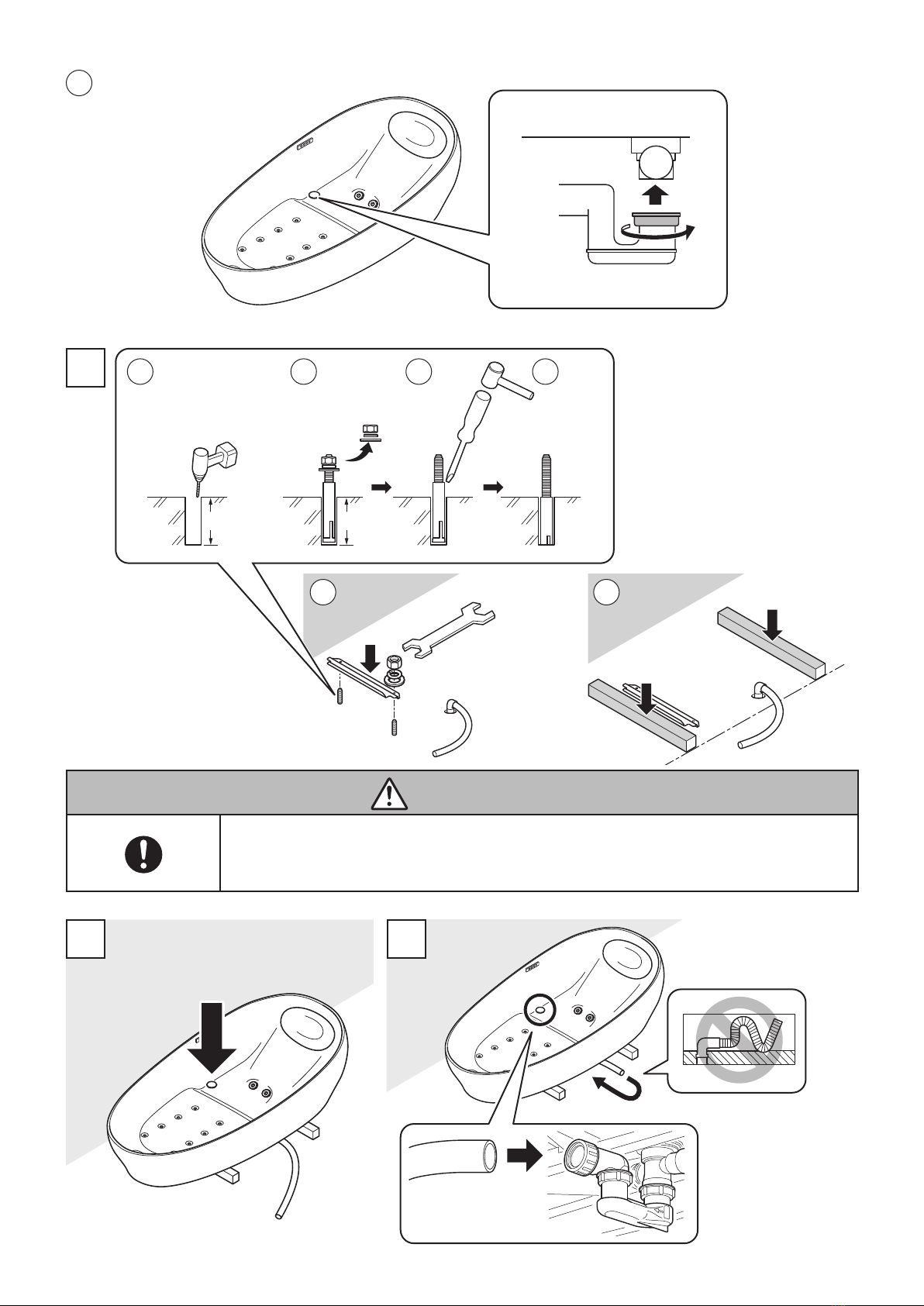

14
3
A-6
A-6
B-4 M10
B-15
B-6 B-1 B-12
1 2 3 4
5 6
6
A(40mm) A(40mm)
WARNING
Check to see that the hole positions are not overlapping with the
cavity portions of the tile base.
●If there are cavities, use an adhesive anchor to stabilise.
7 8

15
9

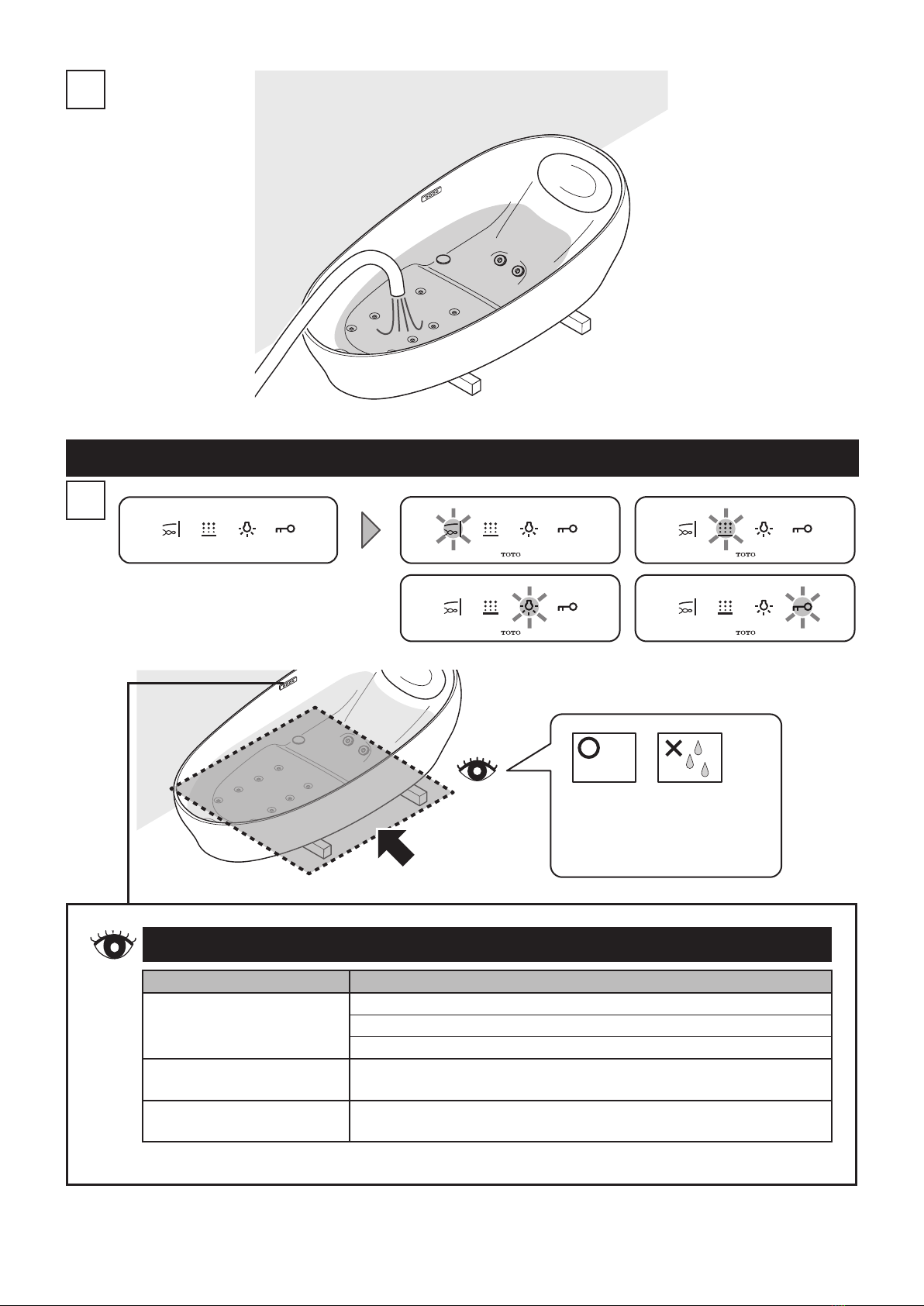

Conduct a trial run
B-16
Check to see that there is no
water leakage when the
product is operating or
stopped. Conduct a trial run
for 10 minutes.
10
If trouble occurs during the trial run
Symptoms Processing
The controller does not light
up, or operate any functions.
Is power being supplied?
Has there been a power outage?
Is it locked? Unlock by pressing and holding for over 3 seconds.
HYDROHANDS / NECK BATH Is the water level in the bathtub too low? Fill the water above the
intake parts.
The drain plug does not
open or close.
Please call for a repair.
*Please refer to the instruction manual for other symptoms.

16
11 1
2
WARNING
Stabilise the bathtub with a xing plate.
●The bathtub may shake if it is not properly stabilised.
Finishing
B-13
12
WARNING
Secure enough space between the bathtub and tiles, and ll that
space with silicone that does not contain alcohol.

17
MEMO

18
MEMO

19
MEMO

©TOTO Ltd. All rights reserved.
2018. 1
Printed in China
NTE185
