Town & Country Fireplaces TC36ST User manual

070617-40 TC36D_ST 5056.42801D
MODEL
TC36ST
SERIES D
MODULAR DIRECT VENT
SEE-THRU FIREPLACE
TC36 SEE THRU
INSTALLATION
INSTRUCTIONS
WARNING: If the information in these
instructions is not followed exactly, a re or
explosion may result causing property damage,
personal injury or death.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch.
•Donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a
neighbour’s phone.Follow the gas supplier’s
instructions.
• If you cannot reachyourgassupplier call
the re department.
Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Visit www.townandcountryfireplaces.com for the most up-to-date version of this manual
INSTALLATION INSTRUCTIONS

TC36D_ST
Table of Contents
Caution ............................................................................ 3
Safety .............................................................................. 3
Important Note for the
Commonwealth of Massachusetts:.................................. 4
Fireplace Dimensions ...................................................... 5
Minimum Clearances to Combustible Material ............... 5
Installation Requirements ................................................ 6
Manufactured (Mobile) Home .......................................... 6
Window Frame Removal ................................................. 6

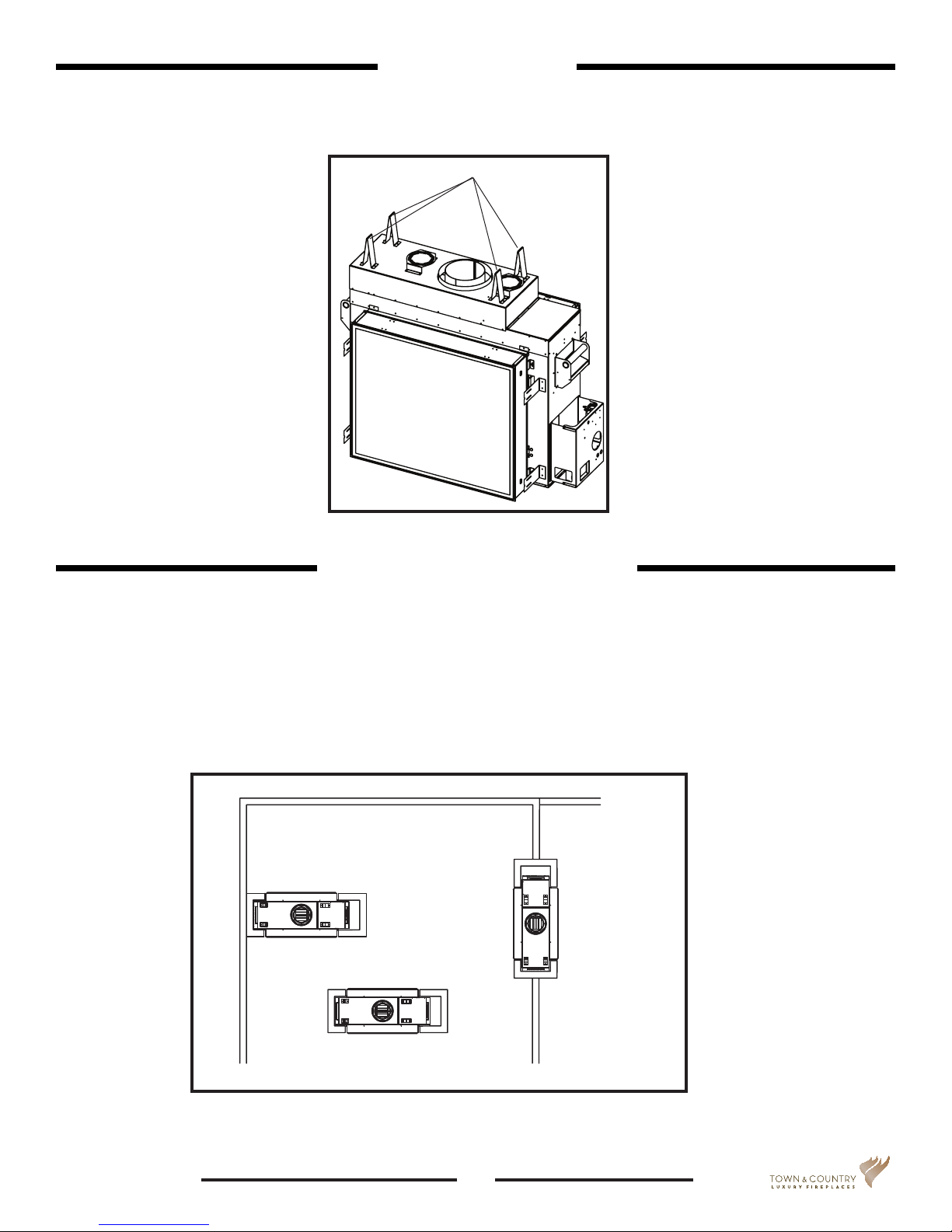

Top Standoffs .................................................................. 7
Locating The Fireplace .................................................... 7
Framing and Finishing ..................................................... 8
Minimum Combustible Framing Dimensions .................. 9

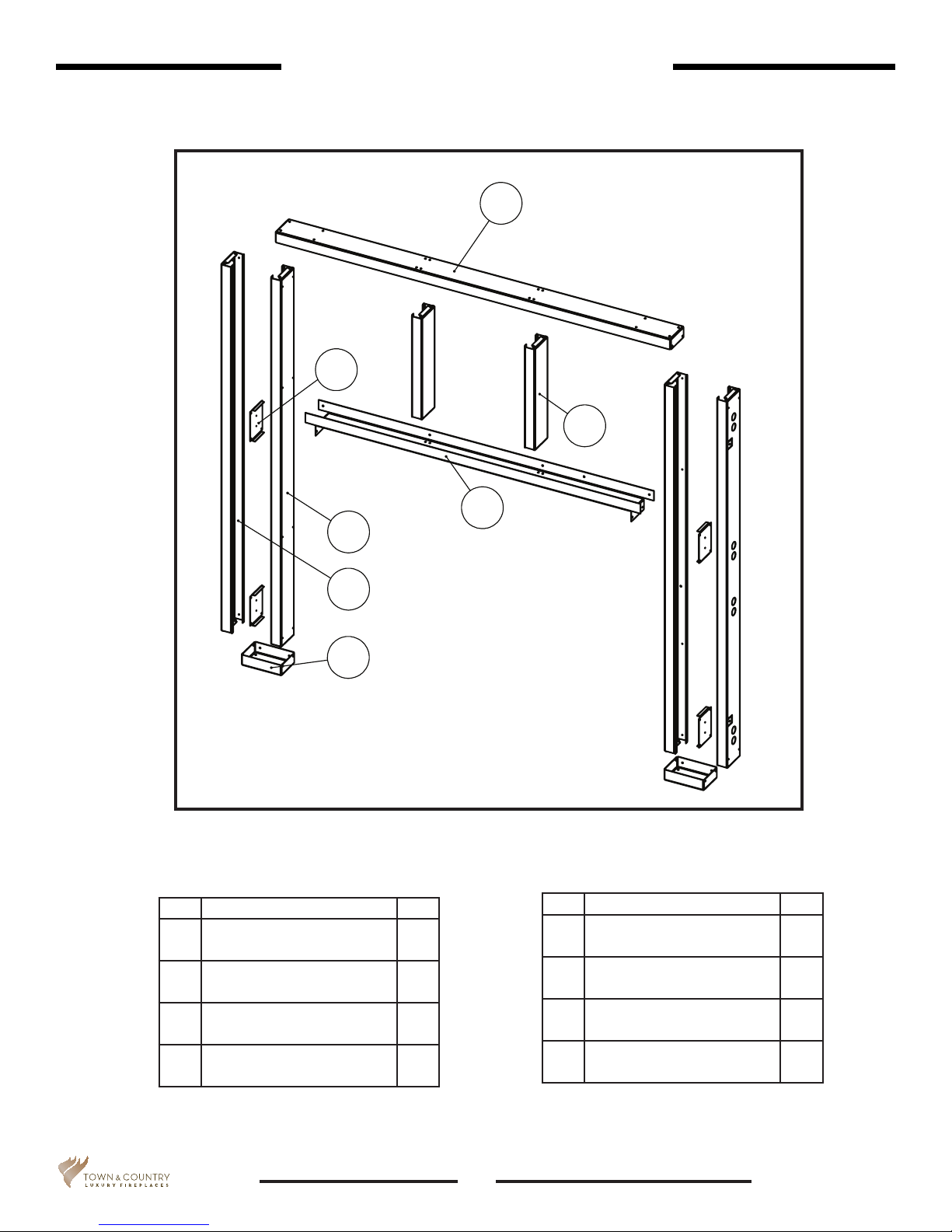

TC36 Steel Stud Framing Kit ......................................... 10
Fixed Lintel .................................................................... 13
Hearth Extension ........................................................... 14
Electrical ........................................................................ 15
Wall Switch and Remote Control .................................. 16
Selecting Natural Vent and Power Vent Modes ............. 16
Home Automation ......................................................... 17
Gas Supply .................................................................... 18
Gas Pressure Check ...................................................... 18
Venting ........................................................................... 19
Wall Termination Venting ............................................... 19
Wall Termination Venting Chart ..................................... 22
Roof Termination Venting Chart ..................................... 23
Vent Terminal Clearance ................................................ 26
Vent Terminal Minimum Clearances .............................. 26
Vent Pipe Sealant .......................................................... 27
Vent Restrictor Adjustment ........................................... 28
Wall Shield Ceiling Firestop Thimble.............................. 29
Wall Termination Kit ....................................................... 29
Roof Termination Kit ...................................................... 29
Vent Pipe Dimensions ................................................... 30
Vent Offset Chart ........................................................... 31
Firebox Panels Installation ............................................ 32
Finishing Touch Trim Kit Instructions ............................. 33
Lighting Instructions ...................................................... 34
Maintenance .................................................................. 35
TC36.DST Replacement Parts ...................................... 36
Replacement Parts – Control System ........................... 37
Wiring Diagram .............................................................. 38
Rating Label Location ................................................... 39

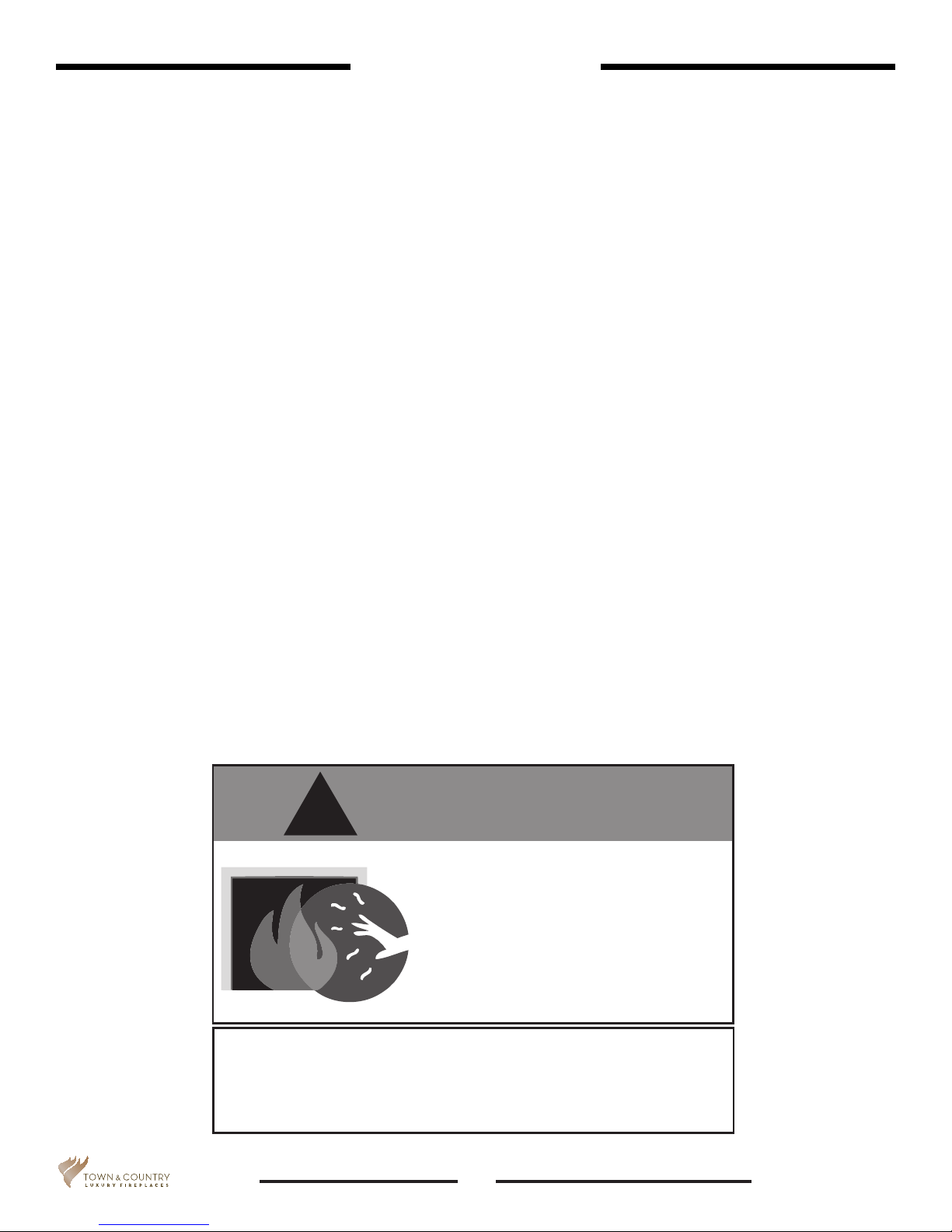

HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed for the protection of children and
other at-risk individuals.
25056.42801D_070617-40

TC36D_ST
FOR YOUR SAFETY - Do not install or operate your Town & Country replace
without rst reading and understanding this manual. Any installation or
operational deviation from the following instructions voids the Town & Country
FireplacesTM Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from
gas supply piping system during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing
its individual manual shut off valve during any pressure testing of the gas
supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a
couple of hours. This is due to the curing of paints, sealants and lubricants
used in the manufacturing process. This condition is temporary. Open doors
and windows to ventilate area. Smoke and fumes caused by the curing
process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a
qualied service technician to inspect the replace and to replace any part of
the control system and any gas control which has been under water.
Due to high temperatures, this gas appliance should be located out of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young
children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are
at-risk individuals in the house. To restrict access to a replace or stove, install an adjustable safety gate to keep
toddlers, young children, and other at-risk individuals out of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating. Failure to do so may create a
hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and
at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees or representatives for any
damages caused by an inoperable, inadequate, or unsafe condition which is the result, either directly or indirectly, of any
improper operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel burning appliance.
We recommend that our gas
hearth products be installed and
serviced by professionals who are
certied in the United States by
the National Fireplace Institute®
(NFI) as NFI Gas Specialists
3
5056.42801D_070617-40
Safety
Caution

TC36D_ST
Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired
carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal
vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the
installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)
(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
45056.42801D_070617-40

Minimum Clearances:
Side standoffs ........................................................... 0 in. (0 mm)
Back standoffs .......................................................... 0 in. (0 mm)
Top standoffs............................................................. 0 in. (0 mm)
Bottom of appliance.................................................. 0 in. (0 mm)
Adjacent side wall ..................................................... 2 in. (51 mm)
Ceiling to appliance................................................. 24 in. (610 mm)
*Mantel to appliance...................................See Figure #2
**Maximum Mantel extension ..................See Figure #2
Mantel support .......................................................... 2 in. (51 mm)
Vertical vent pipe .............................................. 1 3/4" in. (45 mm)
Horizontal Vent pipe (Top, sides and bottom) ... 1 3/4" in. (45 mm)
MANTEL
ADJACENT WALL
OR MANTEL SUPPORT
CEILING
UNIT MAY BE RECESSED UP TO 4 1/2”
WITH NON-CUMBUSTIBLE MASONRY
TYPE MATERIAL
*

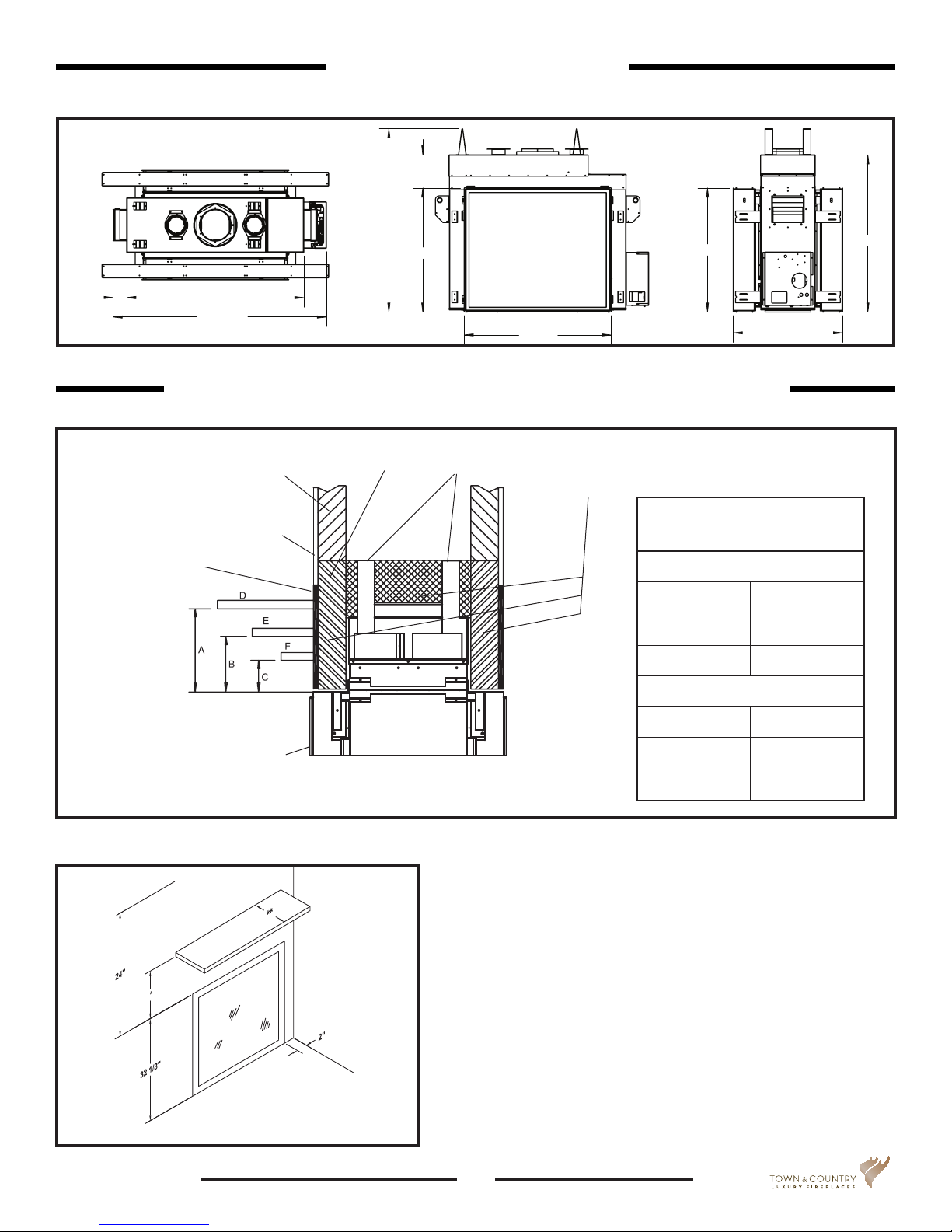

Figure 3: TC36ST Mantel.
TC36D_ST
Figure 2: TC36ST Mantel clearances.
* MANTEL CLEARANCE
A 9”
B 6”
C 3”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIGS #10 - 12
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERIAL,
ELECTRICAL WIRING OR GAS PLUMBING IN THIS
AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
32 1/2"
8 11/16"
48 1/16"
38 1/2"
32 1/2"
28 7/16"
41 1/4"
55 15/16"
46 7/16"
3 9/16"
Figure 1: TC36ST Overall dimensions.
5
5056.42801D_070617-40
Fireplace Dimensions
Minimum Clearances to Combustible Material

TC36D_ST
Figure 4: Safety barrier
screen.
Figure 5: Accessing
handle.
Figure 6: Handle.
The Town & Country Fireplace installation and venting must conform to the current CAN/CGA-B149 installation code (in
Canada) or the current National Fuel Gas Code, ANSI Z223.1 (in the USA), and approved per local codes. Only qualied
(licensed or trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured Homes after the "rst sale".
Consult local codes for approval. The replace must be fastened in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in CANADA), and the Manufacturer's
Home Construction and Safety Standard, Title 24 CFR, Part 3280 or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites and Communities ANSI/NFPA 501A (in the USA).
Warning: Turn off the fireplace, and allow ample time for the unit to cool before proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.
The window frame is held in place by two spring-loaded latches that are operated by a one-piece latch handle.
1. Remove safety barrier screen (Figure 4) by prying the top portion of the screen toward you , then lift the screen from
its tabs (inset) located at the base of the window frame.
2. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
3. Using a screwdriver (Figure 5) or other similar object, push against the notch in the top of the latch and grab the bot-
tom of the latch handle as it protrudes (Figure 6). Lift handle until latch hook disengages. Repeat for other side while
holding glass so it does not tip out.
4. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of the frame and lift up and out
to disengage from its bottom track.
5. Place the window frame in a safe place to avoid damage.
6. Re-assemble in reverse order. Latch handle should snap into place and be ush with window frame when engaged
correctly.
7. Reinstall Trim Kit if required.
8. Reinstall the safety barrier screen.
Installation Requirements
Manufactured (Mobile) Home
Window Frame Removal
TIP:
To ensure glass door is
properly latched, grasp the
top left and right sides of the
glass frame. Under moderate
pressure it should pull forward
and return to original position
evenly on both sides.
HANDLE
65056.42801D_070617-40

TC36D_ST
Figure 7: TC36ST Standoffs.
The top standoffs are shipped loose inside the replace and must be installed on top of the replace (Figure 7). Do this
once the replace is on site and in position.
In planning the installation for the replace, it is necessary to determine where the unit is to be installed, location of vent
system and where gas supply piping may be plumbed. Various installations are possible, such as, into an existing wall, a
corner, a built-in wall or a wall projection (Figure 8). Due to high temperatures, do not locate this replace in areas of high
trafc or near furniture or draperies.
The minimum clearances from the fireplace to combustible surfaces must be adhered to as described in
Figure 2 & Figure 3.
TOP STANDOFFS
Figure 8: TC36ST Possible locations.
7
5056.42801D_070617-40
Locating The Fireplace
Top Standoffs

TC36D_ST
NOTE: FOR CLARITY ONLY
ONE FACE OF THE TWO-
SIDED FIREPLACE IS SHOWN
WITH STEEL STUD FRAMING
KIT ATTACHED. BOTH FACES
MUST BE FRAMED WITH
THE STEEL STUD FRAMING
KIT SUPPLIED WITH THE
FIREPLACE.
NOTE:
The chase must be properly
sealed at the ceiling level or
between oors in a multilevel
installation.
48 1/2”
59 1/2”

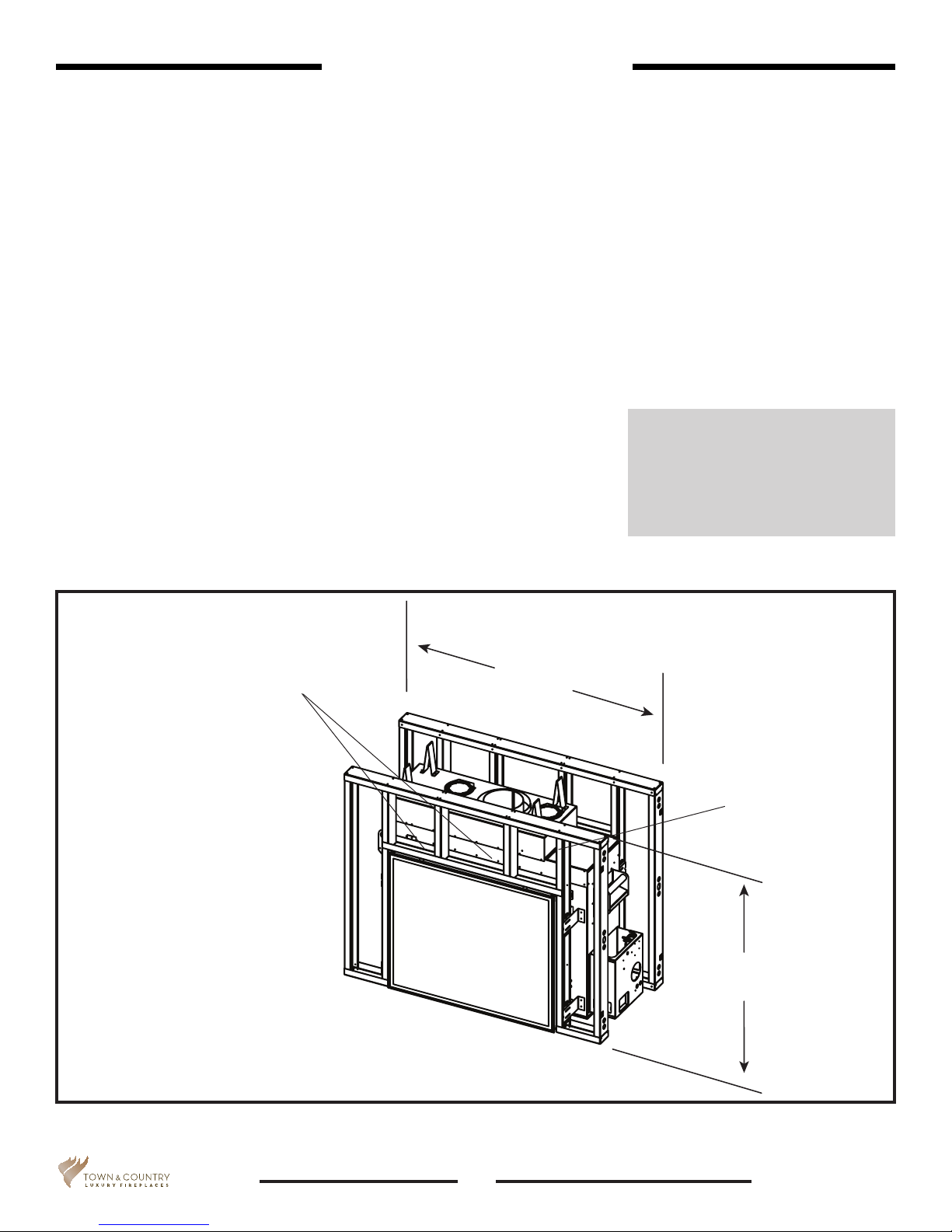

Figure 9: TC36ST With supplied steel frame.
Note: The replace should be in place
and venting installed before framing in or
building an enclosure around the unit.
The Town & Country replace must be
framed in as described below or totally
enclosed with non-combustible material,
such as facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4"
will allow the nishing surface to be ush
with the front of the unit. If preferred,
additional masonry type non-combustible
material can be installed above and to
the sides up to 4 1/2 inches proud of the
appliance.
The nishing material must not interfere
with glass frame access.
Two Steel Stud Framing Kits are supplied
with the replace and must be used unless
the replace is totally enclosed with non-
combustible material. Assemble the fram-
ing kit as per the instructions on pages 10
& 11 of this manual. Attach the steel frame
to the replace once the replace is in its
nal position. Secure the steel frame to
the framing brackets on each side of the
unit. Ensure that the studs are set back far
enough to allow for thickness of nishing
surface.
The sides, back and top of the replace
can be framed in up to the steel studs and
the replace standoffs using conventional
lumber. Consult local building codes for
specic requirements.
Due to high temperatures, non-combusti-
ble backer board, such as cement board
or its equivalent, must be used to sheet
in the front of the replace, extending 12"
above and 9 3/4" to the side of the fram-
ing edge bars (Figure 10). Standard sheet
rock (dry wall) may be used beyond this.
If the backer board is not to be nished
with other non-combustible material
such as tiles, it is recommended that the
instructions in (Figure 12) be followed
closely.
Chase Insulation: When installing this
fireplace against a non-insulated exte-
rior wall or chase, it is recommended
that the outer walls be insulated to
same degree as other exterior walls.
Do not place fireplace directly against
the insulation. Cover the insulation
and plastic vapour barrier with a solid
surface, such as dry wall (sheet rock).
Consult local codes. Do not insulate
or use plastic vapour barrier within the
framing kit.
CAUTION: See Figure 12 BEFORE
PROCEEDING.
IT IS HIGHLY
RECOMMENDED THAT
A FULL HEADER BE
INSTALLED ABOVE THE
METAL FRAMING KIT
NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY
COMBUSTIBLE MATERIAL, ELECTRICAL WIRING,
INSULATION, PLASTIC VAPOR BARRIER OR GAS
PLUMBING WITHIN THE STEEL STUD FRAMING ALL OTHER FRAMING CAN
BE DONE WITH
CONVENTIONAL LUMBER
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with replace)
85056.42801D_070617-40
Framing and Finishing

TC36D_ST
10 1/4”
Figure 10: Non-combustible board dimensions.
Figure 11: Reccessed installation details.
MINIMUM COMBUSTIBLE
FRAMING DIMENSIONS
RANGE
23 3/4"
to
27 1/4"
28 1/4"
1/2"
For nishing
material
FRAMING
LINTEL
59 1/2"
INCLUDING SHEETROCK
48 1/2"
1/2"
For nishing
material
Figure 13: TC36ST Minimum combustible framing dimensions.
NON-COMBUSTIBLE
BOARD
NON-COMBUSTIBLE
BOARD DETAIL
NON-COMBUSTIBLE
MATERIAL MUST EXTEND
12" ABOVE AND 10 1/4" TO
THE SIDES OF THE FRAMING
EDGES.
NON-COMBUSTIBLE BOARD
9
5056.42801D_070617-40
If nishing the wall above the unit with
paint, the framing kit shipped with
the unit should be discarded. Use full
sheets of calcium silicate board or
equivalent and full length metal studs to
nish and frame around the unit.
Calcium silicate board is a high grade
material with cement, quartz and natural
minerals as the main raw materials.
(Note: Calcium Silicate is 1/2” thick)
CAUTION: Calcium Silicate board
can be damaged if dropped or struck.
Handle with care. Inspect board prior to
installation and do not use if cracked.
NOTE: It is recommended to pre-drill
mounting holes in the board prior to
securing to the framing. This will pre-
vent the board from cracking.
Minimum Combustible Framing Dimensions
Figure 12: Non-combustible calcium
silicate board..

TC36D_ST
5
6
4
2
3
8
7
Figure 14: TC36ST Steel frame parts.
Each Kit Contains:
Item Description Qty.
1 SCREW, TEKS #8 x 1/2
(Not shown)
Pkg
40
2 SIDE STUD, VERTICAL INNER
48 1/4”
2
3 SIDE STUD, VERTICAL OUTER
48 1/4”
2
4 STUD, CENTER 15 1/2”
VERTICAL SHORT
2
Item Description Qty.
5 STUD, HEADER 59 1/2
HORIZONTAL
1
6 STUD PLATE 41 1/4”
HORIZONTAL
1
7 BASE PLATE 2
8 FRAMING PLATE 4
10 5056.42801D_070617-40
TC36 Steel Stud Framing Kit

TC36D_ST
11
5056.42801D_070617-40
Framing plate
(behind steel stud)
Framing
bracket
Range
1 7/8” Steel Frame Adjustment
Lintel
Range
1 7/8”
Framing
bracket
Lintel
Framing plate
(behind steel stud)

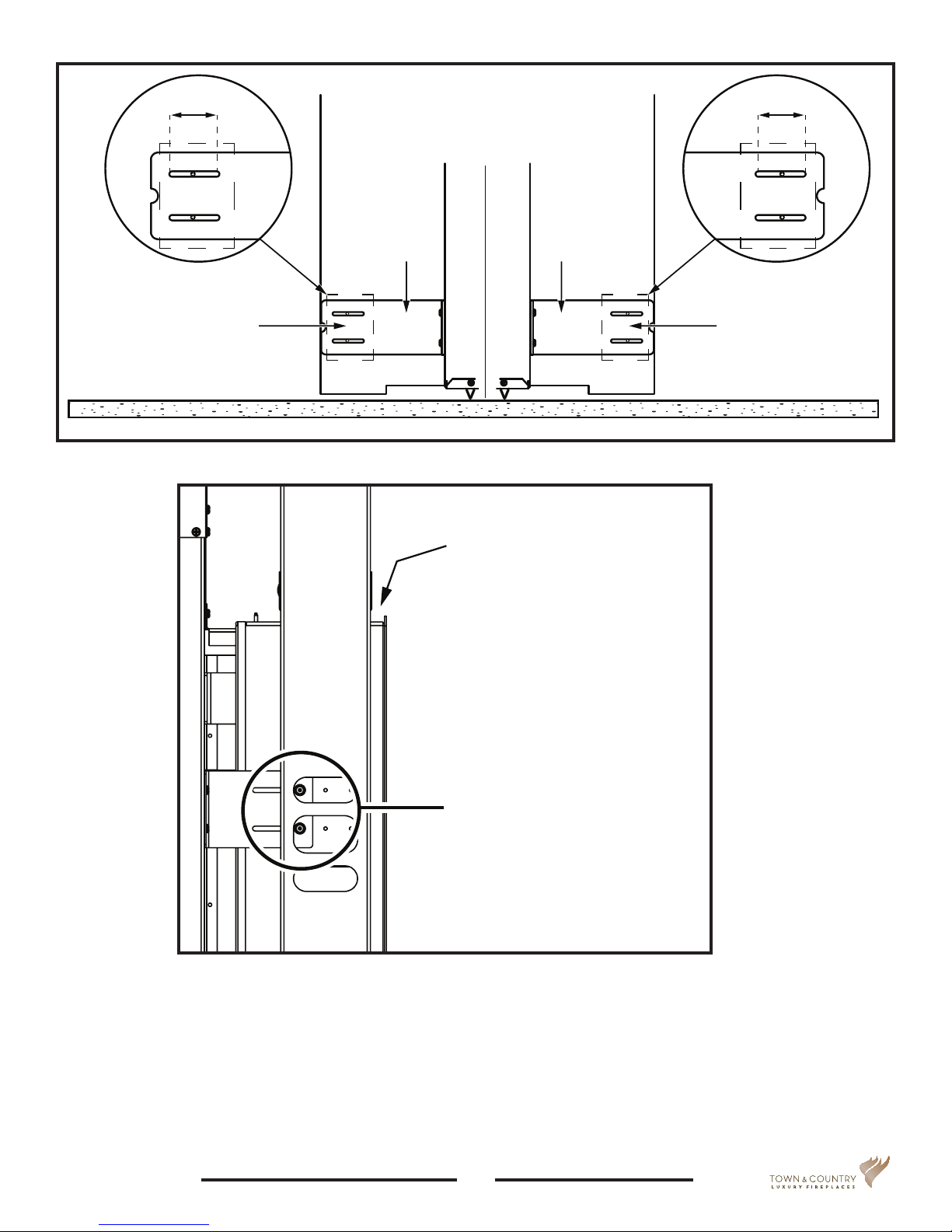

Figure 15: Adjustment range of see through unit.
1/2” nishing material
allowance is available
when steel frame is
extended outward to its
limit.
Frame
Steel frame shown at its
outward limit.
Figure 16: Steel frame extent of movement.
The two steel frames have a range of adjustment (See “Figure 13: TC36ST Minimum combustible framing dimensions.”
on page 9) in order to accomodate varying wall depths from 23 3/4” to 27 1/4”. If the frames are postioned to their
furthest extent, there will still be enough room (1/2”) to mount nishing material up to the xed lintel (Figure 16).

TC36D_ST
FRAMING
BRACKETS
ACCESS HOLES TO
MOUNTING SCREWS
NOTE: AFTER FRAME IS
ASSEMBLED, MAKE SURE TO HAVE
THE SIDE OF THE FRAME WITHOUT
THE SCREW HOLES FACING AWAY
FROM THE FIREPLACE.
Steel frame assembly instructions
1. Top Frame Assembly (Figure 14)
Lay out the 59 1/2” horizontal header
stud (5) on a large at surface.
Position the two 15 1/2” center studs
(4) perpendicular to the horizontal
header stud, and align with the two
innermost sets of screw holes. Fasten
with the screws (1) provided.
Position the 41 1/4” horizontal stud
plate (6) at the bottom end and
perpendicular to the vertical center
studs (4). Align the bottom ends of
the vertical center studs to the two
innermost sets of screw holes and
fasten with the screws provided.
2. Attach Side Studs (Legs)
Lay the inner vertical side studs (2) so
that it’s top end aligns with the 2nd
set of screw holes of the header stud
(5). The side stud should attach to,
and be perpendicular to the 41 1/4”
stud plate (6). Fasten with the screws
provided.
Fasten the vertical outer side studs
(3) to the ends of the horizontal
header stud (5).
Position the base plate (7) at the
bottom of the inner and outer side
stud legs and fasten with the screws
provided.
Turn the assembled frame over
and install screws to the remaining
fastening points.
3. Attach the Assembled Frame to the
Unit - flat side out.
Align the assembled frame to the unit
framing brackets with the at side
facing outward into the rooms (Figure
18). Align the framing plates (8) to the
fastening points through the access
holes in the outer side studs (3).
4. Secure to Existing Framing. Secure
the frame assembly to existing
framing through the horizontal top
stud (5) and the base plates (7).
5. Install Non-combustible Board
Use drywall screws to install the
concrete board.
Figure 18: TC36ST With cement board.
SIDE OF FRAME WITH
SCREW HOLES
FLAT SIDE
OF FRAME
Figure 17: TC36ST With steel frame.
12 5056.42801D_070617-40

TC36D_ST
13
5056.42801D_070617-40
Fixed Lintel
The lintel on the TC42D2 is in a xed
position on the replace and there
is no adjustment to move the lintel
toward you or away from you once
the replace has been located in its
nal position. Instead, the replace
itself must be manoeuvered so that
the front face of the lintel determines
the nal position of the replace.
The Framing Kit allows for a 2 1/4
inch adjustment along the Framing
Brackets. Use this range to help
determine the front of the facing
material.
The thickness of the facing mate-
rial, wether 1/2 inch calcium silicate
board or a rock facing must be taken
into consideration before settling on
a nal position of the replace. See
See “Fireplace Facing Allowance” on
page 14.

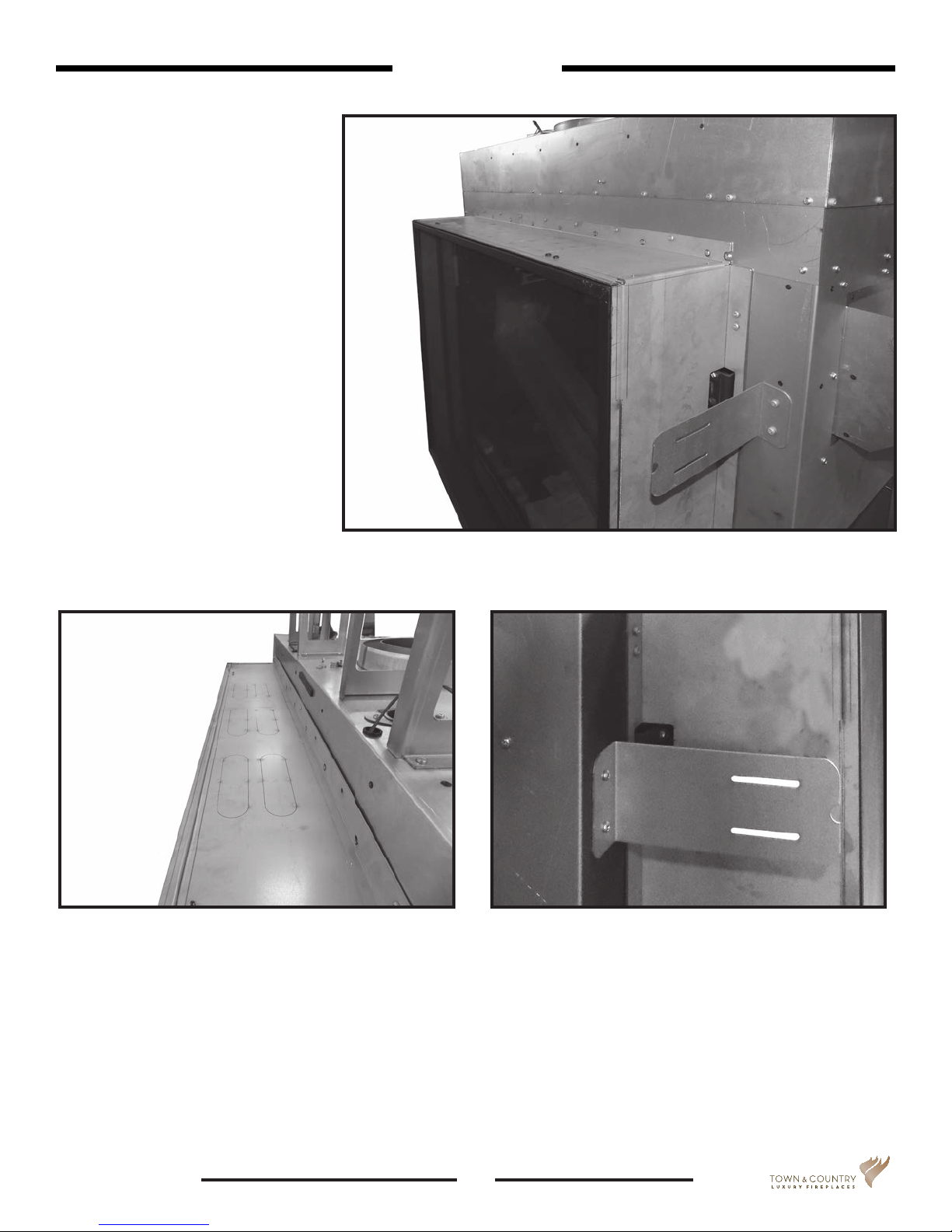

Framing Kit Adjustment
There are six knock outs on top of the lintel (Figure 20). These knock outs should remain in place and not
knocked out during installation. The knock outs are for a future optional “TV KIT” which will allow a televi-
sion to be mounted above the replace while having the heat from the replace re-directed to a vent which
will be located above the TV.
Lintel knock outs
Figure 19: Fixed lintel.
Figure 20: Knock outs for future TV Kit feature. Figure 21: Framing bracket.

TC36D_ST
This replace may be recessed up
to a maximum depth of 4 1/2”, this
recess must be constructed from
non-combustible material. The space
between the outside framing edge and
the rebox must be completely free
of any obstructions or debris and the
window, with trim tted, must be able
to move freely. No building material is
permitted to protrude past the framing
edges attached to the replace under
ANY circumstance.

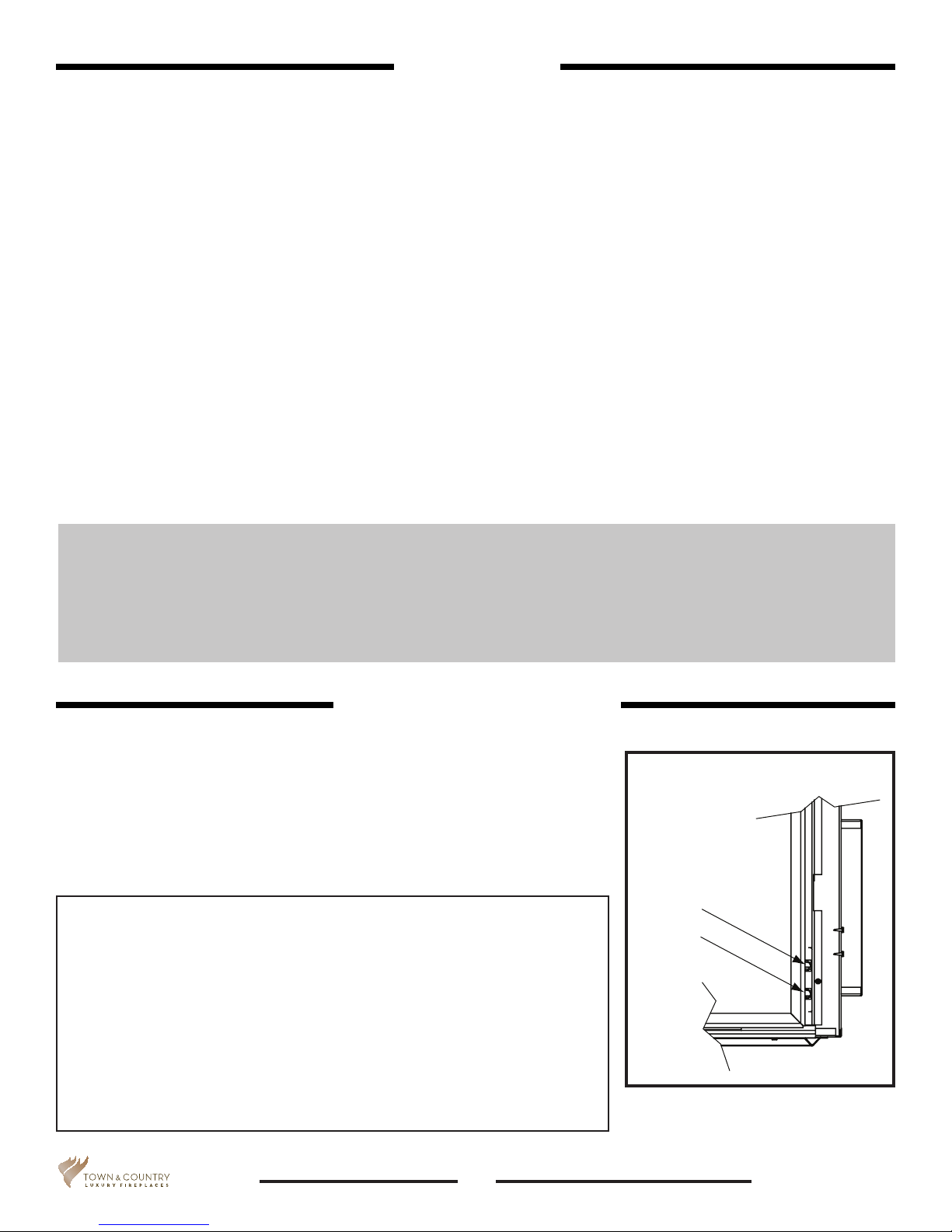

Fireplace Facing Allowance
14 5056.42801D_070617-40
Hearth Extension
NON-COMBUSTIBLE
FINISH MATERIAL
Area between lintel and
glass door frame must
remain free of obstructions
NON-COMBUSTIBLE
BUILDING MATERIAL MAY NOT
EXTEND PAST THIS POINT
Caution: While a hearth extension is not required and combustible ooring materials may be brought
directly up to the replace, many materials (such as wood ooring) may not tolerate the radiant heat
from this replace, resulting in discoloration, shrinking and cracking. For this reason, we suggest a non-
combustible hearth that is no more than 1” above the bottom of the replace. If thicker, replace must
be raised accordingly.
Caution: Hearth extensions thicker than 1” will interfere with the safety screen and window frame when
opening.
Figure 22: Framing edge location.
Bottom of replace
Maximum
height of 1”
above bottom
of replace
Lintel
Hearth
Extention
Figure 23: Hearth extension.

TC36D_ST

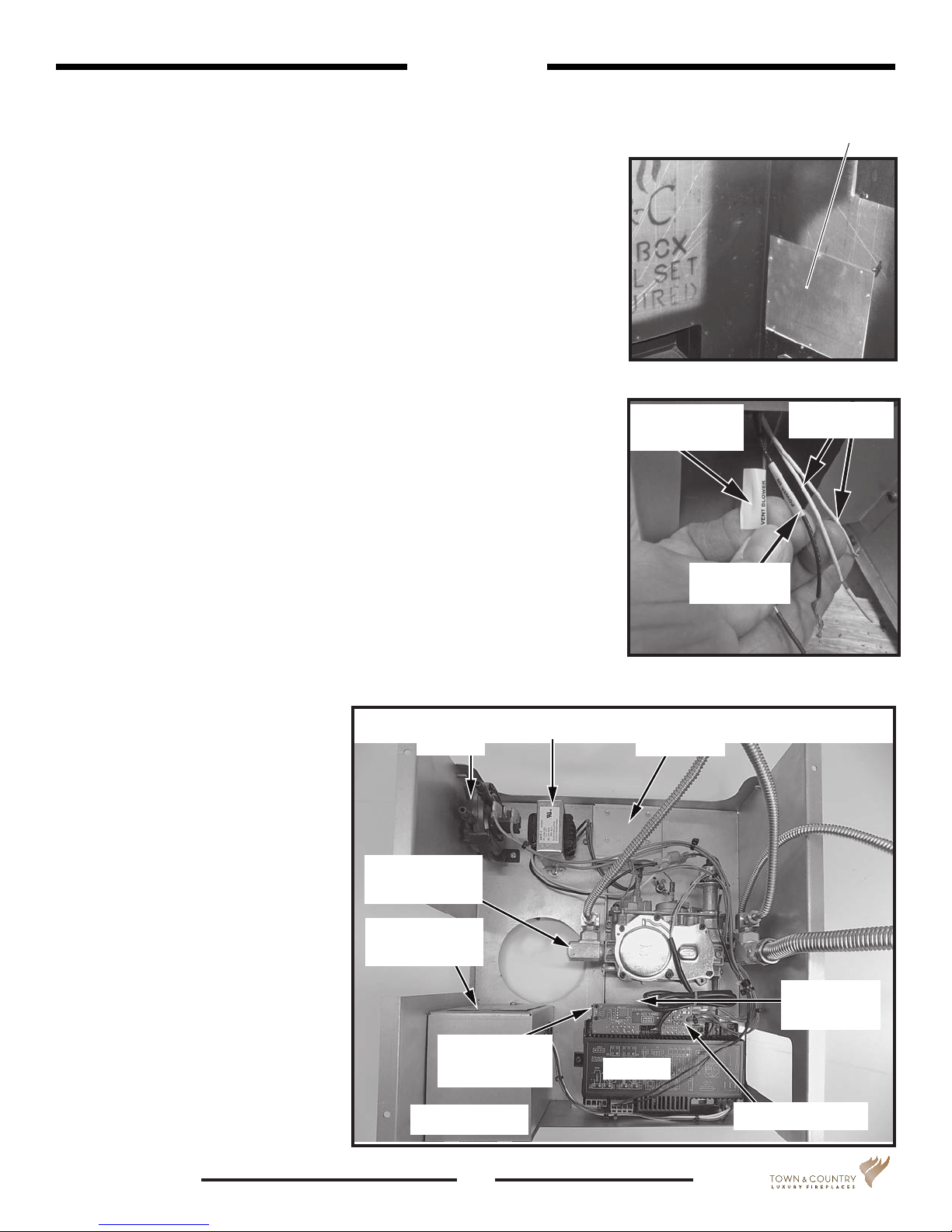

Transformer
Vacuum
switch
Inside access
panel
Gas
connector
Wall switch
connector
Junction box
Module
Interface board
Power vent
switch
Regulator
board
Figure 26:
Valve assembly
components.
15
5056.42801D_070617-40
Figure 24: Access to rebox.
The gas control system is located on the right hand side of the rebox behind
an access panel and the decorative rebox panel (if installed). The replace is
operated via a wall control and a hand held remote control unit.
The wall control is connected to the replace by a 40 ft. communication cable
supplied with the replace.
Installation
1. Place the replace in the desired location.
2. Remove the window from the replace.
3. Remove access panel from right hand side of the rebox (Figure 24).
4. Connect 110 V. AC electrical supply to the wires installed inside the junc-
tion box (Figure 25). The replace is rated at 110 volts, 60Hz, 0.25A. The
optional power vent kit is rated at 115 volts, 60Hz, 1.8A.
5. The electrical wires can be accessed from both inside and outside the
junction box by removing one of the two small access panels (Figure 25
and Figure 26)
6. Attach the wall switch to the framing in the desired location (40 ft is sup-
plied with replace).
7. Route the wall switch control cable (supplied) as required to the wall
switch.
8. Attach one end of the wall switch control cable to the wall control
(Figure 28), and the other end to the interface board (Figure 26).
9. Insert the 4 supplied “AA” batter-
ies into the battery pack of the wall
switch (Figure 29)
10. If not already installed, install the
burner using the instructions sup-
plied with the burner kit.
11. Turn on the gas supply and check
that all connections are tight and
leak free.
12. Turn on gas and electrical supplies.
13. Move the center button on the wall
control to the “ON” position. The
igniter will start to spark. After a
short delay, the pilot will light fol-
lowed by the main burner.
FIREBOX ACCESS PANEL
Electrical
To Power
Vent - Blue
2 Nuetral
wires - White
Power In
wire - Black
Figure 25: Junction box wiring.

TC36D_ST 16 5056.42801D_070617-40
Figure 30: Vent mode selection
switch.
Figure 29: Wall switch - battery side.
Figure 28: Wall switch - interface side.
1. Begin by moving the selector
toggle on the wall switch to the
“REMOTE” position.
2. Insert a straightened paper clip
into the “PROGRAM” slot on the
wall switch.
3. Press the internal “PROGRAM”
button once and wait until you
hear 3 beeps from the wall switch.
4. Press the ON/OFF button of the
remote unit. Once the wall unit
beeps 3 times, the remote is pro-
grammed.
5. The toggle on the wall switch
must be kept in the “REMOTE”
position in order to use the remote
control unit.
The NV / PV (Natural Vent / Power Vent) switch (Figure 30) on the interface
board (Figure 26) is set according to which type of evacuating vent system
is present. If the replace is vented without the assistance of a power vent,
the switch should be set to “NV”. If using a power vent, “PV” should be
selected. Follow the instructions provided with the power vent kit for proper
installation.
to replace
Wall Switch and Remote Control
Selecting Natural Vent and Power Vent Modes
Linking the remote control
unit to the wall switch.
Figure 27: Town and Country
Wall switch.
NOTE: The wall switch comes with the lower ethernet cable blocked with a piece of red tape. If connecting
to a customer supplied home automation system, remove the piece of tape to connect with the home automa-
tion system. If not using a home automation system, leave the piece of tape in place and use the unblocked
port to connect to the IFC module of the fireplace.
Important Note:
When switching between PV and NV, both the electrical power supply
to the fireplace must be turned off and the backup batteries removed
to properly re-set the module.

TC36D_ST
17
5056.42801D_070617-40
Figure 31: Complete communication
wiring.
to home
automation
system
NOTE:
When a signal has been supplied by the home automation system, the replace control
will repeat the signal every 2 hours or until a new command has been received.
The home automation feature supplied with this replace is capable
of controlling the ame and light on/off function with the use of a dry
contact relay common to home automation systems. Furthermore, the
ame and light level may be modulated from high to low using the
0 - 10 volt analog output available on most home automation
systems.
(Figure 32) shows the wire designations required to connect the
replace to a home automation system.
Home Automation
Note: Leave the wall switch on the “Remote” setting when using
home automation.
NOTE:
• Digital I/O must be connected to a dry contact relay.
• Analog ame and light input through 0 - 10 volt DC signal scaled
as follows:
Low = 1 volt
High = 10 volts
Figure 32: Home automation wiring diagram.

TC36D_ST
SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Figure 33: Test ports.
CAUTION: The gas line should be installed by a qualied service person in accordance with all building codes. This
section is intended as a guide for qualied technicians installing this appliance. Consult local and / or national building
codes before proceeding.
Gas supply line access holes are located at the top and left sides of the Control Box. Gas valve inlet accepts a 3/8"
N.P.T. tting. Correct gas line diameter must be used to assure proper operation and pressure.
NOTE: A sediment trap, as per national fuel gas code, must be installed in the gas supply line no more than 6 feet
from the gas control valve to minimize the possibility of any loose scale or dirt within the gas supply line from
entering the control valve.
DO NOT HARD PIPE GAS LINE TO VALVE. A method of disconnecting the valve from the gas line such as a union
or flare fitting must be provided to allow for repair or replacement of the gas valve.
Check local codes for additional requirements.
1. Connect the gas supply to the connector (Figure 26).
2. Turn on the gas supply and check that all connections are tight and leak free.
Note: To test the gas pressure, turn off the gas supply before removing the plug
from the supply pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Please refer to the Burner Installation Manual for gas pressure testing procedure.
18 5056.42801D_070617-40
Gas Supply
Gas Pressure Check
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input
adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.5" WC 10" WC
Minimum 1.6" WC 6.4" WC
Warning:
The access panel - including gasket, must be reinstalled after conversion / installation or servicing
has been completed. Failure to do so will cause overheating and premature failure of the control
system.

TC36D_ST
Exterior wall opening:
Determine the exact position of the replace so that the vent pipe is centered (if possible) between
two building framing members. Consult your local building codes prior to proceeding. The vent kit will
accommodate up to a maximum wall thickness of 12 inches.
Having determined the position of the replace, cut and frame a 14 1/2 inch opening centered at a minimum
height of 61 inches above the oor. The opening may be round or square. Height of the opening will vary with
each installation. As the horizontal vent run increases, so does the minimum vertical rise (Figure 37).
IMPORTANT: When locating the opening, it should be noted that vent terminal clearances must be
maintained. See "Vent Terminal Clearances" section for proper clearances.
A minimum 1 foot length of pipe is required off the top of the replace for any wall termination. With this
minimum vertical rise in combination with a 90° elbow, a maximum horizontal run of 32 1/2 inches is
permitted (Figure 37) & (Figure 38). For longer horizontal runs greater than 32 1/2 inches, increase vertical rise
appropriately.
The rise and run must be constrained to the boundaries of the chart shown in Figure 37. The horizontal run of
vent must have a 1/4" rise for every 1 ft. of run towards the termination.
Before installing venting for this unit, the installer should read these instructions to insure that the proper vent
conguration has been selected.
Use only Town and Country Termination kits #:
TCVT.WTA - Wall Termination Kit
TCVT.RTA - Roof Termination Kit
Vent system components approved for use with the Town and Country Fireplace. See “Vent System Components” on
page 20.
NOTE: Optional Power Vents (TCVT.PVI.25, TCVT.PV7.110 & TCVT.PVCV) require different venting. Please refer to
Power Vent manuals.
Various combinations of vertical and horizontal runs may be used. Refer to See Figure 37 & See Figure 38 for details.
For optimum performance and ame appearance, keep the vent length to a minimum and limit the number of elbows.
Connections between each vent system component must be tightly joined, secured with sheet metal screws and sealed
with provided high temperature self adhesive tape. A horizontal run of vent should have a 1/4" rise for every 1 ft. of run
towards the termination.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER THAN 1 3/4 INCHES FROM
THE TOP AND 1 3/4 INCHES FROM THE SIDES OF A HORIZONTAL SECTION AND 1 3/4 INCHES FROM THE
VERTICAL SECTIONS OF THE VENT PIPE.
19
5056.42801D_070617-40
Venting
Wall Termination Venting

TC36D_ST
WALL THIMBLE AND VENT MUST NOT PROTRUDE BEYOND SIDING
Wall thimble:
Where a vent pipe passes through a combustible wall, a wall thimble/shield
must be used to retain insulation and maintain proper clearances. The wall
thimble may be cut to length for various wall thicknesses up to 12" thick.
Measure the wall thickness including the siding. Trim the shield to match
the wall thickness. Position the wall thimble from inside through the 14-1/2"
opening. Properly adjusted, the thimble should be ush with the outer wall
surface.
TRIM TO LENGTH
Vent System Components Town & Country
12" Pipe Length............................................................. TCVT.811X12
18" Pipe Length............................................................. TCVT.811X18
24" Pipe Length............................................................. TCVT.811X24
48" Pipe Length............................................................. TCVT.811X48
12" Adjustable Pipe Length.....................................TCVT.811X12ADJ
45° Elbow ..................................................................TCVT.811XLB45
90° Elbow ..................................................................TCVT.811XLB90
Wall/Offset Support ...................................................... TCVT.811XOS
Wall Termination Kit............................................................ TCVT.WTA
Roof Termination Kit ............................................................ TCVT.RTA
Wall Shield/Ceiling Firestop............................................ TCVT.THIMA
Roof Flashing, Adjustable .........................................TCVT.811FLADJ
Roof Flashing, Flat .....................................................TCVT.811FLFLT
Roof Flashing, Steep .................................................TCVT.811FLSTP
or any ashing that ts 11" pipe
Figure 34: Wall vent terminal.
Figure 35: Thimble.
20 5056.42801D_070617-40
