Town & Country Fireplaces TCWS.54CSTE Operating instructions

WARNING: If the information in these
instructions is not followed exactly, a re or
explosionmayresultcausingproperty damage,
personal injury or death.
FOR YOUR SAFETY
Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier call
the re department.
Donot storeoruse gasolineorother ammable
vapours and liquids in the vicinity of this or
any other appliance.
Thisappliancemaybe installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
MODEL
TCWS54CSTE
SERIES C
POWER VENTED
SEE THRU FIREPLACE
TCWS.54CSTE
INSTALLATION
AND OPERATING
INSTRUCTIONS
080713-68 TCWS.54CSTE 5056.425218
SERIAL #
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

Table of Contents
Table of Contents
Table of Contents............................................................................2
Table of Contents............................................................................3
Certications................................................................................... 3
Caution ........................................................................................... 4
Safety ............................................................................................. 4
Important Note for the Commonwealth of Massachusetts:.............5
Fireplace Dimensions .....................................................................6
Minimum Clearances to Combustible Material ............................... 6
Installation Requirements ...............................................................7
Manufactured (Mobile) Home .........................................................7
Window Frame Removal.................................................................7
Standoffs......................................................................................... 8
Locating The Fireplace ................................................................... 8
Framing and Finishing ....................................................................9
Steel Stud Framing Kit.................................................................. 11
Adjustable Lintel ........................................................................... 14
Maestro Control ........................................................................... 15
Plumbing and Electrical................................................................ 15
Gas Supply ................................................................................... 18
Gas Pressure Check..................................................................... 18
Venting.......................................................................................... 19
TCVT.PVOC Power Vent Installation............................................. 20
Contents of Power Vent Kit ........................................................... 20
Venting Length.............................................................................. 21
Minimum Vent Length Chart .........................................................22
Vent Terminal Minimum Clearances ............................................. 22
Horizontal (Side Wall) Venting ...................................................... 23
Control System Connection ..........................................................26
Fan Wiring ....................................................................................27
Terminal Dimensions ....................................................................28
Venting Components ....................................................................29
Wiring Diagram.............................................................................30
TCVT.PVOB2 Power Vent Installation...........................................31
Contents of Power Vent Kit ........................................................... 31
Venting Congurations..................................................................31
Vertical(Through Roof) Installation ............................................... 32
Vertical (Through Roof) Venting.................................................... 33
Vent Pipe Sealant ......................................................................... 34
Optional Tranquility Burner ...........................................................35
Propane Conversion .....................................................................41
Optional Black Diamond Burner ...................................................44
Gas Pressure Check..................................................................... 48
Burner Flame Adjustment.............................................................49
Firebox Panels Installation............................................................50
Finishing Touch Trim Kit Instructions.............................................51
2
TCWS.54CSTE 080713-68

Table of Contents
Certications
This appliance is tested to:
ANSI Z21.50b-2009 / CSA 2.22b-2009 Vented Gas Fireplaces.
CAN/CGA 2.17-M91 Gas-Fired Appliance For Use At High Altitudes.
CSA P.4.1 Annual Fireplace Efficiency 30.8%
Maximum Setting input 63.881 Btu/Hr, output 19,675 Btu/Hr
Minimum Setting input 39,418 Btu/Hr, output 12,141 Btu/Hr
This unit is manufactured and tested by:
Pacic Energy Fireplace Products
2975 Allenby Rd.
Duncan, BC, Canada
V9L 6V8
Lighting Instructions .....................................................................52
First Fire........................................................................................ 52
Maestro Control System Remote Control Initial Setup.................. 53
Maestro Control System - Operation ............................................ 54
Maintenance .................................................................................57
Replacement Parts - TCWS.54CSTE ........................................... 58
Replacement Parts - Tranquility Burner ........................................ 59
Replacement Parts - Twilight Diamond Burner ............................. 60
Replacement Parts - TCVT.PVC................................................... 61
Replacement Parts - TCVT.PVCV ................................................62
Replacement Parts – Maestro Control System.............................63
Light Wiring Diagrams .................................................................. 64
Safety Label Location ................................................................... 65
3
TCWS.54CSTE 080713-68

FOR YOUR SAFETY - Do not install or operate your Town & Country replace without
rst reading and understanding this manual. Any installation or operational deviation from
the following instructions voids the Town & Country FireplacesTM Warranty and may prove
hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply pip-
ing system during any pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours.
This is due to the curing of paints, sealants and lubricants used in the manufacturing process.
This condition is temporary. Open doors and windows to ventilate area. Smoke and fumes
caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service
technician to inspect the replace and to replace any part of the control system and any gas
control which has been under water.
Due to high temperatures, this gas appliance should be located out of traffic and away from
furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
Failure to do so may create a hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees
or representatives for any damages caused by an inoperable, inadequate, or unsafe
condition which is the result, either directly or indirectly, of any improper operation or
installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel
burning appliance.
4
TCWS.54CSTE 080713-68
Caution
Safety
We recommend that our gas hearth
products be installed and serviced
by professionals who are certied
in the United States by the National
Fireplace Institute®(NFI) as NFI Gas
Specialists

Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level
where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas
fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of
hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detec-
tor with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)(a) 1
through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or struc-
ture used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by
the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the fol-
lowing requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e)) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
5
TCWS.54CSTE 080713-68

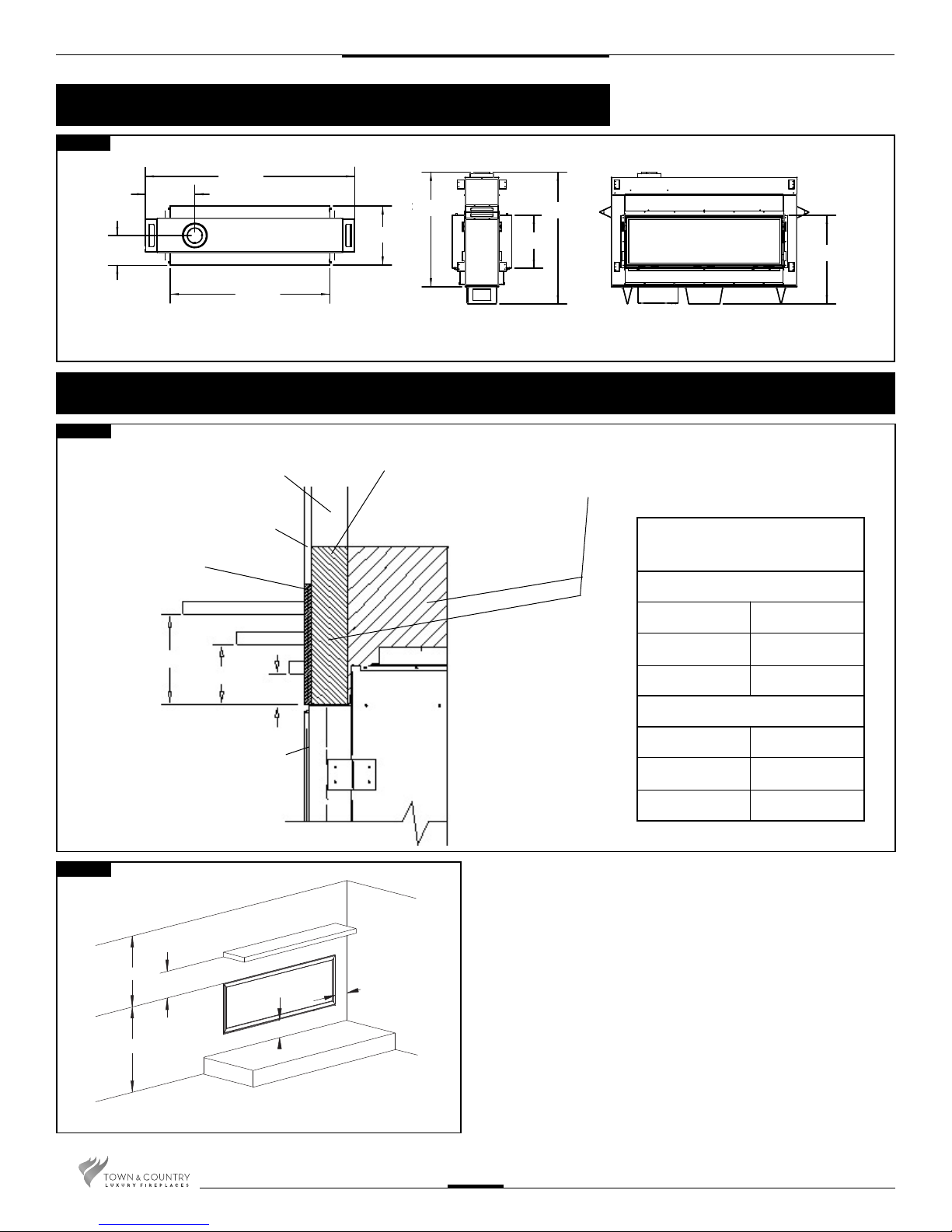

70 3/4”
53 3/4”
19 7/8”
10”
16 9/16” 35 5/8”
18”
41 1/4”
30 1/16”
29 3/4"
24"
4“
*
CEILING
ADJACENT WALL
OR MANTEL SUPPORT
6”
COMBUSTIBLE FLOOR
COMBUSTIBLE HEARTH
* MANTEL CLEARANCE
A 9”
B 6”
C 3”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
UNIT MAY BE RECESSED UP TO 6” WITH
NONCOMBUSTIBLE MASONRY TYPE MATERIAL
Minimum Clearances:
Side standoffs.......................................................0 in. (0 mm)
Back standoffs ...................................................... 0 in. (0 mm)
Top standoffs ........................................................ 0 in. (0 mm)
Bottom of appliance..............................................0 in. (0 mm)
Adjacent side wall.................................................4 in. (102 mm)
Ceiling to appliance ............................................ 24 in. (610 mm)
*Mantel to appliance ................... ..........See Figure #2
**Maximum Mantel extension ..... ..........See Figure #2
Mantel support...................................................... 4 in. (102 mm)
Vent pipe .......................................................1 3/4" in. (45 mm)
Fig. #1
Fig. #2
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #8 & 9
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATE-
RIAL, ELECTRICAL WIRING OR GAS PLUMBING
IN THIS AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
BC
D
E
F
Fig. #3
6
TCWS.54CSTE 080713-68
Fireplace Dimensions
Minimum Clearances to Combustible Material

LATCH HANDLE
Fig. #4
Fig. #5
Warning: Turn off the replace, and allow ample time for the unit to cool before
proceeding.

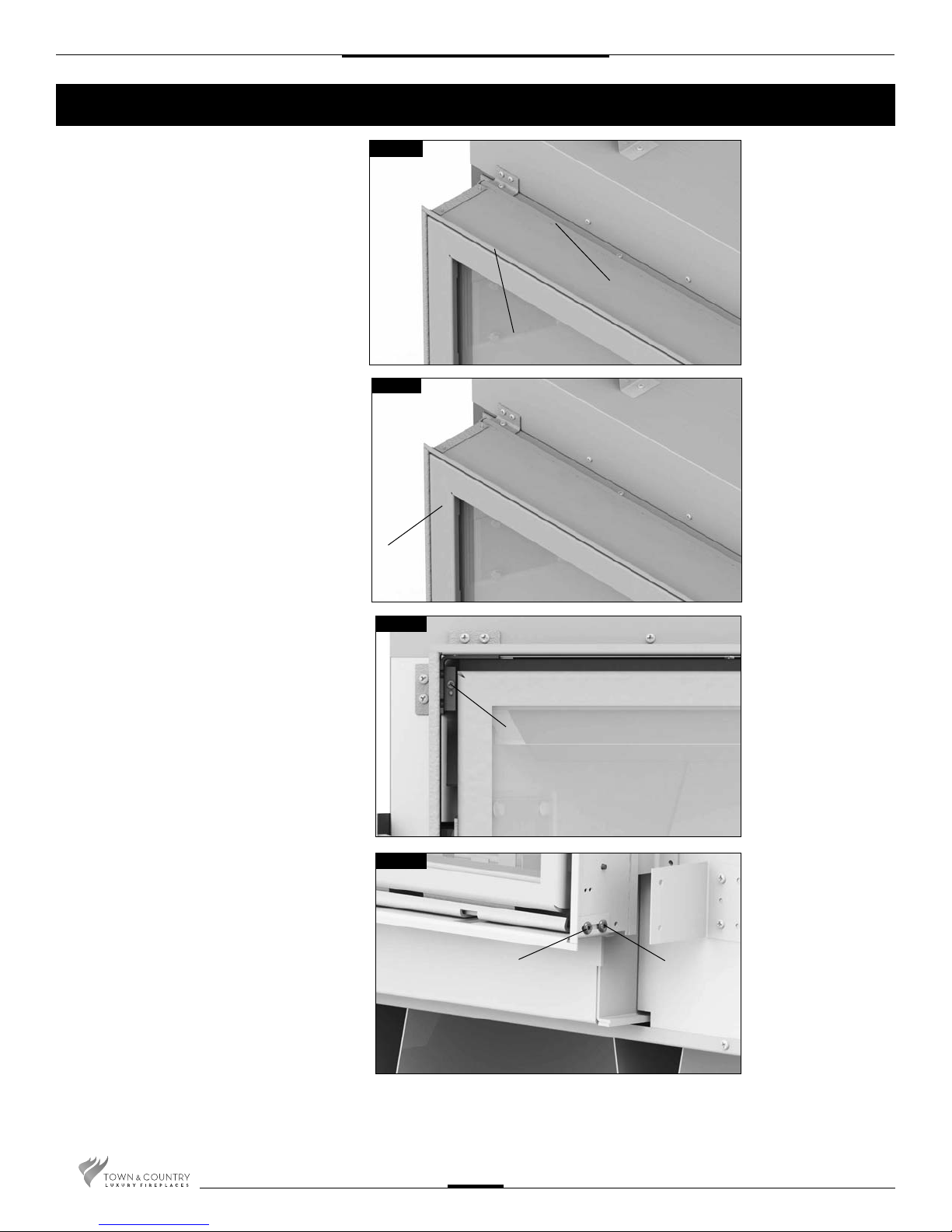

Caution: The ceramic glass is very fragile, and should be handled with care.
The window frame is held in place by two spring-loaded latches that are operated by a
one-piece latch handle.
1. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
2. Using a screwdriver or other similar object, push against the notch in the top of the
latch and grab the bottom of the latch handle as it protrudes. Lift handle until latch hook
disengages. Repeat for other side while holding glass so it does not tip out. Fig #4, 5 &
5a.
3. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of
the frame and lift up and out to disengage from its bottom track.
4. Place the window frame in a safe place to avoid damage.
5. Re-assemble in reverse order. Latch handle should snap into place and be ush with
window frame when engaged correctly.
6. Reinstall Trim Kit if required.
TIP:
To ensure glass is properly latched, grasp the top left and
right sides of the glass frame, under moderate pressure it
should pull forward and return to original position evenly on
both sides.
Fig. #5a
TheTown & Country Fireplace installation and venting must conform to the local codes
or, in the absence of local codes, current CSA B149.1 installation code (in Canada) or
the current National Fuel Gas Code, ANSI Z223.1/NFPA 54 (in the USA). Only qualied
(licensed or trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install
this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured
Homes after the "rst sale". Consult local codes for approval. The replace must be
fastened in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in
CANADA), and the Manufacturer's Home Construction and Safety Standard, Title 24 CFR,
Part 3280 or the current Standard for Fire Safety Criteria for Manufactured Home Installa-
tions, Sites and Communities ANSI/NFPA 501A (in the USA).
7
TCWS.54CSTE 080713-68
Installation Requirements
Manufactured (Mobile) Home
Window Frame Removal

The framing kits, once assembled
and attached, are used as the
top and side standoffs (see page
10 & 11.)
In planning the installation for the replace, it is necessary to determine where the unit is to
be installed, location of vent system and where gas supply piping may be plumbed. Various
types of installations are possible, such as, a peninsula wall, an island, and between two
interior walls (Fig. #7). Due to high temperatures, do not locate this replace in areas of high
traffic or near furniture or draperies.
The minimum clearances from the replace to combustible surfaces must be adhered
to and are shown in Fig. #2 and Fig. #3.
EXAMPLES OF COMMON
LOCATIONS SEE FIG #11 FOR
DIMENSIONS
HANDLE
CONTROL
BOX
Fig. #6
Fig. #7
8
TCWS.54CSTE 080713-68
Locating The Fireplace
Standoffs

74 5/8”
54 1/16”
Note: The replace should be in place
and venting installed before framing in
or building an enclosure around the unit.
When the appliance is installed directly on
carpeting, tile or other combustible material,
other than wood ooring, the appliance shall
be installed on a metal or wood panel extend-
ing the full width and depth of the appliance.
TheTown & Country replace must be framed
in as described below or totally enclosed with
non-combustible material, such as
facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4" will
allow the nishing surface to be ush with
the front of the unit. If preferred, additional
masonry type non-combustible material can
be installed above and to the sides up to 6
inches forward of the appliance.
*The nishing material must not interfere
with glass frame access.*
A Steel Stud Framing Kit is supplied with the
replace and must be used unless the
replace is totally enclosed with
non-combustible material. Assemble the
framing kit as per the instructions on pages
10 – 12 of this manual.Attach the steel frame
to the replace once the replace is in its nal
position.Secure the steel frame to the framing
brackets on each side of the unit.Ensure that
the studs are set back far enough to allow for
thickness of nishing surface.
The sides and top of the replace can
be framed in up to the steel studs using
conventional lumber. Consult local building
codes for specic requirements.
Due to high temperatures, non-combustible
backer board, such as cement board or its
equivalent, must be used to sheet in the front
of the replace. (Fig. #9) Standard sheetrock
(dry wall) may be used beyond this.
If the backer board is not to be nished with
other non-combustible material such as tiles,
it is recommended that top sections of the
framing kit be covered with a single sheet
of calcium silicate board or its equivalent.
Taped and mudded joints may crack due to
the elevated temperatures.
Chase Insulation: When installing this
replace against a non-insulated exterior
wall or chase, it is recommended that the
outer walls be insulated to the same degree
as other exterior walls.Do not place replace
directly against the insulation. Cover the
insulation and plastic vapour barrier with a
solid surface, such as dry wall (sheetrock).
Consult local codes. Do not insulate or use
plastic vapour barrier within the framing kit.
CAUTION: SEE FIGURE #9a BEFORE
PROCEEDING.
ALL OTHER FRAMING CAN
BE DONE WITH
CONVENTIONAL LUMBER
NON-COMBUSTIBLE ZONE. DO NOT INSTALL
ANY COMBUSTIBLE MATERIAL, ELECTRICAL
WIRING, INSULATION, PLASTIC VAPOR BAR-
RIER OR GAS PLUMBING WITHIN THE STEEL
STUD FRAMING
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with replace)
NOTE:
The chase must be properly
sealed at the ceiling level or
between oors in a multilevel
installation.
Fig. #8
IT IS HIGHLY RECOMMENDED THAT
A FULL HEADER BE INSTALLED
ABOVE THE FRAMING KIT
9
TCWS.54CSTE 080713-68
Framing and Finishing

74 7/8"
54 5/16"
74 7/8"
20"
INCLUDING SHEETROCK

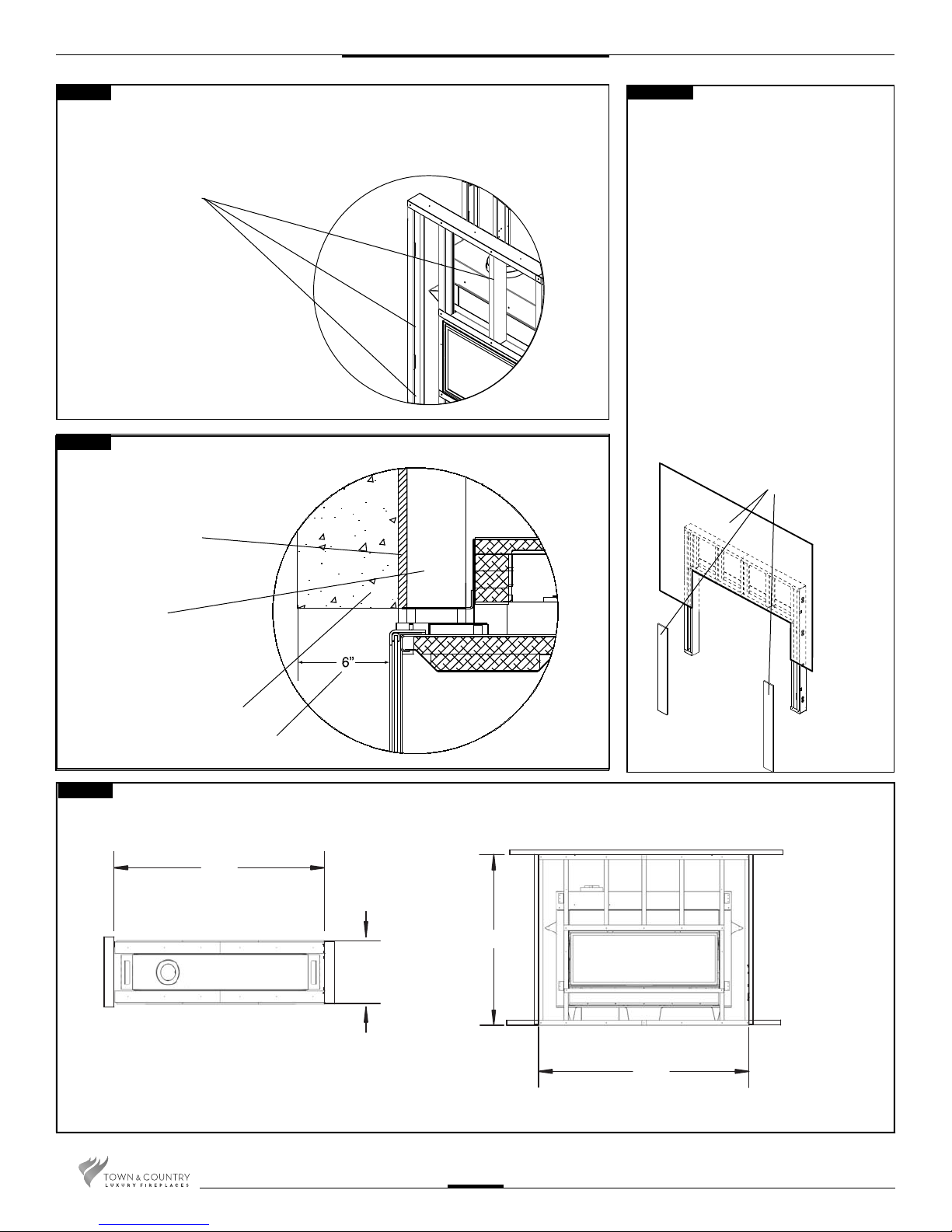

NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
NON-COMBUSTIBLE BOARD DETAIL
MINIMUM COMBUSTIBLE
FRAMING DIMENSIONS
Fig. #9A
USE FULL SHEETS OF CALCIUM SILICATE
BOARD AND FULL LENGTH METAL STUDS
TO FINISH AND FRAME AROUND THE UNIT.
CALCIUM SILICATE BOARD ISA HIGH GRADE
MATERIAL WITH CEMENT, QUARTZ AND
NATURAL MINERALS AS THE MAIN RAW
MATERIALS. (NOTE: CALCIUM SILICATE IS
1/2” THICK)
CAUTION: CALCIUM SILICATE BOARD CAN
BE DAMAGED IF DROPPED OR STRUCK.
HANDLE WITH CARE. INSPECT BOARD
PRIOR TO INSTALLATION AND DO NOT USE
IF CRACKED.
NOTE: IT IS RECOMMENDEDTO PRE-DRILL
MOUNTING HOLES IN THE BOARD PRIOR
TO SECURING TO THE FRAMING.THIS WILL
PREVENT THE BOARD FROM CRACKING.
Fig. #9
Fig. #10
Fig. #11
NON-COMBUSTIBLE
MATERIAL MUST EXTEND
TO THE TOP EDGE AND TO
THE SIDE EDGE OF THE
FRAMING KIT.
NON-COMBUSTIBLE
BOARD ONLY IN
THESE AREAS
NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.
STEEL STUDS
NON-COMBUSTIBLE
MASONRY TYPE MATERIAL
NON-COMBUSTIBLE
BOARD
CALCIUM SILICATE
BOARD
MAXIMUM FACING DEPTH
10
TCWS.54CSTE 080713-68

1
2
3
4
5
6
7

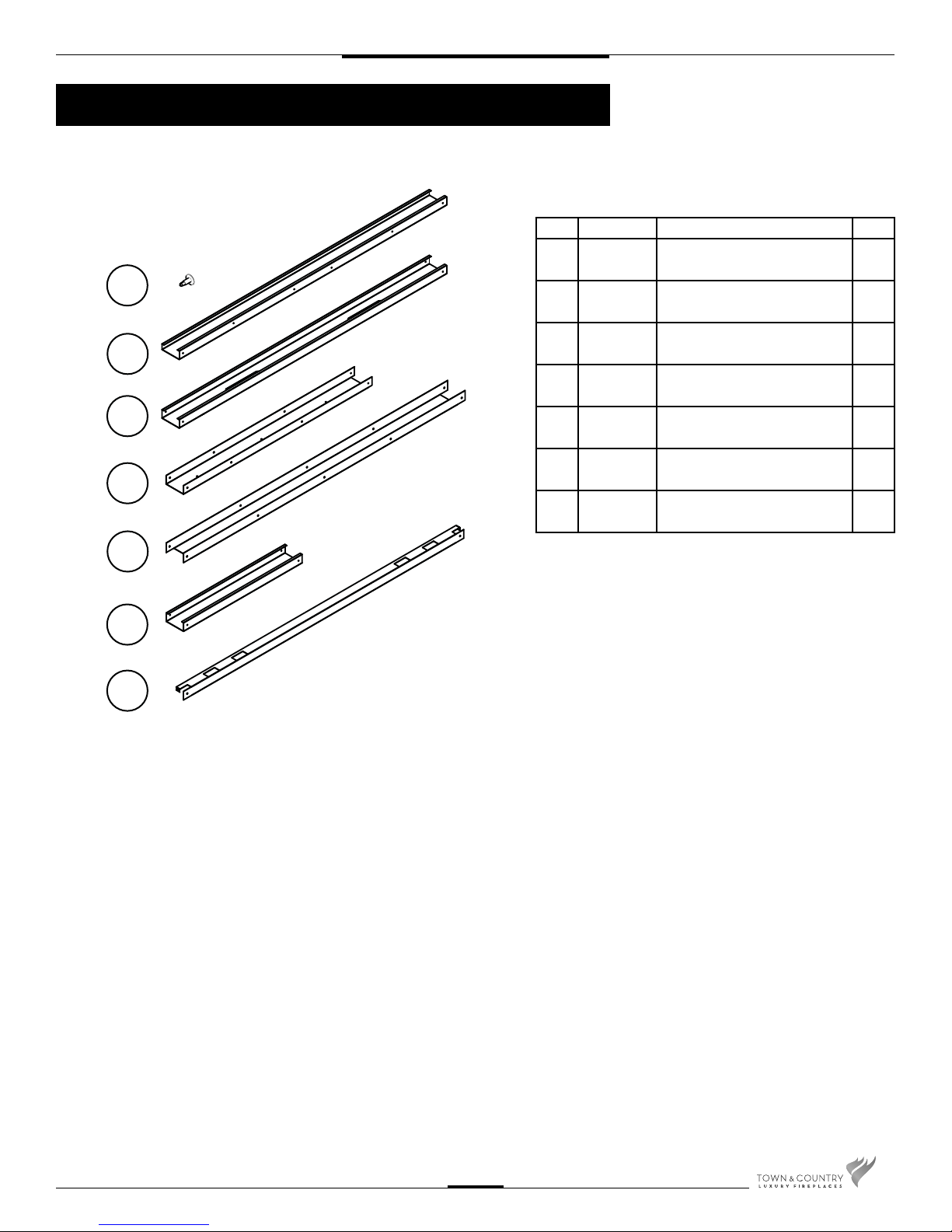

Each Kit Contains:
Item Part # Description Qty.
1 5049.9912 SCREW, WAFER #8 x 1/2 Pkg
40
2 8493.4 STUD, SIDES 54” L 2
3 8493.2 STUD, OUTER SIDES 54” L 2
4 8493 STUD, UPPER/LOWER
38 1/16” L
4
5 8493.6 INNER CROSS BRACE
56 7/8” L
1
6 8493.8 STUD, CENTER 24” L 3
7 8293.9 LOWER CROSS BRACE
56 7/8” L
1
TCWS.54STFRKIT
11
TCWS.54CSTE 080713-68
Steel Stud Framing Kit

NOTE: Sheet metal parts have sharp edges, use caution when handling.

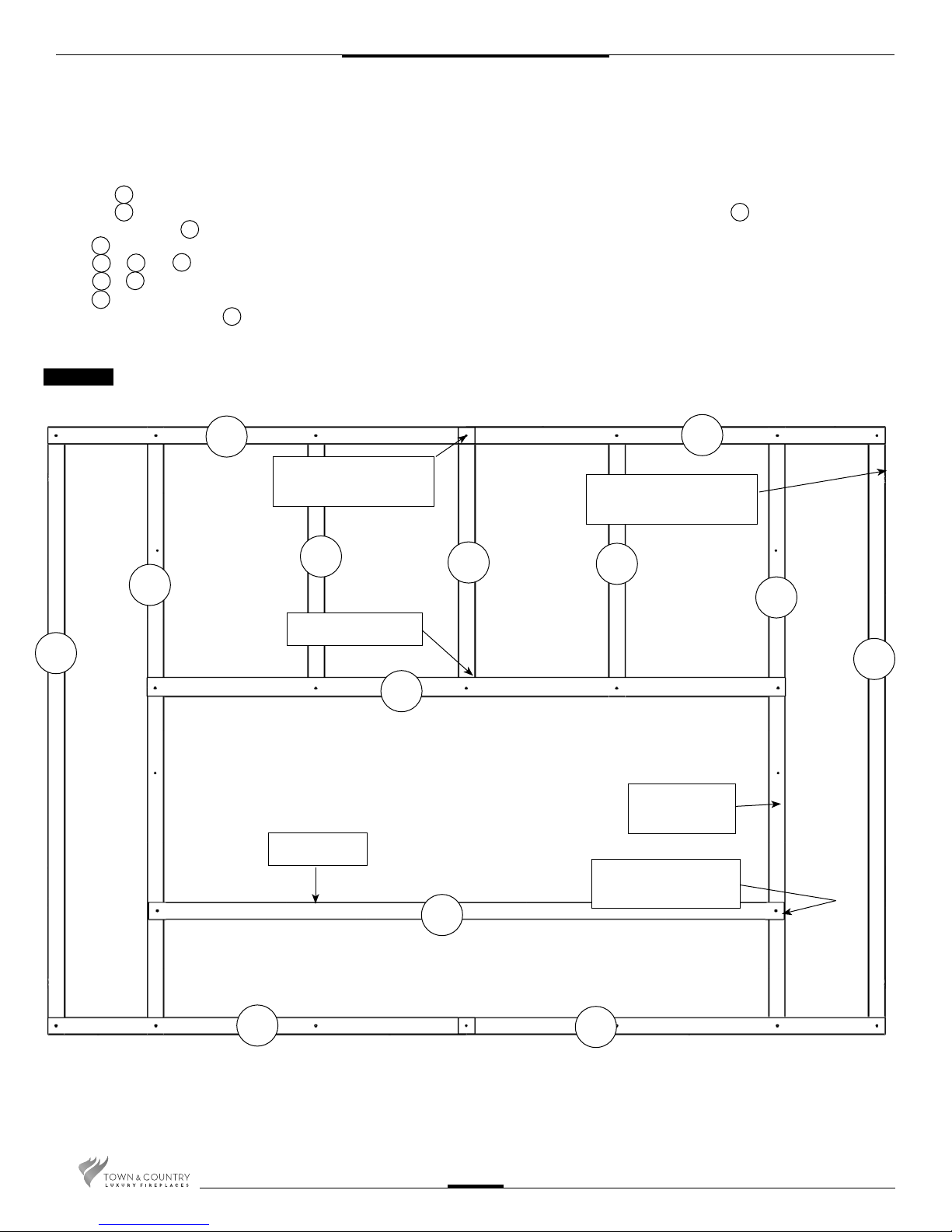

1. Frame Assembly
• Place 2 of #4 together as a top.
•Place 1 of #6 into the joint with the long edge facing up. Align the 3 holes and screw together with wafer screw #1.
•Attach the remaining #6 in the same manner at holes to the left and right of the center.
•Attach #2 with wide edge face up.
•Attach #5 to #6 and #2.
•Attach #7 to #2 using 1 screw through the top and 1 screw through the side at each end.
•Attach #3 , 1 on each side with bend out tabs to the front.
•Place 2 remaining pieces of #4 together at the bottom of the framing kit in the same manner as the top, screw them together and attach to
the inner steel studs.
•Turn the framing kit over and secure all studs from the back.
22
33
44
44
5
666
7
FRONT VIEW
SCREW THROUGH
3 LAYERS BEND OUT FRAMING
TABS TO FRONT
WIDE FACE
FORWARD
SCREW INTO
SIDE
SLOTS UP
LONG EDGE UP
Fig. #12
4
4
6
6
6
1
2
2
2
5
7
3
12
TCWS.54CSTE 080713-68

Fig. #15

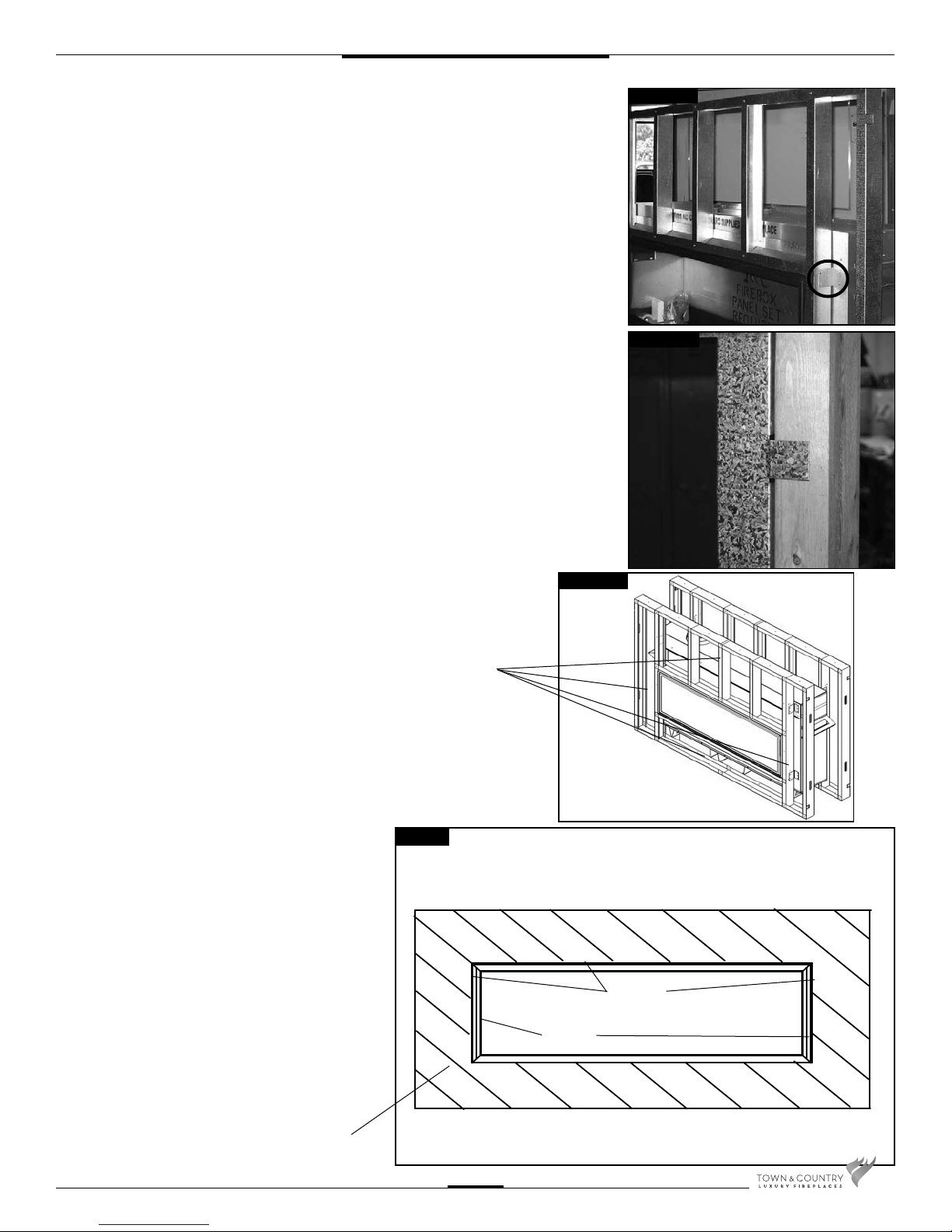

This replace may be recessed up to a
maximum depth of 6”, this recess must
be constructed from non combustible
material. The space between the
outside lintels and the rebox must be
completely free of any obstructions or
debris and the window with trim tted
must be able to move freely. No build-
ing material is permitted to protrude
past the lintel bars attached to the re-
place under ANY circumstance.
Fig. #15b
FRAMING
EDGES
GLASS
FRAME
NON COMBUSTIBLE
FINISH MATERIAL
NON COMBUSTIBLE
BOARD
2. Attach the Assembled Frame to the
Unit
• Align the assembled frame to the unit
framing brackets. (Fig #13) Attach at
the fastening points through the
access holes in the outer side studs
(3).
3. Secure to Existing Framing
•Bend out the tabs 90 degrees before
inserting the unit into its framed housing
(Fig. #14).
•Secure the frame assembly to the wood
frame through the tabs.
4.Install Non-Combustible BoardTop and
Sides(not supplied)
• Use drywall screws to install the non-
combustible board.The non-combustible
board should cover the total area of the
steel stud framing kit, as a minimum, but
can be extended if desired. (Fig. #15)
Fig. #13
Fig. #14
13
TCWS.54CSTE 080713-68

Adjustable Lintel
Fig. #16
Fig. #17
Fig. #18
1. The adjustable lintel assembly has two
orientations for desired nishing.The anged
edge and the hemmed edge. The lintel
comes factory installed with the ange edge
out . If the desired edge is different from the
factory setting, use the following steps to
change it(Fig.#16).
2. Remove the window trim from the window
frame (Fig.#17).
3. Pull the lintel assembly away from the re-
place to disengage from the lintel support
brackets.
4. Rotate the assembly to have the desired
edge away from the replace then align and
re-engage on the lintel support brackets .
5. Remove the front bottom lintel screw located
on the bottom outside corners of the lintel
assembly and move it to the hole on the
other side of the center bottom lintel screw.
(Fig. #19).
NOTE:The lintel assembly has a maximum
range of adjustability of 5/8” to accommo-
date varying facing material thicknesses.
The maximum depth of facing material is
6” (Fig.#15b).
6. Slide the lintel in or out to desired position
within the maximum adjustable range.
7. Tighten the lintel clamping screws and the
bottom lintel screws. (Fig.#18).
8. Re-attach the window trim.
HEMMED EDGE
FLANGED EDGE
TRIM
LINTEL
CLAMPING
SCREW
Fig. #19
FRONT BOTTOM
LINTEL SCREW
CENTER
BOTTOM
LINTEL SCREW
14
TCWS.54CSTE 080713-68

The gas control system is located beneath the replace, below an access panel in the rebox
bottom and the secondary oor (if installed). The replace is operated via a wall switch and
a hand held remote control unit.
The wall control is connected to the replace by a 25 ft.communication cable supplied with the
replace. The communication cable can be extended with an optional 25 ft. extension kit.
Installation
1. Place the replace in the desired location.
2. Remove the window from the replace.
3. Remove access panel from ue side of the rebox bottom(Fig. #16).
4. Connect a 110 V. AC electrical supply to the outlet installed inside the control box
(Fig. #17).
5. Connect a 110 V. AC switched electrical supply to the electrical blocks installed inside
the control box for the lighting. Block A is for the upper lights installed in all units. Block
B is for the lighting in the secondary oor that comes with the optional Twilight diamond
burner kit. (Fig. #18)
6. Connect the gas supply to the valve (Fig. #19).
7. Plug the A/C adaptor into the outlet (Fig. #19).
8. Attach the electrical box for the supplied wall control to the framing in the desired
location (up to 50 ft. away). (25 ft. is supplied with replace. An additional 25 ft. can
be achieved by using the optional kit (Part # 5005.064) available from your
dealer). Fig. #19
Fig. #18
Fig. #17
GAS CONNECTION A/C ADAPTER
Fig. #16
BLOCK “A”
ELECTRICAL OUTLET BOX
BLOCK “B”
ACCESS PANEL
15
TCWS.54CSTE 080713-68
Maestro Control
Plumbing and Electrical

9. Route the communication cable as required to the wall control electrical box.
10. Attach the communication cable to the wall control. (Fig. #20)
11. Fasten the wall switch to the electrical box.
12. Fasten the faceplate to switch
13. If not already installed, install the burner and media set using the instructions supplied
with the burner kit.
14. Turn on the gas supply and check that all connections are tight and leak free.
15. Turn on gas and electrical supplies.
17. Press the up button on the wall control
and hold it for 5 seconds or until a clicking
sound is heard from the gas control (Fig.
#23).Release the button, check manifold
pressure and ensure that it’s correct.
(Refer to Burner installation manual)
18. Press the center button of the wall control.
The replace will shut off.
19. Install the remaining screws in the access
panel and tighten.
20. Remove the pressure gauge and the
extension test tting and thread the
pressure test port plug into the pressure
test port. Thread sealant is required on
the threads. (Refer to Burner installation
section in this manual)
21. Turn the replace on and verify that
the connections are tight.
16. Press the center button on the wall control (Fig. #22). The igniter will start to spark.
After a short time the pilot will light, followed by the main burner.
Fig. #20
Fig. #22
Fig. #23
16
TCWS.54CSTE 080713-68

Pre-Purge Mode
For use with a power vent only.
Follow these instructions to activate the
power vent pre-purge feature. This feature
must be activated for the safe operation of
an appliance equipped with a power vent.
Switching to the power vent pre-purge
mode:
1. To turn feature ON and OFF, press and
hold the STANDING PILOT button on the
wallswitch for 10 seconds (Fig.#24).
2. When the feature is activated, the green
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
3. When the feature is deactivated, the red
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
4. When the pre-purge feature is ON:
• The low battery backup warning feature
will be disabled and the LED will not
ash to indicate low battery (The battery
backup must be removed when using a
power vent).
• The Standing Pilot feature will be de-
activated (feature not available when
Power Vent Pre-Purge Mode is active).
• Upon receiving any ON command, the
power vent output will close immediately,
but the ignition cycle will NOT begin for 10
seconds (pre-purge). This means that
themoduleWILL NOTemit asparkand
WILL NOT energize the pilot operator
andthe 60second ignition trialperiod
WILL NOT begin until the 10 second
pre-purge delay is complete.
• Upon receiving any ON command, the
green LED will ash (0.5 seconds ON,
0.5 seconds OFF) for 10 seconds so
the user will know that the replace is
operating.
STANDING
PILOT BUTTON
Fig. #24
NOTE:
The pre-purge feature must be
activated for the safe operation
of an appliance equipped with a
power vent.
17
TCWS.54CSTE 080713-68

Note:To test the gas pressure, turn off the gas supply before removing the plug from
the supply pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Please refer to page 51 for gas pressure testing procedure.
GAS VALVE INLET
Servicing of the appliance can be performed from inside the unit and through the access
panel located in the rebox bottom.
Caution: The gas line should be installed by a qualied service person in accordance with
all building codes. This section is intended as a guide for qualied technicians installing this
appliance. Consult local and/or national building codes before proceeding.
• Gas supply line access holes are located beneath the replace on the ue side of the
Control Box. Gas valve inlet accepts a 3/8" N.P.T. tting. Correct gas line diameter must
be used to assure proper operation and pressure.
• The replace has an input rate of 61,000 BTU/HR on both Natural Gas and
Propane.
• A drip leg must be installed in the gas supply line going to the gas control
valve to minimize the possibility of any loose scale or dirt within the gas
supply line from entering the control valve.
• It is essential that a union or anged connection be installed just upstream of the
valve and inside the control compartment to allow for repair or replacement of the
gas valve.
Check local codes for additional requirements.
1. Connect the gas supply to the valve (Fig. #24a).
2. Turn on the gas supply and check that all connections are tight and leak free.
WARNING:The access panel including gasket must be
reinstalled after conversion/installation or servicing
has been completed. Failure to do so will cause
overheating and premature failure of the control system.
Fig. #24a
Correct gas pressure requirement:
Supply Pressure Natural Gas Propane BTU
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.5" WC 11" WC 61,000 (17.8kw)
Minimum 2.1" WC 5.5" WC 39,000 (11.5kw)
115VAC 60Hz 8.5A
18
TCWS.54CSTE 080713-68
Gas Supply
Gas Pressure Check

NOTE:OptionalPowerVents (TCVT.PVCV,TVCT.PVC1,TCVT.PVC2,TCVT.PVC3) require
different venting. Please refer to Power Vent manuals pages 20 and 31.
Various combinations of vent runs may be used. For optimum performance and ame
appearance, keep the vent length to a minimum and limit the number of elbows. Connections
between each vent system component must be tightly joined, secured with sheet metal
screws and sealed with high temperature self adhesive tape.
VENT SUPPORTS: A minimum of 1 support every 4’ must be used.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER
THAN 1 3/4 INCHES FROM ANY PART OF THE VENTING PIPE.
19
TCWS.54CSTE 080713-68
Venting

Locate the replace as per the main instructions supplied.
Make the following modications to add the components used with the Flush
Mount Power Vent Kits. This Kit can only be used with Town and Country replace
model TCWS54.CSTE only.This installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or the Natural Gas and Propane Installation Code, CSA B149.1.
All electrical installations should be performed by a qualied electrician to the
Canadian and U.S. National Electrical Codes (CSA C22.1 for Canada), (ANSI/NFPA
70 for the U.S.) and/or local electrical codes.
UNDER NO CIRCUMSTANCES SHALL A RHEOSTAT BE USED
TO ALTER THE VOLTAGE SUPPLY TO THIS UNIT.
ITEM PART No. DESCRIPTION QTY
1 TCVT.7895 Flush Mount Power Vent Assy. 1
2 8020 Inner Wall Plate 1
3 8029 Wall Pipe Cover 1
4 TCVT.8028WLD Wall Sleeve Assembly 1
5 5048.4 #10-16 x 5/8”Tech Screw 8
MINIMUM CLEARANCES TO
COMBUSTIBLE
Terminal casing:
0in. (0mm)
Vertical vent pipe:
1.75 in. (44mm)
Horizontal vent pipe:
1.75 in. (44mm)
All other clearances are as per the replace
installation instructions.
VENTING CONFIGURATIONS
Maximum total vent length is
110ft plus six 90-degree elbows
or combination of other elbows
equaling 90-degrees, with a
maximum 66 foot vertical rise.
Minimum total vent length is 3 ft
plus one 90-degree elbow.
The vent can be installed with
any combination of rise and run
including up to 3 ft below the
unit. Ensure vent pipe is properly
supported.
Min. venting - 3 ft plus
one 90-degree elbow
66’ MAX. VERTICAL
Maximum Combined
vertical & horizontal
venting -
110 ft plus six
90-degree elbows.
PAINT:
The vent terminal comes pre-painted
with Thurmalox 230 Series paint by
Dampney Co., but can be painted
to match your wall nish color
using high temperature paint that
can withstand temperatures of at
least 250 degrees Fahrenheit or 120
degrees Celcius.
Ensure the your paint is compatible
with Thurmalox 230 Series paint.
3 ft. below unit (Max) to
center of vent pipe
See table (pg.3 )
to determine which
powervent kit to use.
Min. 1 3/4” Clearance to
combustible surfaces
from vent pipe.
Fig. #1
Power Vent
Contents of Power Vent Kit
Power Vent InstallationPower Vent Installation
TCVT.PVC Power Vent Installation
Contents of Power Vent Kit
Venting Congurations
20
TCWS.54CSTE 080713-68
