Town & Country Fireplaces TCWS54ST SERIES D User manual

WARNING: If the information in these
instructions is not followed exactly, a re or
explosion may result causing property damage,
personal injury or death.
FOR YOUR SAFETY
Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WHAT TO DO IF YOU SMELL GAS
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch
•Donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplierfrom
a neighbour’s phone. Follow the gas
supplier’s instructions.
• Ifyoucannotreachyourgassuppliercall
the re department.
Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
This appliance may be installed in an aftermarket
permanently located,manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
MODEL
TCWS54ST
SERIES D
POWER VENTED
SEE THRU FIREPLACE
TCWS54ST
INSTALLATION
AND OPERATING
INSTRUCTIONS
270515-56 TCWS54ST_D 5056.425218D
SERIAL #

Table of Contents
5056.425218D
Table of Contents
Caution ................................................................... 3
Safety ..................................................................... 3
Important Note for the Commonwealth
of Massachusetts:................................................... 4
Fireplace Dimensions ............................................. 5
Minimum Clearances to Combustible Material ....... 5
Installation Requirements .......................................6
Manufactured (Mobile) Home ................................. 6
Window Frame Removal......................................... 6
Standoffs................................................................. 7
Locating The Fireplace ...........................................7
Framing and Finishing ............................................8
Steel Stud Framing Kit.......................................... 10
Adjustable Lintel ................................................... 12
Electrical............................................................... 14
Wall Switch and Remote Control .......................... 15
Selecting Natural Vent & Power Vent Modes ........ 15
Home Automation ................................................. 16
Gas Supply ........................................................... 17
Venting.................................................................. 18
TCVT.PVOC Power Vent Installation..................... 18
Venting Congurations.......................................... 19
Venting Length...................................................... 19
Minimum Vent Length Chart .................................20
Vent Terminal Minimum Clearances .....................20
Venting Components ............................................21
Vent Pipe Sealant ................................................. 22
Optional Tranquility Burner ...................................23
Propane Conversion .............................................29
Optional Twilight Diamond Burner ........................ 31
Gas Pressure Check.............................................35
Burner Flame Adjustment..................................... 36
Firebox Panels Installation.................................... 37
Finishing Touch Trim Kit Instructions..................... 38
Lighting Instructions .............................................39
First Fire................................................................40
Special Operator Note .......................................... 40
Remote Control Operation....................................40
Maintenance .........................................................46
Replacement Parts - TCWS.54DST .....................47
Replacement Parts - Tranquility Burner................ 48
Replacement Parts - Twilight Diamond Burner..... 49
Valve Control System............................................ 50
Wiring Diagram..................................................... 51
Rating Label Location........................................... 52
2
TCWS54ST_D 270515-56

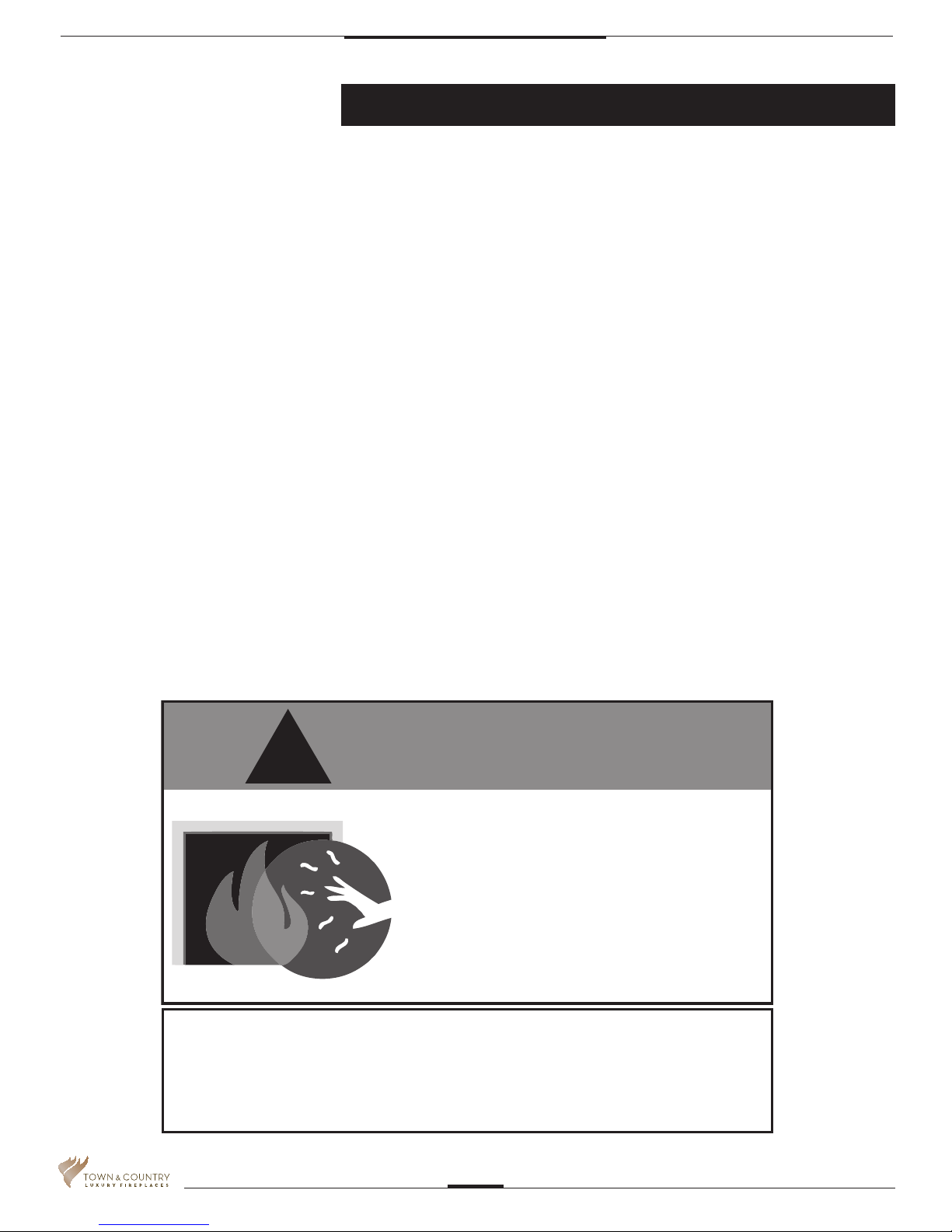

HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed for the protection of children and
other at-risk individuals.

5056.425218D
FOR YOUR SAFETY - Do not install or operate your Town & Country replace without rst
reading and understanding this manual. Any installation or operational deviation from the
following instructions voids the Town & Country FireplacesTM Warranty and may prove
hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours.
This is due to the curing of paints, sealants and lubricants used in the manufacturing process.
This condition is temporary. Open doors and windows to ventilate area. Smoke and fumes
caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service
technician to inspect the replace and to replace any part of the control system and any gas
control which has been under water.
Due to high temperatures, this gas appliance should be located out of traffic and away from
furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children, and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at-risk individuals in the house. To
restrict access to a replace or stove, install an adjustable safety gate to keep toddlers,
young children, and other at-risk individuals out of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
Failure to do so may create a hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees
or representatives for any damages caused by an inoperable, inadequate, or unsafe
condition which is the result, either directly or indirectly, of any improper operation or
installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel
burning appliance.
3
TCWS54ST_D 270515-56
Caution
Safety
We recommend that our gas hearth
products be installed and serviced
by professionals who are certied
in the United States by the National
Fireplace Institute®(NFI) as NFI Gas
Specialists

5056.425218D
Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level
where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas
fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of
hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector
with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)(a) 1
through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e)) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
4
TCWS54ST_D 270515-56

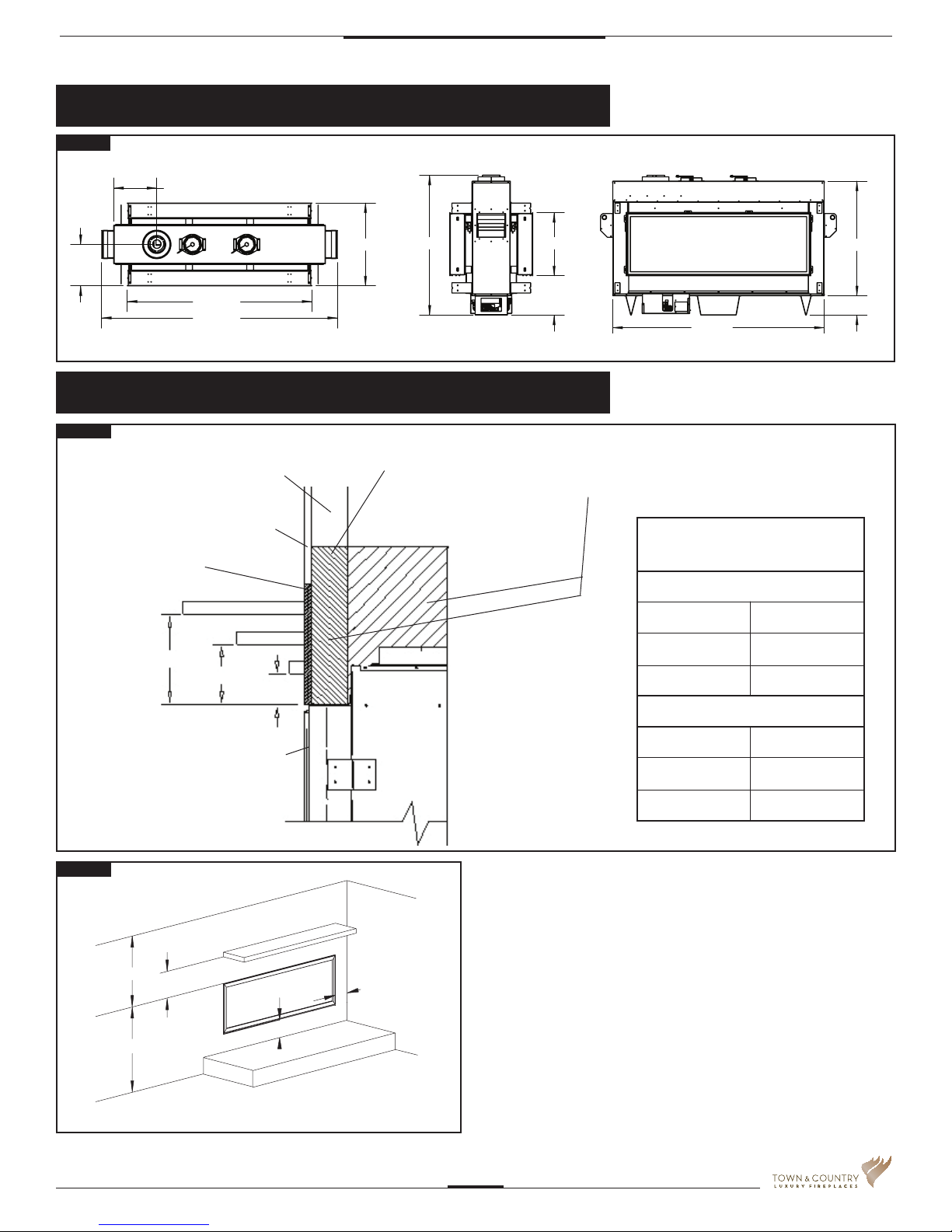

29 3/4"
24"
4“
*
CEILING
ADJACENT WALL
OR MANTEL SUPPORT
6”
COMBUSTIBLE FLOOR
COMBUSTIBLE HEARTH
5056.425218D
* MANTEL CLEARANCE
A 9”
B 6”
C 3”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
UNIT MAY BE RECESSED UP TO 6” WITH
NONCOMBUSTIBLE MASONRY TYPE MATERIAL
Minimum Clearances:
Side standoffs.......................................................0 in. (0 mm)
Back standoffs ...................................................... 0 in. (0 mm)
Top standoffs ........................................................ 0 in. (0 mm)
Bottom of appliance..............................................0 in. (0 mm)
Adjacent side wall.................................................4 in. (102 mm)
Ceiling to appliance ............................................24 in. (610 mm)
*Mantel to appliance ................... ..........See Figure #2
**Maximum Mantel extension ..... ..........See Figure #2
Mantel support...................................................... 4 in. (102 mm)
Vent pipe .......................................................1 3/4" in. (45 mm)
Fig. #1
Fig. #2
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #11& 12
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERI-
AL, ELECTRICAL WIRING OR GAS PLUMBING IN
THIS AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
B
C
D
E
F
Fig. #3
5
TCWS54ST_D 270515-56
Fireplace Dimensions
Minimum Clearances to Combustible Material
33 13/16"
62 3/8"
5 11/16"
54 7/16"
24 7/16"
12 1/4"
69 9/16"
12 11/16"
41 1/4"
11 9/16"
18 5/8"

Warning: Turn off the replace, and allow ample time for the unit to cool before
proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.

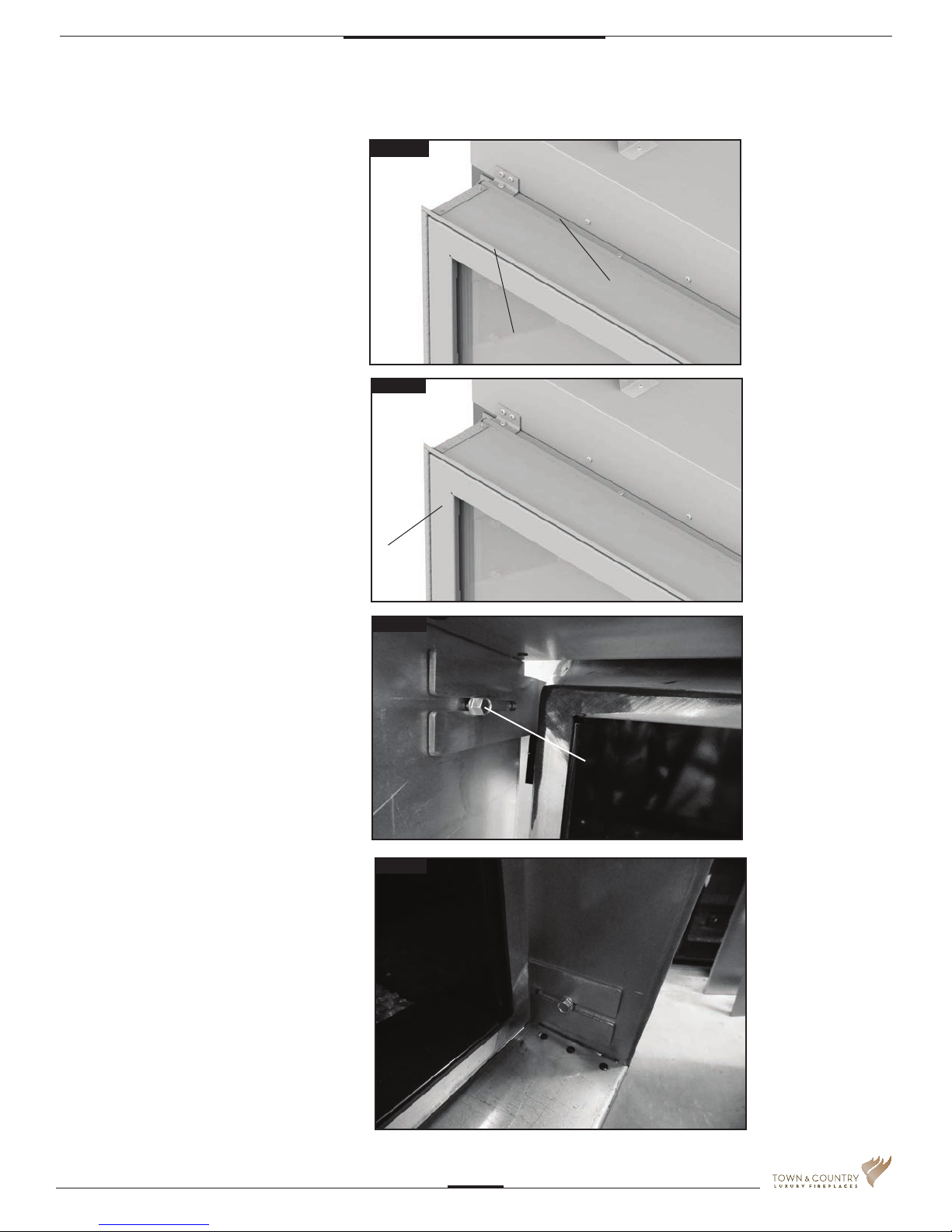

The window frame is held in place by two spring-loaded latches that are operated by a
one-piece latch handle.
1. Remove Safety Barrier Screen (Fig. #4).
2. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
3. Using a screwdriver (Fig #5) or other similar object, push against the notch in the top
of the latch and grab the bottom of the latch handle as it protrudes (Fig #6). Lift handle
until latch hook disengages. Repeat for other side while holding glass so it does not tip
out.
4. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of
the frame and lift up and out to disengage from its bottom track.
5. Place the window frame in a safe place to avoid damage.
6. Re-assemble in reverse order. Latch handle should snap into place and be ush with
window frame when engaged correctly.
7. Reinstall Trim Kit if required.
8. Reinstall safety barrier screen.
TIP:
To ensure glass is properly latched, grasp the top left and
right sides of the glass frame, under moderate pressure it
should pull forward and return to original position evenly on
both sides.
LATCH HANDLE
Fig. #5
Fig. #6
Fig. #7
SAFETY
BARRIER
SCREEN
Fig. #4
5056.425218D
TheTown & Country Fireplace installation and venting must conform to the local codes
or, in the absence of local codes, current CSA B149.1 installation code (in Canada) or
the current National Fuel Gas Code, ANSI Z223.1/NFPA 54 (in the USA). Only qualied
(licensed or trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install
this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured Homes
after the "rst sale". Consult local codes for approval. The replace must be fastened
in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in
CANADA), and the Manufacturer's Home Construction and Safety Standard, Title 24
CFR, Part 3280 or the current Standard for Fire Safety Criteria for Manufactured Home
Installations, Sites and Communities ANSI/NFPA 501A (in the USA).
6
TCWS54ST_D 270515-56
Installation Requirements
Manufactured (Mobile) Home
Window Frame Removal

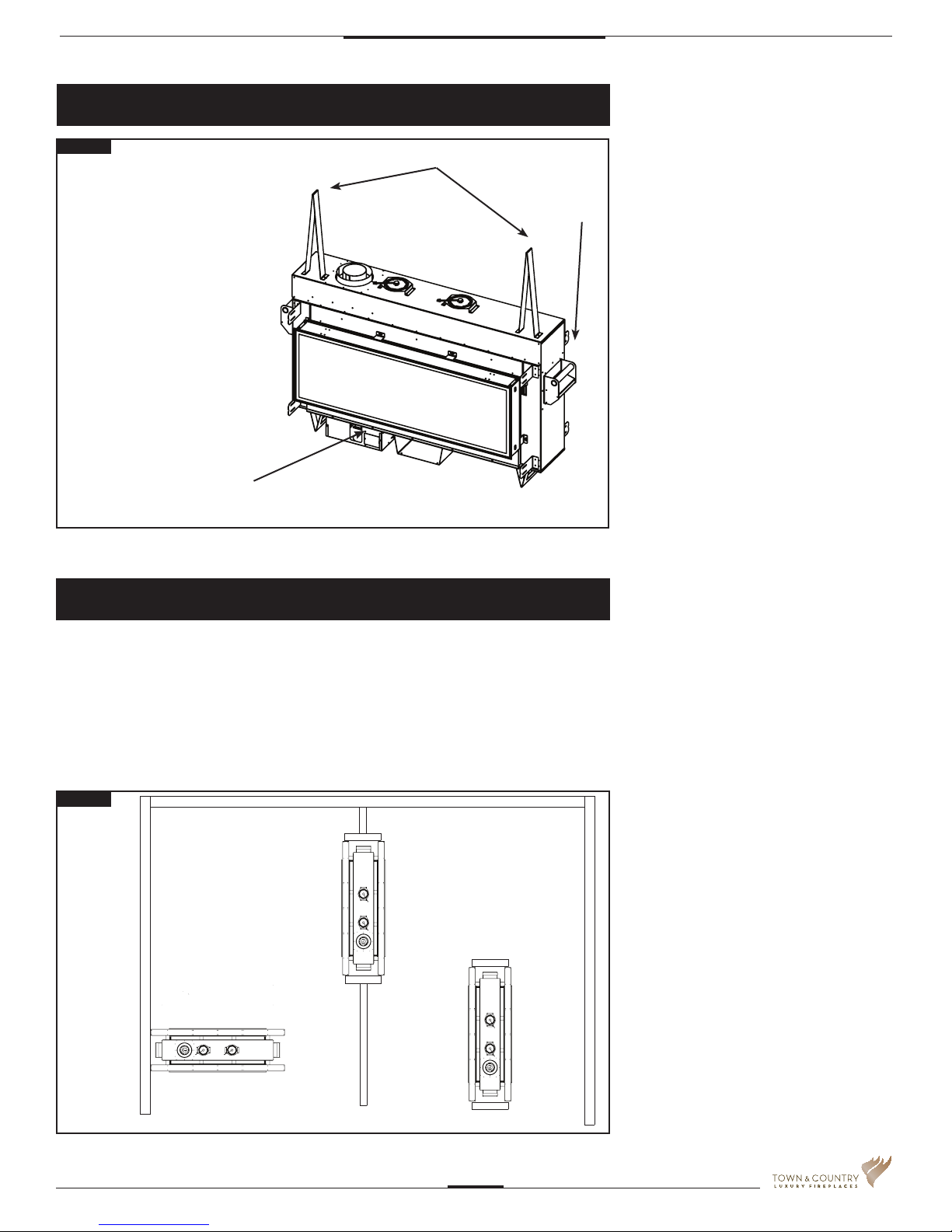

5056.425218D
The framing kits, once assembled
and attached, are used as the top
and side standoffs (see page 10)
In planning the installation for the replace, it is necessary to determine where the unit is to
be installed, location of vent system and where gas supply piping may be plumbed. Various
types of installations are possible, such as, a peninsula wall, an island, and between two
interior walls (Fig. #9). Due to high temperatures, do not locate this replace in areas of high
traffic or near furniture or draperies.
The minimum clearances from the replace to combustible surfaces must be adhered
to and are shown in Fig. #2 and Fig. #3.
EXAMPLES OF COMMON
LOCATIONS SEE FIG #13 FOR
DIMENSIONS
HANDLE
CONTROL
BOX
STAND OFFS
Fig. #8
Fig. #9
7
TCWS54ST_D 270515-56
Locating The Fireplace
Standoffs

74 3/4
54 1/16
NOTE: After frame is assembled, make
sure to have the side of the frame
without the screw holes facing toward
the inside of the room.
of frame
side of frame with
screw holes
5056.425218D
Note: The replace should be in place
and venting installed before framing in
or building an enclosure around the unit.
When the appliance is installed directly on
carpeting, tile or other combustible
material, other than wood ooring, the
appliance shall be installed on a metal or
wood panel extending the full width and
depth of the appliance.
The Town & Country replace must be
framed in as described below or totally
enclosed with non-combustible material,
such as facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4" will
allow the nishing surface to be ush with
the front of the unit. If preferred, additional
masonry type non-combustible material
can be installed above and to the sides up
to 6 inches forward of the appliance.
*The nishing material must not inter-
fere with glass frame access.*
A Steel Stud Framing Kit is supplied with
the replace and must be used unless the
replace is totally enclosed with
non-combustible material. Assemble the
framing kit as per the instructions on pages
10 – 12 of this manual. Attach the steel
frame to the replace once the replace is
in its nal position. Secure the steel frame
to the framing brackets on each side of the
unit. Ensure that the studs are set back far
enough to allow for thickness of nishing
surface.
The sides and top of the replace can
be framed in up to the steel studs using
conventional lumber. Consult local building
codes for specic requirements.
Due to high temperatures, non-combustible
backer board, such as cement board or its
equivalent, must be used to sheet in the front
of the replace, extending 12” above and 5
9/16” to the side of the framing edge bars.
(Fig #11) Standard sheet rock (dry wall) may
be used beyond this.
If the backer board is not to be nished with
other non-combustible material such as tiles, it
is recommended that top sections of the board
be a single sheet of calcium silicate board
or its equivalent. Taped and mudded joints
may crack due to the elevated temperatures.
Chase Insulation: When installing this
replace against a non-insulated exterior wall
or chase, it is recommended that the outer
walls be insulated to same degree as other
exterior walls. Do not place replace directly
against the insulation. Cover the insulation
and plastic vapour barrier with a solid surface,
such as dry wall (sheet rock). Consult local
codes. Do not insulate or use plastic vapour
barrier within the framing kit.
CAUTION: SEE FIGURE #11a BEFORE
PROCEEDING.
ALL OTHER FRAMING CAN
BE DONE WITH
CONVENTIONAL LUMBER
NON-COMBUSTIBLE ZONE. DO NOT INSTALL
ANY COMBUSTIBLE MATERIAL, ELECTRICAL
WIRING, INSULATION, PLASTIC VAPOR BAR-
RIER OR GAS PLUMBING WITHIN THE STEEL
STUD FRAMING
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with replace)
NOTE:
The chase must be properly
sealed at the ceiling level or
between oors in a multilevel
installation.
Fig. #10
IT IS HIGHLY RECOMMENDED THAT
A FULL HEADER BE INSTALLED
ABOVE THE FRAMING KIT
8
TCWS54ST_D 270515-56
Framing and Finishing

4 1/2
54 1/15"
70"
RANGE
20 3/4"
to
24 1/4"
RANGE
24 1/4"
to
27 3/16"
RANGE
1/32"
to
3 3/16"
FRAME
LINTEL
5056.425218D
NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
NON-COMBUSTIBLE BOARD DETAIL
MINIMUM COMBUSTIBLE
FRAMING DIMENSIONS
Fig. #11A
IF FINISHING THE WALL ABOVE THE UNIT
WITH PAINT, THE FRAMING KIT SHIPPED
WITH THE UNIT SHOULD BE DISCARDED.
USE FULL SHEETS OF CALCIUM
SILICATE BOARD OR EQUIVALENT
AND FULL LENGTH METAL STUDS TO
FINISH AND FRAME AROUND THE UNIT.
CALCIUM SILICATE BOARD ISA HIGH GRADE
MATERIAL WITH CEMENT, QUARTZ AND
NATURAL MINERALS AS THE MAIN RAW
MATERIALS. (NOTE: CALCIUM SILICATE IS
1/2” THICK)
CAUTION: CALCIUM SILICATE BOARD CAN
BE DAMAGED IF DROPPED OR STRUCK.
HANDLE WITH CARE. INSPECT BOARD
PRIOR TO INSTALLATION AND DO NOT USE
IF CRACKED.
NOTE: IT IS RECOMMENDED TO PRE-DRILL
MOUNTING HOLES IN THE BOARD PRIOR
TO SECURINGTO THE FRAMING. THIS WILL
PREVENT THE BOARD FROM CRACKING.
Fig. #11
Fig. #12
Fig. #13
NON-COMBUSTIBLE
MATERIAL MUST EXTEND
TO THE TOP EDGE AND TO
THE SIDE EDGE OF THE
FRAMING KIT.
NON-COMBUSTIBLE
BOARD ONLY IN
THESE AREAS
NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.
STEEL STUDS
NON-COMBUSTIBLE
MASONRY TYPE MATERIAL
NON-COMBUSTIBLE
BOARD
CALCIUM SILICATE
BOARD
MAXIMUM FACING DEPTH
9
TCWS54ST_D 270515-56

3
5
7
FRONT VIEW (slightly angled)
BEND OUT
FRAMING TABS TO
FRONT
SCREW INTO
SIDE
4
4
22
66
3
Fig. #14
88
Each Kit Contains:
Item Description Qty.
1 SCREW, WAFER #8 x 1/2

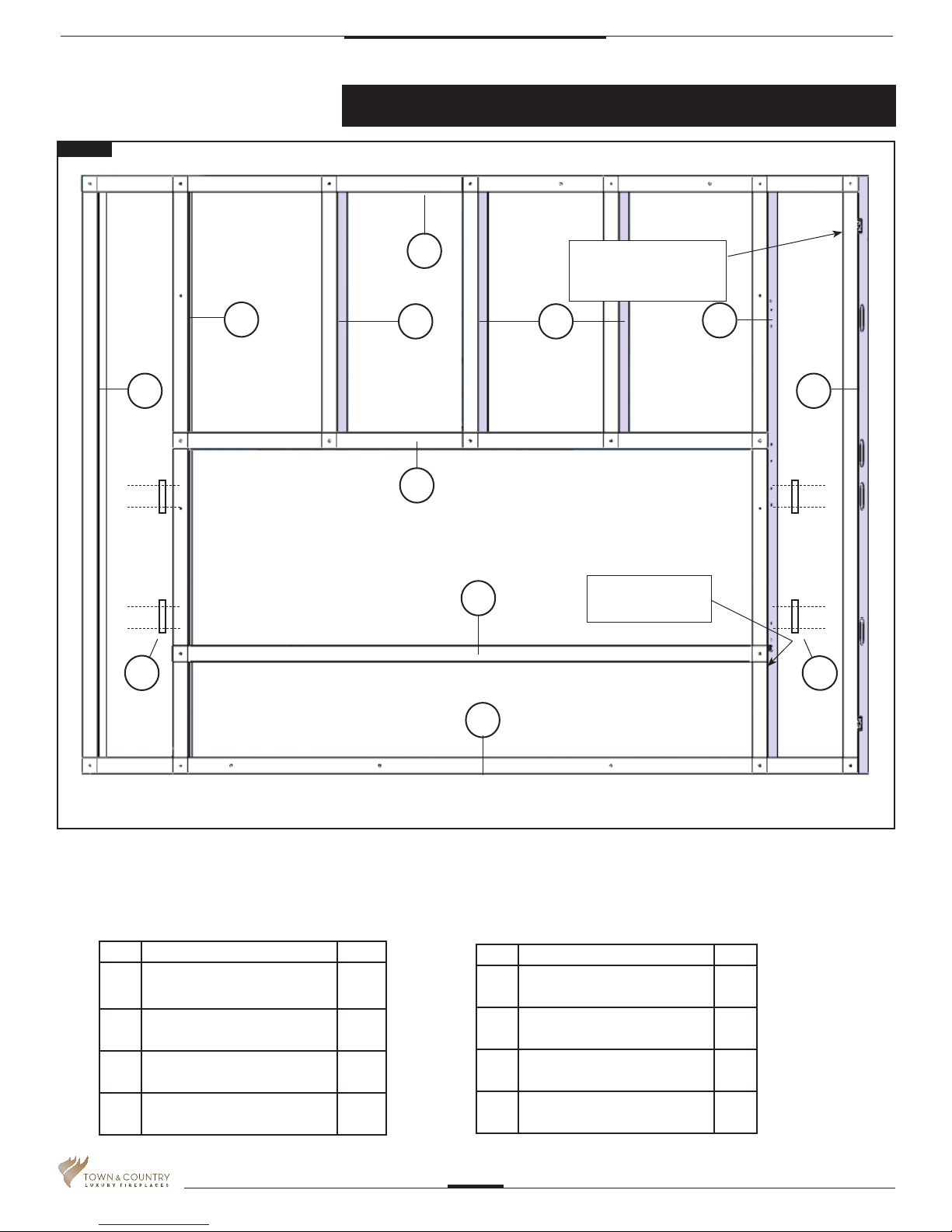

(Not shown)
2 x
Pkg
40
2 STUD, SIDES 54 1/16” L 4
3 STUD, OUTER SIDES 54 1/16” L 4
4 STUD, UPPER/LOWER
74 5/8” L
4
Item Description Qty.
5 INNER CROSS BRACE
56 5/8 L
2
6 STUD, CENTER 25” L 6
7 LOWER CROSS BRACE
56 5/8 L
2
8 FRAMING PLATE 8
5056.425218D
TCWS.54STFRKIT
10
TCWS54ST_D 270515-56
Steel Stud Framing Kit

NOTE: Sheet metal parts have sharp edges, use caution when
handling.

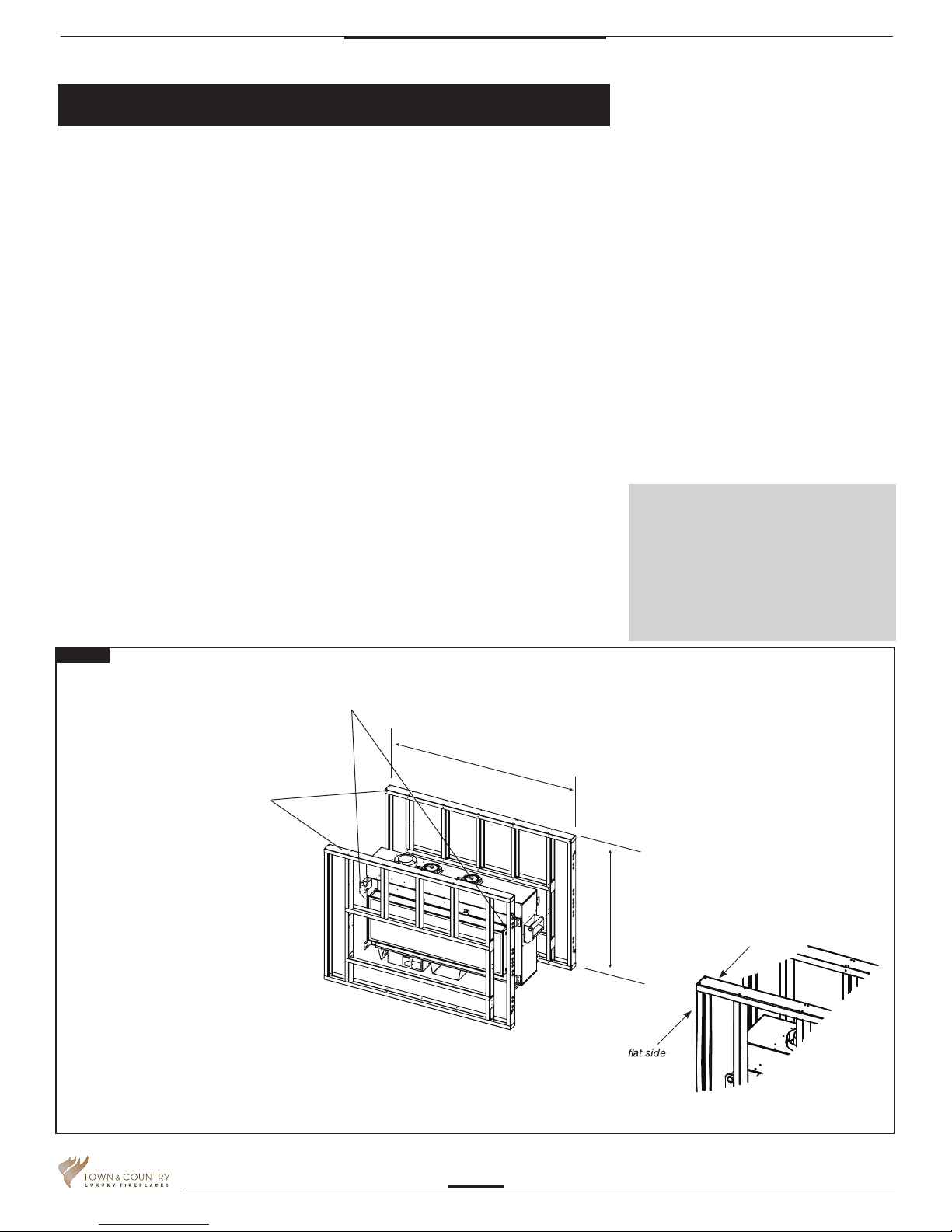

FrameAssembly - Note:2 identical frames will be
assembled.One for each side of the replace.
See Fig #10
1. On a at surface, place 2 upper/lower studs (#4).
One is to become the top-most horizontal stud
and one is to become the bottom-most horizontal
stud. Stand all pieces up on their narrow ends
throughout assembly.
2. Place 3 center studs (#6) perpendicular to, and
below the above horizontal stud at the beams
3 middle-most securing points. Use wafer screws
(1) to join the top side of the vertical pieces to the
horizontal piece.
3. Position Inner Cross Brace (5) horizontally along
the bottom ends of the 3 center studs (6) and fas-
ten with wafer screws to the center-most 3 posi-
tions along the cross brace. Cross brace should
be perpendicular with the center studs and hori-
zontal to the upper beam.
4. Position Side Studs (2) at each end of the assem-
bled frame so that the side studs are vertical and
perpendicular to the upper beam and inner cross
brace. Use wafer screws to fasten the side studs
to the assembled frame.
5. Position the Lower Cross Brace (7) - screen tab
slots side up - between the two side studs and
about 12” from the lower ends of the side studs.
Attach each end of the lower cross brace to the
side studs with wafer screws.
6. Place the lower horizontal stud (4) at the bottom-
most end of the frame. Attach the lower beam
to the side studs leaving the ends of the lower
horizontal stud extending out past the side studs
so that it positioned in line with the upper horizon-
tal stud.
7. Place and attach the two Outer Side studs at the
ends of both the upper and lower beams and at-
tach with wafer screws.
8. Once the top side of the frame is complete, turn
it over so that the wafer screws can be used to
fasten the other side of the frame.
9. Align the assembled frame to the unit framing
brackets (8). (Fig #10 & 15) Attach at the fastening
points through the access holes in the outer side
studs (3).
5056.425218D
11
TCWS54ST_D 270515-56

Adjustable Lintel
This replace may be recessed up to a
maximum depth of 6”, this recess must
be constructed from non combustible
material. The space between the
outside lintels and the rebox must be
completely free of any obstructions or
debris and the window with trim tted
must be able to move freely. No build-
ing material is permitted to protrude
past the lintel bars attached to the re-
place under ANY circumstance.
NON COMBUSTIBLE
FINISH MATERIAL
Secure to Existing Framing
•Bend out the tabs 90 degrees before inserting the unit into its framed housing (Fig. #16).
•Secure the frame assembly to the wood frame through the tabs.
4. Install Non-Combustible Board (not supplied)
• Usedrywallscrews8toinstallthenon-combustibleboard.
Fig. #15 Fig. #16
Fig. #17
NON COMBUSTIBLE
FINISH MATERIAL
Non combustible building
material may not extend
past this point
Area inside Lintel must
remain free of obstructions
5056.425218D
12
TCWS54ST_D 270515-56

Fig. #18
Fig. #19
Fig. #20
1. The adjustable lintel (Fig #18)
assembly has two orientations for
desired nishing. A anged edge and a
hemmed edge. The lintel comes
factory installed with the ange edge
out. If the desired edge is different from
the factory setting, use the following
steps to change the lintel edge.
2. Remove the window trim (Page 6).
3. Loosen the securing bolts in the upper
and lower corners on each side of the
lintel and remove the lintel. Rotate the
assembly to have the desired edge
away from the replace(Fig .#18).
4. The lintel assembly has a maximum
range of adjustability of 1” to
accommodate varying facing material
thicknesses. (Fig.#19).
5. Adjust the lentil to the desired position.
Tighten the securing bolts.
(Fig.#20 & 21).
6. Re-attach the window trim.
7. Reinstall safety screen.
HEMMED EDGE
FLANGED EDGE
SCREEN
LINTEL
CLAMPING
SCREW
Fig. #21
5056.425218D
13
TCWS54ST_D 270515-56

Note: Installation must be performed by a qulaied
installer, service agency or gas supplier.
Fig. #23
Fig. #24
FIREBOX ACCESS PANEL
Fig. #22
INTERFACE BOARD
MODULE
JUNCTION BOX
REGULATOR
BOARD
TRANSFORMER
VACUUM
SWITCH
GAS CONNECTOR
OUTER ACCESS PANEL
INSIDE ACCESS
PANEL
WALL SWITCH
CONNECTOR
JUNCTION BOX
POWER
VENT
SWITCH

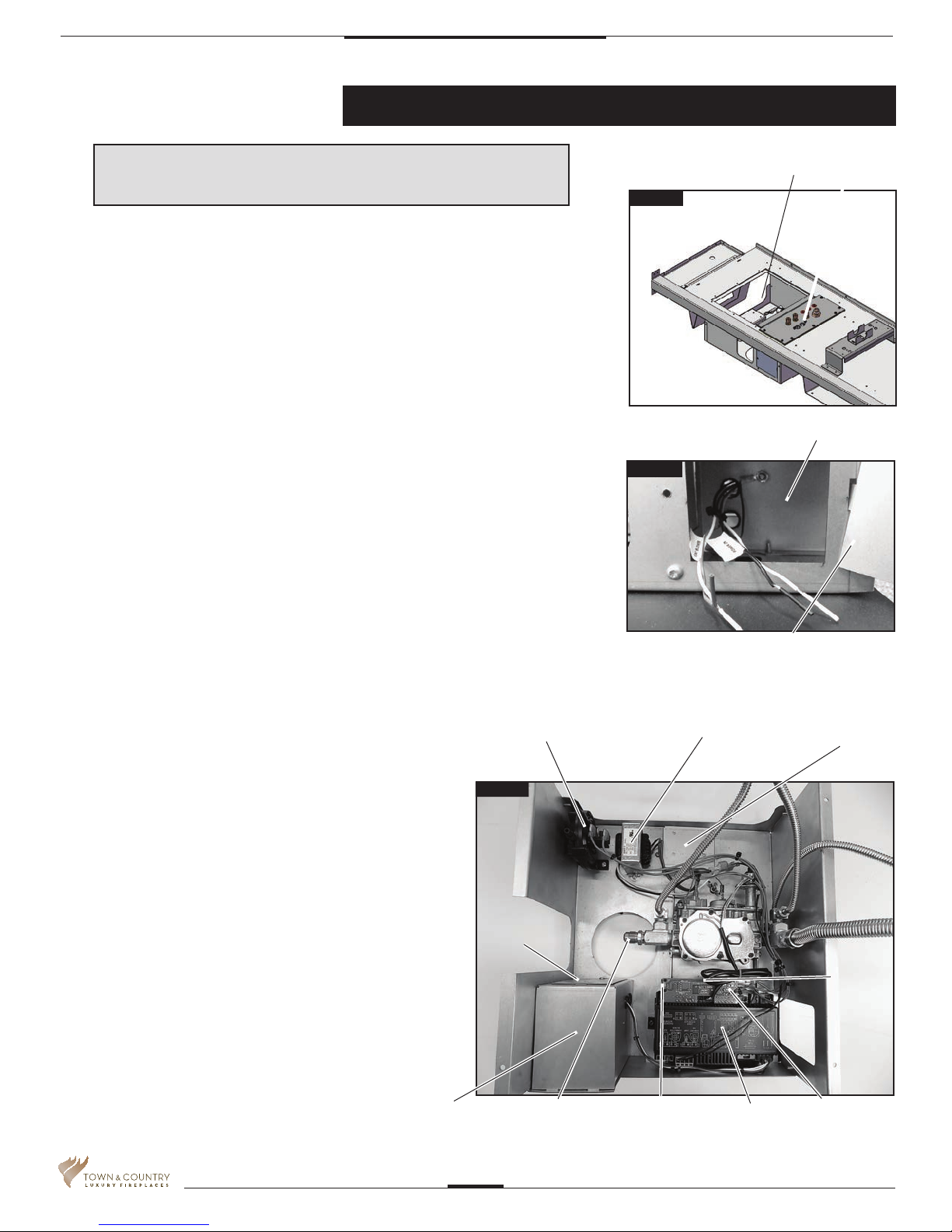

Electrical
The gas control system is located on the right hand side of the rebox behind an access
panel and the decorative rebox panel (if installed). The replace is operated via a wall
control and a hand held remote control unit.
The wall control is connected to the replace by a 40 ft. communication cable supplied
with the replace.
Installation
1. Place the replace in the desired location.
2. Remove the glass door from the replace.
3. Remove access panel from bottom left hand side of the rebox (Fig #22)
4. Ensure that the switch on the IFC board is set to PV (Power Vent) (Fig #30).
5. Connect 110 V. AC electrical supply to the wires installed inside the junction box
(Fig #23). The replace is rated at 110 volts, 60Hz, 0.25A. The optional power vent kit
is rated at 115 volts, 60Hz, 1.8A.
The electrical wires can be accessed from both inside and outside the junction box by
removing one of the two small access panels (Figs #23 & 24)
6. Attach the wall switch to the framing in the desired
location (Figs #25 & 28). (40 ft is supplied with replace).
7. Route the wall switch control cable as required to the wall
switch (Fig #26).
8. Attach one end of the wall switch control cable to the wall
control. (Fig #26), and the other end to the interface board
(Fig#24)
9. DO NOT INSTALL BATTERIES INTO THE WALL SWITCH.
(FIG #27). BATTERY HOLDER MUST REMAIN EMPTY.
10. If not already installed, install the burner using the instructions
supplied with the burner kit.
11. Turn on the gas supply and check that all connections are tight
and leak free.
12. Turn on gas and electrical supplies.
13. Move the center button on the wall control (Fig #25) to the “ON”
position. The igniter will start to spark. After a short delay
delay, the pilot will light followed by the main burner.
5056.425218D
14
TCWS54ST_D 270515-56

Fig. #25

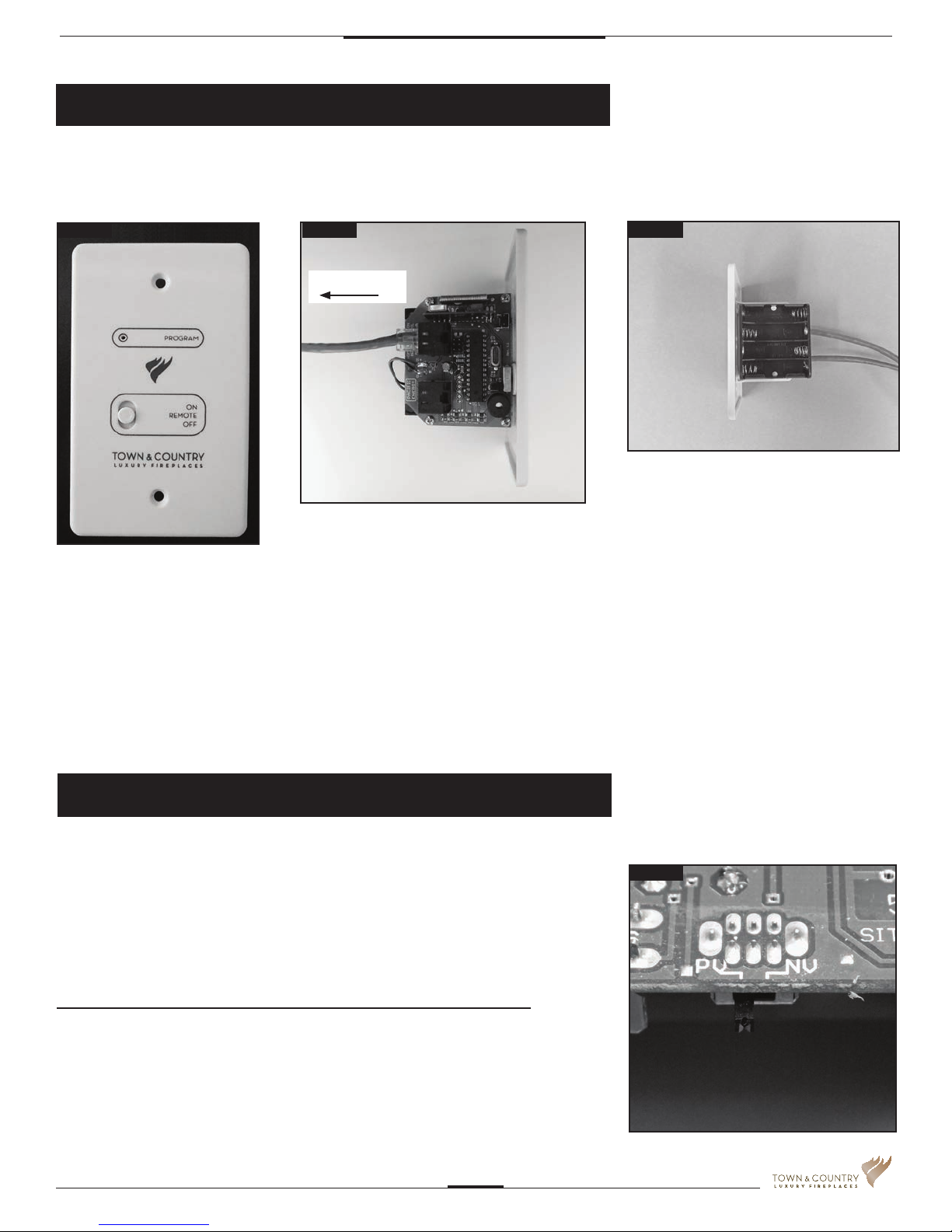

Linking the remote control unit to the
wall switch.
1. Begin by moving the selector toggle
on the wall switch to the “REMOTE”
position.
2. Insert a straightened paper clip into
the “PROGRAM” slot on the wall
switch.
3. Press the internal “PROGRAM” button
once and wait until you hear 3 beeps
from the wall switch.
4. Press the ON/OFF button of the
remote unit. Once the wall unit beeps
3 times, the remote is programmed.
5. The toggle on the wall switch must be
kept in the “REMOTE” position in order
to use the remote control unit.
The NV / PV (Natural Vent / Power Vent) switch (Fig #28) on the interface board
(Fig #24) is set according to which type of evacuating vent system is present. If the
replace is vented without the assistance of a power vent, the switch should be set
to “NV”. If using a power vent, “PV” should be selected. Follow the
instructions provided with the power vent kit for proper installation.
The TCWS54ST_D must be pre-set to the “PV” setting.
TO FIREPLACE
Fig. #26 Fig. #27
Wall Switch and Remote Control
Selecting Natural Vent and Power Vent Modes
Fig. #28
WALL SWITCH WITHOUT BATTERIES
Note: The wall switch must not have
batteries installed in it. The batteries
are for back up in case of a power
outage. This replace must not
operate with a battery back up.
5056.425218D
15
TCWS54ST_D 270515-56

TO HOME
AUTOMATION
SYSTEM
NOTE:
• Digital I/O must be connected to a dry contact relay.
• Ananlog ame and light input through 0 - 10 volt DC
signal scaled as follows:
Low = 1 volt
High = 10 volts
NOTE:
When a signal has been supplied by the home automation system, the re-
place control will repeat the signal every 2 hours or until a new command has
been received.
Fig. #29
Fig. #30
The home automation feature supplied with this replace is capable
of controlling the ame and light on/off function with the use of a dry
contact relay common to home automation systems. Furthermore, the
ame and light level may be modulated from high to low using the
0 - 10 volt analog output available on most home automation systems.
Fig #30 shows the wire designations required to connect the replace
to a home automation system.
Home Automation
5056.425218D
16
TCWS54ST_D 270515-56

5056.425218D
Note:To test the gas pressure, turn off the gas supply before removing the plug from the supply
pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Please refer to page 35 for gas pressure testing procedure.
Servicing of the appliance can be performed from inside the unit and through the access
panel located in the rebox bottom.
Caution: The gas line should be installed by a qualied service person in accordance with
all building codes. This section is intended as a guide for qualied technicians installing this
appliance. Consult local and/or national building codes before proceeding.
• Gas supply line access holes are located beneath the replace on the ue side of the
Control Box. Gas valve inlet accepts a 3/8" N.P.T. tting. Correct gas line diameter must
be used to assure proper operation and pressure.
• A drip leg must be installed in the gas supply line going to the gas control valve to
minimize the possibility of any loose scale or dirt within the gas supply line from entering
the control valve.
• It is essential that a union or anged connection be installed just upstream of the
valve and inside the control compartment to allow for repair or replacement of the
gas valve. Check local codes for additional requirements.
Check local codes for additional requirements.
1. Connect the gas supply to the valve (Fig. #23)
2. Turn on the gas supply and check that all connections are tight and leak free.
WARNING: The access panel including gasket must be reinstalled
after conversion/installation or servicing has been completed.
Failure to do so will cause overheating and premature failure of the
control system.
17
TCWS54ST_D 270515-56
Gas Supply

5056.425218D
Locate the replace as per the main instructions supplied.
Make the following modications to add the components used with the Flush
Mount Power Vent Kits. This Kit can be used with Town and Country replace
model TCWS54.DST only. This installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
the Natural Gas and Propane Installation Code, CSA B149.1.
All electrical installations should be performed by a qualied electrician to the
Canadian and U.S. National Electrical Codes (CSA C22.1 for Canada), (ANSI/NFPA
70 for the U.S.) and/or local electrical codes.
UNDER NO CIRCUMSTANCES SHALL A RHEOSTAT BE USED
TO ALTER THE VOLTAGE SUPPLY TO THIS UNIT.
MINIMUM CLEARANCES TO
COMBUSTIBLE
Terminal casing:
0in. (0mm)
Vertical vent pipe:
1.75 in. (44mm)
Horizontal vent pipe:
1.75 in. (44mm)
All other clearances are as per the replace installation instructions.
Power Vent InstallationPower Vent Installation
TCVT.PV Power Vent Installation
Various combinations of vent runs may be used. For optimum performance and ame
appearance, keep the vent length to a minimum and limit the number of elbows.Connections
between each vent system component must be tightly joined, secured with sheet metal
screws and sealed with provided high temperature self adhesive tape.
VENT SUPPORTS: A minimum of 1 support every 4’ must be used.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER
THAN 1 3/4 INCHES FROM ANY PART OF THE VENTING PIPE.
WALL TERMINATION - Horizontal
ROOF TERMINATION - Vertical
The TCWS54ST-D replace must be power vented. There are two options for
terminating the venting for this replace:
This replace can only be wall terminated using the TCVT. PV1.25 or TCVT.PV7.110
power vent kit.Please see the instructions supplied with the kit for installation details.
Please refer to Power Vent manuals.
For roof termination, power vent TCVT.PVCV must be used.
18
TCWS54ST_D 270515-56
Venting

5056.425218D
VENTING CONFIGURATIONS
Maximum total vent length is
110ft plus six 90-degree elbows
or combination of other elbows
equaling 90-degrees, with a
maximum 66 foot vertical rise.
Minimum total vent length is 3 ft
plus one 90-degree elbow.
The vent can be installed with
any combination of rise and run
including up to 3 ft below the
unit. Ensure vent pipe is properly
supported.
Maximum Combined
vertical & horizontal
venting -
110 ft plus six
90-degree elbows.
Fig. #31
Venting Congurations
POWER VENT 0 - 6’ 7’- 25’ 26’-110’
TCVT.PV1.25 LOW HIGH -
TCVT.PV7. 1 1 0 - LOW HIGH
Venting Length
Venting Length
TCWS.54DST
These horizontal power vents are speed adjustable depending on the length of venting.
19
TCWS54ST_D 270515-56
66’ maximum
vertical rise 110’ maximum
vent length
using power vent
minimum venting - 3’
plus one 90 degree elbow
minimum 1½” clearance
to combustable surfaces
from vent pipe
maximum 3’ below unit
to center of vent pipe power vent
power vent
(horizontal)
66’ maximum
vertical rise
power vent (vertical)
chimney

5056.425218D
Fig. #33
Vent Terminal Minimum Clearances
M
K
I
A
V
G
G

A

VG
A


AV
V
A
V




V

V
VV



A= clearances above grade, veranda, porch, deck, or balcony [*
12 inches (30 cm) minimum]
B= clearance to window or door that may be opened [* 12
inches (30 cm) minimum]
C= clearance to permanently closed window [minimum 12
inches (30 cm) recommended to prevent condensation on
window]
D= vertical clearance to ventilated soffit located above the ter-
minal within a horizontal distance of 2 feet (60 cm) from the
edge of the terminal [0 inches (0 cm) minimum]
E= clearance to unventilated soffit [0 inches (0 cm) minimum]
F= clearance to outside corner [6 inches (15 cm) minimum]
G= clearance to inside corner [3 inches (7.5 cm) minimum]
H= * not to be installed above a meter/regulator assembly within
3 feet (90 cm) horizontally from the center-line of the regula-
tor
I= clearance to service regulator vent outlet [* 6 feet (1.8 m)
minimum]
J= clearance to nonmechanical air supply inlet to building or the
combustion air inlet to any other appliance [* 12 inches (30
cm) minimum]
K= clearance to a mechanical air supply inlet [* 6 feet (1.8 m)
minimum]
L= ^ clearance above paved side-walk or a paved driveway
located on public property [* 7 feet (2.1 m) minimum]
M= clearance under veranda, porch, deck, or balcony
[0 inches (0 cm) minimum**]
^ a vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and
serves both dwellings*
** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the oor*
* as specied in CGA B149 Installation Codes, Note: local Codes or Regulation may require different clearances
* for U.S.A. Installations follow the current National Fuel Gas Code, ANSI Z223.1
AIR SUPPLY INLET
VENT TERMINAL GAS METER
FIXED
CLOSED
FIXED
CLOSED
OPEN-
ABLE
OPEN-
ABLE
INSIDE
CORNER
DETAIL
AREA WHERE TERMINAL
IS NOT PERMITTED
TCWS54 DST
49” 0” 3 feet
61” 12” 2 feet
73” 24” 1 foot
Minimum Rise Pipe Min.
From Floor to Flue Center Length Pipe
Length
A B C
Fig. #32
Minimum Vent Length Chart
20
TCWS54ST_D 270515-56
