Toyota AYGO - S User manual

Toyota Aygo Connect Multimedia
Owners manual
TACM2010_Cover_EN.indd 5 10/1/10 6:32 PM

1TABLE OF CONTENTS
Table of Contents
Before Use
1. Introduction ..................................................................................4
2. Safety Instruction.........................................................................5
3. Warnings.......................................................................................6
Limitations of the navigation system .................................................... 6
4. Safety precautions.......................................................................7
5. Before use ....................................................................................9
Operation
1. About This Receiver ..................................................................10

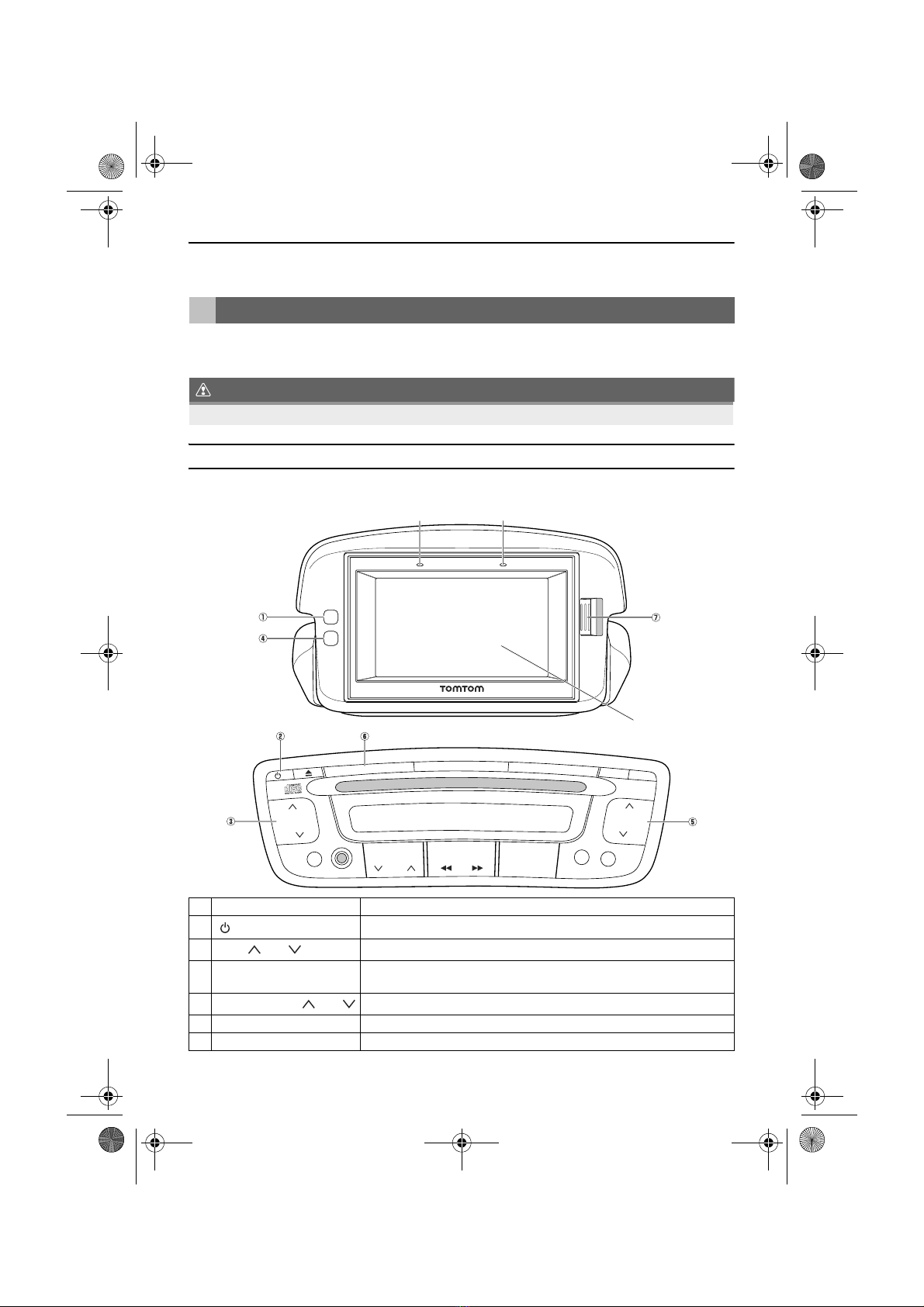

Control Names and Operations .......................................................... 10
Panel Switches .................................................................................. 10
Turning the POWER ON or OFF ......................................................... 11
Power ON .......................................................................................... 11
Power OFF......................................................................................... 11

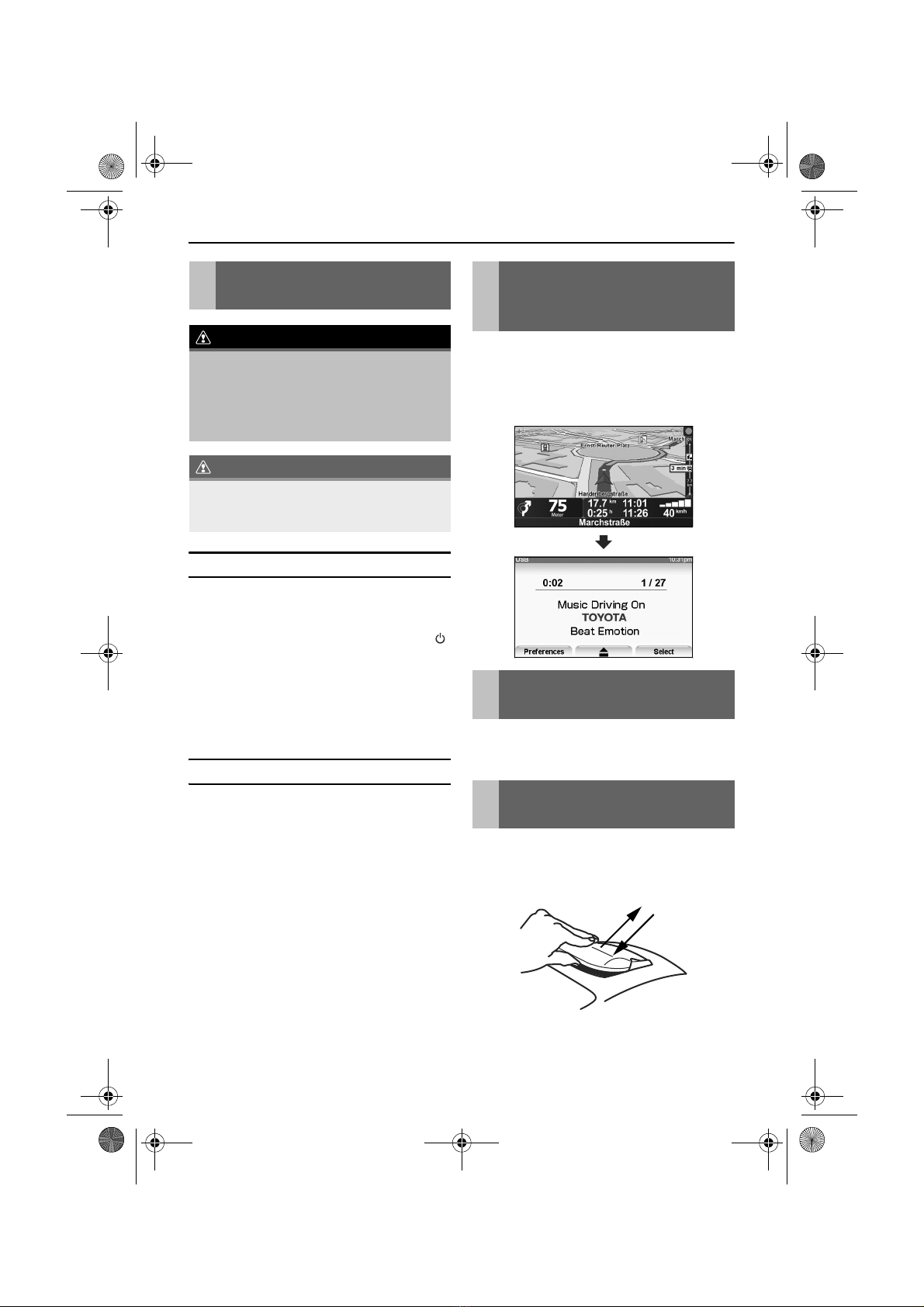

Switching Between the Audio and Navigation Screen ..................... 11
Turning the PND Display ON and OFF ............................................... 11
Open and Close the device ................................................................. 11
Detaching/Attaching the PND ............................................................. 12
Using the PND ................................................................................... 12
How to Detach the PND from the Main Unit ...................................... 12
Attaching the PND ............................................................................. 12
Hands-Free Microphone and Light Sensor........................................ 13
Operation Conditions of this Receiver .............................................. 13
TACM2010_EN.book Page 1 Tuesday, October 5, 2010 3:44 PM

2TABLE OF CONTENTS
2. Using TomTom Navigation........................................................14
Before you start ................................................................................... 14
Switching on....................................................................................... 14
Setting up........................................................................................... 14
Troubleshooting ................................................................................. 14
Improving reception ........................................................................... 15
Take care of your TomTom................................................................ 15
Light sensor ....................................................................................... 15
Making your first journey .................................................................... 16
Driving View ......................................................................................... 18
Main menu ......................................................................................... 18
TomTom Traffic.................................................................................... 19
Introducing TomTom HOME ............................................................... 19
Installing TomTom HOME.................................................................. 19
MyTomTom Account.......................................................................... 20
Discover more ...................................................................................... 20
TomTom Map ShareTM ...................................................................... 20
Help me!............................................................................................. 20
Hands-free calling .............................................................................. 20
Safety preferences............................................................................. 20
TACM2010_EN.book Page 2 Tuesday, October 5, 2010 3:44 PM

3TABLE OF CONTENTS
Audio Operations
1. Using the USB Music File Player..............................................21
Playing USB Music Files ..................................................................... 21
Connecting USB to USB connector and disconnecting
USB from USB connector .................................................................. 21
Selecting a Desired Music File ........................................................... 22
Finding a Desired Music File .............................................................. 22
Repeatedly Playing the Same Music File........................................... 23
Random Play of Music Files ............................................................... 23
About USB devices.............................................................................. 24
Playable USB Memory Standards ..................................................... 24
Playable MP3 File Standards............................................................. 24
ID3 Tags ............................................................................................ 24
Format of USB Memory ..................................................................... 24
How to operate portable audio devices
1. Using the iPod Player ................................................................25
Listening to the iPod ........................................................................... 25
Connecting iPod to iPod connector and disconnecting
iPod from iPod connector................................................................... 25
Selecting the Desired Music File ........................................................ 26
Finding a Desired Music File .............................................................. 26
About iPod software version .............................................................. 27
Reference
1. Troubleshoot ..............................................................................28
When You Think There Is a Malfunction ............................................ 28
2. Specifications.............................................................................30
3. PND Charging Information........................................................30
TACM2010_EN.book Page 3 Tuesday, October 5, 2010 3:44 PM

4BEFORE USE
Introduction
Thank you for your purchase of the Navigation System. Please read this manual
carefully to ensure proper use.
The Navigation System is one of the most technologically advanced vehicle accessories ever
developed. The system receives satellite signals from the Global Positioning System (GPS)
operated by the U.S. Department of Defense. Using these signals and other vehicle sensors,
the system indicates your present position and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location
to your destination. The system is also designed to direct you to a destination that is unfamiliar
to you in an efficient manner. Map database is made based on TomTom maps, whose
information source comes from Tele Atlas maps. The calculated routes may not be the shortest
nor the least traffic congested. Your own personal local knowledge or “short cut” may at times
be faster than the calculated routes.
The system will provide both a visual map and audio instructions. The audio instructions will
announce the distance remaining and the direction to turn in, approaching an intersection.
These voice instructions will help you keep your eyes on the road and are timed to provide
enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that
may affect their ability to perform properly. The accuracy of the vehicle’s position
depends on the satellite condition, road configuration, vehicle condition or other
circumstances.
© 2010 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without
the written permission of Toyota Motor Corporation.
© 2010 TOM TOM INTERNATIONAL B.V.
TomTom®and the “two hands” logo are among the trademarks or registered trademarks
owned by TomTom International B.V.
TACM2010_EN.book Page 4 Tuesday, October 5, 2010 3:44 PM

5BEFORE USE
Safety Instruction
To use this system in the safest possible
manner, follow all the safety tips shown
below.
This system is intended to assist in reaching
the destination and, if used properly, can do
so. The driver is solely responsible for the
safe operation of your vehicle and the safety
of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and prevents
safe driving. The first priority while driving
should always be the safe operation of the
vehicle. While driving, be sure to observe all
traffic regulations. Prior to the actual use of
this system, learn how to use it and become
thoroughly familiar with it. Read the entire
manual to make sure you understand the
system. Do not allow other people to use this
system until they have read and understood
the instructions in this manual.
For your safety, some functions may become
inoperable when driving.
CAUTION
While driving, listen to the voice instructions
as much as possible and glance at the screen
briefly and only when it is safe. However, do
not totally rely on voice guidance. Use it just
for reference. If the system cannot determine
the current vehicle position correctly, there is
a possibility of incorrect, late, or non-voice
guidance.
The data in the system may occasionally be
incomplete. Road conditions, including
driving restrictions (no left turns, street
closures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such things
as the safety of an area, condition of streets,
and availability of emergency services. If
unsure about the safety of an area, do not
drive into it. Under no circumstances is this
system a substitute for the driver’s
personal judgement.
Use this system only in locations where it is
legal to do so. Some countries/provinces may
have laws prohibiting the use of audio and
navigation screens next to the driver.
●For safety the driver should not operate
the navigation system while he/she is
driving. Insufficient attention to the road
and traffic may cause an accident.
●While driving, be sure to obey the traffic
regulations and maintain awareness of
the road conditions. If a traffic sign on
the road has been changed, route
guidance may provide wrong
information such as the direction of a
one way street.
TACM2010_EN.book Page 5 Tuesday, October 5, 2010 3:44 PM

6BEFORE USE
Warnings
■Limitations of the navigation
system
This navigation system calculates the current
vehicle position using satellite signals,
various vehicle signals, map data, etc.
However, the accurate position may not be
shown depending on the satellite condition,
road configuration, vehicle condition or other
circumstances.
The Global Positioning System (GPS)
developed and operated by the U.S.
Department of Defense provides an accurate
current vehicle position, normally using 4 or
more satellites, and in some cases 3
satellites. The GPS system has a certain
level of inaccuracy. While the navigation
system will compensate for this most of the
time, occasional positioning errors of up to
100 m (300 feet) can and should be
expected. Generally, position errors will be
corrected within a few seconds.

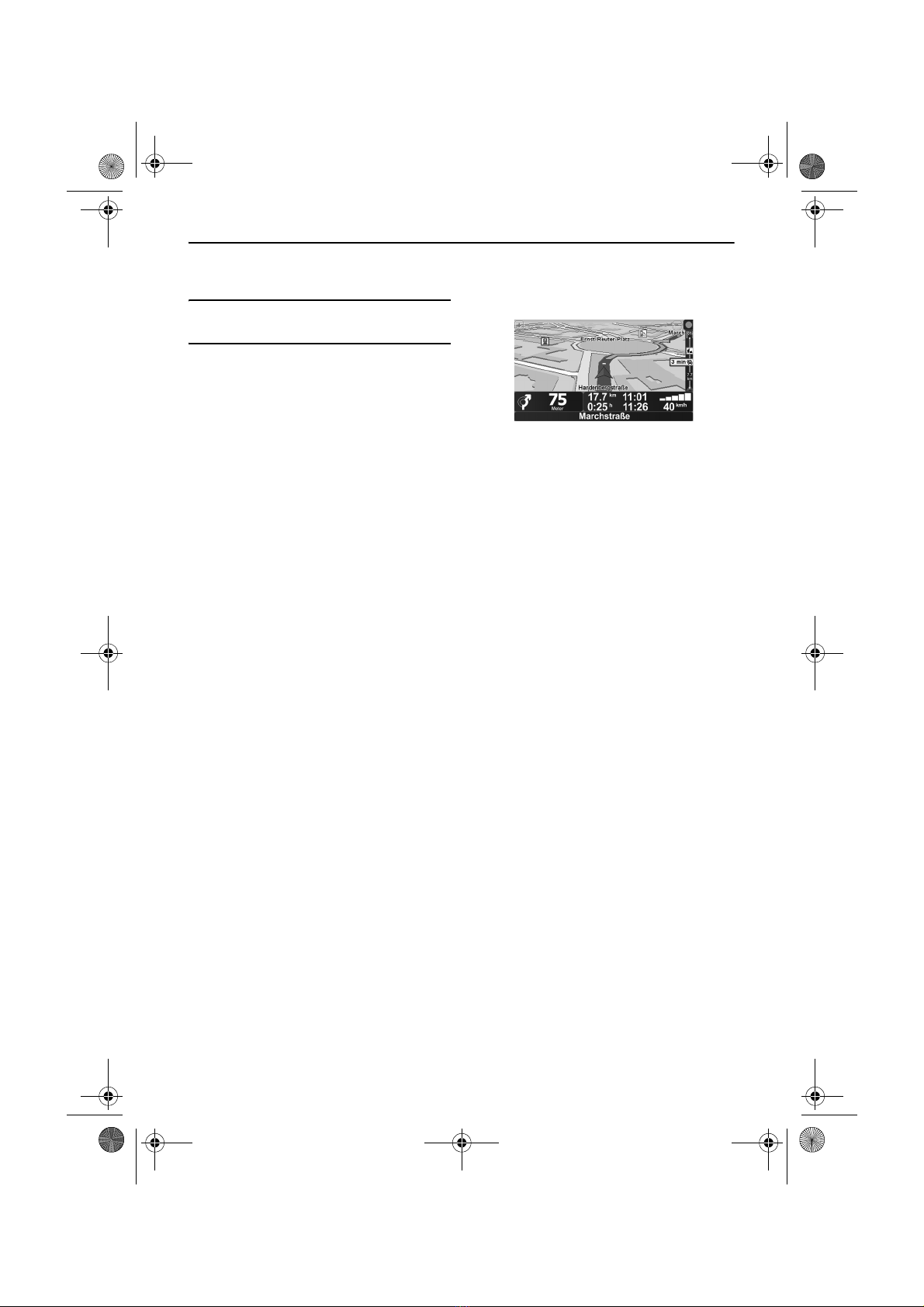

When your vehicle is receiving signals from
the satellites, the blocked bar marks appear
at the bottom right of the screen.
The GPS signal may be physically
obstructed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may obstruct
the GPS signals.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiving
clear GPS signals, the vehicle position may
not be shown accurately or inappropriate
route guidance may occur in some cases.
NOTICE
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content that
will interfere with GPS signal reception. We
advise against the use of window tinting on
vehicles equipped with navigation systems.
TACM2010_EN.book Page 6 Tuesday, October 5, 2010 3:44 PM

7BEFORE USE

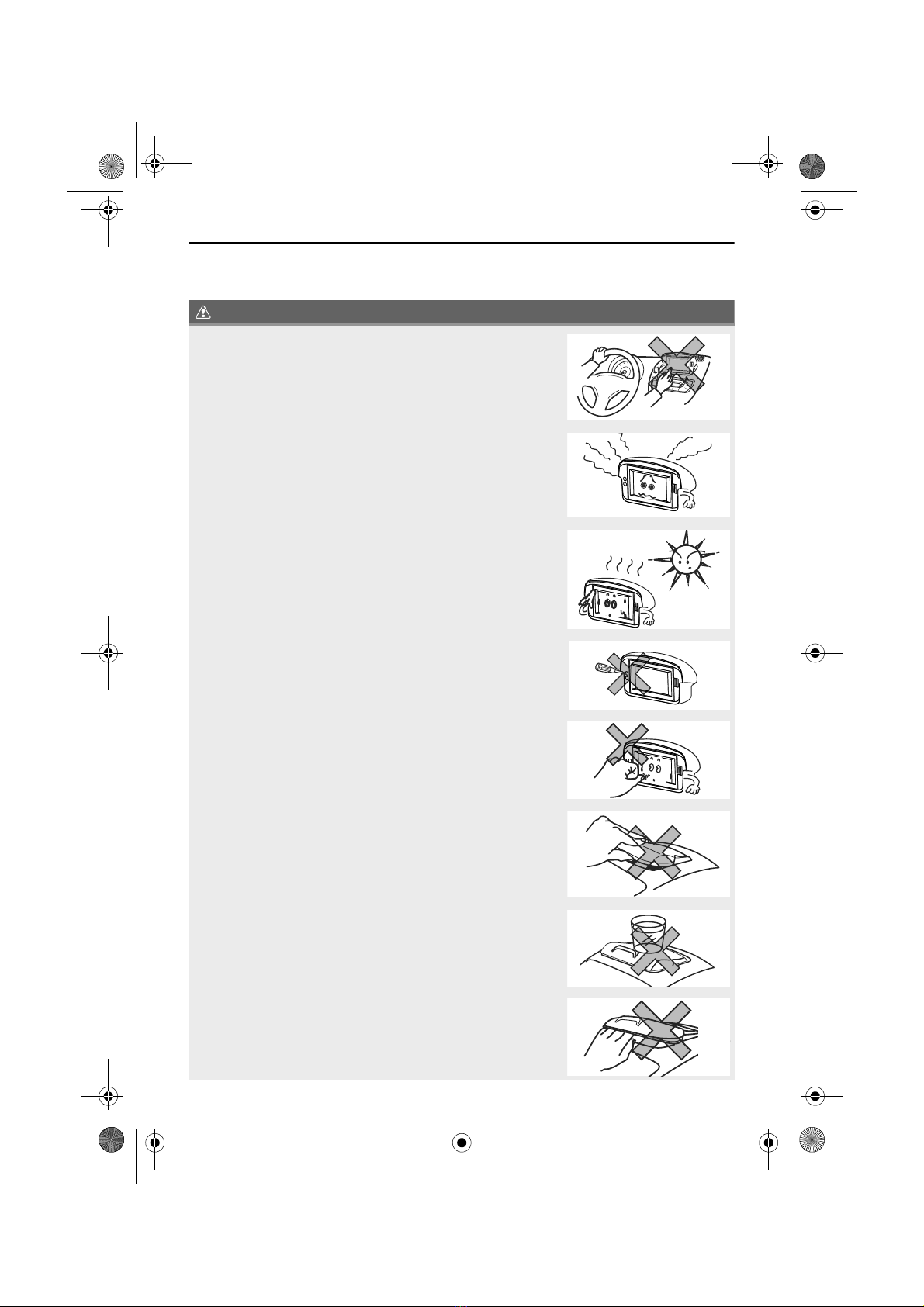

Safety precautions
WARNING
●Do not modify this system for any uses other than that specified herein. Toyota will not be held
liable for damages including, but not limited to serious injury, death or property damage
resulting from installations that enable unintended operation.
●When the vehicle is in motion, never take your eyes off the road to make adjustments to the
main unit. You must pay attention to the road at all times to avoid accidents; do not let operation
or adjustment of the main unit distract you from operating the vehicle responsibly.
●The driver should not look at the screen while driving. Doing so may result in as accident.
●Do not place foreign objects in iPod or USB input terminal. Fires or shocks may result.
●Do not disassemble or alter this main unit. Doing so may result in an accident, fire or shock.
●Do not let water or foreign objects enter the internal parts of this main unit. Doing so may result
in smoke, fire or shock.
●Do not use when main unit is malfunctioning (the screen is not lit or no sound comes out). Doing
so may result in an accident, fire or shock.
●Always replace fuses with fuses of identical capacity and characteristics. Never use a fuse with
a higher capacity than the original fuse. Using the wrong type of fuse may cause a fire or severe
damage.
●If foreign objects or water enters the main unit, smoke or a strange odor may be emitted. If this
occurs, stop using the main unit immediately and contact your authorized repairer. Accidents,
fire, or shocks may result if you continue to use the main unit under these conditions.
●The driver should not change iPod or USB memory while driving. Doing so may result in as
accident. You must first stop or park your car in a safe location and then proceed to remove or
insert iPod and/or USB.
●Keep volume to a reasonable level so that you can hear sounds from outside the vehicle,
including warning sounds, voices, and sirens. Failure to do so may cause an accident.
●Be careful that your hands and fingers do not get pinched when closing the cover. Injuries may
result.
●Do not put your hands or fingers into the iPod or USB input terminal. Injuries may result.
●The volume should be set at a moderate level to avoid hearing damage when the main unit is
powered on.
●Do not operate when sound such as distortion is being emitted.
●This main unit uses invisible laser light. Do not disassemble or alter this main unit. If any
problems occur, contact the authorized repairer where you purchased the main unit.
●Altering this main unit may cause exposure to laser emissions (which may damage your
eyesight), or result in an accident, fire or shocks.
●If the main unit is dropped or the cosmetics appear broken, turn off the power to the main unit
and contact your authorized repairer. If used in this condition, fires or shocks may result.
TACM2010_EN.book Page 7 Tuesday, October 5, 2010 3:44 PM

8BEFORE USE
●In accordance with the European Directive 2002/96/EC (for Waste Electric and Electronic
Equipment=WEEE), this product, which is labeled with a crossed-out wheeled bin, may not be
disposed of with household waste in member states of the EU.
WEEE: Waste Electrical and Electronic Equipment
When disposing of this product in an EU member state, dispose of it properly in accordance
with the laws of that state, for example by returning it to the distributor.
WEEE has potential effects on the environment and human health as a result of the presence
of hazardous substances. You can help to eliminate these effects and to enhance reuse/
recycling/ other forms of recovery by your cooperation.
●If using this receiver immediately after having purchased it or after having stored it
disconnected from the vehicle battery, the present location may not be displayed accurately.
Wait a short while and the GPS positioning will correct the displayed position.
●This device is a precision-engineered equipment and the information that you record on it after
purchase can be lost as a result of static electricity, electrical noise, vibration and other
influences. It is recommended that you keep a separate record of the information you store in
the main unit.
●Note that the following events are not covered by the warranty.
➀Corruption or loss of the data resulting from failure or incorrect operation of the unit, or any
problems associated with it, or due to the effects of electrical noise or other influences.
➁Corruption of loss of the data resulting from misuse of the unit by the purchaser or a
third party.
TACM2010_EN.book Page 8 Tuesday, October 5, 2010 3:44 PM

9BEFORE USE
Before use
CAUTION
●Be very careful and pay full attention to safety when operating
the audio and the navigation controls while driving. Otherwise
accidents may occur. Also, be sure to set the volume so that
you can still adequately hear sounds outside the vehicle.
Improper use may result in a traffic accident.
●Never continue to use the system if it is malfunctioning in any
way. If smoke, abnormal noises or abnormal odors are noticed,
turn off the power immediately. Immediately turn off the audio in
such situations.
Exercise caution regarding the temperature inside the vehicle.
●The temperature inside the vehicle can increase during hot
weather.
Wait for the temperature inside the vehicle to drop before using
this receiver.
Otherwise damage may result.
●Do not disassemble or modify this receiver.
The main unit has a precisely designed structure, so consult
your authorized repairer in the event any unsatisfactory
performance is observed.
●Do not apply excessive force to the monitor.
Otherwise damage may result.
●Do not apply excessive force to open and close the dock.
Otherwise damage may result.
●Do not leave any objects on the closed dock.
●Be careful not to get your fingers or other objects caught.
Interference can cause an injury or damage the main unit.
TACM2010_EN.book Page 9 Tuesday, October 5, 2010 3:44 PM

10 OPERATION
About This Receiver
You can operate this receiver by pressing the panel buttons (panel switches) or by touching the
switches displayed on the screen (touch switches).
IMPORTANT
■Panel Switches
Press each panel switch to operate it.
Control Names and Operations
●During traffic announcement, [MODE]and [SCR]buttons are deactivated.
1[MODE] button Switches SOURCE between iPod and USB.
2[ ] button Turns RADIO ON or OFF.
3[VOL] and Adjusts volume. Please see specifications in the Aygo Owners Manual.
4[SCR] button Switches between the NAVI screen and AUDIO screen only when USB
or iPod mode is selected.
5[TUNE TRACK] and Selects iPod and USB tracks.
6[CD/AUX] button Switches to music mode for iPod or USB.
7Release button Removes the right side of the PND from the main unit.
CD / AUX
SCAN
DISC
12
345
6
AUX
TA
PTY
TUNE
TRACK
AF
AM / FM
AST
RPT RAND
AUDIO CONT
H

M
CLOCK
VOL
SCR
MODE
Microphone Light sensor
PND display
TACM2010_EN.book Page 10 Tuesday, October 5, 2010 3:44 PM

11OPERATION
WARNING
IMPORTANT
■Power ON
Make sure that Dock is open.
When the vehicle power is OFF, press [ ]
button.*
●The power will come ON.
When the vehicle power is ON.
●The power will come ON.
■Power OFF
●When dock is closed
●When vehicle is off
* Please see Aygo Owners Manual how to turn on
or off audio.
After USB/iPod is detected by the system,
each time you press the [SCR] button, the
display switches between the NAVIGATION
and AUDIO screens.
You can close PND display by closing the
dock. When you open dock, PND will restart.
You can open and close the dock as shown
below.
Turning the POWER ON
or OFF
●When the main unit's power is turned on
for the first time or if the battery terminals
have been disconnected, e.g. for vehicle
maintenance, and the power is then turned
back on, the audio will start up in the FM
mode.
When the audio is turned off, the navigation
screen is displayed continuously as long as it
is selected.
Switching Between the
Audio and Navigation
Screen
Turning the PND Display
ON and OFF
Open and Close the
device
TACM2010_EN.book Page 11 Tuesday, October 5, 2010 3:44 PM

12 OPERATION
■Using the PND
The navigation function can also be used
even if the PND is detached from the main
unit.
ATTENTION
For details on using PND, please see Using
TomTom Navigation chapter.
■How to Detach the PND from the
Main Unit
IMPORTANT
●The right-hand side of PND will be
unlatched from this receiver.
●Hold the PND on the right side, lift up and
pull it toward you to remove it.
■Attaching the PND
IMPORTANT
●Engage the catch at the left end of the
PND with the lock on the main unit.
●Press the right-hand side of PND until it
clicks in position.
Detaching/Attaching the
PND
●When detaching the PND, take care NOT
to touch its rear side.
●When detaching PND, make sure that
PND does not fall down.
●In case PND is detached while listening
USB/iPod, radio will select previously
selected radio mode.
1Press the Release button.
2Remove the PND.
●When attaching the PND, do not press the
monitor display.
●If the PND gets wet, do not attach it to the
main unit.
1Latch the left-hand side of PND to this
receiver.
2Attach the PND to this receiver.
TACM2010_EN.book Page 12 Tuesday, October 5, 2010 3:44 PM

13OPERATION
The PND is equipped with a built-in hands-
free microphone and a light sensor. For
details on how to use the hands-free call
function or configure light sensor settings,
refer to the Using TomTom Navigation
chapter.
IMPORTANT
You can or cannot operate this receiver in the
following conditions.
Below table already asumes that PND is
docked. Without PND, none of the features
will function.
* Navigation only
When screen is OFF, neither navigation,
USB nor iPod will function.
Hands-Free Microphone
and Light Sensor
●Pressing a sharp object against the hands-
free microphone or the light sensor may
damage them.
●Keep your phone in a distance to avoid
interference noise.
Microphone Light sensor
Operation Conditions of
this Receiver
TomTom device in docked condition.
Cover Key Radio Screen
Closed OFF OFF →OFF
Closed OFF ON →OFF
Closed ON OFF →OFF
Closed ON ON →OFF
Open OFF OFF →OFF
Open ON OFF →ON*
Open OFF ON →ON
Open ON ON →ON
TACM2010_EN.book Page 13 Tuesday, October 5, 2010 3:44 PM

14 OPERATION
Using TomTom Navigation
■Switching on
Your TomTom can be used without docking it
in dock. A mount is available as an accessory
so that you can use your TomTom in other
cars.
The first time you switch on your TomTom, it
may take up to 20 seconds to start. To switch
off your TomTom when it is not connected to
dock, press and hold the On/Off button for 2
seconds.
■Setting up
To set up your navigation device, you need to
answer a few questions by tapping the
screen.
IMPORTANT
■Troubleshooting
Always make sure that you are using the
latest version of the TomTom application on
your TomTom. You can update the
application using TomTom HOME.
If you have problems turning on your
TomTom, try resetting your TomTom.
To reset your TomTom, use a straightened
paper clip, or something similar, to push the
reset button. The reset button is on the
bottom of your TomTom. Then turn your
TomTom on.
Before you start
●Take care to select the correct language,
since the language you choose will be
used for all menus and written instructions.
Reset
On/Off
button
TACM2010_EN.book Page 14 Tuesday, October 5, 2010 3:44 PM

15OPERATION
■Improving reception
If your TomTom takes longer than 5 minutes
to find your current position, make sure that
the device is in an open space away from tall
objects, such as buildings or trees.
When you connect your TomTom to your
computer, you can use TomTom HOME to
download information about GPS satellite
positions during the next 7 days. This helps
your TomTom to find your position faster.
WARNING
■Take care of your TomTom
Never leave your TomTom or accessories on
view when you leave the car or they may
become an easy target for thieves.
You can set a password for your TomTom
which must be entered every time you start
your TomTom.
It is important to take care of your TomTom.
●Your TomTom is not designed for use in
extreme temperatures and any such
exposure may cause permanent damage.
●Do not open the casing of your TomTom
under any circumstances. Doing so may
be dangerous and will invalidate the
warranty.
●Wipe or dry the screen of your TomTom
using a soft cloth. Do not use any liquid
cleaners.
■Light sensor
Your TomTom uses a light sensor to detect
the background light level and can
automatically adjusts the brightness of the
screen and switch to night view.
To use the light sensor to make these
changes, tap Brightness preferences in the
Preferences menu. You can then select
these options:
●Turn brightness down when dark
●Switch to night view when dark
IMPORTANT
●The first time you switch on your TomTom,
it may take more than 5 minutes to find
your position. ●Link night view to headlights is not
supported by this unit.
TACM2010_EN.book Page 15 Tuesday, October 5, 2010 3:44 PM

16 OPERATION
Planning a route with your TomTom is easy.
To plan your first route, follow the steps
below.
IMPORTANT
Note: The buttons on your TomTom are
shown in full colour unless a button is
currently unavailable. For example, the
button named Find alternative... in the Main
Menu is not available until you have planned
a route.
In this example, we will enter an exact
address.
Note: When planning a trip for the first time
your TomTom asks you to choose a country.
Your choice is saved and used for all routes
you plan.
You can change this setting at any time by
tapping the country flag.

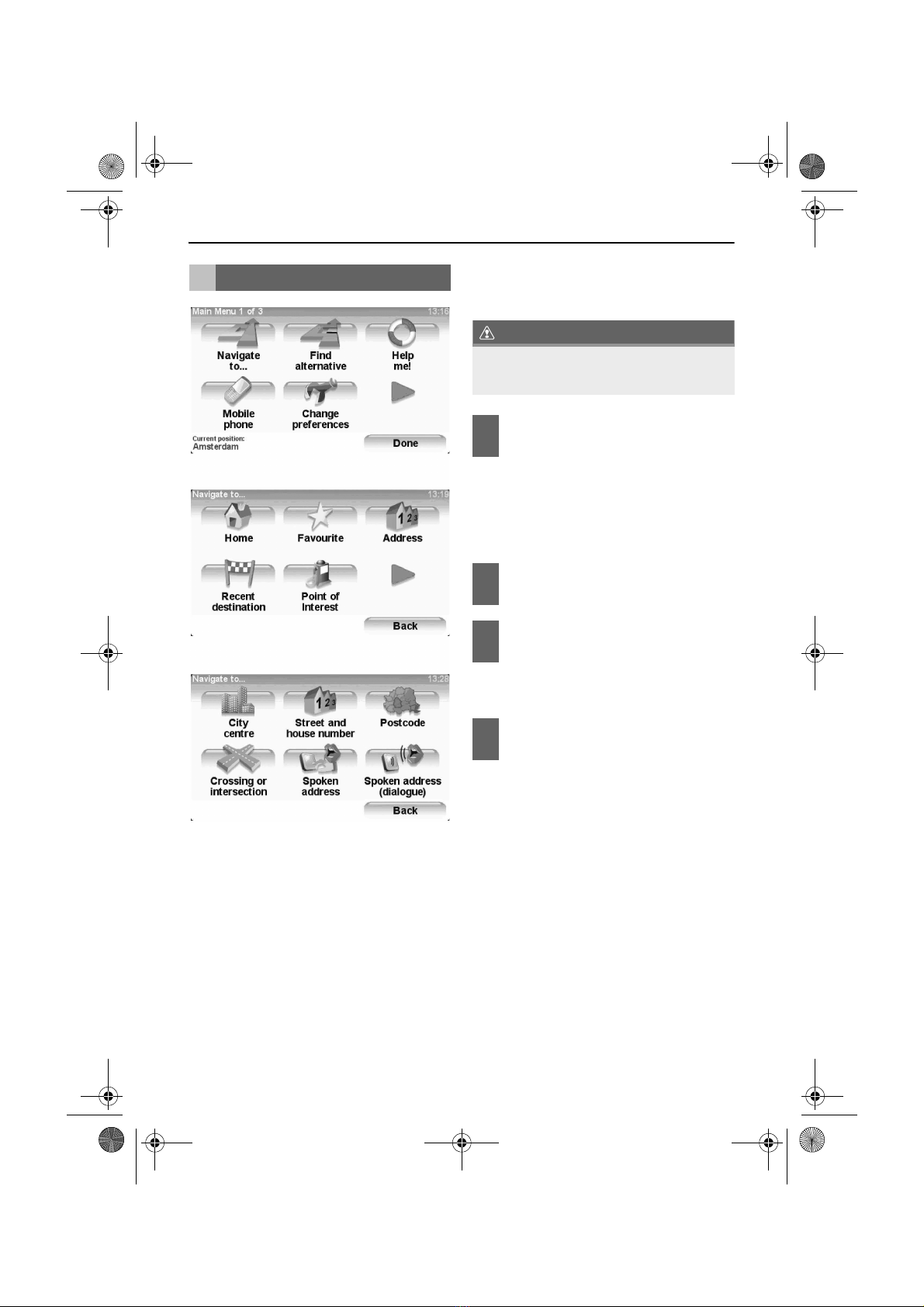

Making your first journey
●You should always plan your journey
before you start driving. It is dangerous to
plan a route while driving.
1Tap the screen to bring up the Main
Menu.
2Tap Navigate to...
3Tap Address.
4Tap Street and house number.
TACM2010_EN.book Page 16 Tuesday, October 5, 2010 3:44 PM

17OPERATION
The route is calculated by your
TomTom.
Your TomTom will immediately begin to
guide you to your destination, using both
spoken instructions and on-screen directions.
5Start to type the name of the town
where you want to go. Tap the name
when it is shown in the list.
"TIP
●Instead of typing the name, tap this button
to say the address by speaking to your
TomTom.
6Start to type the name of the street and
select it when it is shown.
7Now enter the house number of your
destination and then tap Done.
8Your TomTom asks if you need to
arrive at a particular time. For this
exercise, tap NO.
9When the route has been calculated,
tap Done.
TACM2010_EN.book Page 17 Tuesday, October 5, 2010 3:44 PM

18 OPERATION

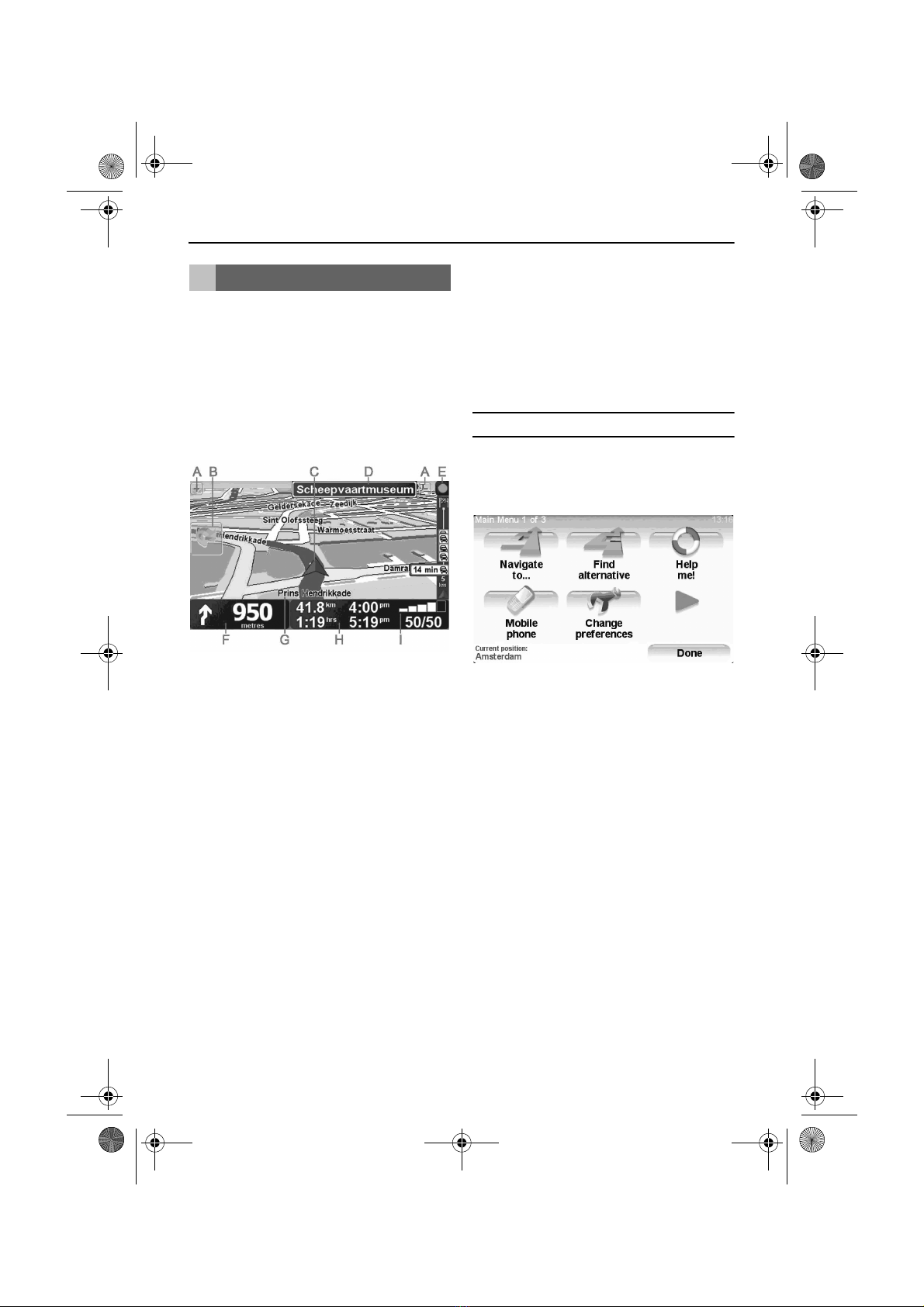

When your TomTom starts, you are shown
the Driving View along with detailed
information about your current location.
Tap the centre of the screen at any time to
open the Main Menu.
Note: The Driving View is shown in black and
white until your TomTom locates your current
position.
ⒶTap + and - to zoom in and out.
ⒷQuick menu - switch this on in the
Preferences menu.
ⒸYour current position.
ⒹThe name of the next major road or road
sign information, if applicable.
ⒺTraffic bar - traffic information is available
from TomTom Traffic. TomTom Traffic
requires a Bluetooth®-enabled mobile
phone.
For more information about how to
subscribe to and receive TomTom Traffic,
go to tomtom.com/services.
To set up traffic information, tap
TomTom Traffic in the Main Menu.
ⒻNavigation instruction for the road ahead.
Tap this area to repeat the last spoken
instruction and to change the volume.
ⒼThe name of the street you are on.
ⒽInformation about your journey such as
journey time, remaining distance and
arrival time.
To change the information shown, tap
Status bar preferences in the
Preferences menu.
ⒾGPS signal strength.
■Main menu
Tap the screen at any time when TomTom
displays the Driving View to open the Main
Menu.
●Navigate to...
Tap this button to start planning a route.
●Find alternative...
Tap this button if you want to avoid part of
your route, travel via a specific location or
calculate an alternative route.
●Help me!
Help me! provides an easy way for you to
find and contact emergency service
centres and other specialist services.
●Mobile phone
This button opens the mobile phone menu.
You can, for example, make calls, and
write or read messages.
●Change preferences
This button opens the Preferences menu.
You can change many things about the
way TomTom looks and behaves.
Driving View
TACM2010_EN.book Page 18 Tuesday, October 5, 2010 3:44 PM

19OPERATION
TomTom Traffic is a TomTom Service,
available as a subscription, for receiving up-
to-date traffic information from the best local
sources.
Note: TomTom Traffic is not available in all
countries or areas. Go to tomtom.com/
services to check availability in your country.
To use TomTom Traffic, you will need to
establish a wireless data connection (GPRS,
EDGE, UMTS, CDMA) between your
TomTom device and a Bluetooth enabled
mobile phone and you must have a wireless
data subscription with your mobile network
operator. For more information, go to
tomtom.com/phones
To use TomTom Traffic, do the following:
You will be prompted to set up a wireless
data connection with your mobile phone, and
then to enter your MyTomTom account
details.
TomTom HOME is a free application for your
computer that helps you manage the
contents of your TomTom device. Connect to
HOME frequently to get the latest updates for
your device.
■Installing TomTom HOME
To install TomTom HOME on your computer,
do the following:
HOME starts to install.
Note: If HOME does not install automatically,
you can also download it from tomtom.com/
home
Once installed, TomTom HOME starts
automatically when you connect your device
to your computer and turn it on.
Hidden buttons and features
●When you first start using your TomTom,
not all the buttons will be shown in the
menu.
●Many buttons and some more advanced
features are hidden because you will not
need these features very often.
●To show all buttons and features, tap
Show ALL menu options in the
Preferences menu.
●To hide these buttons again, tap Show
fewer menu options in the Preferences
menu.
TomTom Traffic
1Tap TomTom Traffic in the Main
Menu.
2Tap Enable Traffic.
Introducing TomTom
HOME
"TIP
●To get the most from HOME, we
recommend using a broadband internet
connection.
1Connect your computer to the internet.
2Connect your device to your computer
using a USB cable, then switch your
device on.
TACM2010_EN.book Page 19 Tuesday, October 5, 2010 3:44 PM
