Part No: PZQ85-33270
Fitting Time: 30 minutes
Dash Camera
Fitting Instruction

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270
F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
2
o
f
1
9
JUNE 2018 PRODUCTION
ONWARDS Part No: PZQ85-33270
General Notes
- Read through the fitting instructions before installation of accessory.
- Always install the accessory following the fitting instructions. Failure to do so JUNE cause damage to the vehicle
or the accessory.
- Ensure all recyclable discarded vehicle accessory components and packaging are recycled following local
recycling regulations.
- It is always recommended that this accessory is fitted by a qualified Toyota Technician.
- Safely store and protect any removed vehicle components.
- Ensure all bare metal surfaces are protected using Automotive Bare Metal Primer and touch-up paint.
- Remove all metal swarf and dust from all vehicle surfaces if surface is used for accessory installation.
Safety Notes
- Check that all work practices comply with safety standards.
- Please wear appropriate clothing and use safety equipment.
Fitting Time
30 minutes
Parts Supplied
A B C D E F
G H I J K L
M N O
Cable guide cord x 1
Dash camera wire
harness x 1
Cable ties x 18
Dash camera
module x 1
End cap x 1
Micro SD card x 1
Protection tape x 3
(NO TUSED)
Harness
tape x 2
Wire harness clip x 1
(NOT USED)
Blue splice connector,
red wire (0.3) x 1
Blue splice connector,
yellow wire (0.3) x 1
White
splice connector,
red wire (0.85)
x 1
(NOT USED)
Alcohol wipe x 1
White
splice connector,
yellow wire (0.85) x 1
(NOT USED)
Owner Manual

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270
F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
3
o
f
1
9
JUNE 2018 PRODUCTION
ONWARDS Part No: PZQ85-33270
Tools and Material Required
8mm and 10mm
Rachet
10mm Torque Wrench
(pre-set to 8.5Nm)
Side cutter
Plier
Phillip head screw
Trim removal tool

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
4
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 1
For Petrol engine vehicle
• Disconnect the negative battery terminal
• For petrol engine vehicle go straight to
Step 3. Step 2 is for hybrid engine vehicle.
Step 2
For Hybrid engine vehicle
• Under the right-hand side rear seat,
remove the screw type clip from the
panel.
• Remove the panel to access the orange
isolator switch
• Removal method:
①
Pull down the orange isolator switch
lever
②
Pull up the lever
③
Then pull and take out the switch
from the panel.
• Disconnect the negative battery terminal
Always refer to the vehicle’s
Workshop Manual when
removing vehicle components.
Always refer to the vehicle’s
Workshop Manual when
removing vehicle components.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
5
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 3
• Disconnect the negative battery terminal.
• Remove the weather strip from left hand
side A pillar panel.
• Loosen the left hand side A pillar panel
• Remove left hand side A pillar panel by
removing the teaser clip as shown.
 To restore the teaser clip, put back the
teaser clip into original position.
 Make sure the clip is attached properly.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
6
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 4
• Remove the indash side cover left hand
side
Step 5
• Remove glovebox
Step 6
• Remove glove box under cover

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
7
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 7
• Remove front door scuff plate left hand
side
Step 8
• Remove cowl side trim left hand side
Step 9
• Remove the lower console panel.
• Remove the AUX/USB adapter connector
and light connector (if available)

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
8
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 10
• Prepare 3 harness tape (40mm x 80mm).
• Cover the dash camera wire as shown.
Step 11
• Untighten the adjustment screw of the Dash
camera
• Adjust the camera lens position to the 2nd
mark from the left as per instruction
Step 12
• Install the dash camera end cap

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
9
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 13
 Prepare fitting template and adjust the
template to the roof headliner edge and
Toyota Safety Sense sensor as shown.
 Use sticky tape to hold the template.
 Peel out the adhesive tape on the dash
camera.
 Stick the dash camera, by adjusting it to the
template next to “arrow” mark as shown.
Step 14
 Route the dash camera wire inside the roof
headliner
 Prepare the cord guide and measure the
length from the larger end to the dash
camera
 Mark the desire length.
 Please see the side view and top view of
the cord guide installation for reference.
Prior to installing, clean inside of
the windscreen in the area to be
installed using alcohol wipe
cleaner

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
10
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 15
 After the measuring, cut the adjusted
length of the cord guide.
Step 16
• Insert the Dash camera wire into the cord
guide
• Install the cord guide to the roof
headliner as shown.
Step 17
 Route the dash camera wire to the left
hand side A pillar area.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
11
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 18

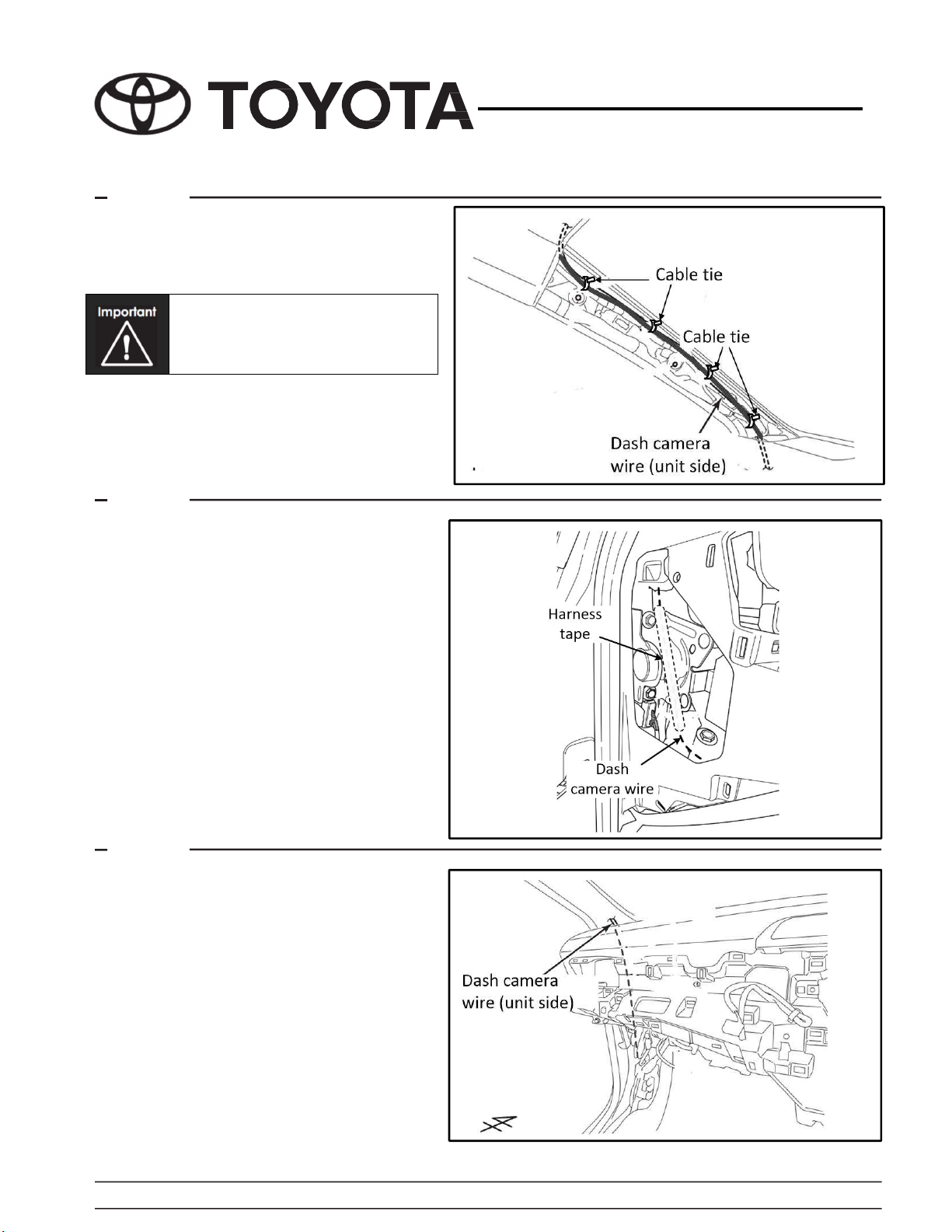

• Cable tie the dash camera wire to the
existing vehicle wire.
Step 19
 Route the dash camera wire through the
indash side cover left area.
 Apply harness tape on to the dash
camera wire to protect wire from the
sharp object
Step 20
 Route the dash camera wire to the
glovebox area
Do not cable tie the vehicle
water hose

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
12
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270

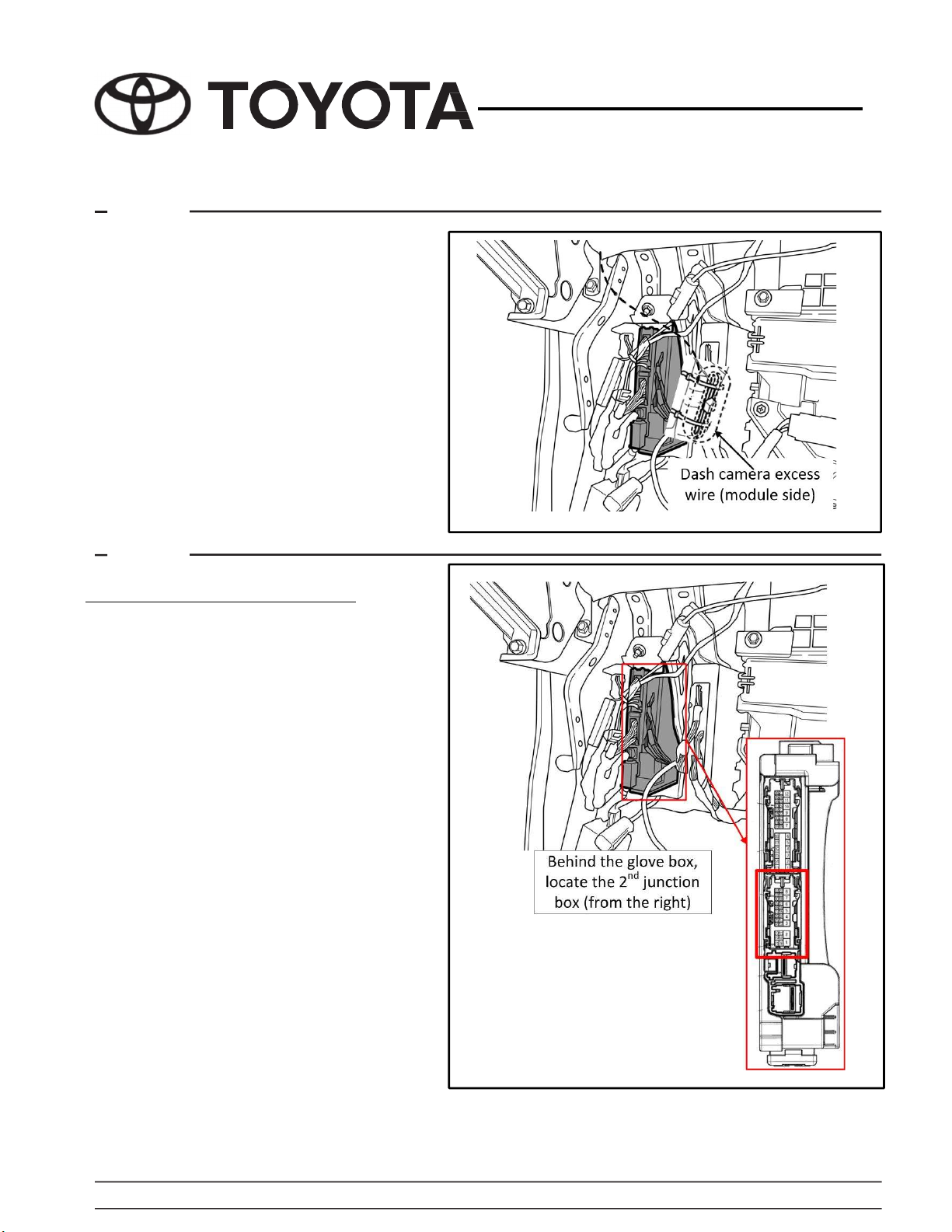

Step 21
 Route the dash camera wire next to the
junction box.
 Cable tie the excess wire to the existing
vehicle harness loom
Step 22
Vehicle Battery and IG signal Location
 Locate junction box shown behind the
glove box area as shown.
 Then locate the 32 pin connector shown.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
13
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 23
 Remove the 32 pin connector from
junction box.
 Unwrap a portion of the PVC tape from
the back of the connector harness to get
easy access to the vehicle battery signal
and IG signal.
Step 24
Battery signal installation
 Prepare yellow wire Blue Splice
connector.
 Splice yellow wire of the Blue Splice
connector using Black Splice connector
yellow wire
 Locate the vehicle Battery signal (Red
wire pin no3)
 Splice the vehicle Battery signal using Blue
Splice connector with yellow wire.
The connector view is from wire
side

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
14
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 25

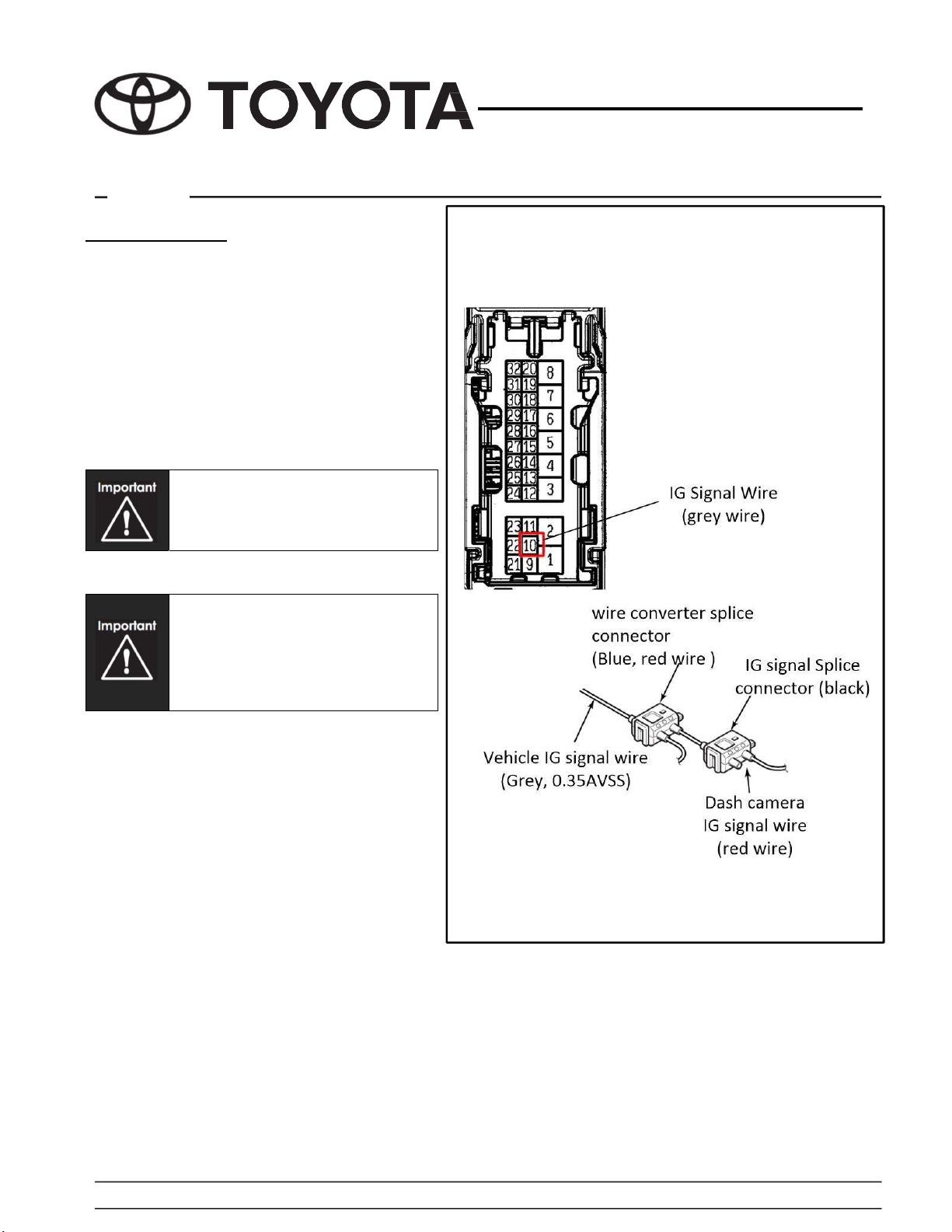

IG signal installation
 Prepare red wire Blue Splice connector.
 Splice red wire of the Blue Splice
connector using Black Splice connector
red wire
 Locate the vehicle Battery signal (Grey
wire pin no10)
 Splice the vehicle IG signal using Blue
Splice connector with red wire.
 Reconnect 32 pin connector back to
junction box.
The connector view is from wire
side
Before re-inserting the connector
into the Junction Box, re-wrap
the exposed harness with PVC
tape.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
15
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 26
Ground signal installation
 Route the dash camera ground signal
wire to the lower console panel area as
shown.
 Locate the ground terminal location
under the centre console panel as
shown.
 Loosen the vehicle ground terminal’s
bolt.
 Insert the dash camera ground terminal.
 Tighten back the bolt.
Re-install the bolt to 8.5 N.m.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
16
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 27
 Connect the Dash Camera inter
connector and then apply harness tape.
Step 28
 Cable tie the ground signal wire as shown.
Step 29
 Bundle the excess wire to the existing
vehicle harness behind the cowl side trim
area.
Make sure not to cover the cowl
side trim’s retainer thread

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
17
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
Step 30

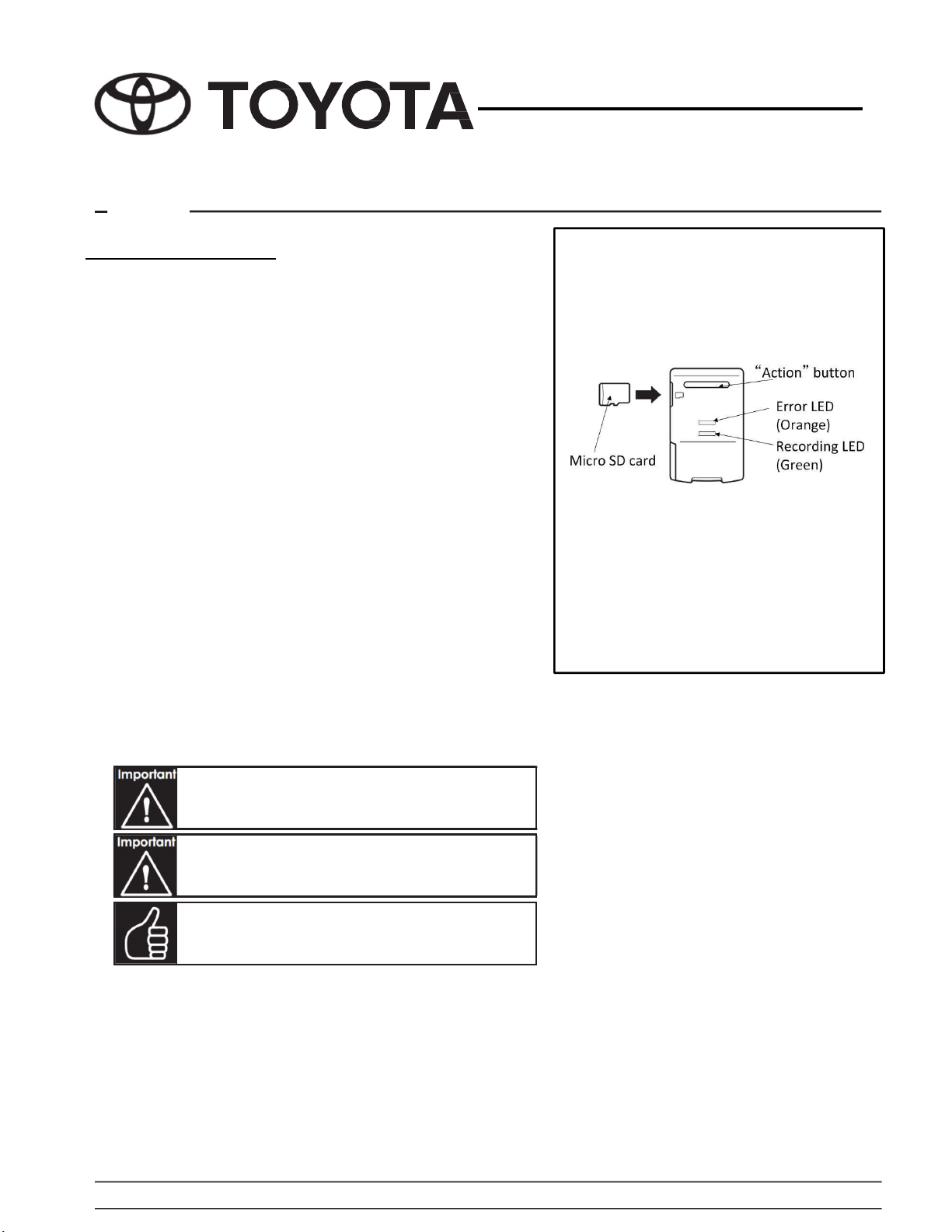

Dash Camera Initial Setting
1) Insert the Micro SD card into the Dash Camera.
2) Re connect the battery
3) Take the vehicle outside and park in open area to get
proper GPS signal.
4) Turn off the power (ACC OFF) and wait until the Dash
Camera LED light is off (for about 1 minute)
5) Perform the calibration setting. Press and hold “Action”
button and turn the vehicle engine ON.
6) The Dash Camera will start the booting process.
When booting process completed there will be a double
high tone “beep” sound and green LED light will switch ON.
Then release the “Action” button.
If there is no “beep” sound, repeat step 4) – 6) again.
7) Switch OFF the vehicle engine, and wait until the Dash
Camera LED light is OFF (for about 1 minute).
8) Start the vehicle engine again
Check the error light. If the error light is still ON, repeat step 7)
again. Error light will switch OFF when GPS signal acquired.
Refit all removed parts and secure all fasteners to the
Service Manual torque specifications.
Reprogram all radio stations and clock settings by
referring to the vehicle's owner manual.
Please place the owner manual in the glove box
after installation is completed.

COROLLA HATCH BACK
F
I
Do
c
No
:
PZQ85
-
33270F
I
-
Issue
:
2
-
07
/
12
/18
Pag
e
18
o
f
1
9
JUNE 2018 PRODUCTION ONWARDS
Part No: PZQ85-33270
DASH CAMERA CIRCUIT DIAGRAM
