TP-Link TL-WPA4220 TKIT User manual

Existing Powerline Device
(for demonstration only)
* TL-WPA4220 (European version) is used for demonstration in this guide.
Pair the powerline devices.
4
3
Note: If the Powerline LED is blinking, it means the signal strength is poor. Try another wall outlet.
Relocate the extender to the Wi-Fi “dead” zone on the same electrical circuit. Connect your
devices to the internet using the default SSID (network name) and password on the label at
the top of the extender.
Note: If the Power LED does not blink, press the Pair
button again.
Press the Pair button on the existing powerline
device for 1 second. The Power LED starts blinking.
A
Within 2 minutes, press the Pair button on the new
extender for 1 second. The Power LED starts blinking.
B
When the Powerline LED on the new extender turns
on, the pairing process is complete.
Existing Powerline Device
Quick Installation Guide
Within 2 minutes
Powerline
Check the new extender’s Powerline LED . Is it on?
Step 4>
Step 3>
2
New Extender
TL-WPA4220
1Plug in the new extender near one of your existing powerline devices.
If you cannot nd this SSID in your Wi-Fi network list, this may mean the Wi-Fi Move feature
has automatically copied over the existing wireless settings (see back for more information).
In this case, use the SSID and password of your existing powerline network to connect.
New Extender TL-WPA4220
Blinking
On
Attention
Wall Outlet Power Strip
Plug powerline devices into wall outlets instead of power strips.
Blinking

©2018 TP-Link 7106508066 REV5.5.0
Button Legend
Personalize Your Network
tpPLC Utility
For easy management via your computer, download the utility on the
product’s Support page at http://www.tp-link.com.
Note: For detailed instructions, refer to the utility manual on the product’s Support page.
Web Interface
To access all settings, connect to an extender wirelessly and visit
http://tplinkplc.net. Use admin for both username and password
upon initial login.
Note: For detailed instructions, refer to the product manual on the product’s Support page.
tpPLC App
For easy management via your smartphone or tablet, download the
app from the App Store or Google Play, or simply scan the QR code.
tpPLC AppScan to download
Manage your powerline devices using any of the methods below.
You can change the SSID and password, set Wi-Fi schedules, create
a guest network and more.

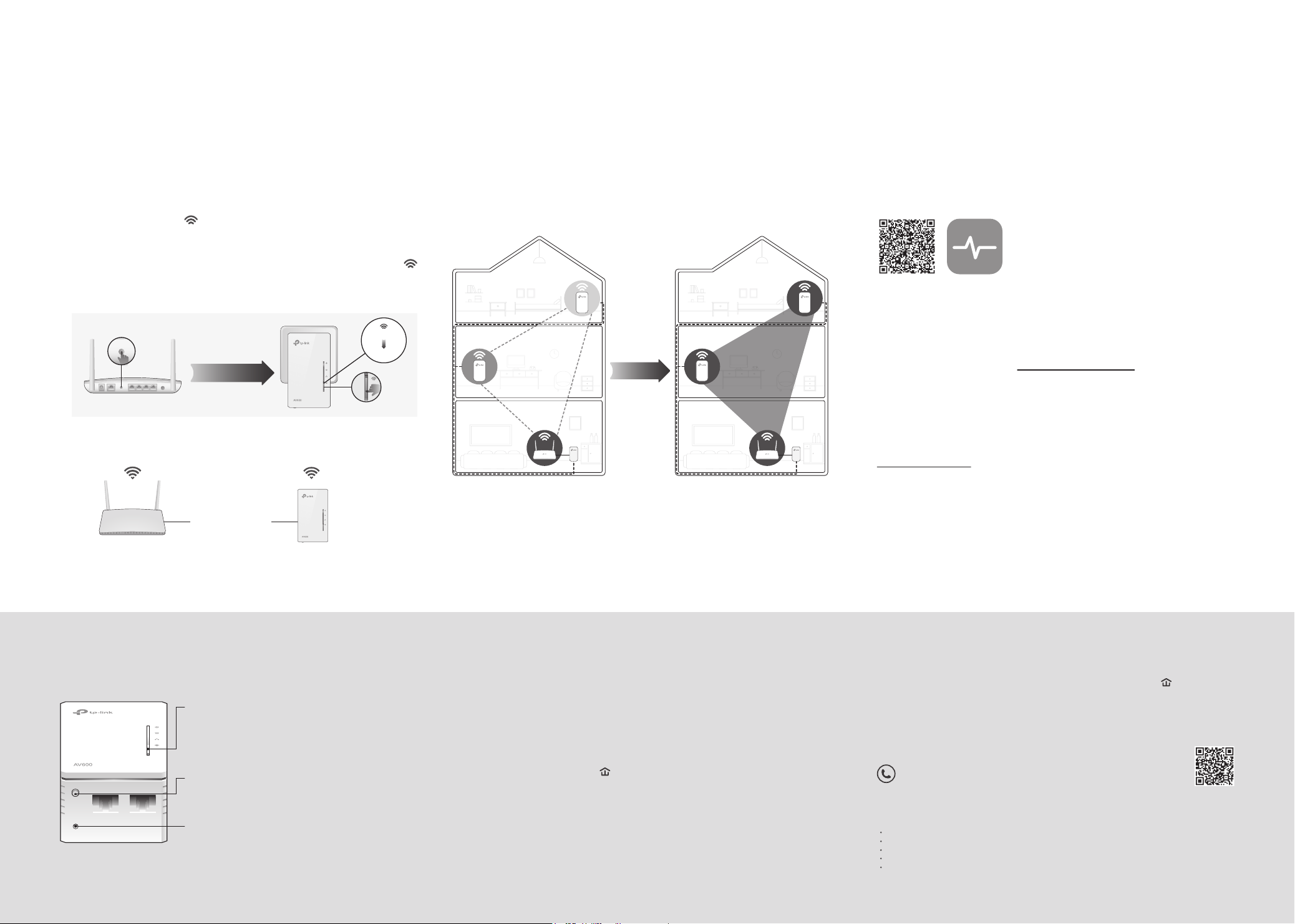

Unify Wi-Fi Networks via Wi-Fi Auto-Sync
Wi-Fi Auto-Sync enables you to easily create one unied Wi-Fi network throughout your home.
If you have paired your powerline devices, the Wi-Fi settings will
automatically sync from the existing extender to the new one.
Auto-Sync Settings to More Extenders via Wi-Fi Move
Note: For more extender models that support Wi-Fi Auto-Sync, visit http://www.tp-link.com.
Note: If Wi-Fi settings are not copied within 2 minutes, manually change the extender’s
Wi-Fi settings.
Note: If your router doesn’t have a WPS button, manually change the extender’s Wi-Fi
settings via the tpPLC app, tpPLC Utility, or web interface.
3. Relocate the extender and enjoy the internet using your router’s
SSID and password.
Copy SSID and Password from Your Router via WPS
If you personalize any extender with LED schedules or other Wi-Fi settings
(such as Wi-Fi schedules and guest network), the settings will also
automatically sync to other extenders in the secured powerline network.
1. Plug in the extender in the same room as your router. Wait until the
extender’s Wi-Fi LED turns on.
2. Press your router’s WPS button. Within 2 minutes, press the
extender’s Wi-Fi button for 1 second. The extender’s Wi-Fi LED
starts blinking. When it stays on, Wi-Fi settings are copied.
WPSWAN LAN
Wireless Router Extender
Wi-Fi Button
WPS
Blinking
On
Within 2 minutes
SAME
SSID & Password
Extender TL-WPA4220
Reset
Press and hold for at least 2 seconds until all LEDs turn
o to reset the extender to factory default settings.
Wi-Fi
Press for 1 second to begin or stop copying Wi-Fi
settings from the router.
Press and hold for about 5 seconds to turn Wi-Fi on or
o.
Pair
Press for 1 second on two powerline devices within
two minutes to pair them.
DIFFERENT
SSIDs & Passwords
Auto-Sync
Network B
Network C
Network A
Network A
Network A
Network A
SAME
SSID & Password
Pair
Reset
Frequently Asked Questions
Q1. How do I reset my extender to factory default settings?
A. With the extender plugged into an electrical outlet, press and hold the Reset button until
all LEDs turn o. When the LEDs turn back on, the reset process is complete.
Q2. What should I do if there is no internet connection in my powerline
network?
A1. Make sure all powerline adapters and extenders are on the same electrical circuit.
A2. Make sure the Powerline LEDs are lit on all of your powerline devices. If they are not,
pair all devices again.
A3. Make sure all devices are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the
modem or router.
Q3. What should I do if a successfully-paired extender does not
reconnect after it is relocated?
A1. Make sure all powerline adapters and extenders are on the same electrical circuit.
A2. Try to pair the extender again, and make sure the Powerline LED is on.
A3. Check for possible interference due to a washing machine, air conditioner or
other household appliance that may be too close to one of the powerline devices.
Plug the appliance into the integrated electrical socket to remove the electrical
noise if your powerline device has an integrated electrical socket.
For technical support, the user guide and more information, please visit
http://www.tp-link.com/support, or simply scan the QR code.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of
conformity may be found athttp://www.tp-link.com/en/ce.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device.
Do not use the device where wireless devices are not allowed.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Plug the powerline devices directly into the wall outlets but not the power strips.
