1
English
Quick Installation Guide
3G/3.75G Wireless N Router
› English
› български
› Bosanski
› Čeština
› Eesti
› Hrvatski
› Latviešu
› Lietuvių
› Македонски
› Polski
› Русский
› Romana
› Shqip
› Slovenčina
› Slovenski
› Srpski
Ver1.0.0
3G/3.75G Wireless N Router
Model No. TL-MR3220/TL-MR3420
Package Contents
System Requirement
The following operating systems are supported:
· Windows XP · Windows Vista · Windows 7
· Windows 98 · Windows 2000 · Windows 2003
· Windows Me · Mac · Linux
The following browsers are supported:
· Microsoft Internet Explorer · FireFox
· Safari · Chrome
The product model shown in this QIG is TL-MR3420, as an example.
Note

2
English

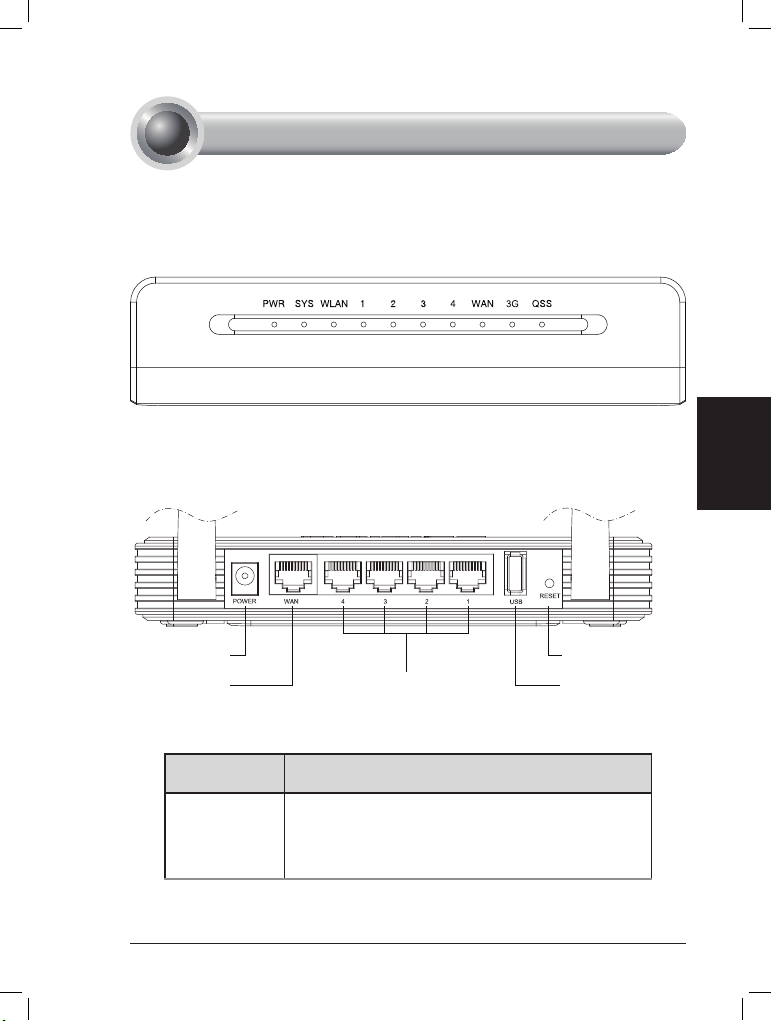

Front Panel●
3G/3.75G Wireless N Router
TL-MR3420
Back Panel●
WAN Port4 10/100Mbps LAN Ports
Reset ButtonPower
USB Port
3
Physical Description
1

3
English
Item Description
PWR On•. The electrical power is on.
Off•. There is no electrical power.
SYS
On•. The Router is initializing.
Flashing•. The Router is working properly.
Off•. The Router has a system error.
WLAN Flashing•. The wireless function is enabled.
Off•. The wireless function is disabled.
WAN,
LAN 1~4
On•. A device is linked to the corresponding
port.
Flashing•. There is data beening received or
sent on the corresponding port.
Off•. There is no device linked to the
corresponding port.
3G
On•. The USB 3G/3.75G dongle is connected.
Flashing•. Data is being received/sent
through the 3G/3.75G modem.
Off•. There is no device linked to the USB
port.
QSS
Slow Flash•. A wireless device is connecting
to the network. This process will last in the
rst 2 minutes.
On•. A wireless device has been successfully
added to the network.
Quick Flash•. A wireless device failed to be
added to the network.
Off•. QSS function is disabled.

4
English
The router supports both 3G/3.75G and WAN connection. If both the
3G/3.75G USB Modem and WAN port are connected, the 3G/3.75G
router will choose one of them to access the Internet according to your
configuration. For detailed information, please refer to Step 3 in Part 4
Router Conguration.
Connect the 3G/3.75G Router to 3G/3.75G●network
3G/3.75G
Network
SOCKET
POWER 2 1
WAN 43
2
3G/3.75G Router
Notebook
3
1
Connect the notebook/PC to the LAN port of 3G/3.75G router with an1) Ethernet cable.
Plug the Power Adapter in to the power jack.2)
Insert 3G/3.75G USB modem into the USB port. (Ensure the SIM card is3) in the modem.)
2Hardware Connection

5
English

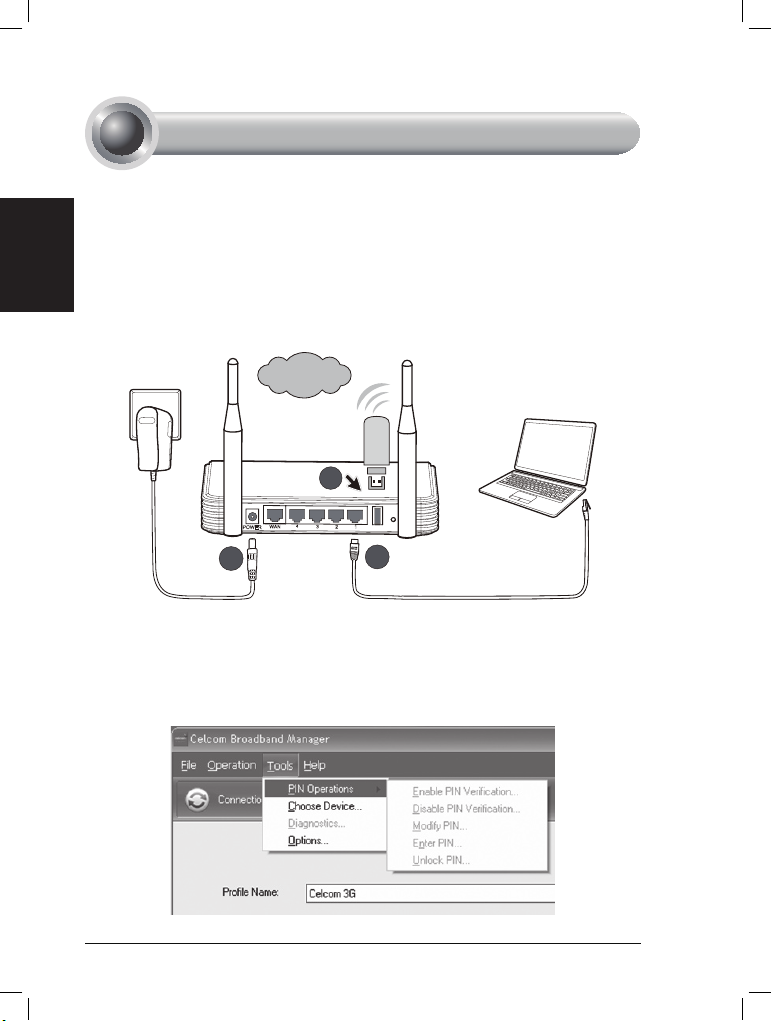

Before inserting the 3G/3.75G USB modem, we strongly1. recommend you to disable the PIN Verification of your
SIM/UIM card.
To disable the PIN Verification, you can run the modem utility.2. Please go to "My computer" and double click the device to install the
utility first and then select "Tools"→"PIN Operations"→"Disable
PIN Verication..." as shown above.
Connect the 3G/3.75G Router to WAN network●
3
2
LINE
LAN
ADSL Modem
SOCKET
WAN 432 1
POWER
Notebook
1
3G/3.75G Router
Connect the notebook/PC to the LAN port of 3G/3.75G router with an1) Ethernet cable.
Plug the Power Adapter in to the power jack.2)
Connect the 3G/3.75G router’s WAN port and the ADSL modem’s LAN3) port with an Ethernet Cable.
We recommend you to use only the Power Adapter provided1. with the device.
Place the device on the level and stable surface.2.
Unplug the Power Adapter in the thunder storm to avoid3. damage.
Place the device in a well ventilated place far from any heater4. or heating vent.
Keep the router far from the water to avoid damage.5.
Note
Warning

6
English
Before setting up the TP-LINK 3G/3.75G Wireless N Router, make sure your
PCs are congured to "Obtain an IP address automatically".
For Windows XP/2000: Click "1) Start"→"Control Panel"→"Network and
Internet Connections"→"Network Connections".
For Windows Vista / Windows 7: Click "Start"→"Setting"→"Control
Panel"→"View network status and tasks"→"Manage network
connection".
Right-click "2) Local Area Connection", then click "Properties".
3PC Conguration

7
English
Select the "3) Internet Protocol (TCP/IP)"/ "Internet Protocol Version 4
(TCP/IPv4)" and click the "Properties".
Windows XP/2000 Windows 7/Vista
Select "4) Obtain an IP address automatically" and "Obtain DNS server
address automatically". Then click "OK".
Windows XP/2000 Windows 7/Vista

8
English
Open web browser, type in 1) http://192.168.1.1/, press Enter, then enter
the User name and Password (admin/admin) and click "OK".
The "2) Status" web page will display after a successful login. Please
check if your 3G/3.75G USB modem can be recognized or not.
After the USB modem is recognized successfully, you will see the
following screen.
4Router Conguration

9
English
Click "3) Quick Setup" menu and then "Next". Select one mode to access
to the Internet, then click "Next".
Select your location and ISP, or manually ll in the information for the 3G 4)
connection, including "Dial Number", "APN", "Username" and"Password",
which are provided by your 3G ISP, then click "Next".

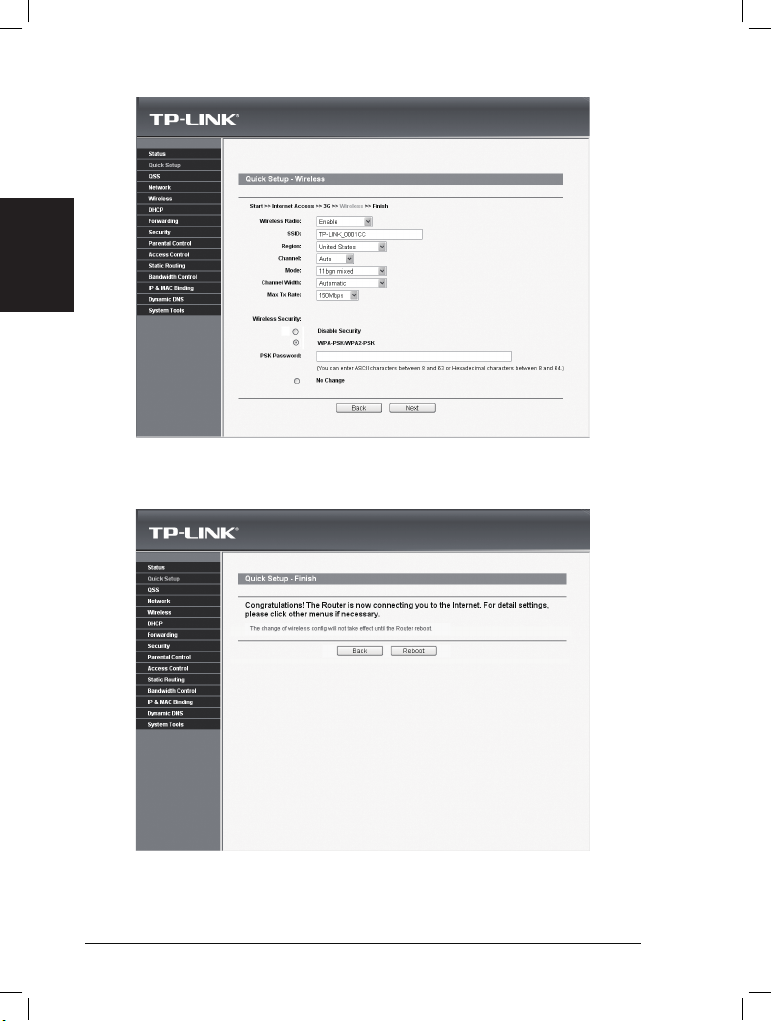

Set your Wireless Parameter, TP-LINK strongly recommends you to edit5)
the following two items, then click "Next".
Create a unique and easy to remember SSID for your wireless network.•
You can also keep default settings.
Select the "•WPA-PSK/WPA2-PSK", and enter a Security Key using 8
characters or more (numbers or letters) in the PSK Password led.
