TP Active Fun TP212 User manual

TP Genius Round Blue
Trampoline with SurroundSafe
TP211 10ft TP Genius Round Blue Trampoline
TP212 12ft TP Genius Round Blue Trampoline
TP213 14ft TP Genius Round Blue Trampoline
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
WARNING. Maximum single user weights / Age range
TP211 10ft TP Genius Round Blue Trampoline - Maximum single user weight 105kg - 6yrs+
TP212 12ft TP Genius Round Blue Trampoline - Maximum single user weight 130kg - 6yrs+
TP213 14ft TP Genius Round Blue Trampoline - Maximum single user weight 135kg - 6yrs+
x2
Build Time
3 Hrs
Instructions for assembly, maintenance and safe use. Please retain for future reference.
We constantly strive to improve our assembly instructions. To see the most current version of this instruction for assembly,
maintenance and safe use. Please visit the product page at tptoys.com
WARNINGS!
lTHIS PRODUCT CONTAINS SMALL PARTS AND IS NOT
SUITABLE FOR CHILDREN UNDER 36 MONTHS. SMALL
PARTS ARE A CHOKING HAZARD.
lONLY FOR DOMESTIC USE.
lFOR OUTDOOR USE ONLY.
lTOY MUST BE ASSEMBLED BY AN ADULT IN ACCORDANCE
WITH THE ASSEMBLY INSTRUCTIONS.
lCHILDREN MUST NOT USE THE EQUIPMENT UNTIL
PROPERLY INSTALLED.
lADULT SUPERVISION IS REQUIRED.
lONLY ONE USER. COLLISION HAZARD.
lREMOVE ALL PACKAGING BEFORE GIVING TO YOUR
CHILDREN.
lSHOES NOT TO BE WORN WHILE JUMPING.
lALWAYS CLOSE THE NET OPENING BEFORE JUMPING
lALWAYS JUMP IN THE MIDDLE OF THE MAT.
lDO NOT EAT WHILE JUMPING.
lDO NOT EXIT BY A JUMP.
lDO NOT USE THE MAT WHEN WET.
lEMPTY POCKETS AND HANDS BEFORE USING THE
TRAMPOLINE.
lLIMIT THE TIME OF CONTINUOUS USAGE (MAKE REGULAR
STOPS).
lDO NOT USE IN STRONG WIND CONDITIONS AND SECURE
THE TRAMPOLINE.
lTHE NET SHOULD BE REPLACED EVERY 2 YEARS.
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 1 08/10/2019 16:00

3
2TP Genius Round Blue Trampoline with SurroundSafe
IMPORTANT, BEFORE YOU BEGIN, READ THIS MANUAL
Thank you for buying this Trampoline. The trampoline is designed and manufactured to provide
many years of fun and exercise but, for your child’s benefit and safety, please read this manual
carefully and in full before assembling and using your trampoline. Then, please retain this manual
for future reference.
ASSEMBLY
1. The trampoline must be assembled by an adult.
2. The trampoline must be erected in accordance with
the assembly instructions.
3. Enlisting the aid of a helper will make assembly easier.
4. Take care during assembly as the manufacturing
process can sometimes result in the occasional sharp
edge and small pieces of waste metalwork. The use
of gloves to protect hands from pinch points is also
recommended.
5. Any changes to this toy including changing or adding
an accessory, must be done in accordance with
our instructions. Failure to do this will render your
guarantee null and void and may make your product
unsafe.
6. Retain the instructions for assembly, maintenance and
safe use for future reference.
SITE PLANNING
1. Place the trampoline in a well-lit area.
2. Do not position the trampoline on a hard surface such
as concrete.
3. Position the trampoline on an impact-absorbing
surface, such as grass, wood chip, sand, rubber or
synthetic compounds.
4. Ensure the trampoline is on a level surface.
5. Ensure the safe play free space area (see Page 3) is
maintained.
6. Provide additional clearance for wires, tree branches,
walls, fences and other possible hazards.
7. Do not place the trampoline on top of other objects, or
store anything under the trampoline.
8. Keep away from fire.
9. Disassemble the trampoline and store away safely
when high winds are anticipated.
10. The trampoline is not intended to be buried in the
ground. Doing so will render your guarantee null and
void and make your trampoline unsafe.
11. Try to avoid moving the assembled trampoline,
because it could bend during transportation. Should it
be necessary to move the trampoline, please consider
the following:
At least four adults must be evenly spaced around the
frame to lift the trampoline off the ground.
The trampoline must be carried horizontally.
Be careful while moving the trampoline, because the
frame could bend.
CARE AND MAINTENANCE
Improper maintenance or lack of care can lead to your
trampoline deteriorating prematurely. Please follow these
care instructions to ensure that your trampoline remains
safe and lasts for as long as possible.
Ground stakes are the ideal way to stop your trampoline
frame moving while in use. However they will not
protect against wind damage. Always disassemble your
trampoline and store it away safely when high winds are
anticipated.
Metal Rust and Corrosion
1. Some areas of the trampoline are particularly prone
to rusting: Places where water can become trapped.
Hollow sections of steel (which can appear in good
condition on the outside, while hiding rust on the
inside). Sections where different metal components
join.
2. Inspect the inside of all frame tubes and poles
regularly, and remove any water from the inside
surfaces.
3. Check tube and pole connection areas for rust.
4. Use general purpose grease on steel connection
areas to reduce the chance of corrosion and wear.
5. Avoid excessively cleaning steel components, as
it may reduce the effectiveness of the protective
coatings.
6. If surface rust appears it should be removed
immediately with a wire brush or coarse sandpaper.
The affected area should then be treated using a paint
designed specifically for use on metals and in line with
the manufacturers guildelines.
Textile Care
1. Clean the trampoline mat with a soft sponge only to
avoid prematurely wearing the textiles.
2. Avoid using powerful soaps or detergents; they can
damage the textiles.
3. Wipe dry with an absorbent cloth any water left after
rain.
4. Remove shoes before using the trampoline along with
sharp objects like belt buckles.
5. Remove the textile parts, and store them safely when
the trampoline will not be used for an extended
period.
6. In certain countries during the winter period, the snow
load and the very low temperature can damage the
trampoline. It is recommended to remove the snow
and store the trampoline indoors.
7. Sunlight, rain, snow and extreme temperatures reduce
the strength of these parts over time.
SAFETY CHECKS
1. Inspect the trampoline before and after use for
component deterioration, which can happen over
time from use and from environmental and weather
conditions.
2. Replace any worn, defective, or missing parts
immediately, and through TP Toys only.
3. Regularly check all nuts and bolts for tightness and
adjust when required.
4. Check that all spring-loaded (pit pin) joints are still
intact and cannot become dislodged during play.
5. Check all surfaces for sharp and protruding edges.
6. Check the surface of the mat for foreign objects, and
remove them.
7. Use only TP Toys-made accessories with, or on, our
trampolines.
JUMPING INSTRUCTIONS
1. Users should not use the trampoline in an
inappropriate or hazardous manner.
2. Do not attempt somersaults.
3. To regain control and stop your jump, bend knees
sharply when you land.
4. Wear clothing that is free of drawstrings, hooks,
loops, buckles or anything that could get caught in the
trampoline.
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 2 08/10/2019 16:00

3
2
TP Genius Round Blue Trampoline with SurroundSafe
Frame Tubes and Legs
Rust spots
Cracking on the curved areas
Distortion of spring holes
Twisted or stretched steel
Sharp protrusions
Broken or missing push pins
Distorted push pin holes
Broken welds
Net Upright Poles
Rusting
Cracking on the curved areas
Twisted or stretched steel
Sharp protrusions
Bent or twisted joints
Cracks in the joints
Rusty fluid leaking out of the
joints
Broken or missing push pins
Distorted push pin holes
Mat
Holes
Burn marks
Frayed yarn
Broken sewing threads
Sagging fabric
Faded or torn fabric
UV damage
Surround Net
Holes
Burn marks
Frayed yarn
Broken sewing threads
Stretched mesh
Torn edge belts
Stretched seams
Faded materials
Detached top rods
Damaged top rod connectors
UV damage
Frame Pads
Holes
Burn marks
Frayed yarn
Broken sewing threads
Stretched seams
Faded materials
UV damage
Springs
Rusting
Stretched, misshapen or
weakened
Optional Trampoline Accessories
Use TP Anchor Down/Ground stakes to secure your trampoline in use. Visit www.tptoys.com for more details.
Recommended Free Space:
The Safe Play Area refers to the zone extending 200cm
(2 metres) beyond the toy on all sides and 250cm (2.5
metres) above the toy. The Safe Play Area must be free
from all structures, landscaping, trees and branches,
rocks, wires, sprinkler heads and other similar
obstacles to safe play. Children can be seriously
injured running or colliding into such obstacles.
200cm
200cm
200cm
250cm
89cm
Mat
254cm
Frame Dia
10ft/305cm
Mat
315cm
Mat
371cm
Frame Dia
14ft/426cm
76cm 89cm
256cm
269cm 269cm
Frame Dia
12ft/365cm
10ft 12ft 14ft
Dimensions:
INSPECTION CHECKLIST
It is important that checks and maintenace of the main parts is carried out at the beginning of each season and also at
regular intervals. If these checks are not carried out, the trampoline can become dangerous.
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 3 08/10/2019 16:00

5
4TP Genius Round Blue Trampoline with SurroundSafe
8
10ft FC4041 x6
12ft FC4042 x8
14ft FC4043 x8

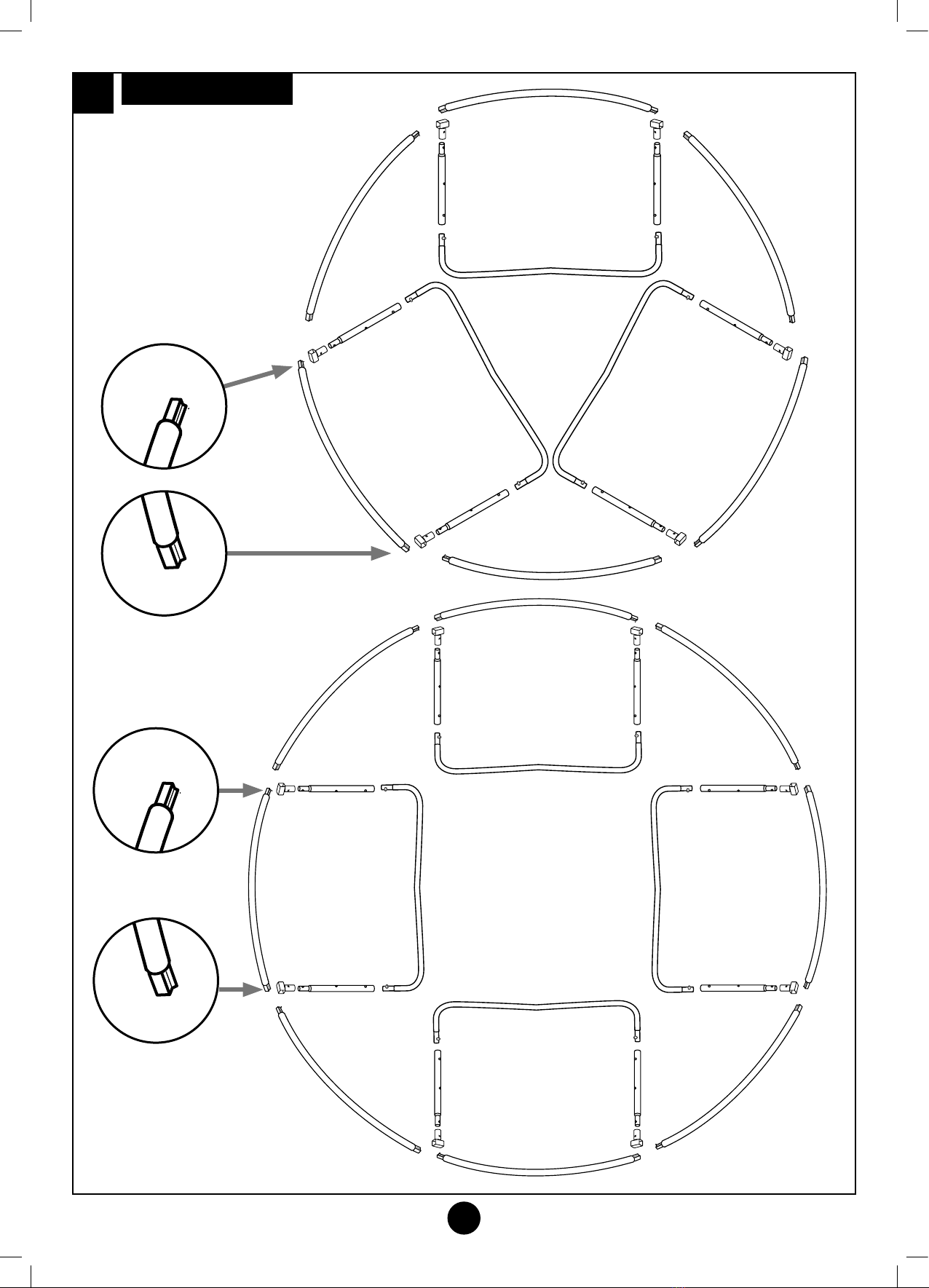

CONTENTS 10ft, 12ft AND 14ft TRAMPOLINE FRAME - Please Check
10ft FC9968 x1
12ft FC9971 x1
14ft FC9974 x1
10ft FC8699 x60
12ft FC8699 x72
14ft FC8699 x80
10ft PFC4044 x3
12ft PFC4045 x4
14ft PFC4046 x4
FC8681 x1
Allen Key x1
10ft PFC8367 x6
12ft PFC8367 x8
14ft PFC8367 x8
Tools supplied
Tool required
(not supplied)
Mallet x1
8
TP Genius Round 2 Trampoline with SurroundSafe
10ft PFC4047 x6
12ft PFC4048 x8
14ft PFC4048 x8
9
9
CONTENTS 10ft, 12ft AND 14ft TRAMPOLINE FRAME - Please Check
10ft TS0329 x1
12ft TS0330 x1
14ft TS0331 x1
10ft FC5742 x6 12ft FC5742 x8 14ft FC5742 x8
Washer - FA5094
10ft x12
12ft & 14ft x16
10ft FC8386 (1065mm) x6 12ft & 14ft FC8386 (1065mm) x8
10ft DP7871 x1
12ft DP7872 x1
14ft DP7873 x1
10ft PFC8376 (1065mm) x6 12ft & 14ft PFC8376 (1065mm) x8
M6 Dome Nut - FA8008
10ft x12
12ft & 14ft x16
Bolt Spacer - PM0098
10ft x12
12ft & 14ft x16
M6 x 75mm Allen Bolt
FA8007
10ft x12
12ft & 14ft x 16
10ft, 12ft & 14ft x1
10ft x6 12ft&14ft BFM5746 (830mm) x8 10ft x6 12ft&14ft BFM5747 (1020mm) x8
10ft 8.5m FB6049 x1
12ft 10.3m FB6049 x1
14ft 12.1m FB6049 x1
1x Spanner
Tool supplied
TP Genius Round 2 Trampoline with SurroundSafe
Foam Elastic Tie - FC2016
10ft x18
12ft & 14ft x24
PM1985
10ft x6
12ft & 14ft x8
FA6394
10ft x6
12ft & 14ft x8
FA6840
10ft x6
12ft & 14ft x8
10ft 1580mm FC2080 x6
12ft 1400mm FC2081 x8
14ft 1660mm FC2082 x8
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 4 08/10/2019 16:00

5
4
TP Genius Round Blue Trampoline with SurroundSafe
8
10ft FC4041 x6
12ft FC4042 x8
14ft FC4043 x8
CONTENTS 10ft, 12ft AND 14ft TRAMPOLINE FRAME - Please Check
10ft FC9968 x1
12ft FC9971 x1
14ft FC9974 x1
10ft FC8699 x60
12ft FC8699 x72
14ft FC8699 x80
10ft PFC4044 x3
12ft PFC4045 x4
14ft PFC4046 x4
FC8681 x1
Allen Key x1
10ft PFC8367 x6
12ft PFC8367 x8
14ft PFC8367 x8
Tools supplied
Tool required
(not supplied)
Mallet x1
8
TP Genius Round 2 Trampoline with SurroundSafe
10ft PFC4047 x6
12ft PFC4048 x8
14ft PFC4048 x8
9
9
CONTENTS 10ft, 12ft AND 14ft TRAMPOLINE FRAME - Please Check
10ft TS0329 x1
12ft TS0330 x1
14ft TS0331 x1
10ft FC5742 x6 12ft FC5742 x8 14ft FC5742 x8
Washer - FA5094
10ft x12
12ft & 14ft x16
10ft FC8386 (1065mm) x6 12ft & 14ft FC8386 (1065mm) x8
10ft DP7871 x1
12ft DP7872 x1
14ft DP7873 x1
10ft PFC8376 (1065mm) x6 12ft & 14ft PFC8376 (1065mm) x8
M6 Dome Nut - FA8008
10ft x12
12ft & 14ft x16
Bolt Spacer - PM0098
10ft x12
12ft & 14ft x16
M6 x 75mm Allen Bolt
FA8007
10ft x12
12ft & 14ft x 16
10ft, 12ft & 14ft x1
10ft x6 12ft&14ft BFM5746 (830mm) x8 10ft x6 12ft&14ft BFM5747 (1020mm) x8
10ft 8.5m FB6049 x1
12ft 10.3m FB6049 x1
14ft 12.1m FB6049 x1
1x Spanner
Tool supplied
TP Genius Round 2 Trampoline with SurroundSafe
Foam Elastic Tie - FC2016
10ft x18
12ft & 14ft x24
PM1985
10ft x6
12ft & 14ft x8
FA6394
10ft x6
12ft & 14ft x8
FA6840
10ft x6
12ft & 14ft x8
10ft 1580mm FC2080 x6
12ft 1400mm FC2081 x8
14ft 1660mm FC2082 x8
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 5 08/10/2019 16:00

7
6TP Genius Round Blue Trampoline with SurroundSafe
10
Lay Out Parts like this
Disposez les pièces de la manière
suivante
Disporre i componenti come
indicato
Coloque las piezas de este
modo
Befestigung des
Sprungtuches und
der Federn
Dispor os componentes
conforme indicado
12ft & 14ft
FRAME ASSEMBLY
Stage
1
10ft
Large square
pressing
Smaller square
pressing
Large square
pressing
Smaller square
pressing
10
TP Genius Round 2 Trampoline with SurroundSafe
32
11
32
11 TP Challenger Trampoline with SurroundSafe
Stage
2
Stage
3
10ft
12ft & 14ft
X3
X4
Assembly Tip
Use mallet to
help assembly.
Large square
pressing
Smaller square
pressing
10ft
12ft & 14ft
X6
X8 Assembly Tip
1
22
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 6 08/10/2019 16:00

7
6
TP Genius Round Blue Trampoline with SurroundSafe
10
Lay Out Parts like this
Disposez les pièces de la manière
suivante
Disporre i componenti come
indicato
Coloque las piezas de este
modo
Befestigung des
Sprungtuches und
der Federn
Dispor os componentes
conforme indicado
12ft & 14ft
FRAME ASSEMBLY
Stage
1
10ft
Large square
pressing
Smaller square
pressing
Large square
pressing
Smaller square
pressing
10
TP Genius Round 2 Trampoline with SurroundSafe
32
11
32
11 TP Challenger Trampoline with SurroundSafe
Stage
2
Stage
3
10ft
12ft & 14ft
X3
X4
Assembly Tip
Use mallet to
help assembly.
Large square
pressing
Smaller square
pressing
10ft
12ft & 14ft
X6
X8 Assembly Tip
1
22
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 7 08/10/2019 16:00

32
9
8TP Genius Round Blue Trampoline with SurroundSafe
12
12ft / 14ft - 4 legs
Stage
4
12
3
4
5
6
Assembly Tip
10ft - 3 legs
12
3
4
5
6
7
12
TP Genius Round 2 Trampoline with SurroundSafe
13
13
45
1
3
Stage
5
10ft FC8699 x60
12ft FC8699 x72
14ft FC8699 x80
x1
2
Logo style
may vary
Assembly Tip
1) Place mat inside
trampoline frame.
2) Orientate logo
to face trampoline
frame where there
are no legs.
Logo style
may vary
TP Genius Round 2 Trampoline with SurroundSafe
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 8 08/10/2019 16:00

32
9
8
TP Genius Round Blue Trampoline with SurroundSafe
12
12ft / 14ft - 4 legs
Stage
4
12
3
4
5
6
Assembly Tip
10ft - 3 legs
12
3
4
5
6
7
12
TP Genius Round 2 Trampoline with SurroundSafe
13
13
45
1
3
Stage
5
10ft FC8699 x60
12ft FC8699 x72
14ft FC8699 x80
x1
2
Logo style
may vary
Assembly Tip
1) Place mat inside
trampoline frame.
2) Orientate logo
to face trampoline
frame where there
are no legs.
Logo style
may vary
TP Genius Round 2 Trampoline with SurroundSafe
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 9 08/10/2019 16:00

11
10 TP Genius Round Blue Trampoline with SurroundSafe
14
Stage
6
FC2016
10ft x18
12ft & 14ft x24
10ft FC5742 x6
12ft FC5742 x8 14ft FC5742 x8
3 ties
per pad
TP Genius Round 2 Trampoline with SurroundSafe
14
32
15
32
15 TP Challenger Trampoline with SurroundSafe
Stage
7
Pit pins must face
outwards.
Warning
Tools
10ft
12ft & 14ft
X6
X8
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 10 08/10/2019 16:00

11
10
TP Genius Round Blue Trampoline with SurroundSafe
14
Stage
6
FC2016
10ft x18
12ft & 14ft x24
10ft FC5742 x6
12ft FC5742 x8 14ft FC5742 x8
3 ties
per pad
TP Genius Round 2 Trampoline with SurroundSafe
14
32
15
32
15 TP Challenger Trampoline with SurroundSafe
Stage
7
Pit pins must face
outwards.
Warning
Tools
10ft
12ft & 14ft
X6
X8
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 11 08/10/2019 16:00

13
12 TP Genius Round Blue Trampoline with SurroundSafe
16
TP Genius Round 2 Trampoline with SurroundSafe
10ft x6 12ft & 14ft x8
Assembly Tip
Place surround on trampoline
frame/mat as shown
to help assemble surround
top rim and uprights.
Stage
8
1
PM1985
10ft x6
12ft & 14ft x8
FA6394
10ft x6
12ft & 14ft x8
FA6840
10ft x6
12ft & 14ft x8
10ft x6
12ft x8
14ft x8
17 TP Genius Round 2 Trampoline with SurroundSafe
A
Stage
9
A
B
A
B
x
12
354
6
12
354
6
12
354
6
A B
C D E
F
x8
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 12 08/10/2019 16:00

13
12
TP Genius Round Blue Trampoline with SurroundSafe
16
TP Genius Round 2 Trampoline with SurroundSafe
10ft x6 12ft & 14ft x8
Assembly Tip
Place surround on trampoline
frame/mat as shown
to help assemble surround
top rim and uprights.
Stage
8
1
PM1985
10ft x6
12ft & 14ft x8
FA6394
10ft x6
12ft & 14ft x8
FA6840
10ft x6
12ft & 14ft x8
10ft x6
12ft x8
14ft x8
17 TP Genius Round 2 Trampoline with SurroundSafe
A
Stage
9
A
B
A
B
x
WARNING
Ensure Door is positioned
between legs as shown.
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 13 08/10/2019 16:00

14
15
TP Genius Round Blue Trampoline with SurroundSafe
17
18 TP Genius Round 2 Trampoline with SurroundSafe
10
x1
10ft, 12ft & 14ft
A
B
C
B C D
x1
10ft, 12ft & 14ft
Stage
10
Stage
11
A
!
!
Start
!
10ft FB6049 x1
12ft FB6049 x1
14ft FB6049 x1
10ft FB6049 x1
12ft FB6049 x1
14ft FB6049 x1
19 TP Genius Round 2 Trampoline with SurroundSafe
10ft DP7871 x1
12ft DP7872 x1
14ft DP7873 x1
Stage
12
Stage
13
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 14 08/10/2019 16:00

14
15 TP Genius Round Blue Trampoline with SurroundSafe
17
18 TP Genius Round 2 Trampoline with SurroundSafe
10
x1
10ft, 12ft & 14ft
A
B
C
B C D
x1
10ft, 12ft & 14ft
Stage
10
Stage
11
A
!
!
Start
!
10ft FB6049 x1
12ft FB6049 x1
14ft FB6049 x1
10ft FB6049 x1
12ft FB6049 x1
14ft FB6049 x1
19 TP Genius Round 2 Trampoline with SurroundSafe
10ft DP7871 x1
12ft DP7872 x1
14ft DP7873 x1
Stage
12
Stage
13
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 15 08/10/2019 16:00

16 TP Genius Round Blue Trampoline with SurroundSafe
17
20 TP Genius Round 2 Trampoline with SurroundSafe
Outside
Skirt
Pull surround around
the uprights
Repeat until all hooks
are fastened
Outside
Skirt
Underside
Skirt
Underside
Skirt
Stage
14
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 16 08/10/2019 16:00

16
17 TP Genius Round Blue Trampoline with SurroundSafe
20 TP Genius Round 2 Trampoline with SurroundSafe
Outside
Skirt
Pull surround around
the uprights
Repeat until all hooks
are fastened
Outside
Skirt
Underside
Skirt
Underside
Skirt
Stage
14
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 17 08/10/2019 16:00

19
18 TP Genius Round Blue Trampoline with SurroundSafe
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 18 08/10/2019 16:00

19
18
TP Genius Round Blue Trampoline with SurroundSafe
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 19 08/10/2019 16:00

Instruction Part No: IN6068 Issue-D 08.10.19
Your TP Guarantee Number/Product Batch No is
Robovision Ltd protects their unique designs worldwide with patents, trademarks and design registrations
For more information on the intellectual property of Robovision Ltd visit www.tptoys.com/intellectualproperty
Thank you
Thank you for purchasing this product.
Please register your new product on line at tptoys.com
www.tptoys.com/customer/productregistration
Find out about the guarantee for this product,
visit www.tptoys.com/customer/pages/guaranteeinformation
For customer services and help with your product,
visit www.tptoys.com/customer/help
TP211 212 213 Round 2 Trampoline IN6068 Issue-D 08.10.19.indd 20 08/10/2019 16:00
