TP active fun TP470 Quick guide

TP Hip Hop Trampoline
TP470 8ft TP Hip Hop Trampoline
TP471 10ft TP Hip Hop Trampoline
TP472 12ft TP Hip Hop Trampoline
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
WARNING. Maximum single user weights / Age range
TP470 8ft TP Hip Hop Trampoline - Maximum single user weight 85kg - 6yrs+
TP471 10ft TP Hip Hop Trampoline - Maximum single user weight 105kg - 6yrs+
TP472 12ft TP Hip Hop Trampoline - Maximum single user weight 130kg - 6yrs+
x2
Build Time
2 Hrs
Instructions for assembly, maintenance and safe use.
Please retain for future reference.
We constantly strive to improve our assembly instructions. To see the most current version of this instruction for assembly,
maintenance and safe use. Please visit the product page at tptoys.com
lTHIS PRODUCT CONTAINS SMALL PARTS AND IS NOT
SUITABLE FOR CHILDREN UNDER 36 MONTHS. SMALL
PARTS ARE A CHOKING HAZARD.
lONLY FOR DOMESTIC USE.
lFOR OUTDOOR USE ONLY.
lTOY MUST BE ASSEMBLED BY AN ADULT IN ACCORDANCE
WITH THE ASSEMBLY INSTRUCTIONS.
lCHILDREN MUST NOT USE THE EQUIPMENT UNTIL
PROPERLY INSTALLED.
lADULT SUPERVISION IS REQUIRED.
lONLY ONE USER. COLLISION HAZARD.
lREMOVE ALL PACKAGING BEFORE GIVING TO YOUR
CHILDREN.
lSHOES NOT TO BE WORN WHILE JUMPING.
lALWAYS CLOSE THE NET OPENING BEFORE JUMPING
lALWAYS JUMP IN THE MIDDLE OF THE MAT.
lDO NOT EAT WHILE JUMPING.
lDO NOT EXIT BY A JUMP.
lDO NOT USE THE MAT WHEN WET.
lEMPTY POCKETS AND HANDS BEFORE USING THE
TRAMPOLINE.
lLIMIT THE TIME OF CONTINUOUS USAGE (MAKE REGULAR
STOPS).
lDO NOT USE IN STRONG WIND CONDITIONS AND SECURE
THE TRAMPOLINE.
lTHE NET SHOULD BE REPLACED EVERY 2 YEARS.
WARNINGS!
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 1 14/10/2019 11:16

IMPORTANT, BEFORE YOU BEGIN, READ THIS MANUAL
Thank you for buying this Trampoline. The trampoline is designed and manufactured to provide
many years of fun and exercise but, for your child’s benefit and safety, please read this manual
carefully and in full before assembling and using your trampoline. Then, please retain this manual
for future reference.
ASSEMBLY
1. The trampoline must be assembled by an adult.
2. The trampoline must be erected in accordance with
the assembly instructions.
3. Enlisting the aid of a helper will make assembly easier.
4. Take care during assembly as the manufacturing
process can sometimes result in the occasional sharp
edge and small pieces of waste metalwork. The use
of gloves to protect hands from pinch points is also
recommended.
5. Any changes to this toy including changing or adding
an accessory, must be done in accordance with
our instructions. Failure to do this will render your
guarantee null and void and may make your product
unsafe.
6. Retain the instructions for assembly, maintenance and
safe use for future reference.
SITE PLANNING
1. Place the trampoline in a well-lit area.
2. Do not position the trampoline on a hard surface such
as concrete.
3. Position the trampoline on an impact-absorbing
surface, such as grass, wood chip, sand, rubber or
synthetic compounds.
4. Ensure the trampoline is on a level surface.
5. Ensure the safe play free space area (see Page 3) is
maintained.
6. Provide additional clearance for wires, tree branches,
walls, fences and other possible hazards.
7. Do not place the trampoline on top of other objects, or
store anything under the trampoline.
8. Keep away from fire.
9. Disassemble the trampoline and store away safely
when high winds are anticipated.
10. The trampoline is not intended to be buried in the
ground. Doing so will render your guarantee null and
void and make your trampoline unsafe.
11. Try to avoid moving the assembled trampoline,
because it could bend during transportation. Should it
be necessary to move the trampoline, please consider
the following:
At least four adults must be evenly spaced around the
frame to lift the trampoline off the ground.
The trampoline must be carried horizontally.
Be careful while moving the trampoline, because the
frame could bend.
CARE AND MAINTENANCE
Improper maintenance or lack of care can lead to your
trampoline deteriorating prematurely. Please follow these
care instructions to ensure that your trampoline remains
safe and lasts for as long as possible.
Ground stakes are the ideal way to stop your trampoline
frame moving while in use. However they will not
protect against wind damage. Always disassemble your
trampoline and store it away safely when high winds are
anticipated.
Metal Rust and Corrosion
1. Some areas of the trampoline are particularly prone
to rusting: Places where water can become trapped.
Hollow sections of steel (which can appear in good
condition on the outside, while hiding rust on the
inside). Sections where different metal components
join.
2. Inspect the inside of all frame tubes and poles
regularly, and remove any water from the inside
surfaces.
3. Check tube and pole connection areas for rust.
4. Use general purpose grease on steel connection
areas to reduce the chance of corrosion and wear.
5. Avoid excessively cleaning steel components, as
it may reduce the effectiveness of the protective
coatings.
6. If surface rust appears it should be removed
immediately with a wire brush or coarse sandpaper.
The affected area should then be treated using a paint
designed specifically for use on metals and in line with
the manufacturers guildelines.
Textile Care
1. Clean the trampoline mat with a soft sponge only to
avoid prematurely wearing the textiles.
2. Avoid using powerful soaps or detergents; they can
damage the textiles.
3. Wipe dry with an absorbent cloth any water left after
rain.
4. Remove shoes before using the trampoline along with
sharp objects like belt buckles.
5. Remove the textile parts, and store them safely when
the trampoline will not be used for an extended
period.
6. In certain countries during the winter period, the snow
load and the very low temperature can damage the
trampoline. It is recommended to remove the snow
and store the trampoline indoors.
7. Sunlight, rain, snow and extreme temperatures reduce
the strength of these parts over time.
SAFETY CHECKS
1. Inspect the trampoline before and after use for
component deterioration, which can happen over
time from use and from environmental and weather
conditions.
2. Replace any worn, defective, or missing parts
immediately, and through TP Toys only.
3. Regularly check all nuts and bolts for tightness and
adjust when required.
4. Check that all spring-loaded (pit pin) joints are still
intact and cannot become dislodged during play.
5. Check all surfaces for sharp and protruding edges.
6. Check the surface of the mat for foreign objects, and
remove them.
7. Use only TP Toys-made accessories with, or on, our
trampolines.
JUMPING INSTRUCTIONS
1. Users should not use the trampoline in an
inappropriate or hazardous manner.
2. Do not attempt somersaults.
3. To regain control and stop your jump, bend knees
sharply when you land.
4. Wear clothing that is free of drawstrings, hooks,
loops, buckles or anything that could get caught in the
trampoline.
3
2TP Hip Hop Trampoline
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 2 14/10/2019 11:16

Frame Tubes and Legs
Rust spots
Cracking on the curved areas
Distortion of spring holes
Twisted or stretched steel
Sharp protrusions
Broken or missing push pins
Distorted push pin holes
Broken welds
Net Upright Poles
Rusting
Cracking on the curved areas
Twisted or stretched steel
Sharp protrusions
Bent or twisted joints
Cracks in the joints
Rusty fluid leaking out of the
joints
Broken or missing push pins
Distorted push pin holes
Mat
Holes
Burn marks
Frayed yarn
Broken sewing threads
Sagging fabric
Faded or torn fabric
UV damage
Surround Net
Holes
Burn marks
Frayed yarn
Broken sewing threads
Stretched mesh
Torn edge belts
Stretched seams
Faded materials
Detached top rods
Damaged top rod connectors
UV damage
Frame Pads
Holes
Burn marks
Frayed yarn
Broken sewing threads
Stretched seams
Faded materials
UV damage
Springs
Rusting
Stretched, misshapen or
weakened
Optional Trampoline Accessories
Use TP Anchor Down/Ground stakes to secure your trampoline in use. Visit www.tptoys.com for more details.
Recommended Free Space:
The Safe Play Area refers to the zone extending 200cm
(2 metres) beyond the toy on all sides and 250cm (2.5
metres) above the toy. The Safe Play Area must be free
from all structures, landscaping, trees and branches,
rocks, wires, sprinkler heads and other similar
obstacles to safe play. Children can be seriously
injured running or colliding into such obstacles.
Dimensions:
INSPECTION CHECKLIST
It is important that checks and maintenace of the main parts is carried out at the beginning of each season and also at
regular intervals. If these checks are not carried out, the trampoline can become dangerous.
10ft 12ft8ft
200cm
250cm
200cm
3
2
TP Hip Hop Trampoline
TP 8ft 470 10ft 471 12ft 472 Trampolines
73cm
Mat
200cm
Frame Dia
8ft/245cm
Mat
254cm
Mat
315cm
Frame Dia
12ft/365cm
61cm 83cm
224cm
266cm 256cm
Frame Dia
10ft/305cm
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 3 14/10/2019 11:16

5
4TP Hip Hop Trampoline
8TP Hip Hop Trampoline
8ft FC8363 x6
x610ft FC8364
12ft FC8365 x8

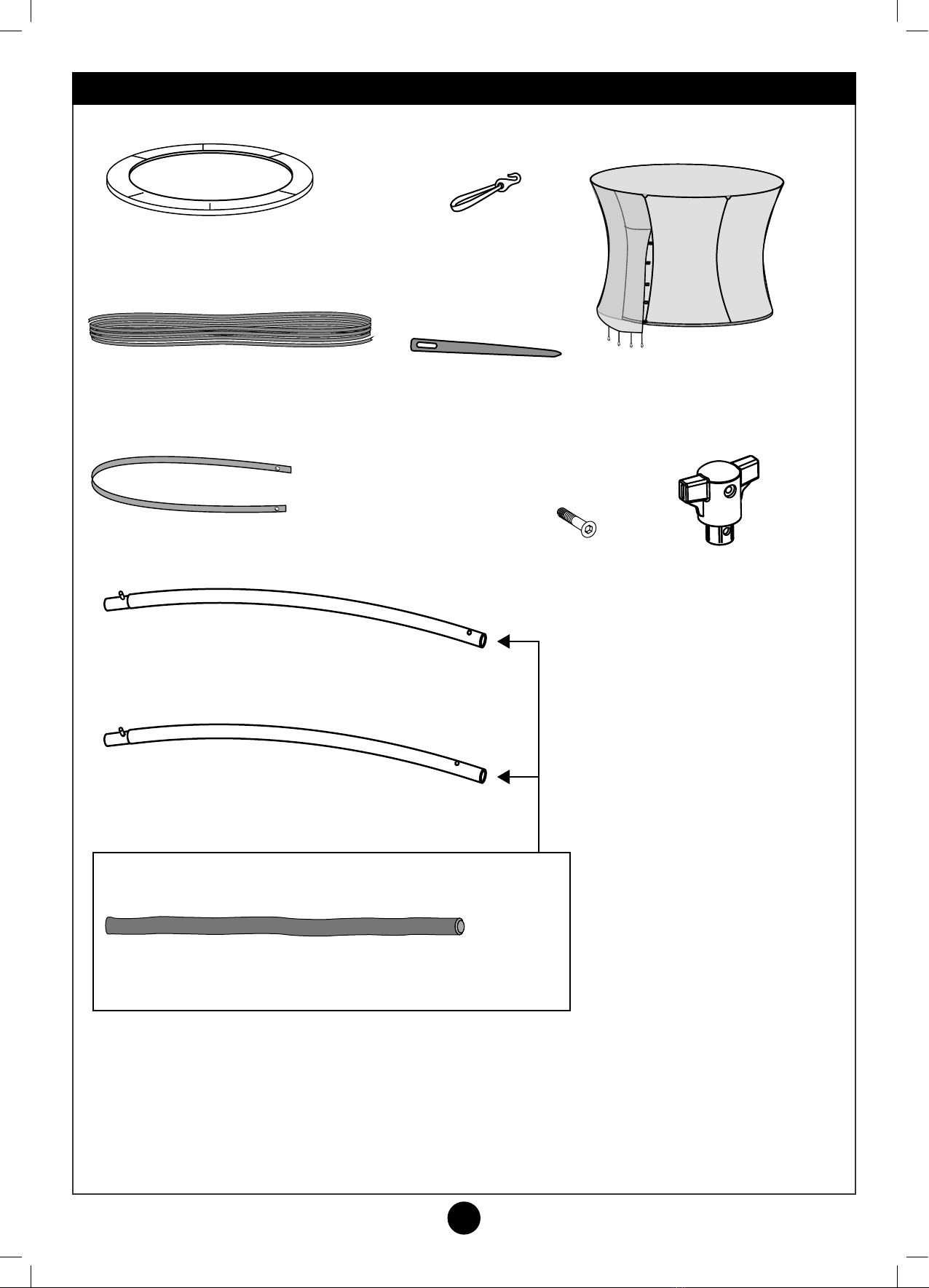

CONTENTS 8ft, 10ft AND 12ft TRAMPOLINE FRAME - Please Check
10ft TM0601 x1
12ft TM0602 x1
8ft
TM0600
x1
8ft FC8005 x42
10ft FC8005 x60
12ft FC8000 x72
8ft FC8006 x3
10ft FC8008 x3
12ft FC8009 x4
FC8681 x1
Allen Key x1
8ft FC8873 x6
x610ft FC8874
12ft FC8875 x8
8ft FC8370 x6
x610ft FC8370
12ft FC8384 x8
Tools supplied
Tool required
(not supplied)
Mallet x1
8
9
8ft FP0907 x1
x110ft FP0908
12ft FP0909 x1
9
TP Hip Hop Trampoline
CONTENTS 8ft, 10ft AND 12ft TRAMPOLINE FRAME - Please Check
8ft
TS3103 x1
10ft
TS3104 x1
12ft
TS3105 x1
FC2092 8ft x6 1220mm
FC2093 10ft x6 1570mm
FC2094 12ft x8 1410mm
PM0947
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
8ft FC8387 (885mm) x6 10ft FC8388 (985mm) x6
12ft FC8388 (985mm) x8
8ft BFM5748 (850mm) x12 10ft BFM5749 (950mm) x12
12ft BFM5749 (950mm) x16
PM8156
8ft, 10ft & 12ft x1
12ft
10ft
x68ft
x8
x10
MI1120
FB9929
8ft,10ft & 12ft x1
8ft FC8377 (885mm) x6 10ft FC8378 (985mm) x6
12ft FC8378 (985mm) x8
Foam - Pre assembled to:
FC8377, FC8378 & FC8388
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 4 14/10/2019 11:16

5
4
TP Hip Hop Trampoline
8TP Hip Hop Trampoline
8ft FC8363 x6
x610ft FC8364
12ft FC8365 x8
CONTENTS 8ft, 10ft AND 12ft TRAMPOLINE FRAME - Please Check
10ft TM0601 x1
12ft TM0602 x1
8ft
TM0600
x1
8ft FC8005 x42
10ft FC8005 x60
12ft FC8000 x72
8ft FC8006 x3
10ft FC8008 x3
12ft FC8009 x4
FC8681 x1
Allen Key x1
8ft FC8873 x6
x610ft FC8874
12ft FC8875 x8
8ft FC8370 x6
x610ft FC8370
12ft FC8384 x8
Tools supplied
Tool required
(not supplied)
Mallet x1
8
9
8ft FP0907 x1
x110ft FP0908
12ft FP0909 x1
9
TP Hip Hop Trampoline
CONTENTS 8ft, 10ft AND 12ft TRAMPOLINE FRAME - Please Check
8ft
TS3103 x1
10ft
TS3104 x1
12ft
TS3105 x1
FC2092 8ft x6 1220mm
FC2093 10ft x6 1570mm
FC2094 12ft x8 1410mm
PM0947
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
8ft FC8387 (885mm) x6 10ft FC8388 (985mm) x6
12ft FC8388 (985mm) x8
8ft BFM5748 (850mm) x12 10ft BFM5749 (950mm) x12
12ft BFM5749 (950mm) x16
PM8156
8ft, 10ft & 12ft x1
12ft
10ft
x68ft
x8
x10
MI1120
FB9929
8ft,10ft & 12ft x1
8ft FC8377 (885mm) x6 10ft FC8378 (985mm) x6
12ft FC8378 (985mm) x8
Foam - Pre assembled to:
FC8377, FC8378 & FC8388
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 5 14/10/2019 11:16

7
6TP Hip Hop Trampoline
10 TP Hip Hop Trampoline
Lay Out Parts like this
Disposez les pièces de la manière
suivante
Disporre i componenti come
indicato
Coloque las piezas de este
modo
Befestigung des
Sprungtuches und
der Federn
Dispor os componentes
conforme indicado
12ft

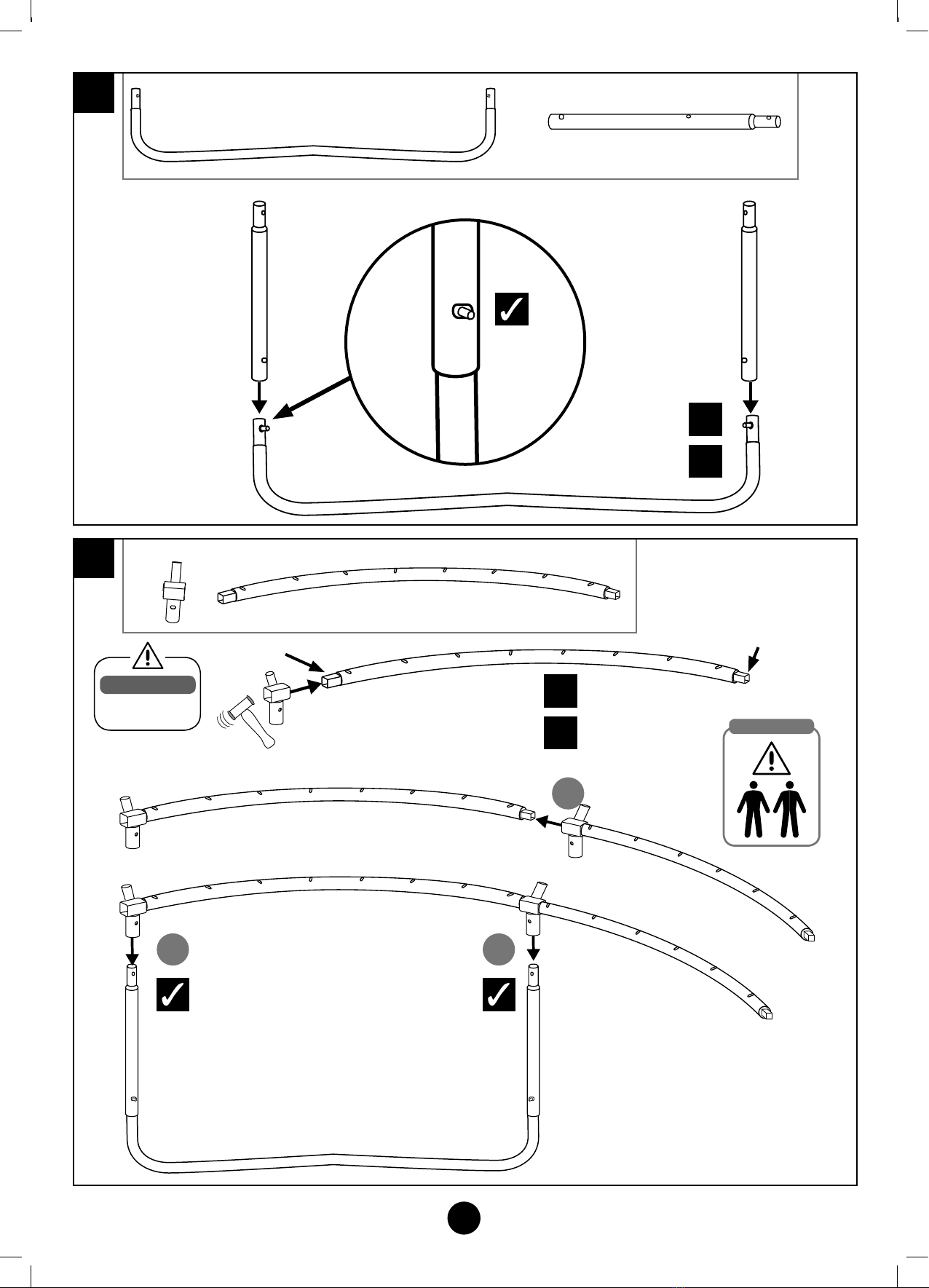

FRAME ASSEMBLY
Stage
1
8ft & 10ft
Large square
pressing
Smaller square
pressing
Large square
pressing
Smaller square
pressing
10
32
11
32
11 TP Hip Hop Trampoline
Stage
2

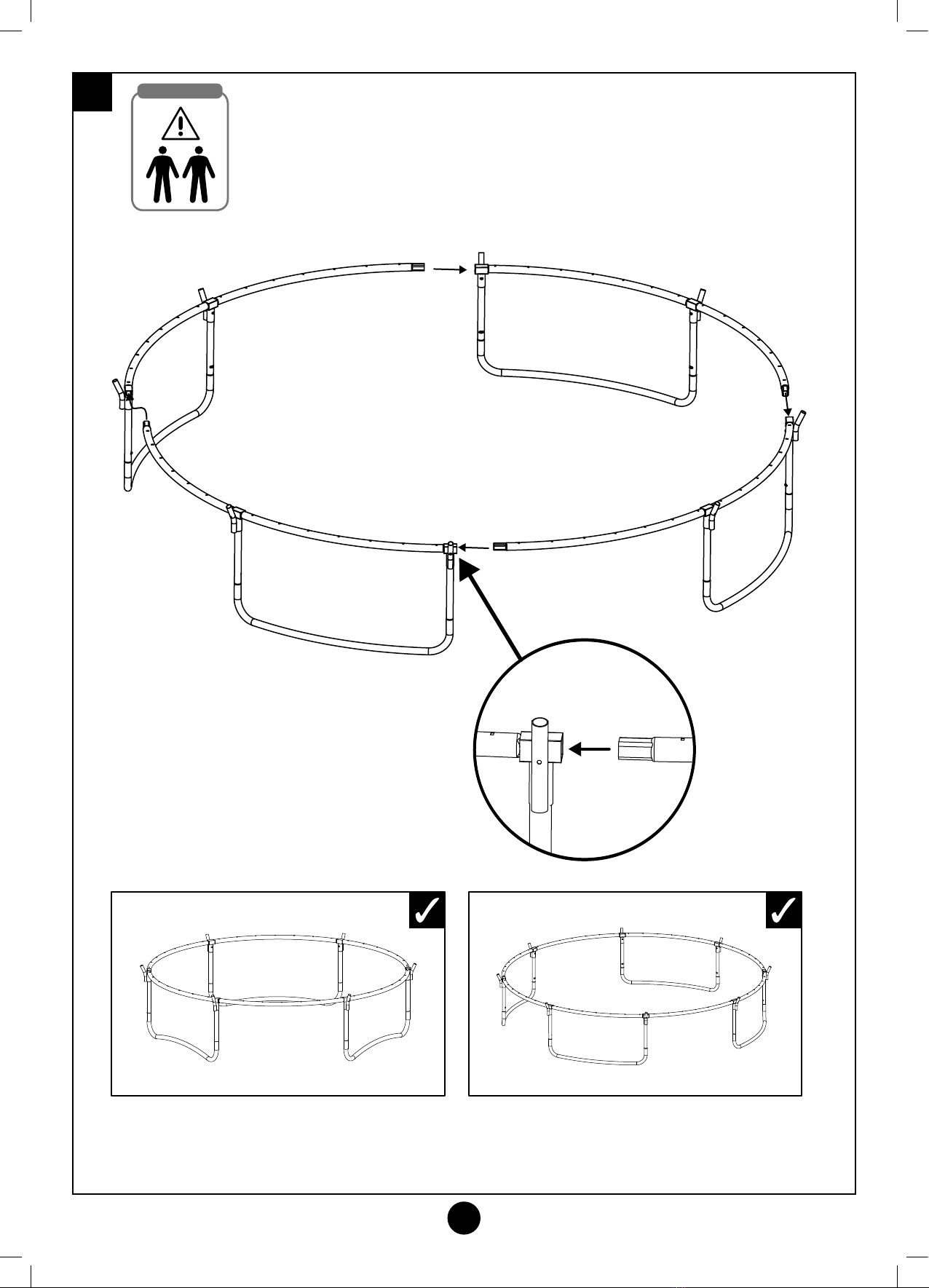

Stage
3
8ft & 10ft
12ft
X3
X4
Assembly Tip
Use mallet to
help assembly.
Large square
pressing
Smaller square
pressing
8ft & 10ft
12ft
X6
X8 Assembly Tip
1
22
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 6 14/10/2019 11:16

7
6
TP Hip Hop Trampoline
10 TP Hip Hop Trampoline
Lay Out Parts like this
Disposez les pièces de la manière
suivante
Disporre i componenti come
indicato
Coloque las piezas de este
modo
Befestigung des
Sprungtuches und
der Federn
Dispor os componentes
conforme indicado
12ft
FRAME ASSEMBLY
Stage
1
8ft & 10ft
Large square
pressing
Smaller square
pressing
Large square
pressing
Smaller square
pressing
10
32
11
32
11 TP Hip Hop Trampoline
Stage
2
Stage
3
8ft & 10ft
12ft
X3
X4
Assembly Tip
Use mallet to
help assembly.
Large square
pressing
Smaller square
pressing
8ft & 10ft
12ft
X6
X8 Assembly Tip
1
22
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 7 14/10/2019 11:16

9
8TP Hip Hop Trampoline
12 TP Hip Hop Trampoline
Stage
4
12
Assembly Tip
8ft-10ft 12ft
12ft - 4 legs
13
13 TP Hip Hop Trampoline
45
1
3
Stage
5
8ft FC8005 x42
10ft FC8005 x60
12ft FC8000 x72
x1
2
Logo style
may vary
Assembly Tip
1) Place mat inside
trampoline frame.
2) Orientate logo
to face trampoline
frame where there
are no legs.
Logo style
may vary
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 8 14/10/2019 11:16

9
8
TP Hip Hop Trampoline
12 TP Hip Hop Trampoline
Stage
4
12
Assembly Tip
8ft-10ft 12ft
12ft - 4 legs
13
13 TP Hip Hop Trampoline
45
1
3
Stage
5
8ft FC8005 x42
10ft FC8005 x60
12ft FC8000 x72
x1
2
Logo style
may vary
Assembly Tip
1) Place mat inside
trampoline frame.
2) Orientate logo
to face trampoline
frame where there
are no legs.
Logo style
may vary
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 9 14/10/2019 11:16

11
10 TP Hip Hop Trampoline
14
8ft FC8387 x6
10ft FC8388 x6
12ft FC8388 x8
TP Hip Hop Trampoline

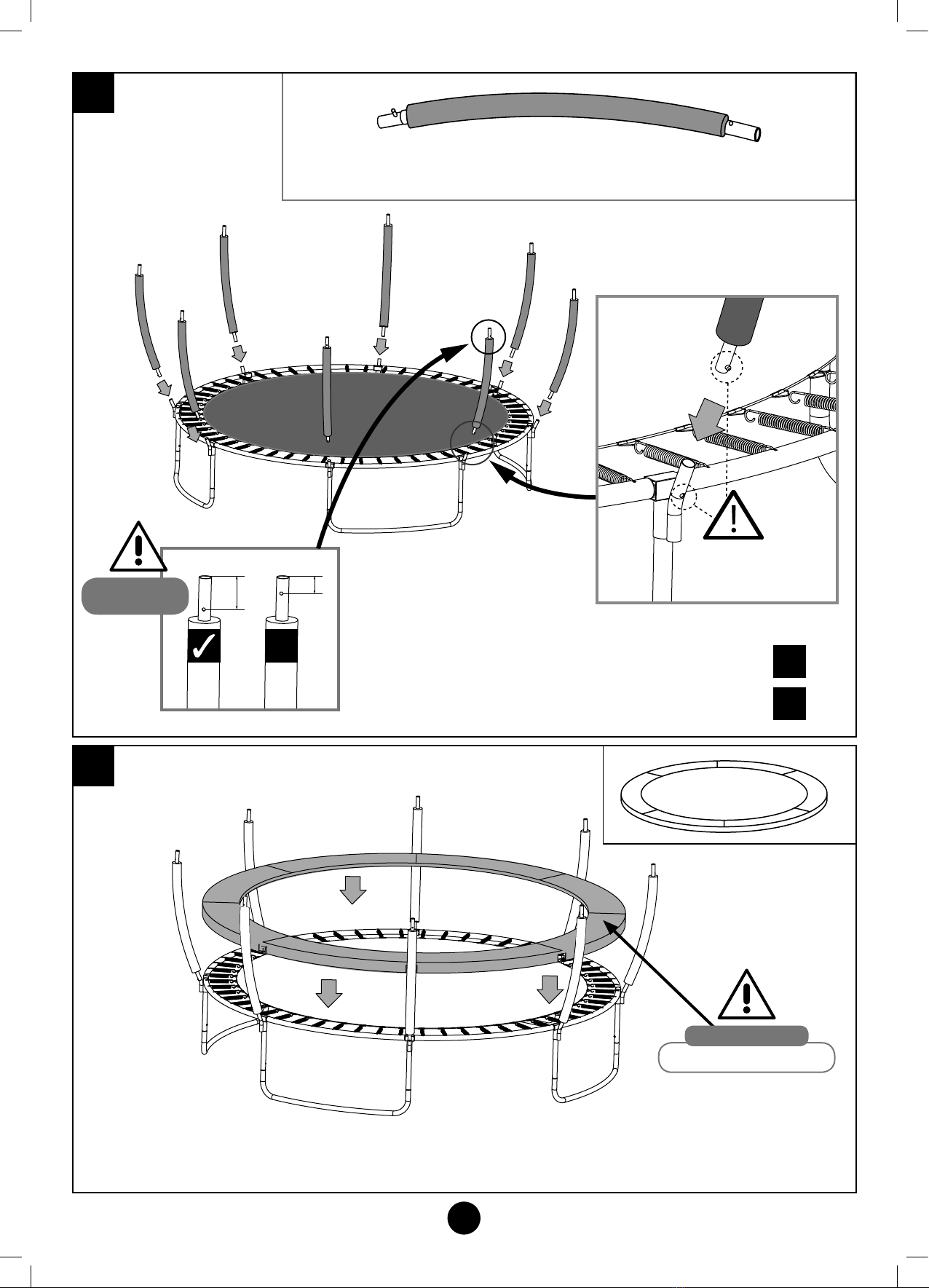

Stage
6
Stage
7
8ft & 10ft
12ft
X6
X8
8ft & 10ft x18
12ft & 14ft x24
65 20
x
32
15
15 TP Hip Hop Trampoline
8ft & 10ft x6
12ft x8
Assembly Tip
Place surround on trampoline
frame/mat as shown
to help assemble surround
top rim and uprights.

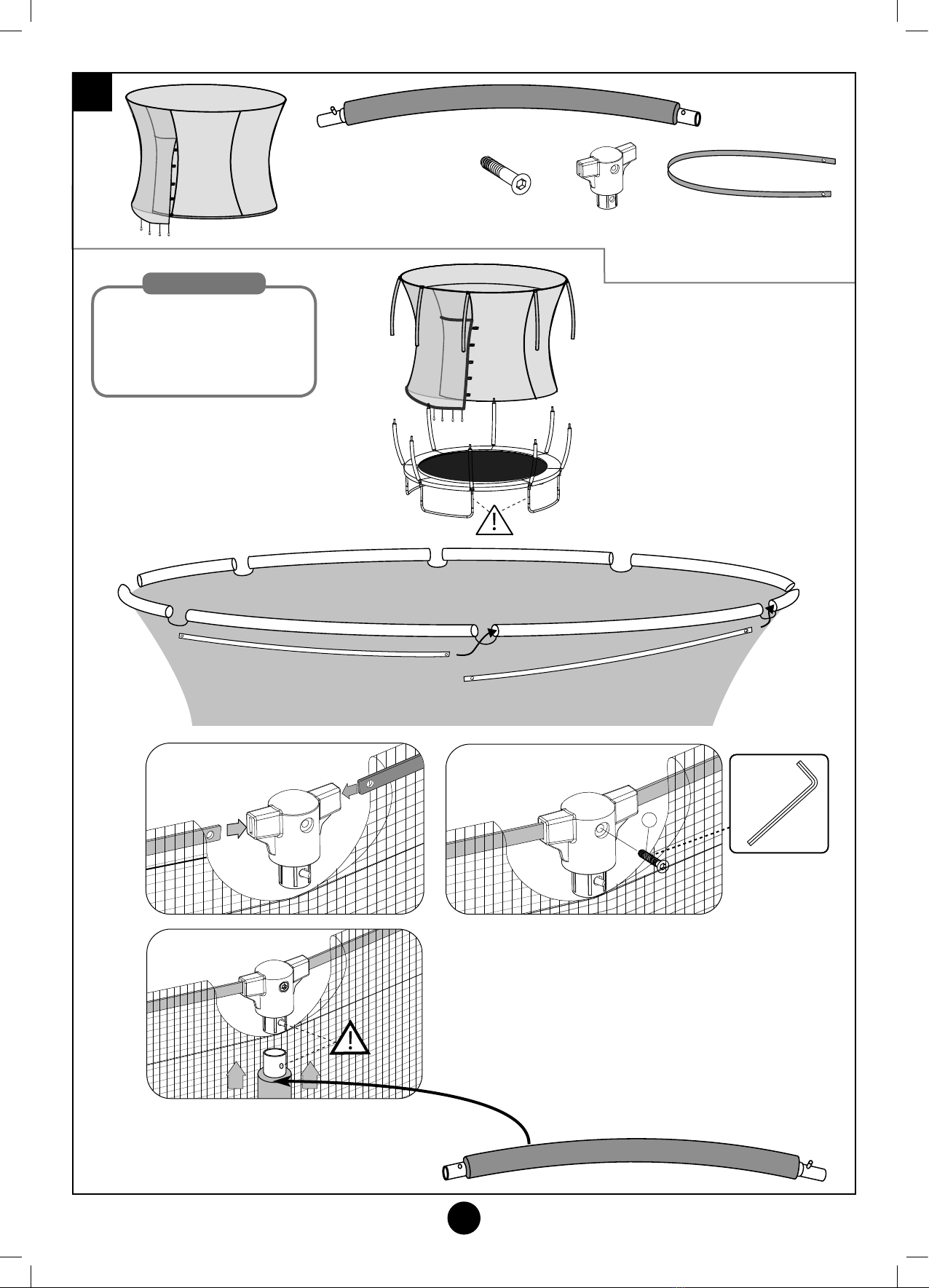

Stage
8
1
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
13
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
8ft FC8377 x6
10ft FC8378 x6
12ft FC8378 x8
IMPORTANT
ASSEMBLY TIP
ASSEMBLY TIP
Place pads over springs
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 10 14/10/2019 11:16

11
10
TP Hip Hop Trampoline
14
8ft FC8387 x6
10ft FC8388 x6
12ft FC8388 x8
TP Hip Hop Trampoline
Stage
6
Stage
7
8ft & 10ft
12ft
X6
X8
8ft & 10ft x18
12ft & 14ft x24
65 20
x
32
15
15 TP Hip Hop Trampoline
8ft & 10ft x6
12ft x8
Assembly Tip
Place surround on trampoline
frame/mat as shown
to help assemble surround
top rim and uprights.
Stage
8
1
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
13
8ft & 10ft x6
12ft x8
8ft & 10ft x6
12ft x8
8ft FC8377 x6
10ft FC8378 x6
12ft FC8378 x8
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 11 14/10/2019 11:16

13
12 TP Hip Hop Trampoline
16 TP Hip Hop Trampoline

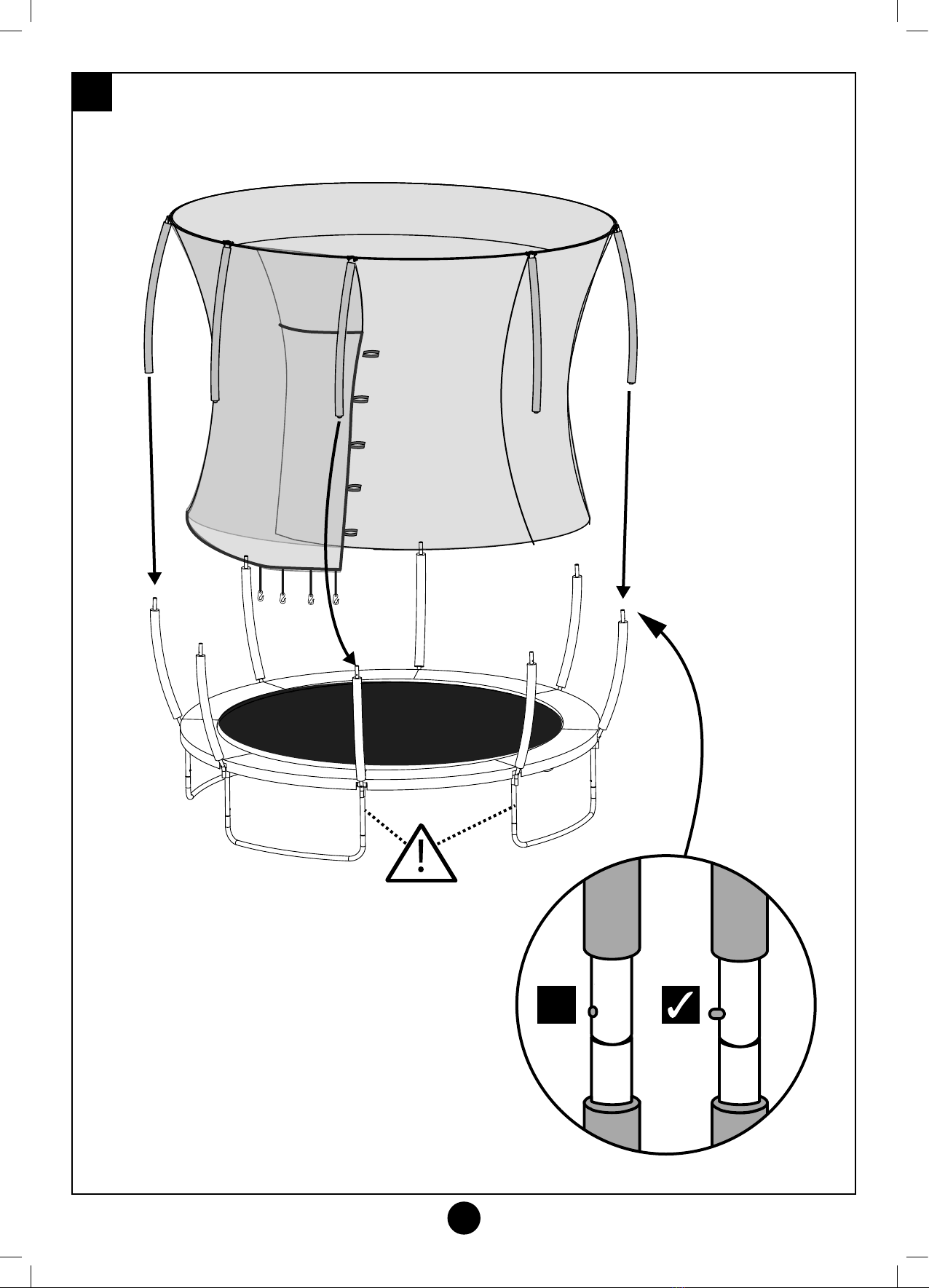

Stage
9
Bx
17
17 TP Hip Hop Trampoline
10
PM8156 x1
8ft, 10ft, 12ft
x1
8ft, 10ft & 12ft

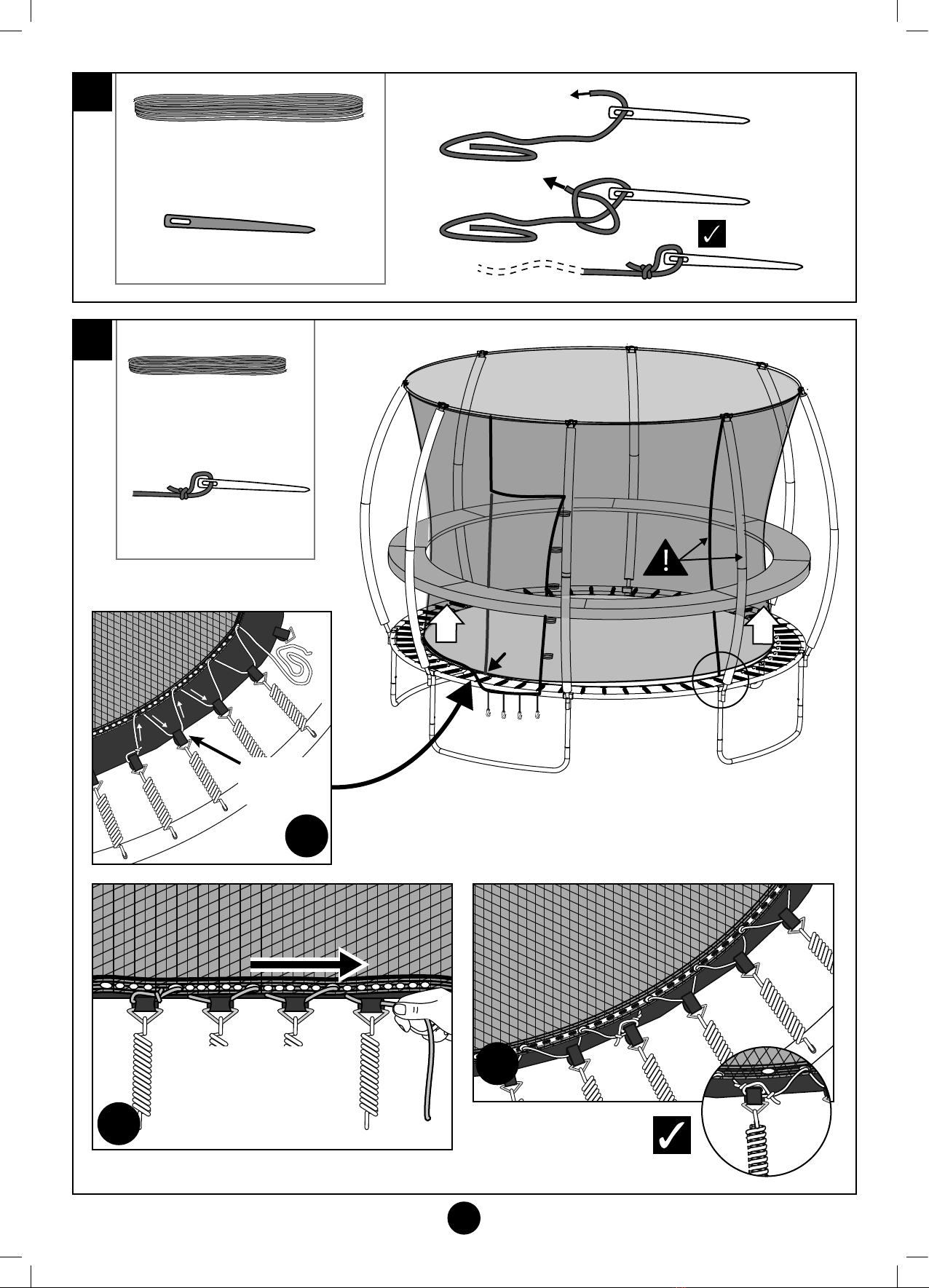

Stage
10
Stage
11
FB9929
8ft,10ft & 12ft x1
FB9929
8ft,10ft & 12ft x1
Start
here
C
B
B
Thread four holes/loops
then pull tight.
Repeat until back to start
A
D-ring
Tab
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 12 14/10/2019 11:16

13
12
TP Hip Hop Trampoline
16 TP Hip Hop Trampoline
Stage
9
Bx
17
17 TP Hip Hop Trampoline
10
PM8156 x1
8ft, 10ft, 12ft
x1
8ft, 10ft & 12ft
Stage
10
Stage
11
FB9929
8ft,10ft & 12ft x1
FB9929
8ft,10ft & 12ft x1
Start
here
C
B
B
Thread four holes/loops
then pull tight.
Repeat until back to start
A
D-ring
Tab
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 13 14/10/2019 11:16

15
14 TP Hip Hop Trampoline
18 TP Hip Hop Trampoline
Stage
12
b
5
A
A
B
A
x8
B
B
Pad back
2
5
4
3
1
12ft
10ft
x68ft
x8
x10
MI1120
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 14 14/10/2019 11:16

15
14
TP Hip Hop Trampoline
18 TP Hip Hop Trampoline
Stage
12
b
5
A
A
B
A
x8
B
B
Pad back
2
5
4
3
1
12ft
10ft
x68ft
x8
x10
MI1120
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 15 14/10/2019 11:16

Instruction Part No: IN6070 Issue-E 14.10.19
Your TP Guarantee Number/Product Batch No is
Robovision Ltd protects their unique designs worldwide with patents, trademarks and design registrations
For more information on the intellectual property of Robovision Ltd visit www.tptoys.com/intellectualproperty
Thank you
Thank you for purchasing this product.
Please register your new product on line at tptoys.com
www.tptoys.com/customer/productregistration
Find out about the guarantee for this product,
visit www.tptoys.com/customer/pages/guaranteeinformation
For customer services and help with your product,
visit www.tptoys.com/customer/help
TP470 471 472 Hip Hop Trampoline IN6070 Issue-E 14.10.19.indd 16 14/10/2019 11:16
