Trane PIC Owner's manual

Installation
Operation
Maintenance/
Programming
BAS-SVX08D-E4
Protocol interface controller
Modbus solution for Trane
chillers and rooftops

Introduction
BAS-SVX08D-E4
Foreword
These Installation Operation and Maintenance instructions are given as a
guide to good practice in the installation, start-up, operation and periodic
maintenance by the user of the Protocol Interface Controller (PIC).They do
not contain the full service procedures necessary for the continued
successful operation of this equipment.The services of a qualified service
technician should be employed, through the medium of a maintenance
contract with a reputable service company.
Warranty
Warranty is based on the general terms and conditions of the constructor.
The warranty is void if the equipment is modified or repaired without the
written approval of the constructor, if the operating limits are exceeded,
or if the control system or the electrical wiring is modified. Damage due to
misuse, lack of maintenance, or failure to comply with the manufacturer's
instructions, is not covered by the warranty obligation. If the user does not
conform to the instructions given in this document, it may entail
cancellation of warranty and liabilities by the constructor.
Reception
On arrival, inspect the unit before signing the delivery note. Specify any
damage on the delivery note, and send a registered letter of protest to the
last carrier of the goods within 72 hours of delivery. Notify the local Trane
sales office at the same time.The unit should be totally inspected within 7
days of delivery. If any concealed damage is discovered, send a registered
letter of protest to the carrier within 7 days of delivery and notify the local
Trane sales office.
Important notice: No shipping claims will be accepted byTrane if the above
mentioned procedure is not respected.
Note: More stringent national rules may apply in some countries. For more
information, refer to the general sales conditions of your localTrane sales
office.
General Information
Cautions appear at appropriate places in this instruction manual.Your
personal safety and the proper operation of this machine require that you
follow them carefully.The constructor assumes no liability for installations
or servicing performed by unqualified personnel.
© 20 Trane11

Contents
3BAS-SVX08D-E4
Introduction 2
Foreword 2
Warranty 2
Reception 2
General information 2
Product description 5
General presentation 5
Supported equipment 6
Parts list 6
Installation 7
Mounting and wiring 7
Connectors layout 10
Wiring PIC withTrane equipment 12
Wiring PIC with RTAC/ CGAN / CXAN / CGCL / CCUH / CCUN /
CGWH / CGWN / RAUL / RTHD / CVGF / CGAM / CXAM / RTWD /
RTUD chillers (CH530 controller) 12
Wiring PIC with CGAN/CXAN chillers (CH532 controller) 12
Wiring PIC with RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/
RTUB chillers (UCM CLD controller with LCI-C interface) 13
Wiring PIC with CGAH/CXAH/CGCL/CCUH/CGWH/RAUL chillers
(SMM controller) 13
Wiring PIC with RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/RTUB chillers
(UCM CLD controller with CSR interface) 14
Wiring PIC with CVGE/CVAE/RTHC chillers (UCP2 controller)
Wiring PIC with WSD/WSH/WKD/WKH/TSD/TSH/TKD/TKH/YSD/YSH/
YKD/YKH rooftop (Reliatel™ controller) 15
Wiring PIC with WSD/WSH/WKD/WKH/TCD/TCH/TED/TEH/TSD/TSH/TKD/
TKH/YCD/YCH/YSD/YSH/YKD/YKH rooftop (UCP controller) 15
Wiring PIC with Modbus Building Management System 16
Wiring PIC with RS-232 Modbus BMS 16
Wiring PIC with RS-485 Modbus BMS 16
Diagnostic tool installation 18
Software installation 18
Diagnostic cable 21

Contents
BAS-SVX08D-E44
Operation 22
Trane equipment data point list 22
Data point list for CVGF / CVHE (Tracer CH530) 22
Data point list for RTAC (Tracer CH530) 23
Data point list for RTHD (Tracer CH530) 25
Data point list for RTWD / RTUD (Tracer CH530) 26
Data point list for CGAN / CXAN / CGCL / CCUH / CCUN /
CGWH / CGWN / RAUL / CGAM / CXAM (Tracer CH530) 27
Data point list for CGAN/CXAN (Tracer CH532 V1.2) 28
Data point list for CGAN/CXAN (Tracer CH532 V2.0) 29
Data point list for RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/RTUB
(UCM CLD + LCI-C interface) 30
Data point list for CGAH/CXAH/CGCL/CCUH/CGWH/RAUL (SMM) 31
Data point list for RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/RTUB
(UCM CLD + CSR) 34
Data point list for CVGE/CVAE/RTHC chillers (UCP2 controller) 38
Data point list for Rooftops (UCPII / UCPIII and Reliatel controllers) 43
Modbus functions 47
Modbus configuration 47
Modbus parameters - SW3 47
Modbus slave address - SW4 48
Variable format 56
PIC andTrane equipment configuration 56
Configure the PIC connected to a LONTrane equipment 56
Configure the PIC connected to a Comm3Trane equipment 59
Configuration change 62
Maintenance 64
Diagnostic tool operation 64
PIC status 64
Trane equipment communication status 66
Modbus communication status 69
Modbus data point tables 71
Modbus traffic 73
Appendix 77

Product description
5BAS-SVX08D-E4

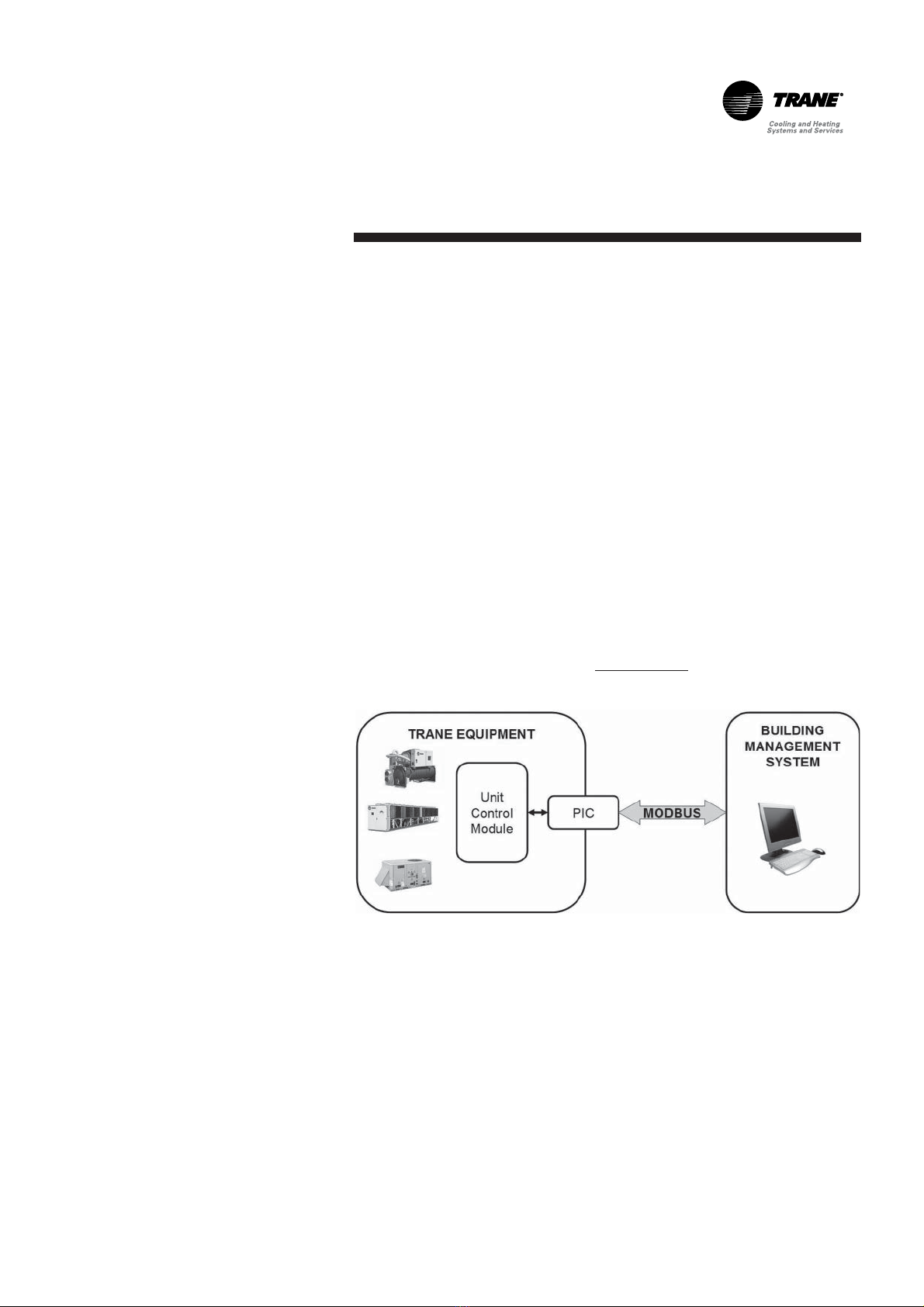

General presentation
The PIC is the gateway to allow communication between a TRANE
equipment and a BMS (Building Management Systems) vendor through the
Modbus protocol over a RS232 or a RS-485 link.
The PIC handles Modbus RTU according to Reference Guide: Modicon
PI-MBUS-300 Rev. D
Modicon®is a trademark of Modicon, Inc.
Jbus®is a trademark of April.
Modbus/Jbus Considerations:
Jbus is an extension of Modbus. Jbus supports more functions than
Modbus.
• Functions supported by both Modbus and Jbus:
1, 2, 3, 4, 5, 6, 15 and 16
• Functions supported by Jbus but not supported by Modbus:
7, 8, 11, 12 and 13

Product description
BAS-SVX08D-E46
Supported equipment
Outdoor Chillers
Helical rotary compressor RTAA / RTAB / RTAC / RTAD / RTXA
Scroll compressor CGAN / CXAN / CGAH / CXAH / RAUL /
CGAM / CXAM
Centrifugal compressor CVAE
Indoor Chillers
Helical rotary compressor RTWB / RTUB / RTRA / RTHC / RTHD /
RTWD / RTUD
Scroll compressor CGWH / CGWN / CGCL / CCUH / CCUN
Centrifugal compressor CVGE / CVGF
Absorption ABSC / ABSD / ABTF
Rooftops
Reversible WSD / WSH / WKD / WKH
Cooling-only TCD /TCH /TED /TEH /TSD /TSH /TKD / TKH
Gas-fired YCD / YCH / YSD /YSH /YKD /YKH
Parts list
Table 1 - Parts list
Communication Boards ControllerType Equipment Drawing # Part Number
CH530 LCI-C Tracer CH530 RTAC Public Extension MOD 0160E
RTAC Chiller Profile MOD 0164E
RTHD MOD 0161E
SCROLL MOD 0162E
Centrifugal MOD 0163E
RTWD, RTUD MOD 0186E
RTAC, RTHD, CGAN..
(hardware only) X13650845-002 MOD 01216
CH532 LCI-C V1.2 Tracer CH532 V1.2 CGAN/CXAN X 13740189-001 BRD0079E
CH532 LCI-C V2.0 Tracer CH532 V2.0, V2.3
and greater CGAN/CXAN X 13740189-002 BRD0084E
UCM CLD LCI-C UCM CLD RTAA, RTAD, RTWB X 13651074-001 KIT 12182
UCM CLD CSR UCM CLD RTAA, RTAD, RTWB X 13650364-004 MOD01422
TCI4-Comm3 UCP2 RTHC X13650618-002 MOD00720
TCI4-Comm3 UCP2 CVGE X13650460-011 MOD01396
TCI Comm3-Comm4 Reliatel Rooftop X01650524-001 BRD03029
TCI Comm3-Comm4 UCP II / III Rooftop X13650464-004 BRD00917

Installation
7BAS-SVX08D-E4
Mounting and wiring

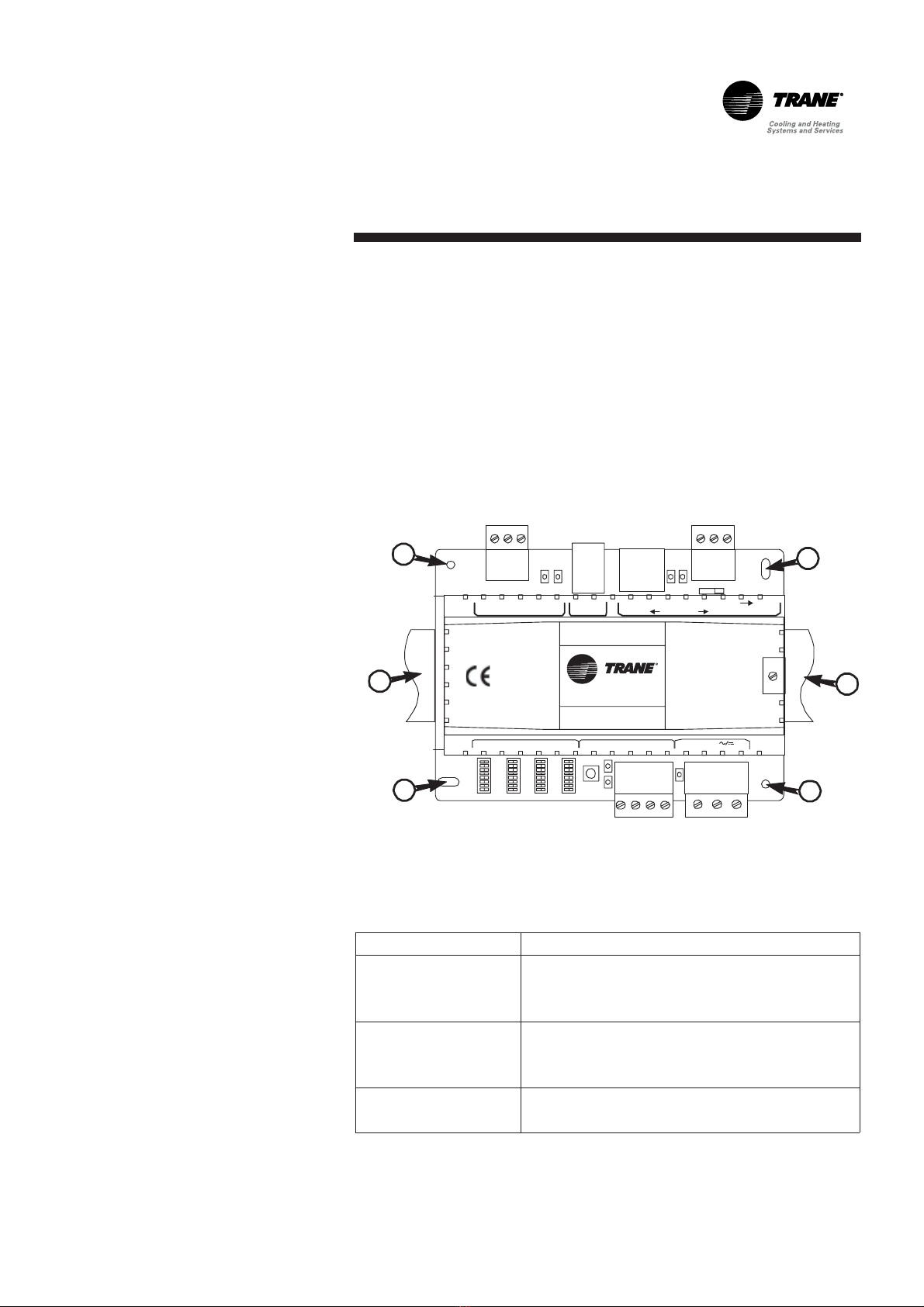

PIC mounting recommendations
To mount the PIC device:
• Select a location near the controlled equipment to reduce wiring costs
and EMC disturbance risks.
• Verify that the location conforms to the specifications below.
• Secure the controller to a 35 mm DIN rail (Use only 10/10 mm thickness
sheet) or directly mount the PIC using four M3 screws (not supplied).
1 = Screw holes
2 = DIN rail
Table 2 - PIC specifications
Board dimensions 95 mm height x 132 mm width x 60 mm depth
Minimum clearances Front 100 mm
Each side 25 mm
Top and bottom 100 mm
Operating environment Temperature: from -40° to 70°C
Relative Humidity: from 5% to 95% non-condensing
Dust protection: pollution level 1
Storage environment Temperature: from -50° to 85°C
Relative Humidity: from 5% to 95% non-condensing
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0VON 24V Imax=0.5A
1
1
22
1
1

Installation
BAS-SVX08D-E48
PIC Power Supply recommendations
The PIC device is powered by 24 VAC/VDC +6V/-12V power supply. A 3-wire
quickconnect terminal (TB3) is provided for power supply connection to the
board.
To ensure the controller will operate properly, verify that the power supply
circuit is in compliance with the following circuit requirements:

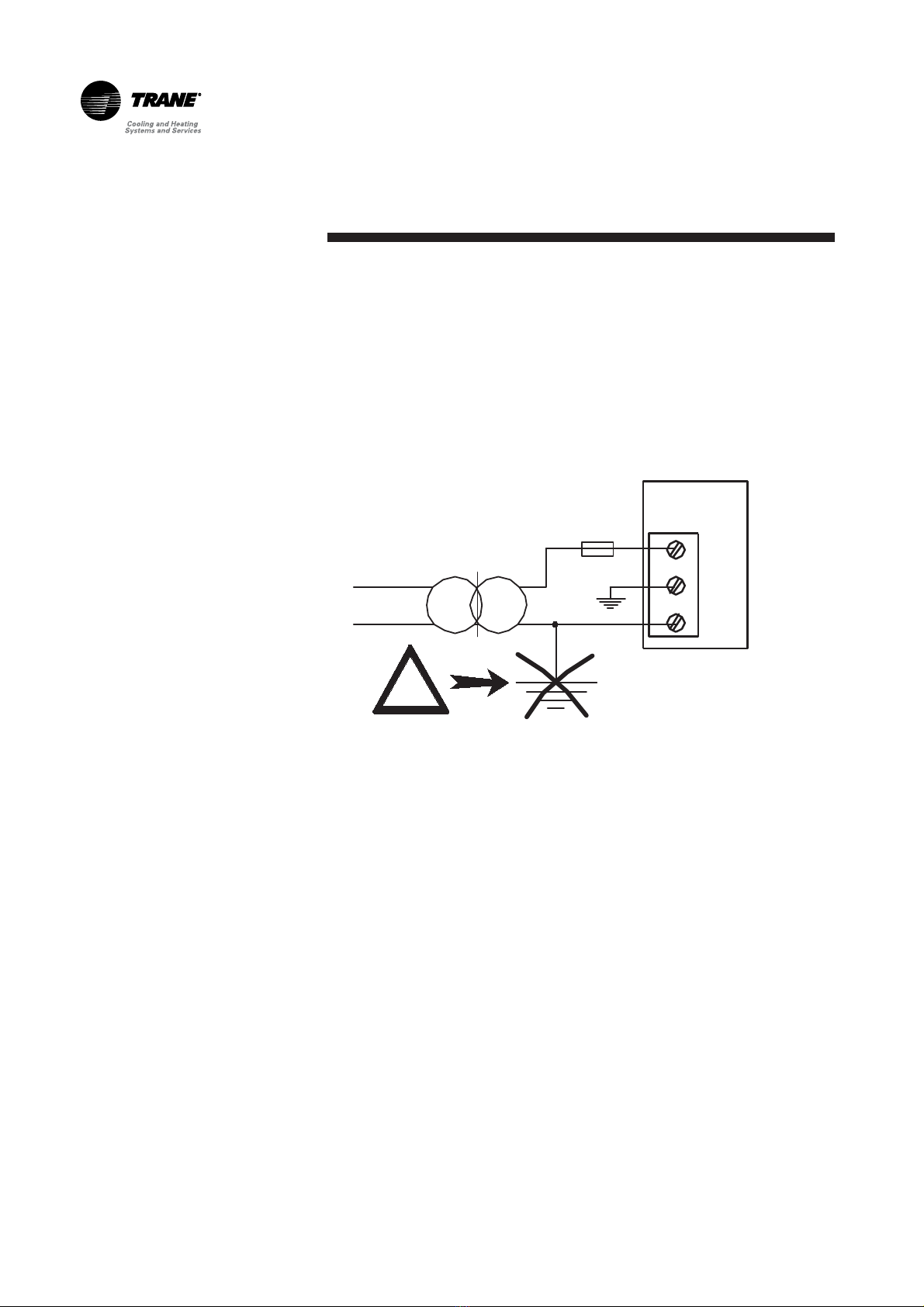

To keep the PIC in accordance with the Separated Extra Low Voltage (SELV)
circuit, the transformer 'T' shall be in accordance with EN / IEC 61558-2-6.
Table 3 - Power supply recommendations
CAUTION! PIC power supply circuit MUST NOT be connected to the ground
as shown in the above illustration.The non-respect of this requirement will
damage the PIC.
CAUTION! If local electrical regulations do not allow the recommended
power supply wiring, contact your local Trane Sales Office for an adequate
solution to comply with local electrical regulations.
Note:This wiring is in accordance with IEC 60364-4-41 and national
standards which incorporate the same requirements.
PIC
24V
GND
0V
F : 0.5A / 250V / M
T
L
N
F
!
24V

Installation
9BAS-SVX08D-E4
Power supply recommendations
Power
requirements
24 VAC/VDC +6V / -12V
50 or 60 Hz
0.5 A maximum
Protection
The PIC device must receive power from a dedicated circuit which is
connected to a dedicated isolation screened transformer. The circuit
must be protected by a 0.5 A / 250V / Medium time lag circuit
breaker/fuse located next to it.
Recommended
wire
The AC/DC-power wiring requires three-wire cable.
The recommended wire is 1.5mm² (16 AWG) copper wire.
Standards
The AC/DC-power wiring complies with IEC or EN 60364-4-41 and
2006/95/EEC for electrical safety.
For compliance with 2006/108/EEC and 89/336/EEC European directive
for electromagnetic compatibility:
- EN 55022 level B
- EN 61000-3-2
- EN 61000-4-2
- EN 61000-4-4
Ground
Connection
The ground connection of the PIC (GND connector) MUST BE
connected to the building earth to prevent electromagnetic
compatibility risks.

Installation
BAS-SVX08D-E410

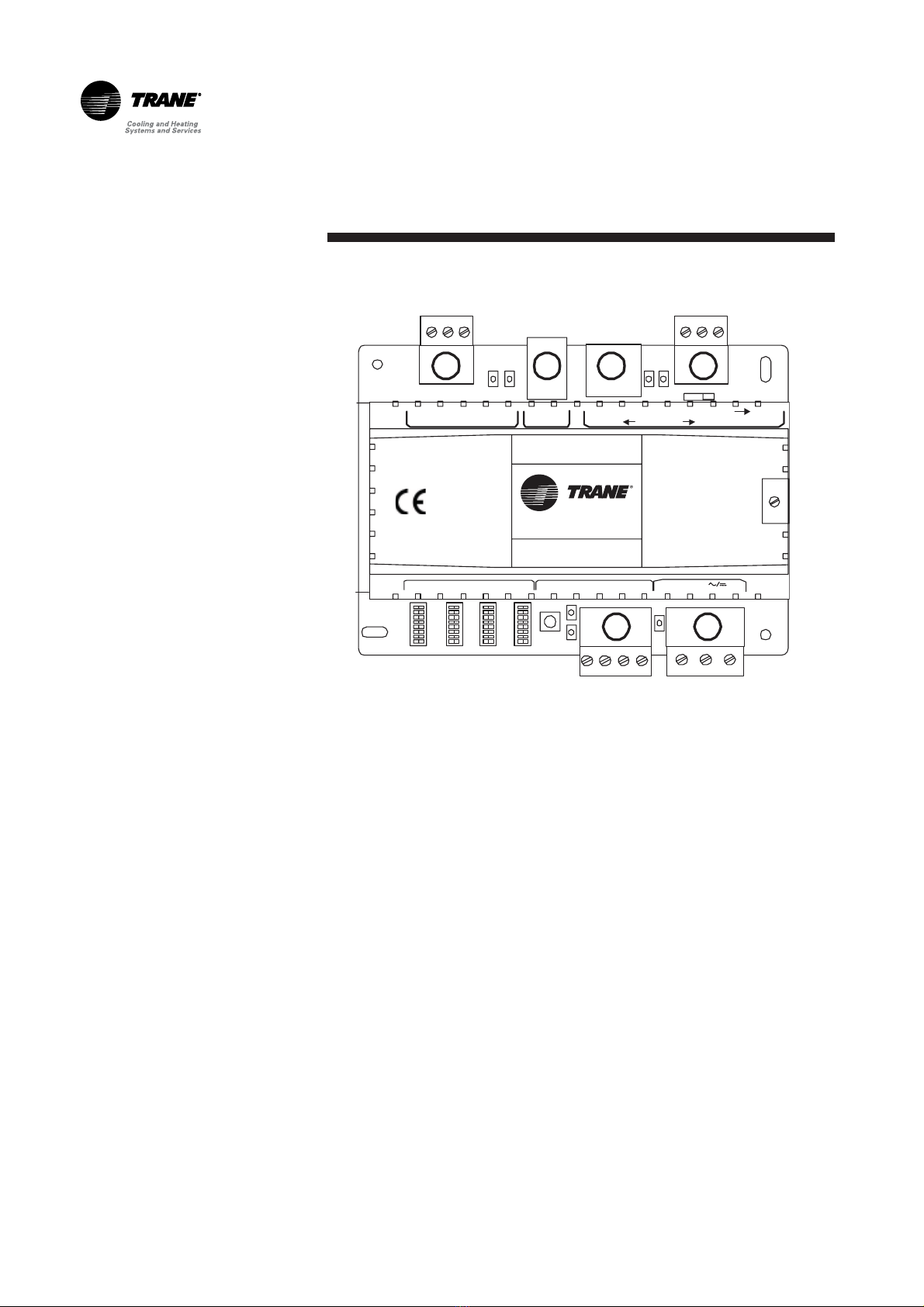

Connectors layout
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0VON 24V Imax=0.5A
1 2 3 4
65

Installation
11BAS-SVX08D-E4
Connector 1 Comm3 connection toTrane equipment
3-pole removable screw 5.08 mm connector
Pins '1' & '2':Transmit and receive signals (no polarity)
Pin 'SHD': Cable Shield
Connector 2 USB connection to diagnostic PC
USB type B female connector

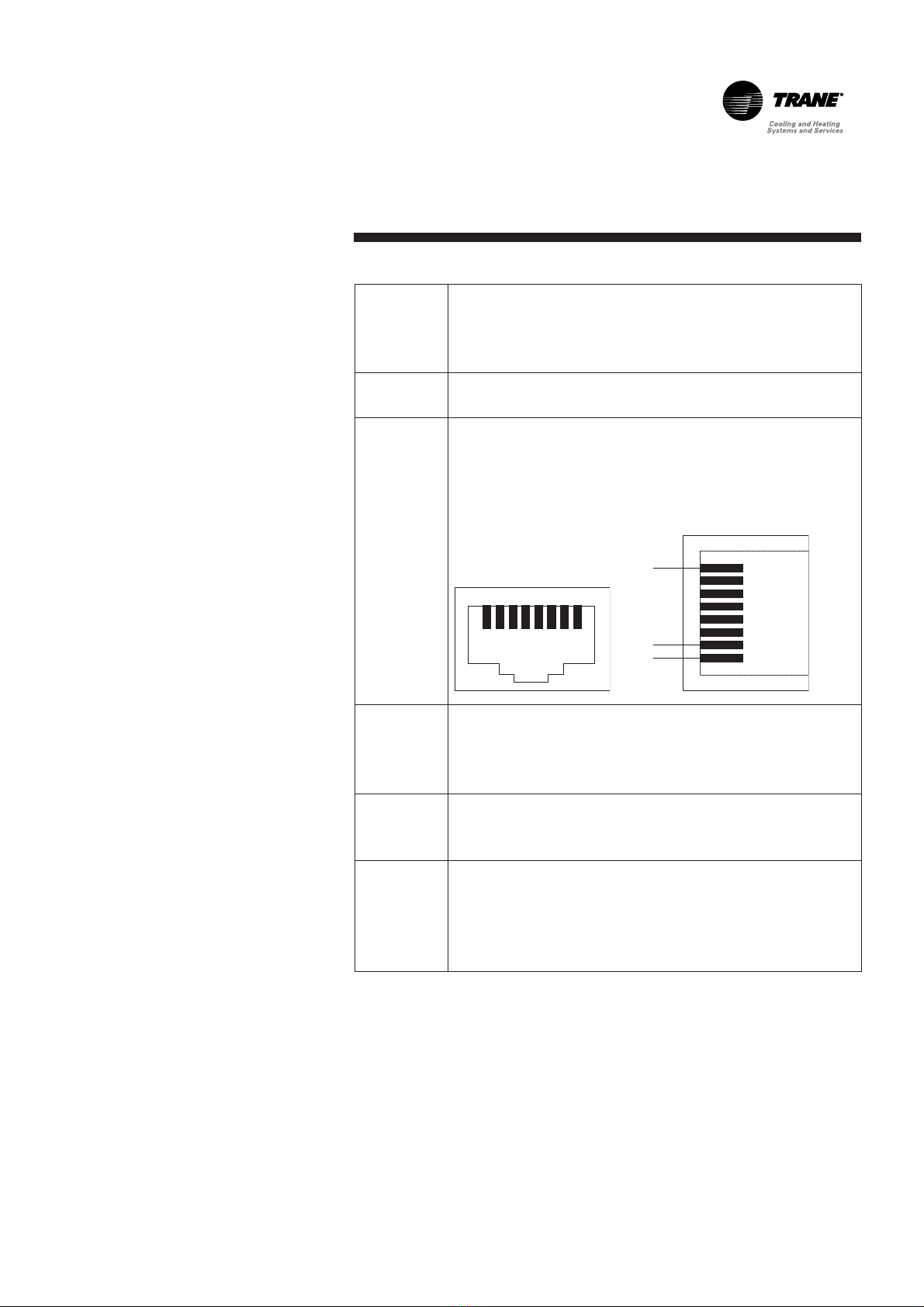

Connector 3 Modbus RS232 connection to Building Management System
RJ45 female connector
Pin '1':Transmitted Data
Pin '2': Received Data
Pin '8': Signal Common
8
1
Common
RXD
TXD
18
Connector 4 Modbus RS485 connection to Building Management System
3-pole removable screw 5.08 mm connector
Pins 'A' & 'B': Signal
Pin 'Ref': Reference
Connector 5 LonTalk®connection toTrane equipment
4-pole removable screw 5.08 mm connector
Pins 'A' & 'B':Transmit and receive signals (no polarity)
Connector 6 Power supply connection
3-pole removable screw 7.62 mm connector
Pin '0V': 0V
Pin '24V': 24V AC/DC +6V/-12V
Pin 'GND': Ground

Installation
BAS-SVX08D-E412

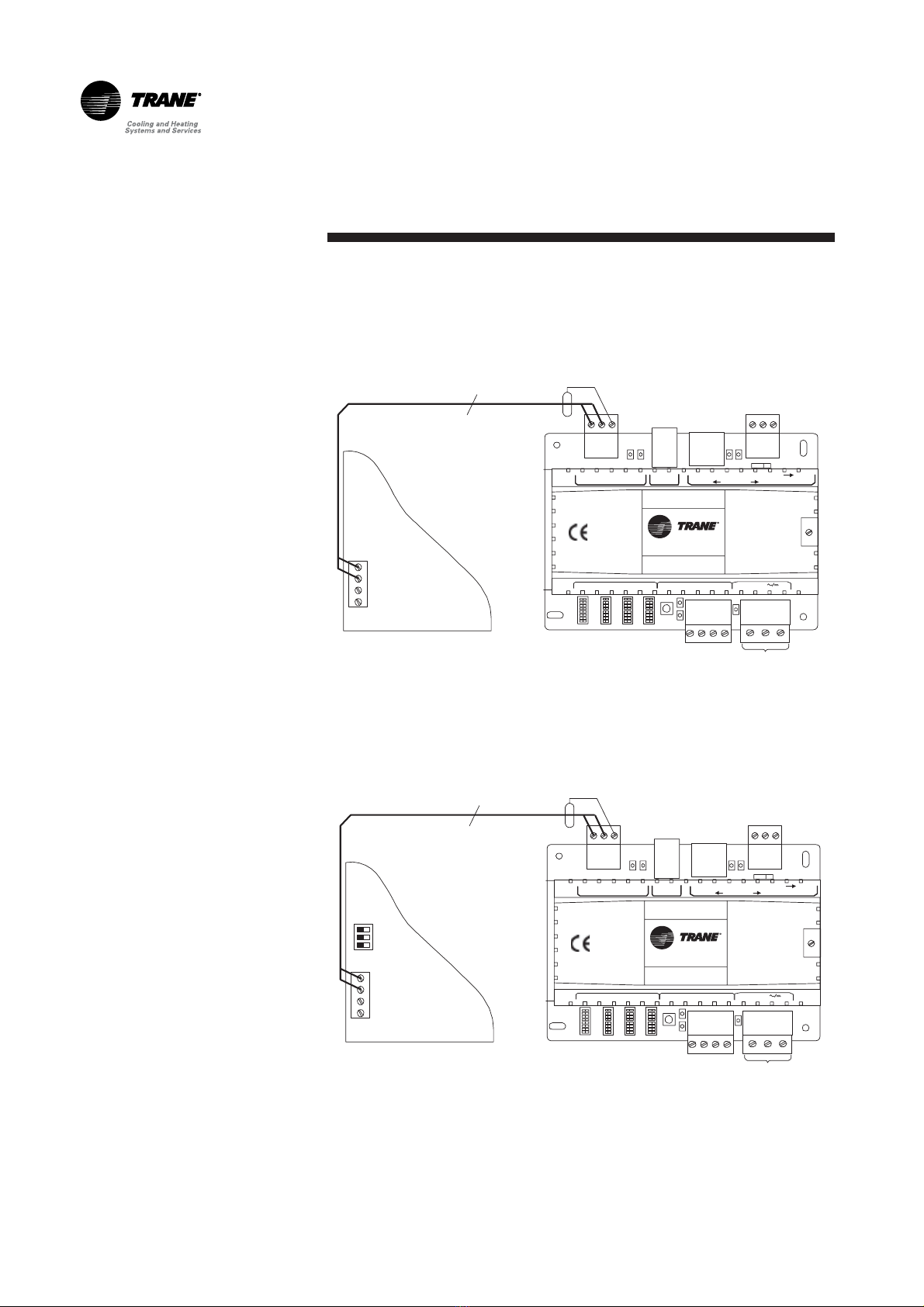

Wiring PIC with Trane equipment
Wiring PIC with RTAC/ CGAN / CXAN / CGCL / CCUH / CCUN / CGWH /
CGWN / RAUL / RTHD / CVGF / CGAM / CXAM / RTWD / RTUD chillers
The following wiring diagram applies for units equipped withTracer CH530
controller.
Wiring PIC with CGAN/CXAN chillers (CH532 controller)
The following wiring diagram applies for units equipped withTracer CH532
controller.
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0VON 24V Imax=0.5A
CH532 LCI-C
A4
AB
GND
224V AC/DC
+6V/-12V
Service
CH532
Protocol Interface
Cont rolle r
MODBUS
TxRx RS485RS232 ARef BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2SHD
Se r vic e
PIN LON BABA 24VGND
CONFIGUR ATIO N
SW1 SW2 SW3 SW4 Rx
Se rv. 0V
ON 24V Imax=0.5A
CH530 LCI-C
A9
J2 1234
224V AC/DC
+6V/-12V
Se rvice
(1A15:CGAM/CXAM)

Installation
13BAS-SVX08D-E4

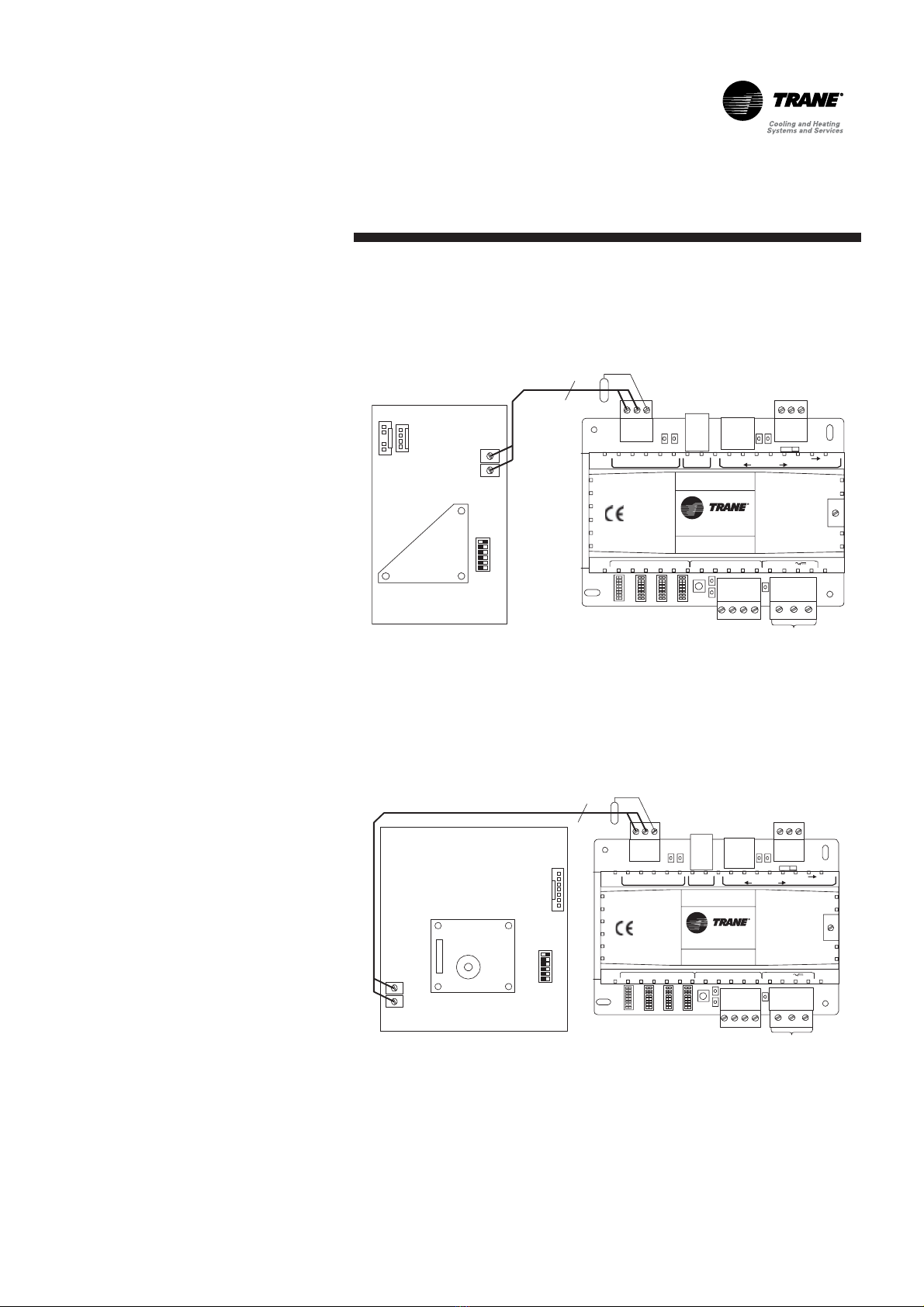

Wiring PIC with RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/RTUB chillers
(UCM CLD controller with LCI-C interface)
The following wiring diagram applies for units equipped withTracer UCM
CLD controller with the LCI-C (A56) communication interface.
Wiring PIC with CGAH/CXAH/CGCL/CCUH/CGWH/RAUL chillers
(SMM controller)
The following wiring diagram applies for units equipped with
SMM controller.
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
2
24V AC/DC
+6V/-12V
SMM
X5
1
2
X4
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
UCM CLD LCI-C
A56
J3A 1
2
3
4
224V AC/DC
+6V/-12V
Service
J2A

Installation
BAS-SVX08D-E414
Wiring PIC with RTAA/RTAB/RTXA/RTAD/RTWB/RTRA/RTUB chillers
(UCM CLD controller with CSR interface)
The following wiring diagram applies for units equipped with UCM CLD
controller with the CSR (A9) communication interface.
Wiring PIC with CVGE/CVAE/RTHC chillers (UCP2 controller)
The following wiring diagram applies for units equipped with UCP2
controller with theTCI4-Comm3 (A9) communication interface.
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0VON 24V Imax=0.5A
2
24V AC/DC
+6V/-12V
TCI4 - Comm3
A9
1
2
J3-A
3
4
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0VON 24V Imax=0.5A
2
24V AC/DC
+6V/-12V
CSR
A9
1
2
TB2
3
4

Installation
15BAS-SVX08D-E4
Wiring PIC with WSD/WSH/WKD/WKH/TSD/TSH/TKD/TKH/YSD/YSH/YKD/
YKH rooftop (Reliatel controller)
The following wiring diagram applies for units equipped with Reliatel
controller with theTCI communication interface.
Wiring PIC with WSD/WSH/WKD/WKH/TCD/TCH/TED/TEH/TSD/TSH/TKD/
TKH/YCD/YCH/YSD/YSH/YKD/YKH rooftop (UCP controller)
The following wiring diagram applies for units equipped with UCP II/III
controller with theTCI-3 communication interface.
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
2
24V AC/DC
+6V/-12V
TCI-3
TB1
2
1
J1
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
2
24V AC/DC
+6V/-12V
RELIATEL
TCI TB1
+
-
J2 J1

Installation
BAS-SVX08D-E416
Wiring PIC with Modbus Building Management System
Wiring PIC with RS-232 Modbus BMS
Wiring PIC with RS-485 Modbus BMS
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
MODBUS BMS
RS-485
24V AC/DC
+6V/-12V
R+
Ref.
R-
Protocol Interface
Controller
MODBUS
TxRx RS485RS232 A Ref BRJ-45 Resistor On
DIAG
USB
COMM3
1TxRx2 SHD
Service
PIN LON BABA 24VGND
CONFIGURATION
SW1 SW2 SW3 SW4 Rx
Serv. 0V
ON 24V Imax=0.5A
MODBUS BMS
RS-232
2
24V AC/DC
+6V/-12V
81
1
Common
RXD
TXD
8
12345
6 7 8 9
3
5

Installation
17BAS-SVX08D-E4

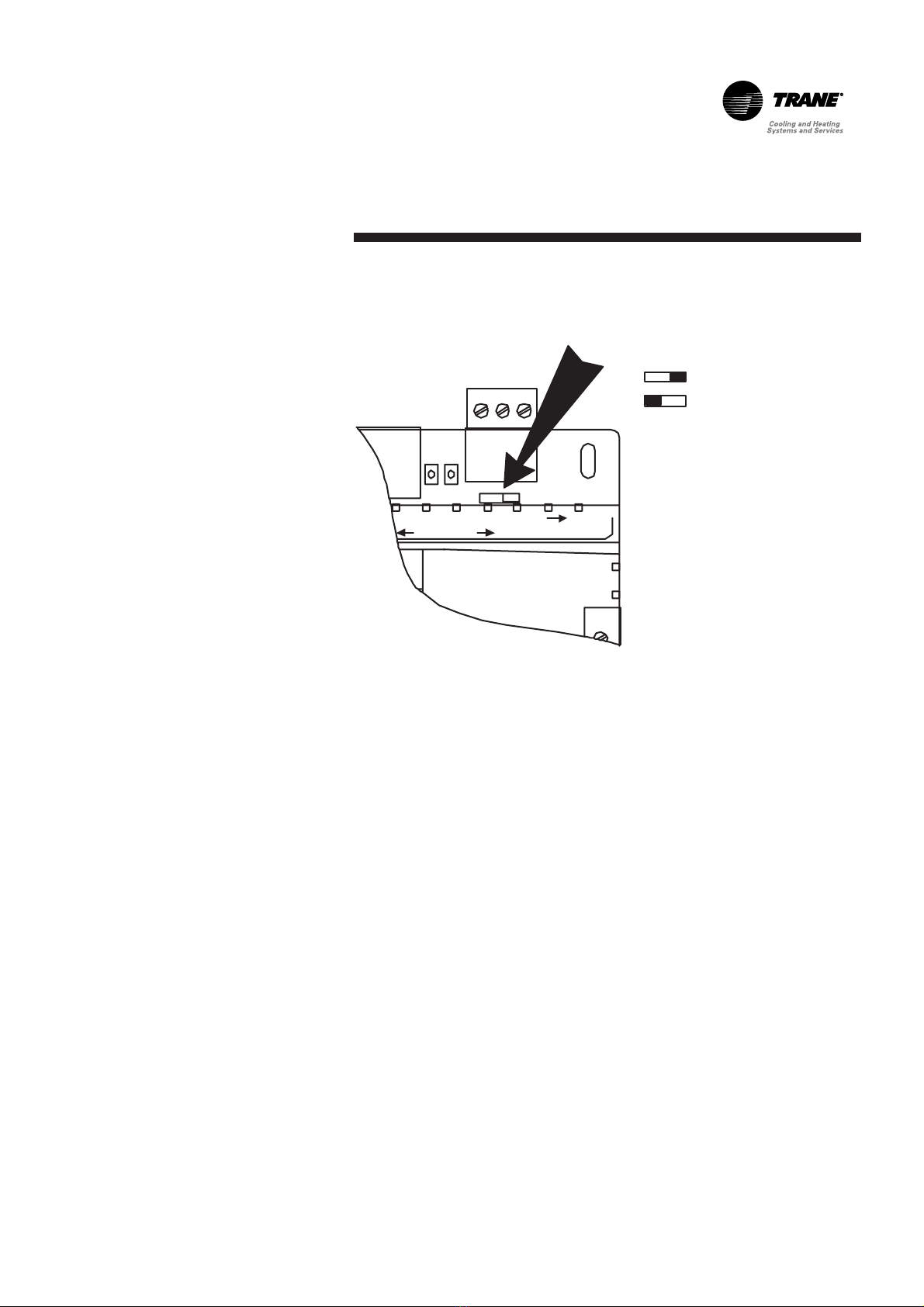

If the RS485 wire length is less than 100 meters, it is recommended to use
the termination resistor option. Set the 'Resistor' switch to the 'On' position.
See following figure.
MODBUS
TxRx RS485 A Ref B Resistor On
ON
OFF

Installation
BAS-SVX08D-E418
Diagnostic tool installation
Software Installation
The PIC controller is associated with a PC-based diagnostic tool.This
diagnostic runs on Windows 2000 and Windows XP SP2.
The PIC is connected to the PC via a PC USB port.
The diagnostic tool installation software is available upon request to the IT
group in your localTrane Sales Office.
CAUTION!: Before starting software installation, DO NOT CONNECT the PIC
to the PC. Software drivers must be installed prior to the first PIC
connection.
Step 0: Check if the diagnostic tool is already installed.
From the 'Start' menu, 'All programs', check if the 'PIC DiagTool' icon is
located in the 'PIC Diag' program group. If the icon is present, the
diagnostic tool is already installed.
Step 1: Run the diagnostic tool installation wizard (setup.exe)
Step 2: Ensure the PIC is not connected to the PC
Click on 'Next'

Installation
19BAS-SVX08D-E4
Step 3: Confirm diagnostic tool installation
Step 4: Select installation folder
Once configured, click on 'Next'.

Installation
BAS-SVX08D-E420
Step 5: Confirm installation parameters
Once checked, click on 'Install'.The installation process starts copying files.
Step 6: Finish the installation
Click on 'Finish'.The software installation is done.
