Travis Industries Flush Wood Plus User manual

Flush Wood Plus Insert
(Arched)
Owner's Manual
•Masonry Fireplace Insert
•Zero-Clearance (Metal) Fireplace Insert
Save these instructions for future reference
SAFETY NOTICE:
If this appliance is not properly installed, a house fire may
result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and
installation inspection requirements in your area.
Travis Industries, Inc.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
www.travisproducts.com
©Copyright 2011, T.I.
$10.00 100-01269
4110712 Listed
Tested to: U.L. 1482 & ULC S628

2 Introduction
© Travis Industries 100-01269 4110712
Introduction
We welcome you as a new owner of a Flush Wood fireplace insert. In purchasing a Flush Wood fireplace
insert you have joined the growing ranks of concerned individuals whose selection of an energy system
reflects both a concern for the environment and aesthetics. This insert is one of the finest appliances the
world over. This manual will explain the installation, operation, and maintenance of this appliance.
Please familiarize yourself with the Owner's Manual before operating your appliance and save the
manual for future reference. Included are helpful hints and suggestions which will make the installation
and operation of your new appliance an easier and more enjoyable experience. We offer our continual
support and guidance to help you achieve the maximum benefit and enjoyment from your appliance.
Important Information
No other Flush Wood fireplace insert appliance has
the same serial number as yours. The serial number
is stamped onto the label on the back of the
appliance.
This serial number will be needed in case you require
service of any type.
Model: Flush Wood Plus
Serial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty card to:
Travis Industries House of Fire
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your Bill
of Sale to us.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should the
need for service or information occur.

Table of Contents 3
© Travis Industries 100-01269 4110712
General Information
Introduction & Important Information.......................... 2
Safety Precautions..................................................... 4
Features & Specifications .......................................... 6
Fireplace Insert Installation
Planning The Installation............................................ 7
Preparation for Installation.................................... 7
Additional Accessories Needed for Installation..... 7
Installation Considerations ................................... 7
Additional Requirements for Canada.................... 7
Fireplace Requirements............................................. 8
Fireplace Altered Tag................................................. 8
Insert Placement Requirements................................. 9
Hearth Requirements................................................. 9
Masonry Fireplace Requirements .............................. 9
Zero-Clearance (Metal) Fireplace Requirements....... 10
Face Dimensions ....................................................... 10

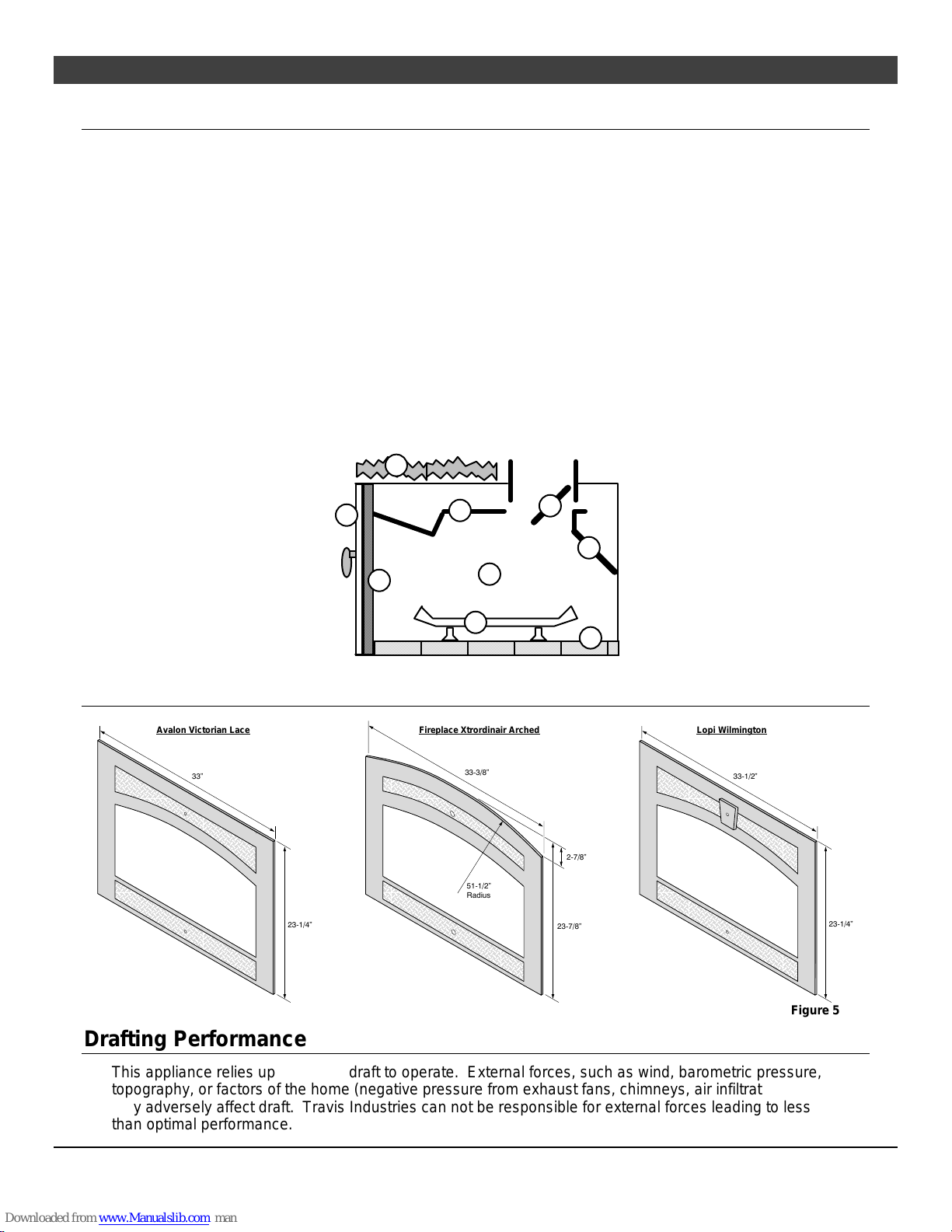

Drafting Performance................................................. 10
Insert Rollers.............................................................. 11
Flue Installation.......................................................... 11
Surround Panel Installation........................................ 12
Face Installation......................................................... 14
Re-Routing the Electrical Cord to the Left Side.......... 15
Insert with Positive Connection.................................. 16
Insert with Direct Connection (Masonry Fireplace)..... 16
Operating Your Appliance
Safety Notice.............................................................. 17
Before Your First Fire................................................. 17
Opening the Door....................................................... 17
Bypass Operation....................................................... 19
Starting a Fire ............................................................ 19
Adjusting the Burn Rate............................................. 21
Ash Removal.............................................................. 21
Blower Operation ....................................................... 22
Re-Loading the Stove ................................................ 22
Overnight Burn........................................................... 22
Normal Operating Sounds.......................................... 22
Hints for Burning........................................................ 23
Selecting Wood.......................................................... 23
Troubleshooting ......................................................... 24
Maintaining Your Appliance
Daily Maintenance...................................................... 25
Remove Ash .............................................................. 25
Clean The Glass........................................................ 25
Monthly Maintenance................................................. 26
Door and Glass Inspection......................................... 27
Check For Creosote Buildup...................................... 26
Yearly Maintenance ................................................... 27
Touch Up Paint.......................................................... 27
Blower Cleaning......................................................... 27
Firebrick and Baffle Inspection................................... 27
Door Parts.................................................................. 28
Replacing the Glass................................................... 28
Replacing the Door Gasket........................................ 28
Blower and Electrical Parts ........................................ 28
Firebox Parts.............................................................. 28
Baffle Removal and Replacement.............................. 29
Air Tube Removal and Replacement ......................... 30
Brick Removal & Replacement .................................. 31
Warranty....................................................................... 32
Listing Information.................................................... 34
Index.............................................................................. 36

4 Safety Precautions
© Travis Industries 100-01269 4110712
The viewing door must be
closed and latched during
operation.
Smoke from this appliance may
active a smoke detector when
the door is open.
Never block free airflow through
the air vents on this appliance.
Gas
Gasoline or other flammable
liquids must never be used to
start the fire or "Freshen Up" the
fire. Do not store or use
gasoline or other flammable
liquids in the vicinity of this
appliance.
This appliance is designed and
approved for the burning of cord
wood only. Do not attempt to
burn any other type of fuel other
than cord wood in this
appliance, it will void all
warranties and safety listings.
ASHES
Ashes must be disposed in a
metal container with a tight lid
and placed on a non-
combustible surface well away
from the home or structure.
Do not touch the appliance while
it is hot and educate all children
of the danger of a high-
temperature appliance. Young
children should be supervised
when they are in the same room
as the appliance.
36"
Keep furniture, drapes, curtains,
wood, paper, and other
combustibles a minimum of 36"
away from the front of the
appliance.
This appliance must be properly
installed to prevent the
possibility of a house fire. The
instructions must be strictly
adhered to. Do not use
makeshift methods or
compromise in the installation.
Ok
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this appliance as well.
Inspect the chimney connector
and chimney at least twice
monthly and clean if necessary.
Creosote may build up and
cause a house fire.
Do not connect this appliance to
any chimney serving another
appliance.
Type
HT Clay
Liner
This appliance must be
connected to a listed high
temperature (UL 103 HT)
residential type chimney or an
approved masonry chimney with
a standard clay tile, or stainless
steel liner.

Safety Precautions 5
© Travis Industries 100-01269 4110712
Never try to repair or replace
any part of this appliance unless
instructions are given in this
manual. All other work must be
done by a trained technician.
Do not place clothing or other
flammable items on or near this
appliance.



Allow the appliance to cool
before carrying out any
maintenance or cleaning.
Do not make any changes or
modifications to an existing
masonry fireplace or chimney to
install this appliance.
Do not make any changes to the
appliance to increase
combustion air.
Maintain the door and glass seal
and keep them in good
condition.
Do not operate this heater with
broken or missing glass.
Avoid placing wood against the
glass when loading. Do not
slam the door or strike the glass.
Overfiring the appliance may
cause a house fire. If a unit or
chimney connector glows, you
are overfiring.
This
Manual
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at
a later time. Always follow the
instructions in this manual.
Do not use a grate or other
device to elevate the fire off of
the firebox floor. Burn the fire
directly on the bricks.
Travis Industries, Inc. grants
no warranty, implied or
stated, for the installation or
maintenance of your
appliance,and assumes no
responsibility of any
consequential damage(s).

6 Stove Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Installation Options
•Masonry Fireplace Insert
•Zero-Clearance (Metal) Fireplace Insert
Features
•EPA Phase II Approved
•2.2 Cubic Foot Firebox Volume
•Single Operating Control
•Accepts Logs Up to 24" Long
•Steel Plate Construction (Up to 5/16")
•Heavy Duty Refractory Firebrick
•Standard High-Tech Blower
Heating Specifications
Approximate Maximum Heating Capacity (in square feet)* 1,200 to 2,000
Maximum Burn Time Up to 10 Hours
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the quality and moisture level of the fuel.
Dimensions
6-3/8"
(162mm)
450 Lbs. (200 Kg)
1-1/4"
(32mm)
6" (153mm) Dia.
17-3/4"
(451mm)
21-1/2"
(547mm)
a
b
28-7/8" (734mm)
19-3/4"
(502mm)
18-7/8"
(480mm)
10"
(254mm)
Figure 1
(a) Measure clearances from base of insert (b) Fireplace Opening
Emissions
4.4 Grams Per Hour (EPA Phase II Approved)

Fireplace Insert Installation (for qualified installers only) 7
© Travis Industries 100-01269 4110712
SAFETY NOTICE:
Please read this entire manual before you install and use your new room heater. Failure to
follow instructions may result in propertydamage, bodily injury, or even death. Contact
local building or fire officials about restrictions and installation inspection requirements in
your area.
Planning The Installation
We suggest that you have an authorized Travis Industries dealer install your fireplace insert. If you
install the fireplace insert yourself, your authorized dealer should review your installation plans.
Check with local building officials for any permits required for installation of this fireplace insert and
notify your insurance company before proceeding with installation.
Preparation for Installation
•Check for damage to the exterior of the fireplace insert (dents should be reported, scratches can be fixed by
applying touch up paint).
•Check the interior of the firebox (replace cracked firebrick and make sure baffle is in place).
•The fireplace insert can be lightened by removing the firebricks and baffle (pg 31) - replace before operation.
Additional Accessories Needed for Installation
•Face
•Surround Panels (see page12)
Installation Considerations
Installation Type Considerations
Insert with Positive Flue (Full Reline) – Required in Canada
(Page 16) • Utilizes existing masonry or zero clearance fireplace • Provides best draft
• Easiest to clean
Insert with Direct Connect Flue (Page 16)
NOT APPROVED IN CANADA • Utilizes existing masonry or zero clearance fireplace • Provides good draft
• Requires fireplace block-off plate - see page 16
Additional Requirements for Canada
•Do not remove bricks or mortar from existing fireplace.
•This fireplace insert must be installed with a continuous chimney liner of 6” diameter extending from the fireplace
insert to the top of the chimney. The chimney liner must conform to the Class 3 requirements of CAN/ULC-S635,
Standard for Lining Systems for Existing Masonry or Factory-Built Chimneys and Vents, or CAN/ULC-S640,
Standard for Lining Systems for New Masonry Chimneys.
•Permanently seal any opening between the masonry of the fireplace and the facing masonry.
•Fireplace insert, or surround panels, may be removed to inspect fireplace insert and fireplace.
Ash Guard
The included ash guard prevents ash from exiting the door opening.
It is shipped detached to prevent damage during shipping. Install the ash guard as shown below. Note how the horizontal tab fits in front of the door opening.

8 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Fireplace Requirements
Figure 2 shows the minimum size requirements for the type of fireplace used.
a
ce
f
b
d
h
i
j
g
Non-Combustible Hearth
Combustible Mantel
Non-Combustible Facing
Minimum
Fireplace Size Masonry Fireplace Z.C. (Metal) Fireplace
a Height (front) 21.5"
547mm 21.5" 547mm
b Height (rear) 19.75"
502mm 19.75" 502mm
c Width (front) 30.875” *
(785mm) 30.875” ** (785mm)
d Width (rear) 18.875”
(480mm) 20.875” ** (531mm)
e Depth *** 17.75”
(451mm) 18.75" ** (477mm)
f Hearth Depth
(includes insert
depth on hearth
plus required
hearth extension)
17.25"
439mm (US)
- - - - - - - - - - - -
19.25”
489mm (Canada)
17.25"
439mm (US)
- - - - - - - - - - - -
19.25”
489mm (Canada)
g Hearth Width 44.875"
1140mm 44.875" 1140mm
h Facing Width 46.875"
1191mm 46.875" 1191mm
i Facing Height 39"
991mm 39" 991mm
j Mantel Height 41.5"
1055mm 41.5" 1055mm
Figure 2 * Includes 2”(51mm) for power cord installation.
** 1” (26mm) Clearance to fireplace walls is required for ZC Fireplaces.
*** Add 1.25” (32mm) when using one-piece panel (FW+ Rectangle Only)
Fireplace Altered Tag
Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable
method). You may wish to place it in a location where it will be covered by the surround panels.

Fireplace Insert Installation (for qualified installers only) 9
© Travis Industries 100-01269 4110712
Insert Placement Requirements
•The insert must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" (915mm) of the front of the insert (Figure 3 “q”).
•Insert and hearth must be installed on a level, secure floor
•The minimum clearances, facing, and hearth requirements in Figure 3 must be met. Follow the
clearances for the type of fireplace being used – (masonry or zero-clearance-metal).





























Side
Wall
Combustible Mantel
Combustible Top Facing
Non-Combustible
Hearth
Facing
q
l
k
p
x
o
n
m
Minimum
Clearances Masonry Fireplace Z.C. (Metal) Fireplace
k Sidewall 9"
229mm 9" 229mm
l Side Facing
(non-
combustible)
9"
229mm 9" 229mm
m Top Facing
(non-
combustible)
39"
991mm 39" 991mm
n Mantel
(combustible) 41.5"
1055mm 41.5" 1055mm
o Front Hearth
(does not
include insert
extension “x”)
16"
407mm (US)
- - - - - - - - - - -
18”
458mm
(Canada)
16"
407mm (US)
- - - - - - - - - - -
18”
458mm
(Canada)
p Side Hearth 8"
204mm 8" 204mm
q Front of Insert 36"
915mm 36" 915mm
x Extension Onto
Hearth 1.25"
32mm 1.25" 32mm
Figure 3
Hearth Requirements
•Must extend 16" (USA) or 18” (Canada) in front of the insert and 8" on both sides.
•Must be non-combustible and at least .018" thick (26 gauge)
Masonry Fireplace Requirements
•Chimney must have a clay tile liner or a stainless steel liner (positive connection).
•Entire fireplace, including chimney, must be clean and undamaged. Any damage must be repaired
prior to installation of the insert.
•Chimney height: 15' (4.5M) minimum; 33' (10M) maximum (measured from base of insert).
•Entire fireplace, including chimney, must meet local building requirements.
•The fireplace insert must be placed on a masonry hearth built to UBC standards.

10 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Zero-Clearance (Metal) Fireplace Requirements
•Must utilize a positive (full reline) or direct connection (block-off plate)
•Must be manufactured by one of the following manufacturers:
• Marco • Majestic • Heatilator • Preway • Tempco • Superior
• Heat N Glo • Lennox • Martin • Monesson
•Entire fireplace, including chimney, must be clean and undamaged. Any damage must be repaired
prior to installation of the insert
•Entire fireplace, including chimney, must meet local building requirements
•Chimney height: 15' (4.5M) minimum; 33' (10M) maximum (measured from base of insert). Minimum
cross section: 28.65 square inches (18626 sq mm)
•The damper ("A") and grate ("B") must be removed (see Figure 4). The smoke shelf ("C"), internal
baffles ("D"), screen ("E"), and metal or glass doors ("F") may be removed (if applicable). The
masonry lining ("G"), insulation ("H"), and any structured rigid frame members (metal sides, floor, door
frame, face of the fireplace, etc. – "I") may not be removed or altered
C
B
F
I
D
E
A
G
H
Figure 4
Face Dimensions
















33”
23-1/4”
















33-1/2”
23-1/4”
















33-3/8”
51-1/2”
Radius
23-7/8”
2-7/8”
Avalon Victorian Lace Fireplace Xtrordinair Arched Lopi Wilmington
Figure 5
Drafting Performance
This appliance relies upon natural draft to operate. External forces, such as wind, barometric pressure,
topography, or factors of the home (negative pressure from exhaust fans, chimneys, air infiltration, etc.),
may adversely affect draft. Travis Industries can not be responsible for external forces leading to less
than optimal performance.

Fireplace Insert Installation (for qualified installers only) 11
© Travis Industries 100-01269 4110712
Figure 6
Insert Rollers
Two rollers are built into the back edge of the insert. This
allows the insert to be rolled into position by lifting the front
of the insert and pushing it into position (see Figure 7).
Figure 7
Leveling Bolt Installation
MASONRY NOTE: Place a metal plate below the
bolts on masonry fireplaces to prevent damage to the
floor brick.
Two leveling bolts are pre-installed on the insert to
allow for proper leveling within the fireplace. To
access the bolts, remove the back corner firebricks
and cover plates (see Figure 8 “a” and “b”) The bolts
are pre-threaded to a weld-nut on the base of the
insert. Use a 3/4” socket wrench to screw the bolts
down (clockwise) until the insert is level (see “c”).
SEALING THE COVER PLATE: We recommend
sealing the cover plate with furnace cement (place on
underside of cover plate).
BOLT LENGTH: The included bolts allow
approximately 1” of rise. If additional rise is required,
use a longer 1/2-13 thread bolt. Make sure the
additional bolt length does not interfere with the cover
plate.
a
b
c
Figure 8
Flue Installation
Included in the owner’s pack are
three “flue brackets” and six self-
drilling screws. Use these
components to secure the flue to the
fireplace insert.
Flue Opening
Flue (flexible or rigid)
Flue Bracket
Self-Drilling Screws
RLH Chim-Flex Starter Sections
RLH manufactures starter
sections in straight or
angled configurations to
suit your application.
They are secured from
inside the firebox, making
installation much easier.
Contact RLH for additional
details:
www.chim-flex.com

12 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Surround Panel Installation
Width Height Part#
8" Panels 45-1/2" 29-1/2" 96100346
10" Panels 49-1/2" 31-1/2" 96100347
12" Panels 53-1/2" 33-1/2" 96100348
FOR INSIDE FIT PANELS ONLY: the panels may be cut down to fit within the fireplace - see directions below.
Do not cut more than 4"
from each side panel. The rheostat is mounted
into the side panel. It
requires 1/8" and 3/8"
diameter holes to be
drilled into the panel.
Position the rheostat a
minimum 3" away from
the insert.
4" Min.
7/16"
•Before installing the side panels, position the insert over the hearth (not inside the fireplace). You
may wish to place something under the insert to prevent scratching (cardboard). Install the side
panels following the directions below.
Run the
rheostat wires
behind the
surround panel
(cut the lock-tie
holding them in
place).
Attach the surround panels with the 6 screws included with the fireplace insert.
HINT: Before installing the panels, pre-thread the holes in the side of the insert
(use the self-threading screws).
Run the power cord behind the surround panel
(cut the lock-tie holding it in place).
Emblem Installation (included with the face)
Secure the emblem to the right side panel with the two
nuts (included with the face).

Fireplace Insert Installation (for qualified installers only) 13
© Travis Industries 100-01269 4110712
•Install the top panel following the directions below.
Slide the top panel into place. The joggle clips on
the back of the panel insert over the tabs on the
side panel and the flange on top of the insert.
HINT: Before installing the top panel, position the insert in its final
location (1-1/4" from the fireplace opening) and attach the flue to
the insert.

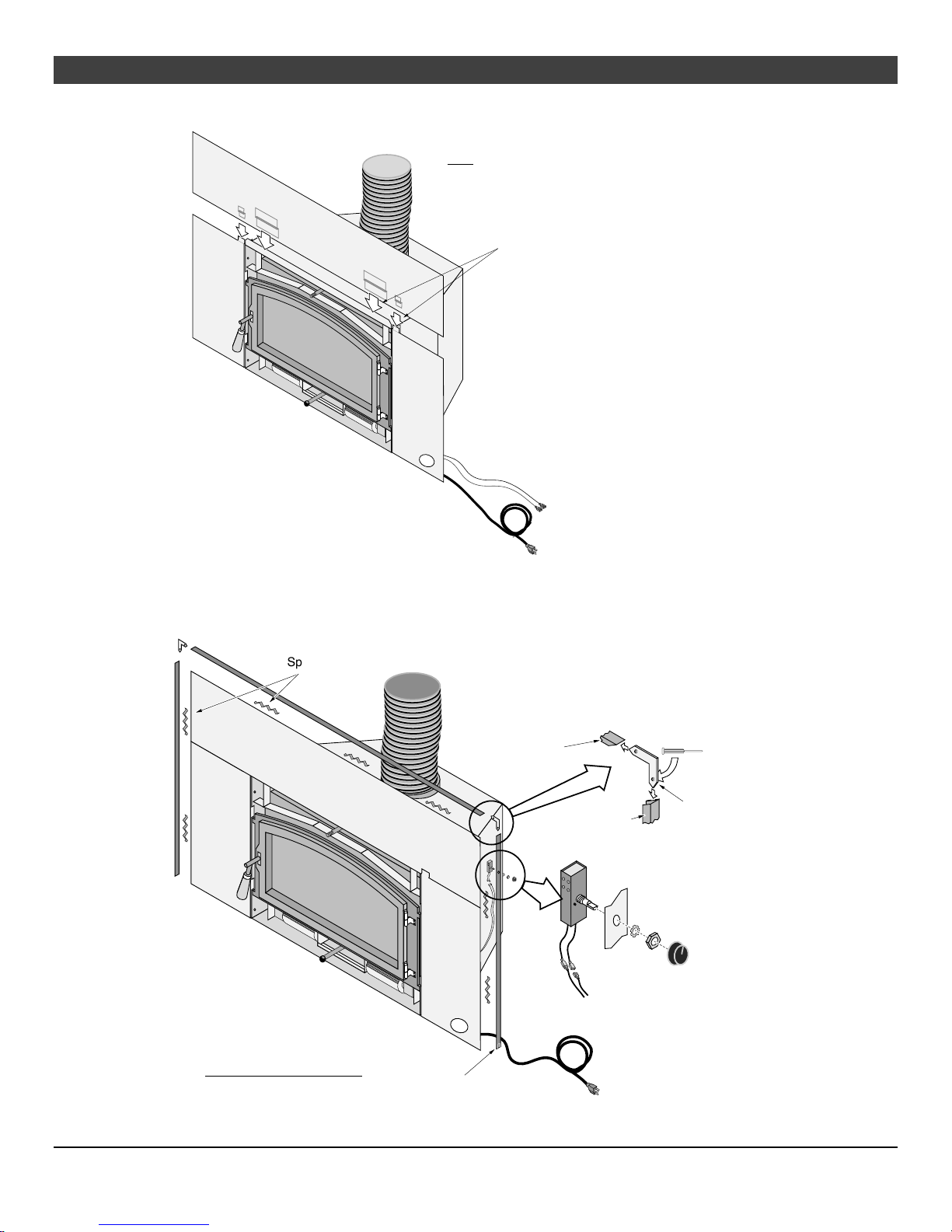

•Install the trim and rheostat following the directions below.
Trim Installation:
Insert one leg of each "L" bracket into the top and side
trim piece. Align the trim to form a precise corner, then
tighten the two set screws with a small standard
screwdriver. Slide the trim over the panels. Place the
spring clips behind the panels at the locations shown.
This keeps the trim tight against the panels.
"L" Bracket
Right Side Trim
Top Trim
Micro (1/16”)
Slotted
Screwdriver

Spring Clips
Knock-Out for Power Cord
A knock-out is provided on both sides the trim. Use pliers to remove
the knock-out. This allows the power cord to pass under the trim.
Attach the rheostat wires (orientation
does not matter).
Secure the rheostat
using the included nut
and star washer. The
knob presses into place.

14 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Face Installation
There are several face options available for this fireplace insert. They all install with hooks that allow the
face to be hung on the fireplace insert. Follow the directions below to install the face, bypass handle, and
air control handle.
Face Installation:
The face has four hooks that
hang on the cast-iron tabs
near the door hinges. When
installing, make sure the
hooks insert fully and lock
into place.
Air Control Handle
Un-Screw the air control handle (with
rod) from the air control.








Install the bypass and air control knob following the directions below.
















Air Control Handle
Screw the air control handle
(with rod attached) onto the
air control.
Bypass Knob
Screw the bypass knob onto the
damper control rod.









Fireplace Insert Installation (for qualified installers only) 15
© Travis Industries 100-01269 4110712
Re-Routing the Electrical Cord to the Left Side
The power cord is connected to the right side of the insert when it leaves the factory. It may be re-routed
to the left side following the directions below. Do this procedure before installing the surround panels.
•Disconnect the molex connector and remove the power cord following the directions below.
NOTE: An additional knockout is
provided if using the insert wiring kit.
Route the power through one hole,
the rheostat through the other.
Power
Cord
Rheostat Wires
Disconnect the molex connector
leading from the power cord.
Use pliers to compress the strain relief
from the top and bottom while pulling it
out of the hole in the side of the insert.
Remove the power cord.
Leave the rheostat
wires in place.
Make sure the power cord is
disconnected prior to
conducting these steps.
•Connect the power cord to the left side following the directions below.
Remove the button plug from the left side.
Re-attach the strain relief to the left side (use
pliers to compress the strain relief from the top
and bottom while pushing it into the hole).
Power
Cord
Attach the molex connector on the
power cord to the molex connector
on the left side of the insert.

16 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01269 4110712
Insert with
Positive
Connection
REQUIRED IN
CANADA.
The liner must be
stainless steel
connector or flexible
vent. Follow the liner
manufacturer's
insturctions for
installation and
support.















Remove damper
or wire it open
Airtight Insulated
Clean-Out
Combustible Mantle
Flue Liner
See the section "Insert
Placement Requirements" for
minimum clearances and
hearth required.

Cap (prevents water
from entering)
Install a non-combustible
cover plate to prevent water
from entering the chimney
Surround Panels
Figure 9
Insert with Direct
Connection
(Masonry
Fireplace)
NOT ALLOWED IN
CANADA.
A block-off plate or
other non-combustible
sealing device (e.g.
damper adapter) is
required. It must seal
the chimney to insure
smoke does not enter
the home while
providing the chimney
system with sufficient
draft.














Block-off plate or
damper adapter
Remove
damper
or wire it
open
Airtight
Insulated
Clean-Out
Stainless steel chimney
connector must Extend 1'
past the block-off plate or to
the flue liner
Combustible Mantle
Flue
Liner
See the section
"Insert Placement
Requirements" for
minimum clearances
and hearth required.
Surround Panels
Figure 10

Operating Your Appliance 17
© Travis Industries 100-01269 4110712
Safety Notice
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation
directions. Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
Read and follow all of the warnings on pages 4 and 5 of this manual.
Before Your First Fire
Verify the Installation
Before starting the stove, verify that the stove is properly installed and all of the requirements in this
manual have been followed.
Keep all flammable materials 36" away from the front of the stove (drapes, furniture, clothing, etc.).
Curing the Paint
This heater uses a heat-activated paint that will emit some fumes while
starting the first fire. Open doors and windows to the room to vent these
fumes. This typically lasts two to four hours. You may also notice oil burning
off of the interior of the heater. This rust-stopping agent will soon dissipate.
Door Gasket - The door gasket might adhere to the paint on the front of the
heater. Leave the door slightly ajar for the first fire and be careful when
opening the door after the first fire.








2 to 4 hours
Over-Firing the Stove
This stove was designed to operate at a high temperature. But due to differences in vent configuration,
fuel, and draft, this appliance can be operated at an excessive temperature. If the stove top or other area
starts to glow red, you are over-firing the stove. Shut the air control down to low and allow the stove to
cool before proceeding.
Over-firing may lead to damage of plated surfaces. If any portion of the heater glows red, it is
considered over-firing and will void the warranty.

18 Operating Your Appliance
© Travis Industries 100-01269 4110712
Opening the Door
The door becomes hot during use. Use a glove to open the door if the handle is hot.
To prevent smoke from entering the room, open the bypass before opening the door (see following
page for directions). You can also open the door a small amount and let air enter the firebox.
Rotate the handle up.
Swing the door open.
Opening the Doors
Closing the Doors
Rotate the handle down to secure
the door.
Lift the handle and close the door.

Operating Your Appliance 19
© Travis Industries 100-01269 4110712
Bypass Operation
The bypass controls the flow of smoke inside the heater. When pulled out, smoke goes directly up the
flue, creating more draft. When pushed in, the smoke goes around the baffle, utilizing the secondary
combustion and making the heater more efficient.
•When starting or re-loading, pull the bypass out.
•During normal operation, push the bypass in.
Bypass Pushed In
Used for normal operation
Bypass Pulled Out
Used for starting and re-loading
Use the included pull tool
to operate the bypass rod











20 Operating Your Appliance
© Travis Industries 100-01269 4110712
Starting a Fire
Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-pee",
some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure proper fire
starting.
•Make sure the air control is pushed in and the by-pass pulled out. If additional air is needed, open
the doors 1/4" during the first five minutes of start-up.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start
or "freshen up" a fire in this stove. Keep all such liquids well away from the stove while it is in use.
DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE. DO NOT BURN GARBAGE OR
FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL. Do not place such fuel
within space heater installation clearances or within the space required for charging and ash removal.
If using a firestarter, use only products specifically designed for stoves - follow the manufacturer's
instructions carefully.
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT
MAY CAUSE SKIN BURNS.
If the smoke does not pass up the chimney, ball up one sheet of newspaper, place it in the center of the
firebox and light it. This should start the chimney drafting (this eliminates "cold air blockage").
Use plenty of kindling to ensure the stove reaches a proper temperature. Once the kindling is burning
rapidly, place a few larger pieces of wood onto the fire.
Starting a “Top-Down Fire”
One particularly successful method for starting a fire is to
stack several large pieces of wood in the center of the stove
(see the illustration to the right). Then place a several wads
of newspaper in the center with kindling on top. When you
light the newspaper this “top-down” fire will burn its way to
the center, igniting the larger pieces. With some practice,
this method should work for you.
