Travis Industries Revolution 36CF User manual

36 CF ST/Pier
Gas Fireplace
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028- -87-5
ANSI Z21.88a-2007
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mo ile Home
• Bedroom Approved
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flamma le vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your uilding.
• Immediately call gas supplier from a neigh or's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must e performed y a qualified installer, service agency or the
gas supplier.
This appliance may e installed in an aftermarket permanently located, manufactured home (USA only)
or mo ile home, where not prohi ited y local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installation Manual
Installer:After installation give this manual to the home-
owner and explain operation of this heater.
 Copyright 2009, T.I. $10.00 100-01212_000 4090102
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4090102 100-01212_000
Overview
This manual details the installation
requirements for the 36 C ST and Pier
fireplace. or operating and maintenance
instructions, refer to the 36 C ST/Pier Owner's
Manual (part # 100-01213).

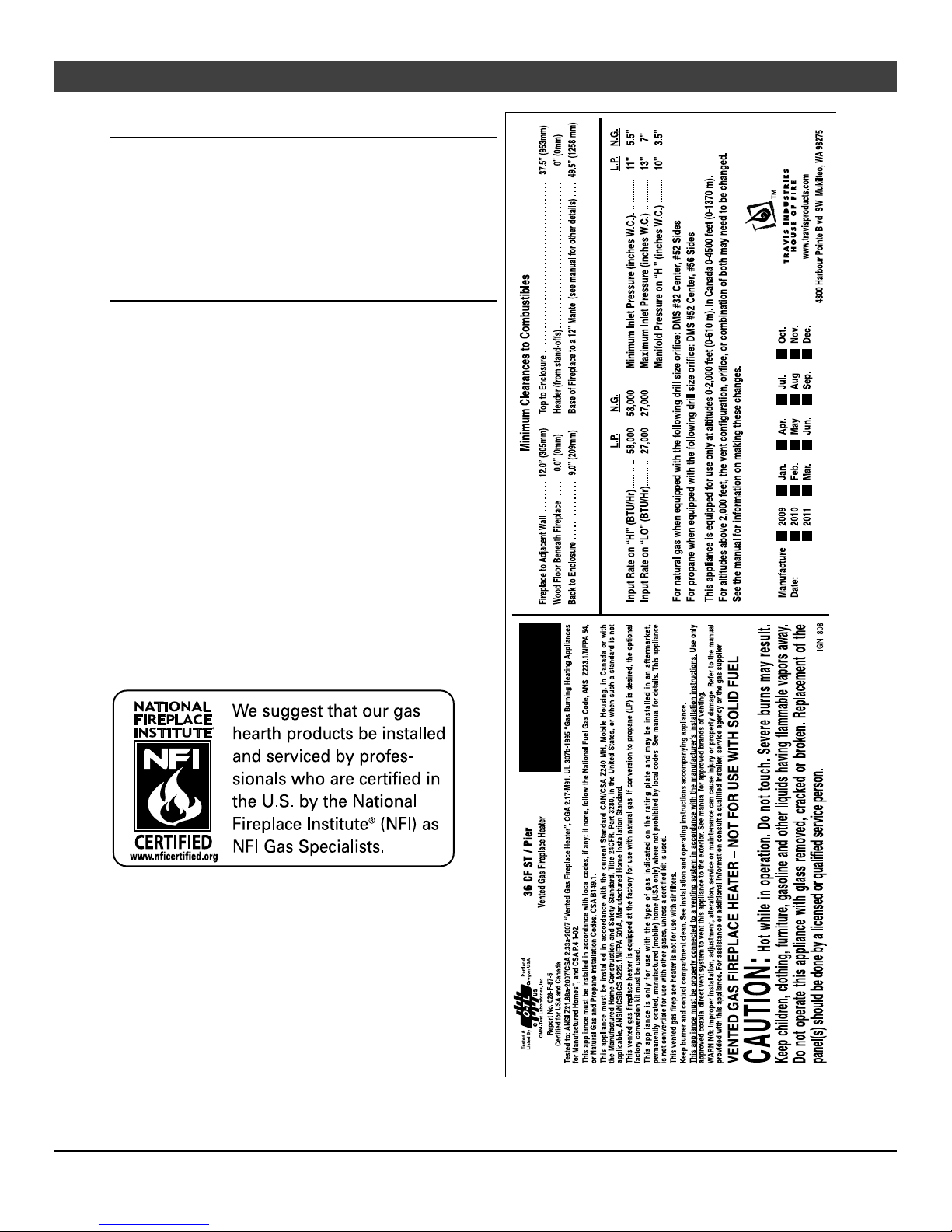

Listing Details
This appliance was listed by OMNI Test Labs to
ANSI Z21.88 - report # 028- -87-5. The listing
label is attached to the appliance near the gas
control valve. A copy is shown to the right.
ICBO Approval
This appliance was listed by OMNI-Test
Laboratories - ICBO # TL130.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas itters
National Fireplace Institute
Figure 1

Ta le of Contents 3
© Travis Industries 4090102 100-01212_000
Introduction
Overview.................................................................2
Listing Details..........................................................2
Safety Precautions
Safety Precautions...................................................4
Features and Specifications
Installation Options...................................................6
Specifications..........................................................6
Dimensions.............................................................6
Installation
Packing List............................................................. 7
Additional Items Required..........................................7
Recommended Installation Procedure .........................7
Massachusetts Requirements..................................... 8

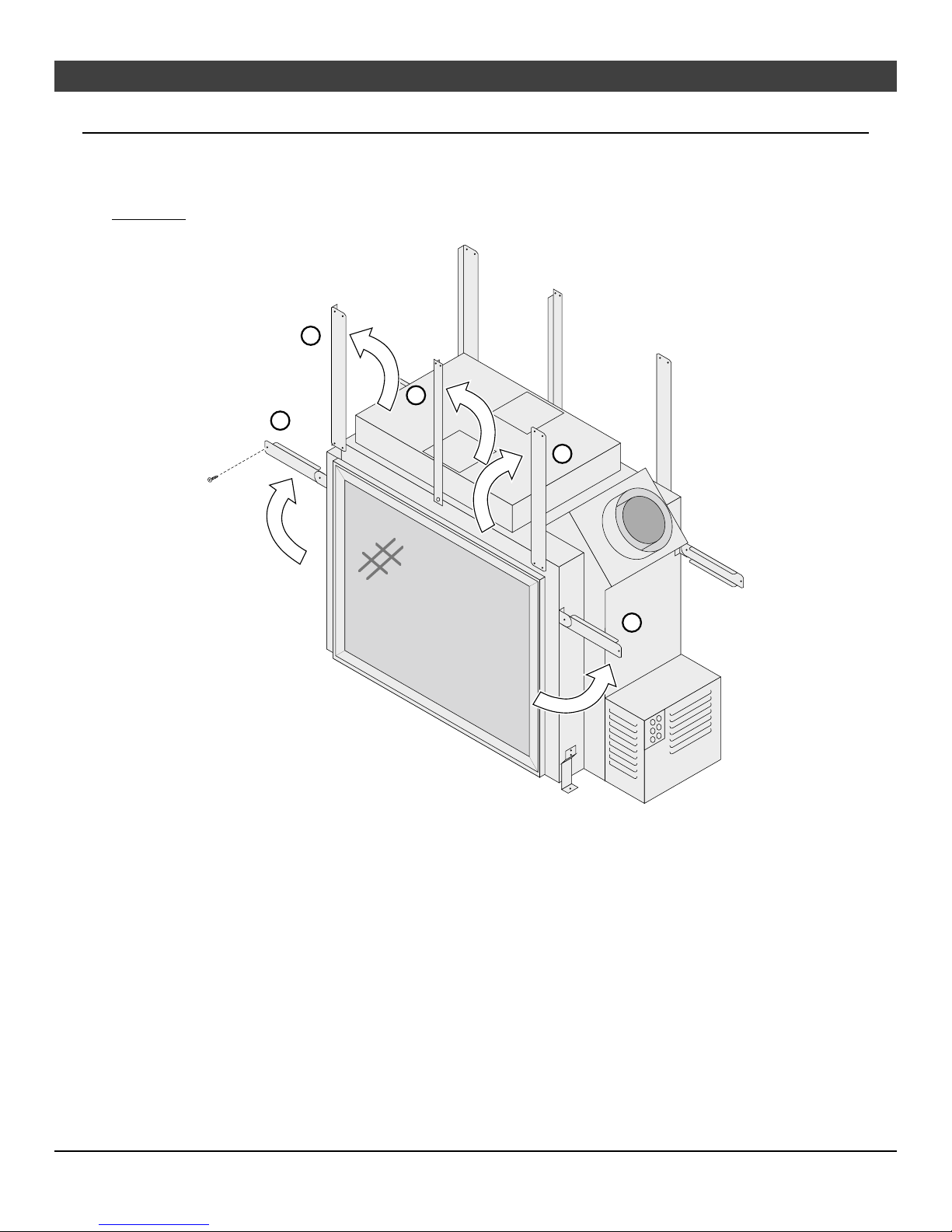

Preparing the ireplace Stand-offs.............................. 9
ireplace Placement Requirements.............................10
Clearances...........................................................10
Raised ireplaces .................................................10
Minimum raming 36 C ST (See Through) ...............11
raming Dimensions – 36 C Pier...........................12

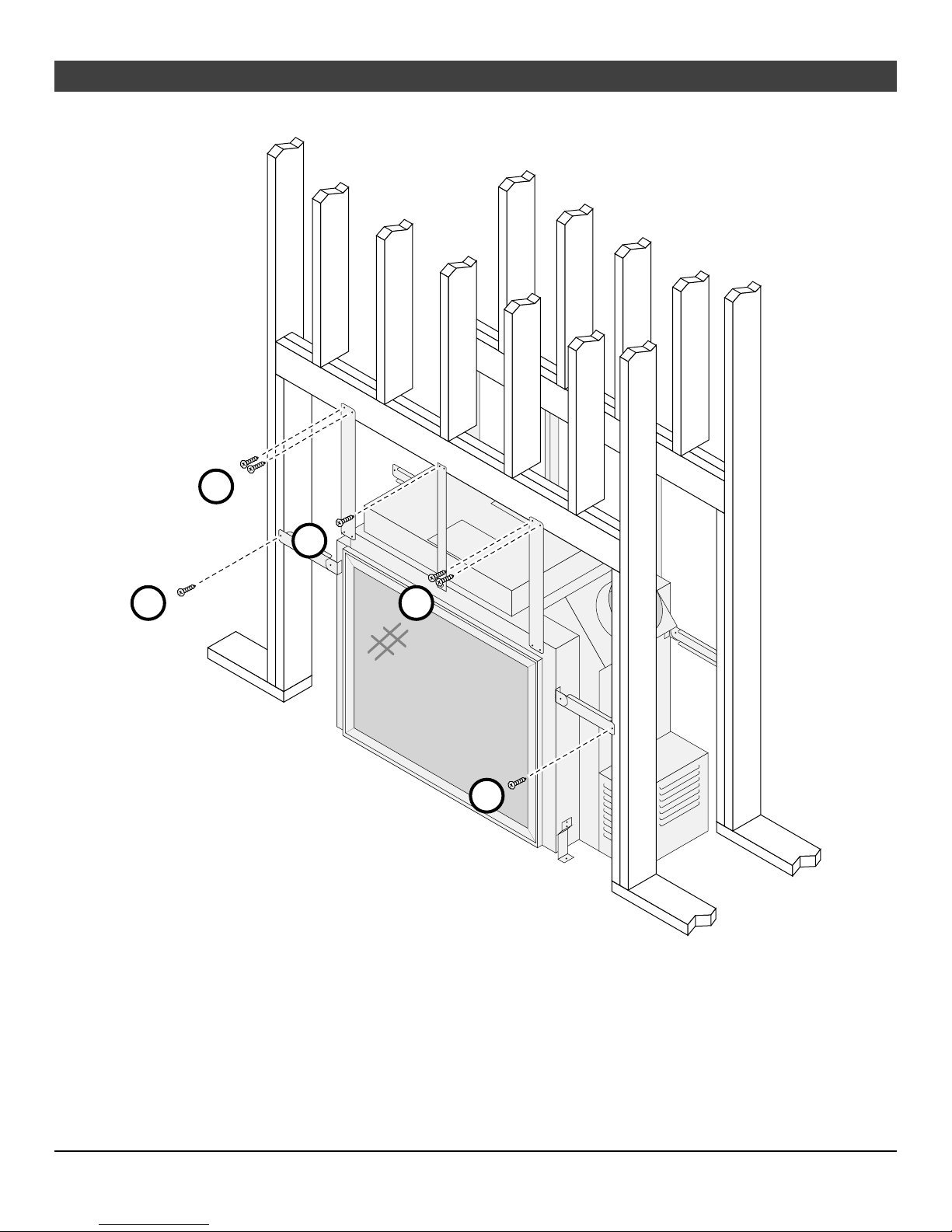

Attaching Stand-Offs to raming .............................13

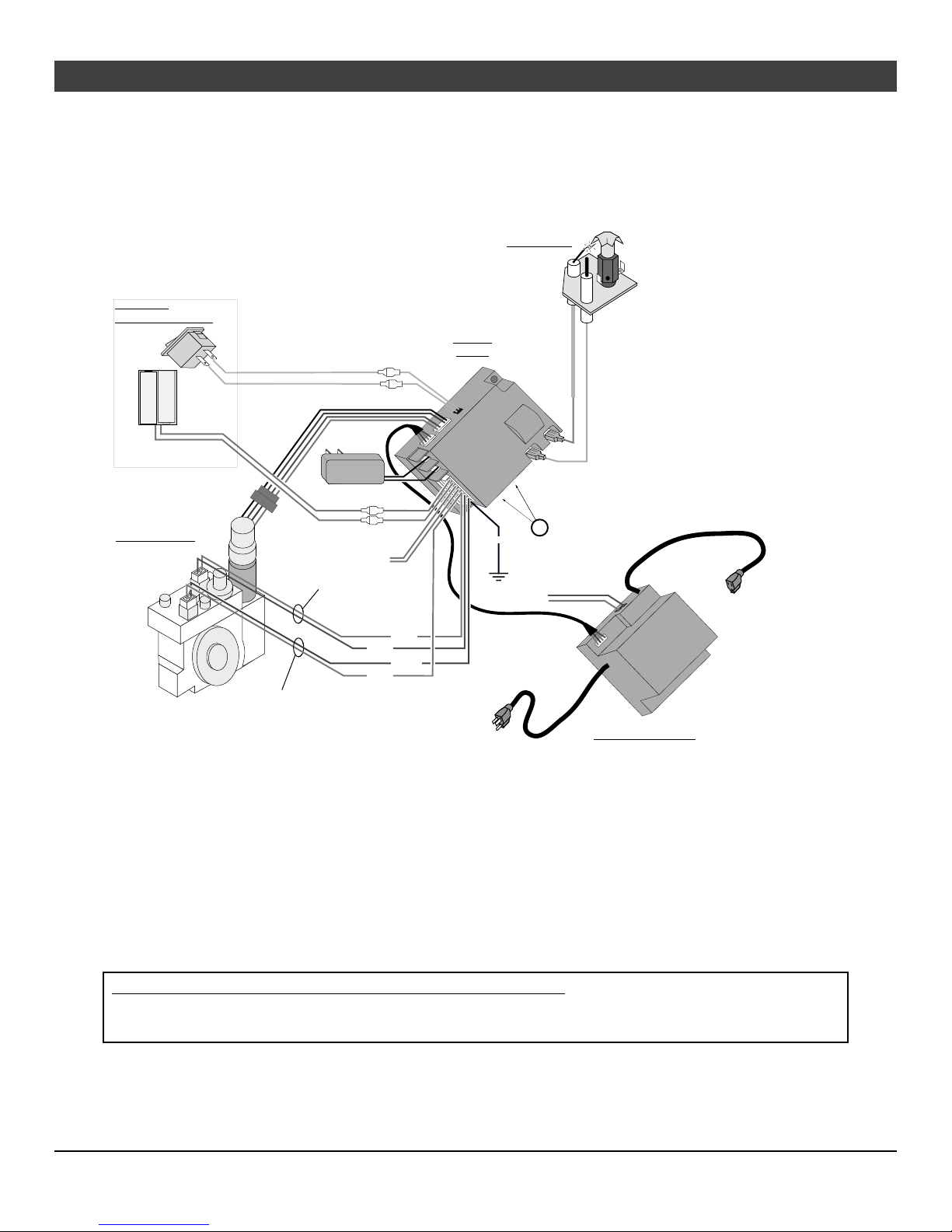

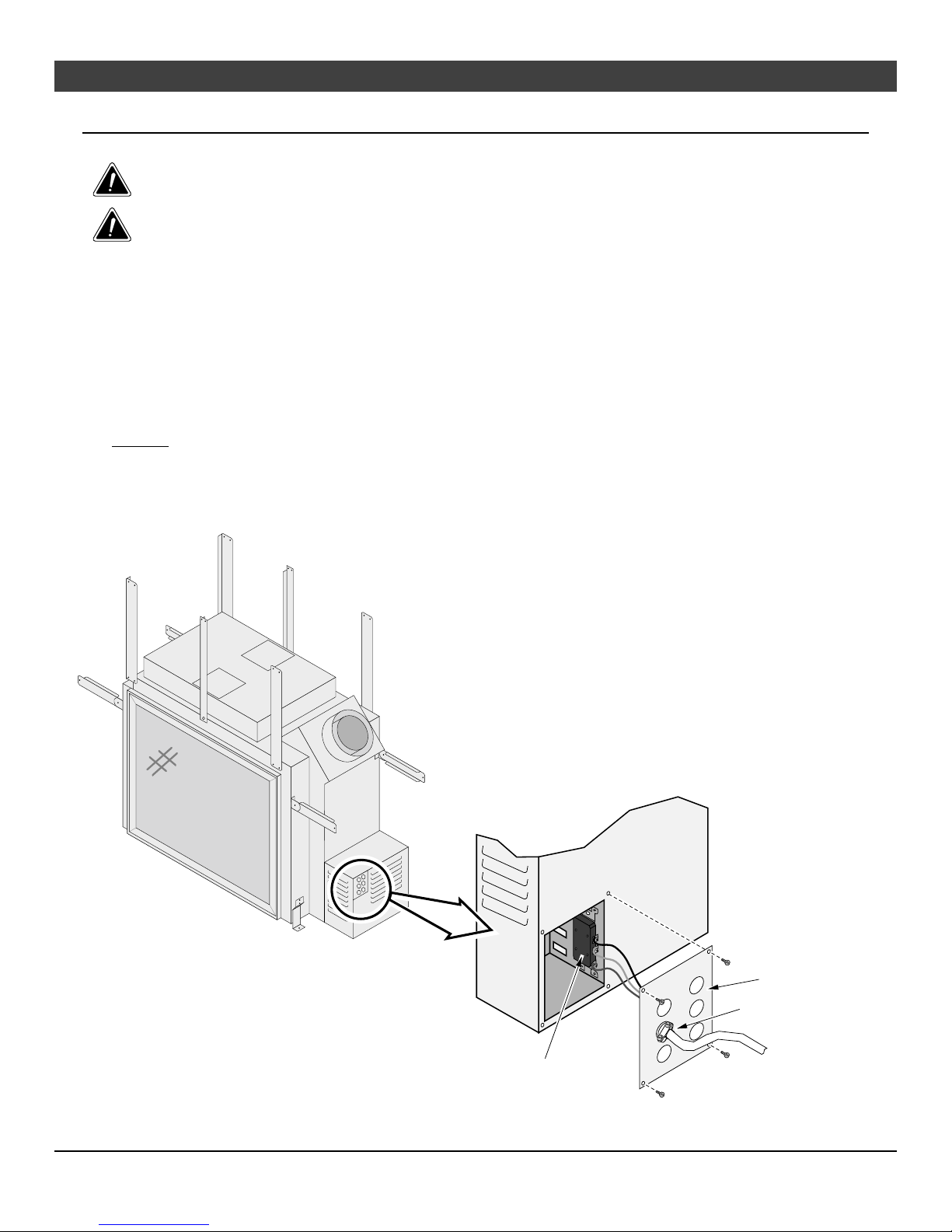

Required Electrical Connection...................................14
Battery Pack / Learn Switch Installation ....................... 15

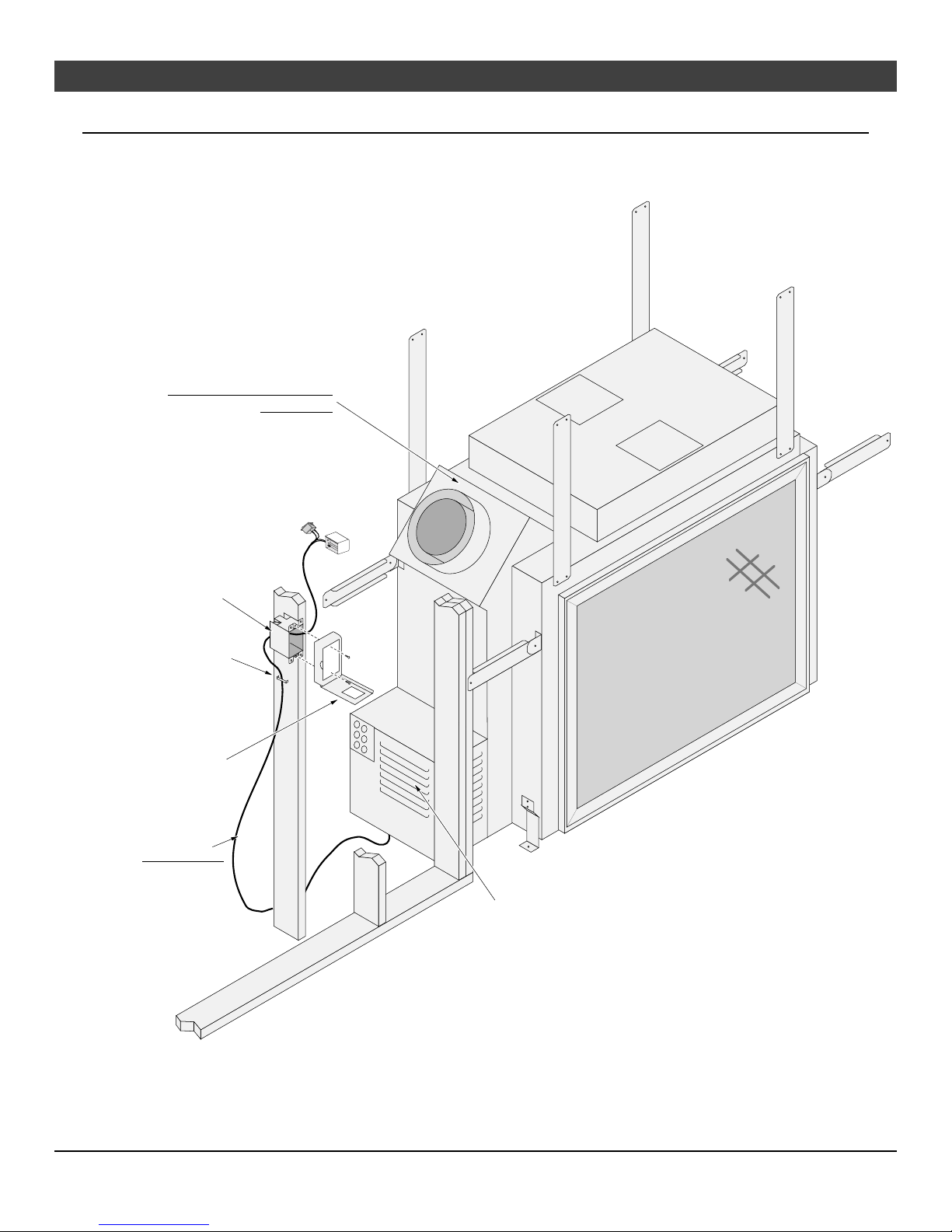

Steps for Installing the Battery Box and Learn Switch..16
Battery Installation ................................................16
Remote Synchronization............................................ 17
Gas Line Requirements.............................................18
Gas Line Connection .............................................18
Gas Inlet Pressure ................................................18
Installation (continued)
Vent Requirements .................................................. 19
Approved Vent...................................................... 19

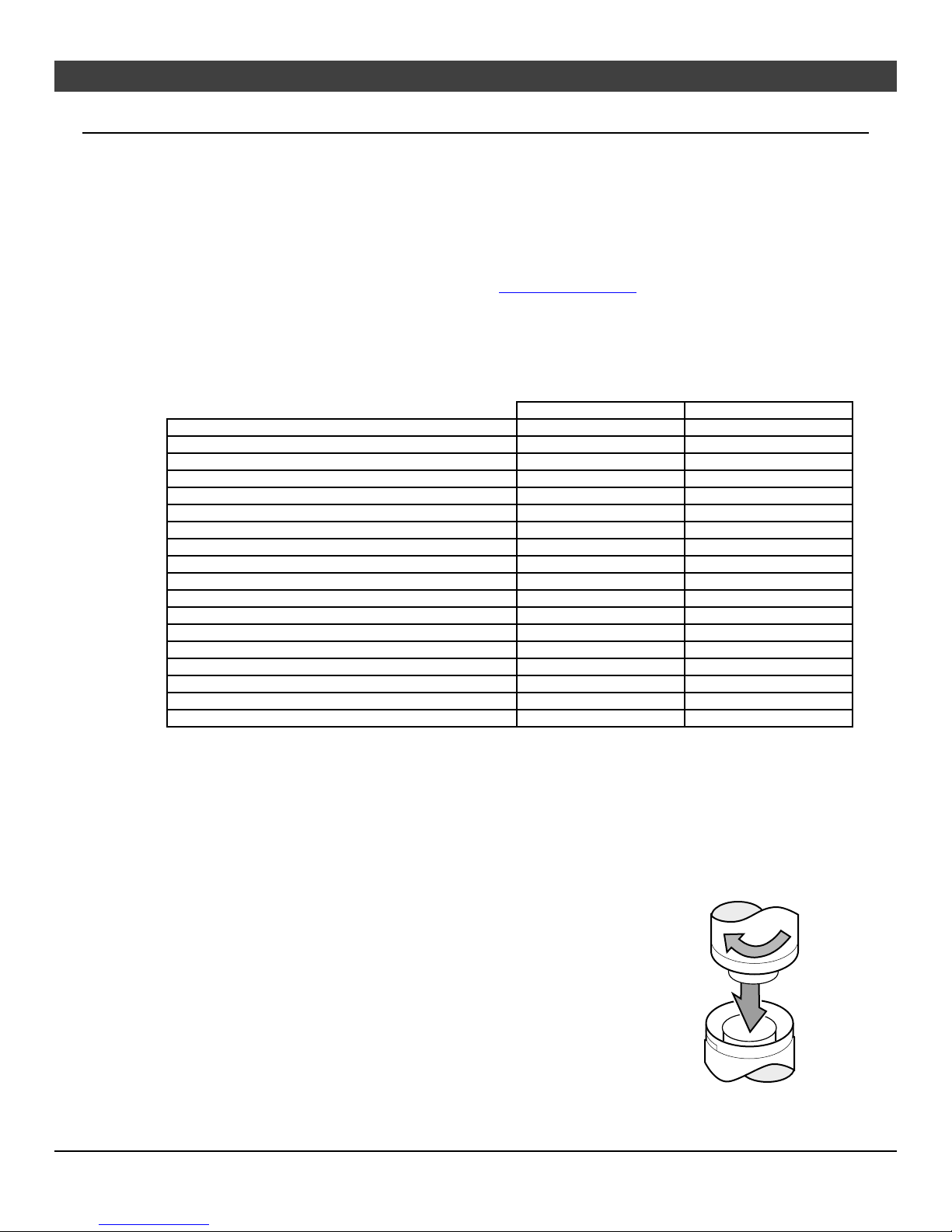

Altitude Considerations.......................................... 19
Vent Clearances................................................... 20
Vent Installation....................................................19
Approved Vent Configurations:
Exhaust Restrictor Adjustment................................21
Vent Location.......................................................21
Rear Vent, Horz. Term. (1 45° Elbow).......................22
Rear Vent, Horz. Term. (1 45°, 2 90° Elbows)............ 23
Rear Vent, Horz. Term. (1 45°, 4 90° Elbows)............ 24
Rear Vent, Vert. Term. (1 45°, 3 90° Elbows) ............ 25
Top Vent, Horz. Term. (1 45°, 1 90° Elbow)...............26
Top Vent, Horz. Term. (1 45°, 3 90° Elbows) ............. 27
Top Vent, Vert. Term. (1, 3, or 5 45° Elbows) ............28
Top Vent, Vert. Term. (1 45°, 2 90° Elbows) ..............29
Termination Requirements......................................... 30
Hearth Requirements ............................................... 31
Hearth Requirements – Recessed Hearth ................32
acing Requirements ............................................... 33
Non-Combustible acing........................................34
Mantel Requirements................................................ 35
Finalizing the Installation
Steps for inalizing the Installation ............................. 36
Air Shutter Adjustment.............................................. 37
Glass rame Removal and Installation........................ 38
Log Set Installation .................................................. 39
LP Conversion Instructions ....................................... 43
Power Heat Duct Installation...................................... 47
Andiron Installation................................................... 47
Index
Index...................................................................... 48

4 Safety Precautions
© Travis Industries 4090102 100-01212_000
Safety Warnings:
• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
• This unit must be installed by a qualified installer to prevent the possibility of an explosion.
• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88).
• A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1,
or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
• Notify your insurance company before hooking up this fireplace.
• The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.
• Contact your local building officials to obtain a permit and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your
dealer and arrange for proper servicing.
• It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your
dealer for a full explanation of your heater and what to expect.
• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
• Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
• Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
• The viewing glass should be opened only for conducting service.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4090102 100-01212_000
Safety Warnings (continued):
• Allow the heater to cool before carrying out any maintenance or cleaning.
• Operate the heater according to the instructions included in this manual.
• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for
service.
• This unit is not for use with solid fuel.
• Do not place anything inside the firebox (except the included logs).
• If the fiber logs become damaged, replace with Travis Industries log set.
• Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature
heater. Young children should be supervised when they are in the same room as the heater.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).

6 Features and Specifications
© Travis Industries 4090102 100-01212_000
Installation Options
• Residential or Mobile Home
• lush or Recessed ace
• Raised or loor Placement
• Horizontal or Vertical Vent
• Bedroom Approved
Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 58,000 58,000
Minimum BTU Input on Low 27,000 27,000

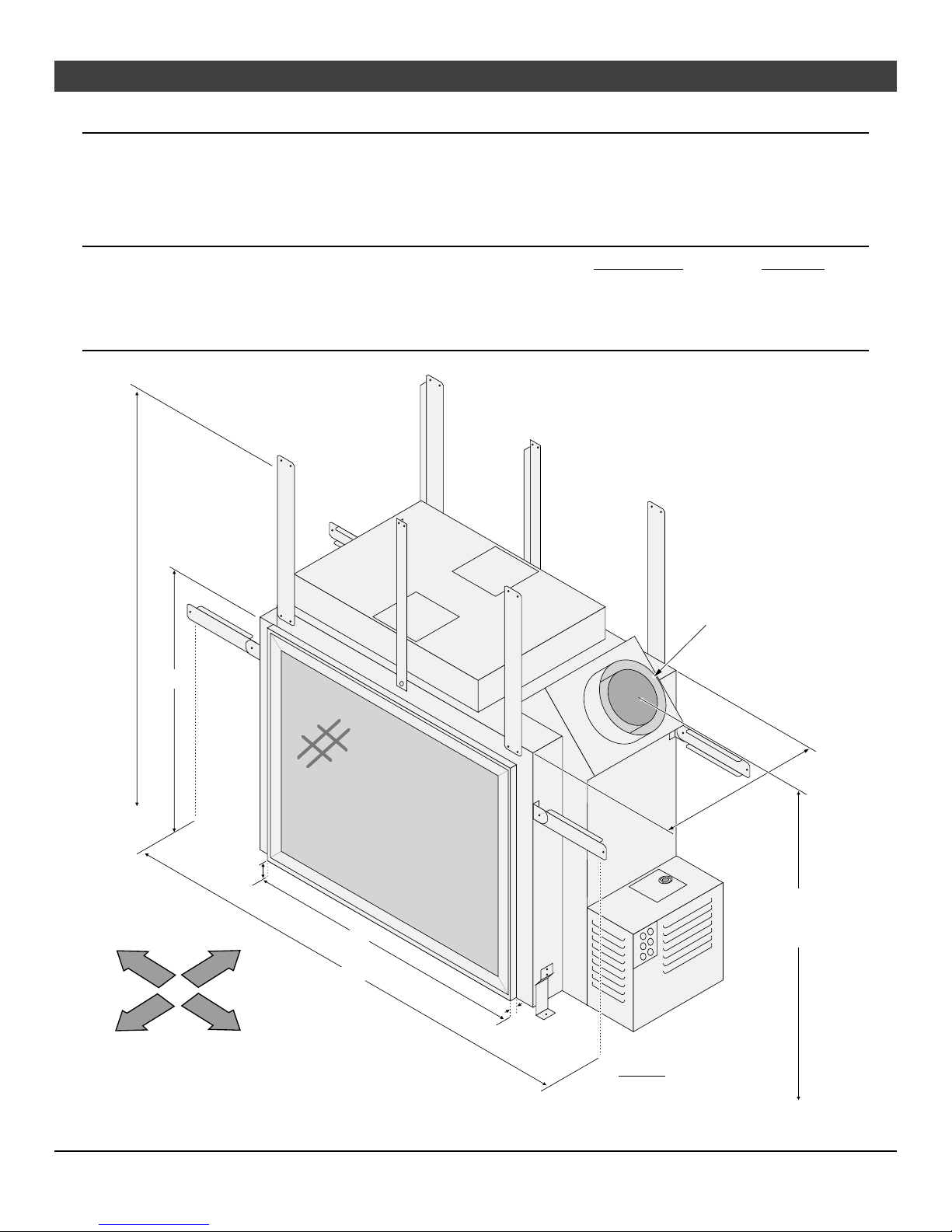

Dimensions
Weight: 270 Lbs.
1" *
* Includes the 1" standoffs below the baseplate.
8-5/8" Outside Diameter
56-1/2" *
33" *
3/4"
22-1/2"
See "Vent
Location" for
details
62-1/2"
38"
Right Left
ront Back
Figure 2

Installation (for qualified installers only) 7
© Travis Industries 4090102 100-01212_000
Packing List
• Glass LatchTool
• Log Set with E bers and Rock Wool
• Re ote Control with Wall Mount
• LP Conversion Kit (2 orifices and 1 rate screw)
• Battery Box
• Learn Switch with 12’ Battery Box Wire
• Andiron Brackets (4)
• Fiber Board
Additional Items Required
• Firebacks (SKU 96100177 or 96100178)
• 1080/36 CF Direct Vent (available only fro Travis Industries – see page 19 for part nu bers)
• Gas Line Equip ent (shutoff valve, pipe, etc.)
• Electrical Equip ent
Recommended Installation Procedure
1. Fra e the opening for the fireplace. We suggest o itting the fra ing above the header to
allow for easier vent installation.
2. Place the fireplace in place, aking sure it is level and plu b. Attach using the nailing
brackets.
3. Install the vent, electrical connection, gas line, and battery box. Install power heat duct (if
being used).
4. Install the fra ing above the header.
5. Install the hearth (if applicable).
6. Install the included non-co bustible facing.
7. Install the facing.
8. Install the antel (if applicable).
9. Finalize the installation (see page 36).

8 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
xemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas quipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas quipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9
© Travis Industries 4090102 100-01212_000
Preparing the Fireplace Stand-offs
This appliance is shipped with the header and side stand-offs in the retracted position. These stand-
offs must be placed in their upright position prior to installing the fireplace. Secure the stand-offs to
the framing with screws or other fasteners.
WARNING: Failure to correctly erect the stand-offs may lead to a serious fire-hazard and will void
the listing and warranty of this fireplace.
a
b
c
d
e
Figure 3

10 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Fireplace Placement Requirements
• Fireplace must be placed in a room with a minimum 96” ceiling.
• Fireplace must be placed directly on the sub-floor or wood platform (not on linoleum or carpet .
• Fireplace must be installed on a level surface capable of supporting the fireplace and vent.
• This heater may be placed in a bedroom. Please be aware of the large amount of heat this
appliance produces when determining a location.
Clearances
• When installed, walls that protrude to the sides of the fireplace must be a minimum 12” from the
glass frame (tile stop .
• Due to the high temperature, the heater should be located out of traffic and away from furniture
and draperies.
• Fireplace must be placed so the vents below and above the glass do not become blocked.
Raised Fireplaces
• The fireplace (and hearth, if desired may be placed on a platform designed to support the
fireplace and vent.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Platform
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Minimum 78”Fireplace
Enclosure Height.
AAA
AAA
AAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAA
AAA
AAA
AAAA
AAAA
AAAA
Optional Raised Hearth
(see “Hearth Requirements”for details)
Figure 4

Installation (for qualified installers only) 11
© Travis Industries 4090102 100-01212_000
Minimum Framing 36 CF ST (See Through)
62-1/2"
Minimum 78” Fireplace
Enclosure Height
NOTE:
We recommend you install the
framing after placing the fireplace in
position.
As an alternative, you may omit the
framing above one side and back of the
fireplace until the fireplace is in position
(shown in gray). 56-1/2"
22-1/2"
Right
Left
Front Back
42-1/4"
If venting to the rear using a 45°elbow directly
off the fireplace, the vent will be 42-1/4" above
the base of the fireplace.
Vent Clearances:
8-5/8" Diameter vent requires 3-1/2" clearance
to the sides. You may need to notch the
framing to accommodate this clearance.
15-5/8"
Figure 5

12 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Framing Dimensions – 36 CF Pier
18-1/4"
22-1/2”
NOTE: Do not build into
this area - it must be left
clear to provide
adequate clearance for
the vent.
49-3/8”
56-1/2”
Minimum 78”Fireplace
Enclosure Height
Right Left
Front Back
Vent Clearances:
8-5/8" Diameter vent requires 3-1/2" clearance to
the sides. You may need to notch the framing to
accommodate this clearance.
15-5/8"
Glass
Centerline
Figure 6

Installation (for qualified installers only) 13
© Travis Industries 4090102 100-01212_000
Attaching Stand-Offs to Framing
a
b
c
d
e
Figure 7

14 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Required Electrical Connection
Make sure power to the heater has been turned off prior to installation (disable the breaker).
Do not connect 110-120 VAC to the gas control valve or the on/off circuit on this fireplace.
This fireplace utilizes 110 VAC to power the receiver module and intermittent pilot system.
• The electrical line to the grounded receptacle inside the fireplace must be installed by a
qualified installer and must meet all local codes. The fireplace must be properly grounded in
accordance with local codes (or ANSI/NFPA 70-1987 .
• Make sure the household breaker is shut off prior to working on any electrical lines.
• The fireplace must be properly grounded in accordance with local codes (or ANSI/NFPA 70-1987
• The electrical line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
• Attach an electrical line to the receptacle inside the control box (see the illustration below .
Make sure to connect the ground wire to the grounding tab on the receptacle (this grounds the
fireplace .
Grounded 110V
Power Supply
Attach the electrical line,
including the grounding wire,
to this receptacle.
Control Box
Cover Plate
Romex Connector

Installation (for qualified installers only) 15
© Travis Industries 4090102 100-01212_000
Batter Pack / Learn Switch Installation
• The battery pack and learn switch must be mounted inside a junction box in a location that
may be reached by the 12’ long battery box wires (see Figure 8 .
Staple the two wires near the junction
box. This prevents the wires from
slipping out of the junction box while
the batteries are replaced. Take care
to prevent damage to wires.
Junction Box
(not supplied)
Battery Box and Learn Switch
(placed inside the junction box)
Remote Holder - used to cover the
junction box. It is removed to
replace batteries and access the
learn switch
Battery Box Wire
Remove the Control Box to access the battery box wire. See the
illustration on the following page for wiring details.
Wire Length = 12'
Do not route the wires over the top
of the fireplace.
Figure 8

16 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Steps for Installing the Battery Box and Learn Switch
1. Remove the control cover and attach the 12’ long battery box wire to the quick connects on the
receiver module (see Figure 9 below . Route the battery box wire through the opening below
the cover. At this time make sure the continuous pilot switch is set to “OFF” and the remote
switch is set to “REMOTE” on the receiver module – item “a” . You may also wish to verify all
the wire leads are fully attached.
POWER
MOTOR
Learn
Continuous
Pilot
Off/On Remote/Off ADJ
SI
Motor Wires (for flame height adjustment)
Red, Yellow, White, and Blue wires
White
Green
Orange
White
Main Burner Control Wires
Pilot Flame Control Wires
Sensor ("S")
Wire (White)
Brown Switch
Wires (not
used)
Battery Box
(external junction box)
Gas Control Valve
Receiver
Module
Pilot Assembly
Make sure continuous pilot
is set to "OFF" and remote
is set to "REMOTE".
a
Igniter ("I") Wire
(Orange - with
fiberglass
insulation)
AC Adapter
(wire orientation does not matter)
COMM.
Black
Ground
Battery Wires
Red and White Wires
Learn Wires
Two White Wires
Power Input
Auxiliary Power
(Not Used)
Accent Light Wires
Orange and White Wires
Make sure continuous pilot
is set to "OFF" and remote
is set to "REMOTE".
120V Extension Module
Figure 9
2. Determine a location for the single-gang junction box that contains the battery pack and learn
switch. It must be located within 12’ of the fireplace. Mount the junction box.
3. Insert the battery box wires through the junction box, leaving approximately 8” of slack so the
battery pack may be removed and the batteries replaced. Use a staple or other means to
secure the wiring to the framing – this prevents the wires from slipping out of the junction box in
the event the wires become disconnected from the battery pack (see Figure 8 . NOTE: The
wiring is low-voltage (6V and does not require a strain relief. Connect the learn switch and
battery pack wires (see Figure 9 .
4. Place batteries inside the battery pack and place it inside the junction box. Attach the remote
holder to the junction box with the included screws.
INSTALLATION WARNING – Remote Synchronization
At this time we highly recommend you verify the remote and fireplace are synchronized. This
process requires access to the learn switch. See the instructions on page 17 for details.
Battery Installation
This fireplace uses four AA batteries for operation during power outages. Place the batteries into
the battery box. In addition, two AAA batteries are required for the transmitter.

Installation (for qualified installers only) 17
© Travis Industries 4090102 100-01212_000
Remote S nchronization
The fireplace is shipped with the remote and fireplace pre-synchronized . Do not
synchronize the remote unless you are 100% sure it does not work correctly.
Synchronizing the Remote
NOT : The fireplace must have power and the transmitter must have batteries to complete this process.
WARNING: Shut the gas off to the fireplace prior to conducting this process.
1 Press the “Learn” button once. The fireplace will beep once.
2 Press the “Mode” button on the remote. The fireplace will beep five times to indicate
synchronization.
NOT : Re-setting the Receiver Module
If the receiver module fails to synchronize with the remote after two attempts, you should re-set the
receiver module. To do this, hold down the LEARN button for approximately 10 seconds until the
receiver beeps 3 times. This indicates the receiver has been re-set and can be synchronized using
the instructions above.

18 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Gas Line Requirements
MASSACHUS TTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible connector must not be longer than 36 inches.
• Shutoff valve must be a “T” handle gas cock.
• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas
log.
• A carbon monoxide (CO detector is required in the same room as the appliance.
• The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and the
requirements listed below.
• The fireplace and gas control valve must be disconnected from the gas supply piping during any pressure
testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig, isolate the
gas supply piping by closing the manual shutoff valve.
• Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
• This fireplace is designed either for natural gas or for propane (but not for both). Make sure the correct fuel is
used.
• An accessible manual shut-off valve (“t”handle gas cock) is required within 6’of the fireplace.
Gas Line Connection
• Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts
a licensed plumber/gasfitter .
• A shutoff valve is built into the fireplace. It is located on the back side of the fireplace and acts as the gas
inlet connection. After installing the gas line (and testing , remove the cover plate shown below and turn the
gas shutoff valve to “ON”.
Gas Line
(1/2" M.P.T.)
NOTE: This cover plate
may be removed to access
the shut-off valve.
Figure 10
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA
Propane 13" W.C. (2.73 kPA
• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.
• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at
an improper pressure.

Installation (for qualified installers only) 19
© Travis Industries 4090102 100-01212_000
Vent Requirements
• The gas appliance and vent system must be vented directly to the outside of the building, and
never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each
direct vent gas appliance must use it's own separate vent system.
• In addition to the requirements listed here, follow the requirements provided with the vent.
• A firestop is required whenever the vent penetrates a floor or ceiling (or passes through
horizontal framing members . A thimble is required whenever the vent passes through a wall (or
horizontal framing members .
• Venting installation instructions may be found at www.duravent.com. Keep the vent
instructions, along with this manual, with the appliance for future reference.
Approved Vent
• This fireplace may only use the following vent components (8-5/8” / 6” external diameter co-
axial vent . These parts are available from Travis Dealers.
Simpson Part # Travis Part #
6” Length 68GSS-06 98900024
12” Length 68GSS-12 98900023
24” Length 68GSS-24 98900022
36” Length 68GSS-36 98900021
48” Length 68GSS-48 98900020
4” to 8” Adjustable Length (Slip Connector 68GSS-12A 98900025
45° Elbow 68GSS-L45 98900026
90° Elbow 68GSS-L90 98900027
Wall Thimble 68G-SS-WT 98900030
Fire Stop 68G-SS-FS 98900029
Elbow Strap 68G-SS-ES 98900028
Wall Strap 68G-SS-WS 98900031
Adjustable Roof Flashing (0/12 to 6/12 68G-SS-F 98900035
Adjustable Roof Flashing (7/12 to 12/12 68G-SS-SF 98900036
Storm Collar 68G-SS-SC 98900032
Vinyl Siding Stand-off 68GSS-VSS 98900037
Horizontal Termination 68G-SS-HC 98900033
Vertical Termination 68G-SS-VC 98900034
Altitude Considerations
• This heater has been tested at altitudes ranging from sea level to 6,000 feet. In this testing we have found
that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Vent Installation
• Slide the vent sections together and turn 1/4 turn until the sections lock
in place.
• Screws are not required to secure the vent. However, three screws may
be used to secure vent sections together if desired.
• High temperature sealant is recommended at the appliance starter
section connection (use high-temperature silicone or Mill-Pac® .
• If disassembly is required, at time of re-assembly check to see if the vent
creates a tight fit. If it does not, apply high temperature sealant to the
joints of the affected sections.
• Horizontal sections require a 1/4" rise every 12" of travel
• Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape

20 Installation (for qualified installers only)
© Travis Industries 4090102 100-01212_000
Vent Clearances
IN THE ENCLOSURE (under 78")
Vertical or Horizontal Sections:
6" Clearance Above
3-1/2" Clearance To The Side
2" Clearance Below
Horizontal Penetrations
(through walls, etc.)
(thimble is required - sku 98900030)
4" Clearance Above
2" Clearance To The Side
2" Clearance Below
Vertical Penetrations
(through ceilings, roofs, etc.)
(firestop is required - sku 98900029)
1" Clearance To the Side
ABOVE THE ENCLOSURE (over 78")
Vertical Sections:
1" Clearance To the Side
Horizontal Sections:
4" Clearance Above
2" Clearance To The Side
2" Clearance Below

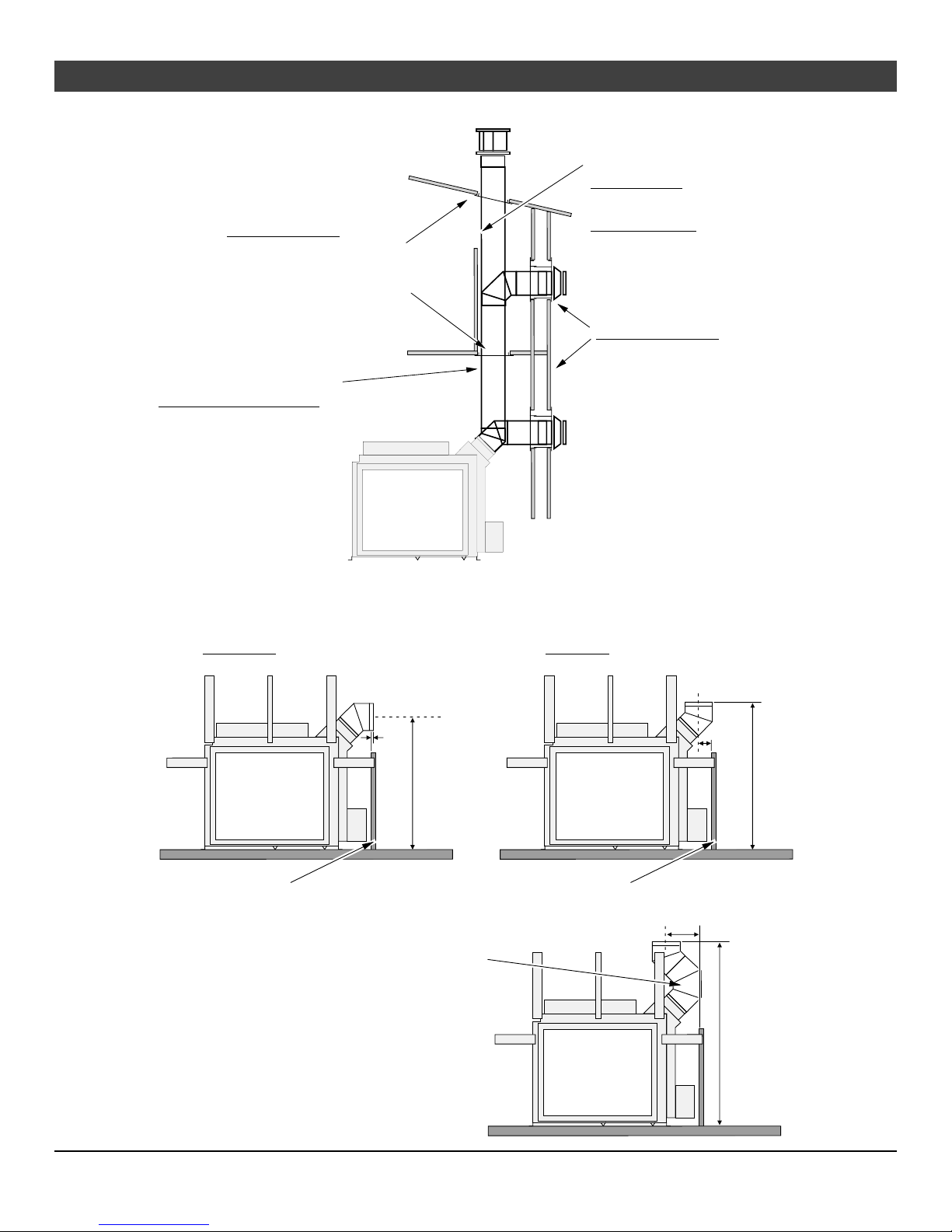

Vent Location
The starter section is set at a 45°angle. Place a 45°elbow directly on top of the fireplace and route it
vertically or horizontally. The approximate position of the vent is shown below.
41-3/4"
1"
Framing to the rear of the fireplace.
46"
3-1/2"
Framing to the rear of the fireplace.
TOP VENTREAR VENT
NOTE: In cases where the vent is routed vertically
directly above the fireplace, you may place a 90°
elbow directly on top of the fireplace, followed by a
45° elbow that directs the vent upwards. For vent
configuration purposes this is considered a top vent
and the 90° and 45° elbow is considered a single
45° elbow.
56"
9-1/4"
