TRENDnet TFC-1000 User manual

TFC-1000
TFC-210 Series
TFC-2000 Series
Quick Installation Guide

Table of Contents
Français ..........................................................................................
LLCF Function ................................................................................
Technical Specifications .................................................................
Troubleshooting ..............................................................................
1
1
2
3
9
11
1. Avant de commencer ............................................................
2. Détails du produit ..............................................................
3. ..........................................................
....
Installation du matériel
Table of Contents
Version 02.13.2007
13

TFC-1000
Guide d’installation rapide
Convertisseur fibre
Guide d’installation rapide
Alimentation AC (9V DC, 700mA)

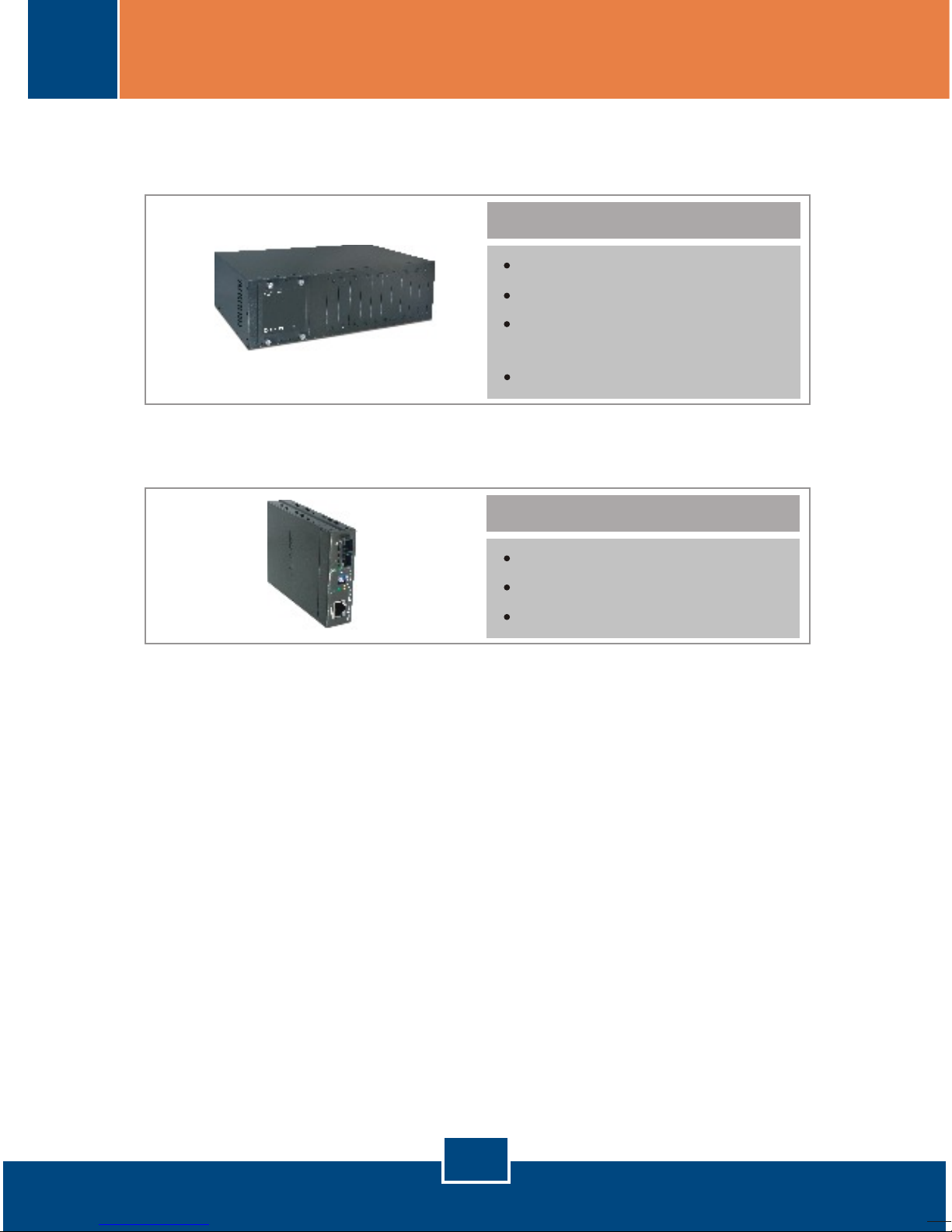

Contenu de l'emballage
Contenu de l'emballage
1. Avant de commencer
Français
1
Boîtier convertisseur fibre TFC-1000 pour convertisseurs des séries
TFC-210 et TFC-2000:
Convertisseur fibre des séries TFC-210 ou TFC-2000 :
Support de montage et vis
Cordon d’alimentation
(courant alternatif)

Convertisseur fibre 10/100Base-TX vers 100Base-FX
Nom du
modèle
Multi/
Mono-Mode
Connecteur
Fibre Distance
Longueur d’ondeBilan de liaison
TFC-210MST
TFC-210MSC
TFC-210S20D3
TFC-210S30
TFC-210S20D5
Multi-Mode
Mono-Mode
Mono/
bidirectionnel
Mono-Mode
ST (Duplex)
SC (Duplex)
SC (Simplex)
2Km
30Km
20Km
TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)
TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)
1550nm
50/125um: 7,5dBm
62,5/125um: 11dBm
50/125um: 8,5dBm
62,5/125um: 8,5dBm
9/125um: 12dBm
1310nm
(1270nm ~ 1380nm)
1310nm
(1260nm ~ 1360nm)
Convertisseur fibre 00Base-T vers 1000Base-SX/LX
Multi/
Mono-Mode
Fiber
Connector Distance
Longueur d’onde
Bilan de liaison
TFC-2000MSC
TFC-2000S20
TFC-2000S10D3
TFC-2000S50
TFC-2000S10D5
Multi-Mode
Mono-Mode
Mono/
bidirectionnel
Mono-Mode
SC (Duplex)
SC (Simplex)
50Km
20Km
10Km
850nm
(830nm ~ 860nm)
1310nm
(1270nm ~ 1355nm)
1550nm
(1520nm ~ 1580nm)
TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)
TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)
1550nm
9/125um:15dBm
9/125um:12dBm
9/125um:19dBm
Nom du
modèle
550M
220M
50/125um:8,5dBm
62,5/125um:8,5dBm
2
2. Détails du produit
Français

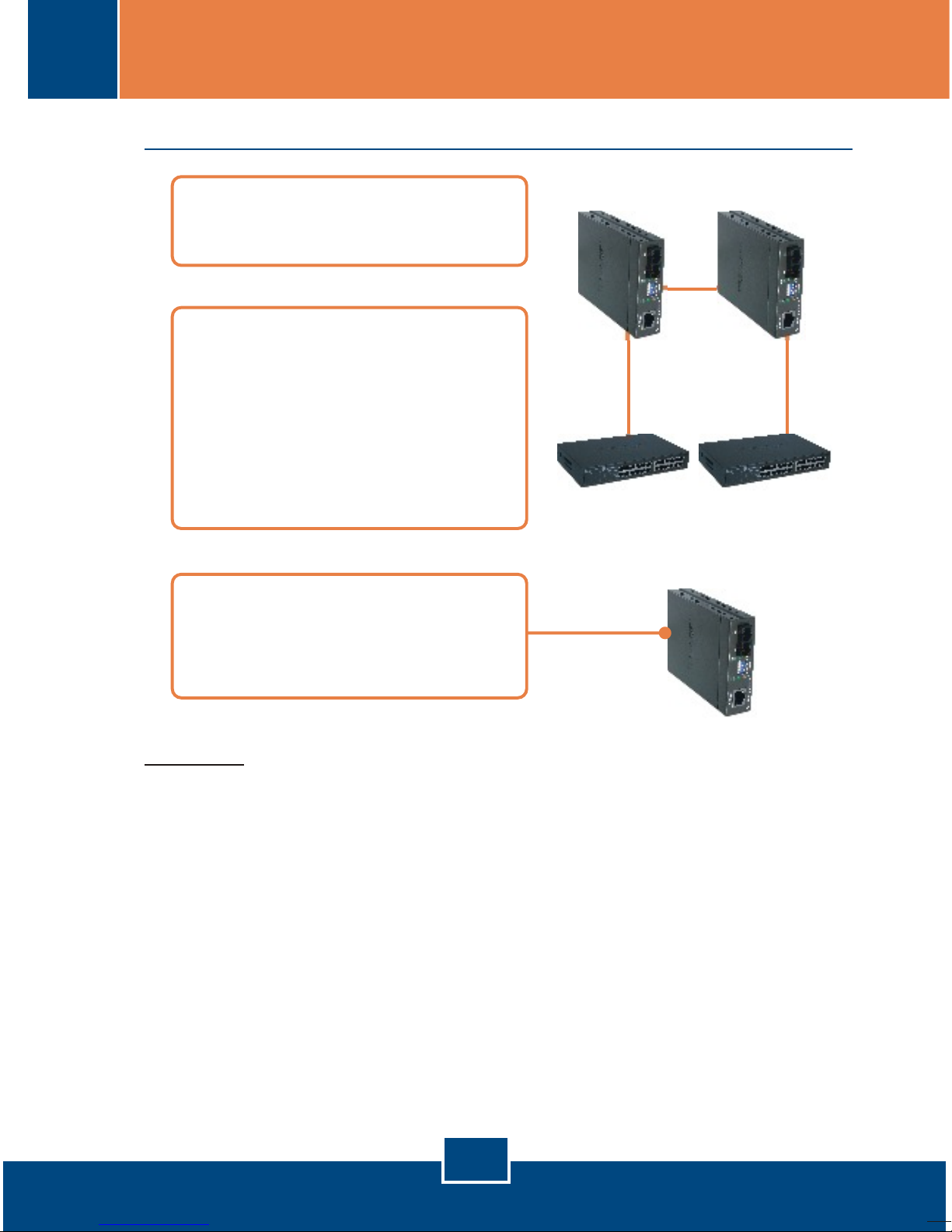

1. Branchez le câble fibre aux
convertisseurs fibre.

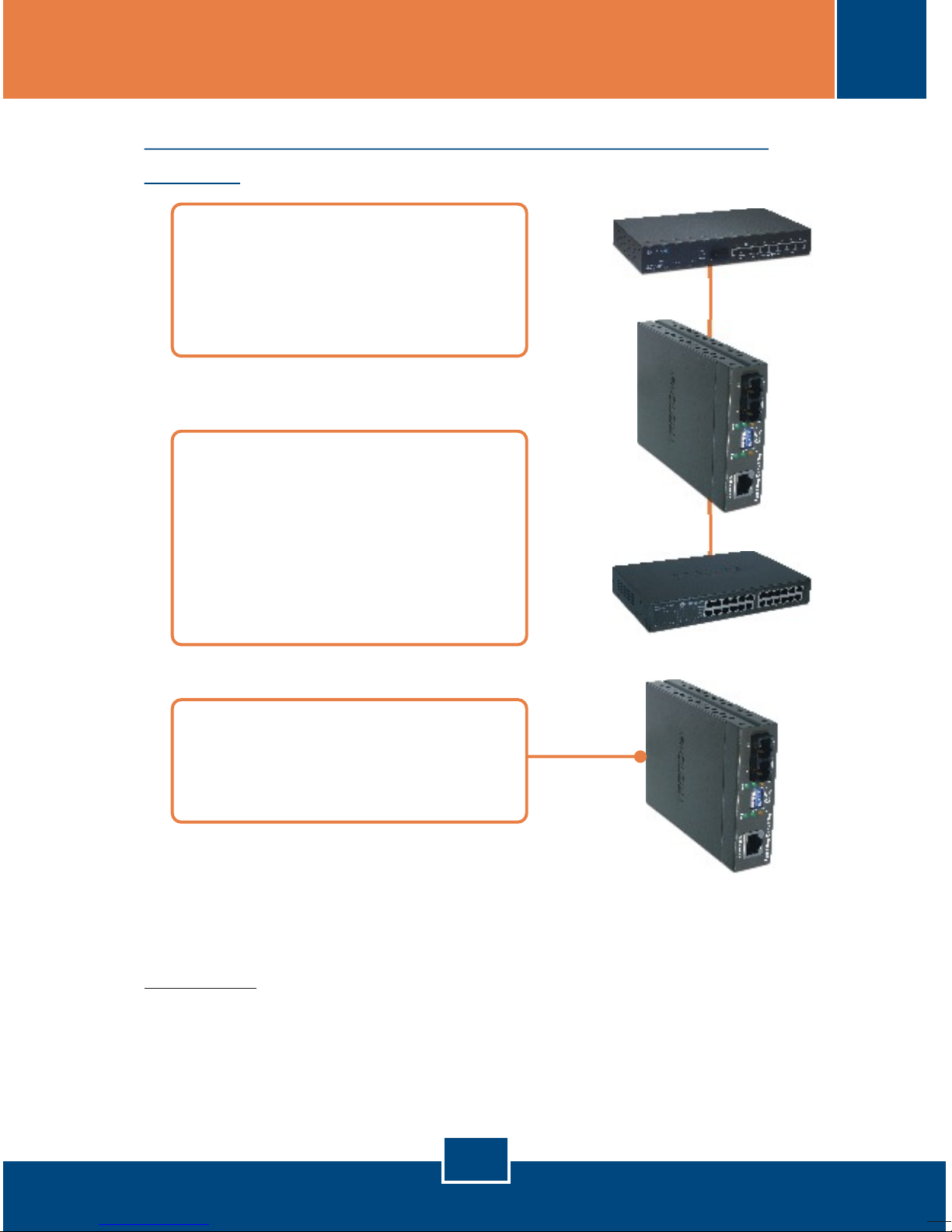

2. Branchez un câble Ethernet
RJ-45 ente le port Ethernet
des convertisseurs de fibre
et le port Ethernet de votre
switch (e.g TE100-S24R ou
TEG-S240TX).
Remarque:
– Câblage:
Câble optique multimode: TFC-210MST, TFC-210MSC, TFC-2000MSC
Câble optique monomode: TFC-210S30, TFC-210S50, TFC-2000S30,
TFC-2000S50
Câble optique à simple brin por TFC-210S20D3/D5, TFC-210S10D3/D5
– Les câbles TX et RX doivent être inversés par rapport à la connexion
fibre opposée.
– Le TFC-210S20D3 doit être appareillé avec le TFC-210S20D5. Le
TFC-2000S10D3 doit être appareillé avec le TFC-2000S10D5.
– Les ports TX et FX ports du ne supportent pas l’auto
négociation. La connexion opposée cuivre et fibre doit être Gigabit.
Séries TFC-2000
Français
Installation de 2 convertisseurs fibre autonomes
3. Installation du matériel
3. Branchez l'adaptateur
secteur à l'arrière du
convertisseur fibre.
3

2. Branchez un câble Ethernet
RJ-45 ente le port Ethernet
des convertisseurs de fibre
et le port Ethernet de votre
switch (e.g TE100-S24R ou
TEG-S240TX).

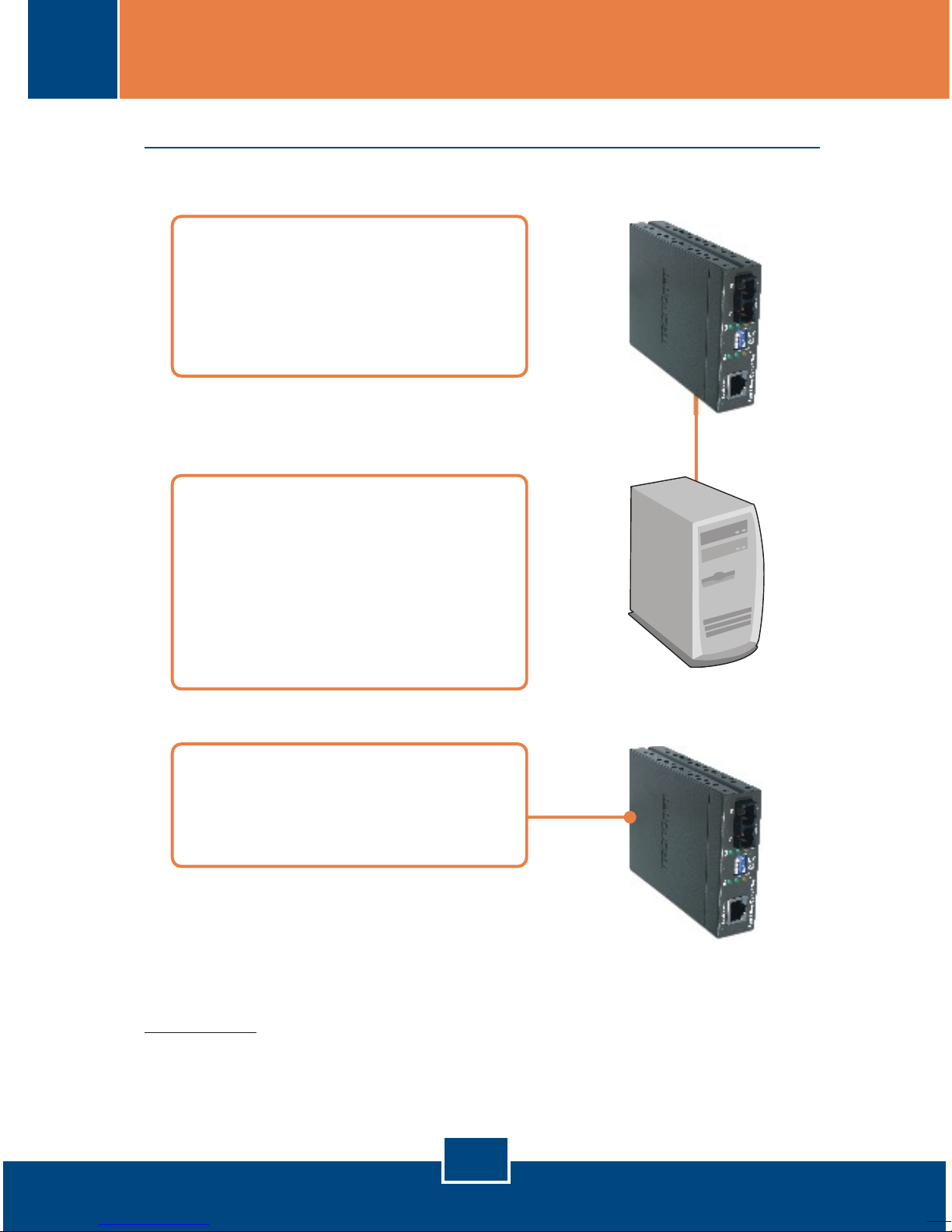

1. Branchez le câble fibre du
convertisseur fibre à un
switch fibre
(p. ex. TE100-S810Fi)
3. Branchez l'adaptateur
secteur à l'arrière du
convertisseur fibre.
Installation d’un convertisseur fibre sur un
switch
Remarque: Ceci ne s'appliqe pas aux TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 et TFC-2000S10D5.
Français
4

1. Branchez le câble fibre du
convertisseur fibre à un
adaptateur fibre (p. ex.
TE100-PCIFX+).
Installation d’un convertisseur fibre sur un PC
Français
2. Branchez un câble Ethernet
RJ-45 entre le port Ethernet
des convertisseurs de fibre
et le port Ethernet de votre
switch (e.g TE100-S24R ou
TEG-S240TX).
3. Branchez l'adaptateur
secteur à l'arrière du
convertisseur fibre.
Remarque: Ceci ne s'appliqe pas aux TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 et TFC-2000S10D5.
5

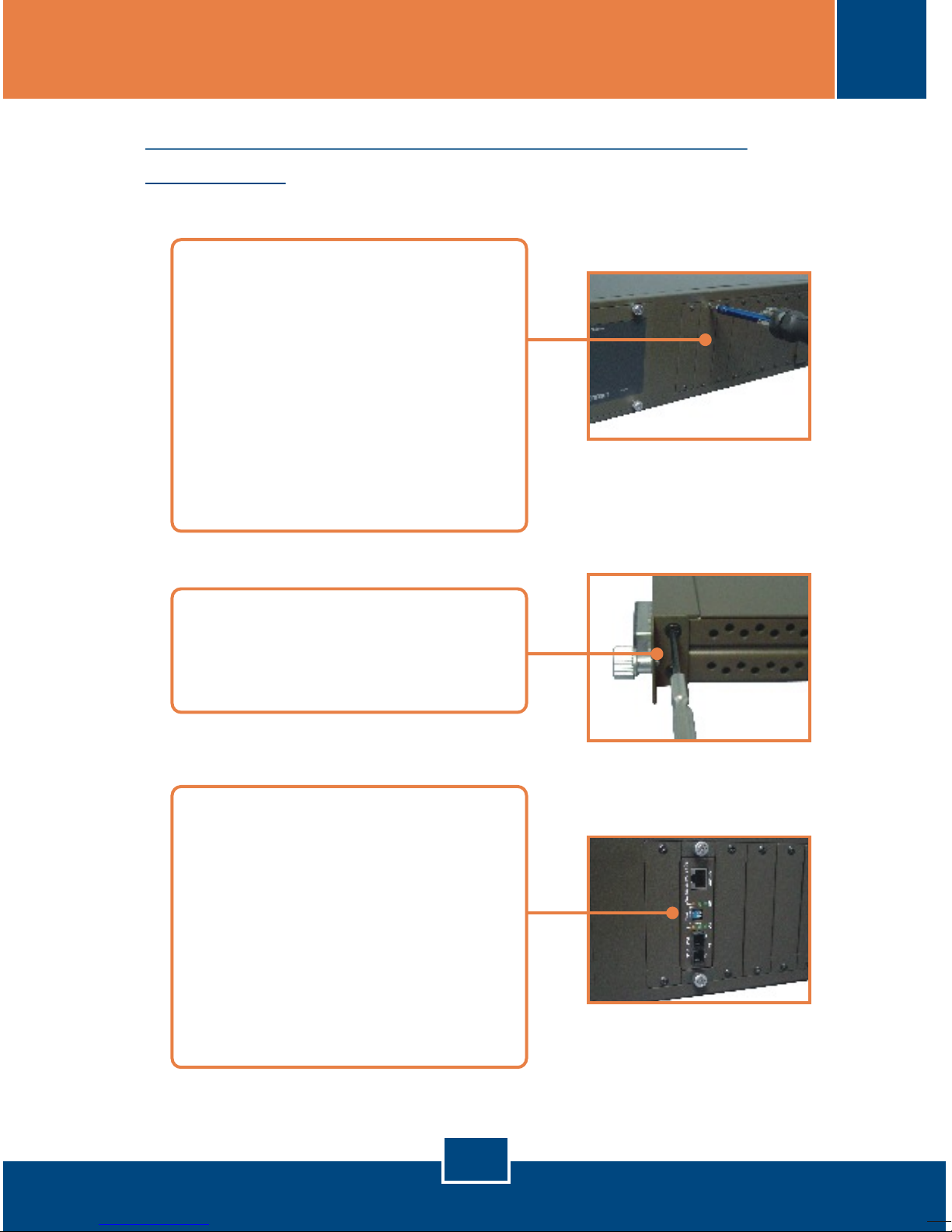

Installation d’un convertisseur fibre dans
un boîtier
Français
1. A l'aide d'un tourne vis,
dévissez le couvercle de la
baie désirée sur le boîtier et
enlevez le couvercle.
Conservez les vis et le
couvercle qui vous serviront
plus tard si vous devez
refermer la baie.
2. Fixez le support de montage
sur le côté du convertisseur
fibre.
3. Insérez le convertisseur
fibre dans un logement
disponible. Installez le
convertisseur fibre avec le
port fibre près du bas du
boîtier. Serrez ensuite les
vis pour fixer le
convertisseur fibre.
6

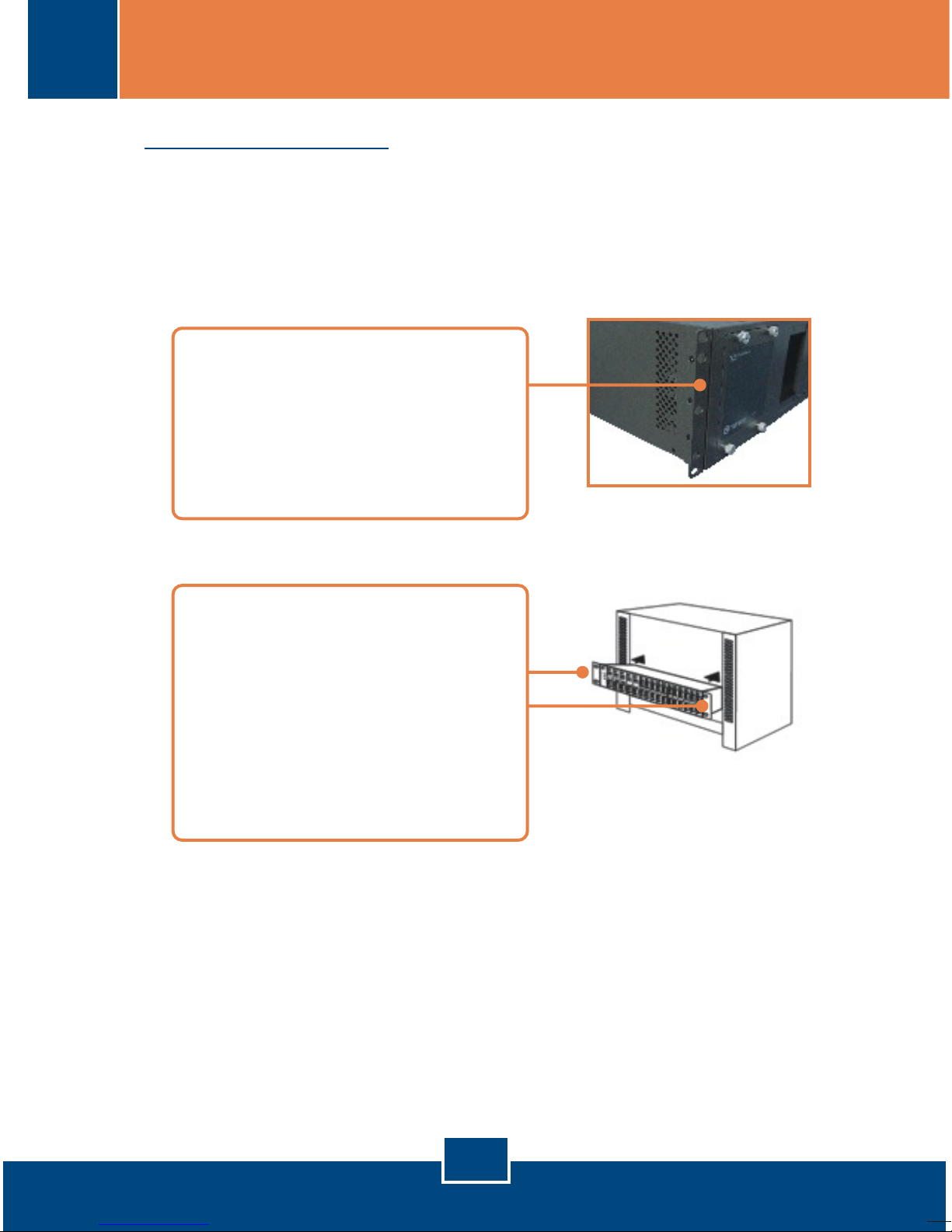

Montage du rack
Le boîtier peut être installé dans un rack EIA standard de 19
pouces qui peut être placé dans une armoire de répartition avec
les autres équipements.
Français
1. Posez les supports de
montage sur l'avant du
boîtier (un de chaque
côté), et fixez les avec les
vis fournies.
2. Mettez soigneusemet le
boîtier dnas le rack.
Allignez les supports sur
les trous des vis du rack,
utilisez ensuite les vis
fournies avec le rack
pour fixer le boîtier
7

Branchement de l’alimentation
Commutateur DIP
Séries
TFC-210
Switch 1: ON: Mode Full Duplex TX
OFF: Auto Négociation TX
Switch 2: ON: Half Duplex FX OFF: Full Duplex FX
Switch 3: ON: LLCF activé OFF: LLCF désactivé
Switch 4: ON: Pure Mode OFF: Mode Switch
Séries
TFC-2000
Switch 1: ON: LLCF TX activé
OFF: LLCF TX (désactivé)
Switch 2: ON: LLCF fibre activé
OFF: LLCF fibre (désactivé)
*Après avoir changé les paramètres du switch DIP, éteignez et rallumez
leconvertisseur fibre.
**LLCF signifie Link Loss Carry Forward.
Français
1. Branchez le cordon
d'alimentation fourni à
l'arrière du boîtier.
2. Branchez le cordon
d'alimentation à une prise de
courant.
3. Mettez le switch sur ON pour
alimenter le boîtier.
8

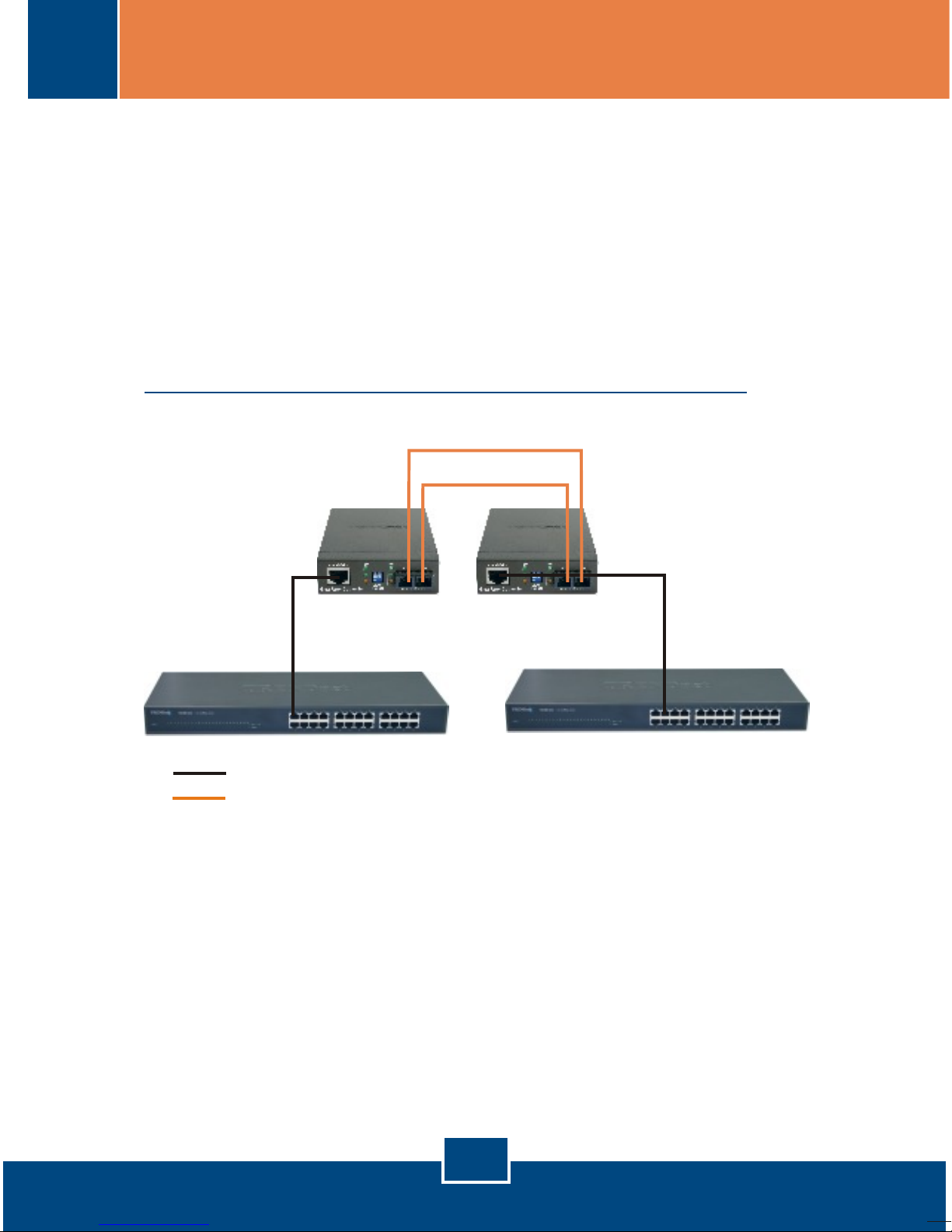

LLCF (Link Loss Carry Forward) Diagram
Cable 1
Cable 2
Media
Converter 1
Cable 3
Copper Cable
Fiber Cable
Media
Converter 2 Cable 4
LLCF allows the network administrator to quickly
troubleshoot the network connection based on the LEDs on
the Fiber Converters. When the TX port link is down, the
converter will force the fiber port link to shutdown. When the fiber
port link is down, the converter will force the TX port link to
shutdown.
Below are examples on how to read the LLCF Function Table:
Example 1: If LLCF is enabled on Fiber Converter 1 and disable
on Media Converter 2, when Cable 1 link is down, Fiber Converter
1's Copper and Fiber LED and Fiber Converter 2's Fiber LED will
shut off. Fiber Converter 2's Copper LED remains on.
Example 2: If LLCF is disabled on both Fiber Converters, when
Cable 4 link is down, Fiber Converter 1's Copper and Fiber LED
and Fiber Converter 2's Fiber LED remains on. Fiber Converter
2's Copper LED will shut off.
LLCF Function
9

Media Converter 1
Copper
LED
Fiber
LED
Copper
LED
Fiber
LED
Cable 1 Link Down
OFFOFF OFF
Cable 2 Link Down
OFF OFF OFF
OFF OFFOFF
Media
Converter 1
LLCF Enable
Media
Converter 2
LLCF Enable
OFF OFF
OFF OFF
OFFOFF
OFF ON
OFF ON
OFF ON
OFF
OFF OFF
Media
Converter 1
LLCF Disable
Media
Converter 2
LLCF Enable
ON ON ON
ON OFF
OFFOFFON OFF
OFF
OFF OFF
Media
Converter 1
LLCF Disable
Media
Converter 2
LLCF Disable
ON ON ON
ON
OFFOFFON
Media Converter 2
OFF
OFF
OFF
ON
ON
Media
Converter 1
LLCF Enable
Media
Converter 2
LLCF Disable
Cable 3 Link Down
Cable 4 Link Down
OFF OFFOFFOFF
Cable 1 Link Down
Cable 2 Link Down
Cable 3 Link Down
Cable 4 Link Down
ON ON OFF ON
Cable 1 Link Down
Cable 2 Link Down
Cable 3 Link Down
Cable 4 Link Down
OFFOFFON OFF
Cable 1 Link Down
Cable 2 Link Down
Cable 3 Link Down
ON OFFON ON
Cable 4 Link Down
LLCF (Link Loss Carry Forward) Function
Table
10

Specifications
11
TFC-210 series:
10Base-T – UTP/STP Cat. 3, 4, 5
100Base-TX – UTP/STP Cat 5
100Base-FX – Multi-Mode –
62.5/125ìm or 50/125ìm Multi-Mode Fiber Optic Cable
100Base-FX – Single-Mode –
9/125ìm Single-Mode Fiber Optic Cable
TFC-2000 series:
1000Base-T – UTP/STP: Cat. 5e or Cat. 6
1000Base-SX– Multi-Mode –
50/125ìm or 62.5/125ìm Multi-Mode Fiber Optic Cable
1000Base-LX– Single-Mode –
9/125ìm Single-Mode Fiber Optic Cable
Cable :
Standards:
Fiber Converters
TFC-210 series:
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX & 100Base-FX
TFC-2000 series:
1000Base-T, 1000Base-SX/LX, IEEE 802.3ab/ 802.3z
LED Indicators:
TFC-210 series:
Power; 100Mbps, Full Duplex/ Collision, Link/Activity
TFC-2000 series:
Power; 1000Mbps, Full Duplex/ Collision, Link/Activity
Weight: Around 300 g (10 oz.)
Power: 9VDC, 700mA External Power Adapter
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)
10 ~ 90%, non-condensing
Temperature:
CE, FCC
Humidity:
Certifications:
Dimensions: 85mm × 125mm × 25mm (W × D × H)

12
Capacity:
Fiber Chassis
Ten bays for housing up to Ten media converters
Material: Metal
Cooling: One Fan
6.4 kg (14.2 lb.)
440 mm × 266mm × 133 mm (W × D × H)
Standard 19” Rack Mount Size (3U)
Dimensions:
Weight:
CE, FCC
Certification:
Power Consumption: 90 Watts (Max)
AC 100~240V AC, 50/60Hz
Power:
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)
10 ~ 90%, non-condensing
Temperature:
Humidity:

Troubleshooting
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
After connecting the Fiber Converter, the LEDs do not turn on. What
should I do?
First, check that the power outlet is receiving power. Second, make
sure the power adapter is firmly connected to the Fiber Converter and
the power outlet. Third, make sure the Ethernet and the Fiber cables
are connected.
All the LEDs are on, but I can't make a connection. What should I do?
First, verify that you are using the proper fiber cable (e.g. multi-
mode fiber cable for multi-mode converters; single-mode fiber cables for
single-mode converters). Second, verify that the TX and RX cables
have been reversed on the opposite Fiber connection. Third, power
down the Fiber Converters and the switches. Wait 15 seconds, then
plug the switches and the Fiber Converters back in.
What is the maximum distance that is supported by the Fiber Converter?
Please refer to Product Detail for distance information.
After connecting the Chassis to a power outlet, the LEDs do not turn on.
First, check that the power outlet is receiving power. Second, make
sure the power cord is firmly connected to the chassis and the power
outlet. Third, make sure the power switch is flipped to the ON position.
If you still encounter problems or have any questions please contact TRENDnet's
Technical Support Department.
13

Limited Warranty
- 5-Year Warranty
TRENDnet warrants its products against defects in material and workmanship,
under normal use and service, for the following lengths of time from the date of
purchase.
Fiber Chassis / Fiber Converters
If a product does not operate as warranted above during the applicable
warranty period, TRENDnet shall, at its option and expense, repair the
defective product or deliver to customer an equivalent product to replace the
defective item. All products that are replaced will become the property of
TRENDnet. Replacement products may be new or reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or
attempt to service the product through any unauthorized service center. This
warranty is voided if (i) the product has been modified or repaired by any
unauthorized service center, (ii) the product was subject to accident, abuse, or
improper use (iii) the product was subject to conditions more severe than those
specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the
applicable warranty period for a Return Material Authorization (RMA) number,
accompanied by a copy of the dated proof of the purchase. Products returned
to TRENDnet must be pre-authorized by TRENDnet with RMA number marked
on the outside of the package, and sent prepaid, insured and packaged
appropriately for safe shipment.
14

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT
OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY
SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN
FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS
TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN
THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR
ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY
OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW
TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY
LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL,
OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE,
FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES,
AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF
THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS
DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF
ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL
PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the
state of California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a
1-Year Warranty
15

Certifications
This equipment has been tested and found to comply with FCC and CE
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including
interference that may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you
LocalAuthority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador
de alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.

Copyright ©2007. All Rights Reserved. TRENDnet.
TRENDnet Technical Support
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com
US Canada
24/7 Tech Support
Toll Free Telephone: [phone]
Europe (Germany France Italy Spain Switzerland UK)
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Worldwide
Telephone: +(31) (0) 20 504 05 35
Toll Free Telephone: [phone]
.
. . . . .
20675 Manhattan Place
Torrance, CA 90501
USA
