TRENDnet TE100-S24V User manual

TE100-S24V
24-Port 10/100Mbps
Fast Ethernet
Smart Switch
User’s Guide

FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with this user’s guide, may
cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the
interference at his/her own expense.
VCCI Warning
This is a product of VCCI Class A Compliance.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user may
be required to take adequate measures.

UL Warning
a) Elevated Operating Ambient Temperature- If installed in a
closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the
manufacturer's maximum rated ambient temperature (Tmra).
b) Reduced Air Flow- Installation of the equipment in a rack
should be such that the amount of air flow required for safe
operation of the equipment is not compromised.
c) Mechanical Loading- Mounting of the equipment in the rack
should be such that a hazardous condition is not achieved due to
uneven mechanical loading.
d) Circuit Overloading- Consideration should be given to the
connection of the equipment to the supply circuit and the effect
that overloading of circuits might have on over current protection
and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
e) Reliable Earthing- Reliable earthing of rack-mounted
equipment should be maintained. Particular attention should be
given to supply connections other than direct connections to the
branch circuit (e.g., use of power strips).

TABLE OF CONTENTS
ABOUT THIS GUIDE..............................................................1
PURPOSE...................................................................................1
TERMS/USAGE ..........................................................................1
INTRODUCTION.....................................................................3
FAST ETHERNET TECHNOLOGY .................................................3
SWITCHING TECHNOLOGY.........................................................4
VLAN (VIRTUAL LOCAL AREA NETWORK) ..............................4
FEATURES.................................................................................6
UNPACKING AND INSTALLATION ...................................7
UNPACKING ..............................................................................7
INSTALLATION ..........................................................................7
RACK MOUNTING .....................................................................8
CONNECTING NETWORK CABLE ................................................9
AC POWER .............................................................................10
IDENTIFYING EXTERNAL COMPONENTS ...................10

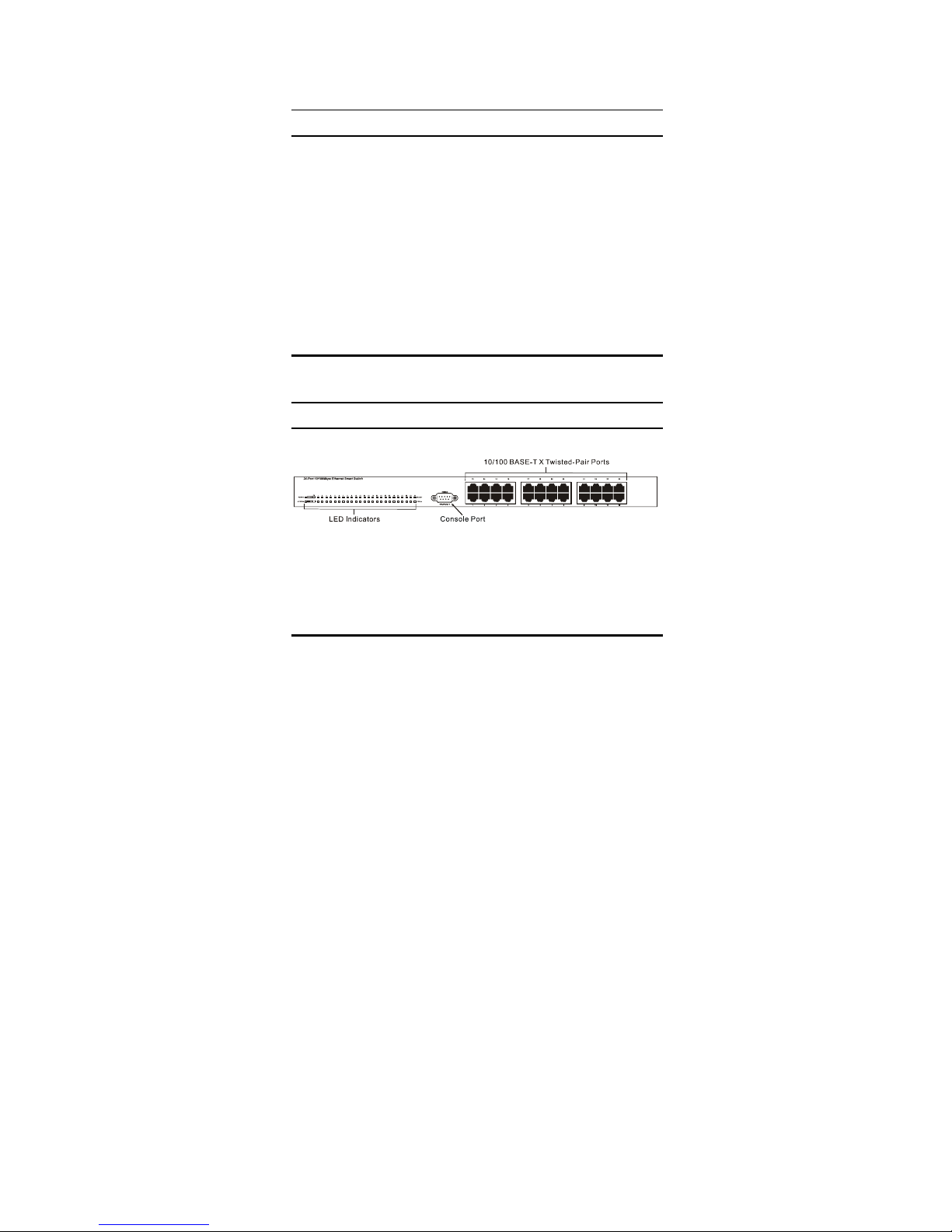

FRONT PANEL .........................................................................10
REAR PANEL...........................................................................11
UNDERSTANDING LED INDICATORS ............................12
POWER AND SYSTEM LEDS.....................................................12
PORTS 1~24 STATUS LEDS.....................................................12
FIBER MODULE LEDS.............................................................13
CONFIGURATION................................................................14
CONSOLE PORT (RS-232 DCE) ..............................................14
CONFIGURING THE SWITCH .....................................................14
LOGIN.....................................................................................16
MAIN MENU ...........................................................................17

CONFIGURING SETUP SETTINGS ..............................................17
CONFIGURING SYSTEM SETTING .............................................22
CONFIGURING FILE SETTING ..................................................23
STATISTICS .............................................................................25
TECHNICAL SPECIFICATIONS........................................27

1
ABOUT THIS GUIDE
Congratulations on your purchase of the 24-Port 10/100Mbps
Fast Ethernet Smart Switch. This device integrates 100Mbps Fast
Ethernet and 10Mbps Ethernet network capabilities in a highly
flexible package.
Purpose
This guide discusses how to install your 24-Port 10/100Mbps
Fast Ethernet Smart Switch.
Terms/Usage
In this guide, the term “Switch” (first letter upper case) refers to
your 24-Port 10/100Mbps Fast Ethernet Smart Switch, and
“switch” (first letter lower case) refers to other Ethernet
switches.

3
INTRODUCTION
This chapter describes the features of the 24-Port 10/100Mbps
Fast Ethernet Smart Switch and some background information
about Ethernet/Fast Ethernet switching technology.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity
of desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN
technologies have been proposed to provide greater bandwidth
and improve client/server response times. Among them,
100BASE-T (Fast Ethernet) provides a non-disruptive, smooth
evolution from the current 10BASE-T technology. The non-
disruptive and smooth evolution nature, and the dominating
potential market base, virtually guarantee cost-effective and high
performance Fast Ethernet solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet
standard with the ability to transmit and receive data at 100Mbps,
while maintaining the CSMA/CD Ethernet protocol. Since the
100Mbps Fast Ethernet is compatible with all other 10Mbps
Ethernet environments, it provides a straightforward upgrade and
takes advantage of the existing investment in hardware, software,
and personnel training.

4
Switching Technology
Another approach to pushing beyond the limits of Ethernet
technology is the development of switching technology. A switch
bridges Ethernet packets at the MAC address level of the
Ethernet protocol transmitting among connected Ethernet or Fast
Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a local area network. A switch
increases capacity and decreases network loading by dividing a
local area network into different segments, which don’t compete
with each other for network transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with any
other segments, automatically forwards traffic that needs to go
from one segment to another. By doing this the total network
capacity is multiplied, while still maintaining the same network
cabling and adapter cards.
Switching LAN technology is a marked improvement over the
previous generation of network bridges, which were
characterized by higher latencies. Routers have also been used to
segment local area networks, but the cost of a router, the setup
and maintenance required make routers relatively impractical.
Today switches are an ideal solution to most kinds of local area
network congestion problems.
VLAN (Virtual Local Area Network)
A VLAN is a group of end-stations that are not constrained by
their physical location and can communicate as if a common

5
broadcast domain, a LAN. The primary utility of using VLAN is
to reduce latency and need for routers, using faster switching
instead. Other VLAN utility include:
Security
Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be
switched to only those confidential users within the VLAN.
Cost Reduction
VLAN can be used to create multiple broadcast domains, thus
eliminating the need of expensive routers.
Port-based (or port-group) VLAN is the common method of
implementing a VLAN, and is the one supplied in the Switch.
Each Switch port can belong from one to twenty four VLANs.

6
Features
 24×10/100Mbps Auto-negotiation Ethernet ports
 All ports support auto-MDIX, so there is no need to
use cross-over cables or an up-link port
 Full/half duplex transfer mode for each port
 Wire speed reception and transmission
 Store-and-Forward switching scheme capability to
support rate adaptation and ensure data integrity
 Broadcast storm protection
 Up to 4K unicast addresses entries per device, self-
learning, and table aging
 768KB RAM data buffer
 Supports IEEE 802.3x flow control for full-duplex
mode ports
 Supports Back-pressure flow control for half-duplex
mode ports
 Optional one port 100BASE-FX multimode Fiber
module with SC type connector in the rear panel
 Supports Port-based VLAN and IEEE 802.1p QoS
 RS-232 DCE console port for setting up and manage
the Switch via connection to a console terminal or
PC using a terminal emulation program
 Standard 19” Rack-mount size

7
UNPACKING AND INSTALLATION
This chapter provides unpacking and setup information for the
Switch.
Unpacking
Open the shipping cartons of the Switch and carefully unpacks its
contents. The carton should contain the following items:
 One 24-Port 10/100Mbps Fast Ethernet Smart
Switch
 One AC power cord, suitable for your area’s
electrical power connections
 Four rubber feet to be used for shock cushioning
 Screws and two mounting brackets
 One console serial cable
 This User’s Guide
If any item is found missing or damaged, please contact your
local reseller for replacement.
Installation
The site where you install the Switch stack may greatly affect its
performance. When installing, consider the following pointers:

8
 Install the Switch in a fairly cool and dry place. See
Technical Specifications for the acceptable
temperature and humidity operating ranges.
 Install the Switch in a site free from strong
electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.
 Leave at least 10cm of space around the Switch for
ventilation.
 Install the Switch on a sturdy, level surface that can
support its weight, or in an EIA standard-size
equipment rack. For information on rack
installation, see the next section, Rack Mounting.
 When installing the Switch on a level surface, attach
the rubber feet to the bottom of each device. The
rubber feet cushion the Switch and protect the
Switch case from scratching.
Rack Mounting
The switch can be mounted in an EIA standard-size, 19-inch
rack, which can be placed in a wiring closet with other
equipment. Attach the mounting brackets at the switch’s side
panels (one on each side), and secure them with the provided
screws.

9
24-Port10/100MbpsEthernetSmartSwitch
S
YSTEM
FDX
PO
WE
R
L
ink/
ACT
FX
Figure 1. Installing the bracket with the provided screws
Then, use screws provided with the equipment rack to mount the
Switch on to the rack.
24-Port10/100MbpsEthernetSmartSwitch
SY
STEM
FDX
P
OWE
R
Lin
k/AC
T
FX
Figure 2. Mounting the Switch on to the rack
Connecting Network Cable
The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet
and it runs both in half and full duplex mode.
These ports are Auto-MDIX type port. The Switch can auto
transform to MDI-II or MDI-X type, so you can make a
connection using a standard or crossover cable.

10
AC Power
The Switch requires AC power supply of 100~240V AC, 50~60
Hz. The Switch does not come with a Power ON/OFF switch, so
the Switch will automatically power on when it is connected to
an electrical outlet. The switch’s power supply will adjust to the
local power source automatically and may be turned on without
having any LAN segment cables connected.
IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel, and LED
indicators of the Switch.
Front Panel
The figure below shows the front panels of the Switch.
Figure 3. Front panel of the 24-port 10/100Mbps Fast Ethernet Switch
LED Indicator
Comprehensive LED indicators display the status of the switch
and the network (see the LED Indicators chapter below).
10/100BASE-T Twisted-Pair Ports

11
These ports support network speeds of either 10Mbps or
100Mbps, and can operate in half- and full- duplex transfer
modes. These ports also support automatic MDI-II/MDI-X
crossover detection function gives true “plug and play”
capability.
Console Port
An RS-232 DCE console port is used to setup and manage the
Switch via a connection to a console terminal or PC using a
terminal emulation program (e.g. Windows HyperTerminal).
Rear Panel
AC Power Connector
Figure 4. Rear panel of the Switch
AC Power Connector
This is a three-pronged connector that supports the power cord.
Plug in the female connector of the provided power cord into this
connector, and the male into a power outlet. Supported input
voltages range from 100~240V AC at 50~60Hz.

12
UNDERSTANDING LED INDICATORS
The front panel LEDs provides instant status feedback, and help
monitor and troubleshoot.
1
POWER
SYSTEM
2 3 4 5 6 7 8 9 10 111213141516
24-Port 10/100Mbps Ethernet Smart Switch
Link/ACT
FDX
17 18 19 20 21 22 23 24
FX
Figure 5. LED indicators of the Switch
Power and System LEDs
POWER: Power Indicator
On : When the Power LED lights on, the Switch is receiving
power.
Off : The LED is off when the Switch is not receiving power.
SYSTEM: Management Indicator
Blinking : When the CPU is working, the System LED is blinking.
On/Off : The CPU is not working and the Switch is defective.
Ports 1~24 Status LEDs
Link/ACT: Link/Activity

13
On : When the Link/ACT LED lights on, the respective port is
successfully connected to an Ethernet network.
Blinking : When the Link/ACT LED is blinking, the port is
transmitting or receiving data on the Ethernet network.
Off : No link.
100Mbps
On : When the 100Mbps LED lights on, the respective port is
connected to a 100Mbps Fast Ethernet network.
Off : When the respective port is connected to a 10Mbps Ethernet
network.
Fiber Module LEDs
FX Link/ACT: Link/Activity
On : When the fiber module is installed and connected to a Fast
Ethernet network, the FX Link/ACT LED lights on.
Blinking : When the FX Link/ACT LED is blinking, the fiber module
is transmitting/receiving data on the network.
Off : No link.
FDX: Full Duplex
On : When the FDX LED lights on, the fiber port is in full-
duplex mode.
Off : When the LED light is off, the fiber port is in half-duplex
mode.

14
CONFIGURATION
This Switch is a “smart” Switch. The programmable
administration parameters allow the Switch to operate more
effectively than unmanaged (dumb) switches. This chapter will
describe how to configure the Switch.
Console Port (RS-232 DCE)
The console configuration requires connecting a Workstation or a
PC running a terminal emulation program (such as
HyperTerminal, which comes with Microsoft Windows) to the
RS-232 DCE console port of the Switch.
Below is the console port configuration:
 Baud rate: 9,600
 Data width: 8 bits
 Parity: none
 Stop bits: 1
 Flow control: None
Make sure the terminal or PC you are using to make this
connection is configured to match these settings.
Configuring the Switch
The 24-Port 10/100Mbps Fast Ethernet Smart Switch has a
menu-driven console interface. The Switch can be configured
through the serial port. A network administrator can manage,
