TRENDnet TEG-S18TXE User manual

TRENDnet's TEG-S18TXE 9-Port Copper Gigabit Switch
consists of one 10/100/1000Mbps Copper Gigabit port and
eight 10/100Mbps Fast Ethernet ports with all ports support
Auto-Sense connection speed and Auto-MDIX media type
detection. Users can connect a Gigabit Server to the Gigabit
port to increase network performance or uplink two Copper
Gigabit Switches together to create a high-bandwidth Gigabit
backbone. TRENDnet's TEG-S18TXE provides simple
migration, scalability, and flexibility to handle new applica-
tions and data types making it a highly reliable and cost
effective solution for high-speed network connectivity.
TEG-S18TXE
9-Port 10/100/1000Mbps Copper Gigabit Switch
BENEFITSFEATURES
Performance:
:
Expandability:
Effectiveness:
Provides 1000Mbps Gigabit
connection to Power Server or
another Gigabit Switch, with each port
running at full wire-speed.
Connects to 10Base-T, 100Base-TX,
and 1000Base-T network devices.
Simple expansion can be done by
uplinking to other 10/100Mbps
Switches or another Gigabit Switch.
Provides Gigabit Performance at an
affordable price..
Flexibility
1 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX
Copper Gigabit Port
8 x 10/100Mbps Auto-negotiation, Auto-MDIX Fast
Ethernet Ports
Full/Half duplex transfer mode for all ports
Store-and-Forward switching method
Wire-speed reception and transmission
IEEE 802.3x flow control for full-duplex mode
Back pressure flow control for half-duplex mode
Integrated address Look-Up engine, supports 4K MAC
addresses
Built-in 256KB RAM Buffer Extensive front-panel
diagnostic LEDs External Power Adapter
5-Year warranty
TEG-S18TXE(01-17-2005)
TRENDnet
TRENDware, USA
What's Next in Networking

RELATED PRODUCT
To Order Please Call:
1-888-326-6061
TEG-S18TXE:
9-port 10/100/1000Mbps Copper Gigabit Switch with External Power
Supply
TEG-PCITX :
32-Bit PCI 10/100/1000Mbps Copper Gigabit Ethernet Adapter
TEG-PCITX2 :
64/32-Bit PCI 10/100/1000Mbps Copper Gigabit Ethernet Adapter
TEG-S40TXE:
4-port 10/100/1000Mbps Copper Gigabit Switch with External Power
Supply
TEG-S50TXE:
4-port 10/100/1000Mbps Copper Gigabit Switch with External Power
Supply
TEG-S80TXE:
8-port 10/100/1000Mbps Copper Gigabit Switch with External Power
Supply
NETWORKING SOLUTIONS
SPECIFICATIONS
LAN Standards:
• IEEE 802.3 10Base-T Ethernet, IEEE
802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit
Ethernet, IEEE 802.3x Flow Control
Data Transfer Rate:
• Ethernet: 10Mbps (Half-Duplex),
20Mbps (Full-Duplex),
Fast Ethernet: 100Mbps (Half-Duplex),
200Mbps (Full-Duplex),
Gigabit Ethernet: 2000Mbps
(Full-Duplex)
Protocol:
• Ethernet: 2-pair UTP/STP Cat. 3, 4, 5,
100 meters max.
Fast Ethernet: 2-pair UTP/STP Cat. 5,
100 meters max.
Gigabit Ethernet: 4-pair UTP/STP
Cat. 5, 100 meters max.
•
•
•
•
•
Topology:
• Star
Data RAM Buffers:
• 256KB per Device
Filtering Address Table:
• 4K entries per device
Diagnostic LEDs:
• Power
Link/ACT, 100Mbps LEDs for
10/100Mbps Fast Ethernet ports
Link/ACT, 100Mbps, 1000Mbps
LED for Gigabit port
Power Consumption:
5.7 Watts; 7.5V DC, 1A Power
Adapter
Protocol:
• CSMA/CD
•
•
•
Dimensions (WxHxD):
• 172 x 100 x 34mm
(6.8 x 3.9 x 1.3 inch)
Weight:
• 280.6 grams (9.9 Oz)
Temperature:
• Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
• Operating: 10% ~ 90 %
Storage: 5% ~ 90% for storage
(non-condensing)
Certifications:
• FCC Class B, CE mark Class B,
VCCI-B
•
TEG-S160TX
TEG-S160TX
16-Port 10/100/1000Mbps Copper Gigabit Switch
16-Port 10/100/1000Mbps Copper Gigabit Switch
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit ____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.TRENDNET.com
ORDERING INFORMATION
TRENDnet
TRENDware, USA
R

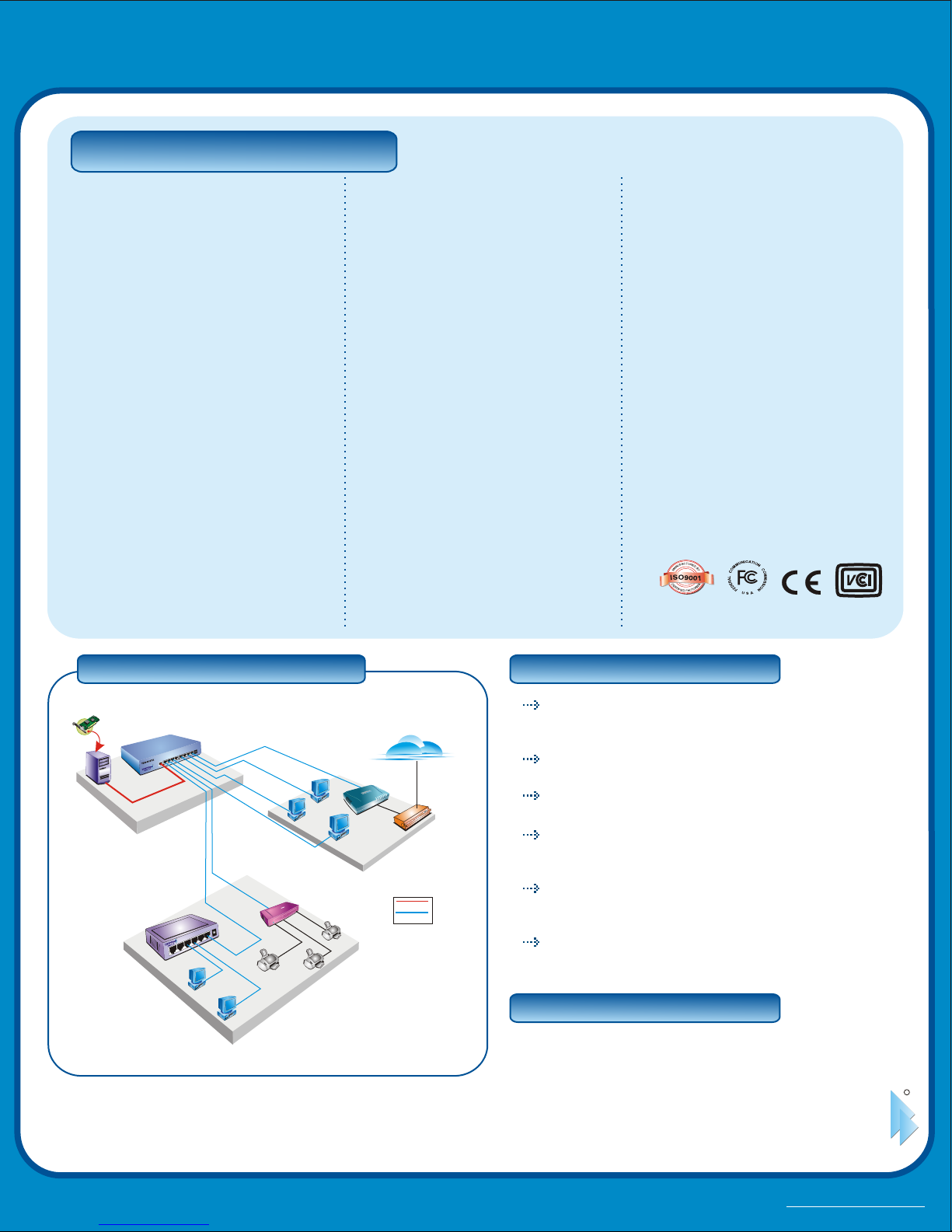

100Mbps
