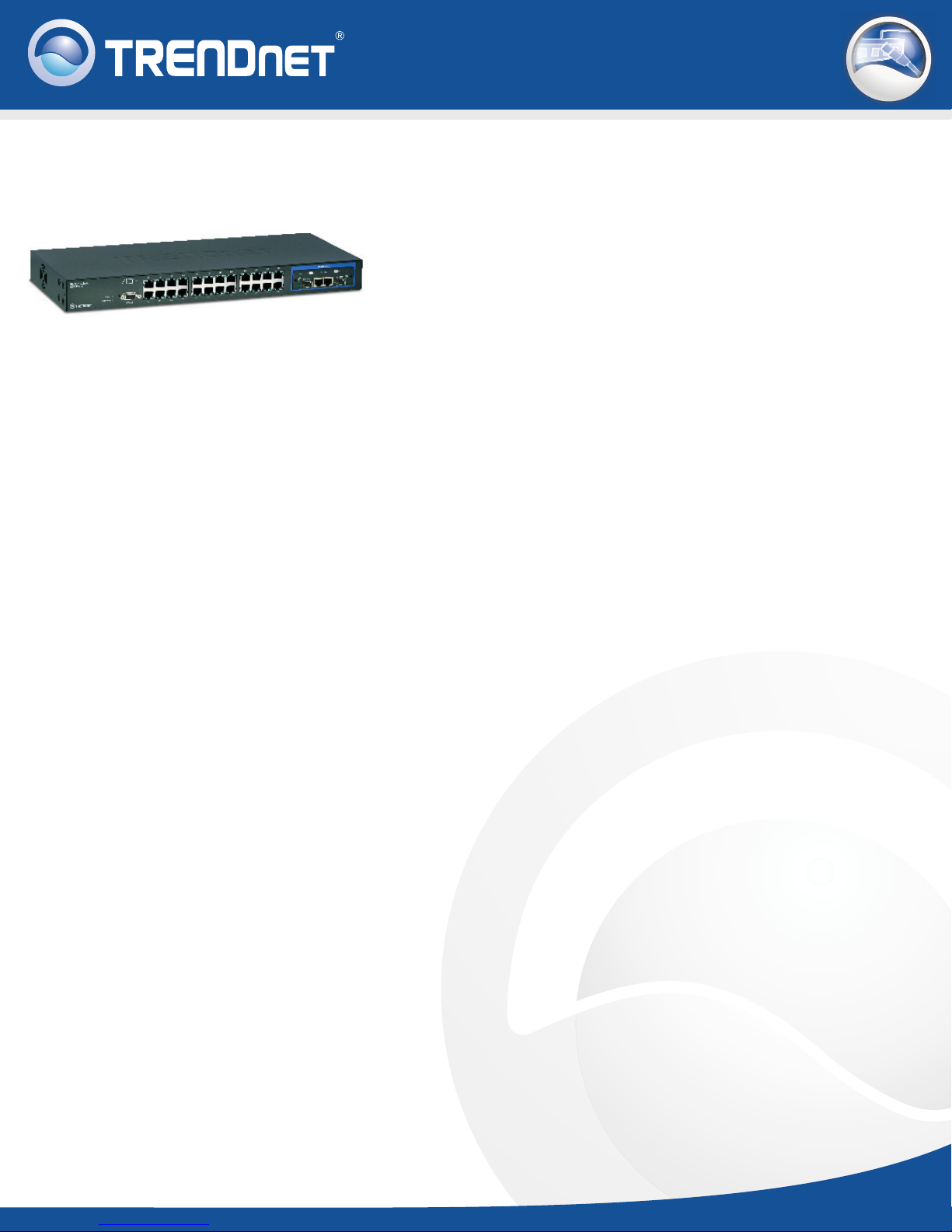

TRENDnet TEG-S2620i User manual

The 26-Port 10/100Mbps Layer 2 Switch w/ Gigabit Ethernet ports and
Mini-GBIC Slots provides a reliable foundation for a highly scalable
managed department or workgroup.
Powerful layer 2 performance and advanced security management is
provided with an 8.8Gbps switch fabric, SNMP Version 3 support, a 256
entry Access Control List and Multiple Spanning Tree (802.11s)
technology.
Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed
uplinks to backbone switching or servers. Configure the switch using
your choice of Telnet, HyperTerminal or a Browser. Additional
management features such as Port Trunking, IGMP snooping, VLAN,
RMON, Jumbo Frame support, RSTP and MSTP allow administrators to
effectively manage departmental work groups.
TEG-S2620i (V1.0R)
TEW-503PI (07-28-2005) TEG-S2620i
rev:07.18.2008
26-Port 10/100Mbps Layer 2 Switch w/
Gigabit Ethernet ports and Mini-GBIC Slots
TECHNICAL FEATURES
gigabit
• 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX RJ-45 ports
• 2 Pairs of 1x 10/100/1000Mbps RJ-45 port and 1x 1000Base Mini-GBIC slot
• 8K MAC, 220 ACL, 4K VLAN and 1K Multicast entries
• Spanning Tree Protocol (RSTP and MSTP) supported
• Static MAC and port based MAC table with 255 display entries
• IEEE 802.3x Flow Control for both half/full duplex support
• Jumbo frame support up to 9K
• Broadcast Storm Filtering protection against constant Broadcast or Multicast traffic
• Access Control List (ACL) with support up to 256 entries
• Port-Based VLAN (256 Groups), IEEE 802.1q Tag-Based VLAN (PVID 1~255)
• 802.1x authentication and authorization with MD5, EAP and TLS
• IP Multicast, Internet Group Management Protocol (IGMP) snooping and Generic VLAN Registration Protocol
(GVRP)
• 4-Level priority queuing for multiple levels of Quality of Service (QoS)
• RMON Group 1, 2, 3, 9 and PING function from the Switch's diagnostic utilities
• Port Mirroring monitors network traffic such as intrusion detection
• Switch management with Simple Network Management Protocol (SNMP V1.0-V3.0, MIB II), Telnet and Web Browser
• In-band control allows for administration from any Ethernet port on the switch
• Console port management over high speed for out-of-band control (115,200 baud rate)
• Upgradeable firmware via Web browser and TFTP program
• LED display for individual port status: link, activity and speed
• Standard 19” (1U) rack mount size (mounting kit included)

• 1Mb for control, 3Mb for packet filter
Interfaces
Power Input
Packet Forwarding
and Filtering Rate
Cabling
Console port
Filtering Address Table
Power Consumption
Dimensions
Temperature
Humidity
Weight
• IEEE 802.3 10Base-T Ethernet
• 24 x 10/100Mbps Auto-MDIX RJ-45 port
• 100~240VAC, 50/60Hz internal power supply
• Operating: 5°~ 45°C (41°F~ 113°F)
• 440 x 184 x 44mm (17.3 x 7.3 x 1.8 in.) (W x H x D)
• 2 pairs of shared 1000-Based RJ-45 port and Mini-GBIC slot*
• 1000M Ethernet: 1,488,100 packets per second per port
• Fast Ethernet: UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max
• RS-232, female 9-pin Serial port (Serial cable included)
• Power On (green)/Off (off)
• (CSMA/CD) / Star
• 8,000+256 MAC entries, 4,000 VLAN entries and 1,000 Multicast entries
• 30 watts (max)
• 10%- 90% (non-condensing)
• FCC, CE
• 2.5 kg (5.2 lb)
Standards
Hardware
• Link (green)/Activity(blinking)
• 1 x RS-232 Serial port (Initial Setup)
Protocol/Topology
LED Display
SPECIFICATIONS
TEG-S2620i (V1.0R)
26-Port 10/100Mbps Layer 2 Switch w/Gigabit Ethernet ports and Mini-GBIC Slots
TEW-503PI (07-28-2005) TEG-S2620i
rev:07.18.2008
• IEEE 802.3u 100Base-TX Fast Ethernet • IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet
• IEEE 802.1v Protocol-Based VLAN
• IEEE 802.3x Flow Control • IEEE 802.1d Spanning Tree • IEEE 802.1q Tag-based VLAN, Priority Control
• IEEE 802.1x authentication and authorization with MD5, EAP, TLS
• IEEE 802.3ad Link Aggregation
• *1x RJ-45 port or Mini-GBIC slot of each pair can be used at a time.
• 10M Ethernet: 14,880 packets per second per port
• 100M Ethernet: 148,810 packets per second per port
• Gigabit Ethernet: UTP/STP Cat. 5, 5E, 6, EIA/TIA-568 100-ohm, 100 meters max
• Mini-GBIC: LC Type. 9/125µm or 10/125µm Single-Mode fiber optic cable (LX)
• LC Type. 62.5/125µm or 50/125µm Multi-Mode fiber optic cable (SX)
Buffer Memory
• Diagnostic (blinking) during initialization
• Speed 100M(green)/10M(off) • Gigabit port: 1000Mbps(green)/Activity(blinking)
• Storage: -20°~ 70°C (-4°F~ 158°F)
Certifications/Safety

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
RELATED PRODUCTS
PACKAGE CONTENTS
TEG-S081FMi
TEG-S3000i 4-Slot Gigabit Layer 2 Managed Chassis
• CD-ROM (User's Guide)
8-Port 100base-FX Layer 2 Managed Fiber Switch
w/ Mini-GBIC Port
• TEG-S2620i
• Multi-Language User’s Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
NETWORKING SOLUTIONS
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
TEG-S811Fi
TEG-MGBSX
8-Port 10/100Mbps Layer 2 Managed Switch
with Gigabit Port and Mini-GBIC Slot
TEG-S2620i (V1.0R)
26-Port 10/100Mbps Layer 2 Switch w/Gigabit Ethernet ports and Mini-GBIC Slots
1000MbpsRS-232 Console 10/100Mbps
Console Terminal
RS-232
8-Port 100Base-FX Layer 2
Managed Switch with Mini GBIC Slot
(TEG-S811Fi)
Virtual LAN
26-Port 10/100Mbps Layer 2 Switch with
Gigabit Ethernet Ports and Mini-GBIC Slots
(TEG-S2620i)
Virtual LAN
Network Servers
• Rack mounting kit
• Power cord (1m / 3.28ft)
• RS-232 console cable (1m / 3.28ft)
Mini-GBIC Multi-Mode SX Module
