TRENDnet TEG-S28TX User manual

TEG-S28TX
10-Port 10/100/1000Mbps
NWay Gigabit
Ethernet Switch
User’s Guide

FCC Warning
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this
user’s guide, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
VCCI Warning

P/N:6012-GSW080201 REV.A1-01
TABLE OF CONTENTS
ABOUT THIS GUIDE..............................................................1
TERMS..........................................................................................................1
OVERVIEW OF THIS USER’S GUIDE..........................................................1
INTRODUCTION........................................................................2
GIGABIT ETHERNET TECHNOLOGY........................................................2
FAST ETHERNET TECHNOLOGY..............................................................3
SWITCHING TECHNOLOGY.......................................................................4
FEATURES....................................................................................................5
Ports.......................................................................................................5
Performance features.....................................................................5
UNPACKING AND SETUP...............................................6
UNPACKING.................................................................................................6
SETUP ..........................................................................................................6
DESKTOP OR SHELF INSTALLATION......................................................7
RACK INSTALLATION (OPTIONAL).........................................................8
CONNECTING NETWORK CABLE.............................................................9
POWER ON...................................................................................................9
IDENTIFYING EXTERNAL
COMPONENTS..........................................................................10
FRONT PANEL...........................................................................................10
REAR PANEL.............................................................................................11
LED INDICATORS......................................................................................11

ii
TECHNICAL SPECIFICATIONS..........................13

1
ABOUT THIS GUIDE
This user’s guide tells you how to install your 10-port
10/100/1000Mbps Gigabit Ethernet Switch and how to connect it to
your network.
Terms
For simplicity, this documentation uses the terms “Switch” (first letter
upper case) to refer to the 10-port 10/100/1000Mbps Gigabit Ethernet
Switch, and “switch” (first letter lower case) to refer to all the Ethernet
switches (including this 10-port 10/100/1000Mbps Gigabit Ethernet
Switch).
Overview of this User’s Guide
? ?Introduction.Describes the Switch and its features.
? ?Unpacking and Setup.Helps you get started with the basic
installation of the Switch.
? ?Identifying External Components.Describes the front panel,
rear panel, and LED indicators of the Switch.
? ?Connecting the Switch. Tells how you can connect the Switch
to your Ethernet network.
? ?Technical Specifications.Lists the technical specifications of
the 10-port 10/100/1000Mbps Gigabit Ethernet Switch.

2
INTRODUCTION
This section describes the features of the 10-port 10/100/1000Mbps
Gigabit Ethernet Switch, as well as giving some background
information about Gigabit Ethernet, Fast Ethernet and Switching
technology.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet, which utilizes
the same packet structure, packet format, and supports CSMA/CD
protocol, full duplex, flow control, and management objects.
Performance wise, the theoretical throughput of the Gigabit Ethernet is
ten times faster than the 100Mbps Fast Ethernet and 100 times faster
than the 10Mbps Ethernet. Since it is compatible with all 10Mbps and
100Mbps Ethernet environments, Gigabit Ethernet provides a
straightforward upgrade without wasting company’s existing
investment in hardware, software, and trained personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet
are essential to cope with the network bottlenecks that caused by the
traffics generated from faster computers and applications that require
more bandwidth. Upgrading key components, such as your backbone
and servers to Gigabit Ethernet can greatly improve network response
times as well as significantly speed up the traffic between your
subnets.
Fiber Gigabit Ethernet enables fast optical fiber connections to support
video conferencing, complex imaging, and similar data-intensive
applications. Likewise, since data transfers occur 10 times faster than

3
Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to
perform 10 times the number of operations in the same amount of time.
In addition, the phenomenal bandwidth delivered by Gigabit Ethernet
is the most cost-effective method to take advantage of today and
tomorrow’s rapidly improving switching and routing internetworking
technologies. With the fast growing advanced silicon technology and
digital signal processing, Gigabit Ethernet is now operating over CAT5
unshielded twisted-pair (UTP) cabling, outfitting your network with a
powerful 1000Mbps capable backbone/server connection creates a
flexible foundation for the next generation of network technology
products.
FastEthernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN technologies
have been proposed to provide greater bandwidth and improve
client/server response times. Among them, 100BASE-TX (Fast
Ethernet) provides a non-disruptive, smooth evolution from the
10BASE-T technology. The non-disruptive and smooth evolution and
the dominating potential marketbase, virtually guarantee cost effective
and high performance Fast Ethernet solutions in the years to come.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN
committee. It is an extension of the 10Mbps Ethernet standard with the
ability to transmit and receive data at 100Mbps, while maintaining the
CSMA/CD Ethernet protocol. Since most of the 100Mbps Fast
Ethernet products are 10/100Mbps dual-speed, they are compatible
with 10Mbps Ethernet environments, which provides a straightforward

4
upgrade and take advantage of the existing investment in hardware,
software, and personnel training.
Switching Technology
Another key development pushing the limits of Ethernet technology is
in the field of switching technology. A switch bridges Ethernet packets
at the MAC address level of the Ethernet protocol transmitting among
connected Ethernet or FastEthernet LAN segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a Local Area Network (LAN). A switch
increases capacity and decreases network loading by making it
possible for a LAN to be divided into different segments which don’t
compete with each other for network transmission capacity, giving a
decreased load on each.
The switch acts as a high-speed selective bridge between the
individual segments. It automatically forwards traffic that needs to go
from one segment to another, without interfering with any other
segments. This allows the total network capacity to be multiplied, while
still maintaining the same network cabling and adapter cards.
Switching LAN technology is a marked improvement over the previous
generation of network bridges, which were characterized by higher
latencies. Routers have also been used to segment local area
networks, but the cost, the setup, and the maintenance required for the
router, make it relatively impractical. Today’s switches are an ideal
solution to most kinds of LAN congestion problems.

5
Features
The 10-port 10/100/1000Mbps Gigabit Ethernet Switch was designed
for easy installation and high performance in an environment where
traffic on the network and the number of users increase continuously.
Switch features include:
Ports
? ?Two 10/100/1000Mbps NWay Auto-MDI Gigabit Ethernet port
(port 9 and 10).
? ?Eight 10/100Mbps NWay Fast Ethernet ports (port 1 ~ 8).
Performance features
? ?Store and forward switching scheme capability to support rate
adaptation and protocol conversion.
? ?Full duplexto allow two communicating stations to transmit and
receive at the same time.
? ?Wire-speed data forwarding rate for each port.
? ?Wire-speed data filtering rate for each port.
? ?6K active MAC address entry table per device with automatic
learning and aging.
? ?256K bits packet buffer per device.
? ?Supports broadcast storm filtering.

6
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the Switch.
Unpacking
Open the shipping carton of the Switch and carefully unpack its
contents. The carton should contain the following items:
? ?One 10-port 10/100/1000Mbps Gigabit Ethernet Switch
? ?Four rubber feet with adhesive backing
? ?One AC power cord
? ?This User’s Guide
If any item is found missing or damaged, please contact your local
reseller for replacement.
Setup
The setup of the Switch can be performed using the following steps:
? ?The surface must support at least 5 kg.
? ?The power outlet should be within 1.82 meters (6 feet) of the
device.

7
? ?Visually inspect the power cord and see that it is secured fully
to the AC power connector.
? ?Make sure that there is adequate room for ventilation around
the Switch and do not place heavy object on the Switch.
Desktop or Shelf Installation
When installing the Switch on a desktop or shelf, the rubber feet
included with the device must be first attached. Attach these
cushioning feet on the bottom at each corner of the device. Allow
enough ventilation space between the device and the objects around
it.

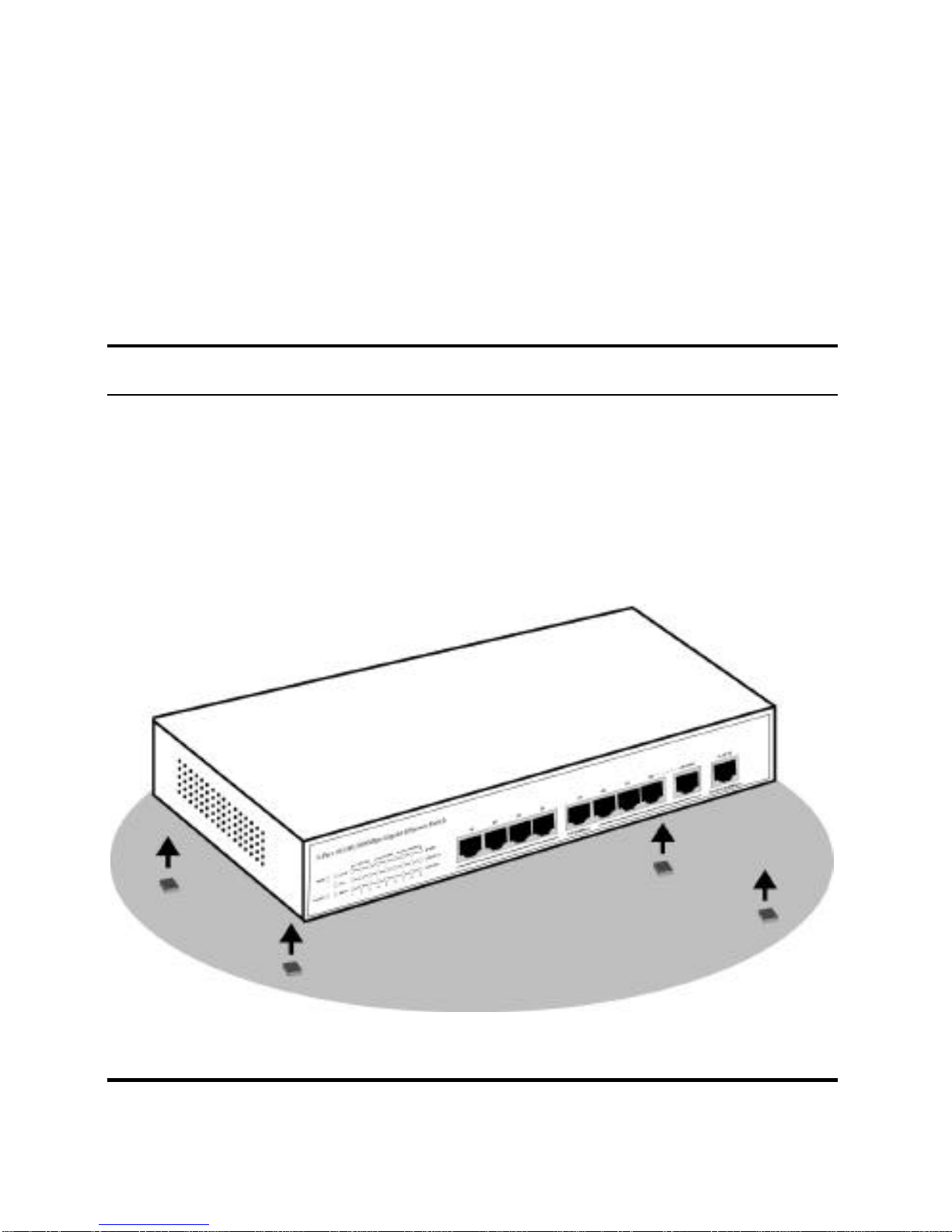

Figure 2-1. Gigabit Ethernet Switch installed on a Desktop or Shelf

8
Rack Installation (optional)
The 10-port 10/100/1000Mbps Gigabit Ethernet Switch can be mounted
in an EIA standard size, 19-inch rack, which can be placed in a wiring
closet with other equipment. To install, attach the mounting brackets
on the switch’s front panel (one on each side) and secure them with
the screws provided.

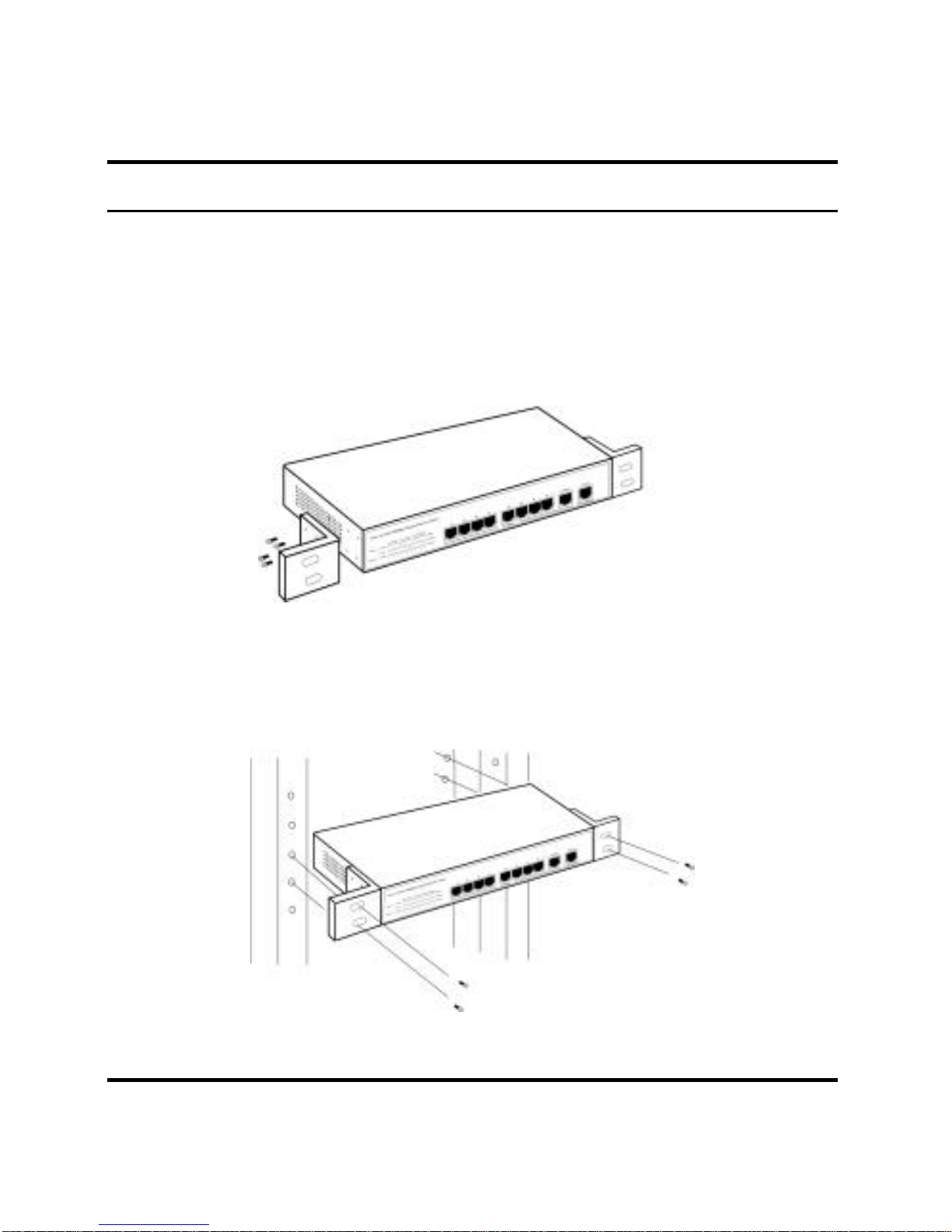

Figure 2-2A. Attaching the mounting brackets to the Switch
Then, use the screws provided with the equipment rack to mount the
Switch in the rack.
Figure 2-2B. Installing the Switch in an equipment rack

9
Connecting Network Cable
The Gigabit Ethernet Switch supports two 10/100/1000Mbps Gigabit
Ethernet ports and eight 10/100Mbps Fast Ethernet ports. Port 1 to
port 8 supports 10Mbps Ethernet or 100Mbps Fast Ethernet. Port 9 and
port 10 are Gigabit Ethernet ports and they support 10Mbps, 100Mbps
and 1000Mbps. All ports support half duplex or full duplex.
All ports are Auto-MDI type port, they auto-senses the incoming
connection type and switches between MDI-II and MDI-X. You can
make the connection using either a straight-through or crossover
cable.
Power on
The 10-port 10/100/1000Mbps Gigabit Ethernet Switch can be used
with AC power sources 100 -240 VAC, 50 -60 Hz. The Switch’s power
supply will adjust to the local power source automatically and may be
turned on without having any or all LAN segment cables connected.

10
IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel and LED indicators
of the Switch
Front Panel
The front panel of the Switch consists of 8 10/100Mbps Ethernet ports,
2 10/100/1000Mbps Gigabit Ethernet port, and LED indicators.

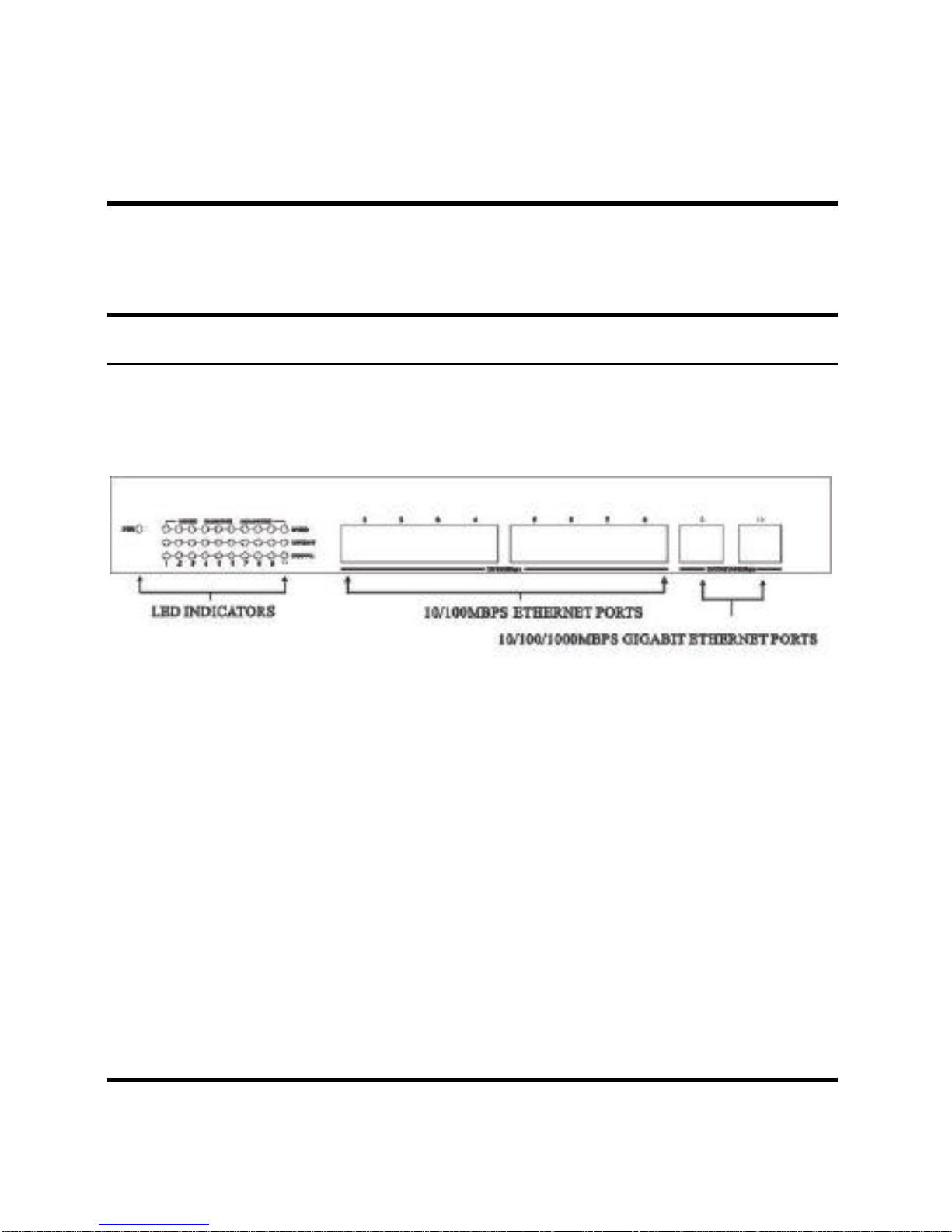

Figure 3-1. Front panel of the 10-port 10/100Mbps Gigabit Ethernet
Switch
? ?Two 10/100/1000Mbps Gigabit Ethernet ports (port 9 and 10).
? ?Eight 10/100Mbps Fast Ethernet ports (port 1 ~ 8).
? ?Comprehensive LED indicators that display the conditions of
the Switch and status of the network. A description of these
LED indicators follows (see LED Indicators).

11
Rear Panel
The rear panel of the Switch consists of an AC power connector. The
following shows the rear panel of the Switch.

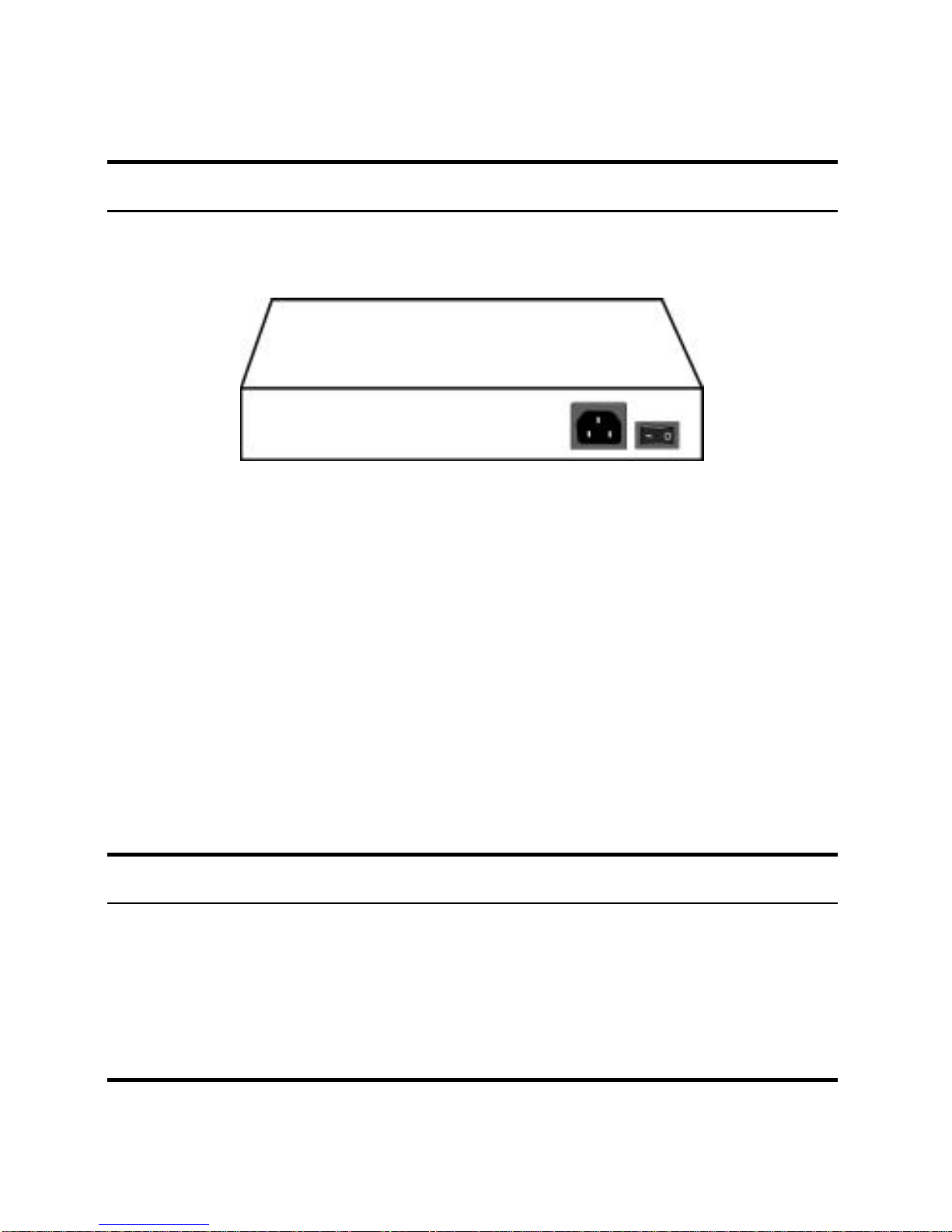

Figure 3-2. Rear panel of the 10-port 10/100/1000Mbps Gigabit
Ethernet Switch
? ?AC Power Connector This is a three-pronged connector that
supports the power cord. Plug in the female connector of the
provided power cord into this connector, and the male
connector into a power outlet. Supported input voltages range
from 100 ~ 240 VAC at 50 ~ 60 Hz.
? ?On/Off Switch This is the power on/off switch. After the power
cord is connected, push “ -“ to power on the Switch and push
“ o “ to power it off.
LED Indicators
The LED indicators of the Switch include Power, SPEED, LINK/ACT
and FDX/COL. The following shows the LED indicators for the Switch
along with an explanation of each indicator.

12
Figure 3-4. The 10-port 10/100/1000Mbps Gigabit Ethernet Switch
LED indicators
? ?POWER After turning on the power, the Power indicator on the
front panel should light to indicate the Switch is receiving
power.
? ?SPEED The indicator lights amber when the port is connected
to 1000Mbps Gigabit Ethernet station, and the indicator lights
green when the port is connected to 100Mbps Fast Ethernet
station. This indicator remains off when the port is connected
to a 10Mbps Ethernet station.
? ?LINK/ACT This indicator light green when this port is
connected to a device successfully. This indicator blinks green
when the port is transmitting or received data on the network.
? ?FDX/COL This LED indicator lights green when a respective
port is in full duplex (FDX) mode. It blinks green when
collisions are occurring on the respective port.

13
TECHNICAL SPECIFICATIONS
General
Standards:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.3x Full duplex Flow Control
Protocol: CSMA/CD
Data
Transfer
Rate:
Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)
Gigabit Ethernet: 1000 Mbps (half-duplex), 2000 Mbps (full-
duplex)
Topology Star
Network
Cables:
Ethernet: 2-pair UTP Cat. 3/4/5, EIA/TIA-568 STP
Fast Ethernet: 2-pair UTP Cat. 5, EIA/TIA-568 STP
Gigabit Ethernet: 4-pair UTP Cat. 5, EIA/TIA-568 STP
Number of
Ports: 2 x 10/100/1000Mbps NWay Gigabit Ethernet Auto-MDI port
8 x 10/100Mbps NWay Fast Ethernet Auto-MDI port

14
Physical and Environmental
AC inputs:100 –240 VAC, 50/60 Hz
Power
Consumption:30 watts maximum
Operating
Temperature:0 ~ 50 degrees Celsius
Storage
Temperature:-10 ~ 70 degree Celsius
Humidity:10% ~ 90% RH, non-condensing
Dimensions:280 mm x 180 mm x 44 mm
EMI: FCC Class A, CE Mark Class A, VCCI-A
Safety: UL (UL 1950), TUV/GS (EN60950)
Performance
Transmission
Method:Store-and-forward
RAM Buffer:256K bits per device
Filtering Address
Table: 6K MAC address per device
Packet Filtering /
Forwarding Rate:
Ethernet: 14880pps
Fast Ethernet: 148800pps
Gigabit Ethernet: 1488000pps

15
Physical and Environmental
MAC Address
Learning:Self-learning, Auto-aging
