Tri-Tronics®Owners Guide
Sport, Field & Pro G3®Series Remote Trainers
Congratulations on your purchase!
All Tri-Tronics Remote Trainers are proudly made in the USA.
Tri-Tronics takes great pride in the design, manufacture, service and safety
of all our products. We always want to hear from you, our customer.
You can contact us and get the latest information available regarding your product,
our support services, training information, or to purchase accessories, collars,
or additional receivers for your Tri-Tronics Remote Trainer.
We can be reached via email at [email protected]
or by calling toll free 1-800-456-4343 or
visit our website at www.tritronics.com.
Thank you for choosing Tri-Tronics.
Models Covered
Classic 70 G3®, Classic 70 G3®EXP®, Field 90 G3®EXP®, Flyway G3®EXP®, Upland Special G3®EXP®,
Trashbreaker G3®EXP®, Pro 100 G3®EXP®, Pro 200 G3®EXP®, Pro 500 G3®EXP®,
Sport Basic G3®, Sport Combo G3®, Sport Upland G3®.
Tracer, Sport Upland, Classic 70, Field 90, Flyway, Trashbreaker, Upland Special, Pro 100, Pro 200,
and Pro 500 are all trademarks of Tri-Tronics, Inc.
Tri-Tronics, Remote Trainer, Sport, Sport Basic, Sport Combo, G2, G3, and EXP are all registered trademarks of Tri-Tronics, Inc.


Product specications and features may change at any time without notice or obligation since
Tri-Tronics®is committed to a policy of continuous improvement.

Certain Tri-Tronics®products are covered by one or more of
these U.S. patent numbers: 4794402, 4802482, 5054428, 5099797, 5193484, 4947795, D410206, 6170439B1, D445706S,
D446144S, 6549133, D445707S, 6750758, 6907844, 7000570, 6928958, 7187291, 7198009, 7252051, D520894, D531584,
D553037, and patents pending.
Canada patent numbers: D 105795, 2456603, 2456431, 2456876, 2456852, 2456425, 2456433, 2456879

Please take a moment to complete and return the Owner’s Registration Reply Card. When you do, you’ll be “on le” at Tri-Tron-
ics®. This will help ensure timely warranty work should you need it. You may also register on our website at www.tritronics.com.
Second Edition, December, 2008
Published by Tri-Tronics®, Inc., Tucson, Arizona
Copyright © 2008 Tri-Tronics®, Inc.
All rights reserved. Printed in the USA.


MODEL GUIDE – Field & Pro G3 Series..........................................................................................................................................................1-18
MODEL GUIDE – Sport G3 Series ..................................................................................................................................................................19-22
SETTING UP A MULTI-DOG SYSTEM ...........................................................................................................................................................23-25
CHARGING THE BATTERIES ...........................................................................................................................................................................26-28
FITTING THE COLLAR ON THE DOG...............................................................................................................................................................29
STIMULATION OVERVIEW.....................................................................................................................................................................................30
STIMULATION - CONTINUOUS & MOMENTARY.........................................................................................................................................31
RANGE..........................................................................................................................................................................................................................31
TRI-TRONICS BEEPER........................................................................................................................................................................................32-36
REPLACING BATTERIES ..........................................................................................................................................................................................37
CARE AND CLEANING...........................................................................................................................................................................................38
RADIO SIGNAL ISSUES............................................................................................................................................................................................38
FCC COMPLIANCE ..................................................................................................................................................................................................38
TROUBLESHOOTING GUIDE.........................................................................................................................................................................39-43
BASIC TRAINING INTRODUCTION ..................................................................................................................................................................44
E-COLLAR BASICS ....................................................................................................................................................................................................44
BASIC TRAINING ................................................................................................................................................................................................45-48

1

The following pages illustrate the detail for operation of the Field and Pro series G3® remote trainers. All Field
and Pro Series G3® EXP® models can grow with your needs to train multiple dogs because you can simply
add more receivers to your system (see pages 23-24). The Classic 70 standard model cannot be expanded and
has no dog selection switch but has the other appropriate features.


Permanent, non-removable One-mile range; Two miles on Trashbreaker*
*Range depends on terrain, weather, vegetation, other radio transmissions in the area, and other factors. For best range, hold the
Transmitter overhead with the antenna pointed upward while transmitting and keep your ngers off the antenna.

Activates the no-stimulation signal tone of the following models: Field 90 G3® EXP®, Flyway G3® EXP®,
Pro 100 G3® EXP®, Pro 200 G3® EXP®, and Pro 500 G3 EXP®. Switches Beeper on and off on the Upland
Special and controls the TracerTM light settings.
Note: Tone on the Classic 70,Trashbreaker, and Upland Special is activated by pressing any stimulation
button when the Intensity Dial is set on “T.”

The supplied charging adaptor is tted onto the transmitter. There will be a
positive “snap” feel when the Transmitter locks into the adapter correctly.
To remove the adaptor push down on the removal tab at the back of the adaptor.
Battery Compartment Door For Replacing Battery Pack Only
(Note: Open only for changing batteries as the battery pack does not need to be removed for charging.)
 (screw heads)
Screw heads must be clean to ensure proper charging.

2

Intensity levels: 1, 2, 3, 4, 5, 6
Line up the number you select with the light on the top of the housing.
“N” (neutral) or “T” (tone) setting, depending on model.
“A” is for the Beeper and Tracer™ accessory operation on models other than the Upland.

Battery Life Indicator (“Fuel Gauge”)
When a stimulation button is pressed, this light will be:
• Steady green when the batteries are fully charged.
• Steady amber when the batteries are partly discharged.
• Steady red when the batteries need charging very soon.
• Rapid red ashing means the batteries are completely dead and the transmitter will not operate the collar.
Intensity and Stimulation Indicator
• This light is the position indicator for the selected operational setting or intensity level. It ashes as described
above when a stimulation button is activated

Buttons vary by model. See the “Model Guide” section for detail.


3


(“Fuel Gauge”)
Collar activation indicator:
• Indicates that the collar is switched on by ashing twice per second with a four second gap between ash sequences.
When a stimulation button is pressed this light indicates battery charge and will be:
• Steady green when the batteries are fully charged
• Steady amber when the batteries are partly discharged.
• Steady red when the batteries need charging very soon.
• Rapid red ashing means the batteries are completely
dead and the unit will not function.
(Note: It takes 20 seconds after the collar is switched on for the light
to register the battery charge level.)

(“Belt Loops”)
The receiver has three belt loops for secure collar strap attachment
and retention with no gap. Do not use the collar strap “belt loops”
for attaching a leash. They are not designed for this use.

Remove these two screws to remove the battery pack for replacement.
Position the new pack in place and replace the screws.
These screws are also removed to install the TracerTM light accessory.
Very important: Do not remove or tamper with any internal labels that are visible when the battery pack is removed.
Doing so will void your warranty. The receiver product code label is a seal that maintains waterproof integrity of the receiver.

A
B
B
B
B



A

4

The Tri-Tronics patented insulated contact points ensure consistent stimulation under all conditions.
Choose short or long points to match the dog’s coat type. (See the section “Fitting the Collar on the Dog” on page 29.)

Press to switch the collar on. Two conrming tones will sound and the collar light will ash periodically while the collar is on.
Press to switch the collar off. One long tone will sound and the light will stop ashing. Switch the collar off when not in use
to conserve batteries.

Place the receiver in the supplied cradle to charge.
Discharged batteries will take only two hours to fully
recharge with the exclusive Tri-Tronics charging system.

D
E
F
FF
E
D
D

5

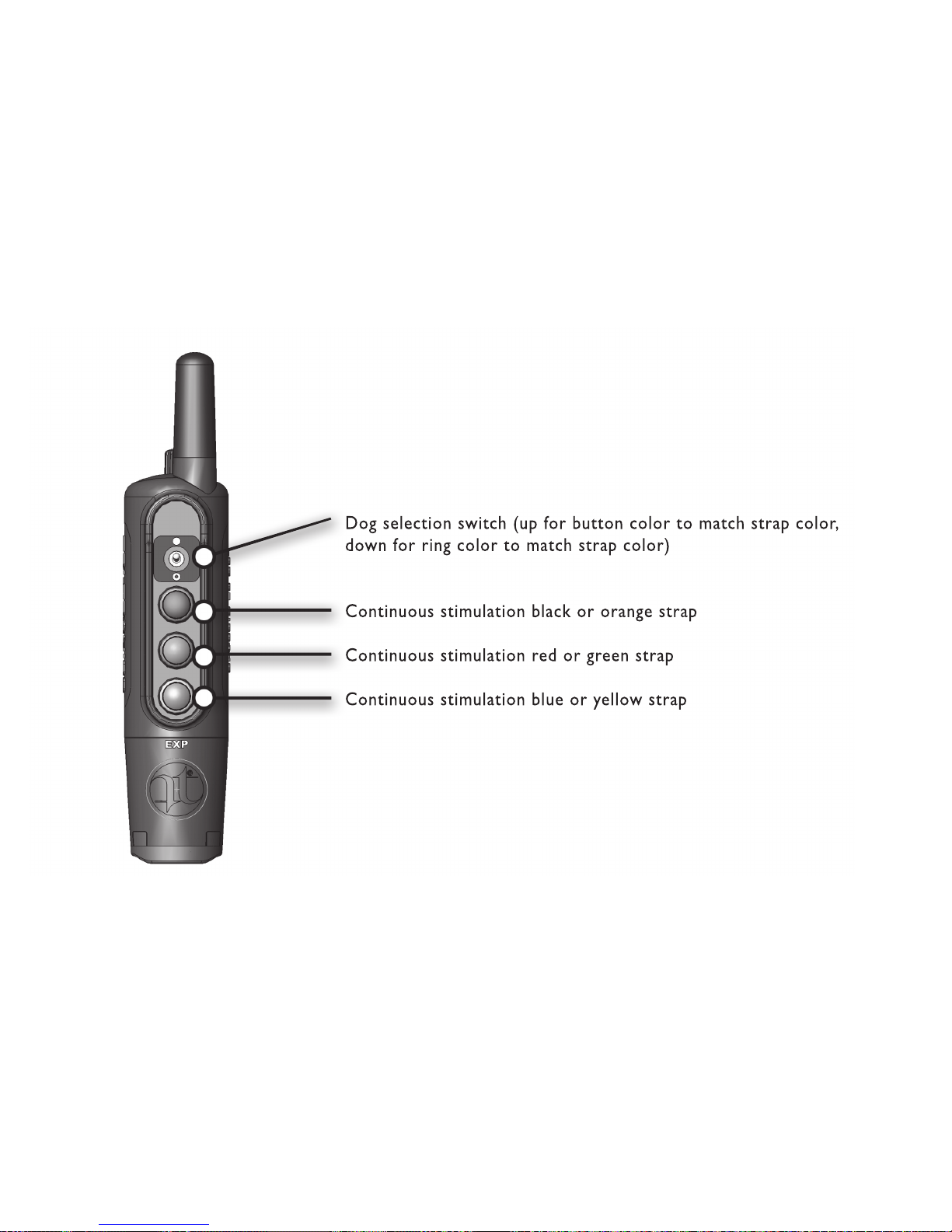

-6 levels of continuous stimulation
-Train up to 6 dogs
-1 black collar strap included with system
-Receiver matched at factory to black setting on dog selection switch
-“T” setting on intensity dial for tone.
Set the dial to T and press any stimulation button to produce the tone signal instead of stimulation
-“A” setting on intensity dial for Beeper or Tracer™accessory
Set the dial to A and press any stimulation button to activate a Tri-Tronics Beeper or TracerTM
accessory if installed
-1 mile range on Classic 70
-2 mile range on Trashbreaker

6

7

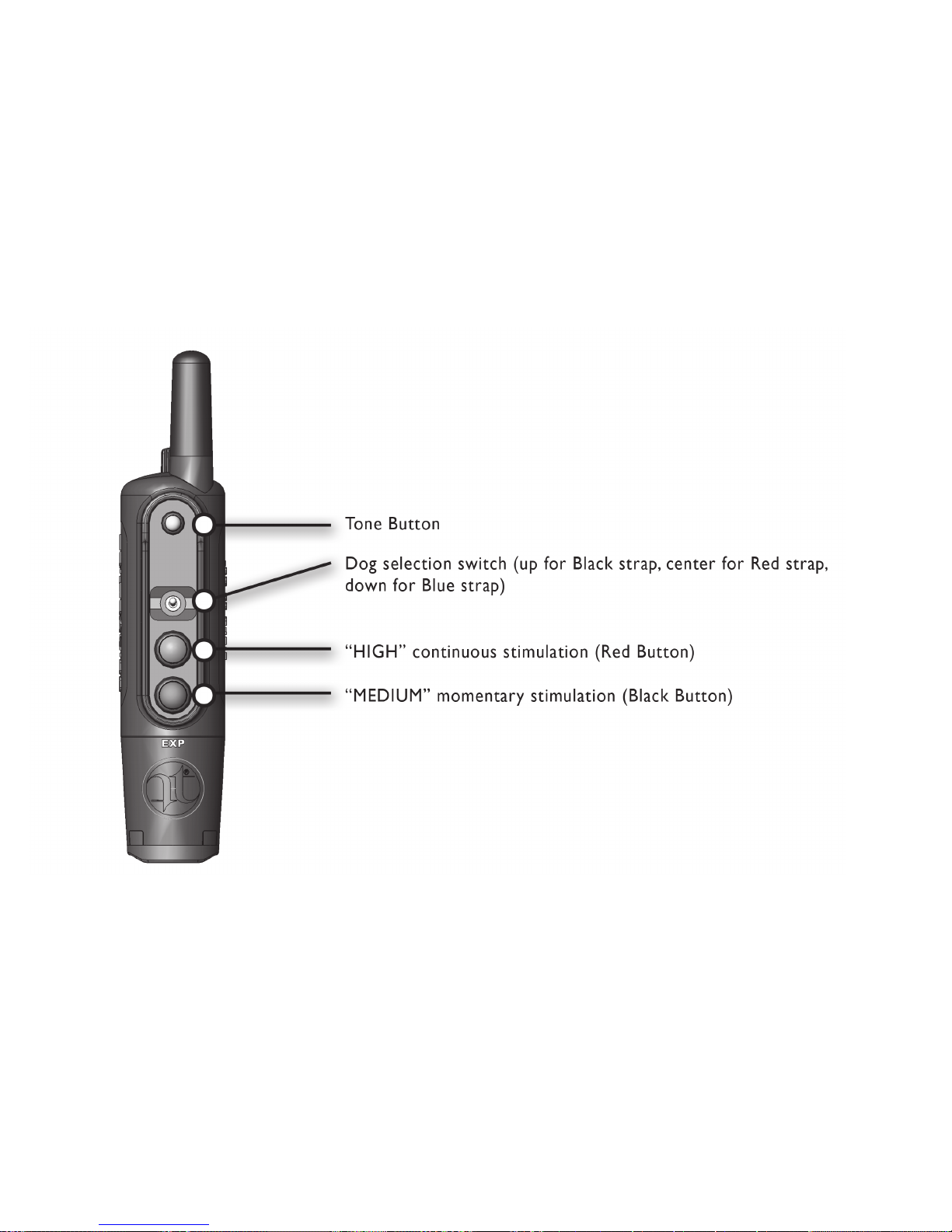

-Dedicated tone button
-6 levels of medium momentary stimulation
-6 levels of high continuous stimulation
-Train up to 3 dogs
-1 black collar strap included with system
-Receiver matched at factory to black position on dog selection switch
-“A” setting on intensity dial for Beeper or Tracer™
Set the dial to A and press any stimulation button to activate a Tri-Tronics Beeper or TracerTM
accessory if installed
-“N” neutral setting on intensity dial - transmitter buttons will not function

8

9
-Dedicated tone button
-18 levels of momentary stimulation
6 each of low, medium, and high
-6 levels of high continuous stimulation
-Train up to 3 dogs
-1 black collar strap included with system
-Receiver matched at factory to black position on dog selection switch
-“A” setting on intensity dial for Beeper and TracerTM
Set the dial to A and press any stimulation button to activate a
Tri-Tronics Beeper or TracerTM if installed
-“N” neutral setting on intensity dial – transmitter buttons will not function

10

11
-Dedicated tone button
-18 levels of continuous stimulation
6 each of low, medium, and high
-6 levels of medium momentary stimulation
-Train up to 3 dogs
-1 black collar strap included with system
-Receiver matched at factory to black position on dog selection switch
-“A” setting on intensity dial for Beeper and TracerTM
Set the dial to A and press any stimulation button to activate a
Tri-Tronics Beeper or TracerTM if installed
-“N” neutral setting on intensity dial – transmitter buttons will not function

12

13
-Dedicated tone button
-18 levels of momentary stimulation
6 each of low, medium, and high
-6 levels of high continuous stimulation
-Train up to 3 dogs
-1 black collar strap included with system
-Receiver matched at factory to black position on dog selection switch
-“A” setting on intensity dial for Beeper and TracerTM
Set the dial to A and press any stimulation button to activate a
Tri-Tronics Beeper or TracerTM if installed
-“N” neutral setting on intensity dial – transmitter buttons will not function

14

15

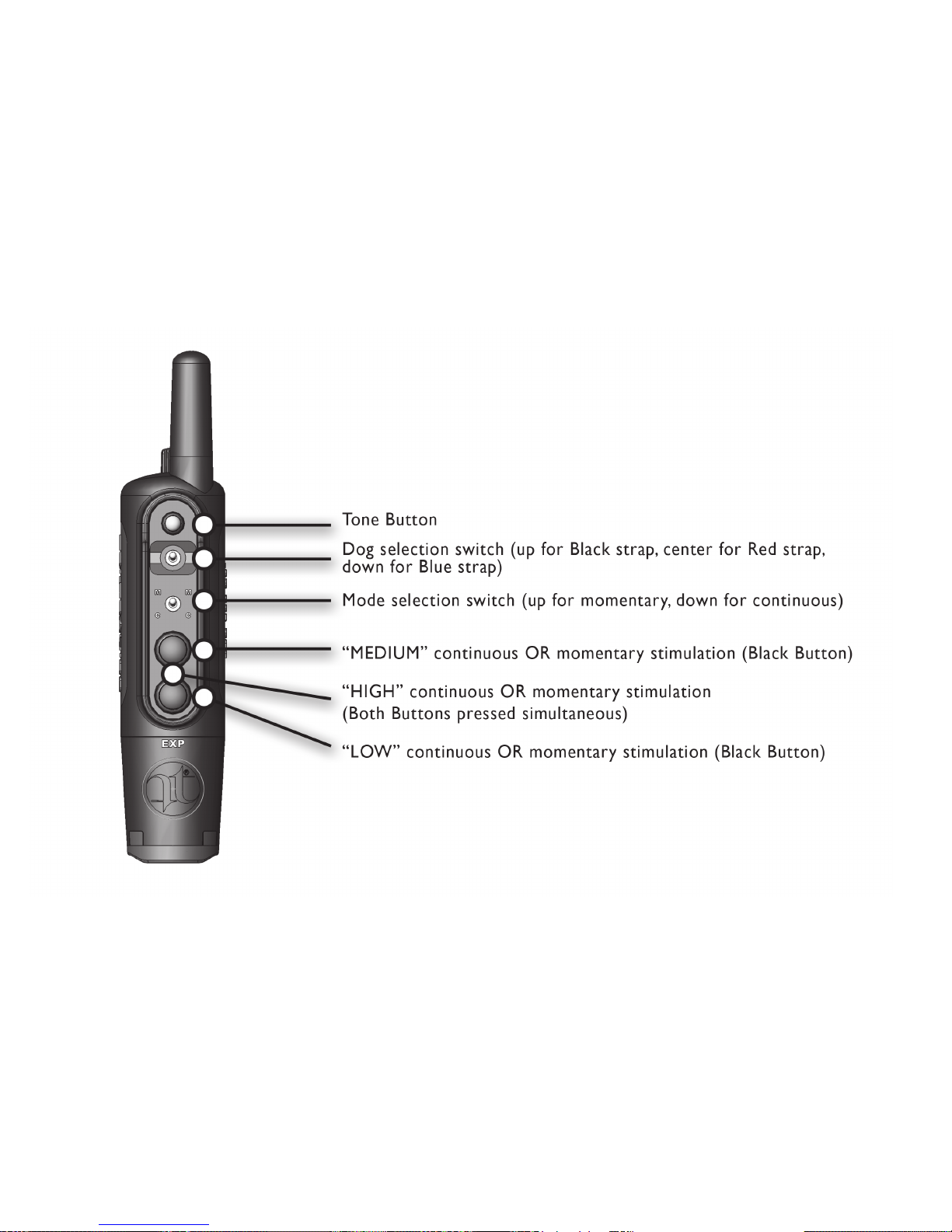

-Dedicated tone button
-18 levels of momentary stimulation
6 each of low, medium, and high
-18 levels of high continuous stimulation
6 each of low, medium, and high
-Train up to 3 dogs
-1 black collar strap included with system
-Receiver matched at factory to black position on dog selection switch
-“A” setting on intensity dial for Beeper and TracerTM
Set the dial to A and press any stimulation button to activate a
Tri-Tronics Beeper or TracerTM if installed
-“N” neutral setting on intensity dial – transmitter buttons will not function
