TriangleTube PRESTIGE Solo PA 80 Instruction Manual

Revision date : 03/15/18 A1005229 - 664A0700 • B
Installation & Maintenance Manual
PRESTIGE
Solo
PA 80, 110, 155, 175, 250, 299, 399
If the information in this manual is not followed exactly, a fire or explosion may result causing
substantial property damage, serious injury, or death.
FOR YOUR SAFETY
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
• Customer must register unit within thirty (30) days of installation in order to gain warranty coverage. See Warranty Card
for details.
• When receiving the PRESTIGE Solo unit, any claims for damage or shortage in shipment must be filed immediately against
the transportation company by the consignee.
• Leave all documentation received with appliance with the owner for future reference.
NOTICE
WARNING

INTENTIONALLY LEFT BLANK

iii
TABLE OF CONTENTS
PRODUCT AND SAFETY INFORMATION.......................................................................... XI
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS ........................................................ 1
1.1. Code Compliance............................................................................................................................ 1
1.2. Determining Product Location....................................................................................................... 1
1.3. Boiler Freeze Protection Feature ...................................................................................................2
1.4. Boiler Replacement.........................................................................................................................2
1.5. Recommended Clearances............................................................................................................2
1.6. Residential Garage Installations ....................................................................................................2
CHAPTER 2 - COMBUSTION AIR & VENTING ...................................................................3
2.1. Combustion Air Contamination.....................................................................................................3
2.2. Ventilation and Combustion Air Requirements - Direct Vent......................................................4
2.3. Ventilation and Combustion Air Requirements - Category IV.....................................................4

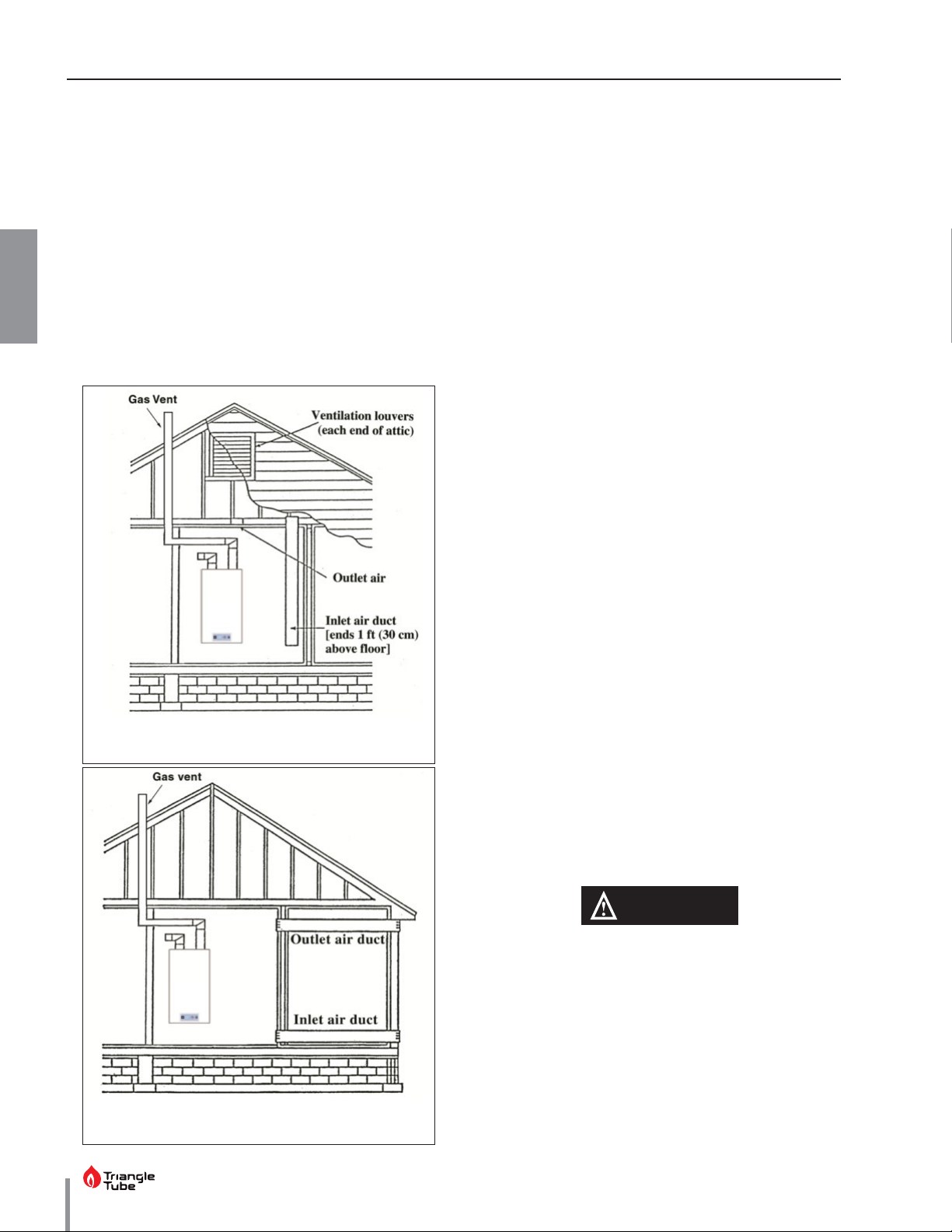

2.4. Methods of Accessing Combustion Air Into A Space - Category IV ...........................................5
2.4.1. Indoor Combustion Air..........................................................................................................5
2.4.2. Outdoor Combustion Air.......................................................................................................5
2.4.3 Combination of Indoor and Outdoor Combustion Air ......................................................6
2.5. Combustion Air and Vent Piping....................................................................................................6
2.6. Removal of an Existing Boiler from a Common Vent System.....................................................7
2.7. Carbon Monoxide Detector Installation ........................................................................................8
2.8. Commonwealth of Massachusetts Installation Requirements ...................................................8
2.8.1 Installation of Carbon Monoxide Detectors. ........................................................................8
2.8.2 Approved Carbon Monoxide Detectors. .............................................................................8
2.8.3 Signage ..................................................................................................................................8
2.8.4 Inspection. .............................................................................................................................8
2.8.5 Manufacturer Requirements - Gas Equipment Venting System Provided. .....................9
2.8.6 Manufacturer Requirements - Gas Equipment Venting System Not Provided. ..............9
CHAPTER 3 - UNIT PREPARATIONS .................................................................................11
3.1. Handling Instructions ....................................................................................................................11
3.2. Wall Mounting Installation .............................................................................................................11
3.3. Wall Mounting Guidelines ..............................................................................................................11
3.4. Stud Walls - Installation ............................................................................................................... 12
3.4.1 PRESTIGE Solo 80/110/155/175/250 .............................................................................. 12
3.4.2 PRESTIGE Solo 299/399 ................................................................................................... 12
3.5. Wall Bracket Installation - Solid Walls..........................................................................................12
3.6. Boiler Mounting.............................................................................................................................12

iv
TABLE OF CONTENTS
CHAPTER 4 - BOILER PIPING ........................................................................................... 13
4.1. General Piping Requirements ......................................................................................................13
4.2. Pressure Relief Valve .................................................................................................................... 13
4.3. Boiler Air Vent................................................................................................................................ 14
4.4. Low Water Cutoff Device .............................................................................................................. 14
4.5. Additional Limit Control................................................................................................................ 15
4.6. Backflow Preventer....................................................................................................................... 15
4.7. Boiler System Piping Applications............................................................................................... 15
4.8. Expansion Tank and Makeup Water ............................................................................................ 16
4.8.1 Diaphragm Expansion Tank................................................................................................ 16
4.8.2 Closed-Type Expansion Tank.............................................................................................. 16
4.9. Circulator ....................................................................................................................................... 17
4.10. Sizing Primary Piping.................................................................................................................... 17
4.11. Domestic Hot Water System Piping ............................................................................................ 17
4.12. System Piping - Zone Circulators ................................................................................................ 17
4.13. System Piping - Zone Valves ........................................................................................................ 17
4.14. System Piping - Through Boiler ................................................................................................... 17
4.15. System Piping - Radiant Heating ................................................................................................ 23
4.16. System Piping - Special Application........................................................................................... 23
4.17. System Piping - Multiple Units Installation ................................................................................ 23
CHAPTER 5 - INSTALLING VENT/COMBUSTION AIR & CONDENSATE DRAIN ..........25
5.1. Installing Vent and Combustion Air............................................................................................ 25
5.2. Installing Condensate Drain Assembly ...................................................................................... 25
CHAPTER 6 - GAS PIPING................................................................................................. 27
6.1. Gas Supply Piping Connection.....................................................................................................27
6.2. Natural Gas................................................................................................................................... 28
6.2.1 Pipe Sizing........................................................................................................................... 28
6.2.2 Supply Pressure Requirements ........................................................................................ 28
6.3. Propane Gas ................................................................................................................................. 29
6.3.1 Pipe Sizing........................................................................................................................... 29
6.3.2 Supply Pressure Requirements ........................................................................................ 29
CHAPTER 7 - INTERNAL WIRING......................................................................................33
7.1. General Requirements................................................................................................................. 33
7.2. Fuse Locations ............................................................................................................................. 33

v
TABLE OF CONTENTS
CHAPTER 8 - EXTERNAL WIRING ....................................................................................35
8.1. General Requirements................................................................................................................. 35
8.2. Line Voltage Connections............................................................................................................ 35
8.3. Circulator Wiring .......................................................................................................................... 35
8.4. Flame Status & Alarm Wiring ...................................................................................................... 35
8.5. Low Voltage Connections............................................................................................................ 36
8.6. Thermostat Wiring....................................................................................................................... 36
8.7. Outdoor Sensor Wiring.................................................................................................................37
8.8. Domestic Hot Water Wiring..........................................................................................................37
8.9. Additional Boiler Limits ................................................................................................................37
8.10. External Modulation Control ........................................................................................................37
8.11. System Sensor Wiring ..................................................................................................................37
8.12. Cascade Wiring ............................................................................................................................ 38
8.13. Modbus Wiring ............................................................................................................................. 38
CHAPTER 9 - ACVMAX OPERATION ................................................................................ 41
9.1. ACVMax Navigation ...................................................................................................................... 41
9.2. ACVMax Menu Structure............................................................................................................. 42
9.3. Home Screen................................................................................................................................ 43
9.4. Status Line Messages.................................................................................................................. 44
9.5. Main Menu .................................................................................................................................... 45
9.6. EZ Setup ....................................................................................................................................... 45
9.7. Heating EZ Setup ................................................................................................................ 46
9.7.1 Select CH Demand (No outdoor sensor connected) ...................................................... 46
9.7.2 Select CH Demand (Outdoor sensor connected).............................................................47
9.8. Domestic Hot Water EZ Setup ........................................................................................... 48
9.9. EZ Setup Reset ................................................................................................................... 49
9.10. Display EZ Setup .................................................................................................................. 49
9.11. CH/DHW Operation ............................................................................................................ 50
9.12. Boiler Information ................................................................................................................ 50
9.12.1 Information Items................................................................................................................ 51
9.12.2 Lockout Screen....................................................................................................................52
9.12.3 Manual Reset Lockouts.......................................................................................................53
9.12.4 Automatic Reset Blocking Lockouts................................................................................. 54

vi
TABLE OF CONTENTS
CHAPTER 10 - START-UP PREPARATION ........................................................................55
10.1. Boiler System Fluid Requirements ............................................................................................. 55
10.1.1 Boiler Fluid pH Level 6.0 to 8.0 ..........................................................................................55
10.1.2 Boiler Fluid Hardness Less Than 7 Grains.........................................................................55
10.1.3 Chlorinated Water ...............................................................................................................55
10.1.4 Flush Boiler to Remove Sediment......................................................................................55
10.1.5 Cleaning of Old Boiler/System: .........................................................................................55
10.1.6 Cleaning of New Boiler/System: .......................................................................................55
10.1.7 Check and Test Antifreeze................................................................................................. 56
10.1.8 Use of Antifreeze in the Boiler System ............................................................................. 56
10.2. Filling the Boiler System .............................................................................................................. 56
10.3. Check Low Water Cut-Off Device................................................................................................ 56
10.4. Check For Gas Leaks ....................................................................................................................57
10.5. Check Thermostat Circuit............................................................................................................57
10.6. Inspect Condensate Drain Assembly ..........................................................................................57
CHAPTER 11 - START-UP PROCEDURES .........................................................................59
11.1. Final Checks Before Start-Up...................................................................................................... 59
11.2. PRESTIGE Solo Start-Up ............................................................................................................. 59
11.3. Check the PRESTIGE Solo and System...................................................................................... 59
11.3.1 Check Boiler Piping. ............................................................................................................59
11.3.2 Check Vent and Combustion Air Piping.............................................................................59
11.3.3 Verify Carbon Monoxide Detector .....................................................................................59
11.3.4 Check Gas Piping................................................................................................................ 60
11.3.5 Verify Flame Pattern and Combustion ............................................................................. 60
11.3.6 Measure Input - Natural Gas Only...................................................................................... 61
11.3.7 Test High Temperature Limit.............................................................................................. 61
CHAPTER 12 - OUTDOOR RESET CONTROL...................................................................63
12.1. Mounting the Outdoor Sensor .................................................................................................... 63
12.2. Wiring the Sensor......................................................................................................................... 63
CHAPTER 13 - EXTERNAL MODULATING CONTROL .....................................................65
13.1. Wiring the Modulating Controller................................................................................................ 65
13.2. ACVMax Programming ................................................................................................................ 65
13.3. Programming of External Modulating Control........................................................................... 65
CHAPTER 14 - CHECK-OUT PROCEDURES .....................................................................67
CHAPTER 15 - INSTALLATION RECORD ..........................................................................69

vii
TABLE OF CONTENTS
CHAPTER 16 - MAINTENANCE SCHEDULES....................................................................71
16.1. Service Technician ........................................................................................................................ 71
16.2. Owner Maintenance...................................................................................................................... 71
CHAPTER 17 - MAINTENANCE PROCEDURES ................................................................ 73
17.1. Service Technician Maintenance Procedures ............................................................................73
17.2. Reported Problems.......................................................................................................................73
17.3. Check Surrounding Area ............................................................................................................73
17.4. Inspect Burner Area......................................................................................................................73
17.5. Check System Piping ....................................................................................................................73
17.6. Clean Condensate Drain Assembly .............................................................................................73
17.7. Check Ventilation Air Openings ...................................................................................................74
17.8. Inspect Vent and Combustion Air Piping ....................................................................................74
17.9. Check Boiler System.....................................................................................................................74
17.10. Check Expansion Tank..................................................................................................................74
17.11. Check Boiler Relief Valve ..............................................................................................................74
17.12. Inspection of Ignitor......................................................................................................................74
17.13. Check Ignition Cable and Ground Wiring ....................................................................................75
17.14. Check Control Wiring....................................................................................................................75
17.15. Check Control Settings ................................................................................................................75
17.16. Perform Start-up and Checkout Procedures..............................................................................75
17.17. Check Burner Flame .....................................................................................................................75
17.18. Check Flame Signal.......................................................................................................................75
17.19. Check Combustion Levels............................................................................................................76
17.20. Check Flue Gas Temperature.......................................................................................................76
17.21. Clean Heat Exchanger ..................................................................................................................76
17.22. Check Carbon Monoxide Detectors ............................................................................................76
17.23. Review With Owner .......................................................................................................................76
17.24. Torque Specifications Table .........................................................................................................76
CHAPTER 18 - REPLACEMENT PARTS............................................................................. 77
CHAPTER 19 - PRODUCT SPECIFICATIONS....................................................................89

viii
INDEX OF ILLUSTRATIONS AND TABLES
Fig. 1 - All Combustion Air from adjacent Indoor Spaces through Indoor Combustion Openings ......5
Fig. 2 - All Combustion Air from Outdoors Through One Permanent Air Opening ...............................5
Fig. 3 - All Combustion Air from Outdoors Through Ventilated Attic .....................................................6
Fig. 4 - All Combustion Air from Outdoors Through Horizontal Ducts...................................................6
Fig. 5 - Pressure Relief Valve and Boiler Drain Valve Installation ..........................................................13
Fig. 6 - Piping Component Legend .......................................................................................................... 14
Fig. 7 - Near Boiler Piping - Diaphragm Expansion Tank ....................................................................... 15
Fig. 8 - Near Boiler Piping - Closed Type Expansion Tank ..................................................................... 16
Fig. 9 - System Piping - Zoning with Zone Circulators ..........................................................................18
Fig. 10 - System Piping - Zoning with Zone Valves ................................................................................19
Fig. 11 - System Piping - Multiple Zone Valve with Single System/Boiler Circulator......................... 20
Fig. 12 - System Piping - Single Zone System with Single System/Boiler Circulator........................ 21
Fig. 13 - Multiple PRESTIGE Solo Boiler Piping - Primary / Secondary ............................................. 22
Fig. 14 - Condensate Drain Assembly.................................................................................................... 26
Fig. 15 - Recommended Gas Supply Piping............................................................................................27
Fig. 16 - Gas Valve / Venturi Assembly - PRESTIGE Solo 80-110 ........................................................ 30
Fig. 17 - Gas Valve / Venturi Assembly - PRESTIGE Solo 155/175/250.............................................. 30
Fig. 18 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299 /399 ()............................................................31
Fig. 19 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299/399 ()............................................... 31
Fig. 20 - ACVMax Control Module Fuse Location ................................................................................. 33
Fig. 21 - Prestige Solo Boiler Factory Wiring.......................................................................................... 34
Fig. 22 - Terminal Strip Location............................................................................................................ 35
Fig. 23 - Low Voltage Connections ......................................................................................................... 36
Fig. 24 - Typical Zone Panel Wiring to PRESTIGE with Zone Valves .................................................... 38
Fig. 25 - Typical Zone Panel Wiring to PRESTIGE with Zone Circulators............................................. 39
Fig. 26 - ACVMax User Interface ............................................................................................................. 41
Fig. 27 - PRESTIGE Solo 80/110 Jacket Components...........................................................................77
Fig. 28 - PRESTIGE Solo 155/175/250 Jacket Components ................................................................78
Fig. 29 - PRESTIGE Solo 299/399 Jacket Components ...................................................................... 79
Fig. 30 - PRESTIGE Solo 80/110 Internal Components....................................................................... 80
Fig. 31 - PRESTIGE Solo 155/175/250 Internal Components ............................................................. 81
Fig. 32 - PRESTIGE Solo 299/399 () Internal Components ............................................................. 82
Fig. 33 - PRESTIGE Solo 299/399 () Internal Components ............................................................. 83
Fig. 34 - PRESTIGE Solo 80/110 Burner Components ........................................................................ 84
Fig. 35 - PRESTIGE Solo 155/175/250 Burner Components.............................................................. 85
Fig. 36 - PRESTIGE Solo 299/399 () Burner Components............................................................. 86
Fig. 37 - PRESTIGE Solo 299/399 () Burner Components ..............................................................87

ix
INDEX OF ILLUSTRATIONS AND TABLES
Fig. 38 - PRESTIGE Solo Control & Display Enclosures ....................................................................... 88
Fig. 39 - Front View PRESTIGE Solo 80/110 ......................................................................................... 90
Fig. 40 - Right Side View PRESTIGE Solo 80/110 ................................................................................. 91
Fig. 41 - Front View PRESTIGE Solo 155/175/250............................................................................... 92
Fig. 42 - Right Side View PRESTIGE Solo 155/175/250...................................................................... 93
Fig. 43 - Front View PRESTIGE Solo 299/399 ()............................................................................... 94
Fig. 44 - Right Side View PRESTIGE Solo 299/399 ()....................................................................... 95
Graph 1 - Pressure Loss Through Boiler - Taco Circulators ................................................................. 96
Graph 2 - Pressure Loss Through Boiler - Grundfos Circulators ........................................................ 96
Graph 3 - Pressure Loss Through Boiler - Taco Circulators ...............................................................97
Graph 4 - Pressure Loss Through Boiler - Grundfos Circulators ........................................................97
Graph 5 - Pressure Loss Through Boiler - Taco Circulators ................................................................ 98
Graph 6 - Pressure Loss Through Boiler - Grundfos Circulators ...................................................... 98
Table 1 - Gas Piping Sizing - Natural Gas ............................................................................................... 28
Table 2 - Outdoor Reset Preset Selections.............................................................................................47
Table 3 - Throttle Screw Adjustment ......................................................................................................61
Table 4 - Acceptable Combustion Levels...............................................................................................61

INTENTIONALLY LEFT BLANK

xi
SAFETY
PRODUCT AND SAFETY INFORMATION
This manual contains important information with respect to the
installation, starting up and maintenance of the appliance.
This manual must be provided to the Homeowner, who will
keep it in a safe place for future reference.
Triangle Tube accepts no liability for any damage,
injury, or loss of life resulting from incorrect
installation, alteration of any factory supplied
parts, or the use of parts or ttings not specied by
Triangle Tube. If there is a conict or doubt about the
proper installation of the unit or any factory supplied
replacement parts please contact Triangle Tube
Technical Support.
DEFINITIONS
The following terms are used throughout this manual
to bring attention to the presence of potential hazards
or to important information concerning the product.
Indicates the presence of a hazardous situa-
tion which, if ignored, will result in substantial
property damage, serious injury, or death.
Indicates a potentially hazardous situation
which, if ignored, can result in substantial
property damage, serious injury, or death.
Indicates a potentially hazardous situation
which, if ignored, can result in minor property
damage, or injury.
Indicates special instructions on installation,
operation or maintenance, which are import-
ant to the equipment but not related to person-
al injury hazards.
Indicates recommendations made by Triangle
Tube for the installers, which will help to ensure
optimum operation and longevity of the equip-
ment.
DANGER
WARNING
CAUTION
NOTICE
BEST PRACTICE
• Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system which has been under water.
• Avoid electrical shock when servicing the
appliance, by disconnecting the electrical supply
prior to performing maintenance.
• Failure to comply with these instructions will
result in substantial property damage, serious
injury, or death.
• What to do if you smell gas:
- Do not try to light any appliance
- Do not touch any electrical switch; do not use
any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the
fire department.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• Prior to installing this product, the qualified
installer must read all instructions included in
this manual and all accompanying manuals/
documents with this appliance.
• All installation steps required in these manuals
must be performed in the proper order given.
• This product must be maintained / serviced and
inspected annually by a qualified service technician.
• A byproduct of any gas fired appliance is carbon
monoxide. Triangle Tube requires the installation
of a minimum of two (2) hard-wired carbon
monoxide detectors with an alarm and battery
back-up; one in the mechanical room where
the boiler is located and another installed in
the living area outside the bedroom(s) for all
installations. Consult the local authority having
jurisdiction for any additional carbon monoxide
detector requirements in your area. See Section
2.8 on page 8 for additional carbon monoxide
detector requirements in Massachusetts.
• Failure to comply with these instructions can
result in substantial property damage, serious
injury, or death.
DANGER
WARNING
IMPORTANT SAFETY INFORMATION FOR
THE HOMEOWNER AND THE INSTALLER

• It is prohibited to carry out any modifications to
the appliance without prior written consent from
Triangle Tube.
• Faulty parts must only be replaced by genuine
Triangle Tube factory parts.
• Failure to comply with these instructions can result
in minor property damage, or injury.
• The homeowner is only permitted to carry out the basic
set-up operations (EZ Setup) after he has received all
relevant instructions from the installer. Any other set-
up must be carried out by a qualified installer.
• In case of any anomaly, please call your qualified
service technician.
• Make sure to reference the unit’s model number and
serial number from the rating label when inquiring
about service or troubleshooting.
• Triangle Tube reserves the right to change the
technical characteristics, components and features of
its products without prior notice. Check for an updated
version of this manual at www.triangletube.com.
CAUTION
NOTICE
• Should overheating occur or if the gas supply fails
to shut off, turn OFF the manual gas control valve
external to the appliance.
• Do not add cold make up water when the
appliance is hot. Thermal shock can potentially
cause cracks in the heat exchanger.
• Failure to comply with these instructions can
result in substantial property damage, serious
injury, or death.
WARNING
PRODUCT EFFECTIVITY - PRESTIGE
SOLO 299/399
Following a configuration upgrade on the Pres-
tige Solo 299 and 399 blower/Venturi/gas valve
assembly, two different configurations now
exist in the Prestige Solo 299/399 boilers. To re-
flect the differences, a code (see table below) is
allocated to each configuration and displayed
in the relevant locations in the manual.
P Solo 299 P Solo 399
Eectivity code
- up to S/N PA116182 PA116693
- from S/N — (*) PA124663
(*) Unknown at the time of printing - therefore, for P299 boil-
ers, all S/N higher than eectivity code  are concerned.
NOTICE
xii
SAFETY
PRODUCT AND SAFETY INFORMATION

1
CHAPTER 1
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS
1.1. Code Compliance
The PRESTIGE Solo must be installed by a qualied in-
staller in accordance with the following:
• All applicable local, state, national and provin-
cial codes, ordinances, regulations and laws.
• For installations in Massachusetts, code requires
the PRESTIGE Solo to be installed by a licensed
plumber or gas tter, and if antifreeze is utilized,
the installation of a reduced pressure back-ow
preventer device is required in the boiler’s cold
water ll or make up water supply line.
• For installation in Massachusetts, all direct vented
appliances must comply with the guidelines as
outlined in Section 2.8 on page 8.
• The National Fuel Gas Code (NFPA54/ ANSI Z
223.1).
• National Electric Code (ANSI/NFPA 70).
• For installations in Canada - Installation Code for
Gas Burning Equipment (CAN/CSA B149.1), Ca-
nadian Electrical Code Part 1 (CSA C22.1).
• Standards for Controls and Safety Devices for
Automatically Fired Boilers (ANSI/ASME CSD-1),
when required.
The boiler gas manifold and gas controls meet
the safe lighting and other performance re-
quirements as specified in ANSI Z21.13.
NOTICE
1.2. Determining Product Location
The PRESTIGE Solo is certified for indoor,
conditioned space installations ONLY.
Before locating the PRESTIGE Solo check for convenient
locations to:
• Heating system piping
• Venting
• Gas supply piping
• Electrical service
Ensure the PRESTIGE Solo location allows the combus-
tion air/vent piping to be routed directly through the
building and terminate properly outside with a mini-
mum amount of length and bends.
Ensure the area chosen for the installation of the PRESTIGE
Solo is free of any combustible materials, gasoline, or oth-
er ammable liquids.
Failure to remove or maintain the area free
of combustible materials, gasoline, or oth-
er flammable liquids or vapors can result in
substantial property damage, serious injury,
or death.
Ensure the PRESTIGE Solo and its controls are protected
from dripping or spraying water during normal opera-
tion or service.
The PRESTIGE Solo should be installed in a location so
that any water leaking from the boiler, piping connec-
tions, or relief valve will not cause damage to the sur-
rounding area or any lower oors in the structure.
NOTICE
WARNING

2
CHAPTER 1
1.3. Boiler Freeze Protection Feature
The ACVMax boiler management system has a freeze
protection feature built in. This feature monitors the
boiler water temperature and responds as follows
when no call for heat is present:
• 46ºF [8ºC] Pump outputs congured to respond to
a CH1 Call are enabled.
• 42ºF [6ºC] Pump outputs congured to respond to
a CH1 or CH2 Call are enabled, Burner operates at
low re.
• 60ºF [15ºC] Freeze protection ends. Burner & all
pumps turn o after completing CH Post Pump Time.
• The boiler freeze protection feature is dis-
abled during a hard lockout. The burner
will not fire, but the circulators will operate.
• The boiler freeze protection feature is de-
signed to protect the boiler, not the heating
system. The boiler should be installed in a
primary/secondary piping arrangement if it
is installed in an unheated space or exposed
to water temperatures of 46ºF or less. Refer
to Chapter 4 for primary/secondary and
Chapter 10 for antifreeze guides.
• Failure to comply can result in minor prop-
erty damage, or injury.
1.4. Boiler Replacement
If the PRESTIGE Solo is replacing an existing boiler, the
following items should be checked and corrected prior
to installation:
• Boiler piping leaks and corrosion.
• Proper location and sizing of the expansion
tank on the boiler heating loop.
• The existing vent system is appropriate for the
PRESTIGE Solo and it is correctly installed. Refer
to the PRESTIGE Vent Supplement for the vent
system requirements.
• Amount and quality of propylene glycol within
the system, if applicable.
1.5. Recommended Clearances
The PRESTIGE Solo is approved for zero clearance to
combustibles, excluding vent and boiler piping.
CAUTION
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS
• Boiler piping must be a minimum 1/4 inch from
combustible materials.
• Reference the PRESTIGE Vent Supplement for
vent pipe clearance requirements.
It is recommended that the following clearances
be maintained for serviceability:
• Top boiler jacket - 24 inches [610 mm].
• Front - 24 inches [610 mm].
• Bottom boiler piping - 24 inches [610 mm].
• Rear - 0 inches
• Sides - 6 inches [153 mm]
When maintaining less than recommended
service clearances, some product labeling, in-
cluding the rating label, may become hidden
and unreadable.
• If the recommended clearances list-
ed above cannot be maintained
or the enclosure in which the boil-
er is installed is less than 85 cubic
feet, the space must be ventilated.
See Section 2.2 on page 4.
• When installing the PRESTIGE Solo in a con-
fined space, sufficient air must be provided
to allow, under normal operating condi-
tions, proper air flow around the product
to maintain ambient temperatures within
safe limits to comply with the National Fuel
Gas Code (NFPA 54 / ANSI Z223.1)
• Failure to comply with these instructions
can result in substantial property dam-
age, serious injury, or death.
1.6. Residential Garage Installations
When installing the PRESTIGE Solo in a residential ga-
rage, the following special precautions per NFPA 54/
ANSI Z223.1 must be taken:
• Mount the unit a minimum 18 inches [458 mm]
above the oor level of the garage. Ensure the
burner and ignition devices / controls are no less
than 18 inches [458 mm] above the oor level.
• Locate or protect the unit in a manner so it can-
not be damaged by a moving vehicle.
BEST PRACTICE
NOTICE
WARNING

3
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
2.1. Combustion Air Contamination
If the PRESTIGE Solo combustion air inlet is
located in an area likely to cause or contain
contamination, or if products which could con-
taminate the air cannot be removed, the com-
bustion air must be repiped and terminated at
another location. Contaminated combustion
air will damage the unit and its burner system,
and can result in substantial property damage,
serious injury, or death.
• Do not operate the PRESTIGE Solo if the
combustion air inlet is located near a laun-
dry room or pool facility. These areas will
always contain hazardous contaminants.
• Pool, laundry, common household, and
hobby products often contain fluorine or
chlorine compounds. When these chem-
icals pass through the burner and vent
system, they can form strong acids. These
acids will corrode the heat exchanger,
burner components, and vent system,
causing serious damage and possible
flue gas spillage or water leakage into
the surrounding area.
• Please read the information listed below.
If contaminating chemicals are located
near the area of the combustion air inlet,
the installer must pipe the combustion
air inlet to an area free of these chemicals,
as indicated in Chapter 5 on page 25.
• Failure to comply with these instructions
will result in substantial property dam-
age, serious injury, or death
WARNING
DANGER
Potential contaminating products
• Spray cans containing chloro/uorocarbons
• Permanent Wave Solutions
• Chlorinated wax
• Chlorine based swimming pool chemicals /
cleaners
• Calcium Chloride used for thawing ice
• Sodium Chloride used for water softening
• Refrigerant leaks
• Paint or varnish removers
• Hydrochloric acid / muriatic acid
• Cements and glues
• Antistatic fabric softeners used in clothes dryers
• Chlorine-type bleaches, detergents, and clean-
ing solvents found in household laundry rooms
• Adhesives used to fasten building products and
other similar products
Areas likely to contain these products
• Dry cleaning / laundry areas and establishments
• Beauty salons
• Metal fabrication shops
• Swimming pools and health spas
• Refrigeration Repair shops
• Photo processing plants
• Auto body shops
• Plastic manufacturing plants
• Furniture renishing areas and establishments
• New building construction
• Remodeling areas
• Garages with workshops

4
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
2.2. Ventilation and Combustion Air Require-
ments - Direct Vent
A Direct Vent appliance utilizes uncontaminated out-
door air piped directly to the appliance for combustion.
For Direct Vent installations involving only the PRES-
TIGE Solo, in which the minimum service clearances are
maintained as listed in Section 1.5 on page 2, no
ventilation openings are required, but may be neces-
sary to equalize the air pressure with the outside.
For Direct Vent installations involving only the PRESTIGE
Solo, in which the minimum service clearances are not
maintained as listed in Section 1.5 on page 2, the
space / enclosure must provide two openings for venti-
lation. The openings must be sized to provide 1 square
inch of free area per 1,000 BTUH of boiler input. The
openings shall be placed 12 inches from the top of the
space and 12 inches from the oor of the space.
For installations in which the PRESTIGE Solo shares the
space with air movers (exhaust fan, clothes dryers, re-
places, etc.) and other combustion equipment (gas
or oil) the space must be provided with adequate air
openings to provide ventilation and combustion air to
the equipment. To properly size the ventilation / com-
bustion air openings, the installer must comply with the
National Fuel Gas Code (NFPA 54 / ANSI Z223.1) for in-
stallations in the U.S. or CAN/CSA B149.1 for installations
in Canada.
The space must be provided with ventilation
/ combustion air openings properly sized for
all make-up air requirements (exhaust fans,
clothes dryers, fireplaces, etc.) and the total
input of all appliances located in the same
space as the PRESTIGE Solo, excluding the in-
put of a Direct Vent PRESTIGE Solo which uses
combustion air directly from the outside,
thus additional free area for the openings is
not required. Failure to provide or properly
size the openings can result in substantial
property damage, serious injury, or death.
WARNING
2.3. Ventilation and Combustion Air Require-
ments - Category IV
A Category IV appliance utilizes uncontaminated indoor
or outdoor air surrounding the appliance for combus-
tion.
In order to reduce the potential risks associated
with indoor contaminates (see list in Section
2.1 on page 3), flammable vapors and tight
housing construction with little or no infiltration
air, it is recommended to pipe uncontaminated
combustion air directly from the outdoors to
the appliance. This practice also promotes high-
er system efficiency by reducing heated indoor
air from being exhausted from the house and
replaced by cold infiltration air into the house.
For installations in which the PRESTIGE Solo shares the
space with air movers (exhaust fan, clothes dryers, re-
places, etc.) and other combustion equipment (gas
or oil) the space must be provided with adequate air
openings to provide ventilation and combustion air to
the equipment. To properly size the ventilation / com-
bustion air openings, the installer must comply with
the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) for
installations in the U.S. or CAN/ CSA B149.1 for installa-
tions in Canada.
The space must be provided with ventilation
/ combustion air openings properly sized for
all make-up air requirements (exhaust fans,
clothes dryers, fireplaces, etc.) and the total
input of all appliances, including the PRES-
TIGE Solo when located in the same space.
Failure to provide or properly size the open-
ings can result in substantial property dam-
age, serious injury, or death.
BEST PRACTICE
WARNING

5
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
2.4. Methods of Accessing Combustion Air
Into A Space - Category IV
2.4.1. Indoor Combustion Air
• The methods listed in this chapter for access-
ing Indoor Combustion Air assume that the
infiltration rate is adequate and not less than
.40 ACH.
• For infiltration rates less than .40 ACH, refer-
ence the National Fuel Gas Code (NFPA 54 /
ANSI Z223.1) for additional guidance.
Opening Size and Location
Openings used to connect indoor spaces shall be sized and
located in accordance with the following, see Fig. 1 below :
• Combining spaces on the same story. Each opening
shall have a minimum free area of 1 sq. in./1000 Btu/hr
of the total input rating of all gas utilization equipment
in the space, but not less than 100 sq. inches. One
opening shall commence within 12 inches of the top,
and one opening shall commence within 12 inches
of the bottom of the enclosure. The minimum dimen-
sion of air openings shall be not less than 3 inches.
• Combining spaces in dierent stories. The volumes of
spaces in dierent stories shall be considered as com-
municating spaces where such spaces are connected
by one or more openings in doors or oors having a
total minimum free area of 2 sq. in./1000 Btu/hr of to-
tal input rating of all gas utilization equipment.
NOTICE
2.4.2. Outdoor Combustion Air
Isolating the combustion appliance room from
the rest of the building and bringing in uncon-
taminated outside air for combustion and ven-
tilation is always preferred.
Opening Size and Location
The minimum dimension of air openings shall be not
less than 3 inches
Openings used to supply combustion and ventilation
air shall be sized and located in accordance with the
following:
• One Permanent Opening Method . One permanent
opening, commencing within 12 in. of the top of
the enclosure, shall be provided as shown in Fig.
2 below. The equipment shall have clearances of
at least 1 inch from the sides and 6 in. from the
front of the appliance. The opening shall directly
communicate with the outdoors or shall commu-
nicate through a vertical or horizontal duct to the
outdoors or spaces that freely communicate with
the outdoors and shall have a minimum free area
of the following:
• 1sq. in./3000 Btu/hr of the total input rating of
all equipment located in the enclosures, and
• Not less than the sum of the areas of all vent
connectors in the space.
BEST PRACTICE
Fig. 1 - All Combustion Air from adjacent Indoor Spaces
through Indoor Combustion Openings
Fig. 2 - All Combustion Air from Outdoors Through One
Permanent Air Opening

6
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
• Two Permanent Opening Method. Two permanent
openings, one commencing within 12 in. of the top
and one commencing within 12 in. of the bottom
of the enclosure, shall be provided. The openings
shall communicate directly, or by ducts, with the
outdoors or spaces that freely communicate with
the outdoors, as follows:
• Where directly communicating with the out-
doors or where communication to the outdoors
is through vertical ducts, each opening shall
have a minimum free area of 1 sq. in./4000 Btu/
hr of total input rating of all equipment in the
enclosure. See Fig. 3 below.
• Where communicating with the outdoors is
through horizontal ducts, each opening shall have
a minimum free area of not less than 1 sq.in./2000
Btu/hr of total input rating of all equipment in the
enclosure. See Fig. 4 below.
2.4.3 Combination of Indoor and Outdoor
Combustion Air
Indoor Openings. Where used, openings connecting the in-
terior spaces shall comply with Section 2.4.1 on page 5.
Outdoor Opening(s) Location. Outdoor opening(s) shall
be located in accordance with Section 2.4.2 on page 5.
Outdoor Opening(s) Size. Outdoor opening(s) shall be
calculated in accordance with the following:
• The ratio of the interior spaces shall be the avail-
able volume of all communicating spaces divided
by the required volume.
• The outdoor size reduction factor shall be 1 minus
the ratio of interior spaces.
• The minimum size of outdoor opening(s) calculat-
ed in accordance with the above outdoor air chap-
ter multiplied by the reduction factor. The mini-
mum dimension of air openings shall not be less
than 3 in.
2.5. Combustion Air and Vent Piping
The PRESTIGE Solo requires a Category IV venting sys-
tem, which is designed for pressurized venting and
condensate.
The PRESTIGE Solo is certied as a Category IV or Direct
Vent (sealed combustion) appliance. A Category IV ap-
pliance utilizes uncontaminated indoor or outdoor air
surrounding the appliance for combustion. A Direct Vent
appliance utilizes uncontaminated outdoor air piped di-
rectly to the appliance for combustion.
Do not install the PRESTIGE Solo into a com-
mon vent with any other gas or oil appliances.
This will cause flue gas spillage or appliance
malfunction, which will result in substantial
property damage, serious injury, or death.
DANGER
Fig. 3 - All Combustion Air from Outdoors Through
Ventilated Attic
Fig. 4 - All Combustion Air from Outdoors Through
Horizontal Ducts

7
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
In order to reduce the potential risks associat-
ed with indoor contaminates (see list in Section
2.1 on page 3), flammable vapors and tight
housing construction with little or no infiltration
air, it is recommended to pipe uncontaminated
combustion air directly from the outdoors to the
appliance. This practice also promotes higher
system efficiency by reducing heated indoor air
from being exhausted from the house and re-
placed by cold infiltration air into the house.
Verify installed combustion air and vent pip-
ing are sealed gas tight and meet all provided
instructions and applicable codes, failure to
comply will result in serious injury, or death.
Failure to properly support the vent system
can cause the venting system to fail, result-
ing in substantial property damage, serious
injury, or death.
Install combustion air and vent pipe as detailed
in the PRESTIGE Vent Supplement included in
the boiler installation envelope. Refer to op-
tional vent kit instructions for additional vent
installation instructions.
2.6. Removal of an Existing Boiler from a
Common Vent System
When an existing boiler is removed from a com-
mon venting system, the common venting system
is likely to be too large for proper venting of the re-
maining appliances. At the time of removal of an
existing boiler, the following steps shall be followed
with each appliance remaining connected to the
common venting system placed in operation, while
the other appliances remaining connected to the
common venting system are not in operation.
BEST PRACTICE
DANGER
WARNING
NOTICE
BEST PRACTICE
1. Seal any unused openings in the common venting
system.
2. Visually inspect the venting system for proper size
and horizontal pitch and determine there is no
blockage or restriction, leakage, corrosion and other
deciencies which could cause an unsafe condition.
3. Insofar as is practical:
• Close all exterior building doors and windows
and all doors between the space in which the
appliances remaining connected to the com-
mon venting system are located and other
spaces of the building.
• Turn on clothes dryers and any appliance not
connected to the common venting system.
• Turn on any exhaust fans, such as range hoods
and bathroom exhausts, so they will operate at
maximum speed.
• Do not operate a summer exhaust fan.
• Close replace dampers.
4. Place in operation the appliance being inspected.
• Follow the lighting instructions.
• Adjust thermostat so appliance will operate
continuously.
5. Test for spillage at the draft hood relief opening
after 5 minutes of main burner operation. Use the
ame of a match or candle, or smoke from a ciga-
rette, cigar or pipe.
6. After it has been determined that each appliance
remaining connected to the common venting sys-
tem properly vents when tested as outlined above,
return doors, windows, exhaust fans, replace
dampers, and any other gas-burning appliance to
their previous condition of use.
7. Any improper operation of the common venting sys-
tem should be corrected so the installation conforms
with the National Fuel Gas Code (NFPA 54 / ANSI
Z223.1) for installations in the U.S. or CAN/CSA B149.1
for installations in Canada. When resizing any por-
tion of the common venting system, the common
venting system should be resized to approach the
minimum size as determined using the appropriate
tables in Chapter 13 of the National Fuel Gas Code
(NFPA 54 / ANSI Z223.1) for installations in the U.S. or
CAN/CSA B149.1 for installations in Canada.
Do not install the PRESTIGE Solo into a com-
mon vent with any other gas or oil appliances.
This will cause flue gas spillage or appliance
malfunction, resulting in substantial proper-
ty damage, serious injury, or death.
DANGER

8
CHAPTER 2
CHAPTER 2 - COMBUSTION AIR & VENTING
2.7. Carbon Monoxide Detector Installation
Triangle Tube requires the installation of a minimum
of two (2) hard wired carbon monoxide detectors with
an alarm and battery back-up in the mechanical room
where the Prestige Solo is located and another installed
in the living area outside the bedroom(s) for all instal-
lations.
Each carbon monoxide detector shall comply with
NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
Consult the local authority having jurisdiction for any ad-
ditional carbon monoxide detector requirements in your
area. See Section 2.8 on page 8 for additional carbon
monoxide detector requirements in Massachusetts.
A byproduct of any gas fired appliance is car-
bon monoxide. Failure to install carbon mon-
oxide detectors with alarms can result in seri-
ous injury, or death.
2.8. Commonwealth of Massachusetts In-
stallation Requirements
For all side wall horizontally vented gas fueled equip-
ment installed in every dwelling, building or structure
used in whole or in part for residential purposes, includ-
ing those owned or operated by the Commonwealth
and where the side wall exhaust vent termination is
less than seven (7) feet above nished grade in the area
of the venting, including but not limited to decks and
porches, the following requirements shall be satised:
2.8.1 Installation of Carbon Monoxide Detectors.
1. At the time of installation of the side wall horizontal
vented gas fueled equipment, the installing plumber or
gastter shall observe that a hard wired carbon mon-
oxide detector with an alarm and battery back-up is
installed on the oor level where the gas equipment is
to be installed.
2. In addition, the installing plumber or gastter shall
observe that a battery operated or hard wired carbon
monoxide detector with an alarm is installed on each
additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled
equipment.
3. It shall be the responsibility of the property owner to
secure the services of qualied licensed professionals
for the installation of hard wired carbon monoxide de-
tectors.
WARNING
a. In the event that the side wall horizontally vent-
ed gas fueled equipment is installed in a crawl
space or an attic, the hard wired carbon mon-
oxide detector with alarm and battery back-up
may be installed on the next adjacent oor lev-
el.
b. In the event that the requirements of this sub-
division can not be met at the time of comple-
tion of installation, the owner shall have a peri-
od of thirty (30) days to comply with the above
requirements; provided, however, that during
said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall
be installed.
2.8.2 Approved Carbon Monoxide Detectors.
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with
NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
2.8.3 Signage
A metal or plastic identication plate shall be perma-
nently mounted to the exterior of the building at a min-
imum height of eight (8) feet above grade directly in
line with the exhaust vent terminal for the horizontally
vented gas fueled heating appliance or equipment.
The sign shall read, in print size no less than one half
(1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
2.8.4 Inspection.
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve
the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage in-
stalled in accordance with the provisions of 248 CMR
5.08(2)(a) 1 through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a) 1 through 4:
1. The equipment listed in Chapter 10 entitled“Equip-
ment Not Required To Be Vented” in the most cur-
rent edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
