Tribe SUNRISE2 User manual

MANUALE UTENTE
USER MANUAL
SUNRISE2
IT - EN
BLINDER WITH LED SOURCE

SUNRISE2
2
All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it
REV. 04-02/19

1
SUNRISE2
Packing content • SUNRISE2
• Mount bracket
• Power cable
• User manual
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
1 Introduction
1. 1 Description and technical specications
1. 2 Operating elements and connections
2 Installation
2. 1 Mounting
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 Auto show mode
3. 5 Static mode
3. 6 Master/Slave mode
3. 7 Linking
3. 8 DMX conguration
3. 9 DMX mode
3. 10 Connection of the DMX line
3. 11 Construction of the DMX termination
3. 12 DMX control
3. 13 Fixture settings
3. 14 Fixture information
4 Maintenance
4. 1 Maintenance and cleaning the unit

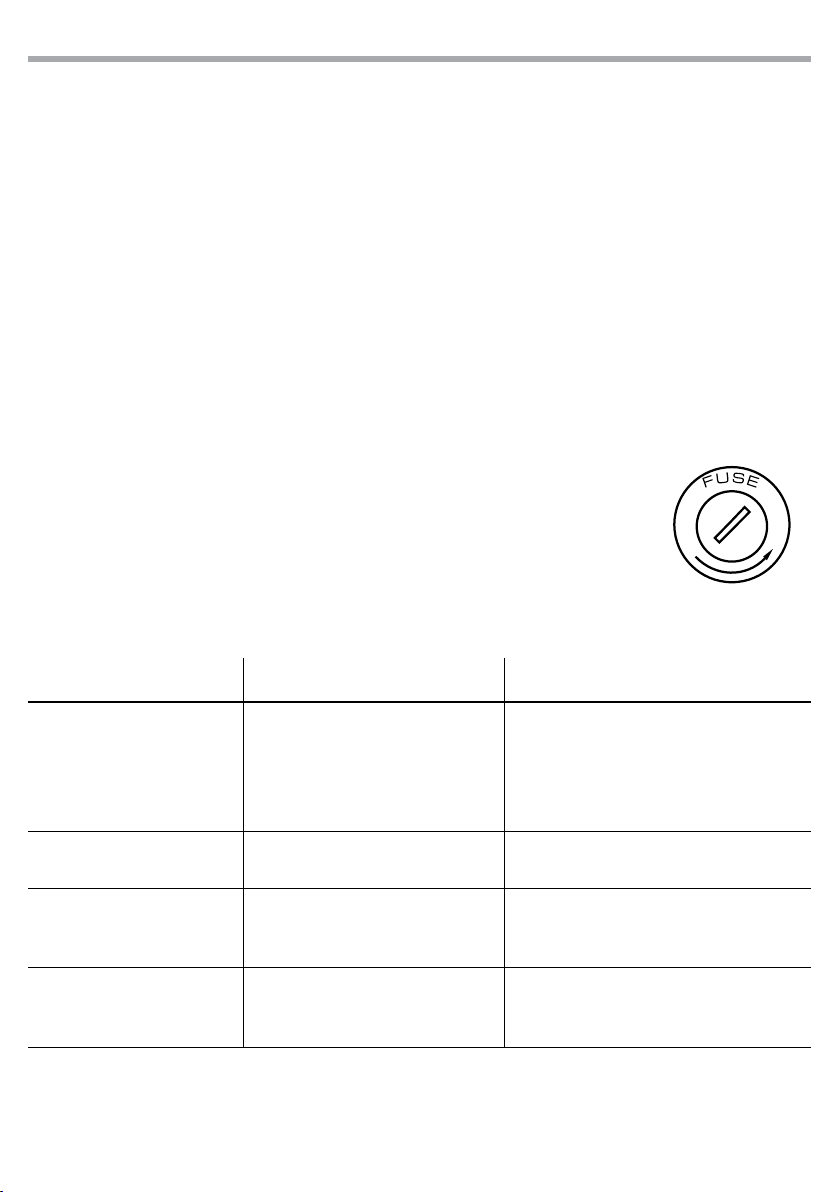

4. 2 Fuse replacement
4. 3 Troubleshooting
2
2
3
4
5
6
6
7
8
8
8
8
9
9
10
10
11
12
12
14
14
14

SUNRISE2
2
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.

3
SUNRISE2
- 1 - INTRODUCTION
1.1 DESCRIPTION AND TECHNICAL SPECIFICATIONS
SUNRISE2 is the rst Blinder with LED source which equals the brightness of conventional projectors
based with DWE 2x650W halogen lamps, which are used in most of the events. SUNRISE2 is equipped
with 2x100W COB LED 3200K with high CRI (>80) and an optical glass, able to reproduce the performance
of the uorescent bulbs in terms of the projection angle, color temperature, dimmer ramp and brightness.
SUNRISE2 is an ideal projector for Rental purpose and oers extensive technical advantages: reduces en-
ergy consumption by six times, simplies installation and reduces costs in consumables materials such as
lamps, wiring, dimmer channels, powerboxes and at last not produce heat and deterioration of mechan-
ics. The electronic SUNRISE2 also oers many other key-point such as the option to control each LED inde-
pendently in pixel2pixel and can be taken advantage of a dedicated channel to the strobe, in addition to
the selection of dierent dimmer curves.
Light source and optics
• 2 x 100W high-eciency COB White LEDs
• Color temperature: 3200K
• Hi-eciency LEDs featuring more vivid colors and lower power consumption compared to traditional
lamps
• Beam angle: 60°
• Field angle: 80°
• LEDs average life span: >50’000 h
Electronics and features
• Several DMX selectable congurations (1, 2, 4, 7 channels) for pixel2pixel or basic controlling:
- 1 channels: Dimmer
- 2 channels: Pixel2pixel,
- 4 channels: Dimmer, pixel2pixel, strobe
- 7 channels: Dimmer, pixel2pixel, strobe, auto programs, auto speed, dimmer speed
• Black OLED display user interface for auto programs execution, static color mode, creation of custom
shows, color calibration presets
• 4 dierent dimming curves available
• New HD-dimming technology with super-linear and anti-ickering ramp, frequency adjustment from
the user interface
• Auto mode: built-in programs with execution speed adjustment
• Static color mode: selection of static color
• Master/Slave mode: for synchronized operation of more units linked in a chain
• Linear and“stepless” transition between DMX values
Structure and Power supply
• Sturdy aluminium body: IP30
• Hanging bracket suitable for safe hanging
• Power unit: 100-240V 50/60Hz
• IN wiring power connection through PowerCON and IN/OUT wiring signal connections through
XLR3p/5p
• Average power consumption: 150W
• Weight: 6,8 kg
• Dimensions (WxHxD): 473x105x270 mm

SUNRISE2
4
1.2 OPERATING ELEMENTS AND CONNECTIONS

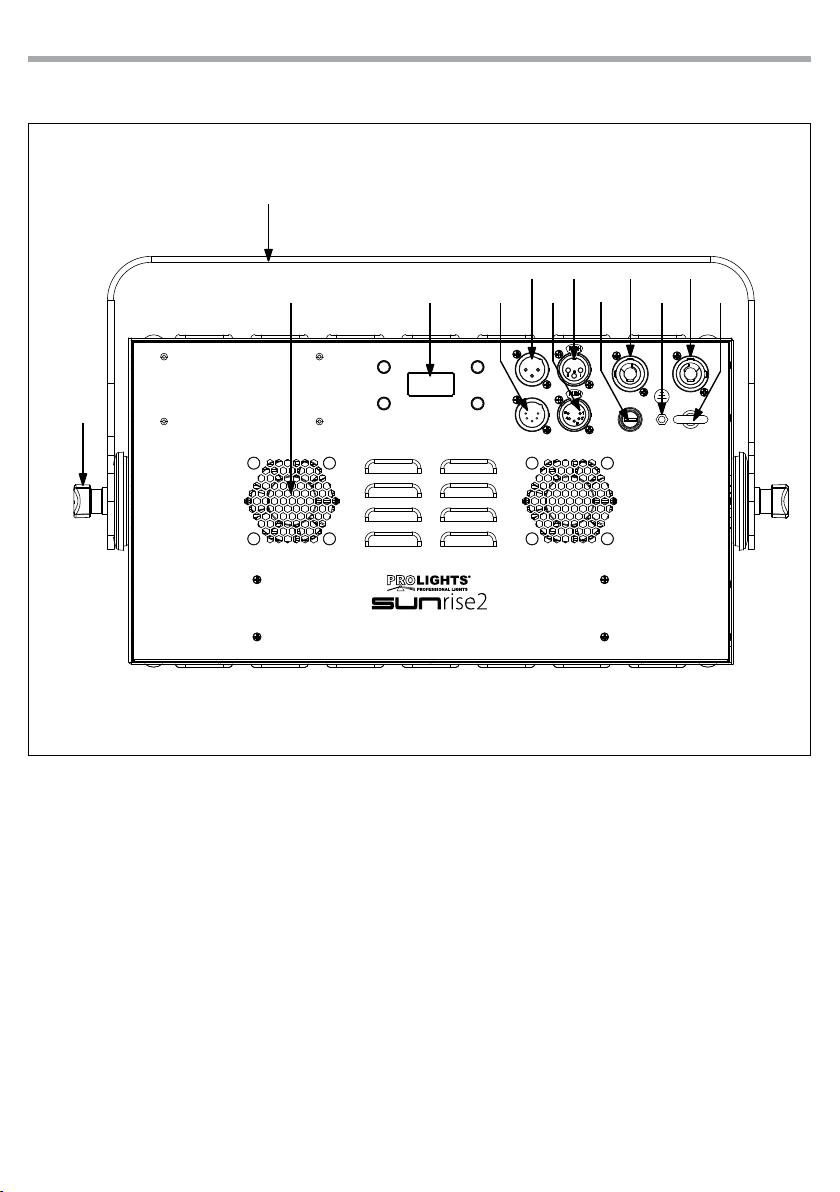

Fig.1 - Rear panel
1
2
3 4
6 8
13
59 7
10
11
12
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket
3. VENTILATION OPENINGS: the openings let the
air ow in. Do not obstruct them.
4. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
5. DMX IN (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
6. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
7. DMX OUT (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
8. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
9. FUSE OLDER in the event of breakage, always
replace the fuse with the same type and rating
10. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
11. GND POINT grounding the xture to the earth.
12. POWER OUT (PowerCON OUT): connect to
supply power to the next unit.
13. SAFETY EYE to attach safety cable.

5
SUNRISE2
- 2 - INSTALLATION
2.1 MOUNTING
SUNRISE2 may be set up on a solid and even surface. The unit can also be mounted upside down to a cross
arm. For xing, stable mounting clips are required. The mounting place must be of sucient stability and
be able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.
• Install the projector at a suitable location by means of the mounting bracket (1).
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.
• Adjust the projector and use the knob (2) to slightly release or tighten the locking mechanism of the
bracket if is necessary.
Fig.2
2
1

SUNRISE2
6
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240 VAC-50/60 Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.
3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the BLACK OLED
Display (g.3).

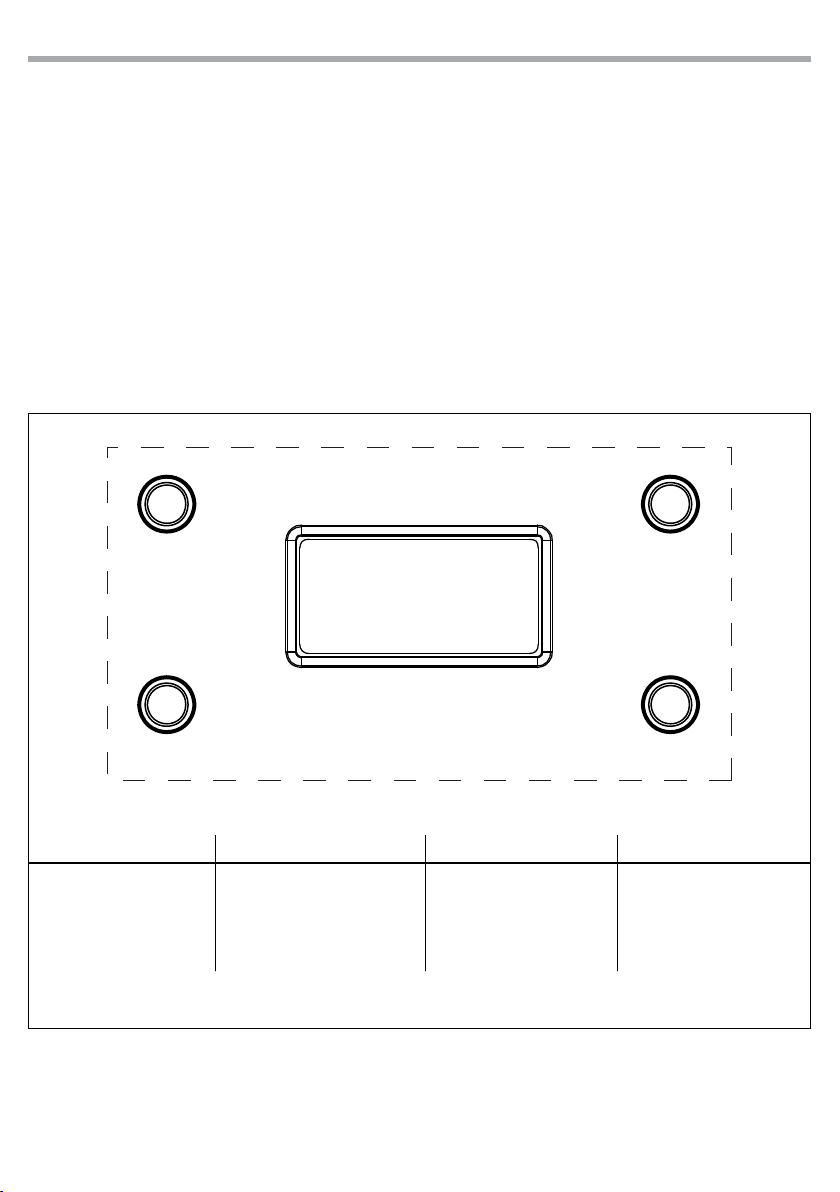

Fig.3 - Functions of the buttons
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current menu or conrm the
current function value or
option within a menu
MENU UP
DOWNENTER

7
SUNRISE2
MENU (LEVEL 1) (LEVEL 2) (LEVEL 3) REMARK
1 Auto Show Auto Show Speed Default: Auto 1
< Auto 0 > < Auto 1 > < 100 >
< Auto 2 > < 100 >
< Auto 3 > < 100 >
< Auto 4 > < 100 >
< Auto 5 > < 100 >
< Auto 6 > < 100 >
2 Static Static
< Dimmer > Dimmer Default: 255
< 255>
< Strobe > Strobe Default: 0
< 255>
3 Dim Mode Dim Mode Default: O
< DIM 1 > < O > O: Dimmer speed On/O
< DIM 1 > DIM 1: Dimmer speed fast 0.8 s
< DIM 2 > DIM 2: Dimmer speed middle 1.6 s
< DIM 3 > DIM 3: Dimmer speed slow 2.4 s
4 Back Light Back Light Default: On
< On > < On > On: LCD background light always On
< 10 s > 10 s: O after 10 seconds
< 20 s > 20 s: O after 20 seconds
< 30 s > 30 s: O after 30 seconds
5 Information Auto Auto
Test Test
Fix Hours Fixture running time 0-9999H
< 0 H > Default: 0H
Version Version number
< V1.0 >
6 DMX Address DMX Address Default: 001
< 001 > < 512 >
7 DMX Channel DMX Channel DMX Channel mode
< 5Ch > < 1Ch > Address: 1 - 512
< 2Ch > Address: 1 - 511
< 4Ch > Address: 1 - 509
< 7Ch > Address: 1 - 506
8 Master/Slave Master Mode Default: Slave
< Slave > < Master >
< Slave >
3.3 MENU STRUCTURE

SUNRISE2
8
3.4 AUTO SHOW MODE
If no DMX control signal is present at the DMX INPUT, the unit independently runs through its show pro-
gramme provided that the blackout mode is switched o:
• Press the button MENU so many times until the display shows AUTO, then press the button ENTER.
• Press the button UP/DOWN to switch between the show AUTO 1 - AUTO 6. The unit will operate in show
mode.
• Using the button UP/DOWN to select the desired run speed slow-fast (0-100)
• Press the button ENTER to save the setting.
IMPORTANT: Programs AUTO 1 - AUTO 6 are fully pre-programmed and will not be altered by changes.
3.5 STATIC MODE
This xture has the ability to accept custom static color settings. Access this via the control panel.
• To enable the static mode, press MENU repeatedly until STATIC shows on the display.
• Through the button UP/DOWN select DIMMER or STROBE then press the button ENTER.
• Set the value (000 - 255), through the buttons UP/DOWN.
• Press the button ENTER to conrm.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.6 MASTER/SLAVE MODE
This mode will allow you to link up the units together without a controller. Choose a unit to function as the
Master. The unit must be the rst unit in line; other units will work as slave with the same eect.
• Press the button MENU so many times until the display shows MASTER/SLAVE and press the button ENTER.
• Press UP/DOWN to set the unit as master or slave (MASTER, SLAVE).
• Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of the
units. For longer cable runs we suggest a terminator at the last xture (see page 11).
3.7 LINKING
Several units may be interconnected in order to control all further slave units to the same eect of the
master unit.
1. Connect the DMX OUT of the master unit via 3/5-pole XLR cable to the DMX IN of the rst slave unit.
9 Fan Mode Fan Mode Default: Auto
< Auto > < Auto >
< High >
10 Temperature
< 33 C >
11 LED Frequency LED Frequency Default: 1200 Hz
< 1200 Hz > < 600 Hz >
< 1200 Hz >
< 2000 Hz >
< 4000 Hz >
< 25 kHz >

9
SUNRISE2
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
7 33 33-39 40 47 54
2. Connect the DMX OUT of the rst slave unit to the DMX IN of the second slave unit, etc. until all units
are connected in a chain.
3.8 DMX CONFIGURATION
SUNRISE2 is equipped with dierent DMX conguration.
• Press the button MENU so many times until shows DMX CHANNEL, and press the button ENTER to conrm.
• Select the desired DMX conguration (1CH - 2CH - 4CH - 7CH) through the buttons UP/DOWN.
The tables on page 12 indicate the operating mode and DMX value. The SUNRISE2 is equipped with 3/5-
pole XLR connections.
3.9 DMX MODE
• Press the button MENU so many times until the display shows DMX ADDRESS, and press the button ENTER
to conrm.
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
To able to operate the SUNRISE2 with a light controller, adjust the DMX start address for the rst a DMX
channel. If e. g. address 33 on the controller is provided for controlling the function of the rst DMX
channel, adjust the start address 33 on the SUNRISE2. The other functions of the light eect panel are then
automatically assigned to the following addresses.
An example with the start address 33 is shown below:
DMX Address: 48DMX Address: 38DMX Address: 33 DMX Address: 43
Fig.4 - Example 7 DMX channels conguration
DMX512 Controller
. . . . . . . . . . . .

SUNRISE2
10
Fig.5
Fig.6
3.10 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped-
ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
cause faulty xture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplier.
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the rst unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.11 CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being reected back along the cable when they reach-
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
connector, as shown in gure.
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
Example:
3 pin XLR connector

11
SUNRISE2
3.12 DMX CONTROL
1 CHANNEL
MODE FUNCTION DMX
Value
1 Ch
1DIMMER
0~100% 000 - 255
4 CHANNELS
MODE FUNCTION DMX
Value
4 Ch
1DIMMER
0~100% 000 - 255
2WHITE 1
0~100% 000 - 255
3WHITE 2
0~100% 000 - 255
4
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
2 CHANNELS
MODE FUNCTION DMX
Value
2 Ch
1WHITE 1
0~100% 000 - 255
2WHITE 2
0~100% 000 - 255
7 CHANNELS
MODE FUNCTION DMX
Value
7 Ch
1DIMMER
0~100% 000 - 255
2WHITE 1
0~100% 000 - 255
3WHITE 2
0~100% 000 - 255
4
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
5
AUTO PROGRAMS
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 4
Auto Program 5
Auto Program 6
000 - 010
011 - 040
041 - 080
081 - 120
121 - 170
171 - 220
221 - 255
6AUTO SPEED
0~100% 000 - 255
7
DIMMER SPEED
Preset dimmer speed from display menu
Dimer speed mode o
Dimmer speed mode 1 (fast speed)
Dimmer speed mode 2 (middle speed)
Dimmer speed mode 3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255

SUNRISE2
12
3.13 FIXTURE SETTINGS
It is possible to change the parameter value in the following way:
Dimmer
• Enter in Dimmer mode to select specic dimming curve, press the button MENU so many times
until shows DIM MODE, and press the button ENTER to conrm.
• Press the button UP/DOWN to select OFF - DIM1 - DIM2 - DIM3.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
Back Light
• To activate Backlight display press the button MENU so many times until shows BACK LIGHT, and press
the button ENTER to conrm.
• Press the button UP/DOWN to select ON - 10S - 20S - 30S.
• Press ENTER button to conrm the selection.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically.
Fan Mode
• To set the Fan Mode press the button MENU so many times until shows FAN MODE, and press the
button ENTER to conrm.
• Press the button UP/DOWN to select AUTO - HIGH.
• Press ENTER button to conrm the selection.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically.
LED Frequency
• To adjust the frequency of the LEDs, press the MENU button repeatedly until the display shows LED
Frequency, and then press the ENTER button.
• Select the frequency (600Hz - 1200Hz - 2000Hz - 4000Hz - 25kHz) using the UP/DOWN buttons.
• To conrm, press the ENTER key.
• Press the MENU button to go back or wait a few seconds to exit the setup menu.
3.14 FIXTURE INFORMATION
Auto Test
Allow checking the proper functioning of the unit. Start the automatic test in the following way:
• Press the button MENU so many times until shows INFORMATION, then press the ENTER button to
conrm.
• Using the button UP/DOWN to select AUTO TEST.
• To conrm and start the automatic test press the ENTER button.
Fixture Hours
Show the xture working hours.
• Press the button MENU so many times until shows INFORMATION. Press the button ENTER to conrm
• Using the button UP/DOWN to select FIX HOURS, then press the button ENTER to conrm
• Then the display will show the working hours.

13
SUNRISE2
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu auto-
matically
Version
Show the xture rmware version.
• Press the button MENU so many times until shows INFORMATION
• Select through the button UP/DOWN the VERSION menu voice.
• The display will show the rmware data.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu automatically.
Temperature
Show the temperature unit.
• Press the button MENU so many times until shows TEMPERATURE

SUNRISE2
14
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
4.2 FUSE REPLACEMENT
1. Remove the safety cap by a screwdriver.
2. Replace the blown fuse with a fuse of the exact same type and rating.
3. Install the safety cap, and reconnect power.
4.3 TROUBLESHOOTING Fig.7
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Fixture does not respond to DMX
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
• Check control panel and unit addressing
• Check DMX cables
• Install terminator as suggested
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.

Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it

3
SUNRISE2
• SUNRISE2
• Staa di ssaggio
• Cavo di alimentazione
• Manuale utente
Contenuto dell'imballo:
INDICE Sicurezza
Avvertenze generali
Attenzioni e precauzioni per l’installazione
1 Introduzione
1. 1 Descrizione e speciche tecniche
1. 2 Elementi di comando e di collegamento
2 Installazione
2. 1 Montaggio
3 Funzioni e impostazioni
3. 1 Funzionamento
3. 2 Impostazione base
3. 3 Struttura menu
3. 4 Modalità Autoshow
3. 5 Modalità Static
3. 6 Modalità Master/Slave
3. 7 Collegamento
3. 8 Congurazione canali DMX
3. 9 Modalità DMX
3. 10 Collegamenti della linea DMX
3. 11 Costruzione del terminatore DMX
3. 12 Canali DMX
3. 13 Funzioni dispositivo
3. 14 Informazioni sul dispositivo
4 Manutenzione
4. 1 Manutenzione e pulizia del sistema ottico
4. 2 Sostituzione fusibile
4. 3 Risoluzione dei problemi
4
4
5
6
7
8
8
9
10
10
10
11
11
11
12
12
13
14
14
16
16
16

SUNRISE2
4
ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con attenzione
questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni
importanti riguardo l’installazione, l’uso e la manutenzione dell’unità.
SICUREZZA
Avvertenze generali
• I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e per-
tanto recano la sigla .
• Il dispositivo funziona con pericolosa tensione di rete 230V~. Non intervenire mai al suo interno al di
fuori delle operazioni descritte nel presente manuale; esiste il pericolo di una scarica elettrica.
• È obbligatorio eettuare il collegamento ad un impianto di alimentazione dotato di un’eciente messa
a terra (apparecchio di Classe I secondo norma EN 60598-1). Si raccomanda, inoltre, di proteggere le
linee di alimentazione delle unità dai contatti indiretti e/o cortocircuiti verso massa tramite l’uso di
interruttori dierenziali opportunamente dimensionati.
• Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere eettuate
da un installatore elettrico qualicato. Vericare che frequenza e tensione della rete corrispondono alla
frequenza ed alla tensione per cui l’unità è predisposta, indicate sulla targhetta dei dati elettrici.
• L’unità non per uso domestico, solo per uso professionale.
• Evitare di utilizzare l’unità:
- in luoghi soggetti a vibrazioni, o a possibili urti;
- in luoghi a temperatura superiore ai 45°C.
• Evitare che nell’unità penetrino liquidi inammabili, acqua o oggetti metallici.
• Non smontare e non apportare modiche all’unità.
• Tutti gli interventi devono essere sempre e solo eettuati da personale tecnico qualicato. Rivolgersi al
più vicino centro di assistenza tecnica autorizzato.
• Se si desidera eliminare il dispositivo denitivamente, consegnarlo
per lo smaltimento ad un’istituzione locale per il riciclaggio.
Attenzioni e precauzioni per l’installazione
• Se il dispositivo dovesse trovarsi ad operare in condizioni dierenti da quelle descritte nel presente
manuale, potrebbero vericarsi dei danni; in tal caso la garanzia verrebbe a decadere. Inoltre, ogni altra
operazione potrebbe provocare cortocircuiti, incendi, scosse elettriche, rotture etc.
• Prima di iniziare qualsiasi operazione di manutenzione o pulizia sull’unità togliere la tensione dalla rete
di alimentazione.
• È assolutamente necessario proteggere l’unità per mezzo di una fune di sicurezza. Nell’eseguire qual-
siasi intervento attenersi scrupolosamente a tutte le normative (in materia di sicurezza) vigenti nel
paese di utilizzo.
• Installare l’unità in un luogo ben ventilato.
• Mantenere i materiali inammabili ad una distanza di sicurezza dall’unità.
• I ltri, le lenti o gli schermi ultravioletti se danneggiati possono limitare la loro ecienza.
• I LED devono essere sostituiti se danneggiati o termicamente deformati.
• Non guardare direttamente il fascio luminoso. Tenete presente che i veloci cambi di luce possono pro-
vocare attacchi d’epilessia presso persone fotosensibili o epilettiche.
• Non toccare l’alloggiamento del prodotto quando è in funzione perché potrebbe essere molto caldo.
