Tribe FLATPAR3Q User manual

USER MANUAL
MANUALE UTENTE
FLATPAR3Q
EN - IT
SUPERSLIM LEDPAR

FLATPAR3Q
2
All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’section on site www.musiclights.it
REV.005-02/18

1
FLATPAR3Q
Packing content • FLATPAR3Q
• Power cord
• Mount bracket (2 pc.)
• User manual
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
1 Introduction
1. 1 Description
1. 2 Technical specications
1. 3 Operating elements and connections
2 Installation
2. 1 Mounting
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 Auto Show
3. 5 Static color
3. 6 Sound mode
3. 7 Manual color
3. 8 Master/Slave mode
3. 9 Linking
3. 10 DMX mode
3. 11 DMX addressing
3. 12 Connection of the DMX line
3. 13 Construction of the DMX termination
3. 14 DMX control
3. 15 Dimmer
3. 16 Operation through the IRC Controller
4 Maintenance
4. 1 Maintenance and cleaning the unit
4. 2 Fuse replacement
4. 3 Trouble shooting
2
2
3
3
4
5
6
6
7
8
8
8
8
8
9
9
9
10
10
11
12
12
14
14
14

FLATPAR3Q
2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.

3
FLATPAR3Q
- 1 - INTRODUCTION
1.1 DESCRIPTION
FLATPAR3Q is a super-slim LED PAR, conceived to be a multi-purpose wash light which can be used for
every kind of event and install with RGBA/full colour. FLATPAR3Q has been designed with signal and pow-
er connections on the sides and a at bottom, makng it very useful for oor applications and as compact
and powerful wall-washer. Its round shape and die-cast aluminium housing with tempered glass panel
makes FLATAR3Q a nice design tool which can also be used for in-sight applications at every kind of event
such as as conferences, wedding parties, fashion events and exhibitions.
1.2 TECHNICAL SPECIFICATIONS
LIGHT SOURCE
• Source: 3x8W RGBA LEDs
• Source life expectancy: >50.000 h
OPTICS
• Beam angle: 25°
• Field angle: 44°
• Lens diameter: 38mm
• Additional optics: 45° (optional)
COLOUR SYSTEM
• Colour mixing: RGBA/FC
• White presets: 3200~10000K
• Colour wheel: virtual colour wheel with presets
• Macros: built-in white presets
DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• Sound mode: music activation through internal microphone and sensitivity control
BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
CONTROL
• Protocols: DMX512
• DMX channels: 4/9 channel
• Display: LED display user interface
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• IR: infrared sensor controlled by remote
• Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Strobe / shutter: 1-28 Hz, electronic
• Flicker: icker free operation
ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 25W
• Output (at 230V): 30 units on a single power line

FLATPAR3Q
4
152
187187
PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and xing: double hanging bracket suitable for safe hanging and for oor positioning
• Signal connection: XLR 3p IN/OUT connectors
• Power connection: IEC IN/OUT connectors
• IP rating: 30
• Dimensions (WxHxD): 187x152x187mm
• Weight: 1.6kg
Fig.1Technical drawing

5
FLATPAR3Q
1.3 OPERATING ELEMENTS AND CONNECTIONS
Fig.2
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket.
3. MICROPHONE to control the show by the ex-
ternal audio signal.
4. CONTROL PANEL with display and 4 button
used to access the control panel functions and
manage them.
5. DMX IN (3-pole XLR): 1 = ground, 2 = DMX -, 3
= DMX +
6. DMX OUT (3-pole XLR): 1= ground, 2 = DMX -,
3 = DMX +
7. POWER IN mains plug for connection to a sock-
et (100-240V 50/60Hz) via the supplied mains
cable.The support for the mains fuse is located
near the mains plug. Only replace a blown fuse
by one of the same type (T1A 250V).
8. POWER OUT: connect to supply power to the
next unit.
9. SAFETY EYE to attach safety cable
10.GND POINT grounding the xture to the earth
Rear panel
5 7
1
2
3
4
6 8
9
10

FLATPAR3Q
6
1
2
- 2 - INSTALLATION
2.1 MOUNTING
FLATPAR3Q may be set up on a solid and even surface. The unit can also be mounted upside down to a
cross arm. For xing, stable mounting clips are required. The mounting place must be of sucient stability
and be able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.
• Install the projector at a suitable location by means of the mounting bracket (1).
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.

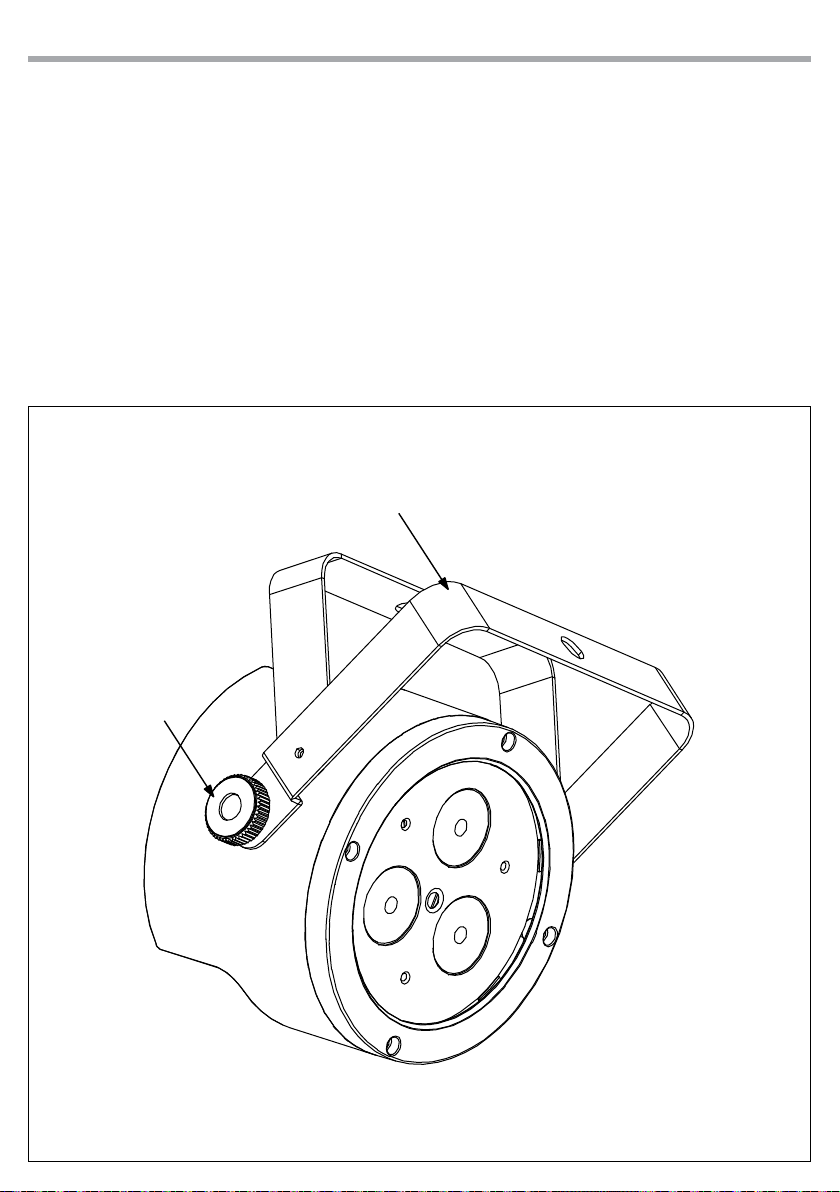

• Adjust the projector and use the knob (2) to slightly release or tighten the locking mechanism of the
bracket if is necessary.
Fig.3

7
FLATPAR3Q
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240V~/50-60Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.

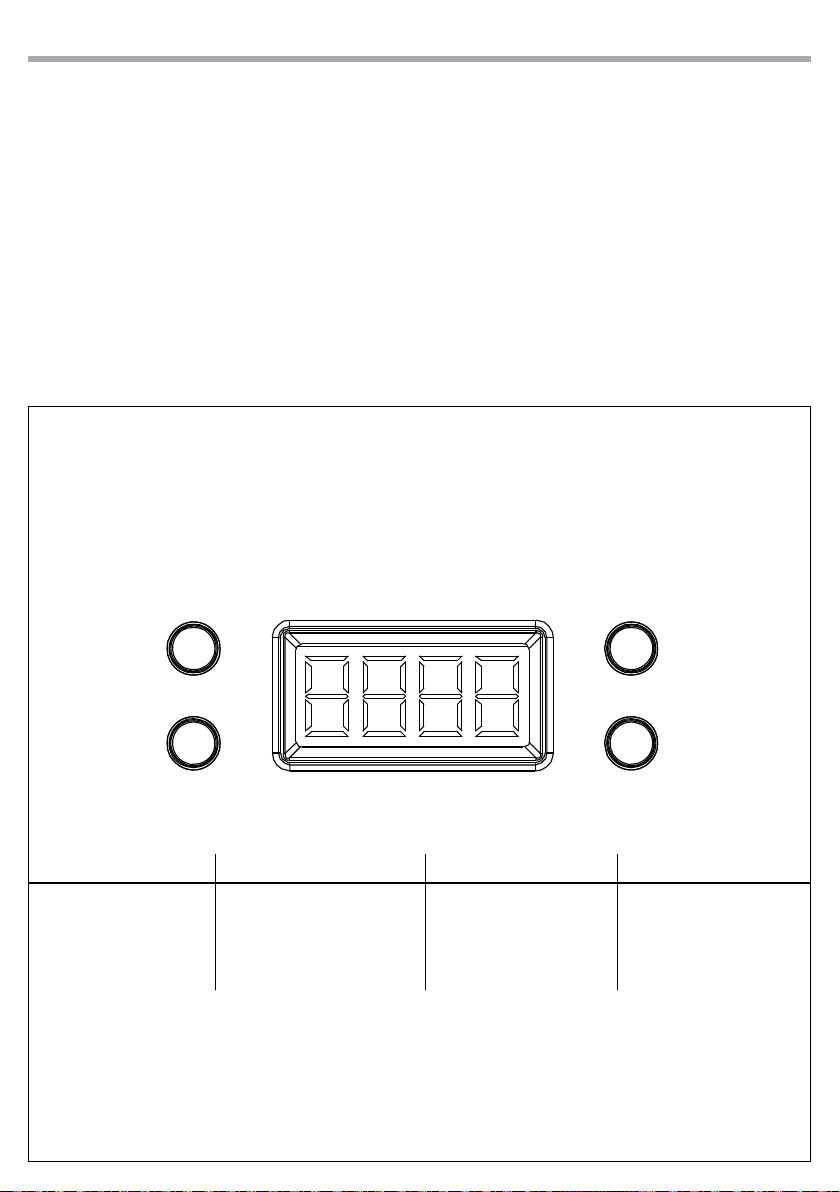

3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the LED Display
(g.4).
Fig.4 - Functions of the buttons
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current menu or conrm the
current function value or
option within a menu
MENU UP
DOWNENTER

FLATPAR3Q
8
3.3 MENU STRUCTURE
MENU (LEVEL 1) (LEVEL 2) REMARK
1 4 CH d (1-512)
2 9 CH d (1-512)
3 C-- C 1 R
C 2 G
C 3 B
C 4 A
C 5 GB
C 6 RB
C 7 RG
C 8 RGB
C 9 RA
C 10 GA
C 11 BA
C 12 RGA
C 13 RBA
C 14 GBA
C 15 RGBA
4P-- P 1 P 1: 4 Colors snap
P 2 P 2: 4 Colors fade
P 3 P 3: 15 Colors snap
P 4 P 4: 15 Colors fade
5 S-- S (1-100) Speed: 1-100 (slow-fast)
6 Snd Snd (1-2) Sound1: 4 colors
Sound2: 15 colors
7 Sens u (0-100)
8 U-- r(0-255)
g(0-255)
b(0-255)
a(0-255)
9 dIM OFF OFF: Dimmer speed o
dIM1 DIM1: Dimmer speed fast
dIM2 DIM2: Dimmer speed middle
dIM3 DIM3: Dimmer speed slow
10 SET On
OFF

9
FLATPAR3Q
3.4 AUTO SHOW
This xture has a built-in automatic program. To access this, please see the below instructions:
• Press the button MENU so many times until shows [P--], then press the button ENTER.
• Using UP/DOWN button, select one of the programs [P1 - P4].
• Press the button ENTER to conrm.
• Press the button MENU until [S--] appears on the display.
• Use the button UP/DOWN to select the auto programs speed [S001 - S100] (slow-fast).
• Press the button ENTER save the setting.
3.5 STATIC COLOR
This xture has the ability to accept custom static color settings. Access these chases via the control panel
on the back of the xture.
• Press the button MENU so many times until shows [C--], then press the button ENTER.
• Using UP/DOWN button, select one of the programs [C1 - C15].
• Press the button ENTER to conrm.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.6 SOUND MODE
• Press the button MENU so many times until the display shows [Snd].
• Using UP/DOWN button, select one of the modes [Snd1] or [Snd2].
• You can set the microphone sensitivity pressing the button MENU so many times until the display show
[Sens]
• Using the button UP/DOWN, select the desired value sensitivity (slow-fast) [u0 - u100].
• Press the button ENTER to conrm.
3.7 MANUAL COLOR
This mode allows to combine the colors red, green, blue amber white and purple (r, g, b, A).
• Press the button MENU so many times until the display shows [U--], then press the button ENTER.
• Select the color [r, g, b, A] through the buttons UP/DOWN.
• Press the button ENTER to conrm.
• Using UP/DOWN button, select the desired color value [000 - 255].
• Press ENTER button to continue to the next color.
• Continue until the desired mix is obtained.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.8 MASTER/SLAVE MODE
This mode will allow you to link up the units together without a controller. Choose a unit to function as the
Master. The unit must be the rst unit in line; other units will work as slave.
• Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of the
units. For longer cable runs we suggest a terminator at the last xture (see page 11).
• Use any one of the standalone modes for the master unit.
• Set the slaves to the same DMX modes.

FLATPAR3Q
10
3.9 LINKING
1. Connect the DMX OUT of the master unit via 3-pole XLR cable to the DMX IN of the rst slave unit.
2. Connect the DMX OUT of the rst slave unit to the DMX IN of the second slave unit, etc. until all units
are connected in a chain.
3.10 DMX MODE
• Press the button MENU so many times until shows, [CH4] or [CH9] and press the button ENTER to conrm.
• Press the button UP/DOWN to select the desired DMX address [d001 - d512]. Press and hold to scroll
quickly. Press ENTER button to store.
The tables on page 12 indicate the operating mode and DMX value. The FLATPAR3Q is equipped with 3
pole XLR connections.
3.11 DMX ADDRESSING
To able to operate the FLATPAR3Q with a light controller, adjust the DMX start address for the rst a DMX
channel. If e. g. address 33 on the controller is provided for controlling the function of the rst DMX chan-
nel, adjust the start address 33 on the FLATPAR3Q. The other functions of the light eect panel are then
automatically assigned to the following addresses.
An example with the start address 33 is shown below:
Fig.5
. . . . . . . . . . . .
DMX512 Controller
Example 9 DMX channels configuration
DMX Address: 33 DMX Address: 60DMX Address: 42 DMX Address: 51
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
4 33 33-36 37 41 45
9 33 33-41 42 51 60

11
FLATPAR3Q

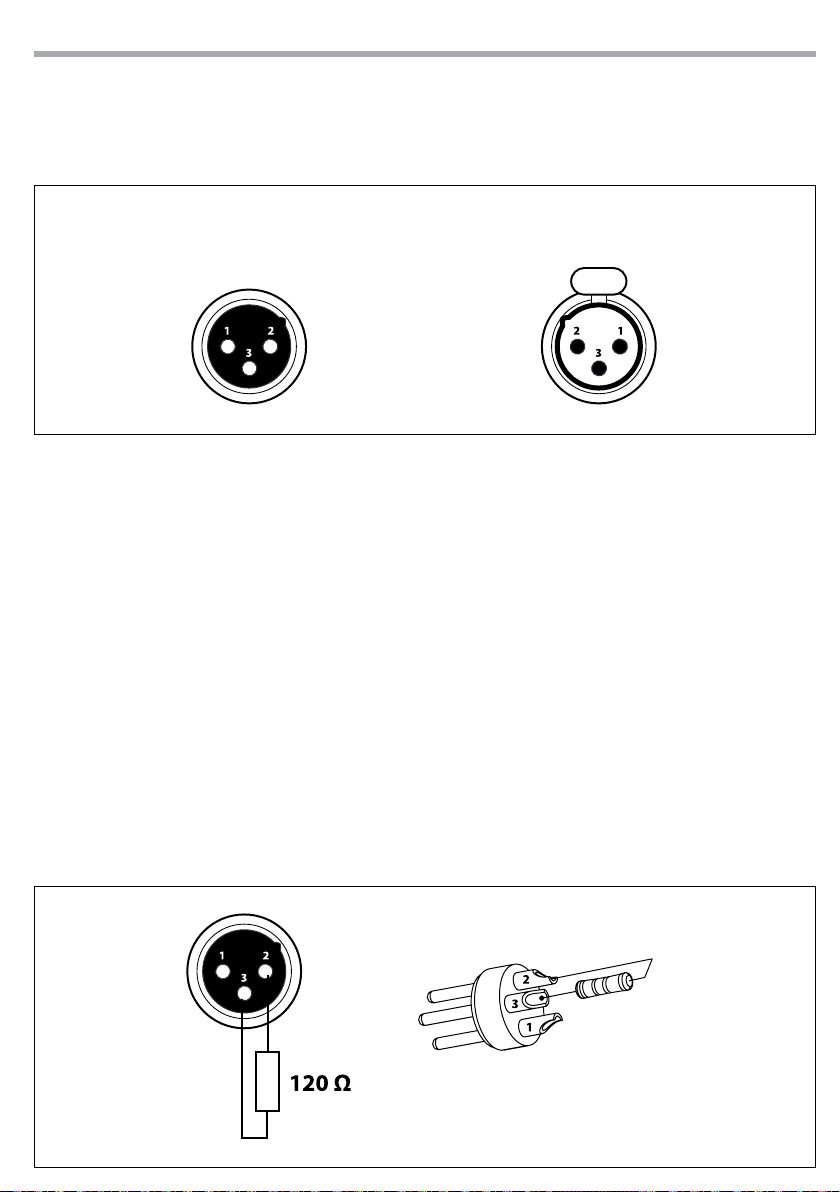

Fig.6
Fig.7
3.12 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped-
ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
cause faulty xture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplier.
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the rst unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.13 CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being reected back along the cable when they reach-
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
connector, as shown in gure.
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Example:
3 pin XLR connector

FLATPAR3Q
12
3.14 DMX CONTROL
MODE FUNCTION DMX
Value
4 Ch
1RED
0~100% 000 - 255
2GREEN
0~100% 000 - 255
3BLUE
0~100% 000 - 255
4AMBER
0~100% 000 - 255
MODE FUNCTION DMX
Value
9 Ch
1RED
0~100% 000 - 255
2GREEN
0~100% 000 - 255
3BLUE
0~100% 000 - 255
4AMBER
0~100% 000 - 255
5
COLOR
No function
Color Macros
000 - 015
016 - 255
6
STROBE
No function
Strobe Slow to Fast
SPEED (when CH7 is 032-223)
Programs Speed Slow to Fast
000 - 015
016 - 255
000 - 255
7
PROGRAMS
No Function
0 - 100%
100% - 0
100% - 0 - 100%
Colors Fade
4Colors snap
15Colors snap
Sound Control
000 - 031
032 - 063
064 - 095
096 - 127
128 - 159
160 - 191
192 - 223
224 - 255
8DIMMER
0~100% 000 - 255
9
DIM MODE
Menu setting dimmer mode
Dimmer mode o
Dimmer mode 1
Dimmer mode 2
Dimmer mode 3
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255

13
FLATPAR3Q
3.15 DIMMER
• Enter in Dimmer mode to select specic dimming curve, press the button MENU so many times until
shows dIM, and press the button ENTER to conrm.
• Press the button UP/DOWN to select OFF - dIM1 - dIM2 - dIM3.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
3.16 OPERATION THROUGH THE IRC CONTROLLER
To control the FLATPAR3Q with the infrared remote control:
• Press the button MENU repeatedly until [SET], then press button ENTER to conrm.
• Using UP/DOWN button to select [On] or [OFF] to enable or disable the infrared remote control.
• Press the button ENTER to conrm the chose.
NOTE - Make sure to point the controller directly at the receiver on the product.

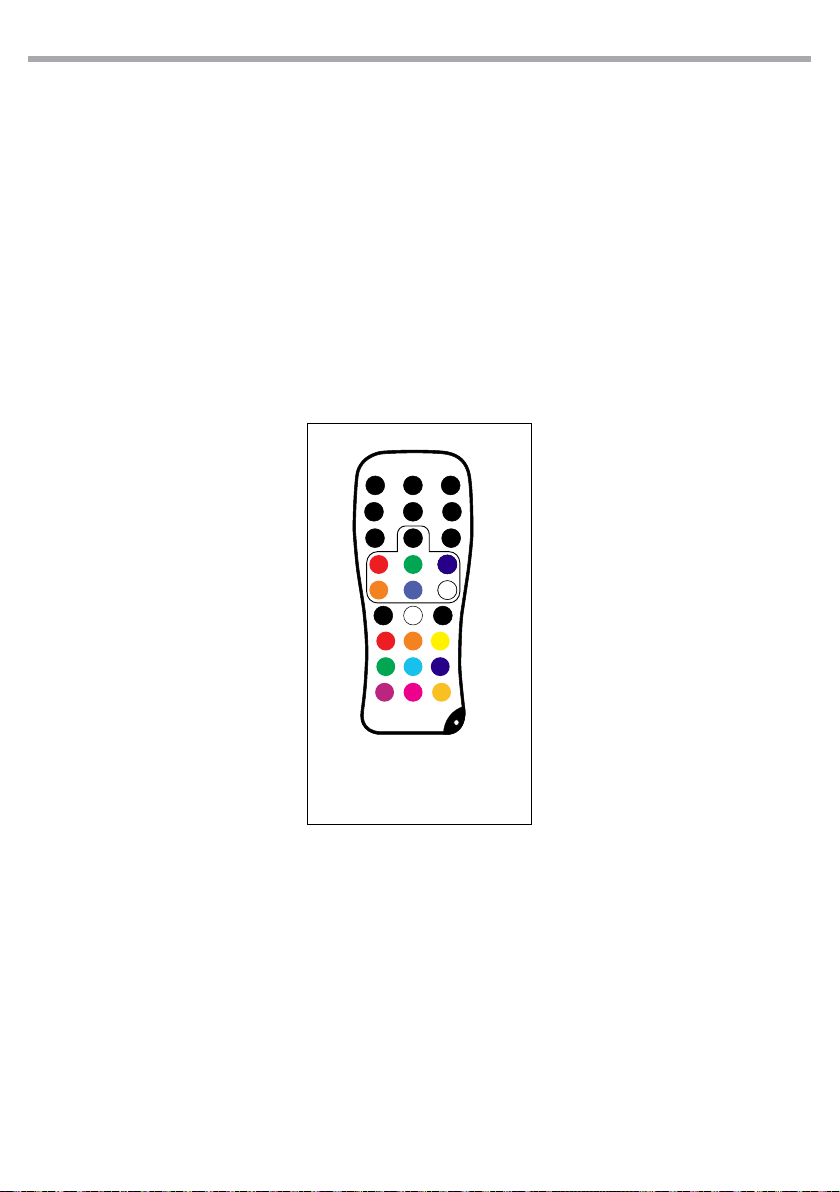

Fig.8
BLACK
OU T
AU TO
SOUND
ST ROBE
SP EED
SENSI
TI VITY
-
3
2
1
4
5
6
9
8
7
+
IRC REMOTE
FAD E
R G
B
WA
%
MANUAL
0
UV
Automatic Mode
Automatic Mode will enable you to run the automatic programs on the product.
To turn on Automatic Mode:
1. Press AUTO on the controller.
2. Press + or – to choose between the dierent auto programs.
To adjust the speed of the automatic program:
3. Press SPEED on the controller.
4. Press %.
5. Press + or – to either increase or decrease the speed of the program.
Sound Active Mode
Sound Active Mode will enable the product to respond to the music.
To turn on Sound Active mode:
1. Press SOUND on the controller.

FLATPAR3Q
14
To adjust sound sensitivity in Sound Active mode:
1. Press SENSITIVITY on the controller.
2. Press %.
3. Press + or – to either increase or decrease sound sensitivity.
Manual Color Control
To choose a specic color with the controller:
1. Press MANUAL on the controller.
2. Press any number between 0-9 to choose your color.
To manually control the RGB percentage:
3. Press MANUAL on the controller.
4. Press R, G, or B to choose your color.
5. Press + or – to increase or decrease the percentage of each color.
Miscellaneous Operation
To adjust the strobe rate of the program:
1. Press STROBE on the controller.
2. Press + or – to increase or decrease the strobe rate.
3. Press STROBE again to turn o the strobe.
To change the switching eect of the program:
• Press FADE/SNAP on the controller.
• Fade will slowly switch the eect. Snap will rapidly switch the eect.
To black out the lights:
• Press BLACK OUT on the controller.
• This will turn o all the lights until the button is pressed again.
NOTE - The controller will not respond to any inputs when Black Out is activated. If the remote does not
respond when a button is pressed, try pressing BLACK OUT. You may have inadvertently activated BLACK
OUT.

15
FLATPAR3Q
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
4.2 FUSE REPLACEMENT
1. Remove the safety cap by a screwdriver.
2. Replace the blown fuse with a fuse of the exact same type and
rating (T1A 250V).
3. Install the safety cap, and reconnect power.
4.3 TROUBLESHOOTING
Fuse
Fig.9
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Fixture does not respond to DMX
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
• Check control panel and unit addressing
• Check DMX cables
• Install terminator as suggested
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.

REV.005-02/18
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it

3
FLATPAR3Q
• FLATPAR3Q
• Cavo di alimentazione
• Staa di ssaggio (2pz.)
• Manuale utente
Contenuto dell'imballo:
INDICE Sicurezza
Avvertenze generali
Attenzioni e precauzioni per l’installazione
1 Introduzione
1. 1 Descrizione
1. 2 Speciche tecniche
1. 3 Elementi di comando e di collegamento
2 Installazione
2. 1 Montaggio
3 Funzioni e impostazioni
3. 1 Funzionamento
3. 2 Impostazione base
3. 3 Struttura menu
3. 4 Auto Show
3. 5 Static color
3. 6 Modalità musicale
3. 7 Manual color
3. 8 Modalità Master/Slave
3. 9 Collegamento
3. 10 Modalità DMX
3. 11 Indirizzamento DMX
3. 12 Collegamenti della linea DMX
3. 13 Costruzione del terminatore DMX
3. 14 Canali DMX
3. 15 Funzione dimmer
3. 16 Funzionamento tramite il controller IRC
4 Manutenzione
4. 1 Manutenzione e pulizia del sistema ottico
4. 2 Sostituzione fusibile
4. 3 Risoluzione dei problemi
4
4
5
5
6
7
8
8
9
10
10
10
10
10
11
11
11
12
12
13
14
14
16
16
16

FLATPAR3Q
4
ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con attenzione
questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni
importanti riguardo l’installazione, l’uso e la manutenzione dell’unità.
SICUREZZA
Avvertenze generali
• I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e per-
tanto recano la sigla .
• Il dispositivo funziona con pericolosa tensione di rete 230V~. Non intervenire mai al suo interno al di
fuori delle operazioni descritte nel presente manuale; esiste il pericolo di una scarica elettrica.
• È obbligatorio eettuare il collegamento ad un impianto di alimentazione dotato di un’eciente messa
a terra (apparecchio di Classe I secondo norma EN 60598-1). Si raccomanda, inoltre, di proteggere le
linee di alimentazione delle unità dai contatti indiretti e/o cortocircuiti verso massa tramite l’uso di
interruttori dierenziali opportunamente dimensionati.
• Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere eettuate
da un installatore elettrico qualicato. Vericare che frequenza e tensione della rete corrispondono alla
frequenza ed alla tensione per cui l’unità è predisposta, indicate sulla targhetta dei dati elettrici.
• L’unità non per uso domestico, solo per uso professionale.
• Evitare di utilizzare l’unità:
- in luoghi soggetti a vibrazioni, o a possibili urti;
- in luoghi a temperatura superiore ai 45°C.
• Evitare che nell’unità penetrino liquidi inammabili, acqua o oggetti metallici.
• Non smontare e non apportare modiche all’unità.
• Tutti gli interventi devono essere sempre e solo eettuati da personale tecnico qualicato. Rivolgersi al
più vicino centro di assistenza tecnica autorizzato.
• Se si desidera eliminare il dispositivo denitivamente, consegnarlo
per lo smaltimento ad un’istituzione locale per il riciclaggio.
Attenzioni e precauzioni per l’installazione
• Se il dispositivo dovesse trovarsi ad operare in condizioni dierenti da quelle descritte nel presente
manuale, potrebbero vericarsi dei danni; in tal caso la garanzia verrebbe a decadere. Inoltre, ogni altra
operazione potrebbe provocare cortocircuiti, incendi, scosse elettriche, rotture etc.
• Prima di iniziare qualsiasi operazione di manutenzione o pulizia sull’unità togliere la tensione dalla rete
di alimentazione.
• È assolutamente necessario proteggere l’unità per mezzo di una fune di sicurezza. Nell’eseguire qual-
siasi intervento attenersi scrupolosamente a tutte le normative (in materia di sicurezza) vigenti nel
paese di utilizzo.
• Installare l’unità in un luogo ben ventilato.
• Mantenere i materiali inammabili ad una distanza di sicurezza dall’unità.
• I ltri, le lenti o gli schermi ultravioletti se danneggiati possono limitare la loro ecienza.
• I LED devono essere sostituiti se danneggiati o termicamente deformati.
• Non guardare direttamente il fascio luminoso. Tenete presente che i veloci cambi di luce possono pro-
vocare attacchi d’epilessia presso persone fotosensibili o epilettiche.
• Non toccare l’alloggiamento del prodotto quando è in funzione perché potrebbe essere molto caldo.
Table of contents
Languages:
Other Tribe Dj Equipment manuals

Tribe
Tribe PIXROLL10UTRI User manual

Tribe
Tribe JETBEAM1 User manual

Tribe
Tribe MINIVERSAPAR User manual

Tribe
Tribe PROLIGHTS SMARTBATTENQ User manual

Tribe
Tribe FLATPAR3H User manual

Tribe
Tribe FLATPAR6H User manual

Tribe
Tribe Crystal User manual

Tribe
Tribe LUMIPAR12UH3P User manual

Tribe
Tribe JETSPOT3 User manual

Tribe
Tribe LUMIPIX9UHE User manual
