Tribe JETSPOT4Z User manual

USER MANUAL
MANUALE UTENTE
EN - IT
SPOT MOVING-HEAD
JETSPOT4Z

All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it
REV.04-12/18

3
JETSPOT4Z
Packing content • JETSPOT4Z
• Power cable
• Mount bracket
• User manual
TABLE OF
CONTENTS
Safety
General instructionsGeneral instructions
Warnings and installation precautionsWarnings and installation precautions
1 Introduction
1. 1 Description1. 1 Description
1. 2 Technical specications1. 2 Technical specications
1. 3 Operating elements and connections1. 3 Operating elements and connections
2 Installation
2. 1 Mounting2. 1 Mounting
3 Functions and settings
3. 1 Operation3. 1 Operation
3. 2 Basic3. 2 Basic
3. 3 Menu structure3. 3 Menu structure
3. 4 Linking3. 4 Linking
3. 5 DMX address3. 5 DMX address
3. 6 DMX mode3. 6 DMX mode
3. 7 DMX addressing3. 7 DMX addressing
3. 8 DMX control3. 8 DMX control
3. 9 Colors and gobos3. 9 Colors and gobos
3. 10 Movement3. 10 Movement
3. 11 Screen3. 11 Screen
3. 12 Fan mode3. 12 Fan mode
3. 13 Temperature3. 13 Temperature
3. 14 Auto and Manual test3. 14 Auto and Manual test
3. 15 Reset3. 15 Reset
3. 16 Adjust3. 16 Adjust
3. 17 Factory Reload3. 17 Factory Reload
3. 18 Fixture info3. 18 Fixture info
3. 19 Master/Slave3. 19 Master/Slave
3. 20 Sequence3. 20 Sequence
3. 21 Mode Speed3. 21 Mode Speed
3. 22 Connection of the DMX line3. 22 Connection of the DMX line
3. 23 Construction of the DMX termination3. 23 Construction of the DMX termination
4 Maintenance
4. 1 Maintenance and cleaning the unit4. 1 Maintenance and cleaning the unit
4. 2 Fuse replacement4. 2 Fuse replacement
4. 3 Trouble shooting4. 3 Trouble shooting
2
2
3
3
6
8
9
9
10
12
12
12
12
14
17
19
19
19
19
20
20
20
21
21
21
21
22
23
23
24
24
25

JETSPOT4Z
4
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places wet;
- in places subject to vibrations or bumps;
- in places with an ambient temperature of over 45°C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• For inside use only. Not designed for outside use.
• The minimum distance between the xture and surrounding walls must be more than 50 cm and the
air vents at the housing must not be covered in any case.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• The maximum temperature that can be reached on the external surface of the tting, in a thermally
steady state, is high. After power o, please cool down over 15 minutes.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• This product was designed and built strictly for the use indicated in this documentation. Any other use,
not expressly indicated here, could compromise the good condition/operation of the product and/or
be a source of danger.
• We decline any liability deriving from improper use of the product.

5
JETSPOT4Z
- 1 - INTRODUCTION
1.1 DESCRIPTION
JETSPOT4Z is a 180 W 6.800 K LED spotlight designed to replace a 700 W discharge xture in theatres,
concert halls and a host of other venues. The compact size allows for the use of this luminaire in venues
with low ceilings without resorting to zoom. Its custom optical system delivers a consistent output with a
at-eld and crisp gobo projection right through the massive 8° to 40° zoom range.
1.2 TECHNICAL SPECIFICATIONS
LIGHT SOURCE
• Source: 180W high-power white LED
• CT: 6.800K
• CRI: 68
• Luminous ux: 7’518lm
• Lux: (8°) 25’200 lx - (40°) 3’250lx @3 m
• Lux: (8°) 2’268 lx - (40°) 292lx @10 m
• Source life expectancy: 50.000 h
OPTICS
• Zoom: 8 - 40° motorised linear zoom
• Lens type: high-quality glass lens optics
• Focus: motorised
COLOUR SYSTEM
• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CTC: on wheel 2500 K and 3200 K + CTB
• Colour wheel: 6 dichroic lters + open on 3 independent colour wheels
DYNAMIC EFFECTS
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 24,2 mm - image: 20 mm - thickness: 1,1 mm
• Fixed gobos: 8 xed gobos + open
• Circular prism: 3f with bi-directional rotation, indexing
• Frost: linear 0 - 100% frost lter
• Iris: 5 - 100% motorised linear iris
• Auto mode: built-in programs with execution speed adjustment
BODY
• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: 8 / 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black
CONTROL
• Protocols: DMX512, RDM

JETSPOT4Z
6
• DMX channels: 23 / 25 / 27channel
• RDM: RDM ready for xture remote monitor and settings
• Display: black TFT high resolution display
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 - 30 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: icker free operation
ELECTRICAL
• Power supply: 100-240 V – 50/60 Hz
• Power consumption (at 230 V): 250W
• Power consumption (at 120 V): 252W
• Output (at 230 V): 14 units on a single power line
• Output (at 120 V): 8 units on a single power line
PHYSICAL
• Cooling: forced air with low noise fan
• Sospension and xing: any position with quick-lock omega brackets
• Pan / tilt lock: pan / tilt locking for transportation and maintenance
• Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 332x544x230mm
• Weight: 18,6kg

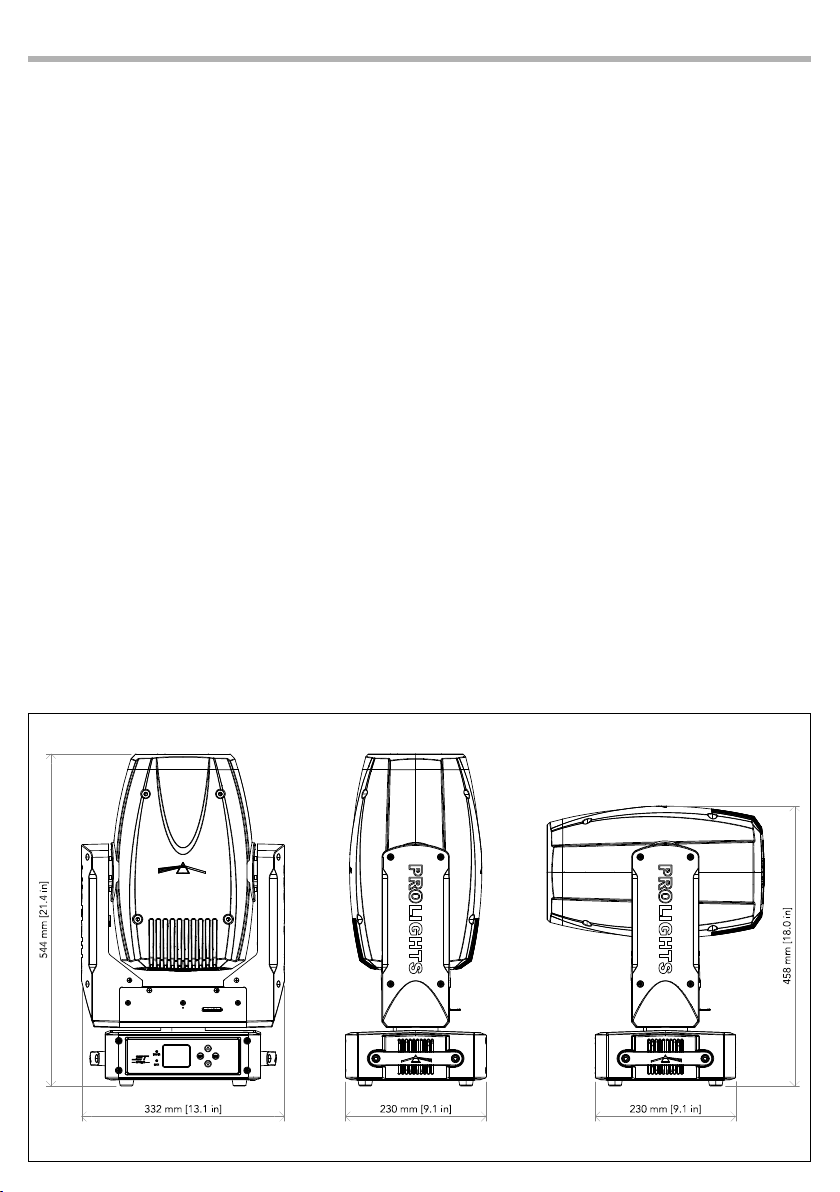

Fig.1Technical drawing

7
JETSPOT4Z
Fig.2
1.3 OPERATING ELEMENTS AND CONNECTIONS
1. MOVING HEAD
2. ROTARY ARM
3. CONTROL PANEL with TFT dis-
play and 4 button used to access
the control panel functions and
manage them.
4. LED INDICATOR
5. DMX OUT (5-pole XLR): 1 =
ground, 2 = DMX-, 3 = DMX+, 4
N/C, 5 N/C
6. DMX OUT ( 3-pole XLR): 1 =
ground, 2 = DMX -, 3 = DMX +
7. DMX IN (5-pole XLR): 1 = ground,
2 = DMX-, 3 = DMX+, 4 N/C, 5
N/C
8. DMX IN (3-pole XLR): 1 = ground,
2 = DMX -, 3 = DMX +
9. MAIN FUSE HOLDER: replace
a burnt-out fuse by one of the
same type only.
10.POWER OUT: (PowerCON OUT)
to connect multiple units in se-
ries.
11.POWER IN (PowerCON IN):
for connection to a socket
(100-240V~/50-60Hz) via the
supplied mains cable.
View A
View B
7
8
10 9 11
5
6
34
B
A
2
1

JETSPOT4Z
8
- 2 - INSTALLATION
2.1 MOUNTING
The JETSPOT4Z may be set up on a solid and even surface. By means of the xing facilities of the baseplate,
the unit can also be mounted upside down to a cross arm. The base plate is shown in g.3. For xing, stable
mounting clips are required. According to the gure, the bolts of the brackets are placed into the openings
provided in the base plate and turned clockwise until they lock (to the stop). Always ensure that the unit
is rmly xed to avoid vibration and slipping while operating. The mounting place must be of sucient
stability and be able to support a weight of 10 times of the unit’s weight. When carrying out any installa-
tion, always comply scrupulously with all the regulations (particularly regarding safety) currently in force
in the country in which the xture’s being used. Always additionally secure the projector with the safety
rope from falling down. For this purpose, fasten the safety rope at a suitable position so that the maximum
fall of the projector will be 20 cm.
Fig.3
SAFETY
CABLE
OMEGA
BRACKETS

9
JETSPOT4Z
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to
reset all motors to their home position. Shortly after that the JETSPOT4Z is ready for operation. To switch
o, disconnect the mains plug from the socket. For a more convenient operation it is recommended to
connect the unit to a socket which can be switched on and o via light switch.
3.2 BASIC
The control panel of JETSPOT4Z has a display and 4 buttons for the complete programming and manage-
ment of the projector menu (g.4).
Fig.4 - Functions of the buttons
UP DOWN MENU ENTER
Increases the value
displayed or passes to
the previous item in a
menu
Decreases the value
displayed or passes to
the next item in the
menu
To enter in the main
menù or to return to the
top level
Conrms the displayed
value, or activates the
displayed function, or
enters the successive
menu

JETSPOT4Z
10
3.3 MENU STRUCTURE
MENU
1
CONNECT ðDMX Address ðValue (1-512) Default: 1
DMX Mode ðBasic 27CH
Basic 25CH
Basic 23CH
Default: 25CH
Wireless ðReceive On/O
Receive Reset
Wireless To DMX ðYES/NO
Default :O
Default :No
Default :Yes
2SET UP ðMovement ðPan Reverse
Tilt Reverse
Pan Feedback
Tilt Feedback
ðYES/NO
Default: No
Default: No
Default: Yes
Default: Yes
Screen ðBacklight ðON
10s
20s
30s
Default: 10s
Flip Display ðNO/YES/AUTO Default: No
DMX Led ðOFF/ON Default: O
Warn Cue ðON/OFF Default: On
Key Lock ðYES/NO Default: No
Fixture ðFan mode ðAuto/High/Silent Default: Auto
Temperature unit ðC°/F° Default: °C
LED Frequency ð600Hz
1200 Hz
2000 Hz
4000 Hz
6000 Hz
25KHz
Default: 1200Hz
Auto Test ðAuto Test
Manual Test ðPan
Pan Fine
Tilt
Tilt Fine
P/T Speed
Dimmer
Shutter
Color1
Color2
Color3
Cyan
Magenta
Yellow
Gobo1
RGobo1
Gobo2
Prism Rot
Focus
Zoom
Frost
Iris
ðValue (000-255) for
each function
Default: Tilt=128
Dimmer=255
Shutter = 255

11
JETSPOT4Z
3ADVANCED ðReset ðAll
Pan
Tilt
Cyan&Color1
Magenta&Color2
Yellow&Color3
Gobo1
Gobo2
Prism
Focus
Zoom
Frost
Iris
ðAdjust ðPan Oset
Tilt Oset
Cyan Oset
Magenta Oset
Yellow Oset
Color1 Oset
Color2 Oset
Color3 Oset
Gobo1 Oset
RGobo1 Oset
Gobo2 Oset
Prism Oset
Focus Oset
Zoom Oset
Frost Oset
Iris Oset
Value (000-255) for each
function
ðFactory Reload ðYES/NO
4INFORMATION ðFixture Time ð0-9999 Default: 0
Temperature 58 °C
Fans Speed **%
Software Ver.
ðDISP- V0.1
CTR1-XY- V0.1
CTR2-MOTOR-V0.1
CTR3-MOTOR-V0.1
CTR4-MOTOR-V0.1
UID 15D0021C****
5STAND ALONE ðPlay ðMaster/Slave ðMaster
Slave
Default: Slave
Sequence ðShow 1
Show 2
Show 3
Show 4
Default: Show 1
Speed ðValue (001-100%) Default: 100

JETSPOT4Z
12
3.4 LINKING
Several units may be interconnected in order to control all further slave units to the same eect of the
master unit.
1. Connect the DMX OUT of the master unit via 3/5-pole XLR cable to the DMX IN of the rst slave unit.
2. Connect the DMX OUT of the rst slave unit to the DMX IN of the second slave unit, etc. until all units
are connected in a chain.
3.5 DMX ADDRESS
To enter the DMX mode, follow these steps:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select the Address and press the ENTER key.
• Press the arrow keys to select the desired value (001-512).
• Press the ENTER key to conrm the setting.
• Press the MENU button repeatedly to exit the menu and save changes.
3.6 DMX MODE
The JETSPOT4Z has more DMX channel congurations which can be accessed from the control panel.
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select DMX Mode and press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select the mode and press ENTER to conrm
your choice.
• Press the MENU button repeatedly to exit the menu and save changes.
The unit is equipped with 3/5-pole XLR connections.
3.7 DMX ADDRESSING
For operation via light control unit with DMX512 protocol, is sucient connect the controller to JET-
SPOT4Z. To able to operate the JETSPOT4Zwith a light controller, adjust the DMX start address for the rst
a DMX channel. If e. g. address 33 on the controller is provided for controlling the function of the rst DMX
channel, adjust the start address 33 on the JETSPOT4Z. The other functions of the light eect panel are
then automatically assigned to the following addresses.
An example with the start address 33 is shown below
Number of
DMX channels
Start address
(example)
DMX address
occupied
Next possible start address
for unit n ° 1
Next possible start address
for unit n ° 2
Next possible start address
for unit n ° 3
23 33 33-56 57 80 103
25 33 33-58 59 84 109
27 33 33-60 61 88 115

13
JETSPOT4Z
Fig.6 - Example 23 DMX channels conguration
DMX Address: 103DMX Address: 57DMX Address: 33 DMX Address: 80
. . . . . . . . . . . .
DMX512 Controller

JETSPOT4Z
14
3.8 DMX CONTROL
FUNCTION DMX
Value
27 ch 25 ch 23 ch
111PAN 000 - 255
222PAN Fine 000 - 255
332TILT 000 - 255
444TILT Fine 000 - 255
555PAN/TILT Speed 000 - 255
666DIMMER 000 - 255
7 7 DIMMER Fine 000 - 255
887
SHUTTER
Shutter closed
No function (shutter open)
Shutter eect slow to fast
No function (shutter open)
Pulse-eect in sequences
No function (shutter open)
Random strobe eect slow to fast
No function (shutter open)
000 - 031
032 - 063
064 - 095
096 - 127
128 - 159
160 - 191
192 - 223
224 - 255
9
COLOR Mode
Color wheels standard (default)
Color wheels move continues
000 - 127
128 - 255
10 9 8
COLOR1 (wheels standard)
Open
Color1-1(UV)
Color1-1 and Color1-2(UV and BLU)
Color1-2(BLU)
000 - 020
021 - 040
041 - 060
061 - 255
COLOR1 (wheels move continues)
Move from Open to Color1-2(BLU) continues 000 - 255
11 10 9
COLOR2 (wheels standard)
Open
Color2-1(ORANGE)
Color2-1 and Color2-2(ORANGE and RED)
Color2-2(RED)
000 - 020
021 - 040
041 - 060
061 - 255
COLOR2 (wheels move continues)
Move from Open to Color2-2(RED) continues 000 - 255
12 11 10
COLOR3 (wheels standard)
Open
Color3-1(COLOR TEMPERATURE ORANGE FILTER)
Color3-1 and Color3-2(COLOR TEMPERATURE ORANGE FILTER and GREEN)
Color3-2(GREEN)
000 - 020
021 - 040
041 - 060
061 - 255
COLOR3 (wheels move continues)
Move from Open to Color3-2(GREEN) continues 000 - 255
13 12 11 CYAN
0~100% 000 - 255
14 13 12 MAGENTA
0~100% 000 - 255
15 14 13 YELLOW
0~100% 000 - 255

15
JETSPOT4Z
FUNCTION DMX
Value
27 ch 25 ch 23 ch
16 15 14
ROTATING GOBO WHEEL
Open
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 1 Shaking slow to fast
Position 2 Shaking slow to fast
Position 3 Shaking slow to fast
Position 4 Shaking slow to fast
Position 5 Shaking slow to fast
Position 6 Shaking slow to fast
Position 7 Shaking slow to fast
Fast to Slow(Forward Spin)
Stop (Stop Rotation)
Slow to Fast(Revers Spin)
000 - 005
006 - 010
011 - 015
016 - 020
021- 025
026 - 030
031 - 035
036 - 040
041 -055
056 - 070
071 - 085
086 - 100
101 - 115
116 - 130
131 - 145
146 - 199
200 - 201
202 - 255
17 16 15
GOBO ROTATION
Positioning from 0 - 360 degrees (Indexing)
Fast to Slaw
Stop
Slow to Fast
000 -191
192 - 221
222 - 225
226 - 255
18 GOBO ROTATION FINE
Positioning (Indexing Fine) 000 - 255
19 17 16
FIXED GOBO
Open
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 1 Shaking slow to fast
Position 2 Shaking slow to fast
Position 3 Shaking slow to fast
Position 4 Shaking slow to fast
Position 5 Shaking slow to fast
Position 6 Shaking slow to fast
Position 7 Shaking slow to fast
Position 8 Shaking slow to fast
Fast to Slaw (Forward Spin)
Stop (Stop Rotation)
Slow to Fast (Revers Spin)
000 - 005
006 - 009
010 - 013
014 - 017
018 - 021
022 - 025
026 - 029
030 - 033
034 - 037
038 - 051
052 - 065
066 - 079
080 - 093
094 - 107
108 - 121
122 - 135
136 - 149
150 - 201
202 - 203
204 - 255

JETSPOT4Z
16
FUNCTION DMX
Value
27 ch 25 ch 23 ch
20 18
PRISM
Prism O
Prism Insert
000 - 127
128 - 255
21 19 17
PRISM ROT
Prism O
Index
Fast to Slow
Stop
Slow to Fast
000 - 000
001 - 127
128 - 189
190 - 193
194 - 255
22 20 18 FROST
Frost 0->100% 000-255
23 21 19 FOCUS
Focus 000-255
24 22 20 FOCUS FINE
Focus Fine 000-255
25 23 21 ZOOM
Zoom 000-255
26 24 22
IRIS
Iris 0->100%
Jump Open Fast to Slow
Jump Close Slow to Fast
000 - 191
192 - 223
224 - 255
27 25 23
CONTROL
No function
Enable blackout while Pan/Tilt move (Hold 3 Second)
Disable blackout while Pan/Tilt move (Hold 3 Second)
Enable blackout while color change (Hold 3 Second)
Disable blackout while color change (Hold 3 Second)
Enable blackout while gobo change (Hold 3 Second)
Disable blackout while gobo change (Hold 3 Second)
Pan Reset (Hold 3 Second)
Tilt Reset (Hold 3 Second)
Cyan&Color1 Reset (Hold 3 Second)
Magenta&Color2 Reset (Hold 3 Second)
Yellow&Color3 Reset (Hold 3 Second)
Gobo1 Reset (Hold 3 Second)
Gobo2 Reset (Hold 3 Second)
Prism Reset (Hold 3 Second)
Focus Reset (Hold 3 Second)
Zoom Reset (Hold 3 Second)
Frost Reset (Hold 3 Second)
Iris Reset (Hold 3 Second)
No function
Reset all (Hold 3 Second)
No function
000 - 039
040 - 049
050 - 059
060 - 069
070 - 079
080 - 089
090 - 099
100 - 109
110 - 119
120 - 129
130 - 139
140 - 149
150 - 159
160 - 169
170 - 179
180 - 189
190 - 199
200 - 209
210 - 219
220 - 229
230 - 239
240 - 255

17
JETSPOT4Z
3.9 COLOR WHEEL e GOBOS
BlueUV
COLOR 1
COLOR 2
COLOR 3
Cyan
RedOrange Magenta
Green
Orange
lter Yellow

JETSPOT4Z
18
1
2
3
4
5
6
7
ROTATING GOBO
Ø112
Ø
83
Ø45
Ø18
Ø12
x3
17.8
21.3
3-Ø3
x3-Ø2.5
1
2
3
45
6
7
8
FIXED GOBO

19
JETSPOT4Z
3.10 MOVEMENT
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, then select Movement and press the ENTER but-
ton to enter the next menu.
• Use the UP/DOWN button to select the option proposed and press the ENTER button to conrm the
setting.
- Pan Reverse - Pan rotation in the opposite direction. Select NO to deactivate the function (normal set-
ting); YES to activate the function (Pan Reverse).
- Tilt Reverse - Used for reversing tilt movement. Select NO to deactivate the function (normal setting);
YES to activate the function (Tilt Reverse).
- Pan/Tilt Feedbacks - Reorganization Pan/Tilt position after rolling away. Select NO to deactivate or YES
to activate the function.
• Press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and save changes.
3.11 SCREEN
You can change the following parameters related to the display, following the same procedure:
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.
• Press UP / DOWN to scroll through the menu, then select Screen, and press the ENTER button to enter
the next menu.
• Press UP / DOWN to scroll through the menu, and then select one of the following settings for the dis-
play and press the ENTER key to display it.
- Back Light - Backlight display Auto O. This feature allows you to automatically turn o the backlight
after a specied time that you can set using the arrow buttons. To have the display always on select
Always On or choose another value to turn o the display after the amount of time you choose.
- Flip Display - Orientation of the display. This function allows you to rotate the display 180° to get a
better view of the display when the unit is hanging upside down. Select YES to activate or NO to dis-
able this function.
- DMX Led - LED indicators ON / OFF. This function, if it is ON, allows the POWER and DMX indicators to
light up, if the OFF, LED indicators are o.
- Warn Cue - Error warning. Use the directional keys to select OFF or ON depending on Whether you
want the display to show error alerts.
- Key Lock - Lock keys. With this function, you can lock the buttons on the control panel. If this function
is activated, the keys are automatically locked. To disable or temporarily disable the key lock func-
tion, press the buttons in the following order to regain access to menu commands: UP, DOWN, LEFT,
RIGHT, ENTER. Select YES to activate or NO to disable.
• Press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and save changes.
3.12 FAN MODE
Select this function to set the fans operation mode:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.

JETSPOT4Z
20
• Press the UP/DOWN button to scroll through the menu, select Set Up icon, and press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, and then select Fan Mode and press ENTER to
conrm.
• Press the UP/DOWN button to select Auto Speed/High Speed/Silent, press the ENTER button to conrm your
choice.
• Press the MENU button repeatedly to exit the menu and save changes
3.13 TEMPERATURE
Select this function to set the temperature unit measurement shown on the display:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN to scroll through the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN to scroll through the menu, select Fixture, and press the ENTER button to enter the
next menu.
• Press the UP/DOWN button to scroll through the menu, select Temperature °C/°F and press ENTER to con-
rm.
• Press the UP/DOWN button to select the unit of measure Celsius/Fahrenheit and press the ENTER button
to conrm your choice.
• Press the MENU button repeatedly to exit the menu and save changes.
3.14 AUTO AND MANUAL TEST
With this menu, you can test all functions; with auto the moving head will start an auto test, with manual
you can choose each channel/function to test.
3.15 RESET FUNCTIONS
You can start a preset program to restore the selected function:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Advanced icon, then press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Reset and press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, then select the function you wish to reset be-
tween All, Pan, Tilt, Cyan&Color1, Magenta&Color2, Yellow&Color3, Gobo1, Gobo2, Prism, Focus, Zoom, Frost, Iris.
• Press the ENTER button to conrm your choice and wait for the recovery of the selected function.
3.16 ADJUST
Adjusts the lamp. This function allows you to modify all the parameters of the lamp: Pan Oset, Tilt Oset,
Cyan Oset, Magenta Oset, Yellow Oset, Color1 Oset, Color2 Oset, Color3 Oset, Gobo1 Oset, RGobo1 Oset, Gobo2
Oset, Prism Oset, Focus Oset, Zoom Oset, Frost Oset, Iris Oset.
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Advanced icon, then press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Adjust and press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to select one of the parameters and press ENTER to edit the value (000-255)
