OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SI 255

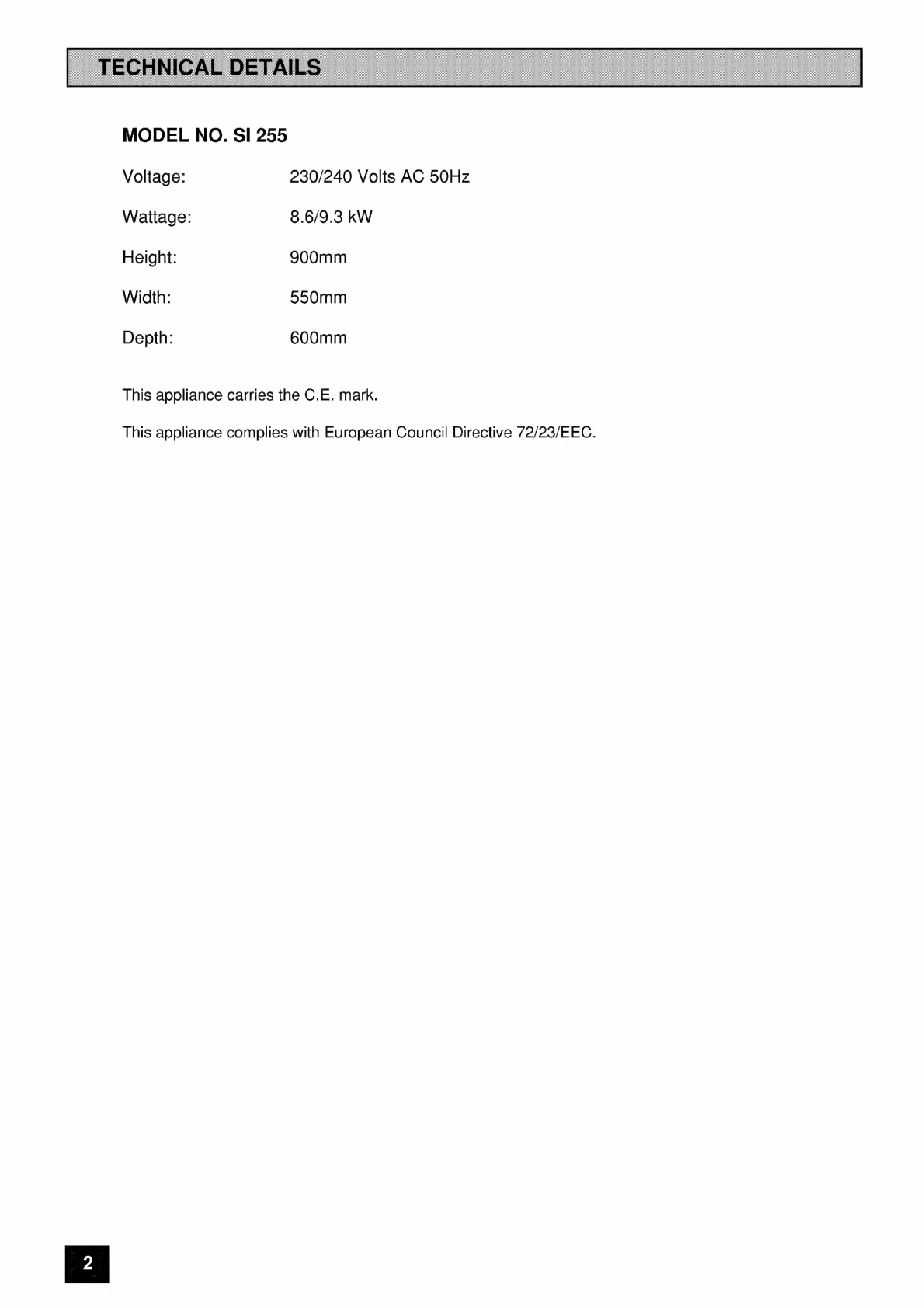

MODEL NO. SI 255
Voltage: 230/240 Volts AC 50Hz
Wattage: 8.6/9.3 kW
Height: 900mm
Width: 550mm
Depth: 600mm
This appliance carries the C.E. mark.
This appliance complies with European Council Directive 72/23/EEC.

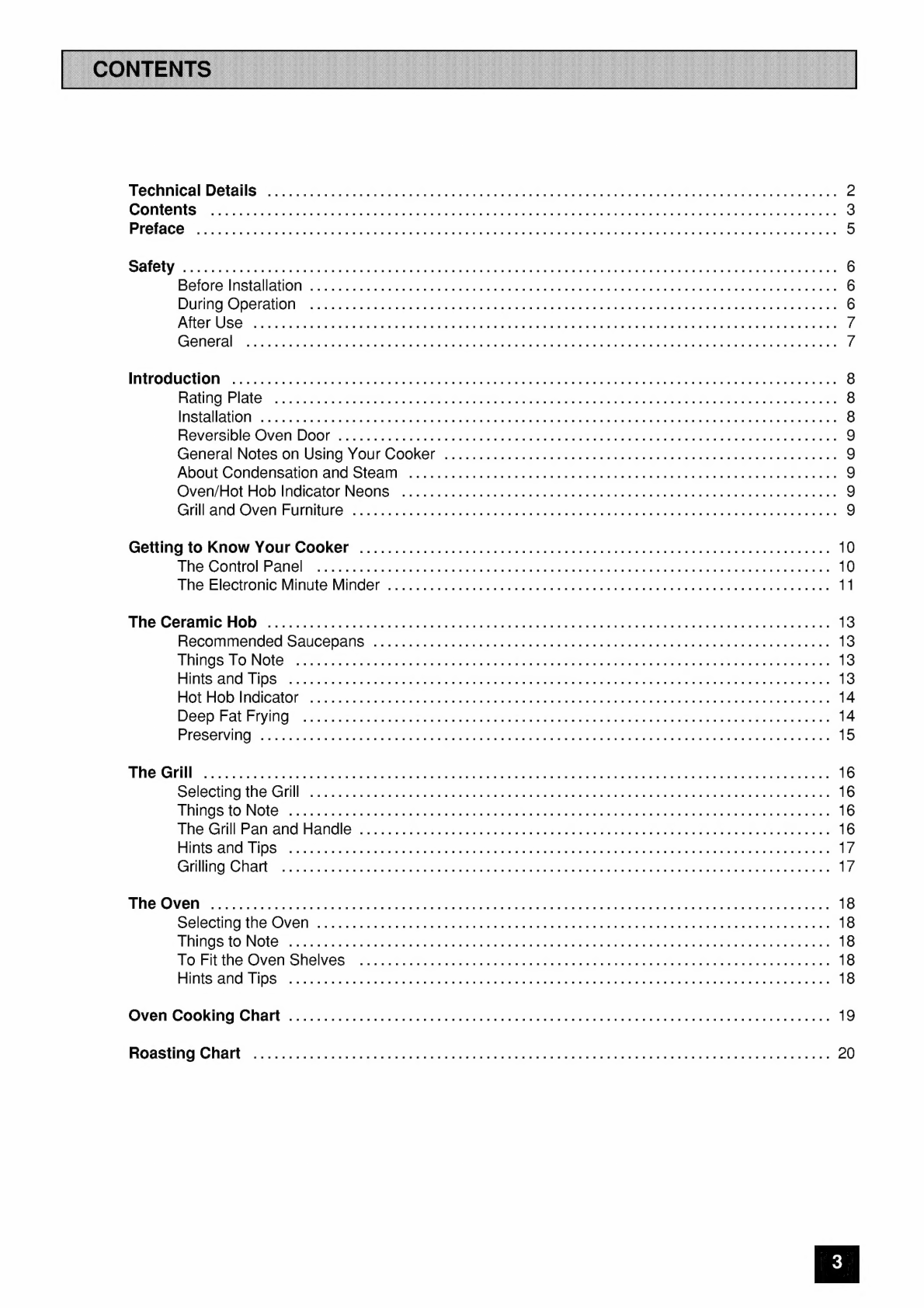

TECHNICAL Detail y a eee a Cah S acl et Ca eat ed de daa aa 2
COMICS: tcs feet a tune A aaa Me cua te mew tas Re et eR eee Asawa T R aa RR ENA 3
PICTACC L E TK dares un shee TEN EEEE K 0 EA EA a RE R wales 5
Salety aria tri eae eh eek eon Go tanned AAA ias 6
Before installation nori cd oS oh al A A RE RENEA 6
During Operation, audacia rata teen cee as 6
PC IS Sst acta hace e EO pe ea eee eA 7
ETT TT] T
INWOGUCHION ua a a a a a E A E E a 8
aT] EE E o A TE 8
TEU EAR GN, seeped E E E EEEE TOE E AEN a rac EE be E K EE 8
Reyersible Oven DOO ienna a Sas 9
General Notes on Using Your Cooker sonas taa ae iaa 9
ABOUT Condensation and Steam. iis aia SL Z R r seated ceed ein a Stee a 9
Oven hot Hob Indicator Neons savia a a a ia a 9
Gil and Over HT] E] a o O Aa 9
Getting to Know Your Cooker +x e e eee eee e eee e eee e ee eaeeeees 10
TAS e eiai (Ee) Rae! una NA ia a wnt mative oe retin Beers aura ia 10
The Electronic Minute Minder 40 toa ethos creat A da tees 11
Thé- Ceramic HOD ~ais rr AAA AA AAA SAS 13
Recommended Saucepans ido bs ads 13
MINOS TO NOTE e oa sl o a ds 13
A A A 13
HOT FOO INGICAIOl: asii ata 14
A A A Mu ewan atta O E-S 14
PRESCIVIAG st sd ati 15
INEGI a ta dc a owe ns OIL Aaah anda 16
Selecting the Grill a AA Aia 16
Things to Note" <a AA Baad RADA A 16
The Grill Pan and Handle ..------ II a eee 16
Aints ANG WPS. cara AA 17
Gling GNA. ate veces eens Gene amar aes arbol Peles 17
The OV GN ii a Z OAE AS Wa a We a de R ew Se te ee es 18
Selecting INE OVER RANA IRE 18
THINGS AO NOS: cannes te ateatad. cc dt vd pete ede ias 18
TO FittheOven:ShelVveS wei cir. pete tos rada ci ias 18
il Ie TTT 18
Oven Cooking Chants ic ciesiee A ane wae pee ag aunt 19
Roasting: Chart <a a seen o a ancien a Dice 20

Care and: Clean a Go Va N RIOT Fenech ad when eee ew N 21
Cleaning: Materials: a sce water owt vies Rae ence Sure eens A N 21
Cleaningtne C oramic: HOD: +63. candies a Sande et este eee eee: 21
PALS biG A tee oue na Reser thee aus Ceca Mamienad geass E 22
Cleaning the Outside of the Cooker ari E A AA AAA AAA 22
Cleaning the Grill Pan, Grill Pan Grid, Meat Tin and Oven Shelves ...........cce e es 22
Cleaning Inside the Gril/Oven Compartments ............ e K cece cece eee eee ence eee neeeeeees 22
Care of Stayclean Surfaces ~-e e agate estate gale laud saceeaceneoaaee teens 23
PAS ANIC) TINS: A O et at: 23
Something NOE WOKING? isis ria Ei nia. 24
Service and: Snare Pans: xica daras Hi lona 25
Customer Service Centres aora is A A nenen 26
Guarantee e a Tuis T la T a da 30

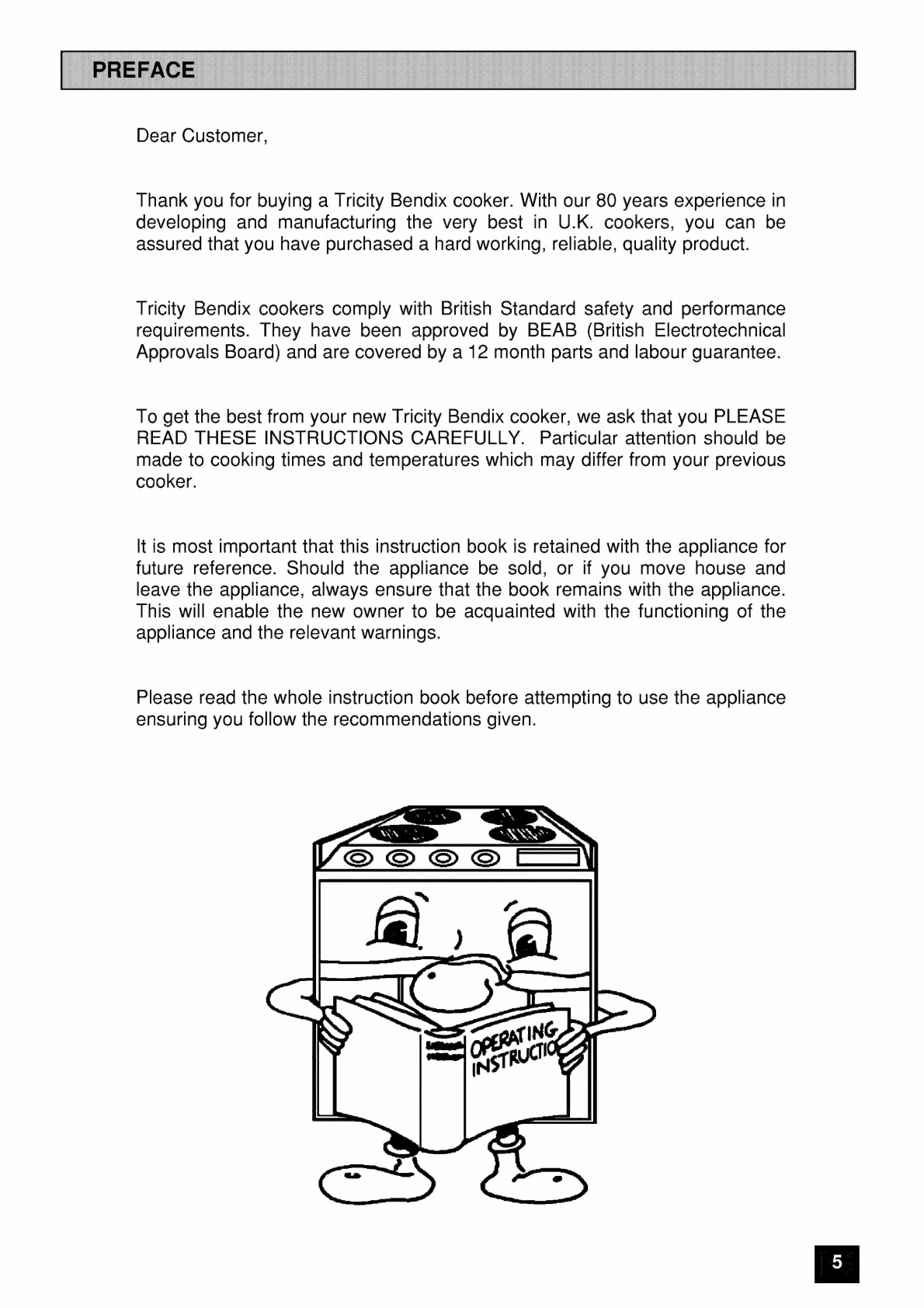

Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.

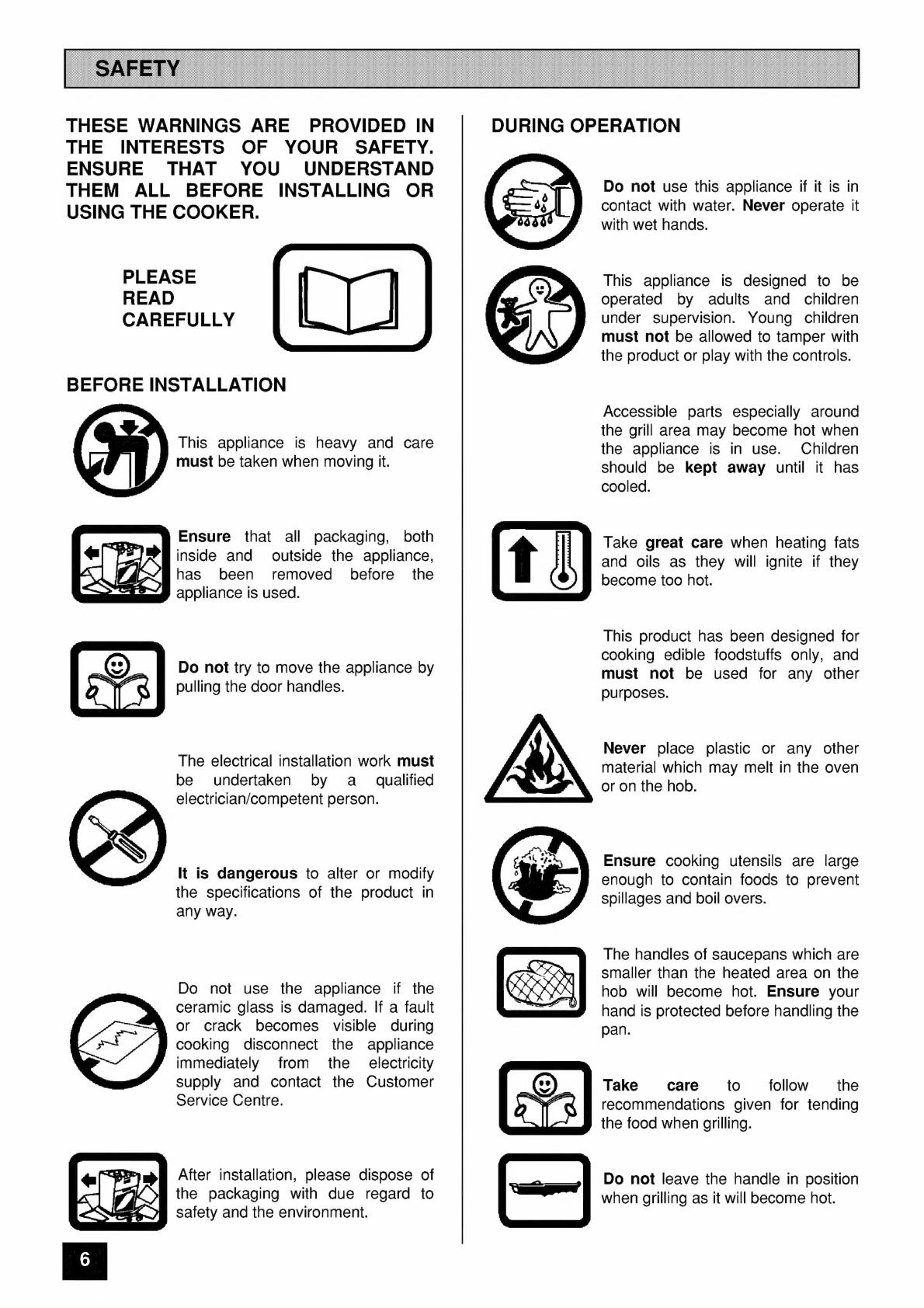

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance,
has been removed before the
appliance is used.
Do not try to move the appliance by
pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify
the specifications of the product in
any way.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking disconnect the appliance
immediately from the electricity
supply and contact the Customer
Service Centre.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults and children
under supervision. Young children
must not be allowed to tamper with
the product or play with the controls.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow ne
recommendations given for tending
the food when grilling.
Do not leave the handle in position
when grilling as it will become hot.

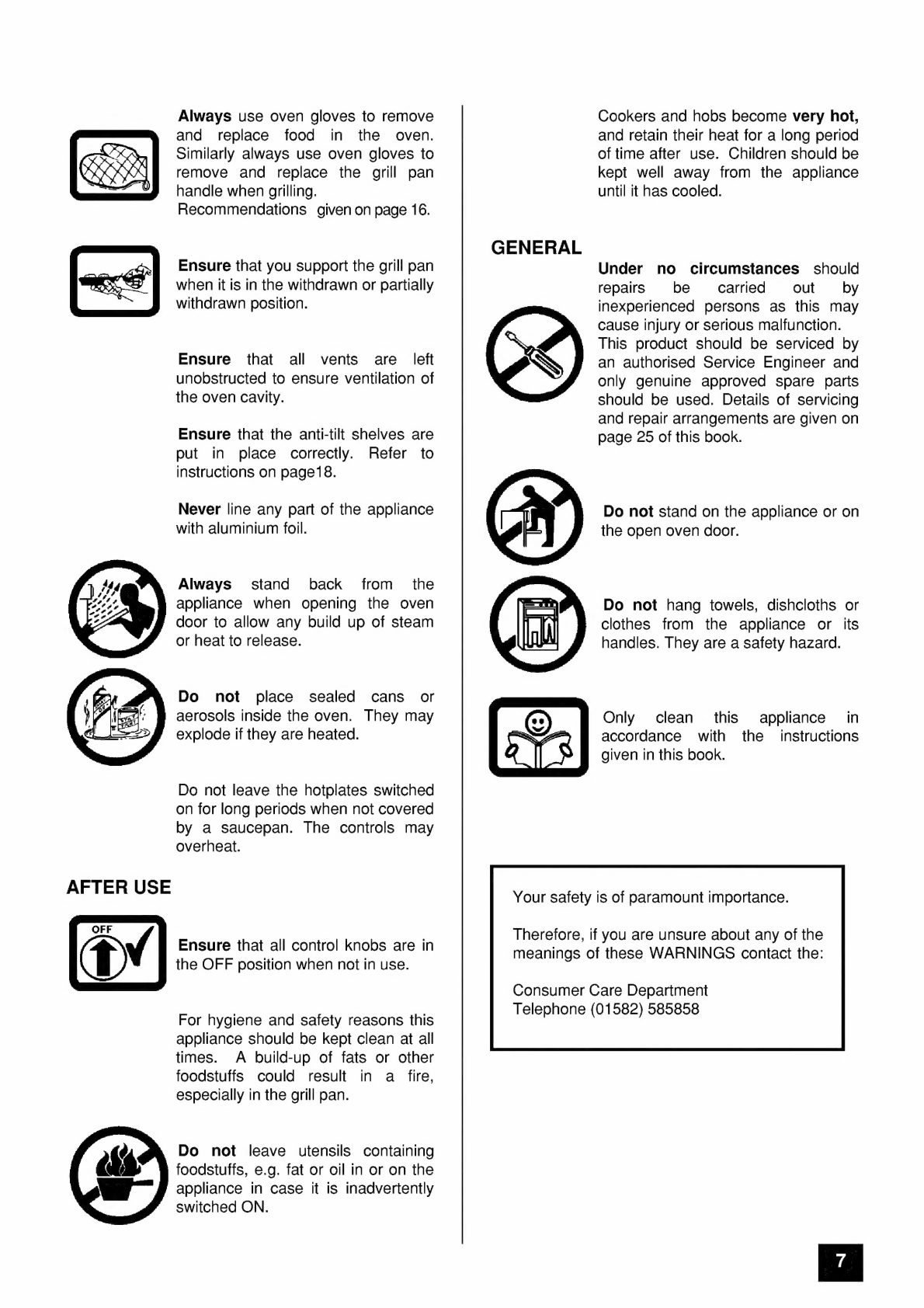

Always use oven gloves to remove
and replace food in the oven.
Similarly always use oven gloves to
remove and replace the grill pan
handle when grilling.
Recommendations given on page 16.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page18.
Never line any part of the appliance
with aluminium foil.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam
or heat to release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls may
overheat.
AFTER USE
Y Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used. Details of servicing
and repair arrangements are given on
page 25 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles. They are a safety hazard.
Only clean this appliance in
accordance with the instructions
given in this book.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Consumer Care Department
Telephone [phone]

WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
Record the model and serial numbers on the back
cover of this instruction book, from the rating plate.
This is situated on the lower front frame of the
appliance and can be seen upon opening the oven
door.
TRICITY BENDIX MADE IN BRITAIN TRICITY BENDIX
MODEL NO KK KOK KK UL INLET AUD A Tn
propuct no rara NENA
SERIAL No œ w xc oe ok ok nc nc y x INI]
VOLTAGE XK Kk V # K KHz BEAB
WATTAGE X * KW € C Approved
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.

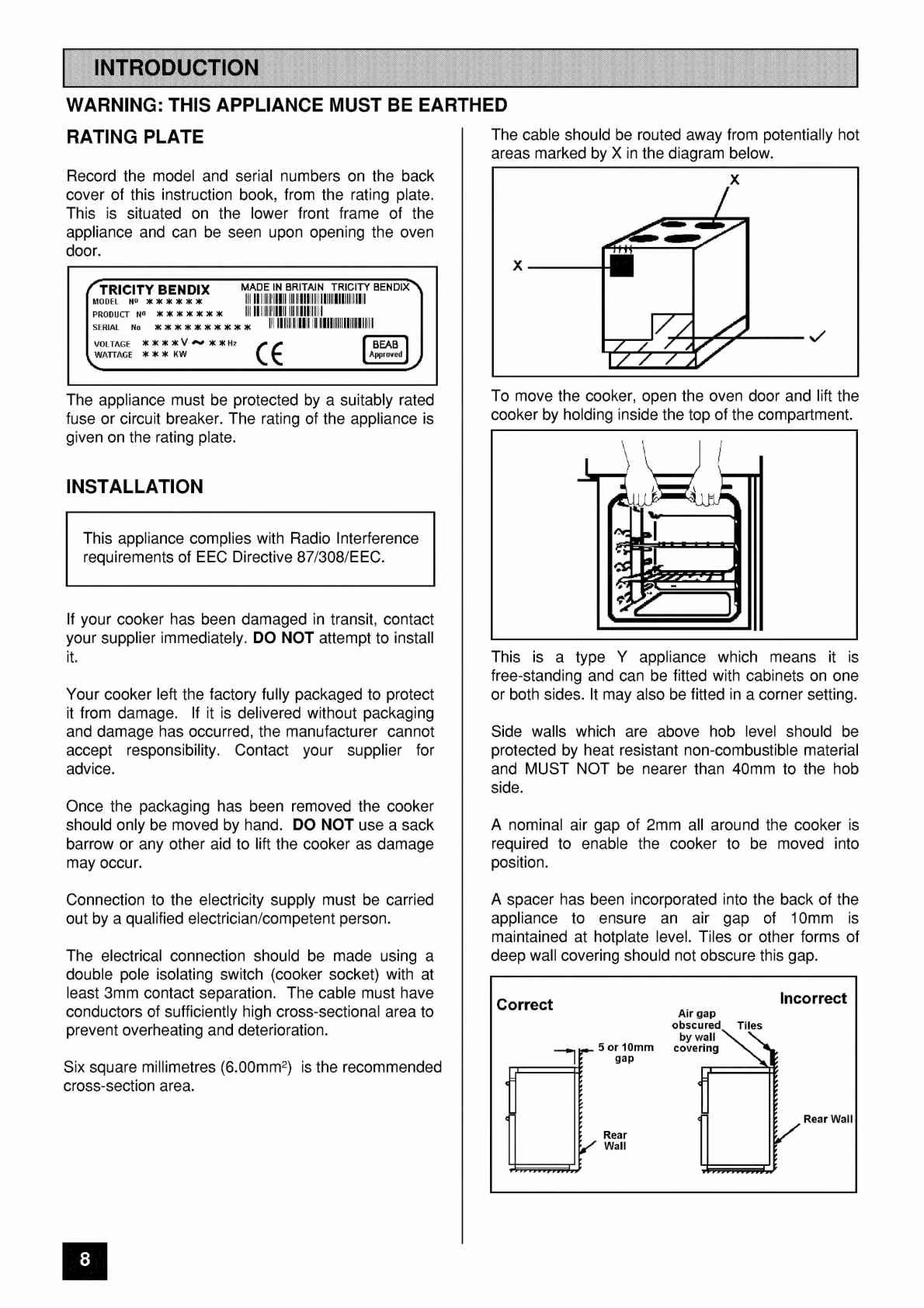

INSTALLATION
This appliance complies with Radio Interference
requirements of EEC Directive 87/308/EEC.
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm) is the recommended
cross-section area.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
x
To move the cooker, open the oven door and lift the
cooker by holding inside the top of the compartment.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position.
A spacer has been incorporated into the back of the
appliance to ensure an air gap of 10mm is
maintained at hotplate level. Tiles or other forms of
deep wall covering should not obscure this gap.
Incorrect
Air gap
obscured_ Tiles
by wall
5 or 10mm covering
ay gap

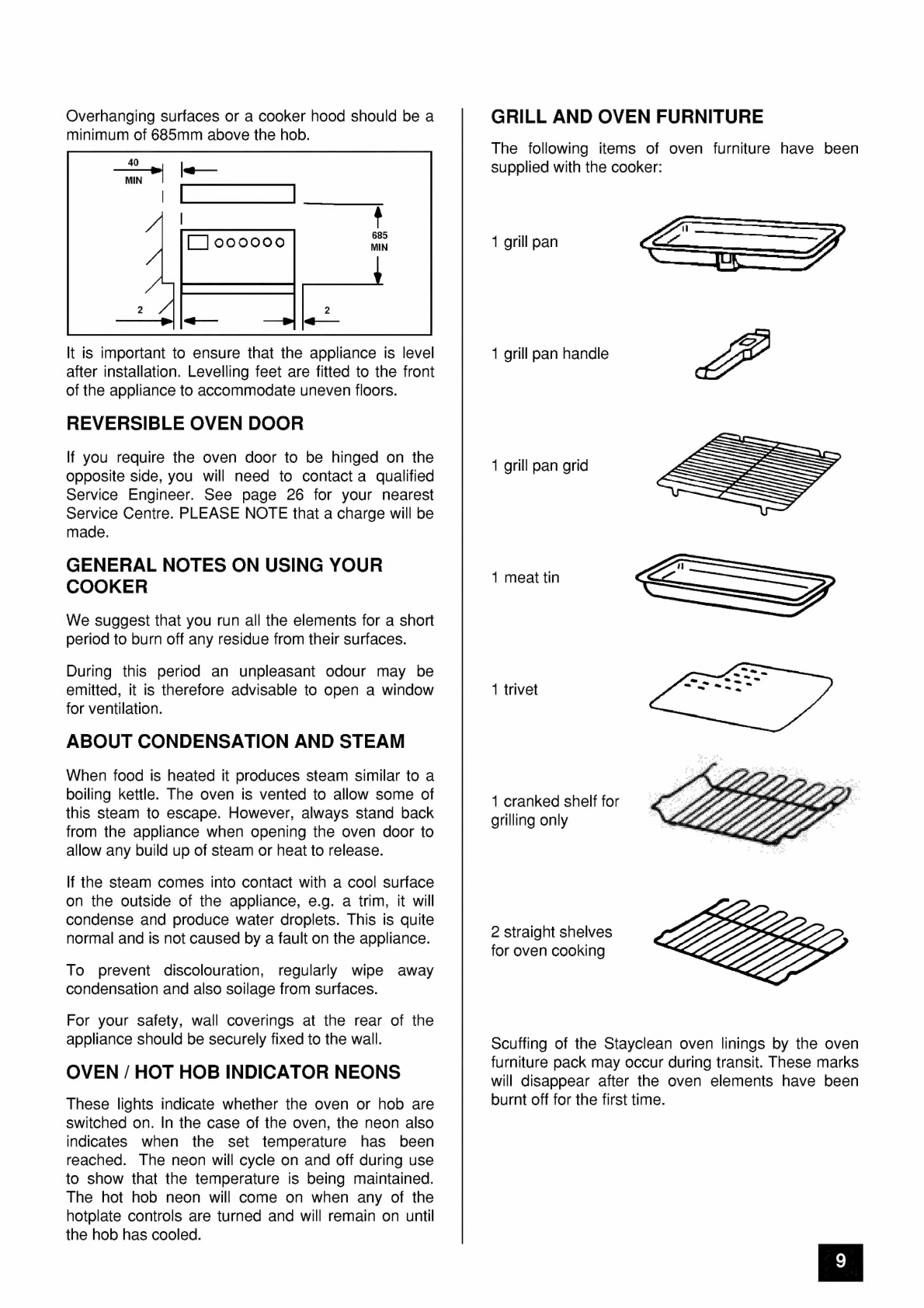

Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
40
Sah IS
T n ke 3
|
i
EN
“>| la «—
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the front
of the appliance to accommodate uneven floors.
REVERSIBLE OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 26 for your nearest
Service Centre. PLEASE NOTE that a charge will be
made.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run all the elements for a short
period to burn off any residue from their surfaces.
During this period an unpleasant odour may be
emitted, it is therefore advisable to open a window
for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety, wall coverings at the rear of the
appliance should be securely fixed to the wall.
OVEN / HOT HOB INDICATOR NEONS
These lights indicate whether the oven or hob are
switched on. In the case of the oven, the neon also
indicates when the set temperature has been
reached. The neon will cycle on and off during use
to show that the temperature is being maintained.
The hot hob neon will come on when any of the
hotplate controls are turned and will remain on until
the hob has cooled.
GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker:
1 grill pan
4
1 grill pan handle
Ñ
1 grill pan grid
1 meat tin
1 trivet
548
1 cranked shelf for
grilling only
2 straight shelves
for oven cooking
ELE
Scuffing of the Stayclean oven linings by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.

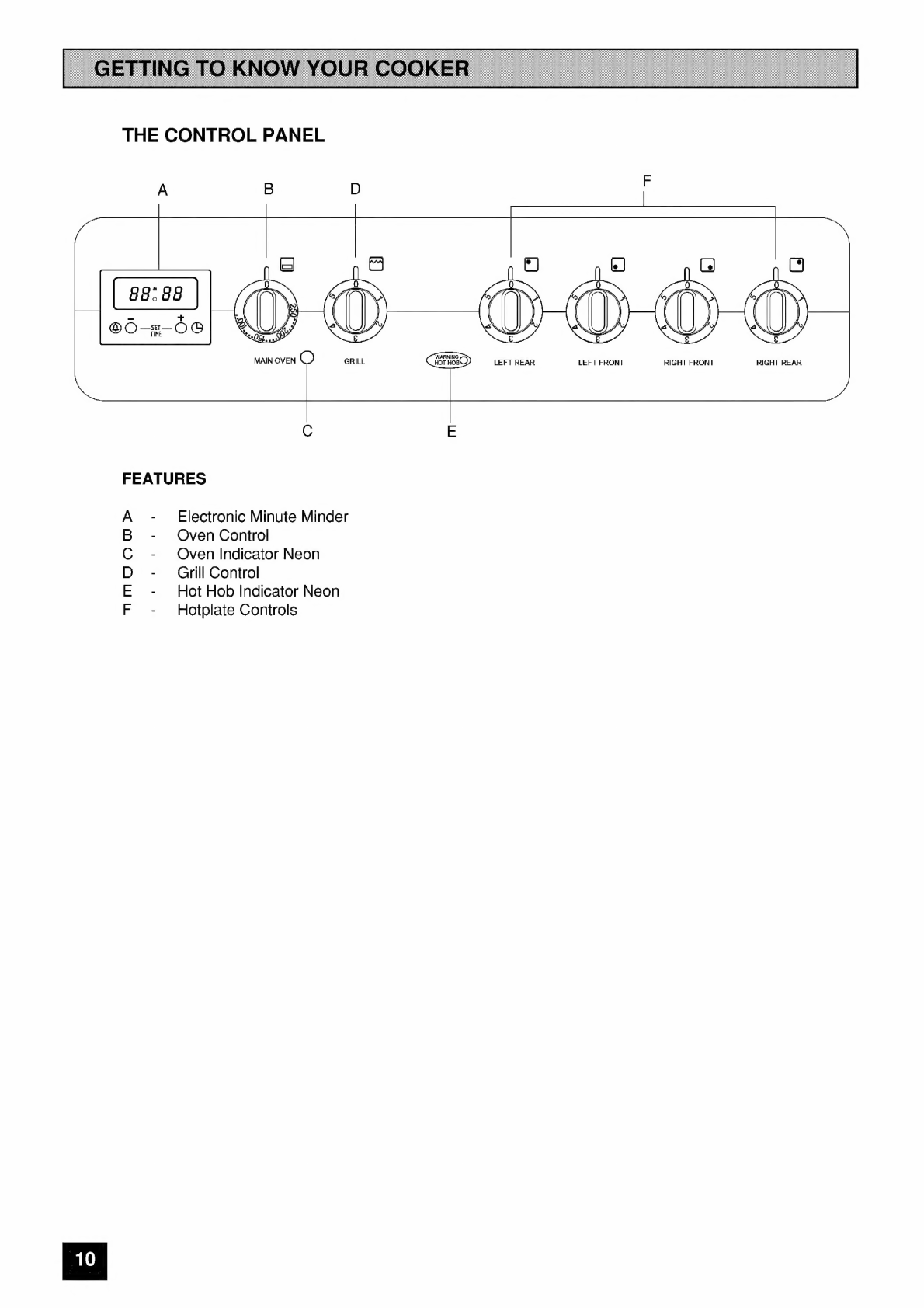

THE CONTROL PANEL
= +
D-O
LEFT FRONT
FEATURES
- Electronic Minute Minder
- Oven Control
Oven Indicator Neon
- Grill Control
- Hot Hob Indicator Neon
- Hotplate Controls
NnMU0OUuU T
RIGHT FRONT RIGHT REAR
