Special Attention:
• Mechanical keys please keep outdoor, just in case keys lock in doors.
• Please replace for the battery when low wattage alarm.
• Reading this manual carefully before installation, and keep it for future reference.

ϭ
1. Introduction
1.1.Lock structure
1.2.Packing List
Check the following drawing to check whether the package contains all the parts
NO Name Qty NO Name Qty
1Front Pane 111 Sliding Screws:M5*10mm 2
2Back Panel 112 Mortise Screws:M*10MM
(For Aluminum Door) 4
3Mortise 113 Mortise Screws M4*25mm
(For Wooden Door) 4
4Card 314 M5*25mm Screw 1
5Mechanical Key 215 M5*30mm Screw 1
6Waterproof Rubber
Plate 216 M5*40mm Screw 1
7U-Clip 117 M5*50mm Screw 1
8User Manual 118 M5*70mm Screw 1
9Strike&Strike Box 1+1 19 60mm Square shaft 1
10 Screw Stubs:M5*35mm 220 80mm Square shaft 1
Fingerprint
Battery Box
Mech. Key
USB Port
310mm
39mm
Touch Keypad
Card Reader
155mm88mm67mm
23mm
49mm
127mm
1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK

Ϯ
1.3.Specifications
6XLWDEOH IRU
0RGHOV 6 'RRUV $SSOLFDEOH
$OXPLQXP GRRU
:RRGHQ GRRU
0DWHULDOV +DQGOH˖66
3DQHO˖66
:RUNLQJ
9ROWDJH 9[ $$ %DWWHULHV
/RFN :HLJKW .*
'RRU
7KLFNQHVV WR
)LW
PP
8QORFNLQJ
:D\
%OXHWRRWK
)LQJHUSULQWRSWLRQ
3DVVZRUG
&DUG
0HFKDQLFDO NH\
*DWHZD\RSWLRQ
'DWD &DSDFLW\
)LQJHUSULQW˖
3DVVZRUG˖
&DUG˖
&RORU 6LOYHU
%ODFN
:RUNLQJ
7HPSHUDWXUH ćć
/RZ
:DWWDJH
$ODUP
/HVV WKDQ 9 :RUNLQJ
+XPLGLW\ 

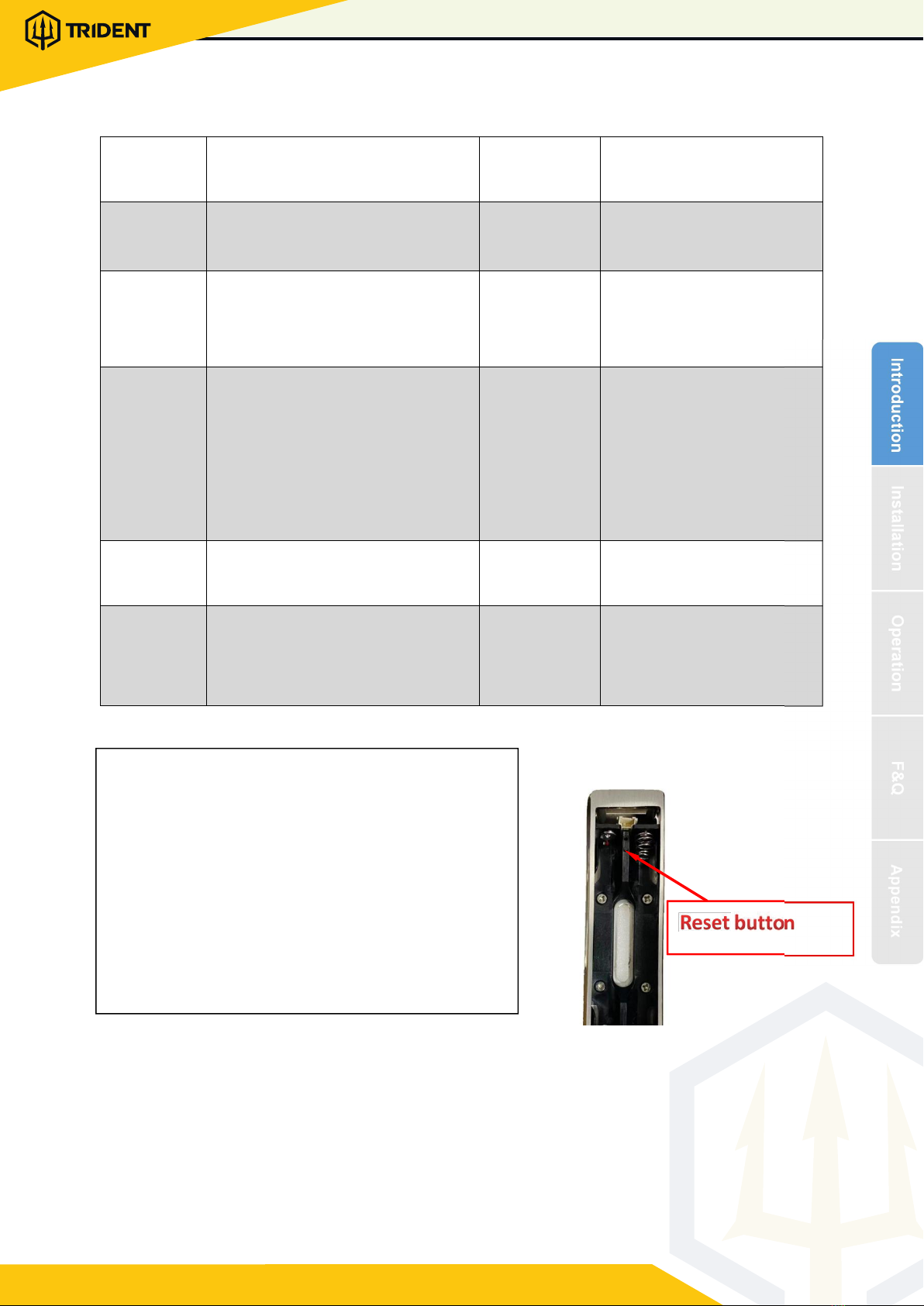

System Initialization
Open the cover plate of the front
panel ,long press the "Reset" button on
the back panel for 5s, press “000#”,and
the initialization is complete
1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK

ϯ
2.Installation
2.1Turn the handle
Notice: Adjust the handle according to the direction you open the door.
1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK

ϰ
2.2. Installation Diagram(For 3585)
6WHS  ,QVWDOO 0RUWLVH
6WHS  ,QVWDOO 6TXDUH 6KDIW
6WHS  ,QVWDOO 6OLGLQJ 6FUHZ &DVLQJ
6WHS  &RQQHFW )URQW DQG %DFN 3DQHOV :LUHV
6WHS  ,QVWDOO %DFN 3DQHO
6WHS  ,QVWDOO WKH %DWWHU\
7KH VFUHZ FDVLQJ
SODFH LV DGMXVWDEOH
IURP PP WR PP
IDU IURP WKH VTXDUH
VKDIW
'HSHQGLQJ RQ WKH
ORFDWLRQ RI WKH
KROHGULOOLQJ RU WKH ROG
GRRU KROH
1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK

1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK
ϱ
3.Operation
3.1.Registration
3.2. Connect lock to the phone

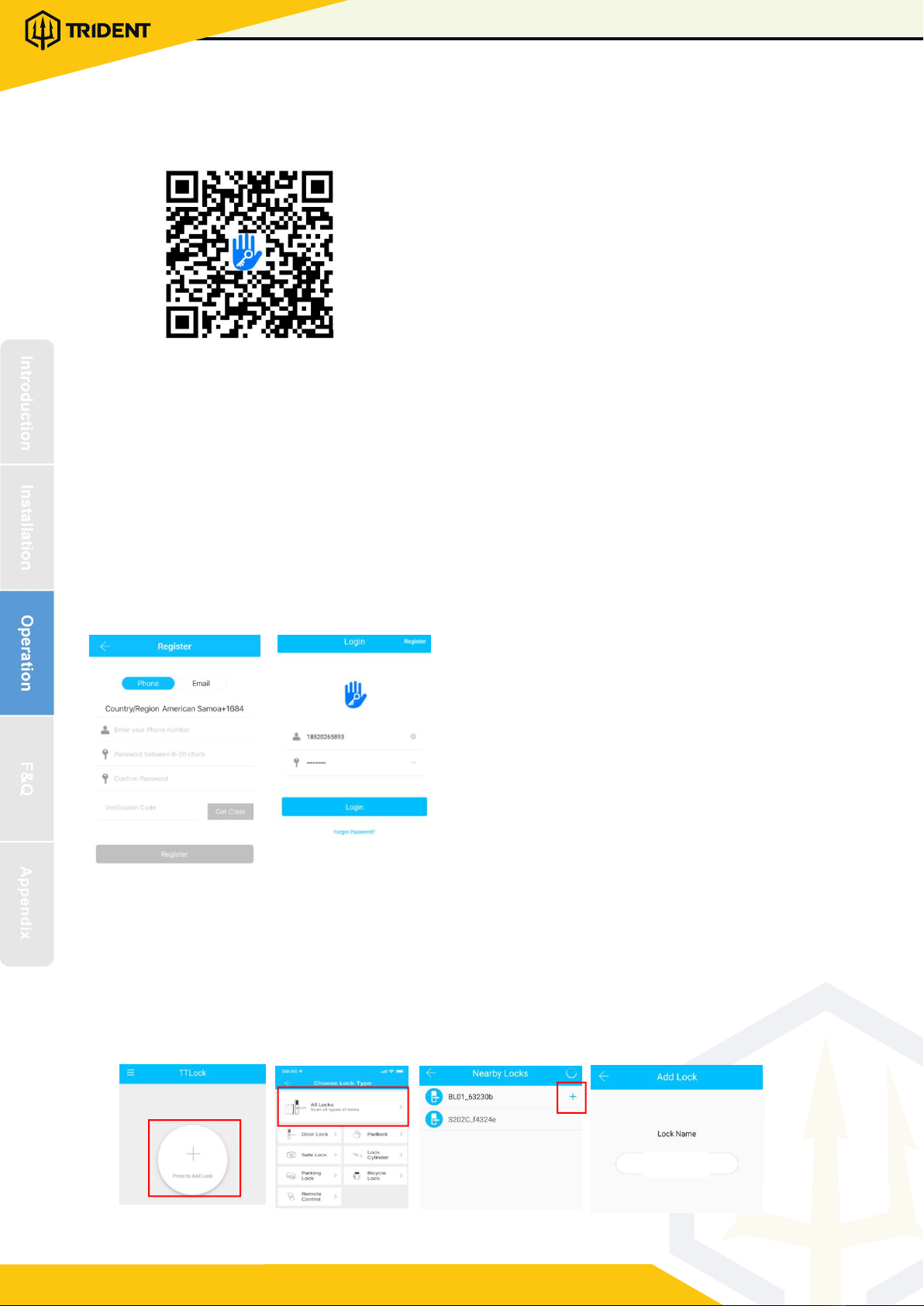

1) please scan the QR code to download the app
2) You can also search for TTLock in the APP store(Google Play)to download
4) Register a new account (phone number or email) or login with an existing
account.
5) Touch the lock screen to light, click "+ Add Lock”
6) The lock nearby will appear on the phone screen, Click "+"
7) Re-name the lock
8) The lock added successfully
3.3.Add locks
TTLock supports multiple types of lock devices. The lock needs to be added by
the app after entering the add mode. Generally, a lock that has not been added, as
long as the lock keyboard is touched, it will enter the add mode. The default
password is 123456 if not added by the phone
,ϭϭ
The software (iOS version) can be
downloaded from the app store, and the Android
version can be downloaded from the application
store of Google play, Yingyongbao, Baidu, Ali,
360, Huawei, and Xiaomi.
TTlock users can register the account by
mobile phone and Email which currently
support 200 countries and regions on the
world. The verification code will be sent
to user’s mobile phone or email, and the
registration will be successful after the
verification.

1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK
ϲ
3.4.User Management
3.4.1. Bluetooth management
Make sure there is no problem with Bluetooth communication. After connecting the
phone to the door lock as above, Click " "to unlock.(the phone is within
5meters from the door lock)

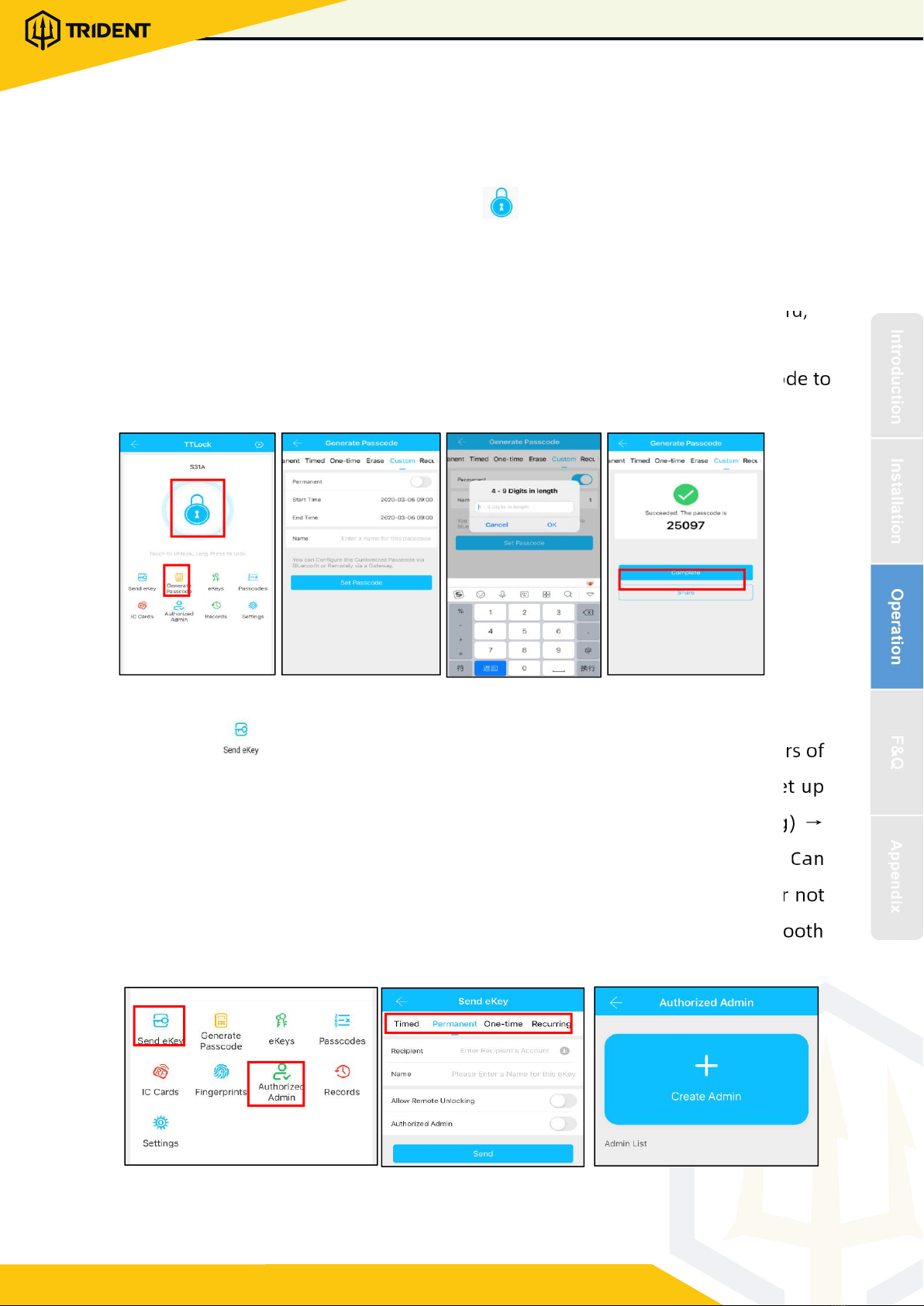

3.4.2. Setting Passcode
Passcodes are also a way to unlock. After entering the passcode on the locked keyboard,
press the unlock button in the lower right corner to unlock. Passcodes are divided into
permanent, time-limited, single, clear, cycle, and custom.(You can share the Passcode to
other user via WeChat澝SMS澝Email澝Messenger澝WhatsApp)
3.4.3. Send e-Key
Click on the " " as shown in figure, you can send the eKey to other users of
TTlock to authorize the unlock(the receiver must be download the APP and set up
an account)ėSelect e-key format (Timed, permanent, One-time, Recurring) ė
Enter recipient's account of TTlock,set the name and effective time of the eKey, Can
choose to allow remote unlocking or disallowing, authorized administrator or not
authorized, as shown in figure ėSendėThe recipient's account has Bluetooth
unlock permission

1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK
ϳ

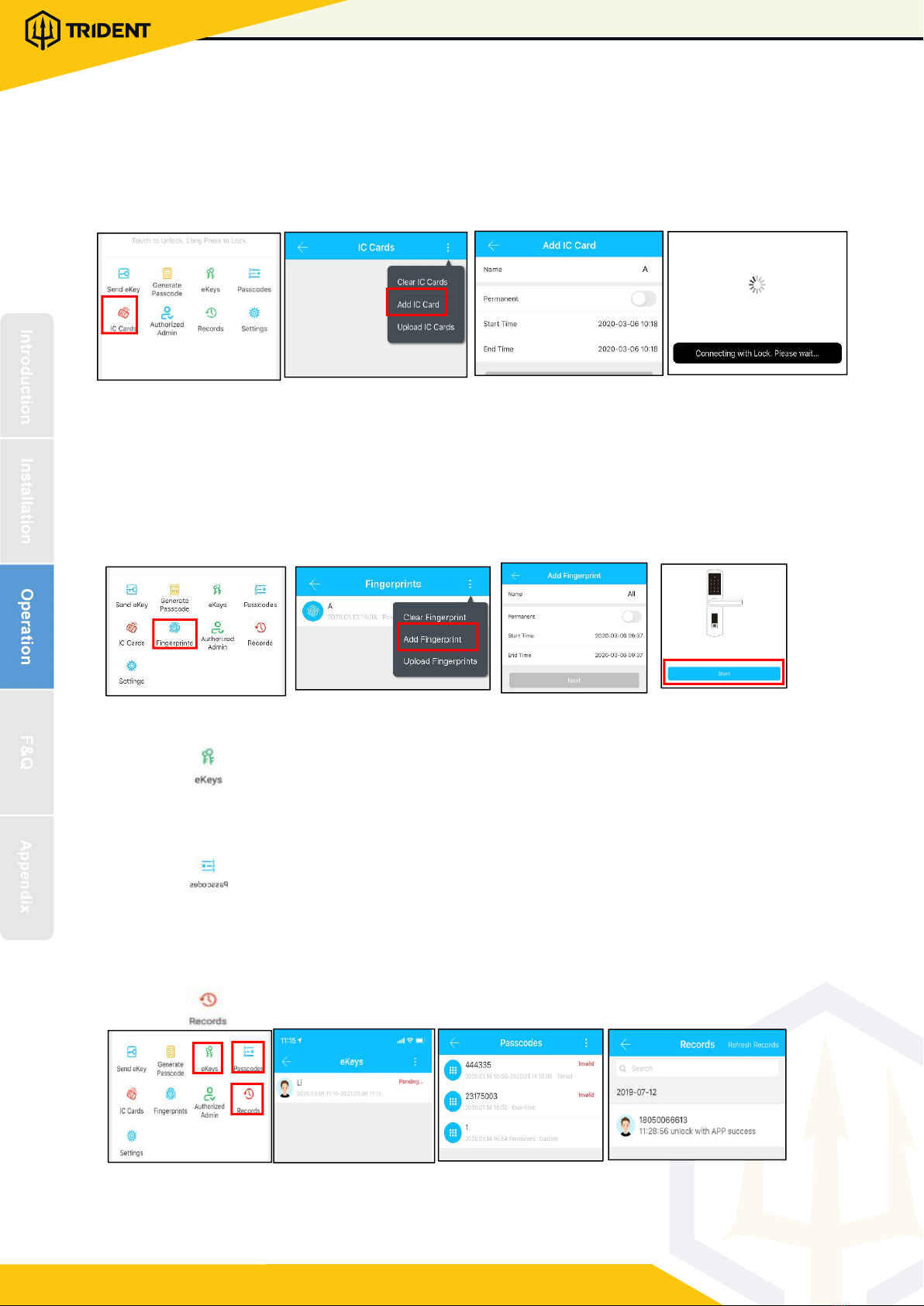

3.4.4.Add card
Supports opening doors through various IC cards. Before an IC card is used to
open the door, it needs to be added first. The adding process needs to be perform
ed by the app beside the lock.The validity period of the IC can be set, it can be per
manent, or it can be limited in time.
3.4.5. Add fingerprint
The premise that a fingerprint can be used to open a door is that it needs to be
added first. The adding process needs to be performed by the APP beside the lock.
The fingerprint expiration data can be set, it can be permanent, or it can be limited.
After setting ,you can modify its validity period.
3.4.6. e-Key management
Click “ “ The manager can delete ekey, reset ekey, send and adjust the
ekey, meanwhile he can search the lock record.
3.4.7. Passcode management
Click " " .All generated passwords can be viewed and managed in the
password management module. This includes a password change, password
deletion, password reset, and password unlock record.
3.4.8.Unlock records
Click " "you can query your unlock record as shown in figure

ϴ
3.5. Gateway management(Optional)
The TT lock is directly connected via Bluetooth, that is why it is not attacked by
the network. The gateway is a bridge between smart locks and home WIFI
networks. Through the gateway, the user can remotely view and calibrate the lock
clock, read the unlock record. Meanwhile, it can remotely delete and modify the
password.
3.5.1. Add Gateway
3.5.2. Manual
After a short period of time, you can see which locks are in their coverage in
the app. Once the lock is bound to the gateway, the lock can be managed through
the gateway
1700 81 6584 |  www.digitallock.com.my
TRIDENT - SMART DIGITAL DOOR LOCK

ϵ
4.FAQ
1) How to read operation records? In the Records of the main interface. .
2) Why can’t I unlock it after open the
passage mode
You need to perform an unlock verification in
any method, than the passage mode will take
effect.
3) What is the purpose of Auto Lock You can set how long to lock after unlocking
4˅After installation, touch sensing
keyboard, screen no respond
a) In this case, first check that the positive
and negative electrodes of the battery
have been installed upside down, whether
the battery has enough power
b) Remove the back panel and see if it's
connected.
c) To eliminate the above situation, you need
to remove the lock ,check whether the
wires of the lock body are squeezed, and
the re-wire.
5˅Unable to register fingerprint Check the fingers for dirt or wear, check the
fingerprint head on the lock for dirt and oil
stains, etc.
Check to see if the fingerprint is working
properly(Press to see if there is any responds.
6˅What is the reason why the smart lock
consumes fast power?
a) Large standby power consumption
b) Short circuit
7˅There is no response to pressing the
handle on outside the door, and there is
unlock normally on inside the door, but
the verification is normal, and the motor
is normal.
It may be the triangle direction on the clutch
was error, please check correction.
8˅How many times will the password be
locked? How long is it locked?
Enter the wrong password more than 5 times
in a row, the keyboard is locked for 5 minus,
