TriMark 29666 Series User manual

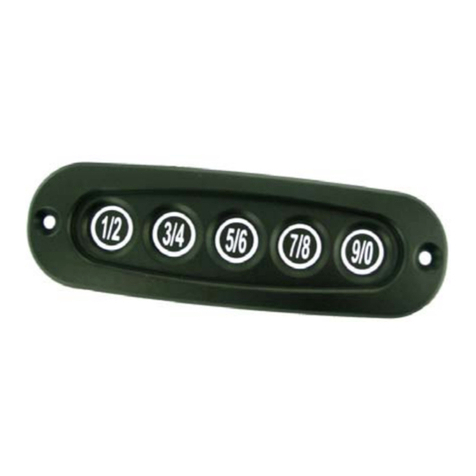

Keypad with On-board Relays (29666-xx)
Lock –Hold down the 1/2 button for two seconds.
Unlock –enter the 5-digit access code and the keypad unlocks automatically.
Wiring:
Black –Ground
Red –12V power
Blue –Unlock output (12V pulse)
Green –Lock output (12V pulse)
Yellow –Authority learn wire
Default Access code: 1-3-5-7-9
Default Authority code: 7-7-7-7-7

Program New Authority and Access Code (set authority code and access code to
button 1/2)
1. Short yellow wire to GND for 5 seconds.
2. Keypad will beep for 3 seconds (remove GND)
3. Enter a 5-digit code (3 beeps)
4. Re-enter the same code for confirmation (3-beeps). If the programming fails, there
will be one long beep.
Program New Access Code
1. Hold 5/6 button for 5 seconds (keypad beeps)
2. Enter authority code.
3. Keypad will beep until you press the button to which you want to program a code.
(If you get a 3 second beep that stops, you have entered the wrong authority
code.)
4. Enter your new 5-digit access code. Keypad beeps three times.
5. Re-enter new access code. Keypad beeps three times (if one long beep sounds,
training failed –start over).
Note: Up to 5 different access codes can be assigned at one time. As additional access
codes are defined, pre-existing codes assigned to a given button are overwritten. The
codes are assigned to a particular button (1/2, 3/4, etc.)
