Tripp Lite PV500FC Configuration guide

Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: PV500FC
PowerVerter Plus Inverter - Industrial-Strength Power for Heavy-Duty Applications
Highlights
12V DC input; 120V AC output; 2 outlets
500 watts continuous output
1000 watts peak surge output
High efficiency power conversion
Automatic overload protection
Description
Harness your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 500 watts
of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability
of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design
specializes in powering motors and other inductive loads with high-current startup needs.
Applications
Ideal for small power tools, pumps, fans, blenders & food-processors, desktop computers, laptops, portable electronics, battery chargers for
cell phones, pagers, notepads and games, TV-VCR-stereo systems, camcorders, lighting and other AC applications under 500 watts
continuous/1000 watts peak.
Package Includes
PV500FC inverter
Instruction manual
Features
Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
500 watts continuous output power
1,000 watts peak output power to startup heavy motorized/inductive loads
2 outlets; DC input terminals for 12V battery connection (User supplies cable)
Frequency control for operating stability
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
3.5mm port for connecting remote switch (User supplies cable and switch)
Specifications
OUTPUT
Frequency
compatibility
60 Hz
Output watts Continuous - 500 watts, Overpower (up to 1 hour) - 750 watts, Double-Boost wattage (up to 10 seconds) - 1000 watts
Output nominal
voltage
120V nominal
Output voltage
regulation
Maintains PWM sine wave output voltage of 120 VAC (+/-5%)
Output frequency
regulation
60 Hz (+/- 0.3 Hz)
Overload protection Circuit breaker
Outlet quantity / type Includes 2 AC outlets (NEMA 5-15R)
INPUT
Recommended
Electrical Service
Requires 12VDC input source capable of delivering 50A for the required duration (when used at full continuous
capacity). For automotive applications, professional hardwire installation with 100A battery system fusing is
recommended.
Maximum input amps
/ watts
Full continuous load - 50A at 12VDC, No load - 2.2A at 12VDC
Input connection type Set of 2 DC input terminals
Input cord length
details
User supplies cabling. 4 gauge or larger recommended.
Voltage compatibility
(VDC)
12
BATTERY
DC system voltage
(VDC)
15
LEDS ALARMS & SWITCHES
Switches Lighted on/off power switch, plus 2 conductor 3.5 mm port for connecting remote switch - user supplies switch,
3.5mm plug and cable.
Front panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7
levels reported). See manual for sequences.
PHYSICAL
Shipping Dimensions
(HWD/in)
11.63 x 9.5 x 9.5
Shipping Dimensions
(HWD/cm)
29.5 x 24.13 x 24.13
Shipping weight (lbs) 17
Shipping weight (kg) 7.71
Unit Dimensions
(HWD/in)
7 x 7 x 10
Unit Dimensions
(HWD/cm)
17.8 x 17.8 x 25.4
Unit weight (lbs) 15
Unit weight (kg) 6.8
Cooling method Convection
Material of
construction
Polycarbonate
Form factors
supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional
mounting information)
ENVIRONMENTAL
Relative Humidity 0-95% non-condensing
SPECIAL FEATURES
Appearance Black color
WARRANTY
Product Warranty
Period (Worldwide)
1-year limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=180.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.

Other Tripp Lite Inverter manuals

Tripp Lite PowerVerter APS1524 Installation and operation manual

Tripp Lite

Tripp Lite PowerVerter APS1524 Installation and operation manual

Tripp Lite PowerVerter RV3012OEM User manual

Tripp Lite

Tripp Lite PowerVerter RV3012OEM User manual

Tripp Lite PowerVerter 200510095 User manual

Tripp Lite

Tripp Lite PowerVerter 200510095 User manual

Tripp Lite PowerVerter APSX3024SW User manual

Tripp Lite

Tripp Lite PowerVerter APSX3024SW User manual

Tripp Lite PINV2000SWL-120 User manual

Tripp Lite

Tripp Lite PINV2000SWL-120 User manual

Tripp Lite PINV750 User manual

Tripp Lite

Tripp Lite PINV750 User manual

Tripp Lite APSWX Series User manual

Tripp Lite

Tripp Lite APSWX Series User manual

Tripp Lite PowerVerter Plus Inverter PV750FC User manual

Tripp Lite

Tripp Lite PowerVerter Plus Inverter PV750FC User manual

Tripp Lite PowerVerter Plus DC-to-AC Inve User manual

Tripp Lite

Tripp Lite PowerVerter Plus DC-to-AC Inve User manual

Tripp Lite PowerVerter APS Series User manual

Tripp Lite

Tripp Lite PowerVerter APS Series User manual

Tripp Lite PowerVerter Ultra Compact PVINT300 User manual

Tripp Lite

Tripp Lite PowerVerter Ultra Compact PVINT300 User manual

Tripp Lite PowerVerter MRV2012UL User manual

Tripp Lite

Tripp Lite PowerVerter MRV2012UL User manual

Tripp Lite PowerVerter APS Inverter/Charger APS2448UL User manual

Tripp Lite

Tripp Lite PowerVerter APS Inverter/Charger APS2448UL User manual

Tripp Lite PV1000FC Installation and operation manual

Tripp Lite

Tripp Lite PV1000FC Installation and operation manual

Tripp Lite PowerVerter PV 140 User manual

Tripp Lite

Tripp Lite PowerVerter PV 140 User manual

Tripp Lite RBC12A User manual

Tripp Lite

Tripp Lite RBC12A User manual

Tripp Lite PowerVerter APSX6048VRNET Configuration guide

Tripp Lite

Tripp Lite PowerVerter APSX6048VRNET Configuration guide

Tripp Lite PVINT375 User manual

Tripp Lite

Tripp Lite PVINT375 User manual

Tripp Lite PowerVerter RV1250ULHW User manual

Tripp Lite

Tripp Lite PowerVerter RV1250ULHW User manual

Tripp Lite APS 612 User manual

Tripp Lite

Tripp Lite APS 612 User manual

Tripp Lite EMS1012UL Installation and operation manual

Tripp Lite

Tripp Lite EMS1012UL Installation and operation manual

Tripp Lite PowerVerter 200502023 User manual

Tripp Lite

Tripp Lite PowerVerter 200502023 User manual

Tripp Lite PowerVerter PV150 User manual

Tripp Lite

Tripp Lite PowerVerter PV150 User manual

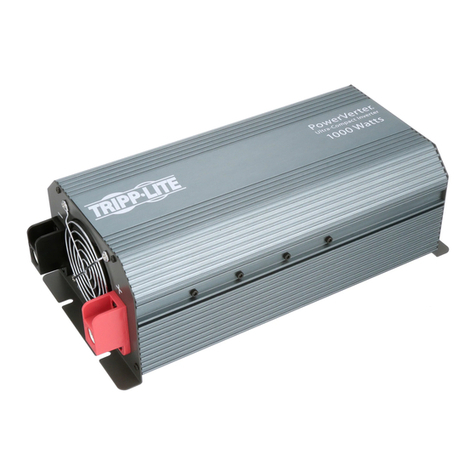

Tripp Lite PowerVerter PV 1000HF User manual
