Tripp Lite AG-05F3 Series User manual

1
3-Phase Monitored
& Switched 0U Power
Distribution Units
(Phase, Bank, Outlet Measurements*)
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 41 • Français 81 • Русский 121 • Deutsch 161
Owner’s Manual
200 – 240V
MONITORED MODELS SERIES NO.
PDU3EVN1G60B AG-05F3
PDU3EVN1H50B AG-05F3
PDU3EVN1L1530B AG-05F3
PDU3EVN1L2130B AG-05F3
200 – 240V
SWITCHED MODELS SERIES NO.
PDU3EVSR1L1530D AG-05A1
PDU3EVSR1L2130D AG-05A1
PDU3EVSR1H50D AG-05A1
PDU3EVSR1G60 AG-05F2
PDU3EVSR1H50 AG-05F2
PDU3EVSR1L1530 AG-05F2
PDU3EVSR1L2130 AG-05F2
*Varies by product.

2
Table of Contents
Important Safety 3
Instructions
Installation 5
Mounting the PDU 5
Connecting the PDU 7
Networking the PDU 8
LCD Screen 9
Screensaver 10
Active Events 11
Event History 11
Meter 12
Meter gPDU Total 13
Meter gPhase 14
Meter gBanks 15
Meter gOutlets 16
Meter gSensors (Optional) 17
Control 18
(Switched PDUs Only)
Control gBanks 18
Settings 19
Settings gDisplay 19
Settings gIPv4 20
Settings gLanguage 21
Settings g THD Configuration 21
Settings gIso Breaker 22
Settings gSNMP Reset 22
(Remote Reset)
Settings gSet Password 23
Settings gFactory 23
PDU Information 24
Mobile Access 24
Features 25
Network Interface 27
PowerAlert Device 29
Manager Connection
and Login
QR Codes for Mobile 31
Device Access
How to Use the Serial 32
Cable to Log In to the
SNMP Card
Self-Calibrating 34
Latched Relays
(Switched PDUs Only)
SNMP Reset 35
(Remote Reset)
Troubleshooting 36
Service 39
Warranty and 40
Product Registration

3
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should
be followed during the installation, operation, and storage of
this product. Failure to heed these instructions and warnings
may affect the product warranty.
• The PDU provides the convenience of multiple outlets, but DOES NOT
provide surge or line noise protection for connected equipment.
• The PDU is designed for indoor use only, in a controlled environment,
away from excess moisture, temperature extremes, conductive
contaminants, dust or direct sunlight.
• Keep indoor ambient temperature between 32°F and 140°F (0°C and 60°C).
• The PDU must be installed by a qualified technician only.
• Only those who are properly trained or qualified to use this device should
do so. Anyone who is not trained or qualified should not use this device
unless it is under the supervision of someone who is properly trained or
qualified to do so.
• Children must be supervised to ensure that they do not use the device as
a toy.
• Never use the device if the cord and plug are damaged; if it is not working
properly, or if it has been dropped or damaged, take it to an authorized
service center for inspection and repair.
• If the power cord is damaged, it must be replaced by the manufacturer,
its authorized service agent, or by qualified personnel in order to avoid
a danger.
• Do not attempt to mount the PDU to an insecure or unstable surface.
• Install in accordance with National Electrical Code standards. Be sure to
use the proper overcurrent protection for the installation, in accordance
with the plug/equipment rating.
• Connect the PDU to an outlet that is in accordance with your local
building codes and that is adequately protected against excess currents,
short circuits and earth faults.
• The electrical outlets supplying power to the equipment should be
installed near the equipment and easily accessible.

4
Important Safety Instructions
• Do not connect the PDU to an ungrounded outlet or to extension cords or
adapters that eliminate the connection to ground.
• The plug on cord-connected models serves as the disconnect device.
Be sure to provide an easily accessible local disconnect device on any
models that are permanently installed
without a plug.
• Never attempt to install electrical equipment during a thunderstorm.
• Individual equipment connected to the PDU should not draw more current
than the individual PDU’s outlet’s rating.
• The total load connected to the PDU must not exceed the maximum load
rating for the PDU.
• Do not attempt to modify the PDU, input plugs or power cables.
• Do not drill into or attempt to open any part of the PDU housing. There
are no user-serviceable parts inside.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness is
not recommended.

5
1-1 1-2
1-4
1-3
Mounting the PDU
Note: The illustrations may differ somewhat from your PDU model. Regardless of
configuration, the user must determine the fitness of hardware and procedures
before mounting. The PDU and included hardware are designed for common rack
and rack enclosure types and may not be appropriate for all applications. Exact
mounting configurations may vary. Screws for attaching the mounting brackets to
the PDU are included. Use only the screws supplied by the manufacturer or their
exact equivalent.
Note: Mounting buttons come preinstalled to the PDU for toolless mounting.
1-1 To attach the mounting
brackets to the PDU, remove
the mounting buttons.
1-2 Attach the mounting brackets
to the PDU with the included
screws.
1-3 Attach the PDU to a vertical
rail in your rack or rack
enclosure. (Use the mounting
hardware that came with
your rack or rack enclosure to
attach the mounting brackets
to the rail.)
1-4 To reinstall the mounting
buttons for toolless mounting,
remove the mounting
brackets, then install the
mounting buttons onto the
PDU. Position the PDU as
desired in the rack enclosure,
align the buttons with the rack
mounting slots, and slide the
PDU into position.
Note: Be sure to insert the 2
buttons into either the upper hole
at each end of the PDU or into the
lower hole at each end of the PDU.
Installation

6
1-5
1-6
A
B
Installation
1-5 To install the PDU with its
outlets facing the rear of
the rack, use the included
PDUMVROTATEBRKT accessory.
First, attach the mounting
button Ato the V-shaped
bracket Busing the included
screw and washer. Then,
use the button-mount slot
to attach the bracket to the
PDU and the mounting button
to attach the PDU to the
rack. The bracket effectively
repositions the mounting
brackets, allowing for the PDU
outlets to face the rear of the
rack.
1-6 (Optional) To rotate the LCD display for upright viewing with the PDU
input power cable at the top, unscrew the two screws on the PDU
intelligence module that contains the LCD, rotate the module, then
reattach in the desired orientation.
Note: The intelligence module is hot-swappable and can be rotated or
replaced while connected equipment is running. Disconnecting the SNMP
Card Module will cause it to reboot. When disconnected from power and re-
connecting, it will go through a reboot process.

7
Connecting the PDU
2-1 Each model is equipped with one of four different input plugs.
L15-30P L21-30P Hubbell CS8365C IEC 309 60A Blue
(3P + E)
200–240V
Monitored Models Input Plug
Total
Capacity
(240V)
Max Input Amps
(Limited by Input
Cord and Plug)
Nominal
Input
Voltage(s)
Nominal
Output
Voltage(s) Output Breakers Cord Length Outlets
PDU3EVN1G60B IEC 309
60A
(3P+E)
14.5kW 35A 200-240V 200-240V 3 Double-
Pole 20A 10 ft. (3 m) 42 C13 6 C19
PDU3EVN1H50B Hubbell
CS8365C
14.5kW 35A 200-240V 200-240V 3 Double-
Pole 20A 10 ft. (3 m) 42 C13 6 C19
PDU3EVN1L1530B NEMA
L15-30P 10kW 24A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 42 C13 6 C19
PDU3EVN1L2130B NEMA
L21-30P 10kW 24A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 42 C13 6 C19
200–240V
Switched Models Input Plug
Total
Capacity
(240V)
Max Input Amps
(Limited by Input
Cord and Plug)
Nominal
Input
Voltage(s)
Nominal
Output
Voltage(s) Output Breakers Cord Length Outlets
PDU3EVSR1L1530D NEMA
L15-30P 10kW 24A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 42 C13
PDU3EVSR1L2130D NEMA
L21-30P
10kW 24A 200-240V 200-240V 3 Double-
Pole 20A 10 ft. (3 m) 42 C13
PDU3EVSR1H50D Hubbell
CS8365C 14.5kW 35A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 42 C13
PDU3EVSR1G60 IEC 309
60A
(3P+E)
14.5kW 35A 200-240V 200-240V 3 Double-
Pole 20A 10 ft. (3 m) 30 C13 6 C19
PDU3EVSR1H50 Hubbell
CS8365C
14.5kW 35A 200-240V 200-240V 3 Double-
Pole 20A 10 ft. (3 m) 30 C13 6 C19
PDU3EVSR1L1530 NEMA
L15-30P 10kW 24A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 30 C13 6 C19
PDU3EVSR1L2130 NEMA
L21-30P 10kW 24A 200-240V 200-240V 3 Double- Pole 20A 10 ft. (3 m) 30 C13 6 C19
Installation

8
2-2 Corded Models - Connect
the input plug to your facility’s
compatible AC power source
and input connection.
Plug type may
vary by model.
Installation
2-3
2-2
2-3 Connect your equipment’s
input plugs to the appropriate
outlets on the PDU. The LED
near each outlet illuminates
when the outlet is ready to
distribute live AC power.
Note: It is recommended that
you do not connect a live load to
the PDU. If the load you intend
to connect has an ON/OFF switch,
please turn the switch to OFF prior
to connection.
Networking the PDU
Your PDU can receive IP address assignments via DHCP server (dynamic)
or static (manual) addressing methods. The PDU is configured to receive
a DHCP- assigned IP address by default. See the LX Platform User’s Guide
for an explanation of these methods. You can find the guide by going to
tripplite.com/support and typing LX Platform in the search field. For further
Network Configuration details, please contact your network administrator for
assistance before continuing the configuration process.
Note: The MAC address of the SNMP Card Module (12-digit string in this format:
000667xxxxxx) is printed on a label attached to the PDU enclosure.

9

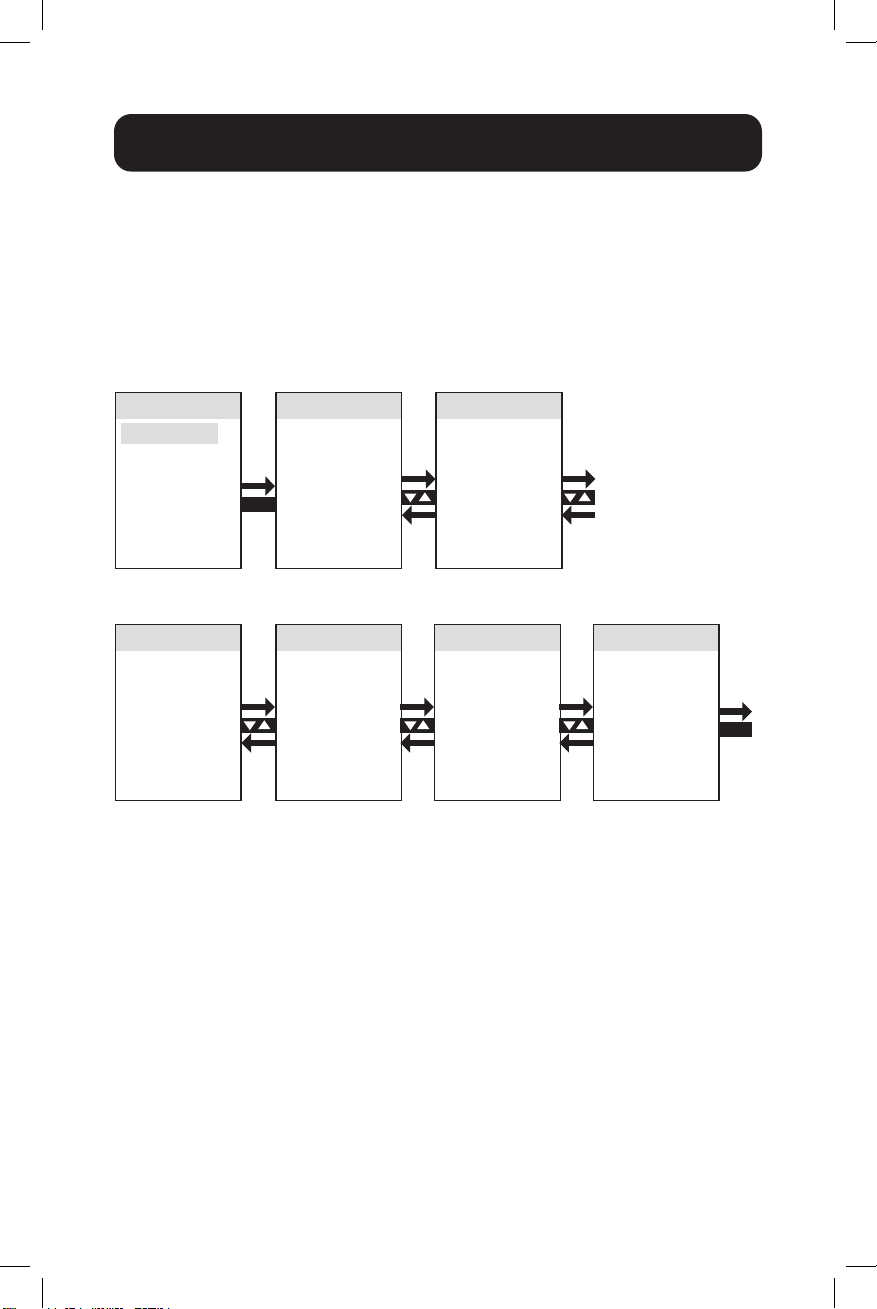

LCD Screen
ESC
Button When on Main Menu
When in Screensaver
Mode
When in Menu
Mode
ESC
Returns to the startup
screen
Returns to the previous
display screen before
entering Screensaver Mode
Returns to the
previous display
screen
ESC
Scrolls up or down
through the menu
Returns to the previous
display screen before
entering Screensaver Mode
Scrolls up or down
to the next screen
or value
ESC
Opens the selected
menu (Note: menu
items are selected
when highlighted)
Returns to the previous
display screen before
entering Screensaver Mode
Signals you want
to set the values
displayed on the
screen (Note: this
button has no action
on information
screens)
The front panel LCD is installed on a removable
PDU intelligence module. The LCD is enabled
to monitor the PDU electrical measurements
and also perform configuration. The intelligence
module is hot-swappable and can be rotated
by removing the two screws holding it in place.
The LCD screen can also be rotated for proper
viewing when the PDU is configured for top cord
entry. Simply remove the two screws, rotate and
reattach the LCD.
To operate the LCD, use the set of built-in control
buttons and follow the on-screen instructions.
See the LCD info screen operation manual
included with this PDU for more information.

10
LCD Screen
Screensaver

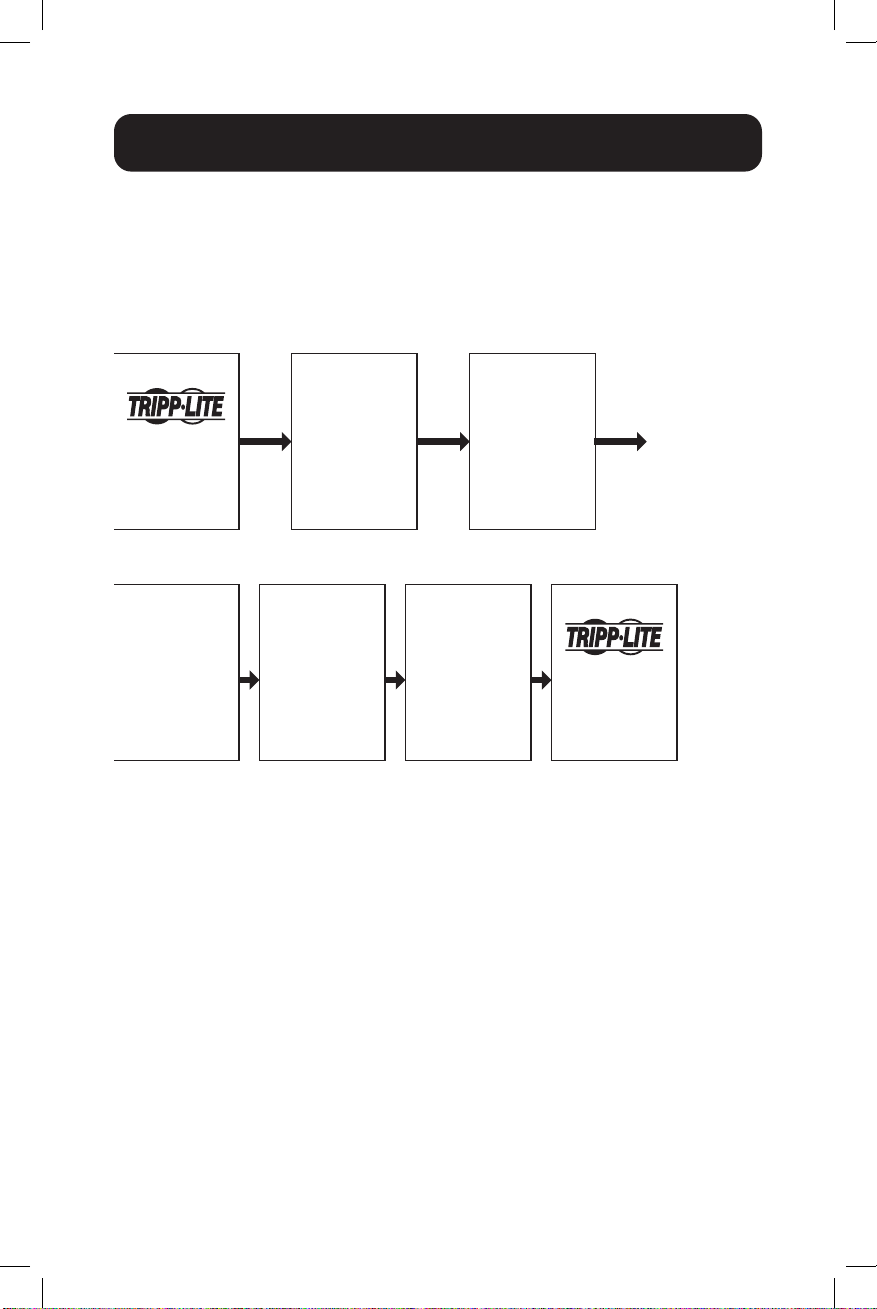

At power up, the screensaver cycles through a set of six screens
automatically. The screen saver also activates automatically when no LCD
control buttons are pressed for 30 seconds.
To view the menu screens while the LCD screen is in screensaver mode,
press ANY key.
Once the screen is activated, the LCD screen will display the Main Menu
selection screen. Navigate this screen by pressing the up/down/esc/back
buttons on the LCD panel.
0/0/0
00:00:00
PDU3EVSR1
0/0/0
00:00:00
PDU3EVSR1
PDU Total
0W
0VA
0.00PF
Imbalance 0%
Phase L1-L2
0.00A
--- V
--- Hz
PDU Total
Energy
0.000
kWh
Since Last Reset:
0/0/0
0:0:0
Phase L2-L3
0.00A
--- V
--- Hz
Phase L3-L1
0.00A
--- V
--- Hz
1.0 – Start-Up
Screen 1.1 – PF Screen
1.2 – Energy
Screen
1.3 – L1-L2 1.4 – L2-L3 1.5 – L3-L1 Back to 1.0

11
LCD Screen
Event History
Event History is the second item listed in the Main Menu and color coded
by the event’s severity. This set of screens summarizes all prior Event
Notifications for trend analysis by the operator(s). To view Event History,
navigate to Main Menu / Event History and press Enter. The Event History
screen will open and give options to view.
Event History:
WARNING
THD out of range
2010/01/01
01:57:01
Event History:
INFO
Transfer to force
line mode
2000/00/00
01:57:01
ENTER ESC
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
3.0 – Event
History
3.1 – Shows
History
3.2 – Shows
Next History, If
Any Main Menu
Active Events
Active Events is the first item listed in the Main Menu and color coded
by the event’s severity. This set of screens summarizes all Active Event
Notifications for viewing and further action by the operator(s). Any time
there is an Active Event Notification, the yellow symbol will appear in the
upper right corner of all LCD screens. This symbol will no longer be visible
once active event notifications have been cleared. To view Active Events,
navigate to Main Menu / Active Events and press Enter. The active events
warning screen will open and allow options to view and clear active events.
Active Event:
WARNING
Circuit breaker open
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
Active Event:
WARNING
THD out of range
Active Event:
Clear events?
OK
Cancel
ENTER
ENTER
ENTER
ESC
2.0 – Active
Events
2.1 – Shows
Active Events or
No Events (No
Fault)
2.2 – Shows
Next Active
Event, If Any
2.3 – Choose
to Clear
Events
Main
Menu

12
LCD Screen
Meter
The Meter top-level menu option contains multiple submenus that offer
detailed analysis of PDU input and output electrical measurement values
per phase, per bank and per outlet, plus additional information on energy
consumption, peak power demand, data summaries and temperature, as
well as humidity measurements from optional E2 sensor accessories. To
view the Meter menu option, navigate to Main Menu / Meter and press
Enter.
ENTER
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
4.0 – Meter

13
LCD Screen
Meter gPDU Total
PDU Total is the first item in the Meter menu. It reports total PDU electrical
measurement information for Watts (W), Volt-Amps (VA), Volt Amp Reactive
(VAR), Power Factor (PF), Amps (A), Volts (V), Frequency (Hz), Load
Percentage (Load), Input current per phase (L1/L2/L3), Input loading per
phase, Kilowatt hour Consumption (kWh) and Peak power levels.
Meter
PDU Total
Phase
Banks
Outlets
Sensor
ENTER
ESC
PDU Total
0 W
0 VA
0 VAR
0.00 PF
PDU Total
0.00A
--- V
--- Hz
0% Load
PDU Total
Input Current
L1 0.00 A
L2 0.00 A
L3 0.00 A
PDU Total
Input Loading
L1 0% Load
L2 0% Load
L3 0% Load
Imbalance 0%
PDU Total
Energy
0.000 kWh
Since Last Reset:
0/0/0
0:0:0
PDU Total
Peak Power of
0W
Since Last Reset:
0/0/0
0:0:0
5.0 – PDU Total 5.1 5.2
5.3 5.4 5.5 5.6 To 5.0

14
LCD Screen
Meter gPhase
Phase is the second item in the Meter menu. It contains 3 subheads
that cover load-levels and other power metrics for each of the phase
combinations used to derive output power (L1-L2, L2-L3, L3-L1). Screen
sets for each of these phase combinations provide data for Watts (W), Volt-
Amps (VA), Volt Amp Reactive (VAR), Power Factor (PF), Amps (A), Volts (V),
Frequency (Hz), Load Percentage (Load), Kilowatt hour Consumption (kWh)
and Peak power levels.
Meter
PDU Total
Phase
Banks
Outlets
Sensor
ENTER
ESC
ENTER
L1-L2
0W
0VA
0VAR
0.00PF
L1-L2
0.00A
--- V
--- Hz
0% Load
L1-L2
Energy
0.000 kWh
Since Last Reset:
0/0/0
0:0:0
L1-L2
Peak Power of
0W
Since Last Reset:
0/0/0
0:0:0
Phase
L1-L2
L2-L3
L3-L1
Phase
L1-L2
L2-L3
L3-L1
6.0 – Arrow
Down to Phase
6.1 – Choose
L1-L2 6.2 6.3
6.4 – ESC 6.5
To 6.1 (Repeat for
L2-L3 and L3-L1)

15
LCD Screen
Meter gBanks
Banks is the third item in the Meter menu. It contains 3 subheads (select
models have 6 subheads) that cover load-bank-levels and other power
metrics for each of the 3 designated outlet load banks (Bank 1, Bank 2,
Bank 3; select models also include Bank 4, Bank 5, Bank 6). Screen sets
for each of the available load bank selections provide data for Watts (W),
Volt-Amps (VA), Volt Amp Reactive (VAR), Power Factor (PF), Amps (A),
Volts (V), Frequency (Hz), Kilowatt hour Consumption (kWh) and Peak power
levels.
Note: The same set of screens is shown for each available load bank – only Bank 1
is shown.
Meter
PDU Total
Phase
Banks
Outlets
Sensor
ENTER
ESC
ENTER
Bank 1
0W
0VA
0VAR
0.00PF
Bank 1
0.00A
--- V
--- Hz
0% Load
Bank 1
Energy
0.000 kWh
Since Last Reset:
0/0/0
0:0:0
Bank 1
Peak Power of
0W
Since Last Reset:
0/0/0
0:0:0
Bank
Bank 1
Bank 2
Bank 3
Bank
Bank 1
Bank 2
Bank 3
7.0 – Arrow
Down to Banks 7.1 7.2 7.3
7.4 – ESC 7.5
To 7.1 (Repeat for
Banks 2 and 3.)

16
LCD Screen
Meter gOutlets
Outlets is the fourth item in the Meter menu. It contains a list of outlets
and enables to view the electrical measurement of each, as well as other
power metrics for each PDU output receptacle. Screen sets for each of the
available load bank selections provide data for Watts (W), Volt-Amps (VA),
Volt Amp Reactive (VAR), Power Factor (PF), Amps (A), Volts (V), Frequency
(Hz), Kilowatt hour Consumption (kWh), Peak power levels and Crest Factor.
Meter
PDU Total
Phase
Banks
Outlets
Sensor
ENTER
ESC
ENTER
Outlet 1
0W
0VA
0VAR
0.00PF
Outlet 1
0.00A
--- V
--- Hz
0% Load
Outlet 1
Energy
0.000 kWh
Since Last Reset:
0/0/0
0:0:0
Outlet 1
Peak Power of
0W
Since Last Reset:
0/0/0
0:0:0
Outlet 1
Crest Factor
(for current)
0.000
Outlet
Outlet 1
Outlet 2
Outlet 3
Outlet 4
Outlet 5
Outlet 6
Outlet 7
Outlet
Outlet 1
Outlet 2
Outlet 3
Outlet 4
Outlet 5
Outlet 6
Outlet 7
8.0 – Arrow
Down to Outlets
8.1 – Down/
Up Arrow to
Desired Outlet 8.2 8.3
8.4 – ESC 8.5 8.6
To 8.1 (Repeat for
All Outlets.)

17
LCD Screen
Meter gSensors (Optional)
Sensor is the fifth item in the Meter menu. It contains information received
from any PDU attached E2 condition sensors. The LCD screen will display
all reported information supported by the sensor. The sensor in the example
reports Temperature and Humidity data.
Meter
PDU Total
Phase
Banks
Outlets
Sensor
ENTER ENTER
ESC
ENTER
SENSOR1
Temperature:
28.1 C
Humidity:
10.0%
SENSOR1
28.1 C
10.0% RH
IN1: CLOSED
IN2: OPEN
Sensor
SENSOR1
SENSOR2
SENSOR3
9.0 – Arrow
Down to
Sensors
9.1 – If Sensor
Is Installed
(Otherwise,
Blank Screen) 9.2 9.3

18
LCD Screen
ENTER ENTER ENTER
Control
Bank 1
Bank 2
Bank 3
Enter Password
0 0
0
OK
0
Enter Password
0 0
0
OK
0
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
Control (Switched PDUs Only)
The Control menu enables PDU outlets/receptacles off/on control of each
PDU output receptacle via the LCD screen. The receptacles are grouped
into banks.
Note: This LCD option is available on Switched PDU models only.
This operation requires to enter a password for security. The default
password is 0 0 0 0 and can be changed by the user (refer to Settings -->
Set Password in this section for details).
In Enter Password screen, use up/down arrow to set the digit, and then click
Enter to go to the next digit. When you have completed the password, click
Enter to accept.
10 – Control
10.1 – Up/Down
Arrows for Each
Digit (0-9) 10.2
10.3 – If
Password Is
Incorrect or
ESC, Go to 10.0.
Otherwise, Go to
11.1.
Control gBanks
ENTER
ESC
ENTER
ESC
ENTER
Control
Bank 1
Bank 2
Bank 3
Bank 1 Control
1 O
2 O
3 O
4 O
5 O
6 O
7 O
Outlet Control 1
Select State:
O
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
11.0 – Control
(If Password
Accepted) 11.1 – Bank 1
11.2 – Use
Arrow Down/Up
to Choose
11.3 – Toggle
On/Off with
Enter Key

19
LCD Screen
Settings
Display
IPv4
Language
THD Cong
Iso Breaker
SNMP Reset
Set Password
ENTER
ENTER
ENTER
ESC
LCD Color
Blue
Green
Orange
Purple
Red
Main Menu
Active Events
Event History
Meter
Control
Settings
PDU Info
Mobile Access
12.0 – Settings 12.1 – Display
Settings
The Settings top-level menu option contains multiple submenus that allow
configuration of the various settings, such as control of LCD display colors,
IPv4 settings, Language, THD Configuration, Iso Breaker and Factory
Configuration information.
Note: The settings screen is password protected. The default password is
0 0 0 0 and can be changed by the user (refer to Settings --> Set Password in
this section for details).
Settings gDisplay
Display is the first item in the Settings submenu. It contains controls that
allow the color LCD backlighting to be adjusted to alternate colors to meet
customer preference and identification needs. Available options are Blue
(default), Green, Orange, Purple and Red.
Note: You will be asked to enter your password your first time through this menu or
Control.
12.2 – Use Arrow Keys to
Select LCD Color Scheme

20
LCD Screen
Settings gIPv4
IPv4 is the 2nd item in the Settings submenu. It contains controls that allow
users to set the Network Configuration, such as DHCP / Static configuration
options.
Note: The device is set to DHCP mode by default.
When set to static IP, it enables to set the IP, Subnet, and Gateway screens.
Use the up/down arrow to change the digit, and then click Enter to go to the
next digit. When you have completed the password, click Enter to accept.
Note: All IPv6 settings must be performed via PADM20 network interface.
ENTER
ENTER
ENTER ENTER ENTER
ENTER
DHCP
DHCP
Static
Ip Settings Apply
Apply?
OK
DHCP/Static
DHCP/Static
Static
Ip Settings Apply
Apply?
OK
IP Address
0 0
0
OK
0
ENTER
Subnet
0 0
0
OK
0
ENTER
Gateway
0 0
0
OK
0
Settings
Display
IPv4
Language
THD Cong
Iso Breaker
SNMP Reset
Set Password
13.0 – IPv4
13.1 –
(see 13.3)
13.2 – Up/Down
gOk, Cancel
13.3 – Arrow
Up/Down to See
Static
13.4 13.5 13.6 13.7 Back to
13.0
Press “OK” on
each scroll field
to move to the
next scroll field.
Press “OK” on
each scroll field
to move to the
next scroll field.
Press “OK” on
each scroll field
to move to the
next scroll field.
Press “OK” on
each scroll field
to move to the
next scroll field.
