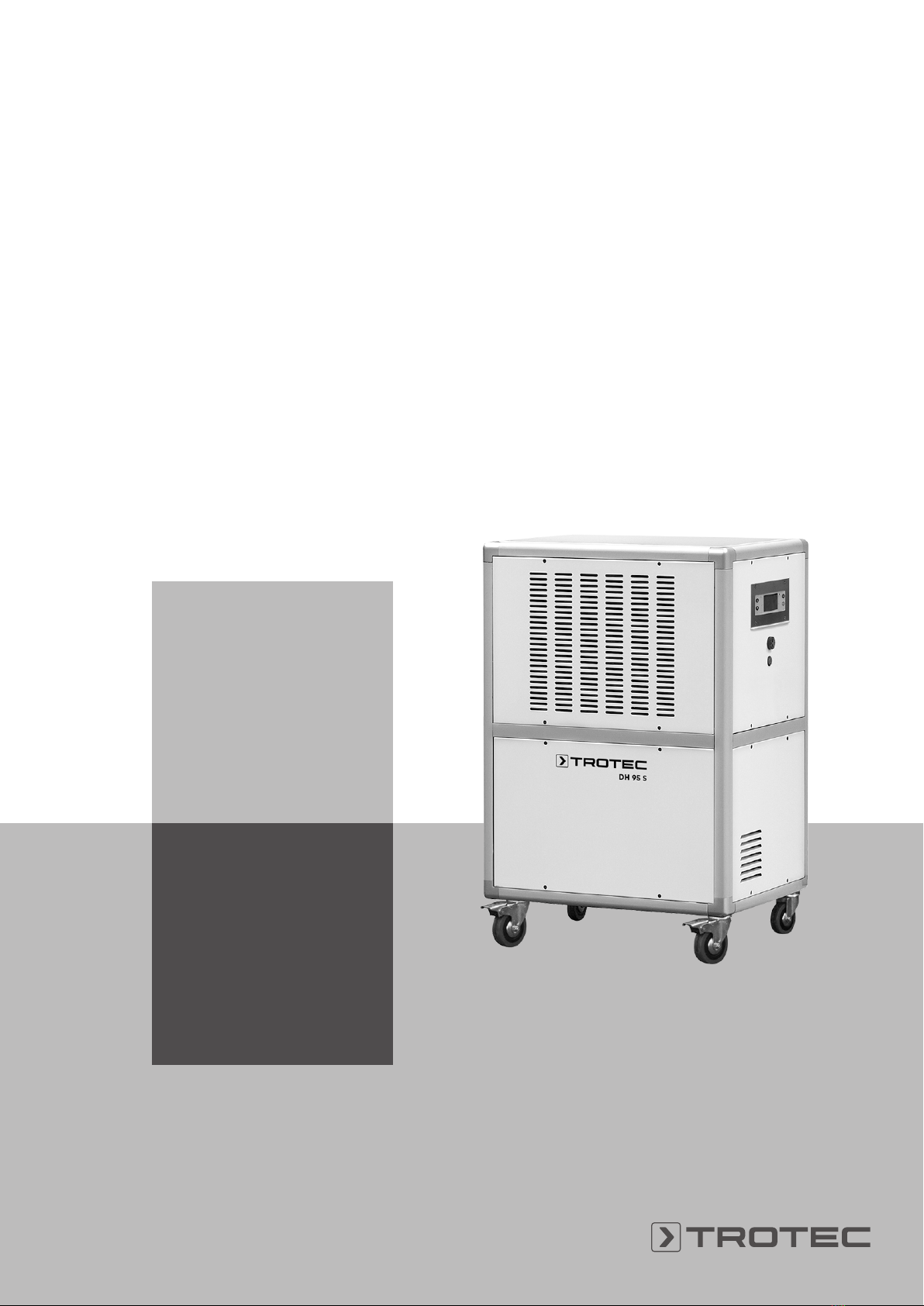

Trotec Dh 95 s Operation instructions

TRT-BA-DH95S-TC2019-18-003-EN

DH 95 S

ORIGINAL INSTRUCTIONS

CONDENSER DRYER

2 EN

condenser dryer DH 95 S

Table of contents

Notes regarding the instructions ..........................................2

Safety .....................................................................................2

Information about the device................................................4

Transport and storage...........................................................5

Assembly and installation.....................................................6

Operation ...............................................................................8

Errors and faults....................................................................9

Maintenance ........................................................................10

Technical annex...................................................................12

Disposal ...............................................................................16

Declaration of conformity ...................................................16

Notes regarding the instructions

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Note

This signal word indicates important information

(e.g. material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

instructions must be observed.

You can download the current version of the instructions and

the EUdeclaration of conformity via the following link:

DH 95 S

https://hub.trotec.com/?id=43486

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

EN 3

condenser dryer DH 95 S

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk!

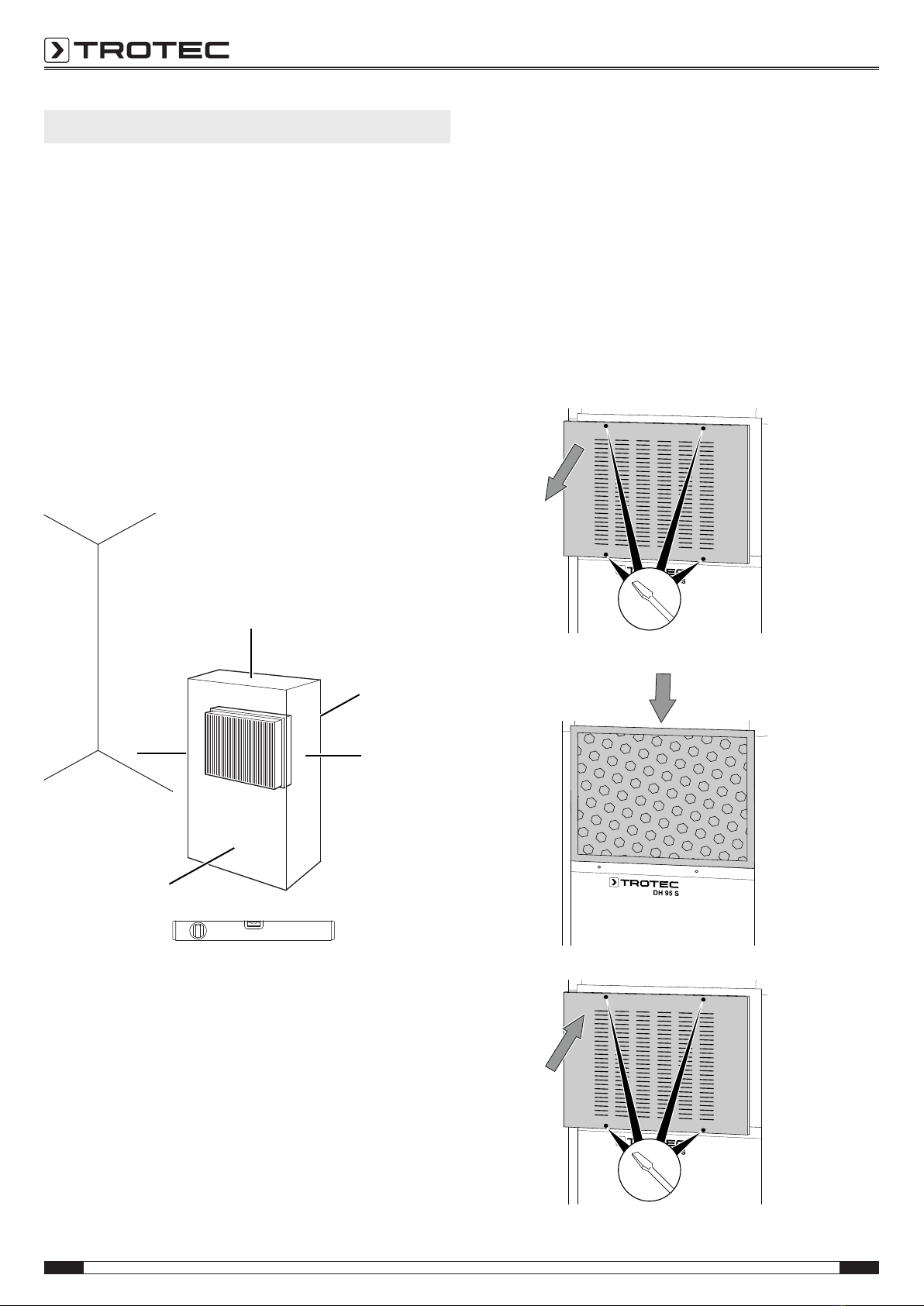

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Make sure that the air inlet and outlet are not obstructed.

• Make sure that the suction side is kept free of dirt and

loose objects.

• Do not remove any safety signs, stickers or labels from the

device. Keep all safety signs, stickers and labels in legible

condition.

• Only transport the device in an upright position with an

emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and

storage. Do not drink it. Health hazard!

Intended use

Only use the device as industrial dryer for drying and

dehumidifying room air whilst adhering to the technical data

and safety instructions.

Intended use comprises:

• drying and dehumidifying:

– production plants, underground rooms

– store rooms, archives, laboratories

– rooms and areas after water damage caused by burst

pipes or flooding

• keeping dry of:

– instruments, devices, files

– electric control devices, boiler plants, turbines and pipe

systems in power plants

– moisture-sensitive goods, loads, etc.

Improper use

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the instructions, especially the

Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling and

air-conditioning or by Trotec.

4 EN

condenser dryer DH 95 S

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Note

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

Behaviour in the event of an emergency

1. Switch off the device.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device uses the principle of condensation to automatically

dehumidify rooms.

The fan sucks damp room air through the air inlet, the air filter,

the evaporator and to the condenser located behind it. The air is

cooled at the cold evaporator until it is below the dew point.

Water vapour contained in the room air precipitates on the

evaporator fins as condensation or rime. The dehumidified,

cooled air is slightly warmed at the condenser and blown out

again. The drier air thus conditioned mixes with the air in the

room. The humidity in the room where the device is positioned

is reduced as air constantly circulates through the device.

Depending on the air temperature and the relative humidity, the

condensed water either drops into the condensation tray

continuously or only during the defrost phases. The

condensation is fed through a pressure-resistant pipe

connection and out of the device by a condensate pump.

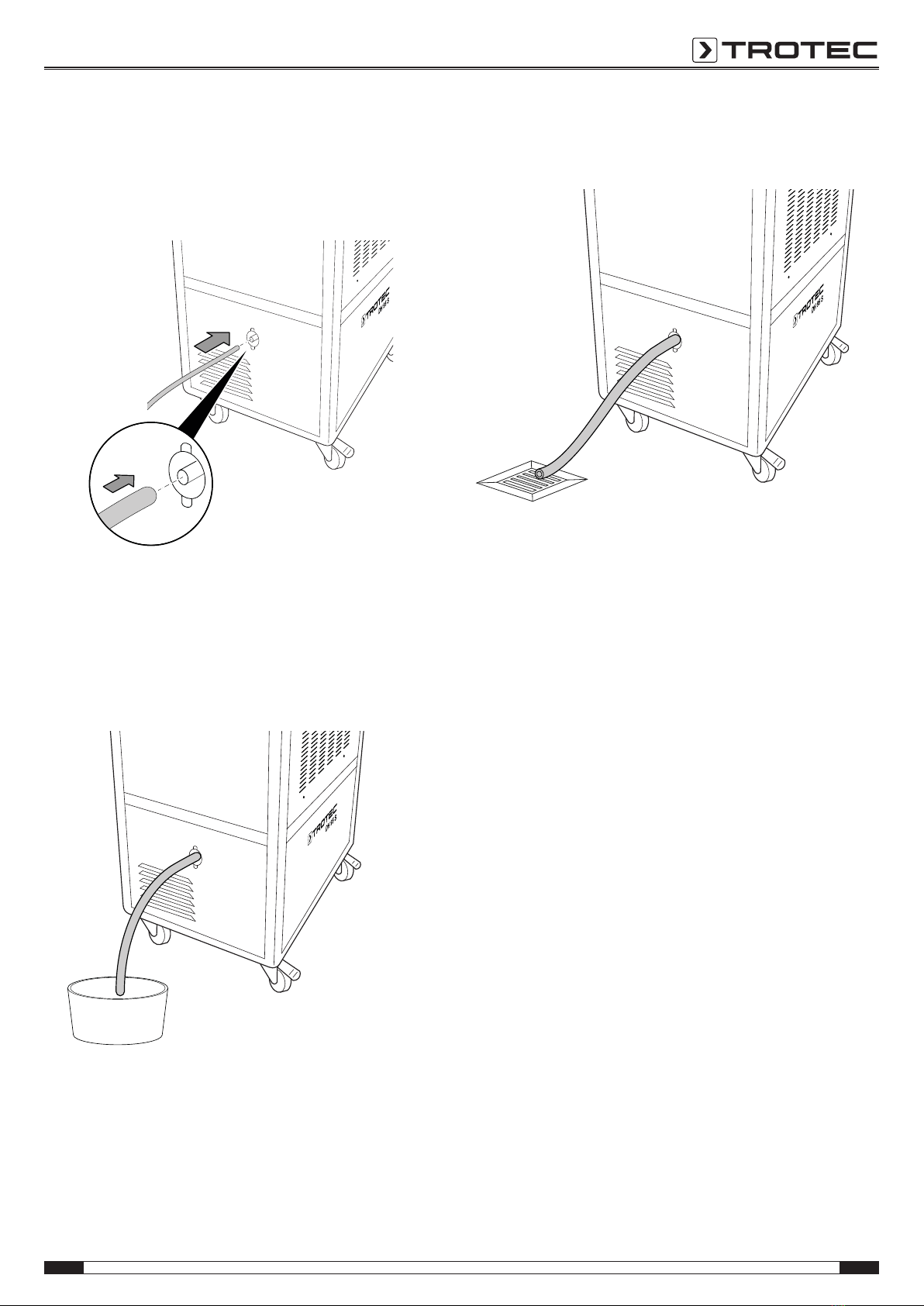

To do so, a condensation drain hose is connected to the hose

connector of the device and the condensate is drained.

The device has a control panel for operating and controlling the

functions.

The device comes with a hot gas automatic defrost system.

Here, the hot gas of the refrigerant circuit is used actively for

fast and effective defrosting. This makes the device operate

effectively even at temperatures below 15°C.

Because of the heat radiation generated during operation, the

room temperature may rise slightly.

Note

The condensate pump is fitted with a float switch.

It completely switches off the condenser dryer when a

critical filling level is reached in the condensation tray.

Additionally, an acoustic signal will be emitted and the

condensation tray indicator light is illuminated. After

troubleshooting, the condenser dryer must be switched

back on by hand.

EN 5

condenser dryer DH 95 S

Device depiction

No. Designation

1 control panel

2 condensation tray indicator light with buzzer

3 button for draining residual water from the

condensation tray

4 air outlet

5 wheels

6 air inlet with air filter

7 condensation drain hose connection

8 air filter

Transport and storage

Note

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

To make the device easier to transport, it is fitted with wheels.

Always utilize the help of another person to transport the device.

Do not try to transport the device without the help of another

person. To lift the device, use a forklift or an elevating truck as

appropriate.

Before transporting the device, observe the following:

• Wait until the condensate pump stops pumping

condensate.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Do not use the power cable to drag the device.

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Remove the condensation drain hose.

• Only wheel the device on a level and smooth surface.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• After having transported the device in horizontal position,

leave the device to rest for 12to24hours, so the

refrigerant can accumulate within the compressor. Wait

12to24hours before switching the device back on! Acting

contrary might lead to compressor damage and a

malfunctioning device. Any warranty claims will be voided

in this case.

Storage

Before storing the device, proceed as follows:

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust, if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

6 EN

condenser dryer DH 95 S

Assembly and installation

Scope of delivery

• 1x Device

• 1x Condensation drain hose

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• When positioning the device, keep a sufficient distance to

heat sources.

• Make sure that no curtains or other objects interfere with

the air flow.

• When positioning the device, particularly in wet areas,

secure it locally with an RCD (residual current device)

which complies with the respective regulations.

Inserting the air filter

Note

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that both air filters are installed before

switching the device on.

EN 7

condenser dryer DH 95 S

Positioning the condensation drain hose

üA suitable hose (diameter: 8mm) is ready for use.

üThe device is switched off.

1. Connect the condensation drain hose to the condensation

hose connection(7) at the device.

2. Make sure that the condensation drain hose is properly

connected to the device and free of damage.

3. Depending on the application, position the end of the

condensation drain hose as follows:

ðPlace a sufficiently dimensioned container (at least

90litres) beside the device and insert the hose end.

Check the filling level of the container regularly.

ðPosition the end of the condensation drain hose above a

water drain. For larger distances, a longer hose of the

same type can also be used.

8 EN

condenser dryer DH 95 S

Operation

• Avoid open doors and windows.

• After being switched on, the device operates fully

automatically.

• The fan runs permanently until the set nominal value is

reached or the device switched off.

Control panel DH95S

9 10 11 12 13 14

17 16 15

No. Designation Meaning

9Increase value

button

For setting the relative room humidity

For setting the number of hours for the

timer function

10 Dehumidification

symbol

Dehumidification mode active

11 Fan symbol Fan active

12 Automatic defrost

symbol

Automatic defrosting active

13 Operating light Illuminated during operation.

14 TIMER button Switches the timer function on or off.

15 ON/OFF button Power button:

for switching the device on and off

16 Segment display

for the selected

operating time

Indication of the number of hours until

automatic switch-on or switch-off if

the timer is programmed

17 Segment display Indicates the selected relative humidity

in per cent.

IndicatesCO for continuous operation.

18 Decrease value

button

For setting the relative room humidity

For setting the number of hours for the

timer function

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

1. Press the ON/OFFbutton(15).

ðThe device is switched on.

ðThe operating light(13) is illuminated.

2. Press the ON/OFF button(15) again to switch the device

off.

The device switches off automatically when the condensation

tray is full. The condensation tray indicator light(2) lights up and

the buzzer emits an acoustic signal.

Setting the desired room humidity

The desired relative room humidity can be preselected.

1. Press the increase value(9) or decrease value button(18)

to set the desired relative room humidity. Setting is

possible in the range between 30% and 90%.

ðThe desired relative humidity level is indicated on the

segment display(17).

The device keeps running until reaching the desired relative

room humidity. Once the desired relative room humidity is

exceeded, the compressor and fan switch back on.

Setting continuous operation

The device dehumidifies the air constantly and regardless of the

relative room humidity.

The desired relative room humidity cannot be adjusted in this

operating mode.

1. Press the decrease value button(18) until CO is displayed

by the segment display(17).

ðContinuous operation mode is selected.

Automatic switch-off

üThe device is switched on.

1. Press the TIMER button(14).

ðThe segment display for the selected operating

time(16) indicates the number of hours until automatic

switch-off.

2. Repeatedly press the TIMER button(14) until the desired

number of hours is indicated in the segment display for the

selected operating time(16).

ðThe timer setting equals the desired number of hours.

ðThe device switches off after the set period of time.

Automatic defrosting

At low ambient temperatures, ice may form at the evaporator

during dehumidification. The device will then carry out an

automatic defrost. Dehumidification is briefly interrupted during

defrosting. The fan keeps running.

The automatic defrostsymbol(12) is displayed.

EN 9

condenser dryer DH 95 S

The duration of the defrost process can vary. Do not switch off

the device during automatic defrost. Do not remove the mains

plug from the mains socket.

• Automatic defrosting is interrupted once you actuate the

ON/OFFbutton(15) or either the increase value button(9)

or the decrease value button(18).

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• If necessary, remove the condensation drain hose and any

residual fluid from it.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

Note

The device is equipped with a safety timer.

Switch-ons and switch-offs can be delayed by up to

3minutes.

The device does not start:

• Check the power connection.

• Check the power cable for damages.

• Check the on-site fusing.

• Check the filling level of the condensation tray and empty

it, if necessary. The indicator light for the condensation

tray(2) must not be illuminated and the buzzer must not

emit an acoustic signal.

• Have the electrics checked by a specialist company for

cooling and air-conditioning or by Trotec.

The device is running, but there is no formation of

condensate:

• Check whether the condensation drain hose is positioned

correctly.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Ensure that the relative humidity complies with the

technical data.

• Check the preselected desired humidity level. The humidity

in the room where the device is positioned must be at least

3% higher than the target value. If necessary, reduce the

set relative humidity.

• Check the condensate pump for proper functioning or

unusual vibrations and sounds. Remove external dirt (see

chapter Maintenance).

• Check both air filters for dirt. If necessary, clean or replace

the air filters (see chapter Maintenance).

• Check the exterior of the condenser and the condensate

pump for dirt (see chapter Maintenance). If the inside of

the device is dirty, have it cleaned by a specialist company

or by Trotec.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filters for dirt. Remove external

dirt.

• Check the inside of the device and especially the fan, the

fan housing, the evaporator, the condenser and the

condensate pump for external dirt (see chapter

Maintenance). If the inside of the device is dirty, have it

cleaned by a specialist company for cooling and

air-conditioning or by Trotec.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to a specialist company for cooling and air-conditioning

or to Trotec for repair.

Error codes

The following error messages can be displayed on the segment

display:

Error code Cause Remedy

E1 Refrigerant filling

level too low

Please contact the

customer service.

E2 Error message of the

temperature sensor

Switch the device off and

contact the customer

service.

E3 Error message of the

humidity sensor

Use the drying unit at a

humidity level which

complies with the technical

data.

E5 Error message of the

sensor in the

refrigerant circuit

Switch the device off and

contact the customer

service.

10 EN

condenser dryer DH 95 S

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2weeks

at least every

4weeks

at least every

6months

at least

annually

Empty the condensate pump,

condensation tray and/or

condenser dryer

Check air inlets and outlets for dirt

and foreign objects and clean

ifnecessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

Check air inlet grid(s) and air

filter(s) for dirt and foreign objects

and clean or replace ifnecessary

X X

Replace the air filter(s) X

Check for damage X

Check the attachment screws X X

Test run X

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Check air inlets and outlets for dirt

and foreign objects and clean

ifnecessary

Clean the exterior

Visually check the inside of the

device for dirt

Check air inlet grid(s) and air filter(s)

for dirt and foreign objects and clean

or replace ifnecessary

Replace the air filter(s)

Check for damage

Check the attachment screws

Test run

Comments

1. Date: ...................................

Signature: ................................

2. Date: ....................................
