Trotec B 5 e User manual

TRT-BA-B5E-TC2017-60-004-EN

B 5 E

OPERATING MANUAL

HUMIDIFIER

2 EN

humidifier B 5 E

Table of contents

Notes regarding the operating manual.................................2

Safety .....................................................................................2

Information about the device................................................4

Transport and storage...........................................................5

Assembly and installation.....................................................6

Operation ...............................................................................8

Available accessories..........................................................11

Errors and faults..................................................................12

Maintenance ........................................................................13

Technical annex...................................................................17

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Note

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

operating manual must be observed.

You can download the current version of the operating manual

and the EU declaration of conformity via the following link:

B 5 E

https://hub.trotec.com/?id=41495

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use.

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged

from 8years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms or

areas and do not install it there.

• Do not use the device in aggressive atmosphere.

• Only put up the device in an upright, stable position on firm

ground.

• Do not expose the device to directly squirting water.

• Fill the device with fresh drinking water only.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

EN 3

humidifier B 5 E

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk!

• Make sure that the air inlet and outlet are not obstructed.

• Make sure that the suction side is kept free of dirt and

loose objects.

• Do not remove any safety signs, stickers or labels from the

device. Keep all safety signs, stickers and labels in legible

condition.

• Do not use the device when the water tank is empty.

• Before filling the water tank, switch the device off and

disconnect the power cable from the mains socket. Hold

onto the mains plug while doing so.

• Only transport the device in an upright position with an

emptied water tank.

• Empty the water tank before transport and storage. Do not

drink the water. Health hazard!

• Note that high humidity levels may enhance the growth of

biological organisms in the environment.

• Make sure that objects in the surroundings of the device

do not become wet or damp. If moisture is present, the

output must be reduced. If the output cannot be reduced,

the device must only be operated in intervals. Absorbent

materials such as carpeting, curtains, sheers or tablecloths

must not become damp.

• Make sure that the water in the water thank is replaced

every3days. Otherwise there is a risk of microorganisms

growing in the water tank which presents a health hazard

if they get into the air or water.

Intended use

Only use the device B 5 E as a mobile humidifier for the

humidification and filtration of room air, while adhering to and

following the technical data.

Intended use comprises humidifying the room air in:

• living spaces

• warehouses and archives

• libraries

• call centres and computer rooms

Improper use

The device is not intended for industrial use.

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the operating manual, especially

the Safety chapter.

4 EN

humidifier B 5 E

Safety signs and labels on the device

Note

Do not remove any safety signs, stickers or labels from

the device. Keep all safety signs, stickers and labels in

legible condition.

The following safety signs and labels are attached to the device:

Symbols Meaning

This symbol located on the device indicates that

the filter has to be checked and, if necessary, to

be cleaned prior to each operation. Replace the

filter if it is defective.

Do not insert a wet filter into the device. Wait until

the filter has dried.

Symbols Meaning

This symbol located on the device indicates that

the water tank should be cleaned every3days.

Change the water in the water tank every3days.

Disconnect the device from the mains before

cleaning the water tank.

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Caution

If the device is knocked over, water will leak from the

lower part.

Disconnect the device from the mains to prevent

damage to the device caused by dry running.

Note

Do not operate the device without an air filter inserted

into the air inlet!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

Behaviour in the event of an emergency

1. Switch off the device.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device B 5 E functions as a humidifier and air cleaner.

The ultrasound technology ensures a pleasant room climate and

air quality improvement.

The on-demand ionization function promotes the removal of

harmful substances and odours from the room air.

The device comes with an automatic mode, a baby mode and a

night mode. Moreover, a timer can be programmed for

automatic switch-off after 1 to 12hours.

The capacity of the water tank allows for a runtime of up to

13hours.

When the device is in operation, the water tank can be

additionally illuminated by blue LEDs located in the lower part of

the device.

EN 5

humidifier B 5 E

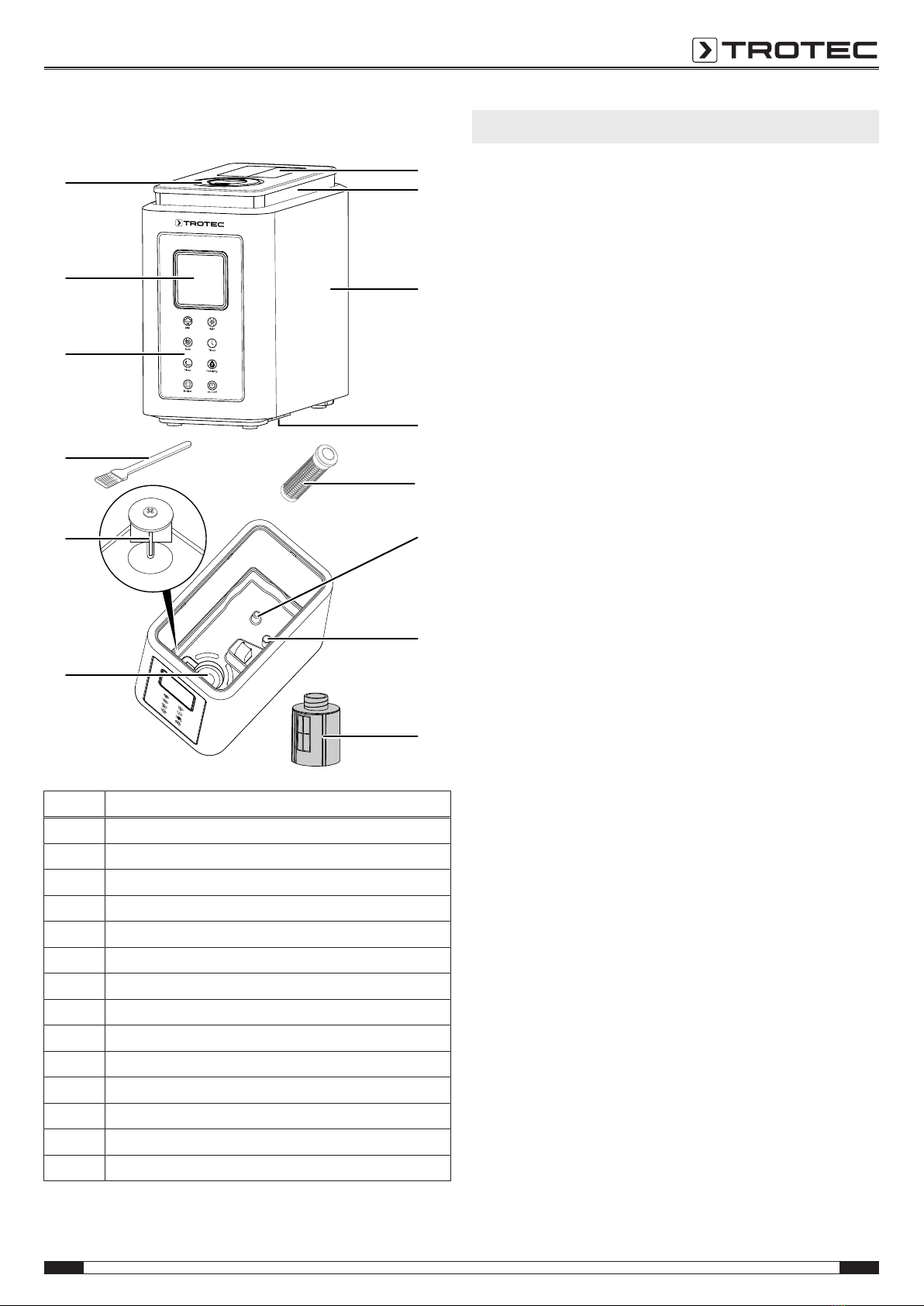

Device depiction

No. Designation

1 Water tank transport handle

2 Water tank

3 Lower part

4 Carbon filter

5 SecoSan® Stick 10 (optional accessory)

6 Water tank connection

7 Overflow

8 Filter cartridge with water softener

9 Nebulizer membrane

10 Float

11 Brush

12 Control panel

13 Display

14 Mist nozzle

Transport and storage

Note

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

Before transporting the device, observe the following:

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty the water tank.

• Do not use the power cable to drag the device.

• Check whether the upper part is correctly positioned on

the lower part.

• Lift the device at the lower part.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

Storage

Before storing the device, observe the following:

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty the water tank.

• Empty the lower part.

• Use a cloth to wipe all parts of the device dry.

• Clean the device according to the Maintenance chapter.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust, if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

6 EN

humidifier B 5 E

Assembly and installation

Scope of delivery

• 1x Device

• 1x Water softener

• 1x Brush

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Only put up the device in an upright, stable position on firm

ground.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are unrolled completely.

• Make sure that there are no moisture-sensitive objects

located in the immediate vicinity of the mist nozzle, since

water may condense near the mist nozzle.

Filling the water tank

The water tank should be filled before first use or when the

empty water tank indication(21) lights up.

Note

Fill the device with fresh drinking water only. The

water temperature must not exceed 40°C.

Scented oil or other additives can damage the plastics

and the nebulizer membrane.

Info

If possible, change the water every3days to prevent

bacterial growth.

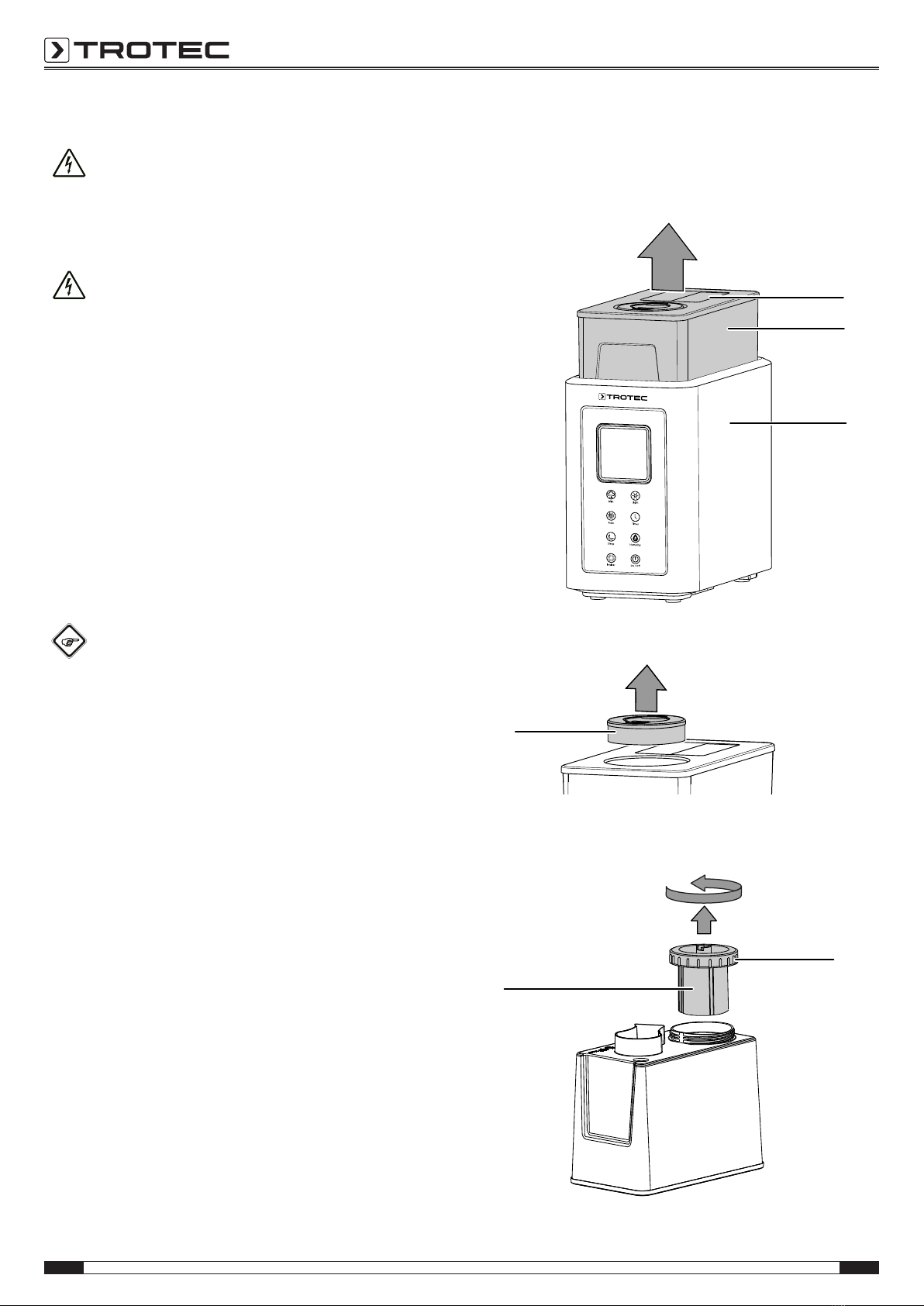

1. Remove the water tank(2) from the device by lifting the

water tank at the transport handle(1).

Note that there may still be residual water left in the lower

part(3) if the device was used beforehand.

2. Remove the mist nozzle(14) from the water tank to

prevent the mist nozzle from falling out when the water

tank is turned over.

3. Turn the water tank over.

EN 7

humidifier B 5 E

4. Unscrew the lid(15) from the water tank(2).

5. Fill fresh drinking water (approx. 4l, maximally 40°C) into

the water tank.

6. Insert the SecoSan® Stick (optional accessory)(7) into the

water tank(1).

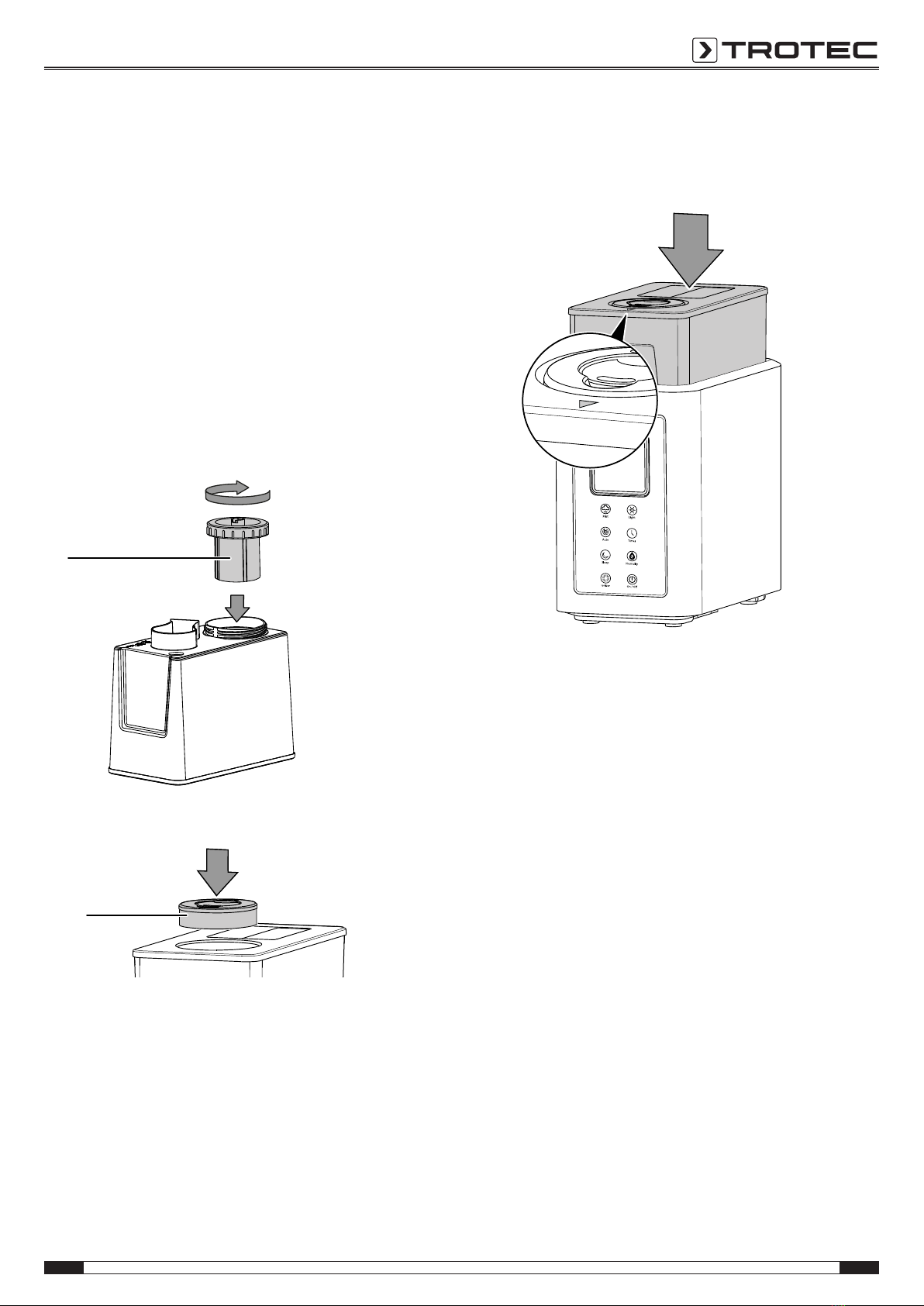

7. Screw the lid(15) firmly back onto the water tank(2).

8. Refit the mist nozzle(14) onto the water tank(2).

9. Refit the water tank(2) into the device.

ðIn doing so, make sure that the arrow points to the

front.

ðPlease note that after inserting the water tank, the

water starts to run into the lower part of the device

immediately.

10. Set the device up in an upright and stable position.

ðIf the device is not positioned upright, the water inside

the device will be discharged from the device via the

overflow(7).

8 EN

humidifier B 5 E

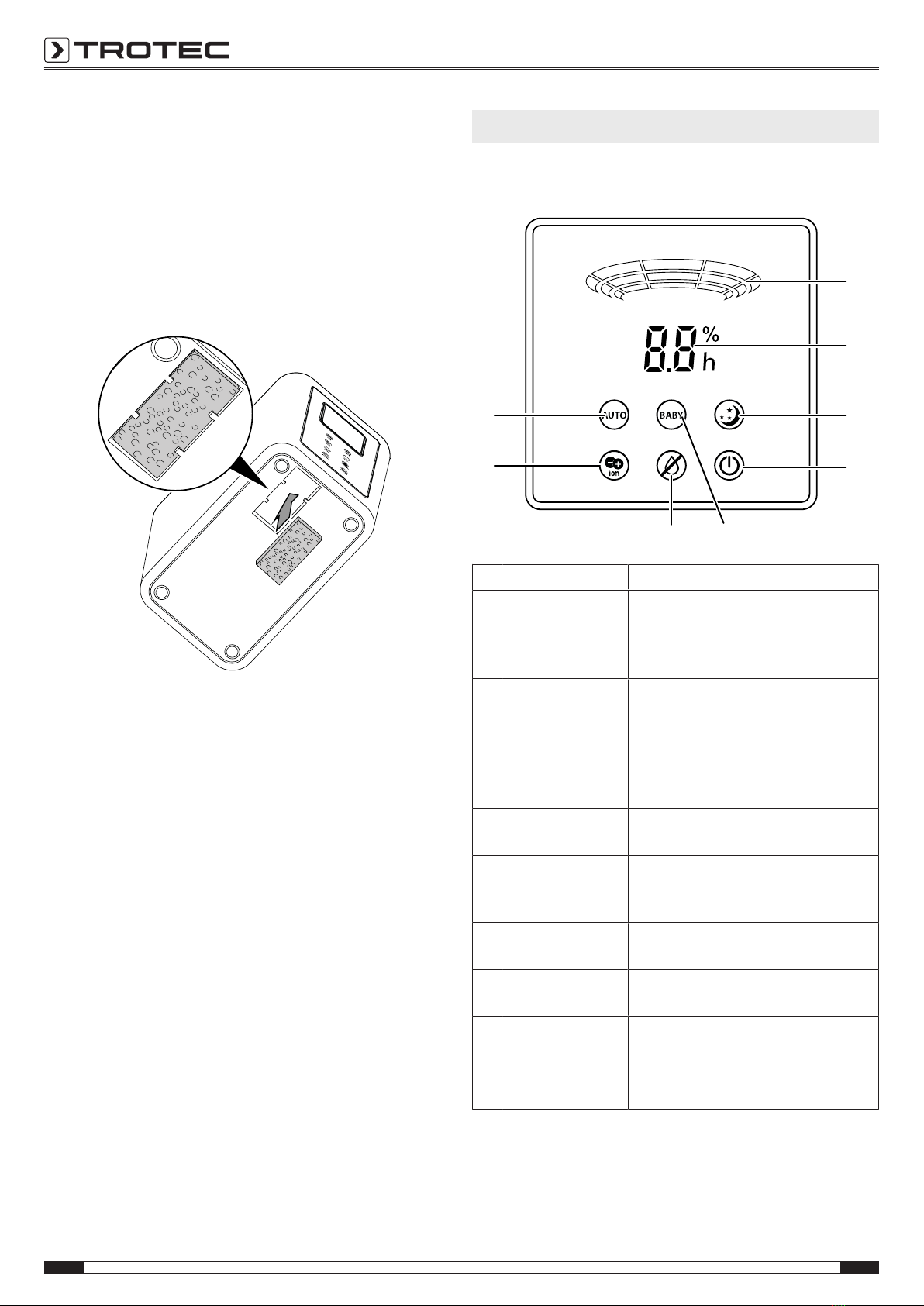

Inserting the air filter

Note

Do not operate the device without an air filter inserted

into the air inlet!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that the air filter is installed before switching

the device on.

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

• The operation indication(19) lights up and an acoustic

confirmation signal is emitted.

Operation

• Avoid open doors and windows.

Display

No. Designation Description

16 Nebulizer intensity

indication

Indicates the selected nebulizer

intensity during setting

Changes dynamically to indicate

ongoing operation

17 Segment display Indicates the current relative room

humidity

Indicates the desired relative room

humidity during setting

Indicates the number of hours during

timer programming

18 Night mode

indication

Illuminated when night mode is

activated

19 Operation

indication

Illuminated when the mains plug is

connected

Illuminated during ongoing operation

20 BABY indication Illuminated when baby mode is

activated

21 Empty water tank

indication

Displayed when the water tank is

empty

22 ion indication Illuminated when ionization is

activated

23 AUTO indication Illuminated when automatic mode is

activated

EN 9

humidifier B 5 E

Operating elements

No. Designation Description

24 Light button Switching the blue water tank

illumination on or off

25 Timer button Switching the timer function on or off

26 Humidity button Setting the relative room humidity

27 On/Off button Power button:

Switching the device on or off

28 Ionizer button Switching ionization on or off

29 Sleep button Switching on night mode

30 Auto button Switching automatic mode or baby

mode on

31 Mist button Setting the nebulizer intensity

Switching the device on

1. Make sure that the tank has been filled with drinking

water.

2. Make sure that the device is neither damp nor wet on the

outside. Otherwise wipe it dry.

3. Press the On/Off button(27).

ðThe device starts to humidify. Fine water mist leaves the

mist nozzle(14).

4. You can rotate the mist nozzle(14) 360° to adjust the

outlet direction of the water mist.

Info

Do not remove the water tank during operation.

Otherwise, the device will continue operation and

water mist may be sprayed out uncontrollably and lead

to unintentional precipitation of moisture around the

device.

Controlling humidification

The desired room humidity can be set to 40%, 50%, 60% or

OL (continuous humidification regardless of the room humidity).

1. Press the Humidity button(26) until the desired room

humidity is displayed.

ðThe desired room humidity flashes on the segment

display(17) for approx.5s.

ðThen, the current relative room humidity is shown on

the segment display(17) again.

ðThe desired relative room humidity is set.

Setting the nebulizer intensity

The nebulizer intensity can be set in manual humidification

mode. The default setting is level2.

The nebulizer intensity can be set to 3levels:

• level1 = low nebulizer intensity

• level2 = medium nebulizer intensity

• level3 = high nebulizer intensity

1. Press the Mist button(31).

ðThe current nebulizer intensity flashes on the nebulizer

intensity indication(16).

2. Press the Mist button(31) again until the desired nebulizer

intensity is set.

3. Wait until the nebulizer intensity indication(16) stops

flashing and dynamically indicates operation again.

ðThe desired nebulizer intensity is set.

Setting the operating mode

Manual humidification

The device always starts in this operating mode. The current

room humidity and nebulizer intensity are shown on the display.

The desired relative room humidity can be adjusted at any time

in this operating mode. The setting options

are 40%, 50%, 60% or OL (continuous humidification

regardless of the room humidity).

The nebulizer intensity can be adjusted at any time in this

operating mode.

• If the current relative room humidity is lower than the

desired relative room humidity, the device humidifies the

air with the selected nebulizer intensity.

• If the current relative room humidity is equal to or higher

than the desired relative room humidity, the device

humidifies the air at nebulizer intensity level 1.

• If OL is selected, the device humidifies the air with the

selected nebulizer intensity regardless of the current

relative room humidity.

10 EN

humidifier B 5 E

Automatic mode

The device humidifies the air constantly and regardless of the

relative room humidity.

The desired relative room humidity and the nebulizer intensity

cannot be adjusted in this operating mode.

In automatic mode, the device operates with the following

settings:

• If the current relative room humidity is equal to or higher

than 60%, the device humidifies the air at nebulizer

intensity level 1.

• If the current relative room humidity is between 40% and

60%, the device humidifies the air at nebulizer intensity

level 2.

• If the current relative room humidity is below 40 %, the

device humidifies the air at nebulizer intensity level 3.

1. Press the Auto button(30).

ðThe AUTOindication(23) is displayed.

ðThe device operates in automatic mode.

2. Press the Sleep button(29) to switch over to night mode,

or the Autobutton(30) to switch over to baby mode.

Baby mode

The device humidifies the air constantly to create a room

humidity level that is pleasant for babies.

The desired relative room humidity and the nebulizer intensity

cannot be adjusted in this operating mode.

In baby mode, the device operates with the following settings:

• If the current relative room humidity is higher than 60 %,

the device humidifies the air at nebulizer intensity level 1.

• If the current relative room humidity is between 55% and

60%, the device humidifies the air at nebulizer intensity

level 2.

• If the current relative room humidity is below 55 %, the

device humidifies the air at nebulizer intensity level 3.

1. Press the Auto button(30) until the BABY indication(20)

appears on the display.

ðThe device operates in baby mode.

2. Press the Sleep button(29) to switch over to night mode,

or the Autobutton(30) to switch over to automatic mode.

Night mode

The device humidifies the air constantly and regardless of the

relative room humidity.

The timer is automatically set to 8h.

The desired relative room humidity and the nebulizer intensity

cannot be adjusted in this operating mode.

The display switches off after approx. 5 s and only switches

back on when a button is pressed. Please note that pressing the

On/Off button(27) switches the device off.

In night mode, the device operates with the following settings:

• If the current relative room humidity is equal to or higher

than 60%, the device humidifies the air at nebulizer

intensity level 1.

• If the current relative room humidity is between 40% and

60%, the device humidifies the air at nebulizer intensity

level 2.

• If the current relative room humidity is below 40 %, the

device humidifies the air at nebulizer intensity level 3.

1. Press the Sleep button(29).

ðThe night modeindication(18) is displayed.

ðThe device operates in night mode.

2. Press the Auto button(30) to switch over to automatic

mode.

Setting the timer

For the device to switch off automatically after a predefined

number of hours (up to max. 12h) you can programme the

timer.

In night mode, the timer is automatically set to 8h.

The timer can be programmed in increments of 1hour (1 to

12h) in manual humidification mode, automatic mode and baby

mode.

Please proceed as follows to programme automatic switch-off:

1. Press the Timer button(25).

ðThe number of hours flashes on the segment

display(17).

2. Press the Timer button(25) until the desired number of

hours is displayed.

3. Wait a moment until the number of hours stops flashing.

ðThe timer setting equals the desired number of hours.

ðThe current room humidity is displayed again.

ðThe device switches off after the set period of time.

EN 11

humidifier B 5 E

Note regarding automatic switch-off:

• Pressing the On/Off button(27) deactivates the automatic

switch-off function.

• Changing the operating mode deactivates automatic

switch-off.

• If you select 0hours, the automatic switch-off will be

deactivated.

• The timer stops when the empty water tank indication(21)

lights up. The timer continues to run as soon as the water

tank is full again.

Switching illumination on or off

The water tank can be additionally illuminated by 4blue LEDs in

the lower part of the device.

1. Press the Light button(24) to switch the illumination on or

off.

Switching ionization on or off

Ionization can be switched on as needed. The device will then

release ions for additional air purification. The released ions

remove pollen, dust, viruses and bacteria from the room air.

Ionization can be switched on in any operating mode.

1. Press the Ionizer button(28) to switch ionization on or off.

ðWhen ionization is activated, the ion indication(22) will

be shown on the display.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty the water tank.

• Empty the lower part.

• Use a cloth to wipe all parts of the device dry.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Available accessories

Warning

Only use accessories and additional equipment

specified in the operating manual.

Using insertion tools or accessories other than those

specified in the operating manual may cause a risk of

injury.

Designation Article number

SecoSan® Stick10 6.100.004.110

12 EN

humidifier B 5 E

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damage.

• Check the on-site fusing.

• Check whether the water tank indicator light is illuminated.

The water tank might be empty and need refilling.

• Wait for 10minutes before restarting the device. If the

device is not starting, have the electrics checked by a

specialist company or by Trotec.

The device is running, but there is no formation of mist:

• Check whether the water tank indicator light is illuminated.

The water tank might be empty and need refilling.

• Check the valve in the water tank lid. The valve must be

able to move freely. If necessary, clean the water tank.

• Check the float in the lower part of the device. The float

should be able to move freely.

• Check the air filter for dirt. If necessary, clean the air filter.

• Check the nebulizer intensity setting and increase it if

required.

• Check the nebulizer membrane in the lower part of the

device for dirt and clean it if required.

The water tank is full, but the device indicates an empty

water tank:

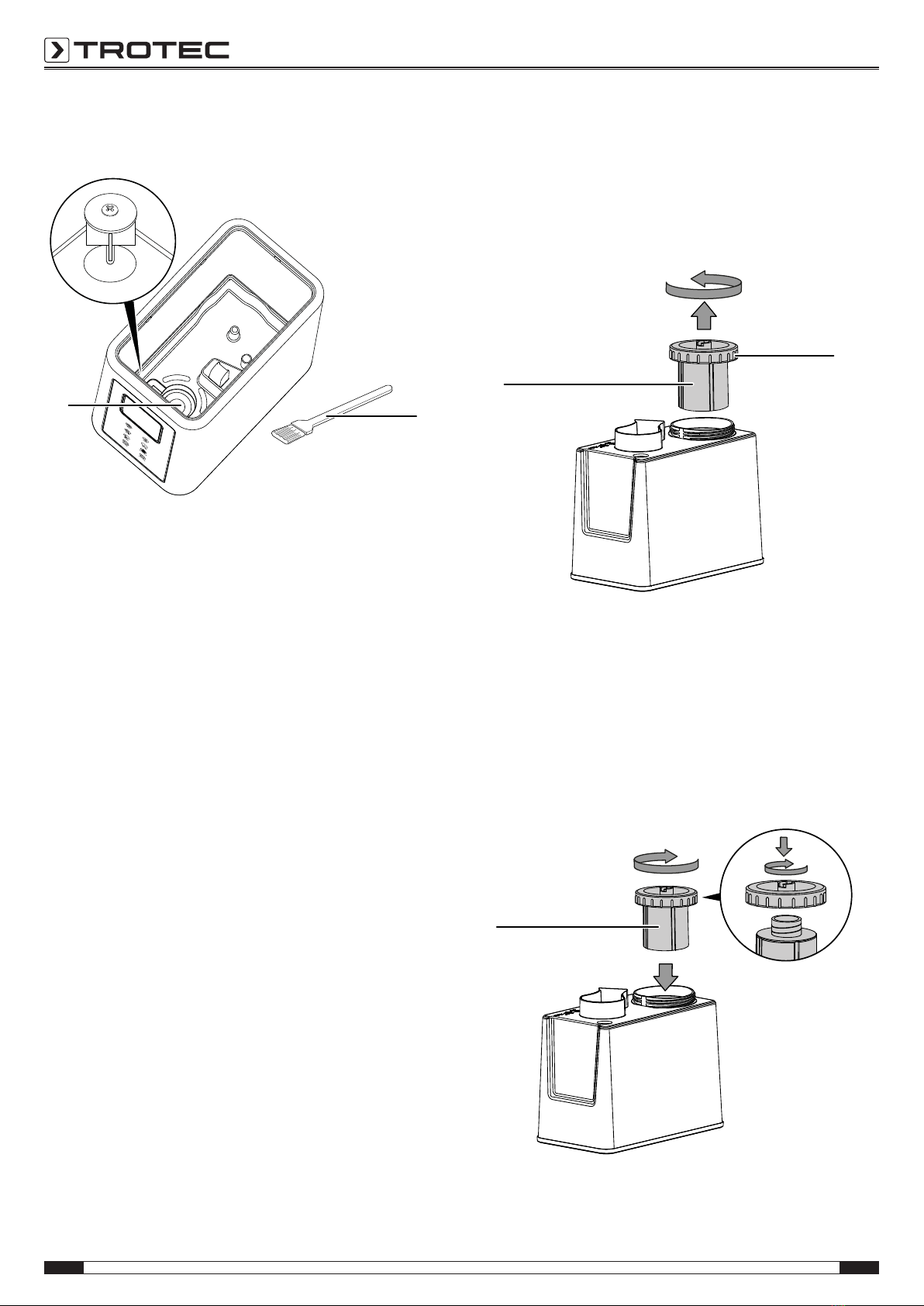

• Heavy deposits on the filter cartridge may prevent the

water from flowing from the water tank into the device.

This can occur if the device has been out of use for a long

time. Rinse the filter cartridge with clear water and, if

required, carefully clean the filter at the filter cartridge.

• Check the valve in the water tank lid. The valve must be

able to move freely. If necessary, clean the water tank.

Water is leaking:

• Check whether the device is set up in a stable and upright

position.

• Check the water level in the lower part of the device. The

water level might be too high and water is discharged via

the overflow.

• Check the valve in the water tank lid. The valve must be

able to move freely. If necessary, clean the water tank.

• Check the float in the lower part of the device. The float

should be able to move freely. It may block and cause

water to be discharged via the overflow.

• Check the device for leaks.

The water mist has a peculiar smell:

• The device is new. Remove and rinse the water tank. Let

the open water tank air for some hours.

• Check the water tank. There may be stale or dirty water in

the water tank. Rinse the water tank and fill it with fresh

drinking water.

Condensate forms on the device:

• The air circulation in the room is insufficient. If necessary,

reduce the nebulizer intensity and provide better air

circulation (e.g. using a fan).

• The room's humidity level is quite high. This makes it

difficult for the mist to distribute and leads to water

condensing on the device. If necessary, reduce the

nebulizer intensity or switch off the device.

The device is loud or vibrates heavily:

• Check whether the device is set up in a stable and upright

position.

The device keeps running without the water tank:

• This is a perfectly normal process. Switch the device off

before removing the water tank.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to an authorised specialist electrical company or to

Trotec for repair.

EN 13

humidifier B 5 E

Maintenance Maintenance intervals

Maintenance and care interval before

every start-

as needed every

3days

at least

every

2 weeks

at least

every

4 weeks

at least

every

6 months

at least

annually

Clean the water tank X

Check air inlets and outlets for

dirt and foreign objects and clean

ifnecessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

X X

Replace the air filter X

Check for damage X

Check attachment screws X X

Test run X

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Clean the water tank

Check air inlets and outlets for dirt

and foreign objects and clean

ifnecessary

Clean the exterior

Visually check the inside of the

device for dirt

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

Air filter replacement

Check for damage

Check attachment screws

Test run

1. Date: ...................................

Signature: ................................

2. Date: ....................................
