Truck Hero TruXedo Sentry CT User manual

TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
The serial number for the cover is located here.
For future reference, write it here:
___________________________________.
OWNER'S MANUAL
Damaged or missing parts? Call
877-878-9336 Mon - Fri 8 a.m. - 5
p.m. CT. Parts will be shipped to
you factory direct. Do not return
kit to place of purchase. To view
install video visit truxedo.com/
lopro

1
2
1. 1706408 MALE CLAMP
2. 1703889 FEMALE CLAMP
3. 1701208 CAP SCREW 5/16” X 1 1/4”
4. 1700428 FLAT WASHER 5/16”
Item Part # Description
4
Tailgate end
Position clamp here
Front of box
Position Rear tie down here
Position clamp here Position clamp here
Three clamps per side needed.
Position Front tie down here
Assemble clamps as shown below.
3

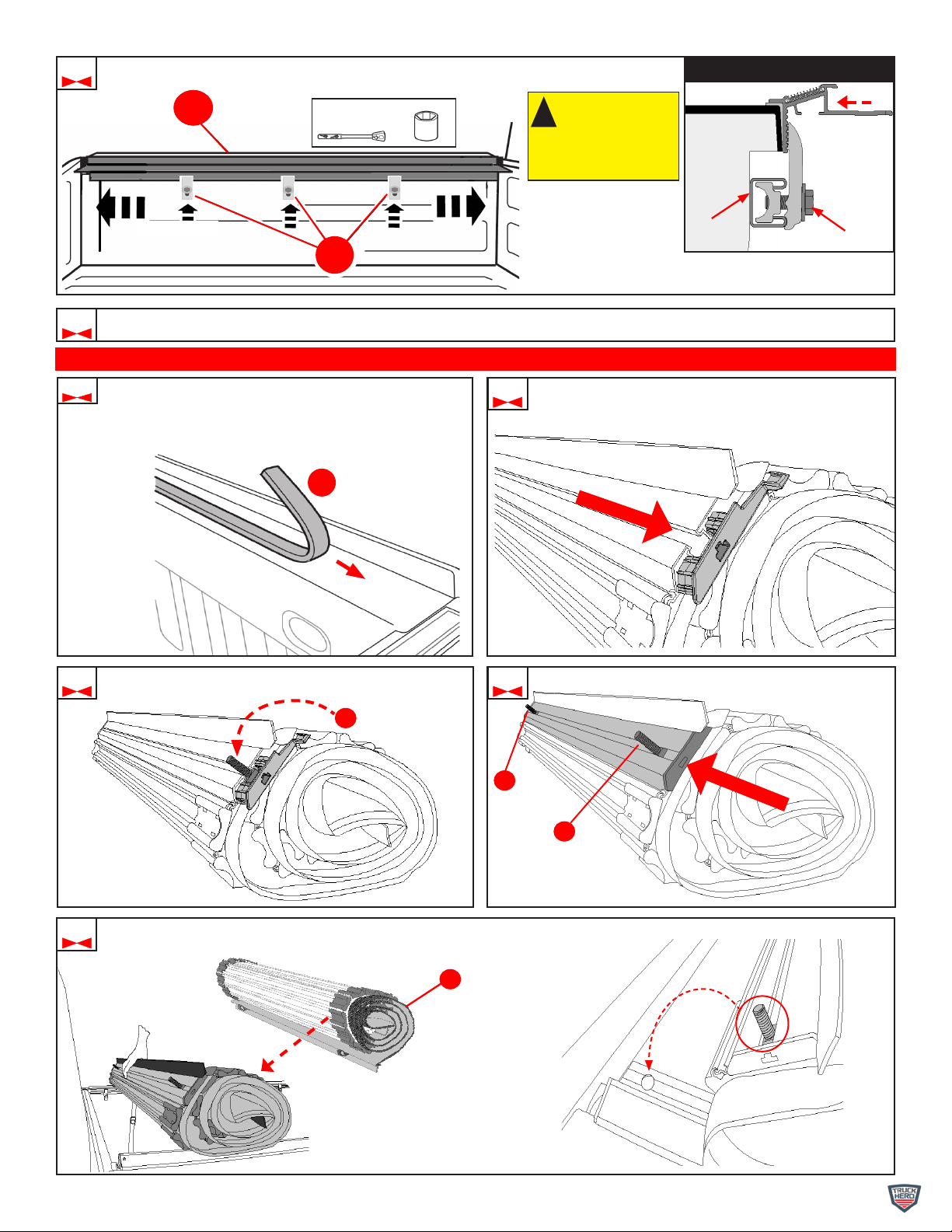

Slide clamps into cargo rail as shown below. Evenly space
the clamps (see step 4). Tie down cleats can be reinstalled

Reinstall cargo rail end plugs.
Repeat steps 1-4 for
passenger side clamp

PARTS INCLUDED
IN YOUR KIT:
Driver side rail
Passenger side rail
Cover assembly
6x clamps
Bulkhead seal (on select make/models)
2x Hex Nuts
  
2x Square Head Screws
A
B
C
D
E
F
G
H
12
3
4
6x
Rail, Driver Side Rail, Passenger
Side
D
C
B
A
EF G H
1

Compress foam spacer approximately 50%Compress foam spacer approximately 50%..

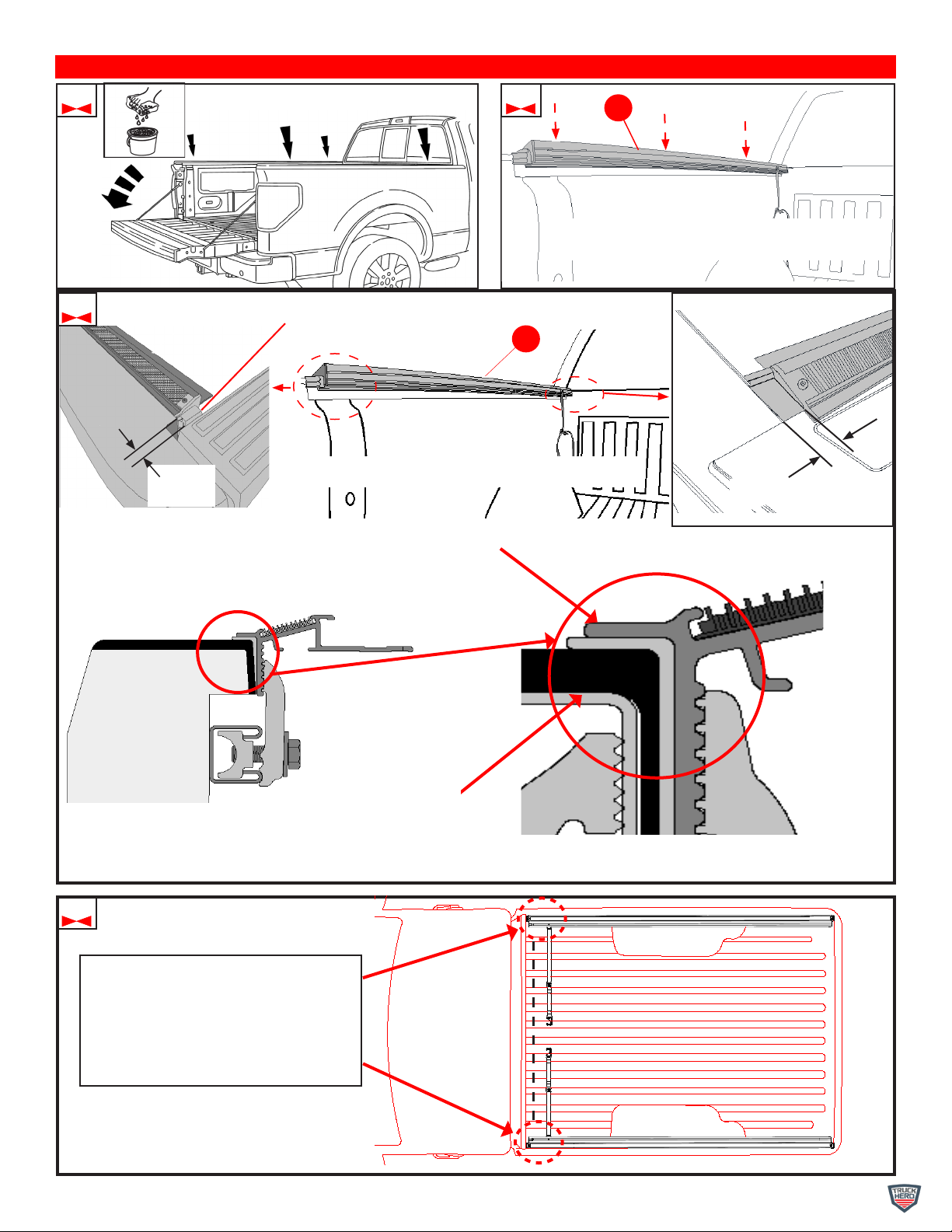

Position rail “B” on driver side of truck box centered
between tailgate and cab.
3/8”
Approx.
Align rail so foam is compressed equally on
both sides.
3/8”
Approx.
To ensure cover is square for properTo ensure cover is square for proper
operation, make sure attachmentoperation, make sure attachment
holes on the driver and passengerholes on the driver and passenger
rails are lined up across from eachrails are lined up across from each
other.other.
FRONT (Cab)FRONT (Cab)
REAR (Tailgate)REAR (Tailgate)
Clean area before install.
SIDE RAIL INSTALLATION
Rail Sits on Top of Bed Rail
ATTENTION: RAIL SITS ON TOP
OF TRUCK’S BED RAIL.
Truck bed railTruck bed rail
5 6
7
8
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
2
B
B

If included with your cover, clean the top of the bulkhead to
install the bulkhead seal (E). Peel the backing and adhere
the seal from one bedrail edge to the other. Remove any excess

seal will be needed.
BB
LEVEL
BB
BBRepeat steps 2-5 on passenger side for item C. When nished proceed to step 7.Repeat steps 2-5 on passenger side for item C. When nished proceed to step 7.
9
Side Rail

With Bed
Cap
Cargo Rail Clamp Assembly


socket.
10
COVER ASSEMBLY INSTALLATION
Place the cover (A) on the side rails towards the front of the truck bed (near the cab). Rotate the front header down so the
square head screws align with the oblong holes punched in the side rails.
15
 
passenger front header end plugs. Remove both plugs by
pulling them outward as shown below.
11
E
12
13
Install the bolts (H) by sliding them into the header as
shown below. Do this on both driver and passenger sides.
14
Reinstall both end plugs as shown below.
H
A
!
Tighten clamps securely
on side rails before
driving vehicle.
WARNING
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
3
B
D
H
H

BBUnroll cover to the tailgate.
Cable latchCable latch
ReleaseRelease
CAUTION
PINCH POINTS
CAN CAUSE SERIOUS
PERSONAL INJURY
CAUTION HIGH TEMPERATURE
IN BRIGHT SUN AND OR HEAT
17
16
CLOSING THE COVER
Latch Both Sides.
CLICK!
CLICK!
18
F
G
The front header seal is designed to sit on top of the front bulkhead and help shed water. 
nut (F) to the square head screws as shown.
Front
Header
Seal
Bed Rail
Side View
Bulkhead

socket and ratchet
will be needed
to perform this

NOTE:If you have a key lock tail-
gate, truck bed cover is secured until
tailgate is unlocked and opened.
Make sure cover is securely latched on

ALTERNATIVE METHOD OF CLOSING COVER: Close and latch cover, then close tailgate with the seal to the inside of the tailgate. Some care will
need to be taken to train seal to be closed on the inside.
PREFERRED METHOD OF CLOSURE: Close tailgate, then close cover on top of tailgate. This method will not work with some truck
applications. Use alternate method instead.
19
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
4
A

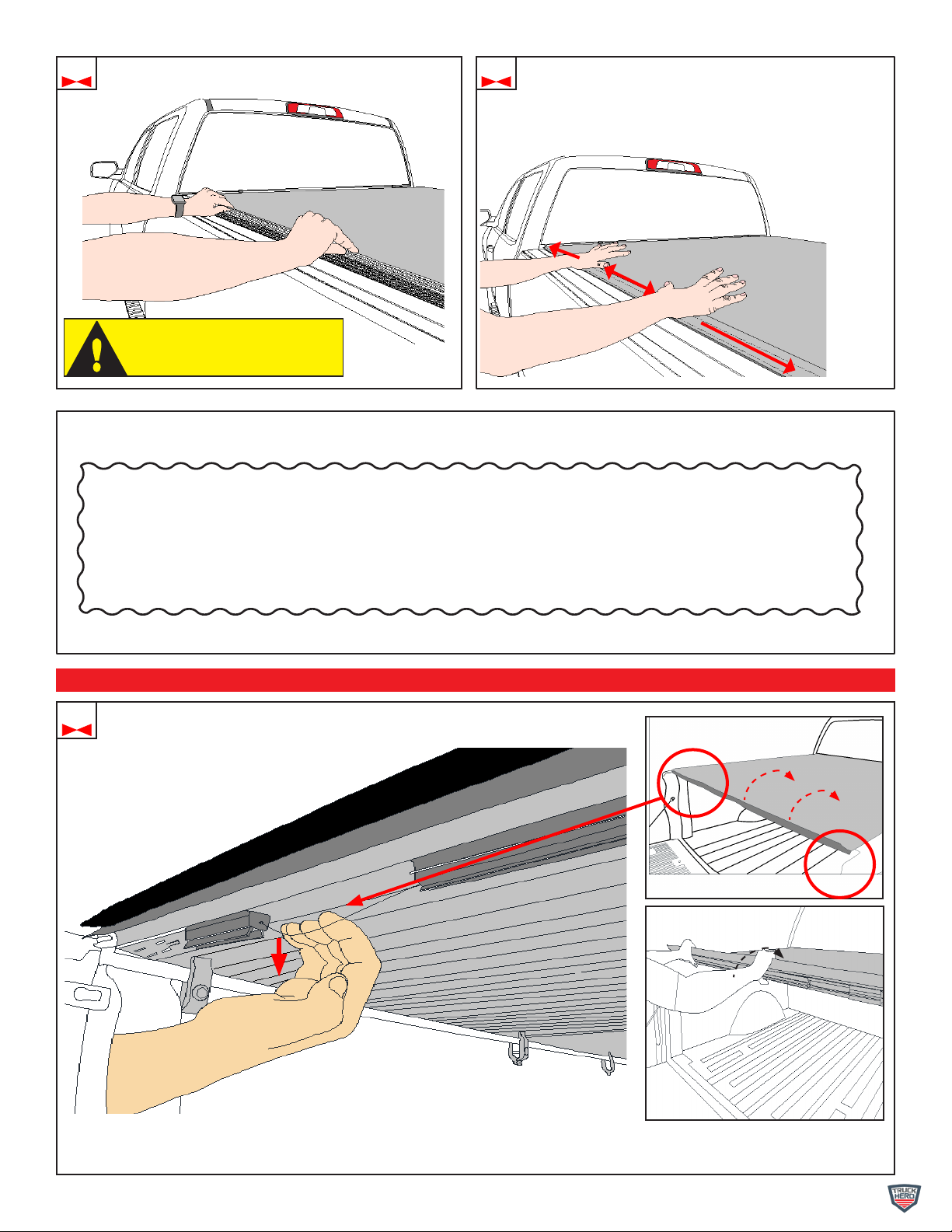

To open cover, pull down on release cable and hold down.To open cover, pull down on release cable and hold down.

After the initial installation leave cover closed and latched for a 24 hour period. ThisAfter the initial installation leave cover closed and latched for a 24 hour period. This
will ensure that the fabric has taken a complete set to the metal substrate.will ensure that the fabric has taken a complete set to the metal substrate.
ATTENTION!ATTENTION!
Once the side of the hook and loop are engaged, use the



Do this on both driver and passenger sides.
21
OPENING THE COVER
22
BB
Secure hook fastener and loop fastener


the cover and causing damage.
To secure the hook and loop grab the fabric and pull
evenly over the hook track to engage the hook and loop.
20
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
5

Questions?
Call our friendly customer service staff
Toll Free at:
1-877-878-9336
Mon - Fri 8 am - 5 pm CST
BB
!
Secure
CAUTION

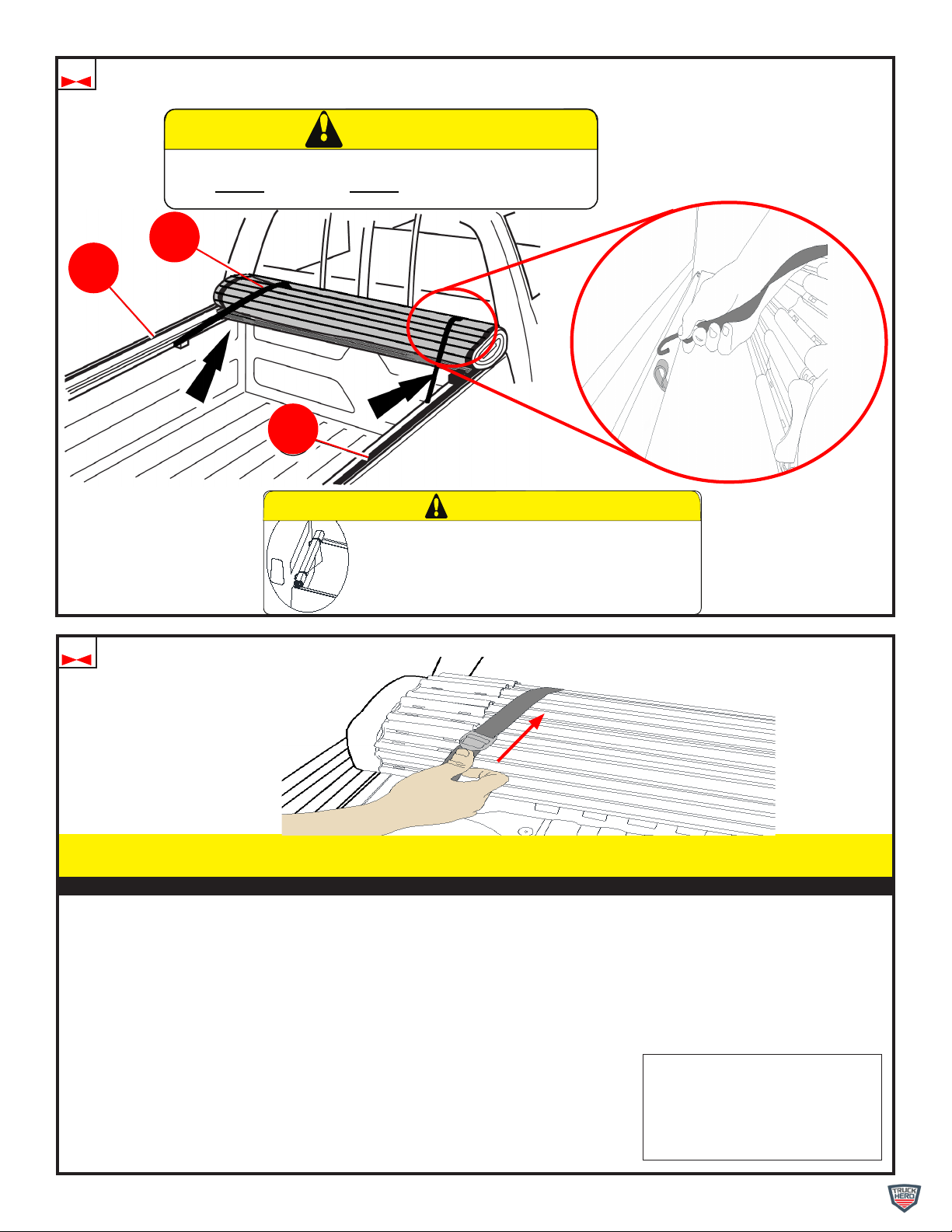

Before driving with cover open, BOTH STRAPS MUST BE SECURED
TO RETAINING LOOPS. Failure to do so could cause accidental release of
the cover, resulting in personal injury or property damage.
CAUTION
ROLL COVER TIGHT. SECURE THE COVER APPROPRIATELY USING BOTH RETAINER
STRAPS. DO NOT OVERTIGHTEN. DO NOT STOW COVER AGAINST CAB WINDOW.
COVER MAINTENANCE
NOTICE: Ice buildup within hinge section can occur if cover is stowed in open position. To prevent potential damage, close cover during winter
precipitation.
To Release Strap Push Tab Up.To Release Strap Push Tab Up.
1. Cover surface can be hand washed with mild soap and water or cleaned in a car wash. Thoroughly rinse cover to remove any soap residue.
Never use vinyl conditioners that contain silicon, petroleum, or citrus based products on your truck bed cover as they may crack
and shrink the vinyl top surface.
2. The use of a power washer directed at the covers top surface from a few inches away will damage the surface. The nozzle end of a power
washer should be held at a minimum of 3 feet away from the top surface.
3.It is recommended that you periodically check that the cover is securely attached to your truck bed. Inspect the clamps and front header guide
slides to ensure they were properly installed and have not come loose during operation.
4. It is recommended that you periodically inspect and service the rear latch closures. Clean away any excess dirt or grime and lubricate with
silicone spray. Ensure the latches move freely in and out to properly engage the side rail and provide performance with optimal security. Be
careful not to overspray the cover.

loops. 
23
24
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
6
BA
C

13 ___*___ Side Rail, Passenger’s Side
14 ___*___ Side Rail, Driver’s Side
15  
16  
17 1705415 Cap Screw 10-24 X 1/2
18 1703762 Hex Nut 10-24
19 *  
20 1705629 Self Drill Screw 6-20 X 3/8
21  
22 ___*___ Cable Cover
23 1115822 Cable Guard
24 1705826 Rear Header End Plug (Passenger)
25 1705825 Rear Header End Plug (Driver)
26  
27 ___*
28 ___* 
29 1705929   
30 1118243 Side Rail End Plug_RH Foam Seal
31 1118244
* Please specify length or make and model of vehicle.
1___*___ Sentry/Sentry CT Replacement Cover
2___*___ Header Seal, Front
3___*___ Header Seal, Rear
41118723 Front Header End Plug (Passenger)
51118724 Front Header End Plug (Driver)
6 
71117892 Retainer Hook Strap (Passenger)
81117893 Retainer Hook Strap (Driver)
9  
10  
11 ___*
12 1706843 Aluminum Clamp Assembly

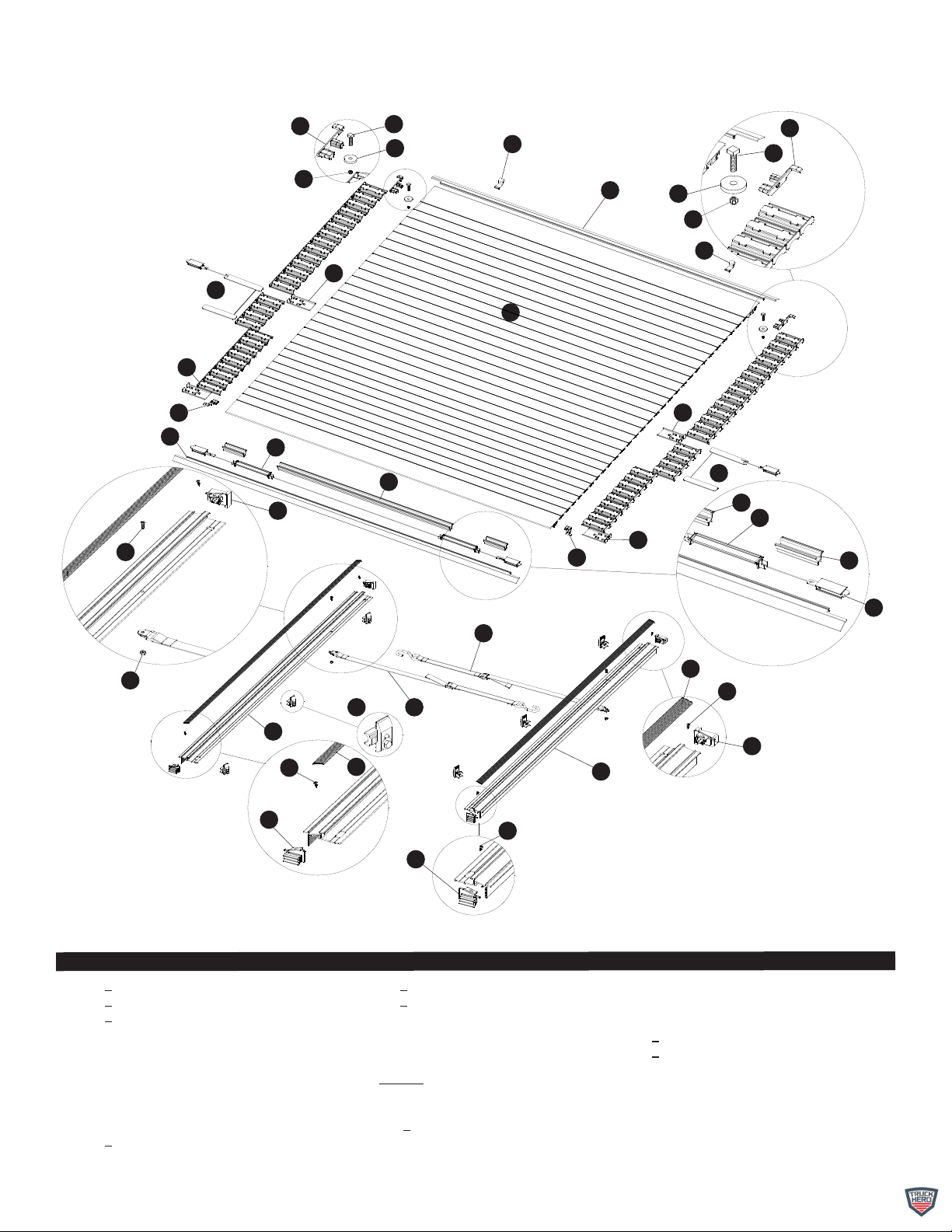

TOYOTA TUNDRA SENTRY / SENTRY CT REPLACEMENT PARTS
2
3
4
56
6
8
7
9
10
10
11
12
13
14
15
16
31
30
17
18
19
29
21
22
23
20
24
25
26
11
20
28
23
20
29
29
29
27
22
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
7
1
9
26

OWNER/USER RESPONSIBILITIES:OWNER/USER RESPONSIBILITIES:



- Truck bed cover must be free of foreign material including snow and ice before rolling cover open or closed.- Truck bed cover must be free of foreign material including snow and ice before rolling cover open or closed.
  
            
      
  
to warm the top surface.to warm the top surface.
  
  
-- DO NOTDO NOT roll cover into rear cab window.roll cover into rear cab window. DO NOTDO NOT stow rolled cover against cab or cab window.stow rolled cover against cab or cab window.
-- 
     

SAFETY INSTRUCTIONS:SAFETY INSTRUCTIONS:
1.1. 
2.2. 
3.3. Never allow children or pets to occupy pickup box while cover is closed.Never allow children or pets to occupy pickup box while cover is closed.
4.4. 
5.5. 
6.6. Cover must be rolled fully open and secured with retainer straps when towing vehicle backwards.Cover must be rolled fully open and secured with retainer straps when towing vehicle backwards.
7.7. DO NOT stow rolled cover against cab window.DO NOT stow rolled cover against cab window.
            
9. A fully rolled open cover must always be secured with retainer straps.9. A fully rolled open cover must always be secured with retainer straps.

ADDITIONAL IMPORTANT SAFETY TIPS
CAUTION HIGH TEMPERATURE
TOP SURFACE AND BOTTOM SURFACE CAN BECOME
EXTREMELY HOT TO TOUCH WHEN EXPOSED TO
BRIGHT SUN AND OR HEAT.
NEVER ALLOW CHILDREN OR PETS TO SIT ON COVER
WHEN CLOSED OR ROLLED TO THE CAB.
CAUTION
ROLLCOVERTIGHT.SECURETHECOVERAPPROPRIATELYUSINGBOTHRETAINER
STRAPS.DO NOTOVERTIGHTEN.DO NOTSTOWCOVERAGAINSTCABWINDOW.
IMPORTANT OPERATING TIPSIMPORTANT OPERATING TIPS
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
8

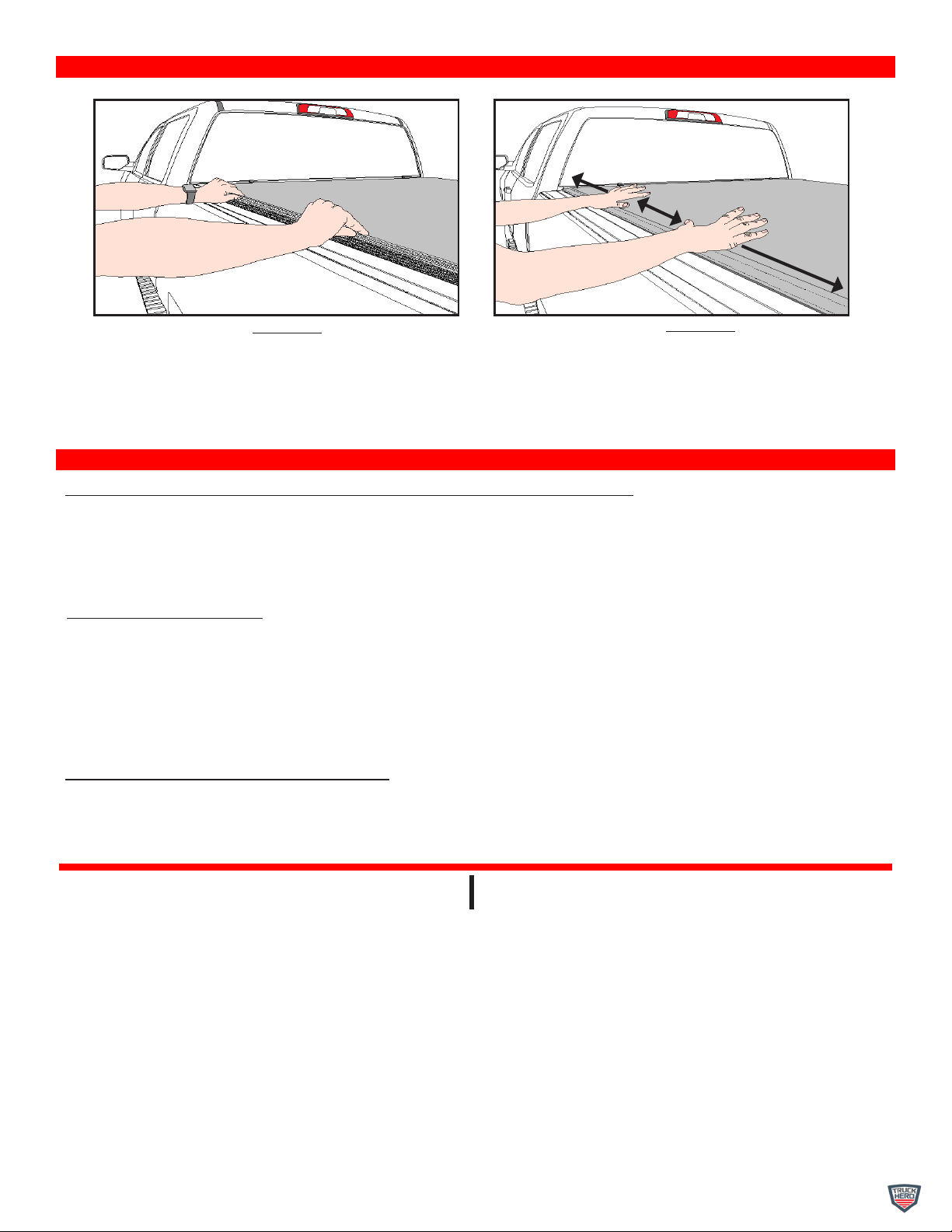

- - CORRECT METHODCORRECT METHOD Of How To Open Cover To The Front.Of How To Open Cover To The Front.
IMPORTANT OPERATING TIPS CONTINUED:
Cover Tracking Marks: The cover will experience slight tracking marks from dust deposited on the top surface even

of the cover clean.
 All truck beds will accumulate road dust. This dust will accumulate on the side rails and
adhere to the underside of the truck cover. When the truck cover is rolled open, the underside of the cover
can deposit dust onto the top surface. To prevent dust-tracking marks, periodically clean the side rail surfaces,
rubber slat end caps, and underside surface of the cover to remove dust build up. Plugging air holes and gaps

top surface with soap and water will also help prevent dust-tracking marks.
- 

- - INCORRECT METHODINCORRECT METHOD Of How To Open Cover To The Front.Of How To Open Cover To The Front.
- 
- Do not slide cargo across the cover's surface.Do not slide cargo across the cover's surface.
-Do not store items on cover's surface.o not store items on cover's surface.
-   
taken a complete set to the metal substrate.taken a complete set to the metal substrate.
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
9

- 
Engaging Hook and Loop, Step Two: With the cover closed
and both hook and loop engaged, use the palms

hook track. Do this to both driver and passenger

seams.
Engaging Hook and Loop, Step One: 
 
loop over the hook track engaging the loop to the
hook track. 
IMPORTANT OPERATING TIPS CONTINUED:
HEADER WILL NOT LATCH:
1. Check side rails to make sure they are level.
 

4. Check to make sure side rails are both equally spaced front to rear.
   
COVER CARE AND MAINTENANCE on page 6.
 
TROUBLESHOOTING
COVER IS HARD TO ROLL OPEN OR CLOSED:
1. Truck bed cover MUST be free of foreign material including snow and ice before rolling cover.
 
  

COVER ASSEMBLY WILL NOT ATTACH TO SIDE RAILS DURING INSTALLATION:
1. Check side rails to make sure they are level.
2. 
screw head to fall in the oblong holes. (review steps 15 and 16).
3. 





in advance of returning the materials. TruXedo, Inc. shall not be liable or responsible to supply or pay labor to replace



(detailed and dated receipt) required for warranty to be valid. Please locate the serial number on your cover before
registering the warranty. The serial number can be found on the underside of the front aluminum header bar located on
the driver side. Register warranty online at www.truxedo.com

SENTRY: 3 YEAR WARRANTY
SENTRY CT: 5 YEAR WARRANTY
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118738 Rev. A 01.14.2022
10
