True ES700 User manual

*Assembly Guide & Warranty Card Included
Revision 122313
ES700 RECUMBENT
BIKE OWNER’S
MANUAL

ES700 RECUMBENT BIKE OWNERS MANUAL
Truefitness.com / 800.426.6570 / 636.272.7100
IMPORTANT:
All Products shown are prototype. Actual product delivered may vary.
Product specifications, features & software are subject to change without notice.
For the most up to date owner’s manual please visit www.truefitness.com.
For documents in additional languages please visit www.truefitness.com/document-library/29/international-manuals
IMPORTANTE:
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir.
Especificaciones de productos, características y software están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario, por favor visite www.truefitness.com
Para los documentos en otros idiomas, por favor visite www.truefitness.com/document-library/29/international-manuals
IMPORTANT:
Tous les produits présentés sont prototype. Le produit réel livré peut varier.
Spécifications du produit, caractéristiques et logiciels sont sujettes à modification sans préavis.
Pour la plus à jour le manuel du propriétaire s'il vous plaît visitez www.truefitness.com.
Pour documents dans des langues supplémentaires, veuillez www.truefitness.com/document-library/29/international-manuals de visite
重要提示：
显示所有产品的原型。实际交付的产品可能有所不同
产品规格，功能和软件如有更改，恕不另行通知
迄今为止对于大多数的使用说明书，请访问www.truefitness.com
对于其他语言的文档，请访问www.truefitness.com/document-library/29/international-manuals
:ﻡﺎﻫ ﻊﻳﻣﺟﺕﺎﺟﺗﻧﻣﻟﺍﻲﻫ ﺔﺿﻭﺭﻌﻣﻟﺍﺝﺫﻭﻣﻧﻟﺍ.ﻑﻠﺗﺧﺗ ﺩﻗﻲﻠﻌﻔﻟﺍ ﺞﺗﻧﻣﻟﺍ.ﺎﻬﻣﻳﻠﺳﺗ
ﻭ ،ﺞﺗﻧﻣﻟﺍ ﺕﺎﻔﺻﺍﻭﻣ ﺞﻣﺍﺭﺑﻟﺍﻭ ﺕﺍﺯﻳﻣﻟﺍﺭﻳﻳﻐﺗﻠﻟ ﺔﻠﺑﺎﻗﺭﺎﻌﺷﺇ ﻥﻭﺩ.
ﻟ ﻝﺻﻳ ﺎﻣ ﻡﻅﻌﻣﻥﻵﺍ ﻰﺗﺣﻙﻟﺎﻣﻟﺍ ﻝﻳﻟﺩﺓﺭﺎﻳﺯ ﻰﺟﺭﻳ www.truefitness.com.
ﺕﺍﺩﻧﺗﺳﻣﻠﻟﺕﺎﻐﻟ ﻲﻓﻰﺟﺭﻳ ،ﺔﻳﻓﺎﺿﺇﺓﺭﺎﻳﺯ www.truefitness.com/document-library/29/international-manuals
WICHTIG:
Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren.
Produkt-Spezifikationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern.
In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen Sie bitte www.truefitness.com.
Für Dokumente in weiteren Sprachen finden Sie unter www.truefitness.com/document-library/29/international-manuals
BELANGRIJK:
Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen.
Product specificaties, eigenschappen & software zijn onderhevig aan verandering zonder kennisgeving.
Voor de meest actuele handleiding van de eigenaar kunt u terecht www.truefitness.com.
Voor documenten in andere talen kunt u terecht op www.truefitness.com/document-library/29/international-manuals
ВАЖНО:
Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться.
Технические характеристики, особенности ипрограммного обеспечения могут быть изменены без предварительного
уведомления.
Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите
www.truefitness.com
.Для документов на другие языки, пожалуйста, посетите www.truefitness.com/document-library/29/international-manuals

ES700 RECUMBENT BIKE OWNERS MANUAL
Truefitness.com / 800.426.6570 / 636.272.7100
Frank Trulaske, founder and CEO of TRUE, has had the same simple philosophy of delivering superior products, service
and support for over 30 years. Today, TRUE is the global leader in premium cardio equipment for the commercial and
residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style. TRUE has
received many awards for its commercial and retail product over the years and remains the benchmark for the industry.
Fitness facilities and consumers invest in TRUE products for their durable commercial platforms used in all its cardio
products, both commercial and residential alike.
The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of
truly extraordinary treadmills, indoor cycles and elliptical cross-trainers. As a result, people all over the world are
benefiting from the TRUE experience. Innovation across the full product line has made TRUE successful and is a
trademark of the TRUE heritage. TRUE’s patented Heart Rate Control® technology is just one of the remarkable ways we
deliver simple and superior performance every user can enjoy, and most importantly, use to achieve personal health and
fitness goals.
TRUE strives to perfect biomechanically correct and orthopedically comfortable, functional products. Whether it be the
mesh seat in the recumbent bike, the Soft Step® in the elliptical cross-trainers or the Soft System® in our treadmills, we
deliver the best.
At the heart of our success is the relentless and systematic life testing of both our products and their components. We
have dedicated employees who understand our philosophy is to deliver the best products in the world.
Our goal is not to sell the most cardio products in the world, but to deliver the world’s best premium equipment for our
customers’ health and fitness solutions.
To own a TRUE machine is to be part of an exclusive fitness community that delivers results – your results.
Thank you for becoming a part of the TRUE experience.
TRANSCEND ALL OTHERS!

ES700 RECUMBENT BIKE OWNERS MANUAL
Truefitness.com / 800.426.6570 / 636.272.7100
TABLE OF CONTENTS:
Chapter 1: Safety Instructions
Safety Instructions 1
Space Requirements 3
Grounding Instructions 3
Power Requirements 5
Warning Decals 6
Compliances 6
Chapter 2: Assembly Instructions
Pre-Assembly Checklist 7
Assembly Steps 10
Chapter 3: Product Overview
Bike Overview 23
Chapter 4: Programming & Operation
Heart Rate Monitoring 25
Heart Rate Control 25
Program Descriptions 27
Chapter 4A: Escalate9Operation
Escalate9Overview 30
Console Navigation 32
Advanced Console Functions 38
Chapter 4B: Emerge Operation
Emerge Overview & Navigation 43
Advanced Console Functions 46
Chapter 5: Care & Maintenance
Care & Maintenance 47
Cleaning the Equipment 47
Leveling the Unit 47
Other Scheduled Preventive Maintenance 48
Long Term Storage 48
Chapter 6: Customer Service
Contacting Service 49
Contacting Sales 49
Reporting Freight Claims or Parts Damage 50
Chapter 7: Additional Information
Troubleshooting 51
Specification Sheet 53
Warranty Information 55

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS
This bike is intended for in-home use only; do not use this bike in a commercial or institutional setting.
Doing so may void the expressed warranty.
WARNING: All EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING THE BIKE.
WARNING: Heart rate monitoring systems may be inaccurate for some individuals. Over-exercising may result in
serious injury or death. If you feel faint, stop exercising immediately.
WARNING: Equipment should be immediately taken out of use if it fails to work properly or when a warning is
presented electronically.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high
cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness
professional on the correct use of this product. If at any time while exercising the user experiences faintness, dizziness,
pain or shortness of breath, he or she must stop immediately.
WARNING: To reduce the risk of electrical shock, always unplug this TRUE product before cleaning or attempting any
maintenance activity. Do not handle the plug with wet hands.
WARNING: To reduce the risk of burns, fire, electric shock or injury, it is imperative to connect each product to a
properly grounded 110V electrical outlet. A risk of electrical shock may result from improper connection of the
equipment’s grounding conductor. Check with a qualified electrician if you are unsure about proper grounding
techniques. Do not modify the plug provided with this product. If it will not fit an electrical outlet, have a proper
outlet installed by a qualified electrician. Your TRUE Fitness product must be properly grounded to reduce risk of
shock if the bike malfunctions. Your bike is equipped with an electrical cord, which includes an equipment
grounding conductor and a grounding plug. The plug must be inserted into an outlet that has been properly
installed and grounded in accordance with all local codes and ordinances. A temporary adapter cannot be used to
connect this plug to a two-pole receptacle in North America. If a properly grounded 15 amp outlet is not available,
a qualified electrician must install one.
WARNING: Do not move the equipment by lifting the console. Do not use the console as a handlebar during a workout.
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm.
WARNING: Keep equipment stable on flat ground.
WARNING: Replace warning labels that may be worn, damaged or missing.
WARNING: Replace any non-working or damaged components; remove the unit from service until repair is performed.

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 2
WARNING: To reduce the risk of burns, fire and electric shock or injury to persons, follow these instructions:
•This appliance should never be left unattended when plugged in.
•Do not use any type of extension cord with this product.
•Unplug it from the outlet when not in use and before any servicing.
•Do not operate the equipment while being covered with a blanket, plastic, or anything that insulates or stops
airflow.
CAUTION:
•Do not use typing or web surfing features at excessive speeds. Always stabilize yourself by holding a stationary
handle when using typing or web surfing features. (Varies by console option)
•Health related injuries may result from incorrect or excessive use of exercise equipment.
•Do not use the contact heart rate grips as a handlebar during a workout.
•Any changes or modifications to this equipment could void the product warranty.
•To disconnect plug remove from electrical outlet.
•Power adapter requirements for the RES700 are 110V AC input and 9V DC 1.5Amp output, unless it is paired
with the optional TFT console which requires 110V AC input and 12V DC 3Amp output.
•Use a TRUE AC power cord or AC/DC adapter only.
•Note the plug configuration for the power adapter may vary by country.
•The batteries within self-generated equipment contain materials that are considered hazardous to the
environment. Federal law requires proper disposal of these batteries.
•Position this product so the power cord plug is accessible to the user.
•Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord as a
handle. Do not run the power cord along the side or under the bike.
•If the bike power supply cord is damaged it must be replaced by the manufacturer, an authorized service agent, or
a similarly qualified person to avoid a hazard.
•Do not use this product in areas where aerosol spray products are being used or where oxygen is being
administered. Such substances create the danger of combustion and explosion.
•Always follow the console instructions for proper operation. Close supervision is necessary when used near
children under the age of 15, or disabled persons.
•Do not use this product outdoors, near water, while wet, or in areas if high humidity including extreme
temperature changes
•Never operate a TRUE product with the air openings blocked. Keep air openings free of lint, hair or any
obstructing material.
•Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug
the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer
Service.
•Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with
lids are recommended.
•Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Make
sure no stones are embedded in the soles. Do not use this product in bare feet. Keep all loose clothing, shoelaces
and towels away from moving parts.
•Do not reach into or underneath the unit, or tip it on its side during operation.
•Use correct ergonomic positioning while operating the bike.
•Do not allow animals on or near the equipment while in operation.

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 3
CAUTION (continued):
•Do not exceed maximum user weight of 350 lbs (159 kg).
•Avoid exiting bike while the pedals are still in motion.
•Do use if you have a cold or fever.
•When using this exercise machine, basic precautions should always be followed.
•Use this bike only for its intended use as described in this manual.
•Do not use attachments not recommended by the manufacturer.
•Allow only trained personnel to service this equipment.
•Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out
of reach of the bike while it is in motion.
•Allow only one person at a time on the bike while it’s operating.
•It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
SPACE REQUIREMENTS:
•TRUE’s recommendation is to leave a 39” safety zone at rear of bike. The sides of the bike should be at least 20”
away from the wall or obstructions. (See Fig 1)
GROUNDING INSTRUCTIONS:
This product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 4
GROUNDING INSTRUCTIONS (continued):
DANGER:
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
•Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the product – if it will not fit the outlet; have a proper outlet installed by a qualified
electrician.
•Do not remove any covers or you may risk injury due to electric shock.
•The 120-V model is for use on a nominal 120-V circuit and has a grounding plug that looks like the plug
illustrated in figure A. Make sure the product is connected to an outlet having the same configuration as the plug.
No adaptor should be used with this product.
•The 230-V model is for use on a circuit having a nominal rating more than 120-V and is factory-equipped with a
specific electric cord and has a grounding plug that looks like the plug illustrated in figure B. Make sure that the
product is connected to an outlet having the same configuration as the plug in Figure B. No adapter should be
used with this product. If the product must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualified service personnel.

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 5

CHAPTER 1: SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 6
WARNING DECALS:
WARNING: Replace warning labels that may be worn, damaged or missing.
To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or
contact customer service at 800-883-8783.
COMPLIANCES:
This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.truefitness.com

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 7
CAUTION:
•Read and understand all instructions and warnings prior to use.
•Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy,
or experience pain, stop and consult your physician.
•Obtain proper instruction prior to use.
•This machine is intended for residential use only.
•Inspect the bike for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened
prior to use.
•Do not wear loose or dangling clothing while using bike.
•Care should be used when mounting or dismounting bike.
•Disconnect all power (if applicable) before servicing bike.
•Do not exceed maximum user weight of 350 lbs.
•Keep children and animals away.
•Use caution when moving and assembling bike.
•All exercise equipment is potentially hazardous. If attention is not paid to the conditions of equipment usage,
death, or serious injury could occur.
•Save these instructions.
*Should you need technical assistance in assembly of your TRUE Fitness product, contact TRUE Fitness Technical
Support at 1-800-883-8783.
PRE-ASSEMBLY CHECK LIST:

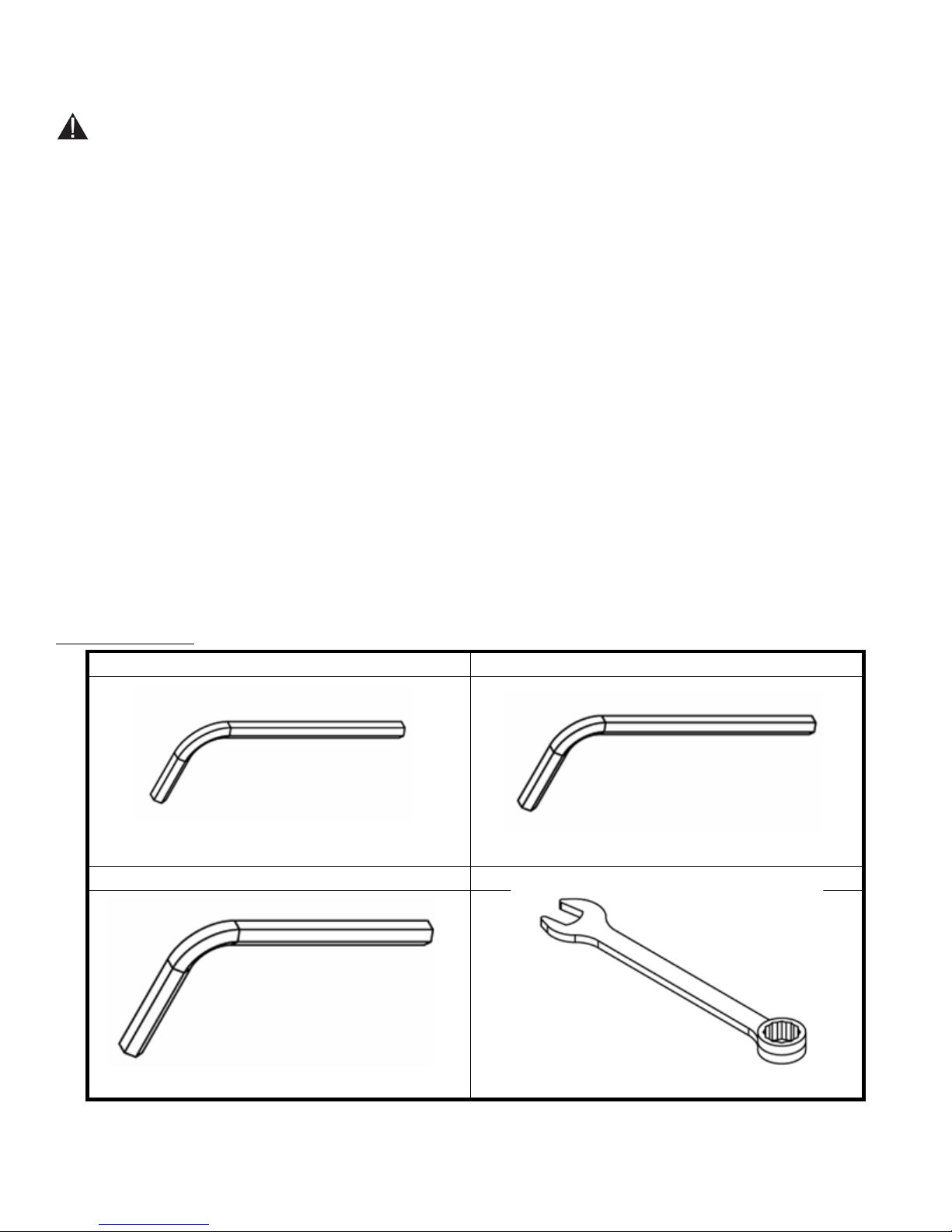

Provided Tools:
5mm Hex Wrench
6mm Hex Wrench
Used during step 4 & 5
Used during step 4 & 11
8mm Hex Wrench
15mm Pedal Wrench
Used during step 1 & 2
Used during step 8
NOTE: Phillips Head Screwdriver (used during steps 6, 7, 12 & 13) is NOT provided

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 8
PRE-ASSEMBLY CHECK LIST (continued):

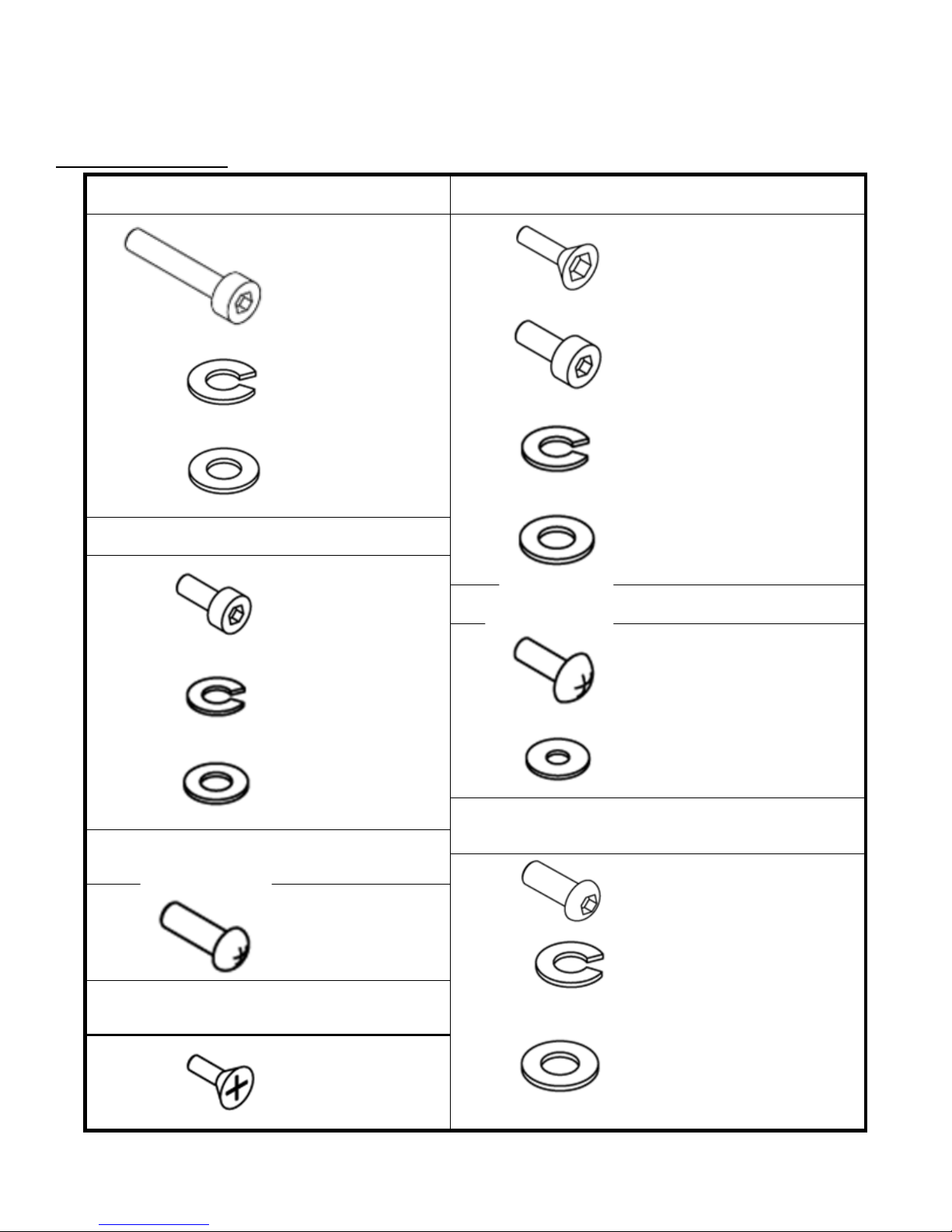

Provided hardware:
STEP 1&2(FRONT &REAR STABILIZER BARS) STEP 4(SEAT HANDLEBAR)
Hex Screw, M10xL55
(X1) Qty. 4
Counter-bore Hex Screw,
M8xL20
(C4) Qty. 4
Hex Screw, M8xL20
(X4) Qty. 2
Split Washer, M10
(S1) Qty. 4
Split Washer, M8
(S4) Qty. 2
Flat Washer, M10
(F1) Qty. 4
Flat Washer, M8
(F4) Qty. 2
STEP 5(SEAT BACK FRAME PIVOT ASSEMBLY)
Hex Screw, M6xL15
(X5) Qty. 8 STEP 6(REAR SEAT PIVOT COVER)
Phillips Head Screw, M5xL15
(X6) Qty. 2
Split Washer, M8
(S5) Qty. 8
Flat Washer, M5
(F6) Qty. 2
Flat Washer, M8
(F5) Qty. 8
STEP 11 (FRONT MAST)
STEP 7(SEAT BACK FRAME COVER)
Hex Screw, M10xL16
(X11) Qty. 5
Phillips Head Screw,
M5xL20
(X7) Qty. 4
Split Washer, M10
(S11) Qty. 5
STEP 12 (MEDIA HOLDER)
Flat Washer, M10
(F11) Qty. 5)
Counter-bore
Phillips Head Screw,
M5xL15
(X12) Qty. 2

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 9
PRE-ASSEMBLY CHECK LIST (continued):
Additional Items Provided:
POLAR T34 Transmitter and Chest Strap (Heart Rate Monitor)
Power Adaptor
NOTE: For the 9” TFT Console, a different 12V, 3A Power Adaptor is provided with
the console packaging.
NOTE: For the Orange LED Console, use the 9V, 1.5A Power Adapter provided with
the base unit

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 10
ASSEMBLY STEPS:
CAUTION:
•Use caution when assembling bike. It is recommended that at least two people unpack and assemble bike.
•Remove all bike components from packaging.
•For each step use hardware in the corresponding bag
Sub-Assembly Identification:
Use the image below as a reference for where the provided sub-assemblies will be located in the complete bike assembly:

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 11
ASSEMBLY STEPS (continued):
Step 1 & 2 Front and Rear Stabilizer Bars:
CAUTION:
•It is recommended that at least 2 people are used to assemble the bike
•To protect the floor from damage, rest the bike frame on a large piece of cardboard packaging
•Rotate the frame forward on the Front
Stabilizer bracket (metal)
•At least one person should hold the frame,
while another person completes the remaining
Rear Stabilizer installation steps
•For each screw, install through split washer then
flat washer
•Insert Rear Stabilizer into the metal bracket
•Install each screw through the bottom of the metal
bracket, then through the Rear Stabilizer
•
Tighten using the provided 8mm hex wrench
•Rotate the frame backwards on the Rear
Stabilizer
•At least one person should hold the frame,
while another person completes the remaining
Front Stabilizer installation steps
•For each screw, install through split washer then
flat washer
•Insert Front Stabilizer into the metal bracket
•Install each screw through the bottom of the metal
bracket, then through the Front Stabilizer
•
Tighten using the provided 8mm hex wrench
1A
1B
2A
2B

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 12
ASSEMBLY STEPS (continued):
Step 3 Seat Handlebar Cable Connections:
•Prior to connection, verify the handlebar is in the
correct orientation; graphics on the contact heart rate
thumb switches should be facing up
•Connect the handlebar cables, as shown by the
connection lines in the provided diagrams (above, left)
Step 4 Seat Handlebar Assembly:
•Install the seat handlebar bracket into the seat
carriage; the handlebar top bracket should sit
on seat carriage (as shown in diagram, left)
•For each counter-bore hex screw (C4,
quantity 4), start each screw through the seat
carriage and handlebar bracket, using the
provided 5mm hex wrench
•For each hex screw (X4, quantity 2), install
through quantity 1 split washer (S4), followed
by quantity 1 flat washer (F4)
•Start each hex screw through the handlebar
bracket and seat carriage, using the provided
5mm and 6mm hex wrench
•Tightening 4 screws (C4) with 5mm hex
wrench and the other 2 screws (X4) with 6mm
hex wrench provided

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 13
ASSEMBLY STEPS (continued):
Step 5 Seat Back Frame Assembly:
•Install the seat back frame into the seat carriage
•For each hex screw (X5, quantity 8), install through quantity 1 split washer (S5), followed by quantity 1
flat washer (F5)
•Secure the seat back frame to the seat carriage by tightening all 8 screws with the provided 5mm hex
wrench
•Verify that the seat back frame is secured tightly to the seat carriage; tighten screws if necessary

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 14
ASSEMBLY STEPS (continued):
Step 6 Rear Seat Pivot Cover Assembly:
•Install the rear seat pivot cover onto the seat carriage; rear seat pivot cover should mate cleanly with the
front seat pivot cover (as shown in diagram, above)
•For each Phillips head screw (X6, quantity 2), install through quantity 1 flat washer (F6)
•Secure the rear seat pivot cover to the seat carriage by tightening both screws with a Phillips head
screwdriver (not provided)
Step 7 Seat Back Frame Cover Assembly:
•Align the seat back cover thru holes (quantity
4) with the seat back frame threaded holes
(quantity 4)
•Secure the seat back cover to the seat back
frame by tightening all 4 screws (X7) with a
Philips head screwdriver (not provided)

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 15
ASSEMBLY STEPS (continued):

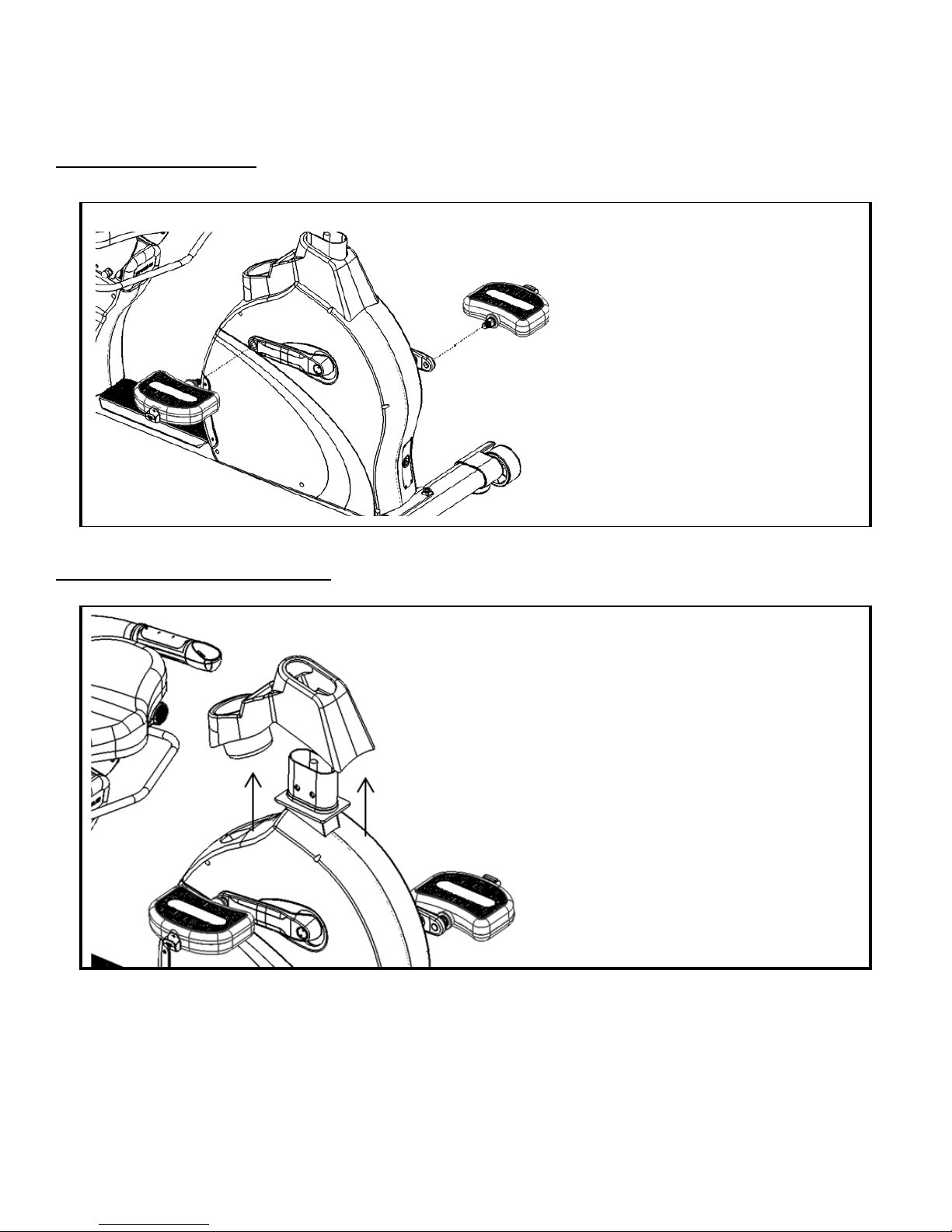

Step 8 Pedal Assembly:
•Align the left pedal with the left crank,
and the right pedal with the right
crank (pedals should be clearly
labeled on the pedal strap)
•Secure each pedal to the appropriate
crank using the provided pedal
wrench
NOTE: The left pedal is reverse-threaded
(turn counter-clockwise to tighten)
Step 9 Removing Storage Dock:
•Remove the plastic storage dock from the
bike frame by pulling the storage dock
vertically away from the frame (as shown
in diagram, left)
•Insert storage dock onto the front mast
tube (as shown in STEP 10 diagram)
•Verify that the storage dock is in the
correct orientation; the storage dock
compartments and front mast handlebars
should be facing the same direction

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 16
ASSEMBLY STEPS (continued):

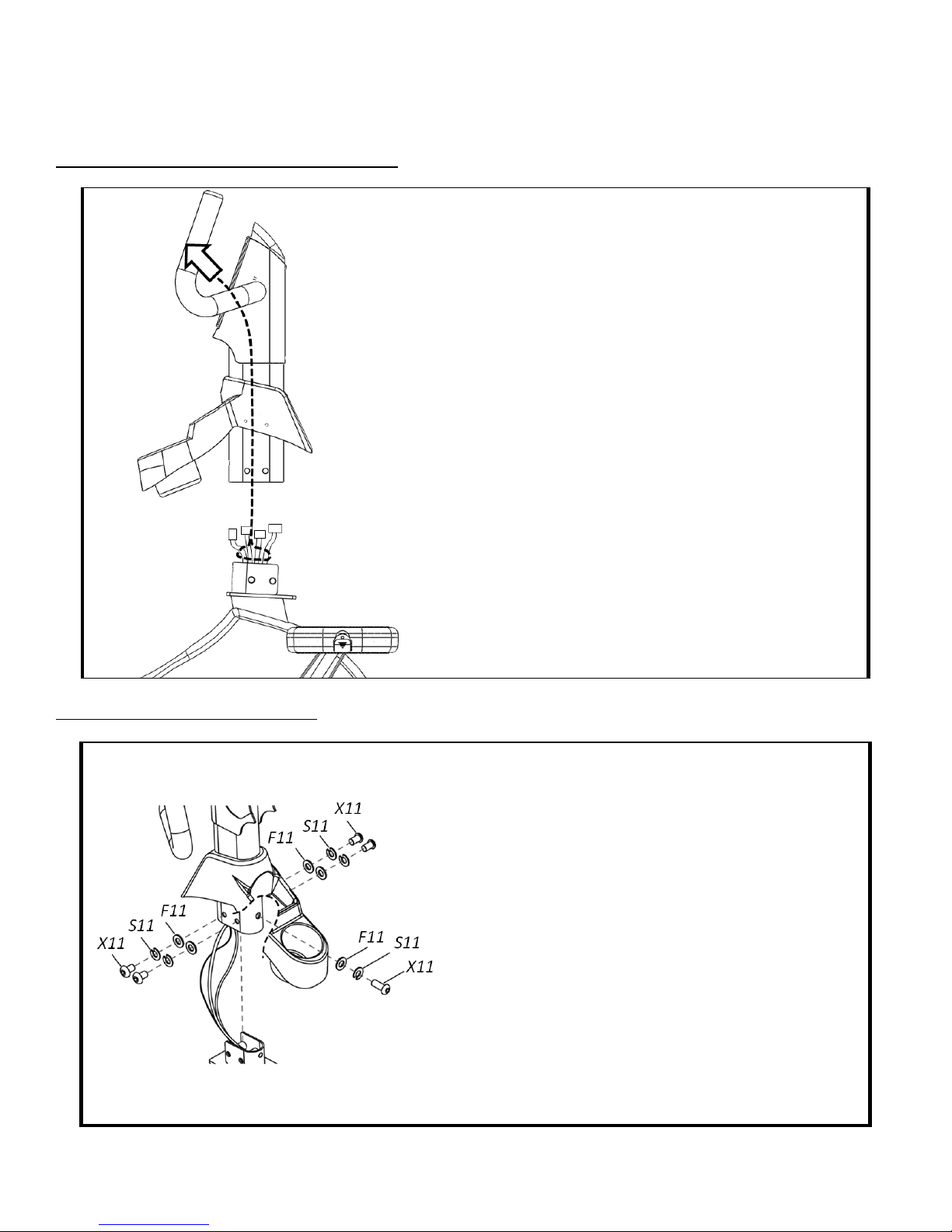

Step 10 Front Mast Cable Connections:
•At least 1 person should hold the front mast while
an additional person(s) routes the front mast cables
•Route the bundle of cables through the front mast,
as shown in the provided image (left)
•A pull-tie has been provided (attached to the front
mast tube) in order to help facilitate this routing
Step 11 Front Mast Assembly:
•
Install the front mast onto the bike frame; the short
bracket on the bike frame should fit inside the front
mast tube
•Verify that the front mast is in the correct orientation;
the storage dock compartments and front mast
handlebars should be facing the seat assembly
•For each hex screw (X11, quantity 5), install through
quantity 1 split washer (S11), followed by quantity 1
flat washer (F11)
•Secure the front mast to the bike frame by tightening
all 5 screws with the provided 6mm hex wrench
•Verify that the front mast is secured tightly to the bike
frame; tighten screws if necessary
•Pull the storage dock down vertically so it covers the
bottom of the front mast assembly; the cup holder
should fit inside a mating hole on the plastic shrouds
