True RC400 User manual

*Assembly Guide & Warranty Card Included
Revision 030117
RC400
RECUMBENT BIKE
OWNER’S MANUAL
Transcend Console Escalate15 Console Escalate9 Console Emerge Console

RC400 RECUMBENT BIKE OWNERS MANUAL
IMPORTANT:
All Products shown are prototype. Actual product delivered may vary.
Product specifications, features & software are subject to change without notice.
For the most up to date owner’s manual please visit www.truefitness.com.
For documents in additional languages please visit www.truefitness.com/document-library/29/international-manuals
IMPORTANTE:
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir.
Especificaciones de productos, características y software están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario, por favor visite www.truefitness.com
Para los documentos en otros idiomas, por favor visite www.truefitness.com/document-library/29/international-manuals
IMPORTANT:
Tous les produits présentés sont prototype. Le produit réel livré peut varier.
Spécifications du produit, caractéristiques et logiciels sont sujettes à modification sans préavis.
Pour la plus à jour le manuel du propriétaire s'il vous plaît visitez www.truefitness.com.
Pour documents dans des langues supplémentaires, veuillez www.truefitness.com/document-library/29/international-manuals de visite
重要提示：
显示所有产品的原型。实际交付的产品可能有所不同
产品规格，功能和软件如有更改，恕不另行通知
迄今为止对于大多数的使用说明书，请访问www.truefitness.com
对于其他语言的文档，请访问www.truefitness.com/document-library/29/international-manuals
:مﺎھ
ﻊﯾﻣﺟتﺎﺟﺗﻧﻣﻟاﻲھ ﺔﺿورﻌﻣﻟاجذوﻣﻧﻟا.فﻠﺗﺧﺗ دﻗﻲﻠﻌﻔﻟا ﺞﺗﻧﻣﻟا.ﺎﮭﻣﯾﻠﺳﺗ
و ،ﺞﺗﻧﻣﻟا تﺎﻔﺻاوﻣ ﺞﻣارﺑﻟاو تازﯾﻣﻟارﯾﯾﻐﺗﻠﻟ ﺔﻠﺑﺎﻗرﺎﻌﺷإ نود.
ﻟ لﺻﯾ ﺎﻣ مظﻌﻣنﻵا ﻰﺗﺣكﻟﺎﻣﻟا لﯾﻟدةرﺎﯾز ﻰﺟرﯾ www.truefitness.com.
تادﻧﺗﺳﻣﻠﻟتﺎﻐﻟ ﻲﻓﻰﺟرﯾ ،ﺔﯾﻓﺎﺿإةرﺎﯾز www.truefitness.com/document-library/29/international-manuals
WICHTIG:
Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren.
Produkt-Spezifikationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern.
In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen Sie bitte www.truefitness.com.
Für Dokumente in weiteren Sprachen finden Sie unter www.truefitness.com/document-library/29/international-manuals
BELANGRIJK:
Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen.
Product specificaties, eigenschappen & software zijn onderhevig aan verandering zonder kennisgeving.
Voor de meest actuele handleiding van de eigenaar kunt u terecht www.truefitness.com.
Voor documenten in andere talen kunt u terecht op www.truefitness.com/document-library/29/international-manuals
ВАЖНО:
Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться.
Технические характеристики, особенности ипрограммного обеспечения могут быть изменены без предварительного
уведомления.
Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите
www.truefitness.com
.Для документов на другие языки, пожалуйста, посетите www.truefitness.com/document-library/29/international-manuals
Truefitness.com / 800.426.6570 / 636.272.7100

RC400 RECUMBENT BIKE OWNERS MANUAL
Frank Trulaske began TRUE Fitness over thirty-five year ago with the simple philosophy of delivering
superior fitness products, service and support. Today, TRUE is the global leader in premium fitness
equipment for the commercial and residential markets. Our goal is to be the leader in technology, innovation,
performance, safety and style. TRUE has received many awards for its product over the years and remains the
benchmark for the industry. Fitness facilities and consumers invest in TRUE products for their durable
commercial platforms used in all its products, both commercial and residential alike.
The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full
line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from
the TRUE experience. Innovation across the full product line has made TRUE successful and is a trademark of
the TRUE heritage. TRUE’s patented Heart Rate Control technology is just one of the remarkable ways we
deliver simple and superior performance every user can enjoy, and most importantly, use to achieve personal
health and fitness goals.
At the heart of our success is the relentless and systematic life testing of both our products and their
components. We have dedicated employees who understand our philosophy is to deliver the best products in
the world.
Our goal is to deliver the world’s best premium equipment for our customers’ health and fitness solutions.
Truefitness.com / 800.426.6570 / 636.272.7100

RC400 RECUMBENT BIKE OWNERS MANUAL
TABLE OF CONTENTS:
Chapter 1: Safety Instructions
Safety Instructions 1
Space Requirements 3
Grounding Instructions 4

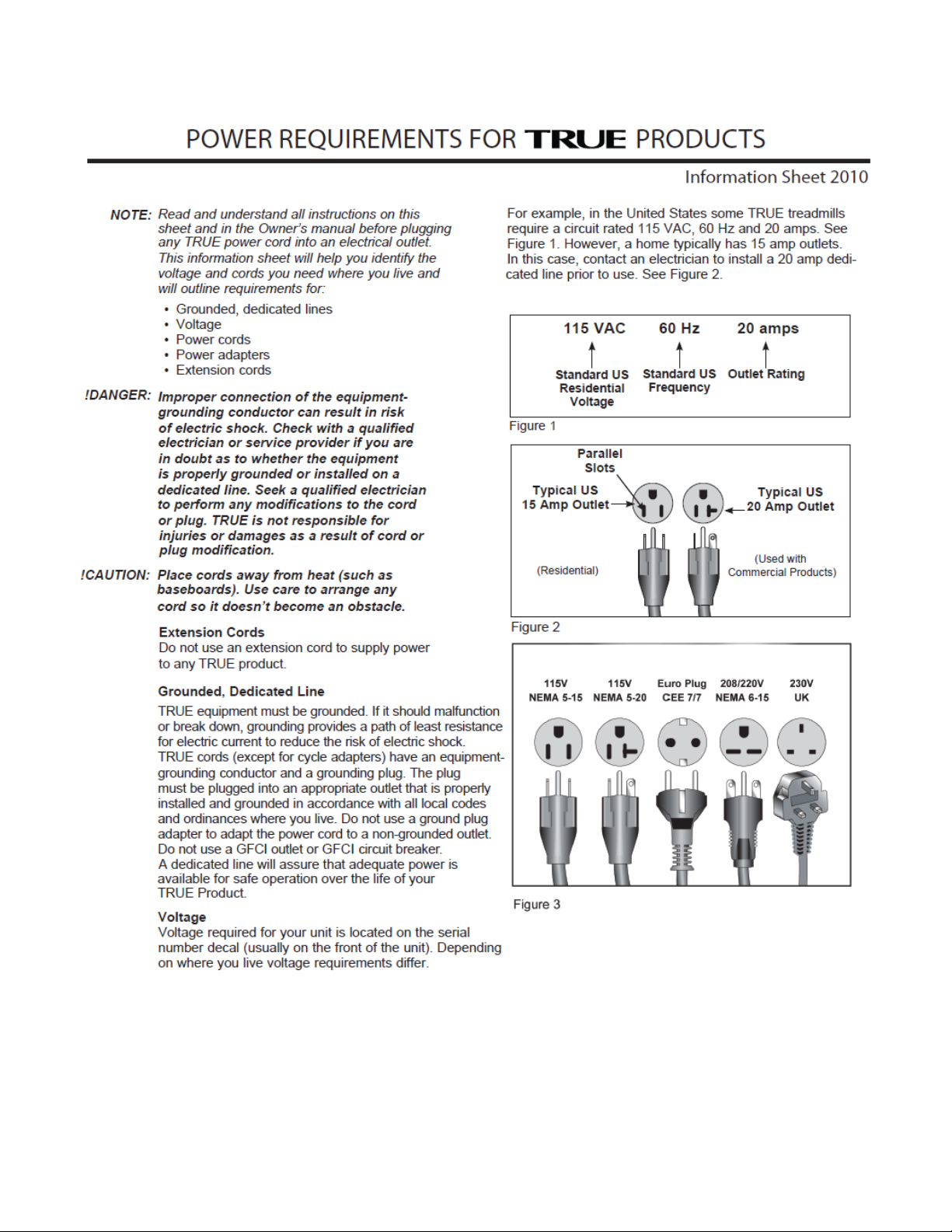

Power Requirements 5
Warning Decals 6
Compliances 6
Chapter 2 Assembly Instructions
Pre-Assembly Checklist 7
Assembly Steps 9
Chapter 3: Product Overview
Bike Overview 25
Chapter 4: Programming & Operation
Heart Rate Monitoring 27
Heart Rate Control 27
Program Descriptions 29
Virtual Active® Videos 32
Chapter 4A: Transcend Operation
Transcend Overview 34
Touchscreen Introduction 36
Touchscreen Navigation 36
Web Browser 42
iPod® Integration 43
Bluetooth Audio 44
TV Controls 46
Virtual Active® 47
Netpulse® 47
Advanced Console Functions 48
Chapter 4B: Escalate
15
Operation
Escalate15 Overview 65
Console Navigation 67
TV Controls 71
iPod® Integration 72
Bluetooth Audio 73
Advanced Console Functions 75
Chapter 4C: Escalate9Operation
Escalate 9 Overview 91
Console Navigation 93
Advanced Console Functions 99
Chapter 4D: Emerge Operation
Emerge Overview 108
Console Navigation 110
Advanced Console Functions 112
Chapter 5: Care & Maintenance
Care & Maintenance 117
Cleaning the Equipment 117
Lubrication 117
Other Scheduled Preventive Maintenance 118
Long Term Storage 118
Chapter 6: Customer Service
Contacting Service 119
Contacting Sales 119
Reporting Freight Claims or Parts Damage 120
Chapter 7: Additional Information
Troubleshooting 121
Specification Sheet 124
Warranty Information 126
Truefitness.com / 800.426.6570 / 636.272.7100

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS
This bike is intended for commercial or institutional setting. This owner’s manual should be accessible to all personal
trainers, staff members, and members.
WARNING: All EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING THE BIKE.
WARNING: Heart rate monitoring systems may be inaccurate for some individuals. Over-exercising may result in
serious injury or death. If you feel faint, stop exercising immediately.
WARNING: Equipment should be immediately taken out of use if it fails to work properly or when a warning is
presented electronically.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high
cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness
professional on the correct use of this product. If at any time while exercising the user experiences faintness, dizziness,
pain or shortness of breath, he or she must stop immediately.
WARNING: To reduce the risk of electrical shock, always unplug this TRUE product before cleaning or attempting any
maintenance activity. Do not handle the plug with wet hands.
WARNING: To reduce the risk of burns, fire, electric shock or injury, it is imperative to connect each product to a
properly grounded 110V electrical outlet. A risk of electrical shock may result from improper connection of the
equipment’s grounding conductor. Check with a qualified electrician if you are unsure about proper grounding
techniques. Do not modify the plug provided with this product. If it will not fit an electrical outlet, have a proper
outlet installed by a qualified electrician. Your TRUE Fitness product must be properly grounded to reduce risk of
shock if the bike malfunctions. Your bike is equipped with an electrical cord, which includes an equipment
grounding conductor and a grounding plug. The plug must be inserted into an outlet that has been properly
installed and grounded in accordance with all local codes and ordinances. A temporary adapter cannot be used to
connect this plug to a two-pole receptacle in North America. If a properly grounded 15 amp outlet is not available,
a qualified electrician must install one.
WARNING: Do not move the Equipment by lifting the console. Do not use the console as a handlebar during a workout.
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm.
WARNING: Keep equipment stable on flat ground.
WARNING: Replace warning labels that may be worn, damaged or missing
WARNING: Replace any non-working or damaged components; remove the unit from service until repair is performed.

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 2
WARNING: To reduce the risk of burns, fire and electric shock or injury to persons, follow these instructions:
•This appliance should never be left unattended when plugged in.
•Do not use any type of extension cord with this product.
•Unplug it from the outlet when not in use and before any servicing.
•Do not operate the equipment while being covered with a blanket, plastic, or anything that insulates or stops
airflow.
CAUTION:
•Do not use typing or web surfing features at excessive speeds. Always stabilize yourself byholding a stationary
handle when using typing or web surfing features. (Varies byconsole option)
•Health related injuries may result from incorrect or excessive use of exercise equipment.
•Do not use the contact heart rate grips asa handlebar during a workout.
•Any changes ormodifications to thisequipment could void the product warranty.
•To disconnect plug remove from electrical outlet.
•The RC400 bike is self-generated and does not require the use of anelectrical outlet with the LED console.
Optional TFT or touch screen consoles require 110V AC input and 9VDC 1.5Amp output for console operation
only.
•Use a TRUE ACpower cord orAC/DC adapter only
•Note the plug configuration for the power adapter may vary bycountry.
•The batteries within self-generated equipment contain materials that are considered hazardous to the
environment. Federal law requires proper disposal ofthese batteries.
•Position this product so the power cord plug is accessible to the user.
•Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord as a
handle. Donot run the power cord along the side or under the Bike.
•If the bike power supply cord isdamaged it must be replaced bythe manufacturer, anauthorized service agent, or
a similarly qualified person to avoid a hazard.
•Do not use this product in areas where aerosol spray products are being used or where oxygen isbeing
administered. Such substances create the danger of combustion and explosion.
•Always follow the console instructions for proper operation. Close supervision isnecessary when used near
children under the age of 15, or disabled persons.
•Do not use this product outdoors, near water, while wet, or in areas if high humidity including extreme
temperature changes
•Never operate a TRUE product with the air openings blocked. Keep air openings free of lint, hair or any
obstructing material.
•Never insert objects into any openings in thisproduct. If anobject should drop inside, turn off the power, unplug
the power cord from the outlet and carefully retrieve it. Ifthe item cannot be reached, contact TRUE Customer
Service.
•Never place liquids ofany type directly on the unit except in the accessory trayorbottle holders. Containers with
lids are recommended.
•Wear shoes with rubber or high traction soles. Donot use shoes with heels, leather soles, cleats or spikes. Make
sure no stones are embedded inthe soles. Donot use this product inbare feet. Keep all loose clothing, shoelaces
and towels away from moving parts.
•Do not reach into or underneath the unit, ortipit on its side during operation.

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 3
CAUTION (continued):
•Use correct ergonomic positioning while operating the bike.
•Do not allow animals on or near the equipment while in operation.
•Do not exceed maximum user weight of 400 lbs (159 kg).
•Avoid exiting bike while the pedals are still in motion.
•Do use if you have a cold or fever.
•When using this exercise machine, basic precautions should always be followed.
•Use this bike only for its intended use as described in this manual.
•Do not use attachments not recommended by the manufacturer.
•Allow only trained personnel to service this equipment.
•Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out
of reach of the bike while it is in motion.
•Allow only one person at a time on the bike while it’s operating.
•It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.

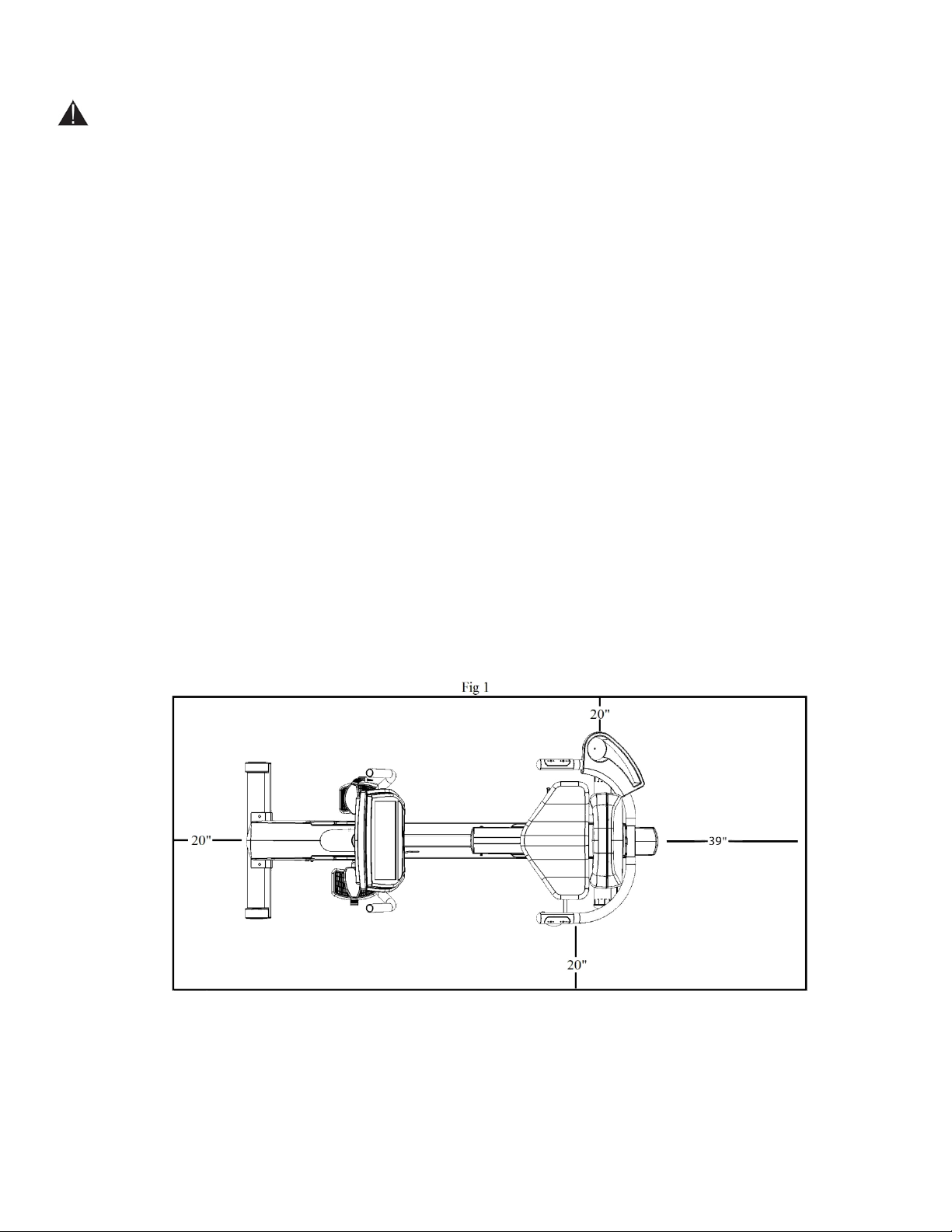

SPACE REQUIREMENTS:
•TRUE’s recommendation is to leave a 39” safety zone at rear of bike. The sides of the bike should be at least 20”
away from the wall or obstructions. (See Fig 1)

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 4
GROUNDING INSTRUCTIONS:
This product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER:
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
•Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product – if it will not fit the outlet; have a proper outlet
installed by a qualified electrician.
•Do not remove any covers or you may risk injury due to electric shock.
•The 120-V model is for use on a nominal 120-V circuit and has a grounding plug that looks like the plug
illustrated in figure A. Make sure the product is connected to an outlet having the same configuration as the plug.
No adaptor should be used with this product.
•The 230-V model is for use on a circuit having a nominal rating more than 120-V and is factory-equipped with a
specific electric cord and has a grounding plug that looks like the plug illustrated in figure B. Make sure that the
product is connected to an outlet having the same configuration as the plug in Figure B. No adapter should be
used with this product. If the product must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualified service personnel.

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 5

CHAPTER 1 SAFETY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 6
WARNING DECALS:
WARNING: Replace warning labels that may be worn, damaged or missing.
To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or
contact customer service at 800-883-8783.
COMPLIANCES:
This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.truefitness.com

CHAPTER 2: ASSEMBLY INSTRUCTIONS
CAUTION:
•Read and understand all instructions and warnings prior to use.
•Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy,
or experience pain, stop and consult your physician.
•Obtain proper instruction prior to use.
•Inspect the bike for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened
prior to use.
•Do not wear loose or dangling clothing while using bike.
•Care should be used when mounting or dismounting bike.
•Disconnect all power (if applicable) before servicing bike.
•Do not exceed maximum user weight of 400 lbs.
•Keep children and animals away.
•Use caution when moving and assembling bike.
•All exercise equipment is potentially hazardous. If attention is not paid to the conditions of equipment usage,
death, or serious injury could occur.
•Save these instructions.
*Should you need technical assistance in assembly of your TRUE Fitness product, contact TRUE Fitness Technical
Support at 1-800-883-8783.
PRE-ASSEMBLY CHECK LIST:
Provided Tools:
4MM HEX WRENCH 5MM HEX WRENCH
Used during step 3 & 6
Used during step 7
6MM HEX WRENCH PEDAL WRENCH
Used during step 1, 2, 5 & 11
Used during step 15
NOTE: Phillips Head Screwdriver (used during steps 9, 12, 13, & 14) is NOT provided
Truefitness.com / 800.426.6570 / 636.272.7100 7

CHAPTER 2: ASSEMBLY INSTRUCTIONS
PRE-ASSEMBLY CHECK LIST (continued):

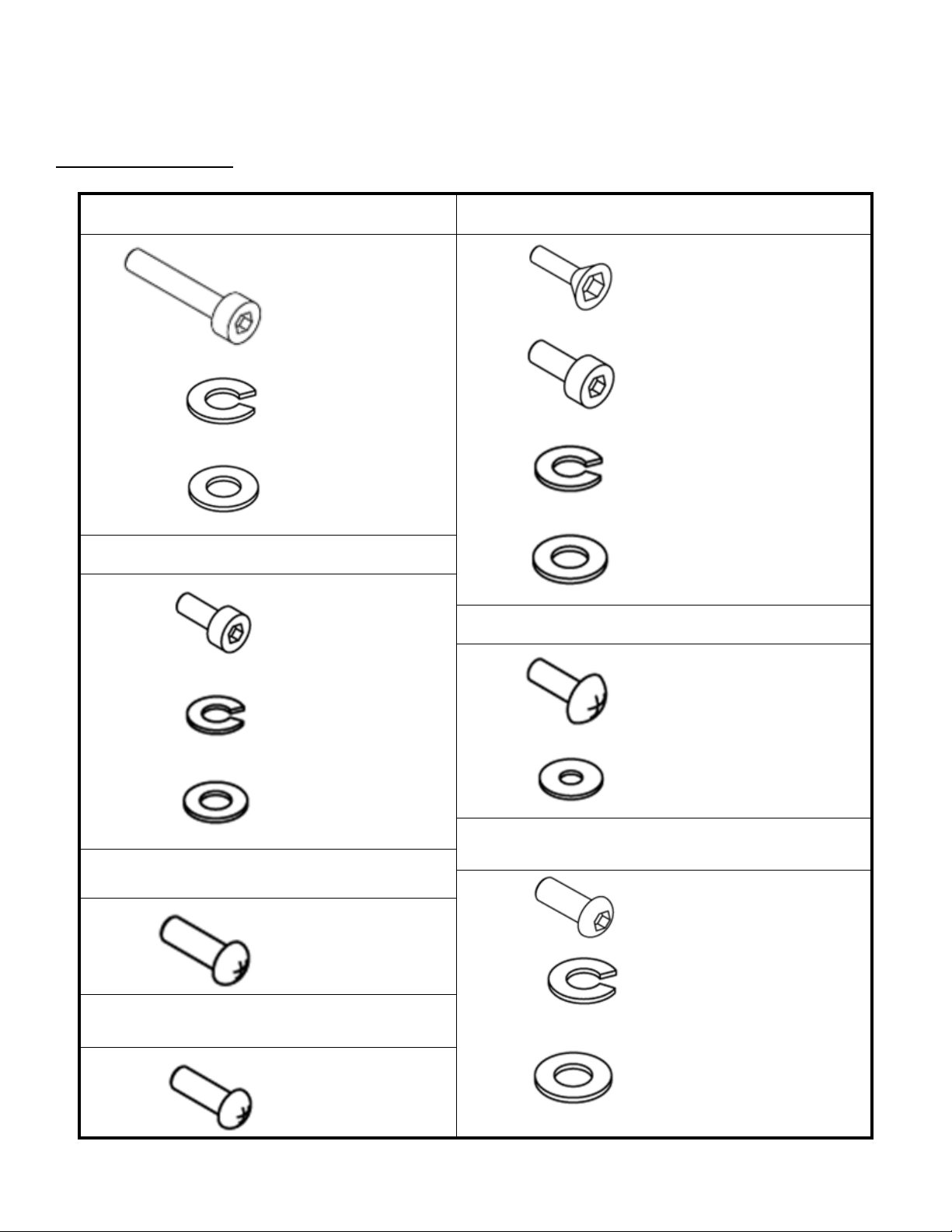

Provided Hardware:
STEP 1&2(FRONT &REAR STABILIZER BARS) STEP 4(SEAT HANDLEBAR)
Hex Screw, M10xL55
(X1) Qty. 4
Counter-bore Hex Screw,
M8xL20
(C4) Qty. 4
Hex Screw, M8xL20
(X4) Qty. 2
Split Washer, M10
(S1) Qty. 4
Split Washer, M8
(S4) Qty. 2
Flat Washer, M10
(F1) Qty. 4
Flat Washer, M8
(F4) Qty. 2
STEP 5(SEAT BACK FRAME PIVOT ASSEMBLY)
Hex Screw, M6xL15
(X5) Qty. 8 STEP 6(REAR SEAT PIVOT COVER)
Phillips Head Screw, M5xL15
(X6) Qty. 2
Split Washer, M8
(S5) Qty. 8
Flat Washer, M5
(F6) Qty. 2
Flat Washer, M8
(F5) Qty. 8
STEP 11 (FRONT MAST)
STEP 7(SEAT BACK FRAME COVER)
Hex Screw, M10xL16
(X11) Qty. 5
Phillips Head Screw,
M5xL20
(X7) Qty. 4 Split Washer, M10
(S11) Qty. 5
STEP 15 (CONSOLE COVERS)
Flat Washer, M10
(F11) Qty. 5)
Phillips Head Screw,
M4xL10
(X15) Qty. 4
Truefitness.com / 800.426.6570 / 636.272.7100 8

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS:
CAUTION:
•Use caution when assembling bike. It is recommended that at least two people unpack and assemble bike.
•Remove all bike components from packaging.
•For each step use hardware in the corresponding bag
Sub-Assembly Identification:
Use the image below as a reference for where the provided sub-assemblies will be located in the complete bike assembly:
Truefitness.com / 800.426.6570 / 636.272.7100 9

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):
Step 1 & 2 Front and Rear Stabilizer Bars:
CAUTION:
•It is recommended that at least 2 people are used to assemble the bike
•To protect the floor from damage, rest the bike frame on a large piece of cardboard packaging
•For each screw (#24), install
through flat washer (#21)
•Insert Front Stabilizer into the
metal bracket
•Wheels of Front Stabilizer should
be forward, as shown (left)
•Install each screw assembly
(quantity 2) through the top of the
metal bracket, then into the Front
Stabilizer
•Tighten using the provided 6mm
hex wrench
•For each screw (#24), install through
flat washer (#21)
•Insert Rear Stabilizer into the metal
bracket
•Install each screw assembly
(quantity 2) through the top of the
metal bracket, then into the Rear
Stabilizer
•Tighten using the provided 6mm hex
wrench
Wheels Forward
Truefitness.com / 800.426.6570 / 636.272.7100 10

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

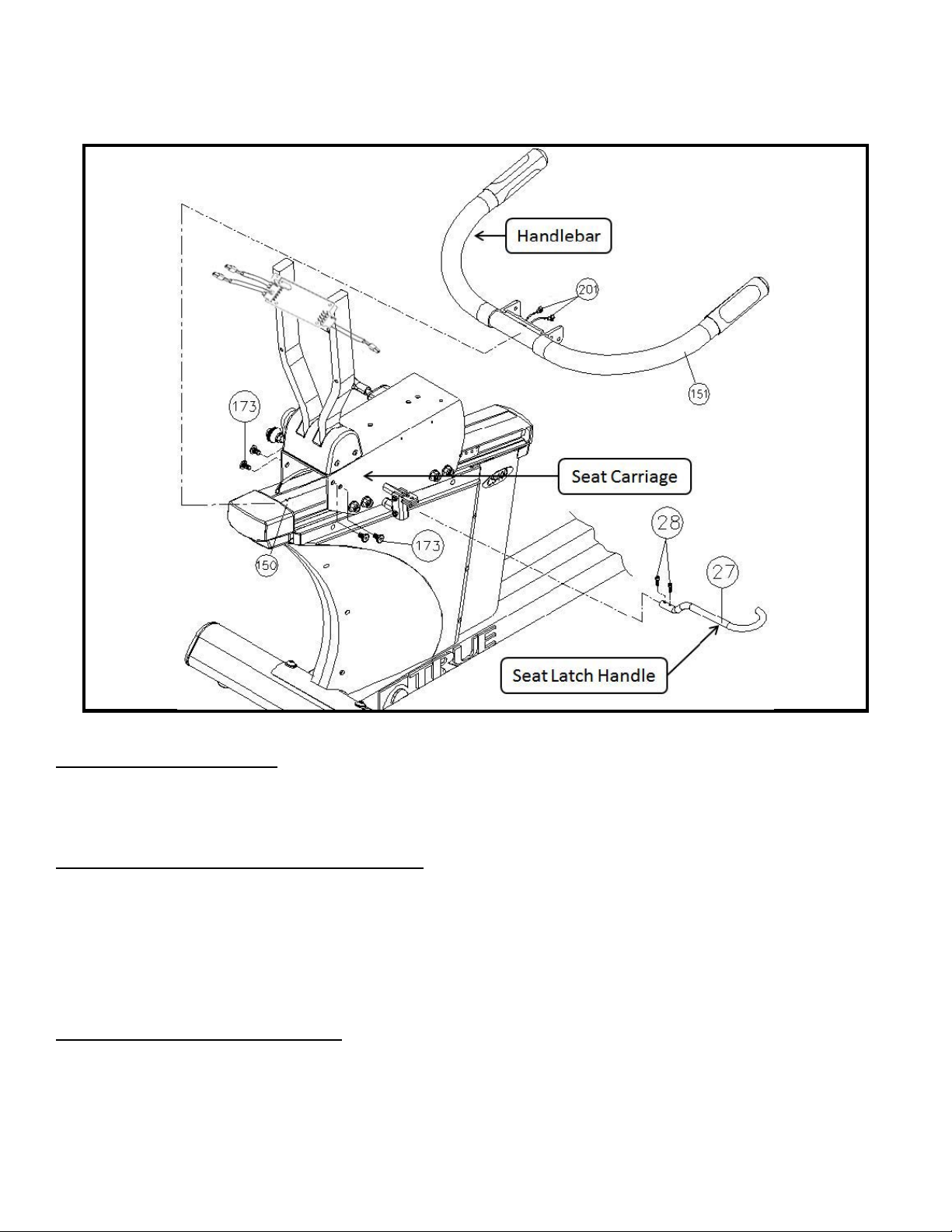

Step 3 Seat Latch Handle:
•Insert Seat Latch Handle into Seat Carriage
•Insert screws (#28, quantity 2)
•Tighten using the provided 4mm hex wrench
Step 4 Seat Handlebar Cable Connections:
•At least one person should hold the Handlebar while another completes the remaining cable connection steps
•Prior to connection, verify the Handlebar is in the correct orientation; visible screws onthe metal contact pads
should be facing down
•Connect the Handlebar cables with the cables coming from the upper portion of the seat back.
•Connect cable located in the back opening of the seat carriage to the single cable coming from the upper
portion of the seat back.
Step 5 Seat Handlebar Assembly:
•Insert the Handlebar bracket into the back opening of the Seat Carriage
•Again, verify that the Handlebar is in the correct orientation
•Insert screws (#173, quantity 4) through the Seat Carriage, into the Handlebar bracket
•Tighten using the provided 6mm hex wrench
Truefitness.com / 800.426.6570 / 636.272.7100 11

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):
Step 6 Seat Cushion:
•For each screw (#140) insert through quantity 1 split washer (#142) then 1 flat washer (#141)
•Place the Seat Cushion onto the top of the Seat Carriage
•Insert each screw assembly (quantity 4) through the sides of the Seat Cushion bracket, into the sides of the Seat
Carriage
•Tighten using the provided 4mm hex wrench
Step 7 Seat Back:
•For each screw (#170) insert through quantity 1 split washer (#142)
•Align the Seat Back holes with the Seat Back Frame holes
•Insert each screw assembly (quantity 4) through the Seat Back Frame tube, into the Seat Back
•Tighten using the provided 5mm hex wrench
Step 8 Seat Back Cover:
•Align posts on the plastic Seat Back Cover with the mating features on the Seat Back
•Snap the Seat Back Cover onto the Seat Back
Truefitness.com / 800.426.6570 / 636.272.7100 12

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):
Step 9 Water Bottle Holder:
•Place Water Bottle Holder Top onto the
Handlebar tube (as shown, left)
•Align the Water Bottom Holder Bottom
component with the Water Bottle Holder Top
component
•Insert each screw (#129, quantity 6) through the
Water Bottle Holder Bottom component and
Handlebar tube, into the Water Bottle Holder
Top component
•Tighten using Phillips head screwdriver (not
provided)
Step 10 Front Mast Preparation:
•Insert Bottom Console Cover onto the Front
Mast Tube (as shown, left)
•Insert Mast Boot onto the Front Mast Tube
(as shown, left)
•Verify that the Bottom Console Cover and
Mast Boot are in the correct orientation (as
shown, left)
Truefitness.com / 800.426.6570 / 636.272.7100 13

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):
Step 11 Front Mast Cable Routing:
•At least 1 person should hold the Front Mast
while an additional person(s) routes the
Front Mast cables
•Route the bundle of cables through the Front
Mast (as shown, left)
•A Pull-tie has been provided (attached to the
Front Mast tube) inorder to helpfacilitate
this routing
•Some installers mayfind it easier to route
each Cable from the Front Mast cable bundle
individually through the Front Mast tube
Step 12 Front Mast Assembly:
•Install the Front Mast onto the Bike Frame;
the short bracket on the Bike Frame should
fit inside the Front Mast tube
•Verify that the Front Mast is in the correct
orientation; Front Mast handlebars should be
facing the Seat Assembly
•For each screw (#16) insert through quantity
1 split washer (#25) then 1 flat washer (#15)
•Insert each screw assembly (quantity 4)
through the Front Mast tube, into the Bike
Frame bracket
•Tighten using the provided 6mm hex wrench
•Verify that the Front Mast is secured tightly
to the Bike Frame; tighten screws, if
necessary
•Slide Mast Boot down; tabs on the inside of
the Mast Boot will fit inside slots on the
plastic Shrouds
Truefitness.com / 800.426.6570 / 636.272.7100 14

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

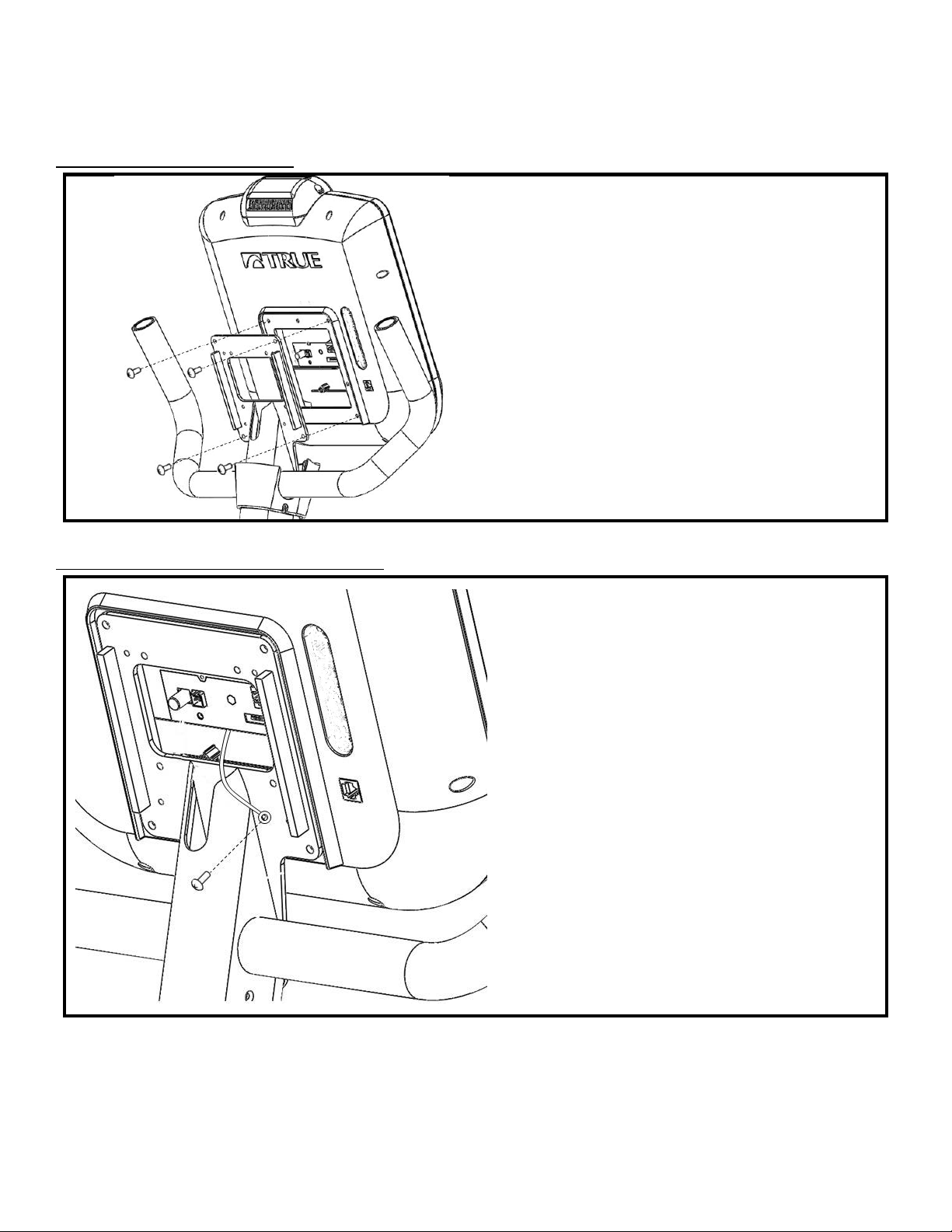

Step 13 Console Mounting:
•The fasteners used to attach the Console are
provided inthe Console packaging
•Align the back of the Console with the Front
Mast Console Mounting Plate
•Attach the Console to the Mounting Plate by
tightening all 4 screwswith aPhillips head
screwdriver (not provided)
Step 14 Grounding Wire Connection:
•Locate the Ground Screw; pre-installed into the
Front Mast Mounting Plate
•Remove the Ground Screw with a Phillips head
screwdriver (not provided)
•Insert the shaft of the Ground Screw through
the metal ring attached tothe green Console
Ground Wire
•Re-attach the Ground Screw tothe Front Mast
Mounting Plate
•Verify that the metal Ground Ring is
compressed between the head ofthe Ground
Screw and the Front Mast Mounting Plate
Truefitness.com / 800.426.6570 / 636.272.7100 15

CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

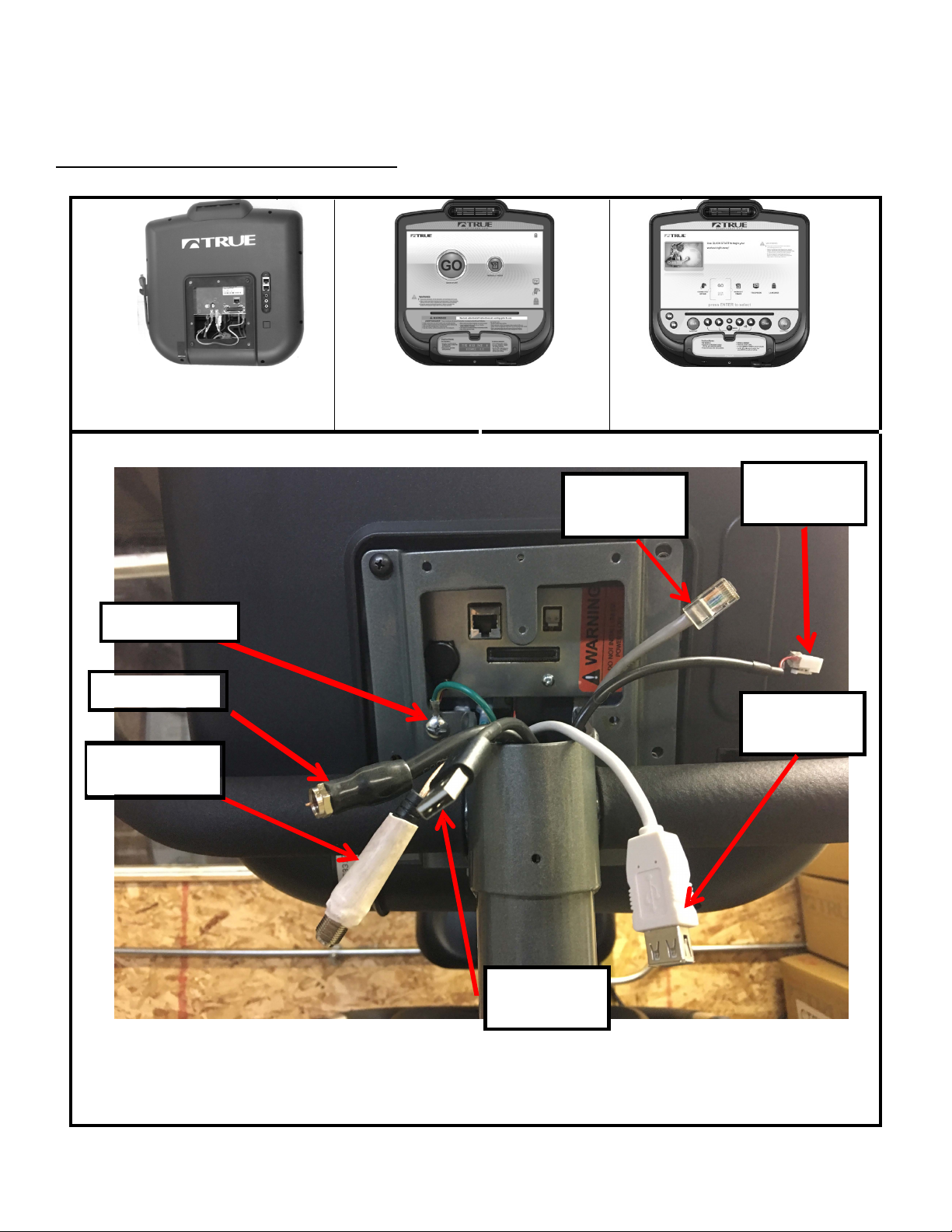

Step #15A Console Cable Connections:
*Follow Step 15A if installing a touchscreen console or 15”TFT console. For other consoles, proceed to Step 15B.
16” Touchscreen
Console
NOTE: Ethernet & Coaxial cable connections are not available on the Orange LED or 9” TFT Consoles
The Ethernet Port on the 15” TFT Console is non-functioning
All Ground Wires Must be connected
Truefitness.com / 800.426.6570 / 636.272.7100 16
Console
15” TFT
Coaxial Cable
Power Cable
(2Pin)
Network
Cable
Adapter Cable
(USB)
Ground Wire
Data Cable
(USB)
Coaxial Cable
Adapter
