TDD-4-S
TDD-4-S
†Depth does not include 1"(26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 151/4"(388 mm) for draft arms.
Direct Draw Beer Dispenser:
Stainless Steel Solid Door
4/06
True’s direct draw beer
dispensers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - stainless steel doors,
front and sides. Matching
aluminum back. All stainless
steel counter top.
Interior - 300 series stainless
steel floor with 1/2"(13 mm)
reinforced lip and heavy gauge
galvanized steel walls. NSF
approved for pre-packaged
and bottled product.
3"(77 mm) diameter stainless
steel insulated beer columns.
Cold air is directed into beer
columns to reduce foaming and
maximize draft beer profits.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
Model Doors
Capacity
1/2
Barrels
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TDD-4-S 3 4 903/8
2296
271/8
689
37
940
1/3
1/3
115/60/1
230-240/50/1
8.5
4.2
5-15P
▲
7
2.1
415
189
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TDD-4-S TFHY01E TFHY02S TFHY01P TFHY013
Direct Draw Beer Dispenser:
Stainless Steel Solid Door
TDD-4-S
DESIGN
• True’s direct draw beer dispensers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True beer dispensers
a more efficient low velocity, high
volume airflow design. This unique
design insures faster temperature
pull down of warm product, colder
holding temperatures and faster
recovery in high use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel doors, front
and sides. Matching aluminum back.
All stainless steel counter top.
• Interior - 300 series stainless steel floor
with 1/2" (13 mm) reinforced lip and
heavy gauge galvanized steel walls.
• Insulation - entire cabinet structure
and solid doors are foamed-in-
place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized base
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• 3"(77 mm) diameter stainless steel
insulated beer columns. Cold air
is directed into beer columns to
reduce foaming and maximize
draft beer profits.
DOORS
• Stainless steel exterior with heavy
gauge galvanized steel liner.
• Each door fitted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock
to insure permanent attachment.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
• Door locks standard.
LIGHTING
• Incandescent interior lighting.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• Designed to accommodate all types
of beer kegs.
• Convenient
1/2" (13 mm) barbed
T drain fitting located on front of
cooler.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒3" (77 mm) diameter castors
(requires 6).
❒4" (102 mm) diameter castors
(requires 6).
❒Double headed draft column.
❒Two-way manifold.
❒Three-way manifold.
❒Draft cap.
❒Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

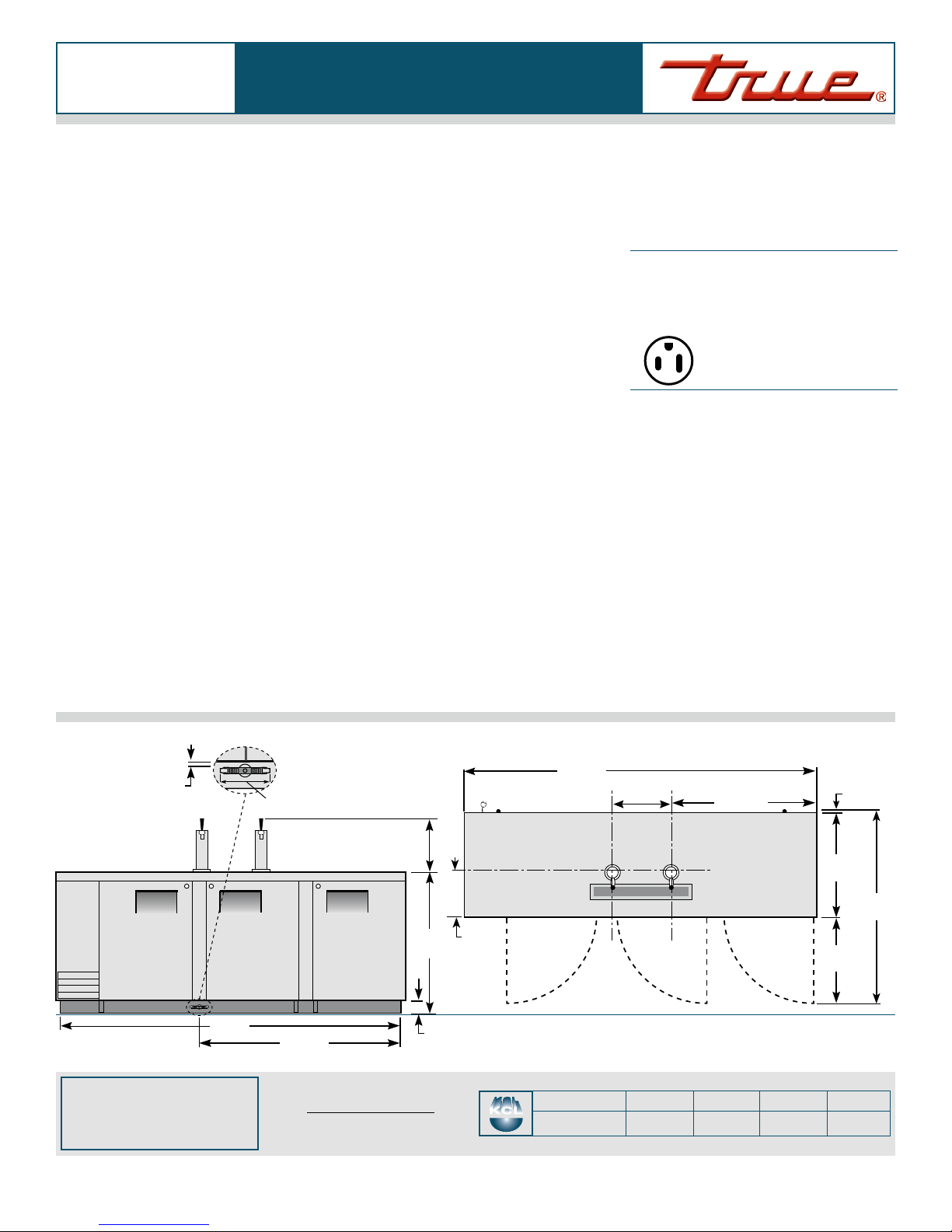

ELEVATION PLAN VIEW
TOP VIEW
151/4"
(388 mm)
881/2"
(2248 mm)
37"
(940 mm)
3"
(77 mm)
13"
(331 mm) 38 21/32"
(982 mm)
271/16"
(688 mm)
2125/32"
(554 mm)
1/2"(13 mm)
Barbed T
Drain Fitting
37/8"
(99 mm)
3/16"
(5 mm)
905/16"
(2294 mm) 1"
(26 mm)
4927/32"
(1277 mm)
117/32"
(285 mm)
5213/32"
(1332 mm)
