True TDD-3CT-S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TDD-3CT-S
TDD-3CT-S
†Depth does not include 1"(26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 133/4"(350 mm) for draft arms.
Direct Draw Beer Dispenser:
Solid Door Stainless Steel Exterior Club Top
1/07
Model Doors
Capacity
1/2
Barrels Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TDD-3CT-S 23 169
1/8
1756
271/8
689
381/2
978
1/3
1/3
115/60/1
230-240/50/1
8.5
4.2
5-15P
▲
7
2.13
355
162
R
True’s direct draw beer dispensers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
Easy to reach refrigerated storage
area under slide top for chilled
product or glasses.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).
Exterior - stainless steel doors, front
and sides. Matching aluminum back.
All stainless steel counter top and lid.
Interior - 300 series stainless steel
floor with 1/2" (13 mm) reinforced
lip and heavy gauge galvanized
steel walls. NSF approved for pre-
packaged and bottled product.
Adjustable, heavy duty PVC coated
shelf.
Two (2) 3" (77 mm) diameter stainless
steel insulated beer columns. Cold air
is directed into beer columns keeping
beer lines refrigerated to reduce
foaming and maximize draft beer
profits.
Anodized aluminum glass rail allows
for convenient storage for glasses on
top.
Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TDD-3CT-S TFSY01E TFSY01S TFSY01P TFSY013
Direct Draw Beer Dispenser:
Solid Door Stainless Steel Exterior Club Top
TDD-3CT-S
DESIGN
• True’s direct draw beer dispensers are
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to
3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True beer dispensers a more
efficient low velocity, high volume airflow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning and
maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel doors, front and
sides. Matching aluminum back. All
stainless steel counter top and lid.
• Interior - 300 series stainless steel floor
with 1/2" (13 mm) reinforced lip and heavy
gauge galvanized steel walls.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• Welded, heavy duty galvanized base rail,
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Two (2) 3" (77 mm) diameter stainless
steel insulated beer columns. Cold air is
directed into beer columns keeping beer
line refrigerated to reduce foaming and
maximize draft beer profits.
• Anodized aluminum glass rail.
DOORS
• Stainless steel exterior with heavy gauge
galvanized steel liner.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
• Door locks standard.
SHELVING
• One (1) adjustable, heavy duty, black, PVC
coated wire shelf 113/8"L x 211/4"D
(289 mm x 540 mm). Four (4) chrome
plated shelf clips included per shelf.
• Aluminum shelf support pilasters; shelf is
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Incandescent interior lighting.
MODEL FEATURES
• Easy to reach refrigerated storage area
under slide top for chilled product or
glasses.
• Flip-lock to secure stainless steel lid.
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Convenient
1/2" (13 mm) barbed T drain
fitting located on front of cooler.
• Designed to accommodate all types of
beer kegs.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒4" (102 mm) diameter castors.
❒Double headed draft column.
❒Two-way tapper manifold.
❒Three-way tapper manifold.
❒Draft cap.
❒Remote cabinets (condensing unit
supplied by others; system comes standard
with 404A expansion valve and requires
R404A refrigerant), consult factory
technical service department for BTU
information.
115/60/1
NEMA-5-15R

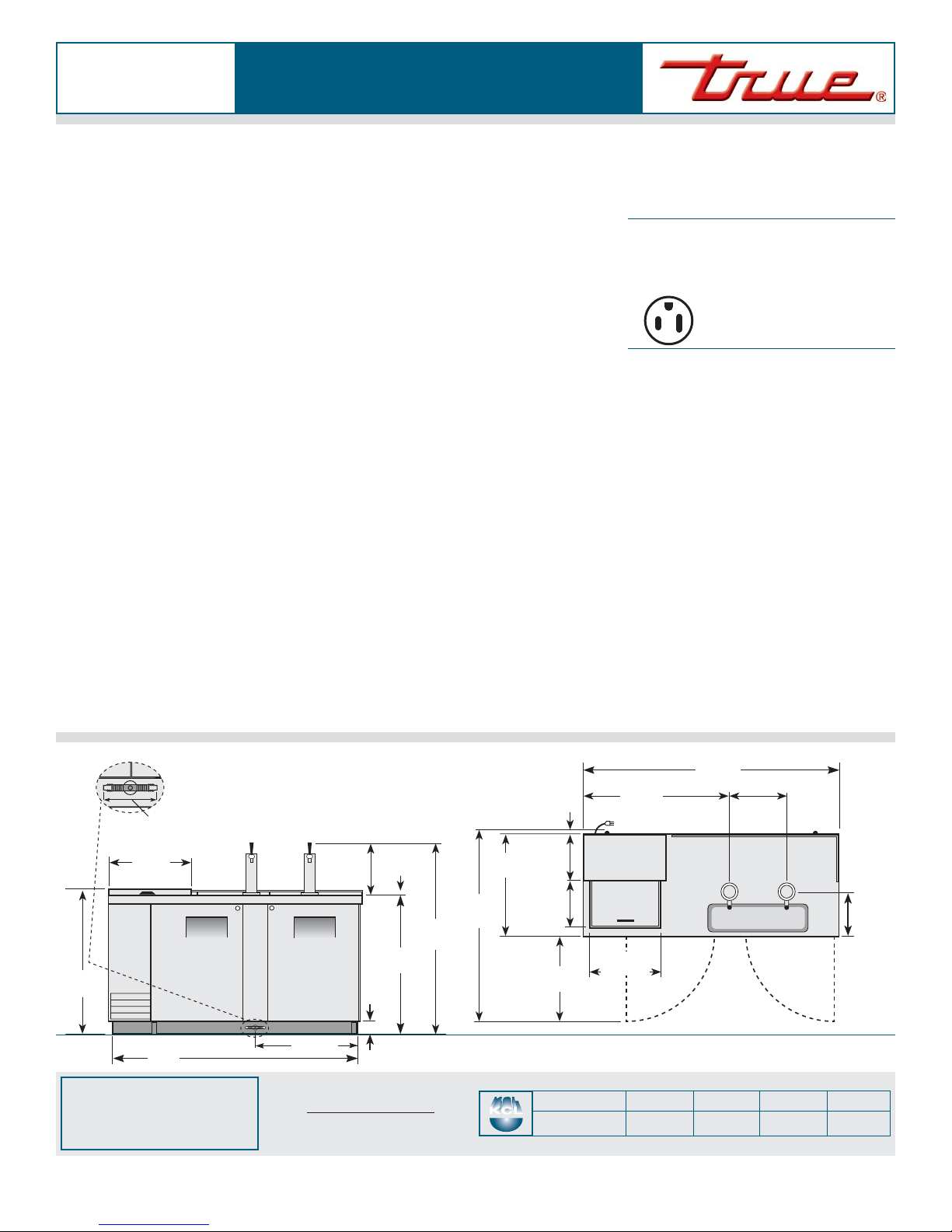

ELEVATION PLAN VIEW
671/4"
(1709 mm)
37"
(940 mm)
3"
(77 mm)
271/16"
(688 mm)
117/32"
(285 mm)
521/4"
(1328 mm)
151/4"
(388 mm)
4927/32"
(1267 mm)
2125/32"
(554 mm)
281/8"
(715 mm)
231/16"
(586 mm)
381/2"
(978 mm)
691/16"
(1755 mm)
13"
(331 mm)
3725/32"
(960 mm)
1/2"(13 mm)
Barbed T
Drain Fitting
37/8"
99 mm
11/2"
(39 mm)
1719/32"
(447 mm)
1017/32"
(268 mm)
123/4"
(324 mm)
1"
(26 mm)
