True GDM-7 User manual

Specications subject to change without notice.
Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).
Rough-In Data
Model:
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
ApprovAls: AvAilAble At:
2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TRUE FOOD SERVICE
EQUIPMENT, INC.
GDM-7
T RUE R EFRIGERA T ION
MADE IN
SINCE 1945
U.S.A.
®
Glass Door Merchandiser:
Swing Door Counter-Top Refrigerator
GDM-7
The world’s #1 manufacturer of glass

door merchandisers.
True’s commitment to using the

highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and
lower utility costs in an attractive
merchandiser that brilliantly displays
packaged food and beverages.
Designed for convenient access, fast

service, and attractive display.
Oversized, factory balanced,

refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).
Exterior - non-peel or chip white

laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,

white aluminum interior liner with
stainless steel oor.
Self closing door. Positive seal,

torsion type closure system.
“Low-E”, double pane thermal

insulated glass door assembly with
mitered plastic channel frame. The
latest in energy ecient technology.
Safety shielded uorescent interior

lighting for longer, brighter, shadow-
free illumination.
Entire cabinet structure is foamed-

in-place using Ecomate. A high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).
Model Doors Shelves
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)L D† H
GDM-7 1 3 24 24¾ 39¾ ⁄ 115/60/1 4.5 5-15P 9 200
610 629 1010 ⁄ 230-240/50/1 2.4 ▲2.74 91
† Depth does not include 1⁄" (35 mm) for door handle. ▲Plug type varies by country.
7/11

StanDaRD FeatuReS
Model:
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

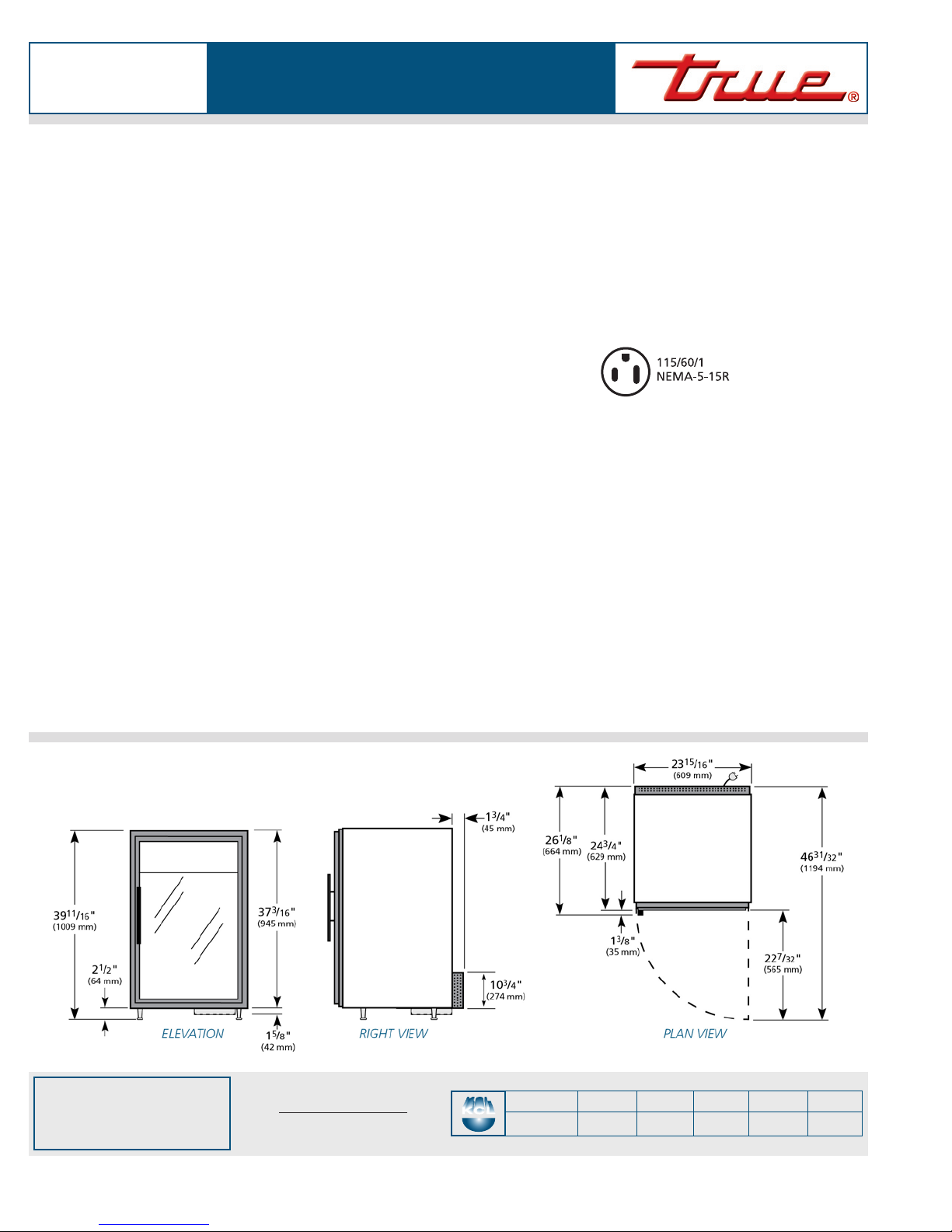

Plan VIew
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
GDM-7
Glass Door Merchandiser:
Swing Door Counter-Top Refrigerator
Model Elevation Right Plan 3D Back
GDM-7 TFD033E TFD033S TFD033P TFDY333
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
DESIGN
True’s commitment to using the
•
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive
merchandiser that brilliantly displays
packaged food and beverages.
REFRIGERATION SYSTEM
Factory engineered self-contained, capillary
•
tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with
•
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating
•
evaporator fan motor(s) and larger fan
blade gives True merchandisers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
CABINET CONSTRUCTION
Exterior - non-peel or chip white laminated
•
vinyl; durable and permanent.
Interior - attractive, NSF approved, white
•
aluminum liner with stainless steel oor.
Insulation - entire cabinet structure is
•
foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Cabinet tted with 2
• ½” (64 mm) legs.
Door sign decal. Variety of decal options
•
available.
DOOR
“Low-E”, double pane thermal insulated
•
glass door assembly with mitered plastic
channel frame. The latest in energy ecient
technology.
Door tted with 12” (305 mm) long
•
extruded handle.
Self closing door. Positive seal, torsion type
•
closure system.
Magnetic door gasket of one piece
•
construction, removable without tools for
ease of cleaning.
SHELVING
Three (3) adjustable, heavy duty PVC
•
coated wire shelves; two 19 ⁄”L x 18”D
(501 mm x 458 mm) and one (1) 19 ⁄”L
x 16 ½”D (501 mm x 420 mm). Four (4)
chrome plated shelf clips included per
shelf.
Shelf support pilasters made of same
•
material as cabinet interior; shelves are
adjustable on ½” (13 mm) increments.
LIGHTING
Safety shielded uorescent interior lighting.
•
Cabinet lighting utilizes electronic ballast
•
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
eciency.
MODEL FEATURES
Evaporator is epoxy coated to eliminate the
•
potential of corrosion.
See our website www.truemfg.com for
•
latest color and decal oerings.
Listed under NSF-7 for the storage and/or
•
display of packaged or bottled product.
ELECTRICAL
Unit completely pre-wired at factory and
•
ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
230 - 240V / 50 Hz.❑
4” (102 mm) legs.❑
Black exterior.❑
Cherry exterior.❑
Walnut exterior.❑
Stainless steel exterior.❑
Red wine thermostat.❑
White wine thermostat.❑
Chocolate thermostat.❑
Barrel lock (factory installed).❑
Additional shelving.❑
1❑¼” (32 mm) pricing strips.
